408-1542
07 FEB 19 Rev T

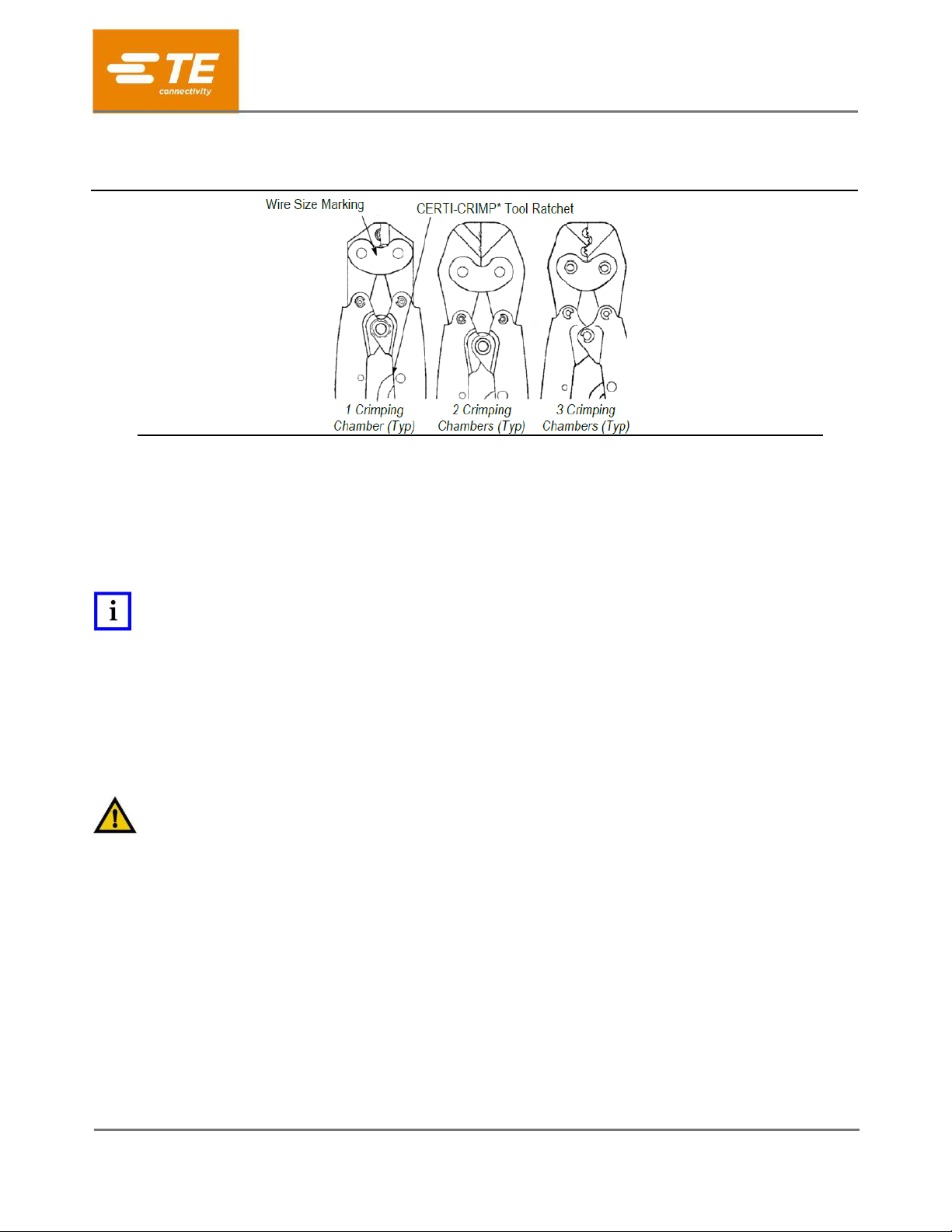

Figure 1
1. INTRODUCTION
Hand Crimping Tools 46447, 2326374-1, 47410 (crimps 12-10 AWG terminals on a 45° angle), 49592, 49935,
69363, 525693, 574573, 1490046-1, and 1490047-1 (shown in Figure 1) are used to crimp SOLISTRAND* and
STRATO-THERM* terminals and splices (listed in Figure 2) onto stranded wire sizes 26 through 10 AWG.
Read these instructions thoroughly before using the tool.
NOTE
Dimensions in this instruction sheet are in millimeters [with inch equivalents in brackets]. Figures and illustrations are for
reference only, and are not drawn to scale.
Reasons for reissue of this instruction sheet are provided in Section 7, REVISION SUMMARY.
2. DESCRIPTION
Each tool consists of a CERTI-CRIMP tool ratchet and two crimping jaws (indenter and anvil) containing one,
two, or three crimping chambers. Each tool is marked with the wire size range for each crimping chamber. See
Figure 1. Full crimping of the terminal or splice is assured by the CERTI-CRIMP tool ratchet. Once engaged,
the ratchet does not release until the tool handles have been FULLY closed.
CAUTION
The crimping jaws bottom before the ratchet releases. This feature ensures maximum electrical and tensile performance of the
crimp. Do NOT re-adjust the ratchet.
3. CRIMPING PROCEDURE
Strip the wire according to the dimensions listed in Figure 2. The strip length is determined by the type of
terminal or splice and by the wire size. Do not nick or cut the wire strands. Proceed as follows:
1. Close the tool handles until the ratchet releases. Allow the tool handles to open fully.
2. Center the terminal or splice wire barrel in the appropriate crimping chamber. For terminals, make
sure that the flat side of the tongue faces the anvil or the nest; for splices, make sure that the brazed
seam (when visible) is toward the indenter or, the nest. See Figure 3.
3. While holding the terminal or splice in place, squeeze the tool handles together just until the jaws
begin to close on the wire barrel. Do NOT deform the wire barrel.
4. Insert the stripped wire into the wire barrel, making sure that the wire insulation does not enter the
wire barrel.
PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low
volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Hand Crimping Tools 46447, 2326374-1,
47410, 49592, 49935, 69363, 525693,
574573, 1490046-1 and 1490047-1

408-1542
Rev T
2 of 8
Product
Hand Tool
Wire Size
(AWG) Range
and Terminal
Size
Crimping
Chamber
Marking
Wire Strip Length
Terminal
(Standard
Terminal
(Long Barrel)
Butt
Splice
Parallel
Splice
STRATO-THERM
46447
2326374-1
22-16
22-16
4.37-5.16
[.172-.203]
---
6.35-7.14
[.250-.281]
7.94-8.73
[.313-.344]
16-14
16-14
12-10
12-10
6.35-7.14
[.250-.281]
SOLISTRAND
49592
14-12
14-12
4.37-5.16
[.172-.203]
---
7.94-8.73
[.313-.344]
---
49935
525693
574573
22-16
22-16
4.37-5.16
[.172-.203]
6.35-7.14
[.250-.281]
6.35-7.14
[.250-.281]
7.94-8.73
[.313-.344]
49935
525693
574573
1490046-1
16-14
16-14
4.37-5.16
[.172-.203]
6.35-7.14
[.250-.281]
6.35-7.14
[.250-.281]
7.94-8.73
[.313-.344]
47410
49935
525693
574573
1490047-1
12-10 &
16-14 HD
12-10
6.35-7.14
[.250-.281]
---
6.35-7.14
[.250-.281]
---
69363
26-24
26-24
3.17-3.97
[.125-.156]
---
3.57-4.37
[.141-.172]
---
22-20
22-20
4.37-5.16
[.172-.203]
---
5.16-5.95
[.203-.234]
---
24-20
22-20
---
---
4.37-5.16
[.172-.203]
---
Figure 2
5. While holding the wire in place, squeeze the tool handles together until the ratchet releases, then
allow the tool handles to open fully.
6. To crimp the other half of a butt splice, position the uncrimped wire barrel in the crimping chamber,
and repeat the crimping procedure.
NOTE
If splice cannot be turned for crimping other half, turn the tool around.
NOTE
Terminals and splices can also be rotated 180 degrees with the seam toward the nest.

408-1542
Rev T
3 of 8
4. CRIMP INSPECTION
Inspect crimped terminals and splices by checking the features described in Figure 4. Poor crimps can be
avoided by carefully following the procedures provided in Section 3, and by following the tool maintenance
procedures provided in Section 5.
Figure 3
5. MAINTENANCE AND INSPECTION
The tool is inspected before being shipped, however TE recommends that the tool be inspected immediately
upon arrival at your facility to ensure that the tool has not been damaged during shipment.
Frequency of inspection depends on:
1. The care, amount of use, and handling of the hand tool.
2. The presence of abnormal amounts of dust and dirt.
3. The degree of operator skill; and
4. Your own established standards.
Daily Maintenance
1. Remove dust, moisture, and other contaminants with a clean brush, or a soft, lint--free cloth. Do NOT
use objects that could damage the tool.
2. Make certain that the retaining pins are in place and that they are secured with retaining rings.
3. All pins, pivot points, and bearing surfaces should be protected with a thin coat of any good SAE 20
motor oil. Do NOT oil excessively.
4. When the tool is not in use, keep handles closed to prevent objects from becoming lodged in the
crimping jaws. Store the tool in a clean, dry area.
Lubrication
Lubricate all pins, pivot points, and bearing surfaces with SAE 20 motor oil as follows:
Tools used in daily production - lubricate daily
Tools used daily (occasional) - lubricate weekly
Tools used weekly - lubricate monthly
Wipe excess oil from tool, particularly from crimping area. Oil transferred from the crimping area onto certain
terminations may affect the electrical characteristics of an application.

408-1542
Rev T
4 of 8
Figure 4
Periodic Inspection
1. The tool should be immersed (handles partially closed) in a reliable commercial degreasing compound
to remove accumulated dirt, grease, and foreign matter.
2. Close tool handles until ratchet releases and then allow them to open freely. If they do not open
quickly and fully, the spring is defective and must be replaced. See Section 6, REPLACEMENT AND
REPAIR.
3. Inspect head assembly for worn, cracked, or broken jaws. Refer to Figure 5. If damage is evident,
return the tool to TE for evaluation and repair. See Section 6, REPLACEMENT AND REPAIR.

408-1542
Rev T
5 of 8
Figure 5
Gaging the Crimping Chambers (Figure 7)
This inspection requires the use of a plug gage conforming to the dimensions provided in Figure 6.
TE does not manufacture or market these gages. To gage the crimping chambers, proceed as follows:
1. Remove traces of oil or dirt from the crimping chambers and plug gage.
2. Close the tool handles until it is evident that the jaws have bottomed; then hold in this position. Do
NOT force the jaws beyond initial contact.
3. Align the GO element with the crimping chamber. Push element straight into the crimping chamber
without using force. The GO element must pass completely through the crimping chamber.
4. Align the NO-GO element and try to insert it straight into the same crimping chamber. The NO-GO
element may start entry, but must not pass completely through the crimping chamber.
NOTE
The jaws in Tools 49935 and 574573 are not symmetrically located; make sure that the tool conforms to the symmetry
requirements shown in Figure 8.
If the crimping chambers conforms to the gage inspection, the tool is considered dimensionally correct, and
should be lubricated with a THIN coat of any good SAE 20 motor oil. If not, the tool must be returned for further
evaluation and repair. Refer to Section 6, REPLACEMENT AND REPAIR.
For additional information regarding the use of a plug gage, refer to Instruction Sheet 408-7424.
Ratchet Inspection
The CERTI-CRIMP tool ratchet should be checked to ensure that the ratchet does not release prematurely,
allowing the jaws to open before they have fully bottomed. Obtain a 0.025 mm [.001 in.] shim suitable for
checking the clearance between the bottoming surfaces of the crimping jaws. Proceed as follows:
1. Select a terminal or splice, and properly stripped wire with maximum wire load (such as wire size 16
AWG and size 22-16 terminal).
2. Position the terminal or splice and wire between the crimping jaws, as described in Section 3.
3. Hold the wire in place and squeeze the handles until the CERTI-CRIMP tool ratchet releases. Hold the
handles in this position, maintaining just enough tension to keep the jaws closed.
4. Check the clearance between the bottoming surfaces of the crimping jaws. If the clearance is 0.025
mm [.001 in.] or less, the ratchet is satisfactory. If clearance exceeds 0.025 mm [.001 in.], the ratchet
is out of adjustment and must be repaired. See Section 6, REPLACEMENT AND REPAIR.

408-1542
Rev T
6 of 8
Figure 6
Figure 7
Hand Tool
Crimping
Chamber
Marking
Gage Element Dimensions
GO
NO-GO
“R”
46447
2326374-1
22-16
1.295-1.303 [.0510-.0513]
1.445-1.447 [.0569-.0570]
1.57 [.062]
16-14
1.498-1.506 [.0590-.0593]
1.648-1.651 [.0649-.0650]
1.57 [.062]
12-10
2.108-2.116 [.0830-.0833]
2.258-2.260 [.0889-.0890]
2.36 [.093]
49592
14-12
1.752-1.760 [.0690-.0693]
1.902-1.905 [.0749-.0750]
1.57 [.062]
49935
525693
574573
22-16
1.168-1.176 [.0460-.0463]
1.318-1.320 [.0519-.0520]
1.57 [.062]
49935
525693
574573
1490046-1
16-14
1.371-1.379 [.0540-.0543]
1.521-1.524 [.0599-.060]
1.98 [.078]
47410
49935
525693
574573
1490047-1
12-10
1.930-1.938 [.0760-.0763]
2.080-2.082 [.0819-.082]
2.76 [.109]
69363
26-24
0.660-0.668 [.026-.0263]
.0810-0.812 [.0319-.032]
1.003 [.0395]
22-20
0.939-0.947 [.037-.0373]
1.089-1.092 [.0429-.043]
1.19 [.047]

408-1542
Rev T
7 of 8
6. REPLACEMENT AND REPAIR
Customer-replaceable parts are listed in Figure 9. A complete inventory should be stocked and controlled to
prevent lost time when replacement of parts is necessary. Parts other than those listed should be replaced by
TE to ensure quality and reliability. Order replacement parts through your TE Representative, or call 1-800-526-
5142, or send a facsimile of your purchase order to 717-986-7605, or write to:
CUSTOMER SERVICE (038-035)
TE CONNECTIVITY CORPORATION
PO BOX 3608
HARRISBURG PA 17105-3608
Tools may also be returned to TE for evaluation and repair. For customer repair service, please contact a TE
Representative at 1-800-526-5136.
Figure 8
Figure 9
Replacement Parts
Item
Part Number
Description
Qty Per Tool
525693 Tool Only
1
21045-3
Ring, Retaining
4
---
2
1-23619-6
Ring, Retaining
2
2
3
39364
Spring, Hold Down
1
---
4
2-23620-9
Pin, Straight, Grooved
1
1
5
21045-6
Ring, Retaining
2
2
6
525108
Ring, Retaining, Beryl Copper
---
4

408-1542
Rev T
8 of 8
7. REVISION SUMMARY
Figure 2 added 16-14 HD AWG Wire Size (AWG) Range and Terminal Size to SOLISTRAND 12-10
AWG
Figure 2 and Figure 6 changed Hand Tool Number from 525623 (22-16 AWG) to 525693
