Petsafe pawz away PWF00-14406 User manual

®
Pawz Away®
Threshold Pet Barrier
PWF00-14406
ZWF00-17117
Please read this entire product manual before beginning.

2 Customer Care Center [phone]
Welcome
Thank you for choosing PetSafe®Brand. You and your pet deserve a companionship that includes memorable moments and a shared understanding
together. Our products provide you with the tools and technologies to successfully train your pet. If you have any questions about our products or
about training your pet, please visit our website at www.petsafe.com or contact our Customer Care Center at [phone].
Hereinafter Radio Systems Corporation, Radio Systems PetSafe Europe Ltd., Radio Systems Australia Pty Ltd. and any other affiliate or brand of Radio
Systems Corporation may be referred to collectively as “We” or “Us.”
Important Safety Information
Explanation of Attention Words and Symbols used in this guide
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to
avoid possible injury or death.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
CAUTION, used without the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in harm to your pet.
NOTICE is used to address safe use practices not related to personal injury.

petsafe.com 3
• Not for use with aggressive dogs. Do not use this product if your dog is prone to aggressive behavior. Aggressive dogs can cause
severe injury or death to their owners and others. If you are not sure that this product is right for your dog, please talk to your
veterinarian or a certified trainer.
• There is a risk of explosion if a battery is replaced by an incorrect type. Do not short circuit, mix old and new batteries, dispose of
in fire or expose to water. When batteries are stored or disposed, they must be protected from shorting. Dispose of used batteries
properly.
This System is NOT a solid barrier. The system is designed to act as a deterrent, using static stimulation to condition pets to remain
outside of the established barrier area. It is important that you reinforce training with your pet on a regular basis. Since the tolerance
level to static stimulation varies from pet to pet, Radio Systems Corporation CANNOT guarantee that the system will in all cases
keep a pet outside of the established barrier area. Not all pets can be trained to avoid entering the barrier area. Therefore, if you
have reason to believe that your pet may harm himself or pose a danger to others if he is not kept from entering the barrier area, you
should NOT rely solely upon this system to restrict your pet. Radio Systems Corporation shall NOT be liable for any personal injuries,
property damage, injury to or death of your pet, economic loss or any consequential damages sustained as a result of any animal
entering the barrier area.
• Use caution when placing the threshold transmitter in a doorway—it can be a tripping hazard.
• Do not place the threshold transmitter on a stair step due to a possible tripping hazard.
• This product is not a toy. Use it only to deter pets from particular areas.

4 Customer Care Center [phone]

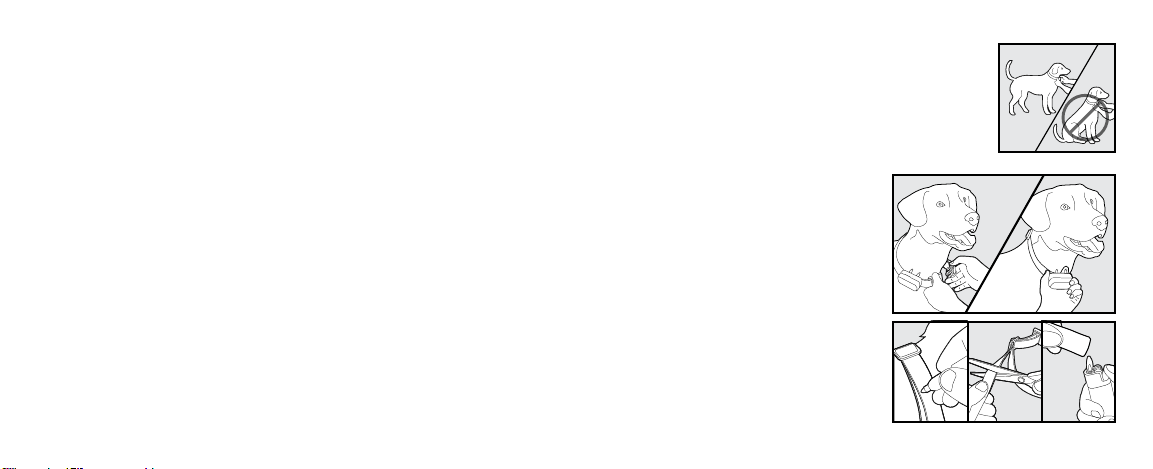

Proper fit of the receiver collar is important. A receiver collar worn for too long or made too tight on the pet’s neck may cause skin
damage, ranging from redness to pressure ulcers. This condition is commonly known as bed sores.
- Avoid leaving the receiver collar on the pet for more than 12 hours per day.
- When possible reposition the receiver collar on the pet’s neck every 1 to 2 hours.
- Check the fit to prevent excessive pressure; follow the instructions in this manual.
- Never connect a leash to the receiver collar; it will cause excessive pressure on the contact points.
- When using a separate collar for a leash, don’t put pressure on the receiver collar.
- Wash the pet’s neck area and the contact points of the receiver collar weekly with a damp cloth.
- Examine the contact area daily for signs of a rash or a sore.
- If a rash or sore is found, discontinue use of the receiver collar until the skin has healed.
- If the condition persists beyond 48 hours, see your veterinarian.
- For additional information on bed sores and pressure necrosis, please visit our website.

petsafe.com 5
These steps will help keep your pet secure and comfortable. Millions of pets are comfortable while they wear stainless steel contact
points. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the receiver
collar. If so, you may relax some of these precautions. It is important to continue daily checks of the contact area. If redness or
sores are found, discontinue use until the skin has fully healed.
• You may need to trim the hair in the area of the contact points. Never shave the pet’s neck; this may lead to a rash or infection.
• To prevent an unintended stimulation, do not perform the setup procedures while the receiver collar is on your pet.
• If you are using a collar and a leash for training, be sure the extra collar does not put pressure on the contact points of the
receiver collar.
• For proper operation, the maximum operating height of the receiver collar is 36 in. from the threshold transmitter.
• To avoid damage to the threshold transmitter, do not use on wet surfaces, in damp or wet locations or around swimming pools.
This product is designed for indoor use only. Do not expose to rain or snow.
• To avoid potential damage to your threshold transmitter, do not stand or step on the threshold transmitter.

6 Customer Care Center [phone]
Table of Contents
Components.............................................................................................. 7
Other Items You May Need ....................................................................... 7
Operating Guide ..................................................................................... 9
Placement of the Threshold Transmitter ............................................... 9
Set Up the Threshold Transmitter ....................................................... 10
Test the Barrier Area............................................................................ 11
Fit the Receiver Collar on Your Pet ..................................................... 13
Re-Thread the Receiver Collar ............................................................ 15
Receiver Collar Batteries..................................................................... 16
Additional Features ............................................................................. 17
Training Guide ...................................................................................... 18
Begin Your Pet’s First Session ............................................................ 18
Further Training ................................................................................... 19
Troubleshooting ................................................................................... 20
Terms of Use and Limitation of Liability .................................................. 22
Compliance ............................................................................................. 23
Customer Care International ................................................................... 24
Battery Disposal ...................................................................................... 24
Important Recycling Advice .................................................................... 25
Perchlorate Battery.................................................................................. 25
Warranty .................................................................................................. 25

petsafe.com 7

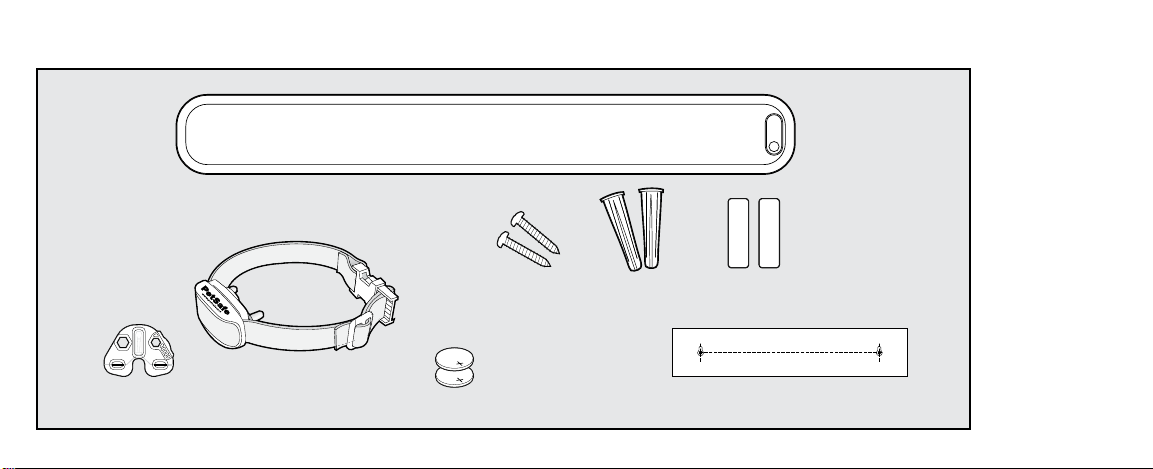

Components
Other
Items
You
May
Need
• Drill
• Screw driver
• Non-metallic
collar and a
leash
• Scissors
• Lighter
®
www.petsafe.net/fencing
414-2341
292 mm (11.5 Inches)
Threshold Transmitter
(4 AAA Batteries not included)
Mounting TemplateTest Light Tool
Receiver Collar (2) 3V Lithium
Batteries for
Receiver Collar
Mounting
Screws
Mounting
Strips
Mounting
Anchors

8 Customer Care Center [phone]
How the System Works
The PetSafe®Pawz Away®Threshold Pet Barrier keeps your pet from entering or leaving a certain room, from going up or down stairs, off of furniture, etc. Just
place the threshold transmitter near the area your pet should avoid. The PetSafe®Pawz Away®Threshold Pet Barrier transmits an adjustable elliptical radio
signal. Your pet wears a receiver collar with contact points that touch his neck. When your pet enters the barrier area, he will hear a series of audible tones from
the receiver collar and he will feel a safe, progressive static stimulation, delivered through the contact points on his neck. The progressive static stimulation will
get his attention, but will not cause harm. The stimulation continues until your pet leaves the barrier area. If your pet doesn’t leave the area within 2-3 seconds,
the receiver collar will stimulate at the maximum level until the pet either leaves the area or until the safety time-out feature occurs at 13-15 seconds. The
PetSafe®Pawz Away®Threshold Pet Barrier has been proven safe, comfortable, and effective for pets at least 6 months old and 5 lb. or more.
Key Definitions
Threshold Transmitter: Transmits an adjustable range wireless radio signal.
Barrier Area: The area that you want to prevent your pet from gaining access.
Mode Button: Turns the threshold transmitter on/off and adjusts the range level setting.
Mode Switch, Standard Mode: Uses a normal transmission rate for extended battery life.
Mode Switch, Training Mode: Uses a higher transmission rate for faster response.
Receiver Collar: Receives the radio signal when located within the range setting of the
threshold transmitter.
Contact Points: Deliver the safe, progressive static stimulation when your pet
enters the barrier area.
Progressive Static Stimulation: Static stimulation begins at the lowest level and automatically
increases to the maximum level within 3 seconds of first detection in the barrier area in the standard
mode or within 2 seconds in the training mode.
Barrier
Area
Receiver
Collar
Threshold
Transmitter
LED Light
Mode Button
Mode Switch
Battery Door
Open
Battery
On
Off
Contact
Point

petsafe.com 9
Operating Guide
Placement of the Threshold Transmitter

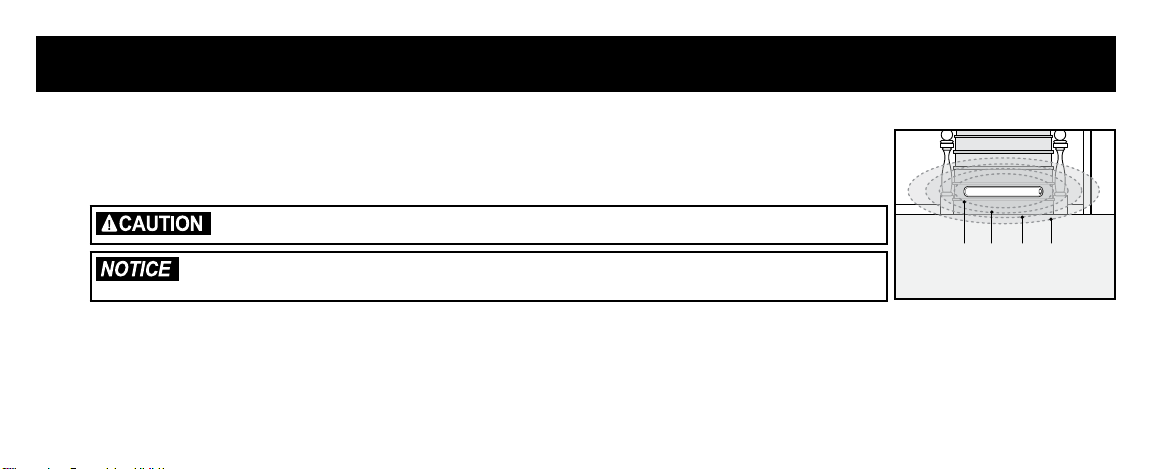

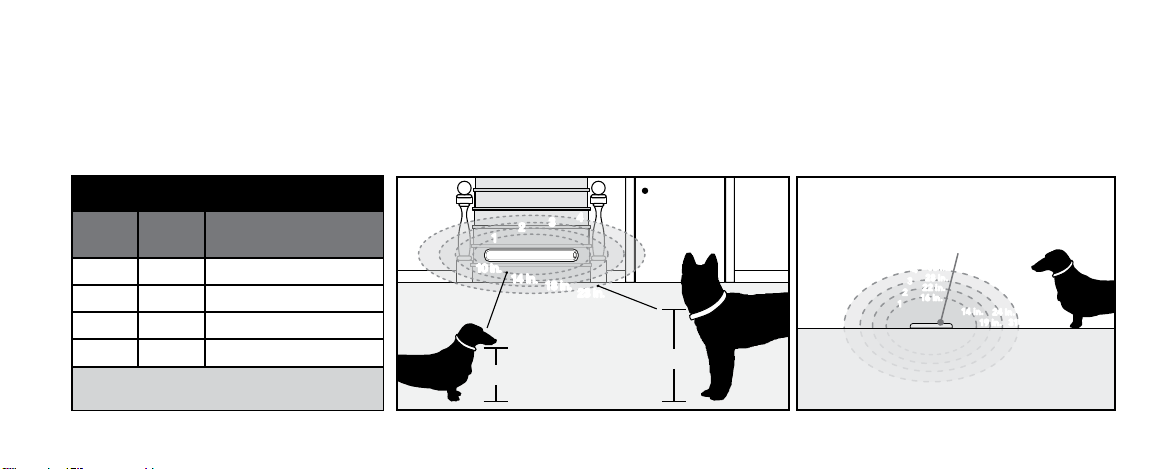

The threshold transmitter emits a radio signal from all sides in an elliptical pattern. The signal may transmit through
a wall or the ceiling/floor. The threshold transmitter can be placed laying flat on a surface or mounted on a stair riser
or wall. However, if you choose to mount the threshold transmitter, the signal becomes very directional—the signal
will be strongest directly above the unit. The signal is weakest to the side of the unit (1A).
• Use caution when placing the threshold transmitter in a doorway—it can be a tripping hazard.
• Do not place the threshold transmitter on a stair step due to a possible tripping hazard.
• To avoid damage to the threshold transmitter, do not use on wet surfaces, in damp or wet locations or around swimming pools.
This product is designed for indoor use only. Do not expose to rain or snow.
• To avoid potential damage to your threshold transmitter, do not stand or step on the threshold transmitter.
Do not mount or place the threshold transmitter:
• On a metal wall • Near large metal objects such as refrigerators, washing machines, etc.
• On metal surfaces • Near audio speakers
• Within 8 ft. of other Pawz Away®pet barriers
Note: We do not recommend positioning the threshold transmitter vertically in the doorway or hallway. The performance will not be optimal. For receiver
collar activation, the receiver collar might have to be closer to the threshold transmitter.
Step
1
1 2 3 4
Range Levels
1A

10 Customer Care Center [phone]
Set Up the Threshold Transmitter
To prevent an unintended stimulation, never perform the setup procedures while your pet is wearing the receiver collar.

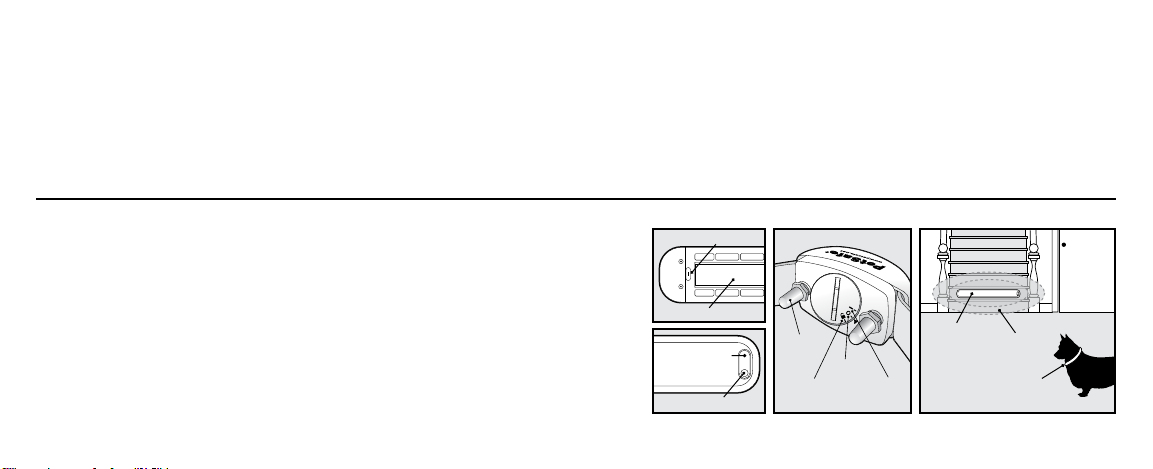

1. Turn over the threshold transmitter and remove the battery door. Install four AAA alkaline batteries
(2A) and replace the battery door.
2. Slide the switch on the back of the threshold transmitter to training mode until your dog has
learned his boundary.
Turning the Threshold Transmitter On
Turn the threshold transmitter right side up. Press and hold the mode button until the green LED light is
on. Release the button and the green LED light turns off. The red LED light will then flash the transmitter
level setting (between 1 and 4 times).
Turning the Threshold Transmitter Off
Press and hold the mode button until the green LED light turns off.
Setting the Transmitter Levels
Momentarily press and release the mode button. The green LED light will flash when pressed. The current setting will flash red. Press the mode
button again within 5 seconds. The level will increase by one level. If the current level is 4, it will revert back to level 1.
Step
2
2A

petsafe.com 11
Test the Barrier Area
For proper operation, the maximum operating height of the receiver collar is 36 in. from
the threshold transmitter.
If you have more than one pet, set up the threshold pet barrier for your tallest pet.
Place the threshold transmitter in the desired location. If you are planning to mount on a stair,
lean it up against the back of the stair and test for proper operation before mounting. If using
on the stairs, set the system so that the receiver collar starts activating while your pet is still
on the floor and not on the stairs.

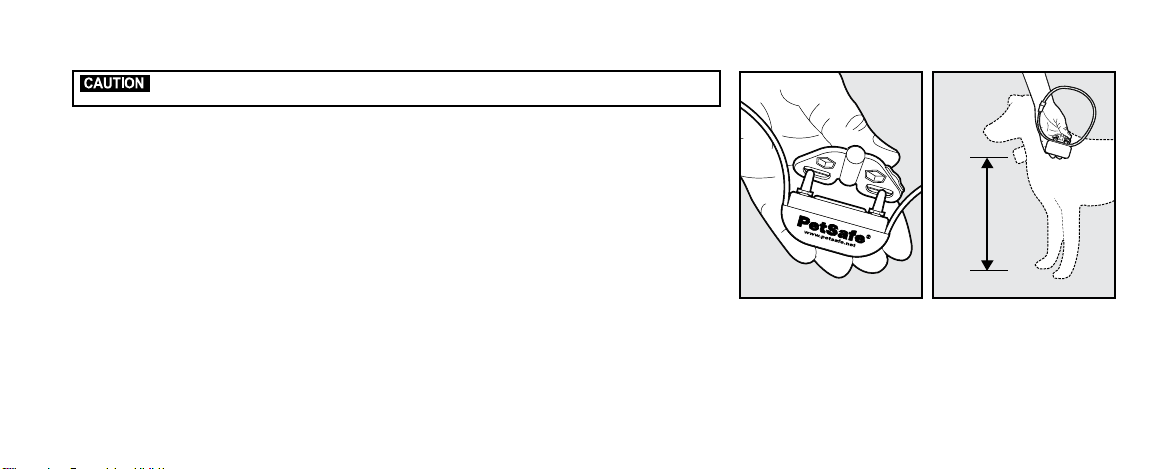

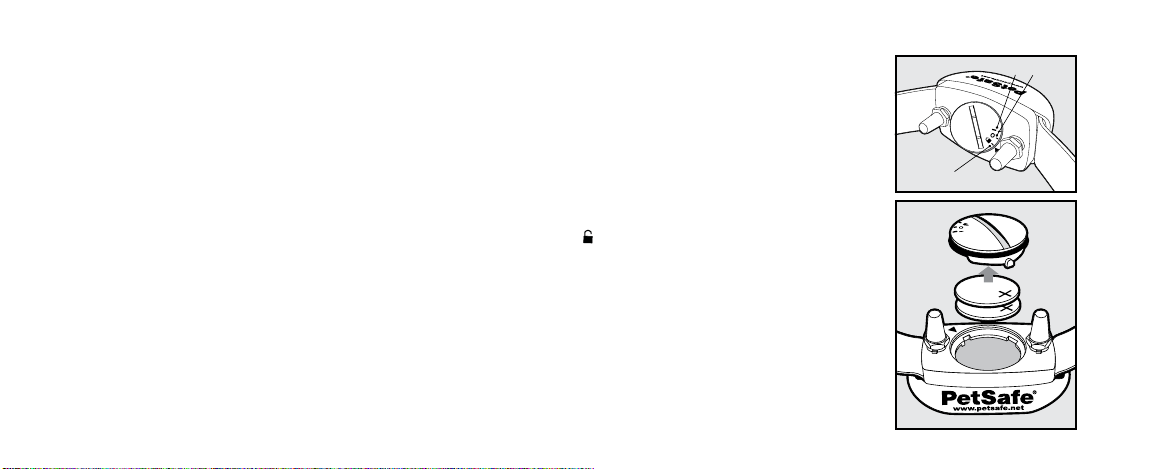

1. Keeping your hands away from the contact points, use the edge of the test light tool to turn
the receiver battery door to the “on” position.
2. Hold the receiver collar with the contact points facing up. Place the test light tool on the
contact points so that the wire in the test light tool touches the contact points (3A). The
PetSafe®logo on the receiver collar should face the transmitter.
3. Hold the receiver collar at the approximate height of your pet’s neck (3B). Start outside of the range and walk slowly toward the threshold transmitter.
As you reach the barrier area, the receiver collar emits a series of high-pitched tones. For each tone you hear, you should notice the test light
flashing which indicates that a progressive static stimulation is being delivered. The receiver collar’s tone is easily heard by pets, but it may be at a
volume level that is difficult for some humans to hear.
4. Check the range of the barrier area from multiple angles to ensure you are getting the desired coverage. If the setting is too low, increase by one
level and test again. If the coverage area is too great and the receiver collar is activating in areas you don’t want, decrease the level so it activates
reliably at the height of your dog’s neck. Refer to the transmitter range chart as a guide.
Step
33A 3B

12 Customer Care Center [phone]
5. Use your pet’s height as a starting point in choosing the appropriate level to set the threshold transmitter (3C).
Note: If you find that you are not getting the desired range, adjust the setting, or relocate the threshold transmitter slightly. Metal objects can alter the
magnetic field and change the transmitting signal range. The effect on the range depends on the size and shape of the objects. The signal range can
be reduced if the threshold transmitter is placed on a concrete floor due to the steel reinforcement in the concrete. For the best range results, place
the threshold transmitter on a nonconductive surface, i.e., wood floor (3D). Placing the threshold transmitter beneath sofas and beds can reduce the
range due to the metal springs altering the magnetic field. Test for proper operation before mounting or drilling. Use the removable mounting strips, or
the supplied mounting hardware with the template to install your threshold transmitter. If mounting, drill ³⁄16 in. diameter holes.
Transmitter Range Chart
Range
Level
Red
Flashes
Range Above
Threshold*
1 1 Up to 16 in.
2 2 Up to 22 in.
3 3 Up to 28 in.
4 4 Up to 36 in.
Low Battery Indicator—
3 red flashes every 5 seconds
* Distance from the edge of the transmitter.
Level 4
Level 1
1
1
2
23
34
4
14 in.14 in.
23 in.23 in.
18 in.
18 in.
10 in.10 in.
Threshold
Transmitter
11
14 in.
19 in .
24 in.
31 in.
16 in .16 in .
22 in.
22 in.
28 in.
28 in.
36 in.
36 in.
14 in.
19 in .
24 in.
31 in.
2
2
3
3
4
4
3C 3D

petsafe.com 13
Fit the Receiver Collar on Your Pet
Important: Proper fit and placement of your receiver collar is necessary for effective operation. The contact points must have
direct contact with your pet’s skin on the underside of his neck.
Proper fit of the receiver collar is important. A receiver collar worn for too long or made too tight on the pet’s neck may cause skin damage, ranging from
redness to pressure ulcers. This condition is commonly known as bed sores.
• Avoid leaving the receiver collar on the pet for more than 12 hours per day.
• When possible, reposition the receiver collar on the pet’s neck every 1 to 2 hours.
• Check the fit to prevent excessive pressure; follow the instructions in this manual.
• Never connect a leash to the receiver collar; it will cause excessive pressure on the contact points.
• When using a separate collar for a leash, don’t put pressure on the receiver collar.
• Wash the pet’s neck area and the contact points of the receiver collar weekly with a damp cloth.
• Examine the contact area daily for signs of a rash or a sore.
• If a rash or sore is found, discontinue use of the receiver collar until the skin has healed.
• If the condition persists beyond 48 hours, see your veterinarian.
• For additional information on bed sores and pressure necrosis, please visit our website.
These steps will help keep your pet secure and comfortable. Millions of pets are comfortable while they wear stainless steel contact points. Some pets are sensitive
to contact pressure. You may find after some time that your pet is very tolerant of the receiver collar. If so, you may relax some of these precautions. It is important
to continue daily checks of the contact area. If redness or sores are found, discontinue use until the skin has fully healed.
You may need to trim the hair in the area of the contact points. Never shave the dog’s neck; this may lead to a rash or infection.
Step
4

14 Customer Care Center [phone]
To assure a proper fit, please follow these steps:
1. Using the edge of the test light tool, turn the battery door to the “off” (O) position.
2. Start with your pet standing comfortably (4A).
3. Place the receiver collar on your pet so that the PetSafe®logo is facing your pet’s chin. Center the contact points
underneath your pet’s neck, touching the skin. If your pet has a long or thick coat then it may be necessary to
trim the hair around the contact points to make sure that contact is consistent.
4. Adjust the tightness of the receiver collar to fit your pet’s neck. Check the tightness of the receiver collar by inserting
one finger between the end of a contact point and your pet’s neck. The fit should be snug
but not constricting (4B).
5. Allow your pet to wear the receiver collar for several minutes, then recheck the fit. As your pet becomes more
comfortable with the receiver collar, check the fit again.
6. Once you are satisfied with the fit of the receiver collar, you may trim any excess collar strap as follows (4C):
a. Mark the desired length of the receiver collar with a pen. Allow for growth if your pet is young or grows
a thick winter coat.
b. Remove the receiver collar from your pet and cut off the excess.
c. Before placing the receiver collar back onto your pet, seal the edge of the cut collar strap by applying a flame
along the frayed edge.
4A
4C
4B

petsafe.com 15

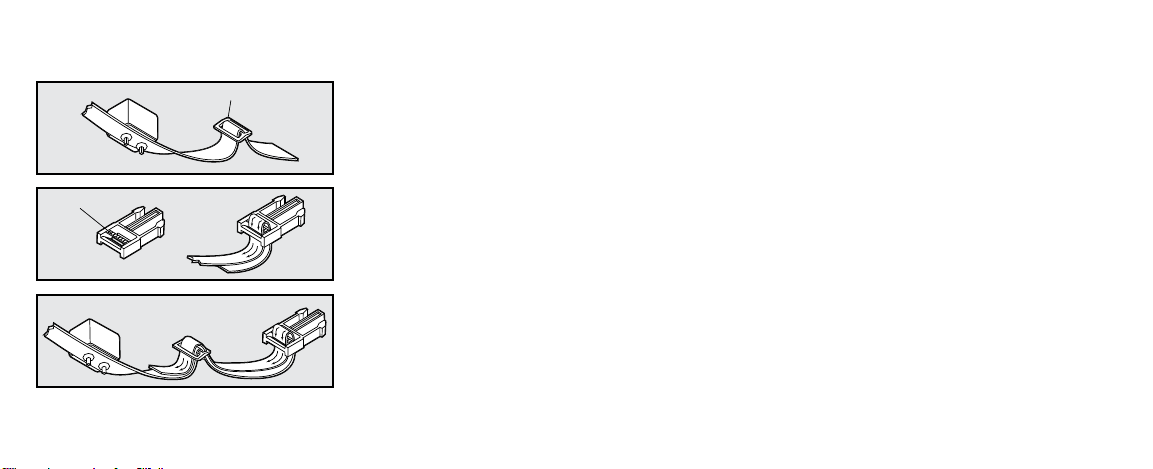

Re-Thread the Receiver Collar
The slide buckle prevents the receiver collar from becoming loose around your pet’s neck.
The ridges must be facing up; the receiver collar will slip if it is not properly threaded.
Slide Buckle
Ridges

16 Customer Care Center [phone]
Receiver Collar Batteries
The PetSafe®Pawz Away®receiver collar uses two 3V lithium coin cell batteries, size CR2032, PetSafe®RFA-35-11.
Replacement batteries can be found at many retailers or through the Customer Care Center. Contact the Customer
Care Center or visit our web site at www.petsafe.com to locate a retailer near you.
Battery life will vary depending on how often your pet tests the system and receives a static stimulation. Check the
receiver collar and the threshold transmitter every month to ensure the system is working properly. To prolong battery
life, it is recommended that you turn the receiver collar and the threshold transmitter off when not in use.
To replace the batteries:
1. Using the edge of the test light tool, turn the battery door to the “open” ( ) position.
2. Lift the battery door out and turn the door over. The two 3V lithium coin cell batteries are stored inside the door.
3. Remove the old batteries and insert the new batteries with the positive (+) side facing the battery door lid.
4. Insert the battery door back into the receiver collar and turn it to either the “off” (O) or “on” (|) position to
lock the door in place.
On/Off Dial
Open Battery

petsafe.com 17
Additional Features
Time-Out Feature
As a safety feature, the receiver collar has a built in time-out feature. If your pet stays in the barrier area for longer than 13 to 15 seconds, the receiver
collar will stop delivering the progressive static stimulation. The receiver collar will then administer a random single static stimulation every 4 to 10
seconds at the maximum level until the pet leaves the barrier area. Once your pet leaves the barrier area, the receiver collar resets itself and will deliver
a progressive static stimulation the next time your pet enters the barrier area.
Multiple Pets and Barriers
For multiple pet households, additional PetSafe®Pawz Away®receiver collars can be purchased to work with PetSafe®Pawz Away®threshold
transmitters. You can set up an unlimited number of threshold transmitters in your home for use with an unlimited number of receiver collars.
All PetSafe® Pawz Away®pet barriers and receiver collars are preset to mode A. If you have other Pawz Away®barrier products, note that the PetSafe®
Pawz Away®Threshold Pet Barrier is preset for AB mode.

18 Customer Care Center [phone]
Training Guide
The PetSafe®Pawz Away®Threshold Pet Barrier operates on the principle of positive and negative reinforcement. Your pet will learn to avoid the barrier
areas that you have set after receiving a progressive static stimulation (negative reinforcement), and your pet will learn that he is more comfortable
when he avoids the barrier areas (positive reinforcement).
In some cases, it may not be necessary to train your pet. You can let your pet wander freely to determine the new boundaries.
Monitor your pet during his first session. Pets learn at different rates and it may take several times for your pet to successfully understand and
honor the barrier areas.
Begin Your Pet’s First Session
1. Move your pet away from the barrier area.
2. Activate the receiver collar by turning the battery door to the “on” position. Place the receiver collar around your pet’s neck. Be sure that the
receiver is directly under your pet’s neck.
3. Allow your pet to wander freely to learn the new boundaries.

petsafe.com 19
Further Training
If your pet is confused or unsure how to avoid the barrier areas, then you may need to teach your pet how to do so by following these easy
training steps:
1. Place a second non-metallic collar on your pet ABOVE the receiver collar and attach a long leash.
Be sure the extra collar does not put pressure on the contact points of the receiver collar.
2. Walk your pet toward the barrier area. As soon as you hear the tone or you see that your pet is receiving a static stimulation, gently pull him away
from the barrier area and back into the safe zone.
3. Reward your pet with praise each time he leaves the barrier area.
4. Practice this technique a few times until you feel that your pet is mastering avoidance of the barrier areas.
Be sure to never force or entice your pet to enter the barrier areas.
Additional Information
• The system should only be used with healthy pets. Contact your veterinarian if you have concerns about the medical condition of your pet
(medication, pregnant, heart conditions, etc).
• This system is not for vicious or aggressive pets. If your pet may pose a threat to others, DO NOT USE THIS SYSTEM. If you are unsure if your dog
is aggressive, please consult your veterinarian or a certified trainer.

20 Customer Care Center [phone]
Accessories
To purchase additional accessories for your PetSafe®Pawz Away®Threshold Pet Barrier, visit our website at www.petsafe.com to locate a retailer
near you or for a listing of Customer Care Center telephone numbers in your area. The PetSafe®Pawz Away®Threshold Transmitter is compatible with
PetSafe®Pawz Away®receiver collars and PetSafe®YardMax®receiver collars.
Troubleshooting
Threshold transmitter does
not appear to work.
• Press the mode button and verify that the green LED light turns on when the button is pressed.
Check that the low battery light is not flashing red.
• Check/replace the batteries in the threshold transmitter and the receiver collar.
• Move the receiver collar closer to the transmitter to test the operation.
• If you hold the mode button for longer than 5 seconds, the transmitter will turn off.
Barrier area range is too low. • Check/replace the batteries in the receiver collar and the transmitter.
• Adjust the threshold transmitter level to increase the barrier area size.
Barrier area range is too high. • Adjust the threshold transmitter level to decrease the barrier area size.
