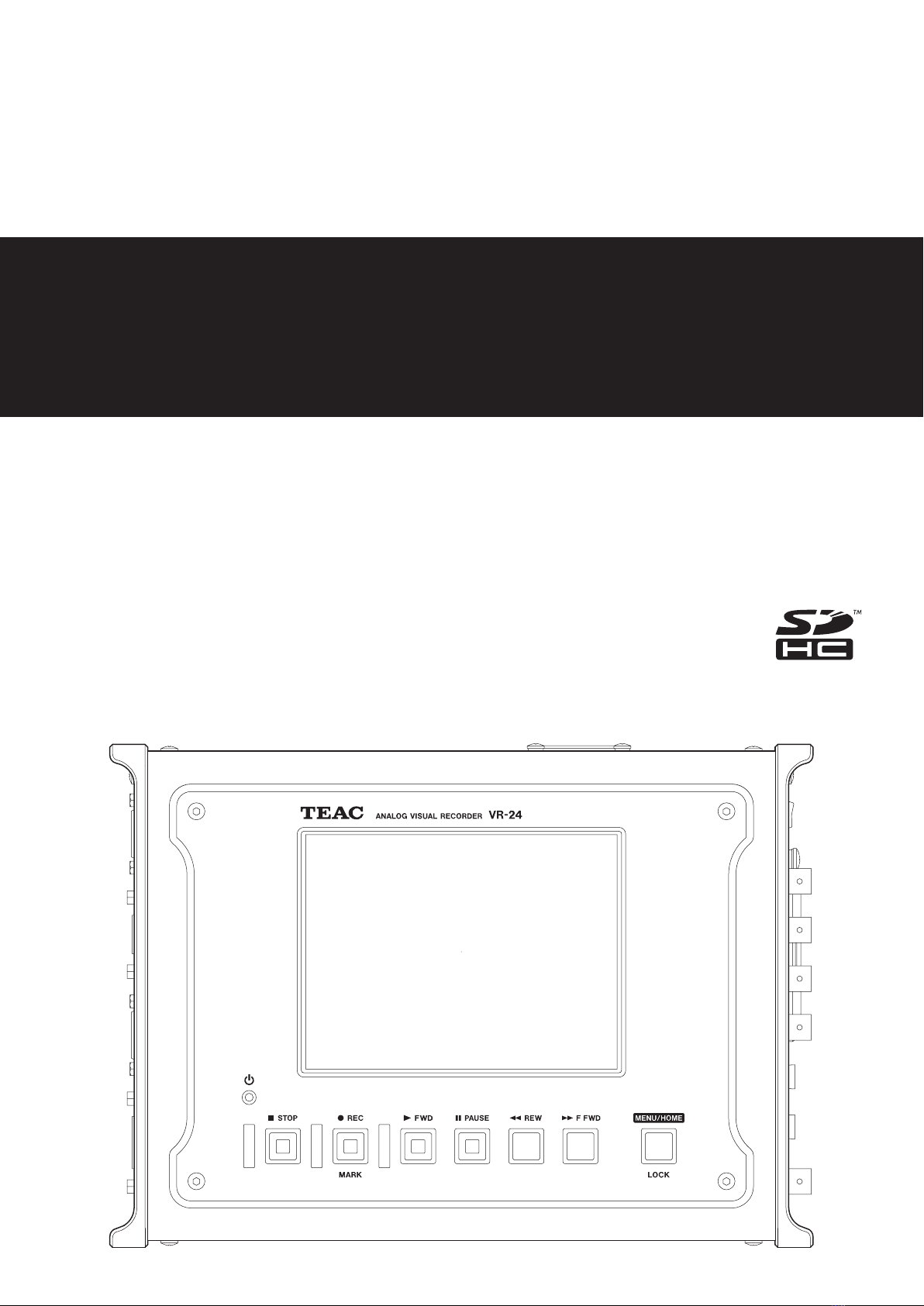

Teac VR-24 User manual

Analog Visual Recorder
Owner’s Manual
Z
VR-24
D01255010D

2
1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1-1. Disclaimers.....................................4
1-2. Included accessories ...........................4
1-3. Features........................................5
1-4. Recording media ...............................6
1-4-1. CFast card ..................................6
1-4-2. SDHC card .................................6
1-4-3. Media that has been verified to operate
with this system ............................6
1-5.TAFFmat format ................................6
1-5-1.Type of files ................................6
1-5-2. File name ..................................6
1-5-3. Media directory structures..................7
1-5-4. Data file ....................................7
1-5-5. Converting data to physical quantities......7
1-5-6. Header file .................................8
Example of header file ..........................8
Explanations of header file ......................9
2. IMPORTANT SAFETY PRECAUTIONS ................11
3. Connections ......................................12
3-1. Powering the unit .............................12
3-2. Connecting cameras ..........................12
3-3.TEDS ..........................................12
3-4. Connecting sensors ...........................13
4. Names and functions of parts .....................14
4-1.Top............................................14
4-2. Right side .....................................15
4-3. Left side.......................................16
4-4. Front ..........................................17
4-5. Rear ...........................................17
5. Connector specifications ..........................18
5-1. DC IN power connector .......................18
Function ........................................18
Connector ......................................18
Pin assignments .................................18
5-2. PULSE/TRIG IN connector......................18
Function ........................................18
Pulse input ......................................18
External trigger input............................18
Connector ......................................18
5-3. CAN input connector..........................19
Function ........................................19
CAN signal ......................................19
Ignition input ...................................19
Connector on unit...............................19
Pin assignments .................................19
5-4. GPS/remote control signal input connector
(GPS/REMOTE).................................19
Function ........................................19
Contact input ...................................19
Status output ...................................19
DC power supply output ........................19
Connector on unit...............................19
Pin assignments .................................20
6. Basic operation....................................21
6-1. Handling recording media.....................21
6-1-1. CFast cards ................................21
6-1-2. Handling ..................................21
6-1-3. CFast card insertion and removal ..........21
CFast card insertion ............................21
Removing CFast cards..........................22
6-1-4. Handling SDHC cards......................22
6-1-5. Insertion and removal .....................22
SDHC card insertion............................22
Removing SDHC cards .........................22
SDHC card write-protection switches...........23
6-2.Turning the unit on............................23
6-3. Putting the unit into standby ..................23
6-4. Status changes ................................24
6-4-1.Explanation of status change diagram entry..24
6-4-2. Status change diagram ....................24
6-5. Home screen..................................25
6-6. Data display ...................................27
6-6-1.Video display ..............................27
6-6-2. Graphed analog data waveform display ...27
6-6-3. Analog data bar meter display.............28
6-6-4. GPS/CAN/Pulse data display ...............29
6-7.Trigger settings display ........................29
6-8. Recording media information .................30
Media, status and remaining capacity............30
Media capacity use and playback position display ..30
6-9. Panel locking..................................30
7. Recording .........................................31
7-1. Order of procedures ...........................31
7-2. Setting recording conditions ..................31
7-3. Setting recording destination..................31
7-4. Set triggers....................................31
7-4-1.Trigger recording ..........................31
Recording starting conditions ..................31
Recording stopping conditions.................32
7-4-2. Interval recording .........................32
7-5. Calibration ....................................33
7-5-1. Equivalent input calibration ...............33
7-5-2. Actual load calibration.....................33
Contents

3
7-5-3.TEDS calibration ...........................34
7-6. Starting recording .............................34
8. Playback ..........................................35
8-1. Playback ......................................35
8-2. File search.....................................35
9. Settings ...........................................36
9-1. Settings screens ...............................36
9-2. Basic operation................................37
9-3. Selecting values from setting options..........38
9-4. Inputting characters as setting values. . . . . . . . . .39
9-5. Opening submenu screens....................39
9-6. Opening higher-level menu screens ...........39
9-7. Menu screen item list..........................40
9-8. Setting values list..............................41
9-8-1. SYSTEM - Camera..........................41
9-8-2. SYSTEM - Analog ..........................41
9-8-3. SYSTEM - CAN .............................42
9-8-4. SYSTEM - GPS .............................42
9-8-5. SYSTEM - Pulse ............................42
9-8-6. SYSTEM - Sync.............................43
9-8-7. FILE - RecFile ..............................43
9-8-8. FILE - PlayFile ..............................43
9-8-9. FILE - Media ...............................43
9-8-10.TRIGGER - Mode - Trigger.................43
9-8-11.TRIGGER - Mode - Interval ................44
9-8-12. MISC - LCD ...............................44
9-8-13. MISC - Date time .........................44
9-8-14. MISC - Parameters........................44
9-8-15. MISC - Etc ................................44
10. SYSTEM settings...................................45
10-1. Camera ......................................45
10-1-1. Camera setting combinations ............46
10-2. Analog.......................................46
10-2-1. Monitor settings .........................47
10-2-2. Channel settings .........................47
10-2-3.TEDS .....................................48
10-3. CAN .........................................48
10-3-1. Port settings .............................48
10-4. GPS ..........................................49
10-4-1.Time zone................................49
10-4-2. Status (reception status)..................50
10-4-3. Adjust time ..............................50
10-5. Pulse.........................................50
10-6. Sync .........................................51
10-6-1.VR sync ..................................51
10-6-2.WX sync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
10-6-3. LX sync ..................................52
11. FILE settings.......................................53
11-1. RecFile (recording settings)...................53
11-2. PlayFile (playback settings) ...................53
11-2-1. File search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
11-3. Media........................................54
Formatting media ...............................54
12. TRIGGER settings ..................................55
12-1. Mode ........................................55
12-1-1.Trigger ...................................55
12-1-1-1. Start conditions.......................56
12-1-1-1-1. Level trigger ......................56
12-1-1-2. Stop conditions.......................57
12-1-1-2-1. Level trigger ......................57
12-1-2. Interval ..................................58
13. MISC settings......................................59
13-1. LCD ..........................................59
13-2. Date time (date and time settings) ...........59
13-2-1. Set date and time ........................59
13-3. Parameters...................................60
13-4. Etc ...........................................60
13-4-1. Beep settings ............................61
13-4-2. Calibration ...............................61
13-4-2-1. Amp calibration ......................61
13-4-2-2. Actual load calibration ................61
13-4-3.Version...................................61
14. Specifications .....................................62
Recording media ................................62
CFast...........................................62
SDHC ..........................................62
Sampling frequencies and bands ................62
Recording time..................................62
Voice memo input and output ..................63
Internal clock....................................63
External interfaces...............................63
Analog signal input channels ....................64
Video/analog signal synchronization precision...65
Pulse input ......................................65
Synchronized recording .........................65
Analog signal synchronization precision........65
14-1. General ......................................66
15. Exterior drawings..................................67
16. Troubleshooting ..................................68
17. Important Notice Regarding Software .............69
Basler pylon .......................................69
PolicyConfig.h.....................................69
Contents

4
Thank you for purchasing the VR-24.
Please read this document in its entirety before using
the product to get the best performance and ensure
safe and proper operation.
1-1.Disclaimers
Information is given about products in this man-
ual only for the purpose of example and does not
indicate any guarantees against infringements of
third-party intellectual property rights and other
rights related to them. TEAC Corporation will bear no
responsibility for infringements on third-party intel-
lectual property rights or their occurrence because of
the use of these products.
1. Introduction
1-2.Included accessories
If anything is missing or damaged, contact us.
(For contact information, see the last page.)
AC adapter × 1
AC power cords (for Japan, North America and Europe)
× 1 each
Microphone × 1
Earphone × 1
CD-ROM × 1
Product overview (Japanese/English) × 1
SDHC Logo is a trademark of SD-3C, LLC.
TAFFmat is a trademark of TEAC Corporation, registered
in the U.S. and other countries.
Other company names, product names and logos are
the trademarks or registered trademarks of their respec-
tive owners.
Information about copyrights and licensing related to
open-source software is provided in the “Important
Notice Regarding Software”at the end of this document.

5
1-3.Features
This data recorder assures the synchronization of video
and analog signals and allows their recording.
This standalone data recorder has been designed to be
compact and lightweight in consideration of field use.
(An optional battery unit designed for this recorder is
also available.)
oOne-channel recording is possible when the video
input is HD resolution at 30 fps, and two-channel
high-quality recording is possible when it is VGA reso-
lution at 30 fps.
oVideo signals are input using a gigabit Ethernet
interface.
Cameras can be easily connected to the main unit
using dedicated camera cables for control signals and
power supply.
We have published a list of cameras that have been
connected and tested for operation on our website
(http://datarecorder.jp/en/).
oRecording is supported for up to four channels of
24-bit analog input in the DC 0 Hz − 40 kHz frequency
range.
A wide dynamic range is realized using 24-bit analog
to digital conversion.
oAnalog input using DC, AC and ICP sensors is supported.
oFor convenience at measurement sites, CAN, GPS and
pulse signal input are supported as standard.
oCFast cards enable high-capacity data recording
at high transfer rates. Recorded data is easy to use
and multiple cards can be prepared, allowing easy
creation of separate files according to recording pur-
poses, for example.
SD cards can be used for recording when input-
ting only analog signals, making possible the use of
recording media that is easy to obtain.
oFor operation, the unit includes a 5.7-inch color TFT
display with excellent visibility. The graphical inter-
face design enables intuitive operation using the
touchscreen. This also makes it easy to check video
and analog signal recording at measurement sites.
A panel lock function is also included, however, to
prevent misoperation.
oNumerous and convenient additional functions include
trigger recording starting/stopping.
1. Introduction
oSynchronized connection of two units is supported,
allowing the number of recording channels to be
increased.
In addition, synchronized connection with our more
advanced products (WX/LX series) is supported,
allowing the number of recording channels for ana-
log signals to be increased greatly.
oA wide DC power input range (DC 11 V – 17 V) is
supported.
oThe AC adapter, which is an included accessory, sup-
ports universal power supplies. (AC 100 V – 240 V)

6
1-4.Recording media
The CFast and SDHC card slots are accessed by opening
the black cover in the center on the side of the unit.
ATTENTION
Format media with this unit before using them with the
unit (page 54).
1-4-1.CFast card
One CFast card slot
Compatible media
32 GB – 128 GB
1-4-2.SDHC card
One SDHC card slot
Compatible media
SDHC cards (SDXC cards not supported)
Recording capacity
4 GB – 32 GB
Recommended speed class
Class 10
1-4-3.Media that has been verified to
operate with this system
This unit uses CFast and SDHC cards for recording and
playback.
We provide a list of CFast and SDHC cards that we have
verified for operation with this unit on our Industrial
Products Division data recorders website.
http://datarecorder.jp/en/
You can also contact us. (For contact information, see
the last page.)
oPrepare media for use only with the VR-24.
oTo ensure stable recording, you should try to
keep the the total number of files to 1000 or less.
Moreover, before recording, confirm that the record-
ing medium has enough open space.
1. Introduction
1-5.TAFFmat format
1-5-1.Type of files
The VR-24 makes a binary-format data file and ASCII-
format header file each time recording stops or pauses.
Data file: Contains data converted from
analog to digital, etc.
(binary format with a “dat” file
extension)
Header file: Contains recording conditions
and other information
Text (ASCII) format with “hdr” file
extension
Voice memo file*: Contains voice memo data
WAV format with “wav” file
extension
Video file*: Contains camera video data
AVI format with “avi” extension
*Files are created when recorded.
oTwo video files are created if two cameras are used.
1-5-2.File name
The file name is common to the data file and header file.
An ID number is added to the end of the specified file
name. When you specify a new file name, the ID num-
ber starts from 1. After recording is stopped or paused,
the ID number is automatically incremented each time
the recording restarts. If a data file with the same name
or same ID number already exists when recording to the
media, the next ID number is used.
Set the “File name” type on the RecFile page of the FILE
settings. For the file name, use up to 8 half-width alpha-
numeric characters. A 4-digit ID number (starting from
0001) is attached to these file names for a maximum of
12 characters.
At the ends of the names of video files, “C1” is added for
camera 1 and “C2” is added for camera 2.
oIf the ID number exceeds 1000, recording will stop.

7
1-5-3.Media directory structures
The directory structure of each medium is as follows.
Root directory
VR-24_DATA *1
Aaaaaaaa0001.dat *2
Aaaaaaaa0001.hdr *2
Aaaaaaaa0001.wav *2 *3
Aaaaaaaa0001_C1.avi *2 *3
Aaaaaaaa0001_C2.avi *2 *3
1 VR-24_DATA
This directory is made automatically when
the medium is formatted. When the medium
is inserted in an VR-24, this directory is made
automatically if it does not already exist.
2 These files are created for each ID.
3 These are created when recorded.
1-5-4.Data file
16-bit data converted from analog to digital is recorded
as 2-byte integer values from −32768 to +32767 while
24-bit converted data is recorded as 4-byte integer val-
ues from −8388608 to +8388607. Negative numbers are
shown using two’s-complement notation.
The byte order is from the lowest to the highest (Intel
format).
The data order is from the first sampling channel to
the second sampling channel and so on until the last
sampling channel. This order is called the INTERLACED
format, and the format name is recorded in STORAGE_
MODE in the header file.
The structure of a data file is as follows. In this docu-
ment, a collection of data as shown in the example is
called a “scan”. A data file is made of repeated scans.
Example of data for one scan recorded at 6 kHz sampling
frequency
Data order
CH1
CH2 1/6000
CH3
CH4
1-5-5.Converting data to physical
quantities
16-bit data converted from analog to digital is recorded
as integer values from −32768 to +32767 and the value
would be ±25000 when the input is ±100% in the input
range settings. 24-bit converted data is recorded as inte-
ger values from −8388608 to +8388607 and the value
would be ±6400000 when the input is ±100% in the
input range settings. The input value is obtained from
the following formula:
Input value = (A/D conversion value of the data file) ×
SLOPE + Y_OFFSET
oSee “Explanations of header file” on page 9 for
information about SLOPE and Y_OFFSET.
1. Introduction

8
1-5-6.Header file
Header files are ASCII-format text files containing information such as recording conditions.
In a header file, each recording-condition entry is written on 1 line, with parameters separated by a comma (,). An
example of a header file is shown as follows.
Example of header file
DATASET TEST0001
VERSION 1
SERIES VR24_CH1,VR24_CH2,VR24_CH3,VR24_CH4
DATE 01-01-2015
TIME 12:00:00.00
RATE 48000
VERT_UNITS V,V,V,V
HORZ_UNITS Sec
COMMENT VR-24
NUM_SERIES 4
STORAGE_MODE INTERLACED
FILE_TYPE INTEGER
SLOPE 8.000000e-005,8.000000e-005,8.000000e-005,8.000000e-005
X_OFFSET -1.0
Y_OFFSET 0.000000e+000,0.000000e+000,0.000000e+000,0.000000e+000
NUM_SAMPS 2928000
DATA
DEVICE VR-24
CH1 VR-24_CH1,RANGE=1V,ICP,OFF,OFF
CH2 VR-24_CH2,RANGE=1V,ICP,OFF,OFF
CH3 VR-24_CH3,RANGE=1V,ICP,OFF,OFF
CH4 VR-24_CH4,RANGE=1V,DC,OFF,OFF
REC_MODE CFast
END_TIME 01-01-2015 12:01:00
START_TRIGGER COMMAND,PRE
STOP_CONDITION COMMAND,POST
START_PRE_COUNT 48000
STOP_POST_COUNT 48000
MARK 403200,595200,787200
VOICE_MEMO 8BITS
CAMERA_USE HD_1Ch
IMAGE_OFFSET 0
CAN_OFFSET 0
GPS_OFFSET 0
CAN_BLOCK_SIZE 2
GPS_BLOCK_SIZE 32
ANALOG_CH 1,2,3,4
PULSE_CH 5
CAN_CH 6,7
GPS_CH 8
VR-24_VERSION APP:V1.0.0, AD:V1.00, VR10000
1. Introduction

9
1. Introduction
Explanations of header file
DATASET File name
VERSION 1 (This is a fixed value.)
SERIES Name of each channel
DATE Date when recording started (month-day-year)
TIME Time when recording started (hour: minute: second)
RATE Sampling frequency (Unit: Hz)
VERT_UNITS Physical/engineering units of each channel
HORZ_UNITS Time axis units (Sec: This is a fixed value)
COMMENT Comment entered using FILE and RecFile settings.
NUM_SERIES Number of recording channels
STORAGE_MODE Data order. Fixed as INTERLACED because this is the scan order.
FILE_TYPE In 16 bits A/D, INTEGER (1data, 2-byte integers)
In 24 bits A/D, LONG (1data, 4-byte integers)
SLOPE Coefficient used when converting data to physical/engineering units
X_OFFSET
Location of the first data on the time axis; normally 0
The setting value (number of seconds to three decimal places) is written in minus for
the pre-trigger time.
Even if you set the number of scans for Pre-trigger, this will be in seconds.
Y_OFFSET Offset used for converting data to physical/engineering units
NUM_SAMPS Number of data items recorded per channel
DATA The data that follows this entry is specific to this unit, and it might differ from the for-
mats of other models.
DEVICE VR-24
CH1_ The channel name and amplifier settings (range, mode, HPF and LPF settings) appear
after the underscore
REC_MODE Recording destination device (CFast, SD)
END_TIME Recording end time
START_TRIGGER
Recording starting conditions: PANEL: Transport buttons
LEVEL: Level trigger
DATE: Starting time designation if interval operation
EXT: External trigger
TIME_OUT: Timeout
SYNC: Synchronized recording
PRE: Added for a pre-trigger
STOP_CONDITION
Recording stopping conditions: PANEL: Transport buttons
LEVEL: Level trigger
TIMER: Specified recording time
EXT: External trigger
MEDIA_FULL: When medium becomes full
SYNC: Synchronized recording
POST: Added for a post-trigger
START_PRE_COUNT Number of scans recorded by a pre-trigger
STOP_POST_COUNT Number of scans recorded by a post-trigger
MARK Number of scans at the instant an event mark was attached.
VOICE_MEMO The number of bits per sample for voice-memo data
CAMERA_USE
Camera use setting OFF
HD_1Ch
VGA_1Ch
QVGA_1Ch
VGA_2Ch
QVGA_2Ch
IMAGE_OFFSET Number of camera video offset scans
Continued on the next page e

10
CAN_OFFSET Number of CAN data offset scans
GPS_OFFSET Number of GPS data offset scans
CAN_BLOCK_SIZE CAN data block size
GPS_BLOCK_SIZE GPS data block size
ANALOG_CH Analog channel recorded
PULSE_CH Pulse data channel recorded
CAN_CH CAN data channel recorded
GPS_CH GPS data channel recorded
VR-24_VERSION VR-24 APP and AD versions and serial number
oIn synchronized recording, the VR-24 attaches the following information after DEVICE.
SYNC MASTER In the case of a master unit in synchronized recording
(SYNC SLAVE) In the case of a slave unit in synchronized recording
1. Introduction
