Teac CD-X10I User manual

PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
MICRO Hi-Fi SYSTEM
2 SPECIFICATIONS
4
4 EXPLODED VIEW AND PARTS LIST
5 PC BOARDS AND PARTS LISTS
6 WIRING DIAGRAM
7 INCLUDED ACCESSORIES
3 ADJUSTMENT AND CHECKS
3
10
18
20
Parts of [ ] mark can be used only with the version designated.
1 SAFETY INFORMATION 2
6
CD-X10i

1 SAFETY INFORMATION
2
CD-X10i
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
HAZARDOUS RADIATION EXPOSURE.RESULT IN

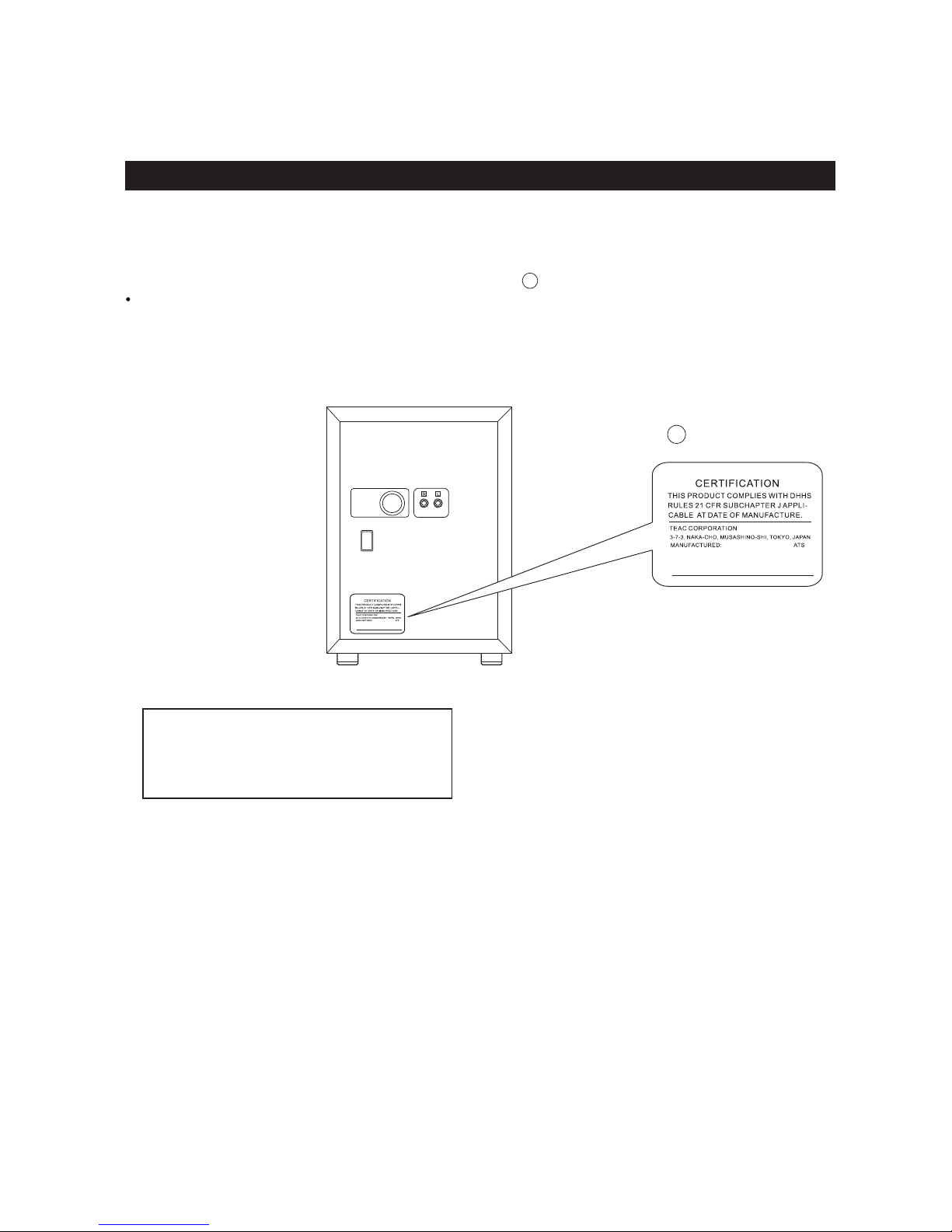

SAFETY INFORMATION
This product has been designed and manufactured according to FDA regulations " title 21, CFR, chapter 1,subchapter J,based on
The Radiation Control for Health and Safety Act of 1968" and is classified as class 1 laser product. There is not hazardous
invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined
in the protective housings. The label required in this regulation is shown .
1
CAUTION
DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER.
IF THIS PRODUCT DEVELOPS TROUBLE, MAKE A CONTACT WITH OUR SERICEMAN, AND DO NOT USE THE PRODUCT A TROUBLED
Optical pickup:
Type : SF-P200Z
Laser output : Less than 0.5 mW on the objective lens
Wavelength : 765 - 815 nm
Manufacturer : SANYO Electric-Co., Ltd
STATE.
1FOR U.S.A.

2 SPECIFICATIONS
Amplifier Section
Output Power (L+R) 5W + 5W
Tuner Section (FM)
Frequency Range 87.5 MHz to 108.0 MHz
Input Sensitivity 300mV
Output Power (Subwoofer) 15 W
Frequency Response 50 to 20,000 Hz
Sensitivity (S/N30dB) 20 dBuV/m
Tuner Section (AM)
Frequency Range 520 to 1710 kHz
Sensitivity (S/N20dB) 54 dBuV/m
CD Player Section
Frequency Responce 20 to 20,000 Hz (+/-1dB)
Signa-to-Noise Ratio 55 dB
L & R speaker
SPEAKER SYSTEM Section
Impedance 4 ohms
Type Full range flat type
8 ohms
Wow and Flutter Unmeasurable
Subwoofer Impedance
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production models.
Weight and dimensions are approximate.
CD-X10i
33
Power Requirements 120V AC,60Hz
GENERAL
Dimension (W x H x D ):
Weight: (net)
Main Unit 160 x 226 x 86 mm
Main Unit 1.0 kg
Power Consumption 80 W
L & R Speaker 142 x 226 x 70mm
Subwoofer 160 x 245 x 335mm
L & R Speaker 0.6 kg(each)
Subwoofer 5.3 kg
Dock (without cable) 80 x 28 x 67mm
Dock 0.2 kg
Standard Accessories:
AM Antenna x 1
FM Antenna x 1
Wall Mount Adaptor x 3
Remote Control Unit (RC-1090) x 1
Wall Mount screw x 10
Tapered Plastic Wall Anchor x 10
Template for Wall Mounting x 1
Warranty Card x 1
Battery for Remote Control Unit x 1
Stereo mini plug cable x 1
Dock x 1
Dock adaptor x 8
(adaptor “60GB (color) + Phone 40GB/60GB” premounted)
Cover for the Dock x 1
Subwoofer Cable x 1
Speaker Cable x 2
Quick Guide for Connection x 1
Owner s Manual x 1
,

3 ADJUSTMENTS AND CHECKS
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1 TUNER SECTION
1. Set the function switch to the AM position.
2. Connect the test loop antenna across the output of the signal generator.
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-2 AM adjustment
1. Set the function switch to the FM position.
2. Connect the signal generator output through a 75 ohm dummy
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-1 FM adjustment
antenna to "ANT" on MAIN PCB.
3-2 Adjustment and Test Points
4
CD-X10i
CD-X10i MAIN PCB
T205
L201
T204 SVC202
L202
SVC201
T203
T206

3-2-1 FM/AM alignment chart
ITEM ADJUSTMENT POINT ADJUSTMENT
SG SETTING TUNER SETTING
2. FM band
3. Tracking
3. Tracking
106MHz 106MHz
Repeat step 3
87.5MHz 87.5MHz
1kHz, +/-22.5kHz dev.
1kHz, +/-22.5kHz dev. L202
SVC201
FM
Adjust for max. output
and best waveform.
1. IF adjustment
2. AM band
450kHz
600kHz
1400kHz
1kHz, 30% mod
1kHz, 30% mod
1kHz, 30% mod
1kHz, 30% mod
T203
AM
Center for max. output.
Adjust for max. output
and best waveform.
3-3 CD SECTION
Auto alignment.
T204
520kHz
600kHz
1400kHz
1710kHz
90MHz 90MHz
1kHz, +/-22.5kHz dev. L201
T206
Repeat step 3
SVC202
CD-X10i
5
1.IFT adjustment 10.7 MHz
1kHz, +/-22.5kHz dev.
T205
108MHz
With 10.7 MHz at
zero crossover
520kHz

6
CD-X10i

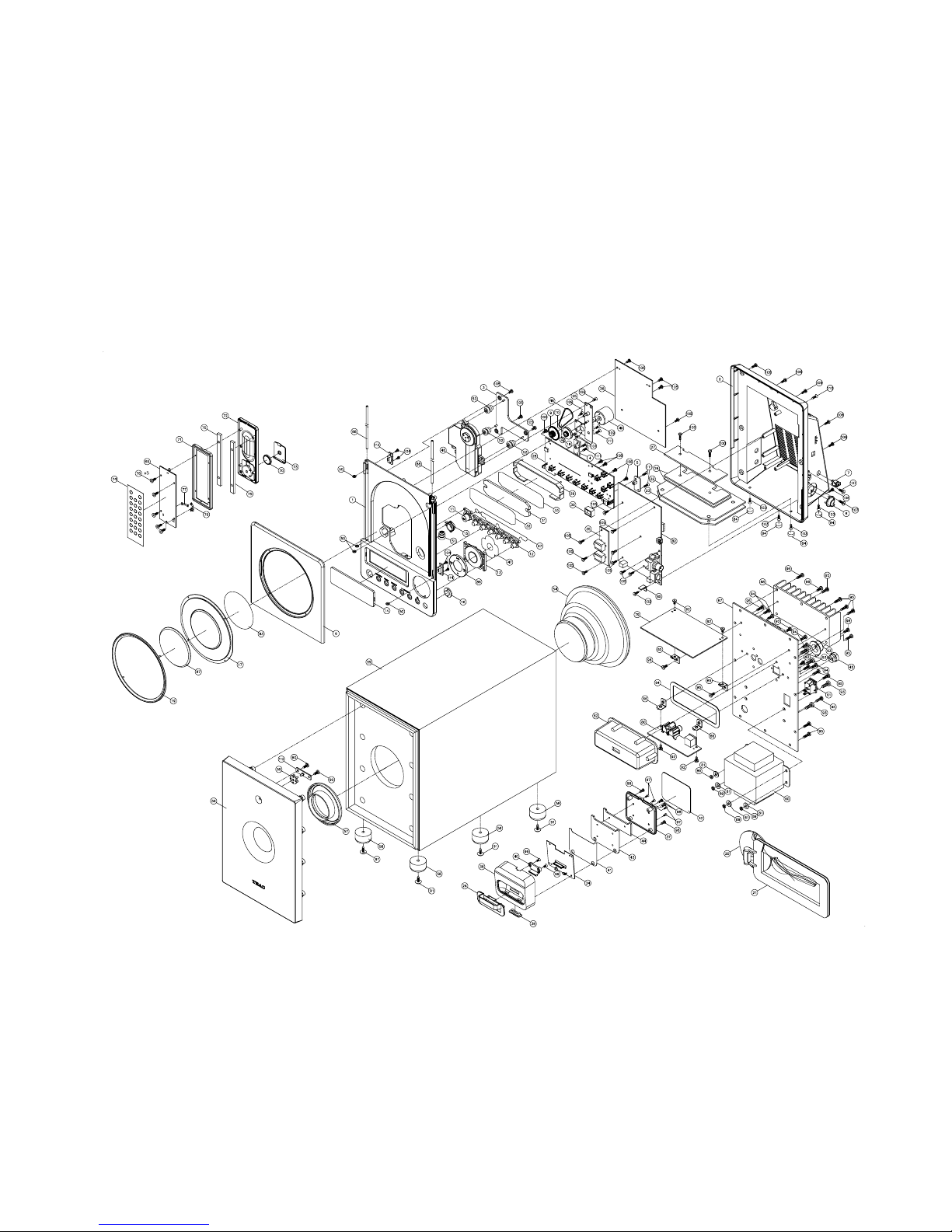

4. EXPLODED VIEWS AND PARTS LIST
EXPLODED VIEW-1

1-2
1-3
1-4
1-5
REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION
56-14CD10I0B010 CD DOOR
56-07CD10I3B000 CONNECT POST-1
STRAP GEAR
56-24DX01510000
1-1
7
CD-X10i
56-24DX01500000 CD DOOR GEAR
REMARKS
56-04CD10I0B010 FRONT CABINET
56-05DX0151B010 REAR CABINET
56-07CD10I09000 CD BRACKET
1-7
1-8
1-9
1-10
1-6
1-12
1-13
1-14
1-15
1-11
1-17
1-18
1-19
1-20
1-16
1-22
1-23
1-24
1-25
1-21
1-26
56-760000000020 DOOR MOTOR PULLY
61-11DX01500321 MOTOR BRACKET
1-27
1-28
1-29
1-30
1-31
1-32
1-33
1-34
FERRUM PLATE (HOLE)
61-11DX01500121
1-35
1-36
1-37
1-38
61-11DX01500420 FERRUM PLATE - C
56-78DX0151G000 CD DOOR CHROME RING
56-57CD10I00010 DISPLAY LENS
FERRUM PLATE (SCREW HOLE)
61-11DX01500021
1-39
1-40
56-57DX015I0000 CD DOOR LENS
61-11DX01500520 FERRUM PLATE - D
56-07CD10I19000 BACKLIGHT BRACKET
56-07CD10I4B000 CONNECT POST-2
56-20CD10I0B000 AC CORD BUSHING
56-22CD10I0B000 PROTECT COVER
POWER KNOB
56-53CD10I0A010
FUNCTION KNOB GROUP-6KEY
56-53CD10I1A010
CD KNOB
56-53CD10I2B000
POWER KNOB LENS
56-57CD10I29000
REMOTER LENS
56-57CD10I32000
AM ANT STAND
56-07X20000B000
AM ANT HOLDER
56-27X20000B000
56-07SRLXIAB000 INSERT 6 VIDEO 60GB
05-05CD10I00000 KEY/DISPLAY PCB ASSY
56-07CD10I2B000 REMOTER BRACKET
56-57CD10I10000 BACKLIGHT LENS
57-08CD10I00020 DISPLAY FILTER SHEET - 99x26.5x0.2MM
57-26CD10I00020 DISPLAY FILTER SHEET - 99x26.5x0.1MM
05-08CD10I00001 IPOD PCB ASSY
05-09CD10I00000 HP/AUX JACK PCB ASSY
05-30CD10I00000 CD PCB ASSY
56-03CD10I0B000 IPOD HOLDER BOTTOM
56-04CD10I1B000 IPOD FRONT
56-57CD10I4B000 IPOD LENS
56-64CD10I0B000 IPOD LOCK
1-41
1-42
1-43
1-44
1-45
57-08CD10I00120 PVC SHEET - 71x53x0.5MM
58-26CD10I00020 RUBBER FOOT - 73.6x60x1.3MM
61-11CD10I00120 FERRUM PLATE - A
61-11CD10I00220 FERRUM PLATE - B
43-500000002020 AC CORD BUSHING

REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION REMARKS
CD-X10i
8
1-60
1-61
1-62
1-63
1-64
1-65
1-66
1-67
1-68
1-69
1-70
1-71
05-07CD10I00000 SUB.POWER(AMP) PCB ASSY
05-01CD10I00000 MAIN PCB ASSY
1-56
1-58
1-59
1-72
1-73
1-74
1-57
1-75
1-76
56-78CD10I0B000 SAFEGUARD RING/SUB
1-77
1-78
1-79
56-85CD10I0B010
56-87CDX090B000
SUBWOOFER PANEL
PLASTIC TUBE
58-263253150020 RUBBER FOOT DIA 25MM
1-80
58-58DX01500320 CUSHION - 106x40x1MM
1-81
58-73DX01500121 SUBWOOFER BOX
1-82
1-83
1-84
61-11V600000020
61-11V820010020
PCB BRACKET
PCB FIX BRACKET - B
61-33CD10I00020 SUB. REAR PANEL #CD-X10I
1-85
61-48DX01500020 HEATSINK - A
1-86
1-87
1-88
1-89
66-140230210321 SELF-TAPPING SCREW TA/BH 3x10MM
1-90
67-021400000020 NUT M4MM
18-203DX0150120 H/TRANSFORMER EI66 AC120V
41-172111000310 SWITCH
61-80DX01500020
CD ALUM COVER
61-68CD10I00020
61-11CDX0900020 D.S METAL PLATE
FERRUM SHAFT 155x3MM
56-22DX0150B000 PCB COVER
05-13CD10I00000 REMOTE PCB ASSY
51-021301000080 LITHIUM BATTERY
56-43DX0150B010 REMOTE FRONT CABINET
56-43DX0151B010 REMOTE REAR CABINET
56-44DX0150B010 REMOTE BATTERY DOOR
57-33CD10I00020 REMOTE PLATE
61-11DX01500220 REMOTE AGGRAVATE FERRUM 119.5x9x4.5MM
61-25DX01500021 BATTERY PLATE (+) R1
61-25DX01500121 BATTERY PLATE (-)
66-140520170121 SELF-TAPPING SCREW TA/KH 2x7MM
05-08DX01500000 RCA/D-S JACK PCB ASSY
68-112403101000 METAL WASHER 4x10x1MM
57-08DX01500020 CD DOOR PVC PLATE
58-262972300020 HARD RUBBER FOOT
61-30CD10I00020 FUNCTION KNOB COVER
58-61MC23500020
58-61EX0M108120 SHOCK ABSORBER (GREY)
SHOCK ABSORBER (GREY)
SHOCK ABSORBER (BLACK)
58-61MC23500120
1-46
1-47
1-48
1-49
1-50
20-70DA23Z10000 CD MECHANISM
57-08CD10I00220 PVC SHEET
58-43DX01500020 DRIVE BELT
58-44CD10I00020 DC MOTOR DC 5V
58-58DX01500420 RUBBER RING
1-51
1-52
1-53
1-54
1-55
19-021153300120 SPEAKER 8 OHM 30W
56-57CDX0936000 LIGHT LENS
!

REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION REMARKS
CD-X10i
66-120230160121 MACHINE SCREW MS/BH 3x6MM (BLK)
66-120240212121 MACHINE SCREW MS/BH 4x12MM (BLK)
66-140230212121 SELF-TAPPING SCREW TA/BH 3x12MM (BLK)
66-140230214121 SELF-TAPPING SCREW TA/BH 3x14MM (BLK)
1-91 66-141430212121 SCREW TA/BWH 3x12MM (HEAD 10MM)
1-92
1-93
1-94
66-150230180123 HARDEN SCREW BTTB 3x8MM AB (BLK)
1-95
1-96
1-97
1-98
1-99
1-100
66-120320130321 MACHINE SCREW MS/PH 2x3MM
MACHINE SCREW MS/BH 2.6x10MM
1-101
1-102
1-103
1-104
1-105
1-106
1-107
1-108
1-109
1-110
66-120526160321 MACHINE SCREW MS/KH 2.6x6MM
66-140220210321 SELF-TAPPING SCREW TA/BH 2xX10MM
66-140526180311 SELF-TAPPING SCREW TA/KH 2.6x8MM
66-120226210321
66-120330180121 MACHINE SCREW MS/PH 3x8MM (BLK)
66-120526160311 MACHINE SCREW MS/KH 2.6x6MM
66-140220160321 SELF-TAPPING SCREW TA/BH 2x6MM
66-140226180321 SELF-TAPPING SCREW TA/BH 2.6x8MM
66-140226210121 SELF-TAPPING SCREW TA/BH 2.6x10MM (BLK)
66-140230210121 SELF-TAPPING SCREW TA/BH 3x10MM (BLK)
66-140326210321 SELF-TAPPING SCREW TA/PH 2.6x10MM
66-140526180121 SELF-TAPPING SCREW TA/KH 2.6x8MM (BLK)
66-140526210121 SELF-TAPPING SCREW TA/KH 2.6x10MM (BLK)
1-111 66-140526210321 SELF-TAPPING SCREW TA/KH 2.6x10MM
9
1-112
1-113
1-114
LED PCB ASSY
CLOSE SW PCB ASSY
OPEN SW PCB ASSY
48-16DX01500221

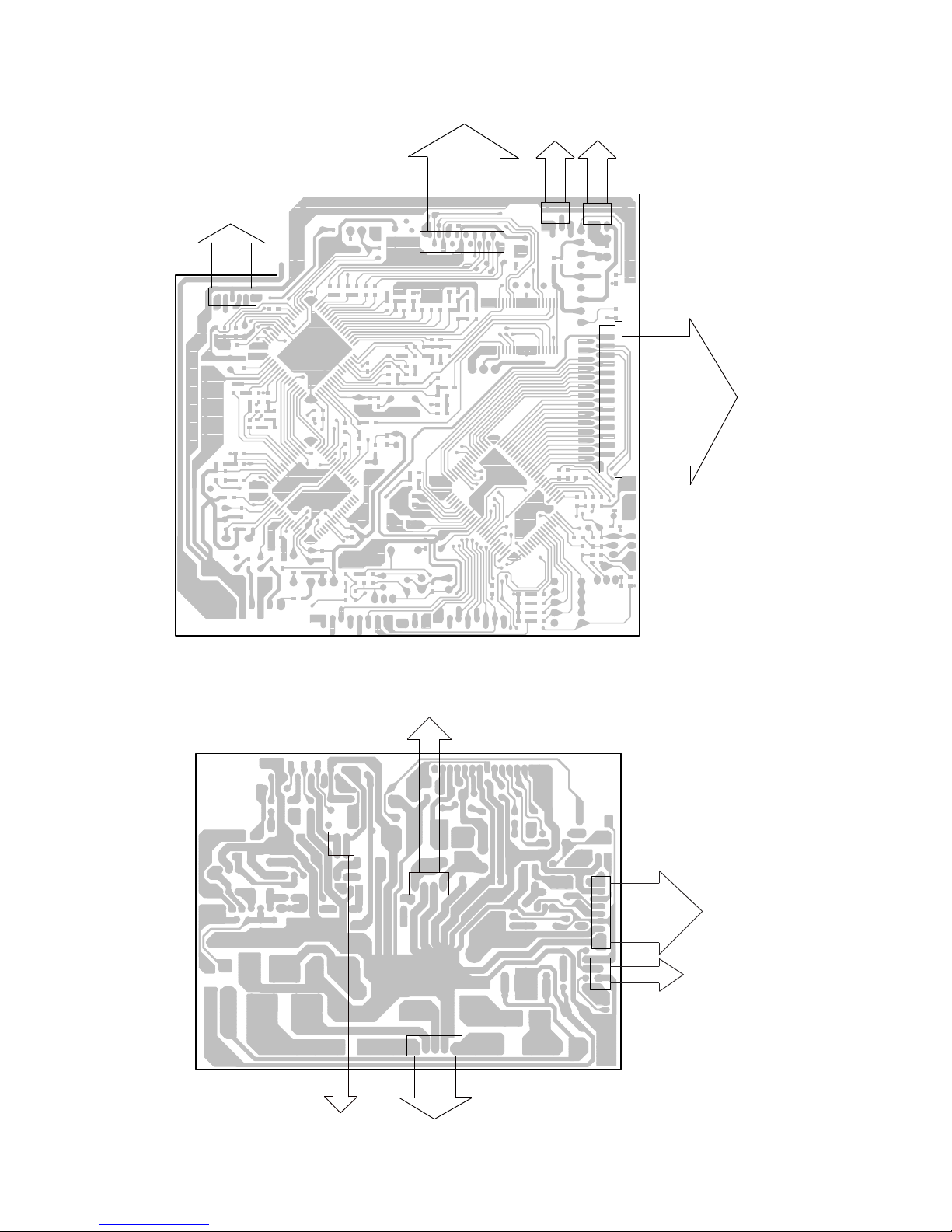

5 PC BOARDS AND PARTS LIST

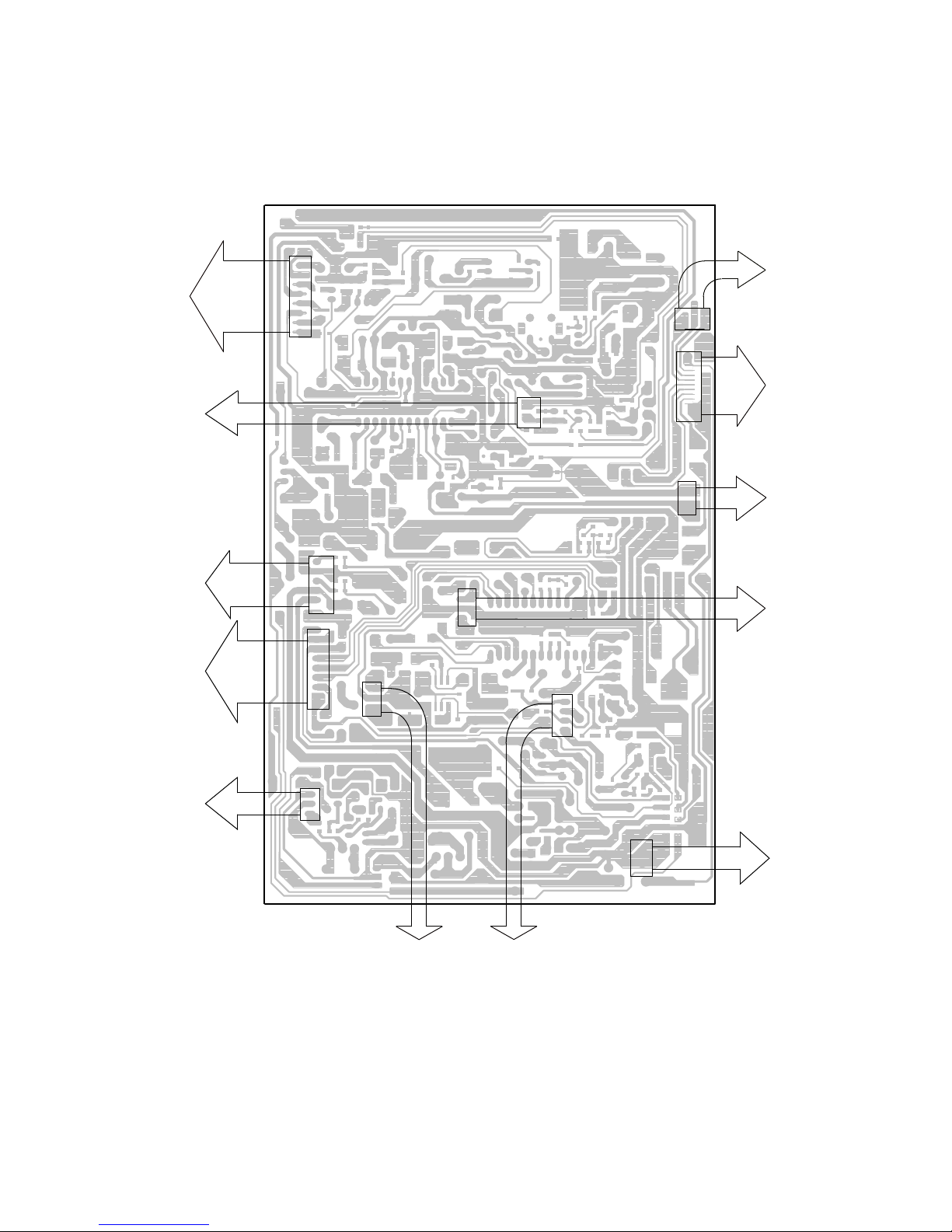

MAIN PCB ASSY
REF. NO PARTS NO.
48-01CD10I00220
MAIN PCB ASSY
DESCRIPTION
CF205
CF203
CF201
CF206
FILTER JT10.7MG46-A
31-038107020120
FILTER SFU450B
31-026450010110
31-028107000120 FILTER LT10.7MA5
31-046456000220 RESONATOR ZTB456F15
05-01CD10I00000
MAIN PCB
D8
IC202
D501-503,708
IC201
IC501
D201-204,504,705
IC702
IC703
RECTIFIER DIODE 1N5822
IC - LA1832
12-1N5822000021
16-LA1832000021
12-1N40010000P1 DIODE 1N4001
IC - TA8176SN
16-TA8176SN0021
IC - LC75342
16-LC7534200021
DIODE 1N4148
12-1N4148000125
16-MC34063A0021 IC - MC34063A
16-SC1308000021 IC - SC1308-01
L201,203 40-351500135020 FM COIL 5x3.5Tx0.8MM
40-351500125020 FM COIL 5x2.5Tx0.8MM
L202
L404,406 38-013100050220 AXIAL INDUCTOR 10UH-EC-36
L701 38-104230050020 CHOKE COIL 230UH
L702 38-103200050020 CHOKE COIL 20UH
T203 40-02A049004020 IFT 7MM A049 - YELLOW
T205 40-027400003120 IFT 7MM 740 - ORANGE
T204 40-023120000020 IFT 7MM 312A - BLACK
T206 40-02660R002020 IFT 7MM 660R - RED
Q202-204,209,501
Q502,705,706,715
11-9014C0000021 TR - 9014C
Q701 11-9015C0000021 TR - 9015C
Q208,401,716 11-8050D0000025 TR - 8050D
Q704 11-KSB772YS0021 TR - KSB772SY
Q712,713 11-8550D0000025 TR - 8550D
SVC201,202 27-501802201020 TRIMMER 20PF
VD201,202 12-SVC201SPA021 VARACTOR DIODE SVC201SPA
VD203,204 12-SVC321SPA021 VARACROR DIODE SVC321SPA
ZD401 12-011470320125 ZENER DIODE 4.7V 1/5W
ZD701 12-012110320125 ZENER DIODE 11V 1/2W
ZD702 12-011910320125 ZENER DIODE 9.1V
CN203 43-022250120221 WAFER 2.5MM 2PIN
CN201,504
CN505B
43-012200180120 WAFER 2MM 8 PIN
43-012200140120 WAFER 2MM 4 PIN
CN4,501,505A, 43-012200130120 WAFER 2MM 3 PIN
CN503 43-012200150120 WAFER 2MM 5 PIN
43-462103003320 D-S TERMINAL #DSW-31
CN1
Q201,206,207 11-9018F0000021 TR - 9018F
REMARKS
CD-X10i
Q703 11-KSD882Y00021 TR - KSD882Y
ZD202 12-011620320125 ZENER DIODE 6.2W 1/2W
R241 38-013100050120 AXIAL INDUCTOR 10UH-EC-24
CN3,703 43-012250120120 WAFER 2.5MM 2 PIN
JK201 43-421000003120 COAXIAL JACK IF-01
1/2W
Q702 IC - LM78L05A
16-LM78L05A0021
CN2 43-47CD10I00020 18P SOCKET
CN702
10
!
