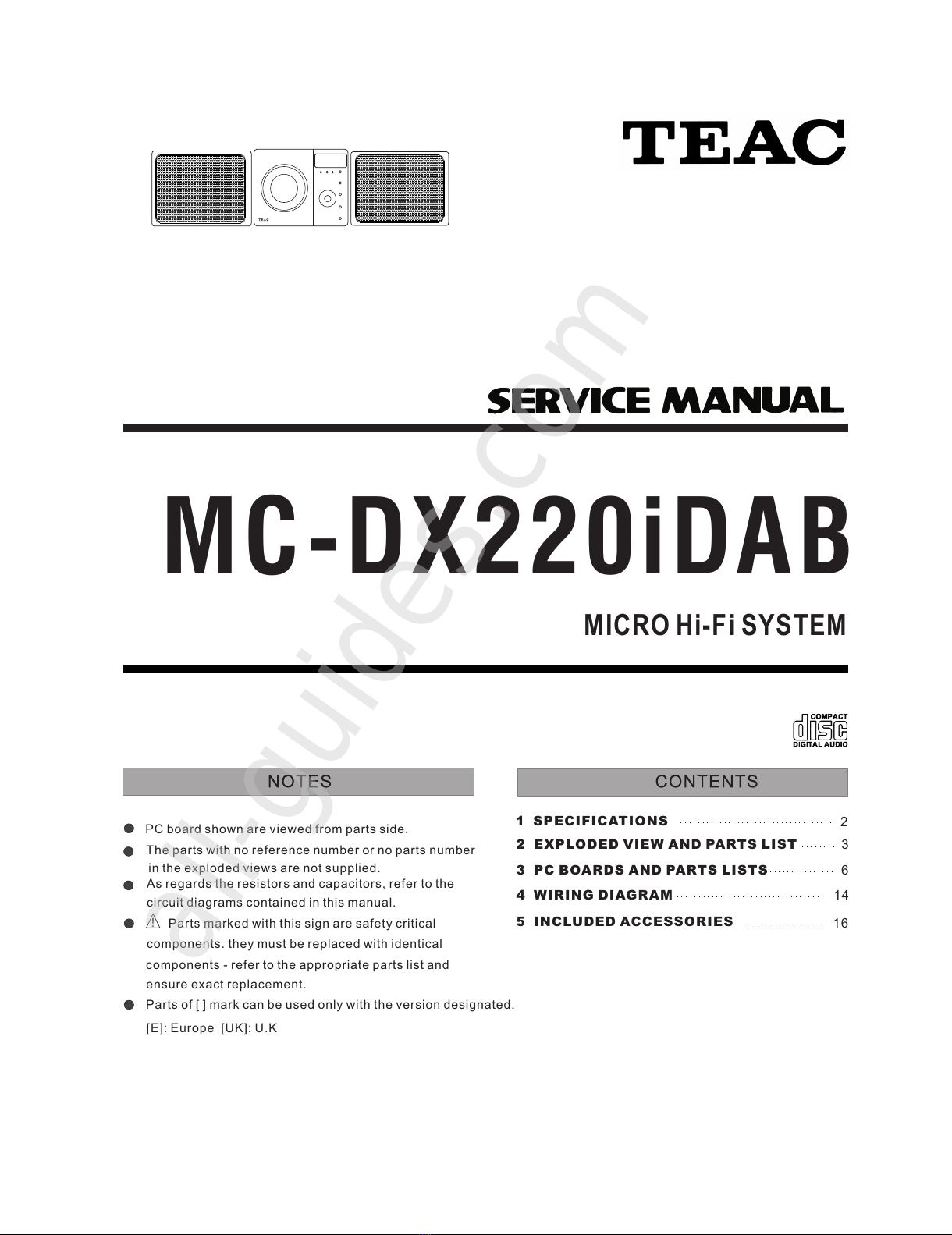

Teac MC-DX220iDAB User manual

PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
MICRO Hi-Fi SYSTEM
2 EXPLODED VIEW AND PARTS LIST
6
4 WIRING DIAGRAM

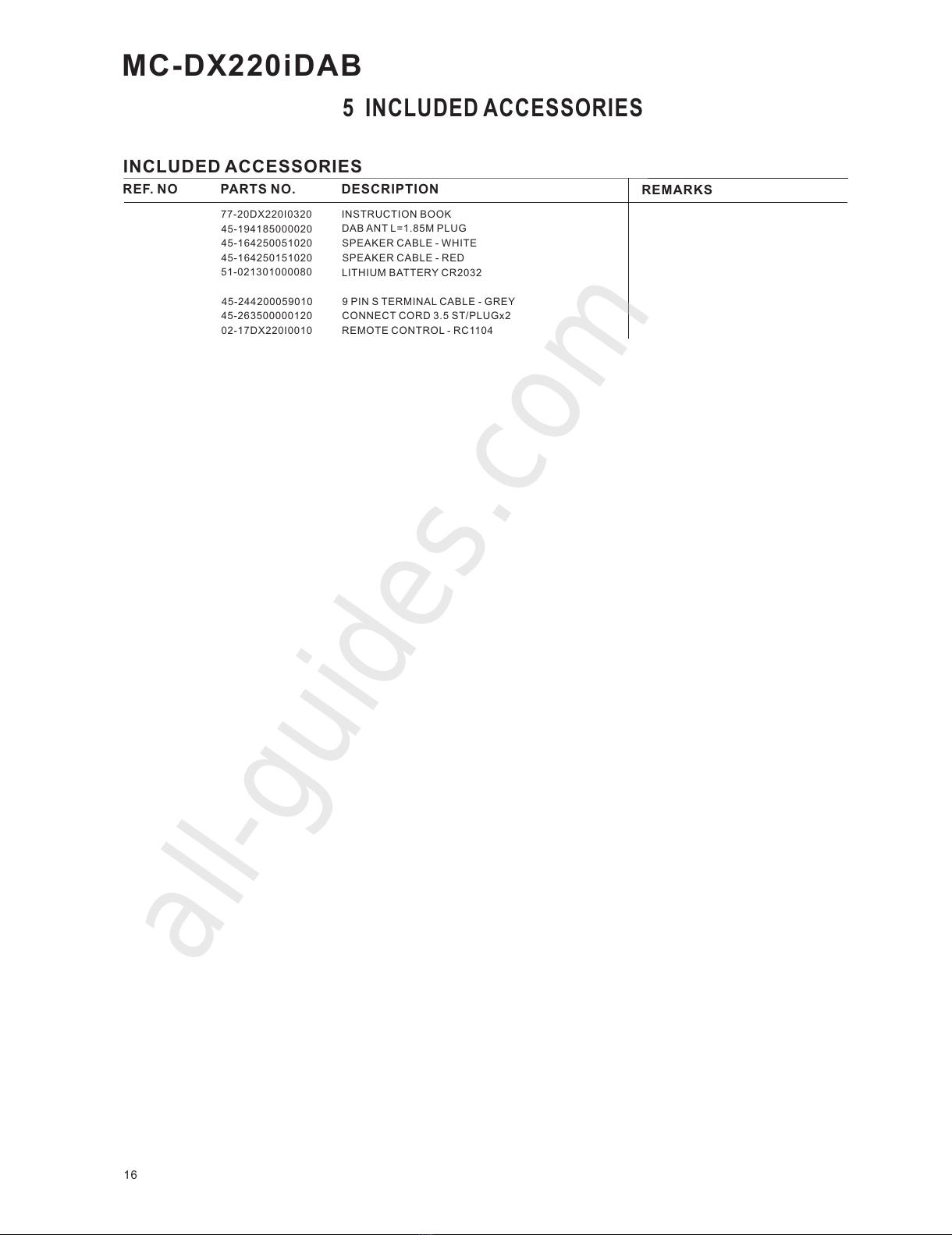

5 INCLUDED ACCESSORIES
3 PC BOARDS AND PARTS LISTS
3
16
Parts of [ ] mark can be used only with the version designated.
1 SPECIFICATIONS 2
14
MC-DX220iDAB
[E]: Europe [UK]: U.K
All manuals and user guides at all-guides.com
all-guides.com

1 SPECIFICATIONS
Amplifier Section
Output Power (L+R) 5W + 5W
Radio Section (FM)
Frequency Range 87.5 MHz to 108.0 MHz
Input Sensitivity 300mV
Output Power Subwoofer: 15 W
Frequency Response : 50 to 20,000 Hz
Sensitivity (S/N30dB) 20dBuV
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production models.
Weight and dimensions are approximate.
MC-DX220iDAB
2
Standard Accessories:
Radio Section (DAB)
Frequency Range
(174.928 MHz to 239.200 MHz)
CD Player Section
Frequency Responce 20 to 20,000 Hz (+/-1dB)
Signa-to-Noise Ratio 55 dB
SPEAKER SYSTEM Section
Impedance :
Subwoofer:
4 ohms
Type : Full range flat type
Wow and Flutter Unmeasurable
Power Requirements:
GENERAL
Dimension (W x H x D ):
Weight: (net)
Main Unit 255 x 169.5 x 115 mm
Main Unit 1.4 kg
Power Consumption: 80 W
L & R Speaker 210 x 169.5 x 81mm
Subwoofer 160 x 245 x 335mm
L & R Speaker 0.7 kg(each)
Subwoofer 5.3 kg
Speaker cable x 2
DAB/FM antenna x 1
Battery for remote control unit x 1
Remote control unit x 1
Subwoofer cable x 1
Tapered plastic wall anchor x 4
Warranty card x 1
Stereo mini plug cable x 1
Dock adaptor x 8
Screw (short) x 8
Screw (long) x 4
Guide sheet for wall mounting x 2
(adaptor “60GB(color)+ Photo 40GB/60GB” premounted)
Cover for the dock x 1
Wall mount brackets x 4
Band III: 5A to 13F
AC230V, 50 Hz
Owner s manual x 1
8 ohms
All manuals and user guides at all-guides.com

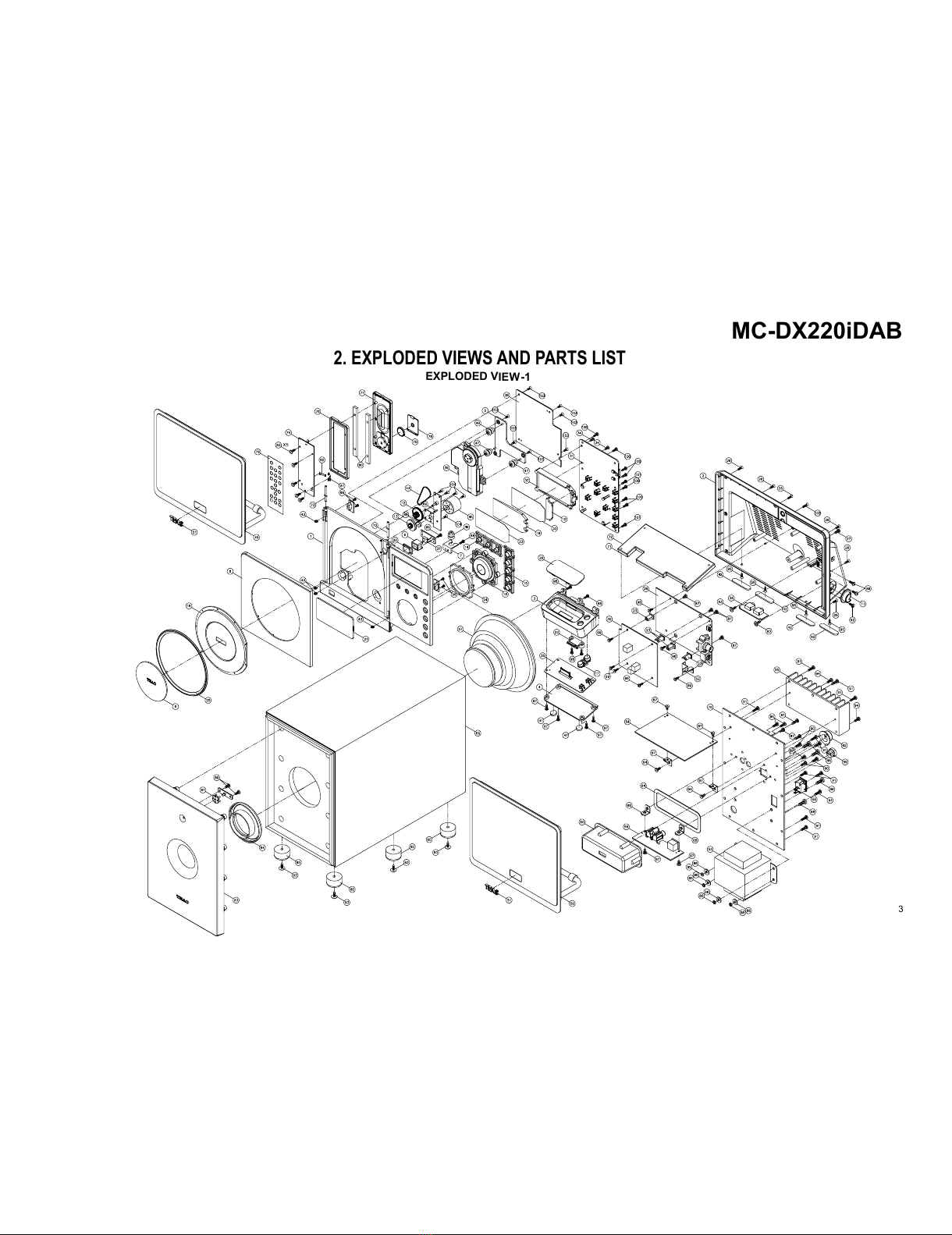

2. EXPLODED VIEWS AND PARTS LIST
EXPLODED VIEW-1
MC-DX220iDAB
3
All manuals and user guides at all-guides.com

1-2
REF. NO

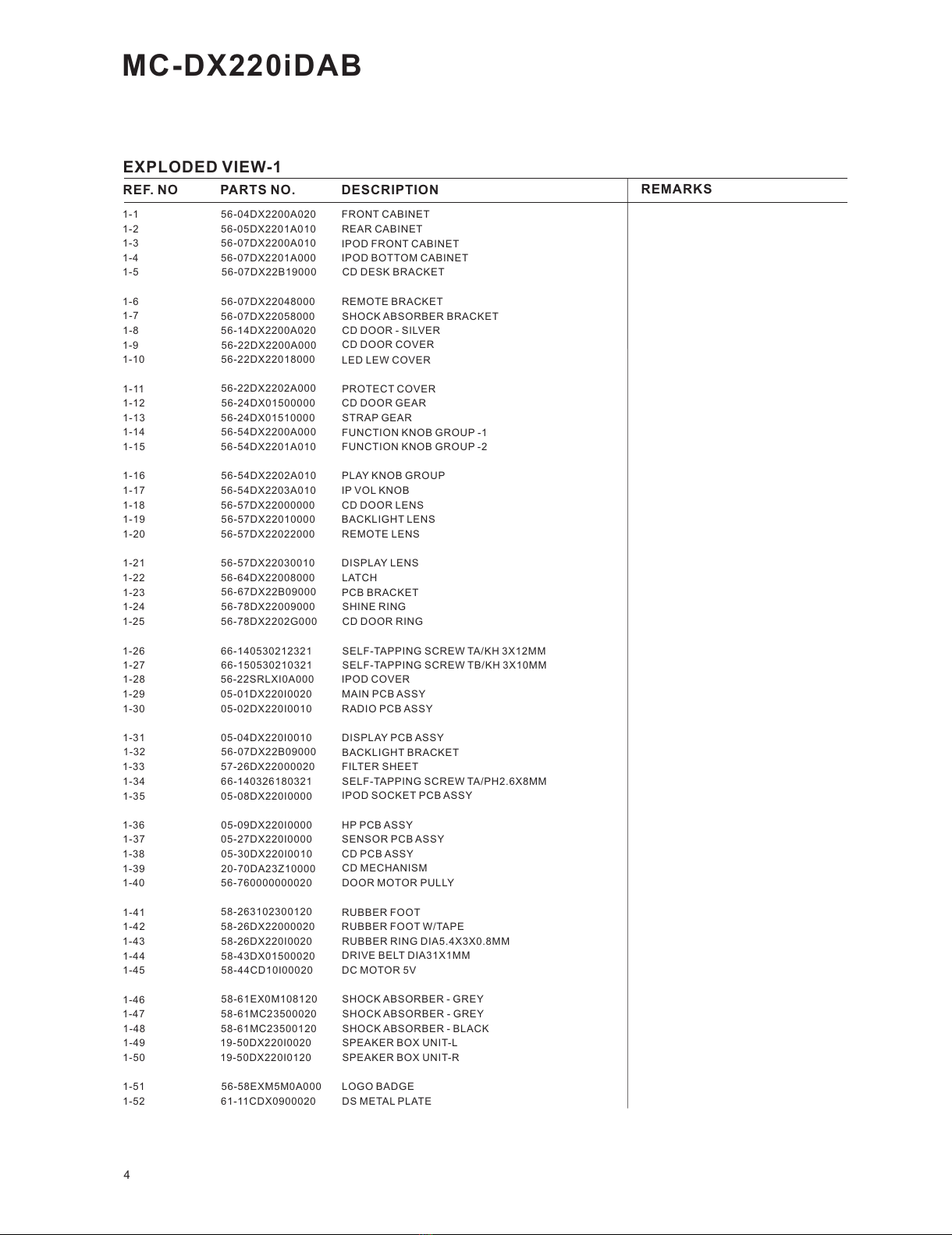

EXPLODED VIEW-1
PARTS NO. DESCRIPTION
1-1
REMARKS
56-04DX2200A020 FRONT CABINET
MC-DX220iDAB
56-05DX2201A010 REAR CABINET
1-3 56-07DX2200A010 IPOD FRONT CABINET
1-4 56-07DX2201A000 IPOD BOTTOM CABINET
1-5 56-07DX22B19000 CD DESK BRACKET
1-6 56-07DX22048000 REMOTE BRACKET
1-7 56-07DX22058000 SHOCK ABSORBER BRACKET
1-8 56-14DX2200A020 CD DOOR - SILVER
1-9 56-22DX2200A000 CD DOOR COVER
1-10 56-22DX22018000 LED LEW COVER
56-22DX2202A000 PROTECT COVER
56-24DX01500000 CD DOOR GEAR
56-24DX01510000 STRAP GEAR
56-54DX2200A000 FUNCTION KNOB GROUP -1
56-54DX2201A010 FUNCTION KNOB GROUP -2
56-54DX2202A010 PLAY KNOB GROUP
56-54DX2203A010 IP VOL KNOB
56-57DX22000000 CD DOOR LENS
56-57DX22010000 BACKLIGHT LENS
1-21
56-57DX22022000 REMOTE LENS
1-22
56-57DX22030010 DISPLAY LENS
1-23
56-64DX22008000 LATCH
56-67DX22B09000 PCB BRACKET
56-78DX22009000 SHINE RING
56-78DX2202G000 CD DOOR RING
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-24
1-25
66-140530212321 SELF-TAPPING SCREW TA/KH 3X12MM
1-26
1-27
1-28
1-29
1-30
66-150530210321 SELF-TAPPING SCREW TB/KH 3X10MM
56-22SRLXI0A000 IPOD COVER
05-01DX220I0020 MAIN PCB ASSY
05-02DX220I0010 RADIO PCB ASSY
1-31 05-04DX220I0010 DISPLAY PCB ASSY
1-32 56-07DX22B09000 BACKLIGHT BRACKET
1-33
1-34
1-35
57-26DX22000020 FILTER SHEET
66-140326180321 SELF-TAPPING SCREW TA/PH2.6X8MM
05-08DX220I0000 IPOD SOCKET PCB ASSY
05-09DX220I0000 HP PCB ASSY
05-27DX220I0000 SENSOR PCB ASSY
1-36
1-37
1-38
1-39
1-40
05-30DX220I0010 CD PCB ASSY
20-70DA23Z10000 CD MECHANISM
56-760000000020 DOOR MOTOR PULLY
58-263102300120 RUBBER FOOT
58-26DX22000020 RUBBER FOOT W/TAPE
1-41
1-42
58-26DX220I0020 RUBBER RING DIA5.4X3X0.8MM
58-43DX01500020 DRIVE BELT DIA31X1MM
58-44CD10I00020 DC MOTOR 5V
1-43
1-44
1-45
58-61EX0M108120 SHOCK ABSORBER - GREY
58-61MC23500020 SHOCK ABSORBER - GREY
1-46
1-47
1-49
1-50
58-61MC23500120 SHOCK ABSORBER - BLACK
19-50DX220I0020 SPEAKER BOX UNIT-L
SPEAKER BOX UNIT-R
19-50DX220I0120
1-51
1-52
56-58EXM5M0A000 LOGO BADGE
61-11CDX0900020 DS METAL PLATE
4
1-48
All manuals and user guides at all-guides.com

REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION REMARKS
5
MC-DX220iDAB
1-53
1-54
1-55
1-56
1-57
1-58
1-59
1-60
1-61
1-62
1-63
1-64
1-65
1-66
1-67
1-83
1-84
1-85
18-205DX0150120 H/TRANSFORMER EI66 230V/50HZ - [E,UK]
1-86
05-07DX220I0010 SUBWOOFER POWER PCB ASSY
1-87
61-48DX01500020 HEAT SINK - A
05-08DX220I0010 RCA/D-S JACK PCB ASSY
19-021153300120 SPEAKER 8 OHM 30W
41-172111000310 SWITCH
43-500000002020 AC CORD BUSHING
56-22DX0150B000 PCB COVER
56-57CDX0936000 LIGHT LENS - SUBWOOFER BOX
56-78CD10I0B000 SAFEGUARD RING/SUB
56-85CD10I0A010 SUBWOOFER PANEL
1-100
56-87CDX0908000 PLASTIC TUBE
1-102
58-263253150020 RUBBER FOOT DIA25MM
1-103
58-73DX01500021 SUBWOOFER BOX
!
1-68
1-69
1-70
1-71
1-72
1-73
1-74
1-75
1-76
1-77
1-78
1-79
1-80
1-81
1-82
1-88
1-89
1-90
1-91
1-92
1-93
1-94
1-95
1-96
1-97
1-98
1-99
1-104
1-101
61-11V600000020 PCB BRACKET
61-11V820010020 PCB FIX BRACKET
61-11DX01500321 MOTOR BRACKET
61-33DX220I0120 SUBWOOFER REAR PANEL
61-11DX22000122 WEIGHT STEEL - 159X67.5X4MM
61-11DX22000222 WEIGHT STEEL - 159X67.5X2MM
61-80DX01500020 FERRUM SHAFT
51-021301000080 LITHIUM BATTERY CR2032
05-13DX220I0000 REMOTE PCB ASSY
56-43DX0150A010 REMOTE FRONT CABINET
56-43DX0151B010 REMOTE REAR CABINET
56-44DX0150B010 REMOTE BATTERY DOOR
57-33DX 220I0120 REMOTE PLATE
61-11DX01500220 REMOTE AGGRAVATE FERRUM
61-25DX01500021 BATTERY PLATE (+)
61-25DX01500120 BATTERY PLATE (-)
66-140520170121 SELF-TAPPING SCREW TA/KH2X7MM
58-58DX01500320 CUSHION 106X40X1MM
67-021400000020 NUT M4MM
68-112403101000 METAL WASHER 4X10X1MM
66-120230160121 MACHINE SCREW MS/BH3X6MM (BLK)
66-120240212121 MACHINE SCREW MS/BH4X12MM (BLK)
66-140230210321 SELF-TAPPING TA/BH3X10MM
66-140230212121 SELF-TAPPING TA/BH3X12MM (BLK)
66-140230214121 SELF-TAPPING TA/BH3X14MM (BLK)
MACHINE SCREW MS/PH3X6MM
66-120330160321
66-141430216121 SCREW TA/BWH3X16MM (BLK)
66-150230180123 HARDEN SCREW BTTB3X8MM (BLK)
66-120526210321 MACHINE SCREW MS/KH2.6X10MM
66-140220150121 SELF-TAPPING TA/BH2X5MM (BLK)
66-140226212311 SELF-TAPPING TA/BH2.6X12MM (BLK)
66-140230180321 SELF-TAPPING TA/BH3X8MM
66-140330180321 SELF-TAPPING TA/PH3X8MM
66-140330212321 SELF-TAPPING TA/PH3X12MM
66-140330214321 SELF-TAPPING TA/PH3X14MM
66-140330210321 SELF-TAPPING TA/PH3X10MM
66-140526180311 SELF-TAPPING TA/KH2.6X8MM
66-140226180321 SELF-TAPPING TA/BH2.6X8MM
All manuals and user guides at all-guides.com

3 PC BOARDS AND PARTS LIST
MAIN PCB ASSY
REF. NO PARTS NO.
48-01DX220I1220
DESCRIPTION
MAIN PCB
D601
IC501
D400,705
CN-DC
IC703
SMD RECTIFIER DIODE 1N5819
12-1N5819000121
IC - LC75342
16-LC7534200021
DIODE 1N4148
12-1N4148000125
43-462103003321 D-S TERMINAL #DSW-31
16-SC1308000021 IC - SC1308-01
Q706,715 11-9014C0000025 TR - 9014C
Q701,707 11-9015C0000021 TR - 9015C
Q704 11-KSB772YS0021 TR - KSB772YS
Q712,713 11-8550C0000025 TR - 8550C
ZD401 12-011470320125 ZENER DIODE 4.7V
ZD701 12-012110320125 ZENER DIODE 11V
ZD501 12-011680320125 ZENER DIODE 6.8V
CN2 43-022200120120 WAFER 2MM 2PIN
CN1,501-503
CN504
43-022200130120 WAFER 2MM 3 PIN
43-022200140120 WAFER 2MM 4 PIN
CN506 43-012200130120 WAFER 2MM 3 PIN
CN511 43-022100212221 WAFER 1MM 12 PIN
6
05-01DX220I0020
Q405,406,501, 11-PMBT39040021 SMD TR - PMBT3904
Q703 16-KA7808000221 IC - KA7808E
MAIN PCB ASSY
REMARKS
12-1N40010000P1 DIODE 1N4001
D602,605,701,
L404,406 38-013100050120 AXIAL INDUCTOR 10UH #EC-24
Q401 11-8050C0000025 TR - 8050C
CN508 43-022200170120 WAFER 2MM 7PIN
MC-DX220iDAB
Q502,,705
Q716 11-KSD882Y00021 TR - KSD882Y
D603 12-SS1400000025 SMD DIODE SS14
D702,703,708
RADIO PCB ASSY
REF. NO PARTS NO. DESCRIPTION
05-02DX220I0010
REMARKS
RADIO PCB ASSY
48-02DX220I1220 TUNER PCB
05-14DX220I0000 TUNER MODULE #060428-112923
L802 38-012220050025 AXIAL INDUCTOR 2.2UH
CN811 43-022100212221 WAFER 1MM 12P
IC813 16-AIC111700021 IC - AIC1117-3.3V
IC811 16-KA7805000121 IC - KA7805E
IC810 16-KA7808000221 IC - KA7808E
L803 38-013470050025 AXIAL INDUCTOR 47UH
All manuals and user guides at all-guides.com
all-guides.com

MC-DX220iDAB
MAIN PCB
7
RADIO PCB
All manuals and user guides at all-guides.com

REF. NO PARTS NO. DESCRIPTION

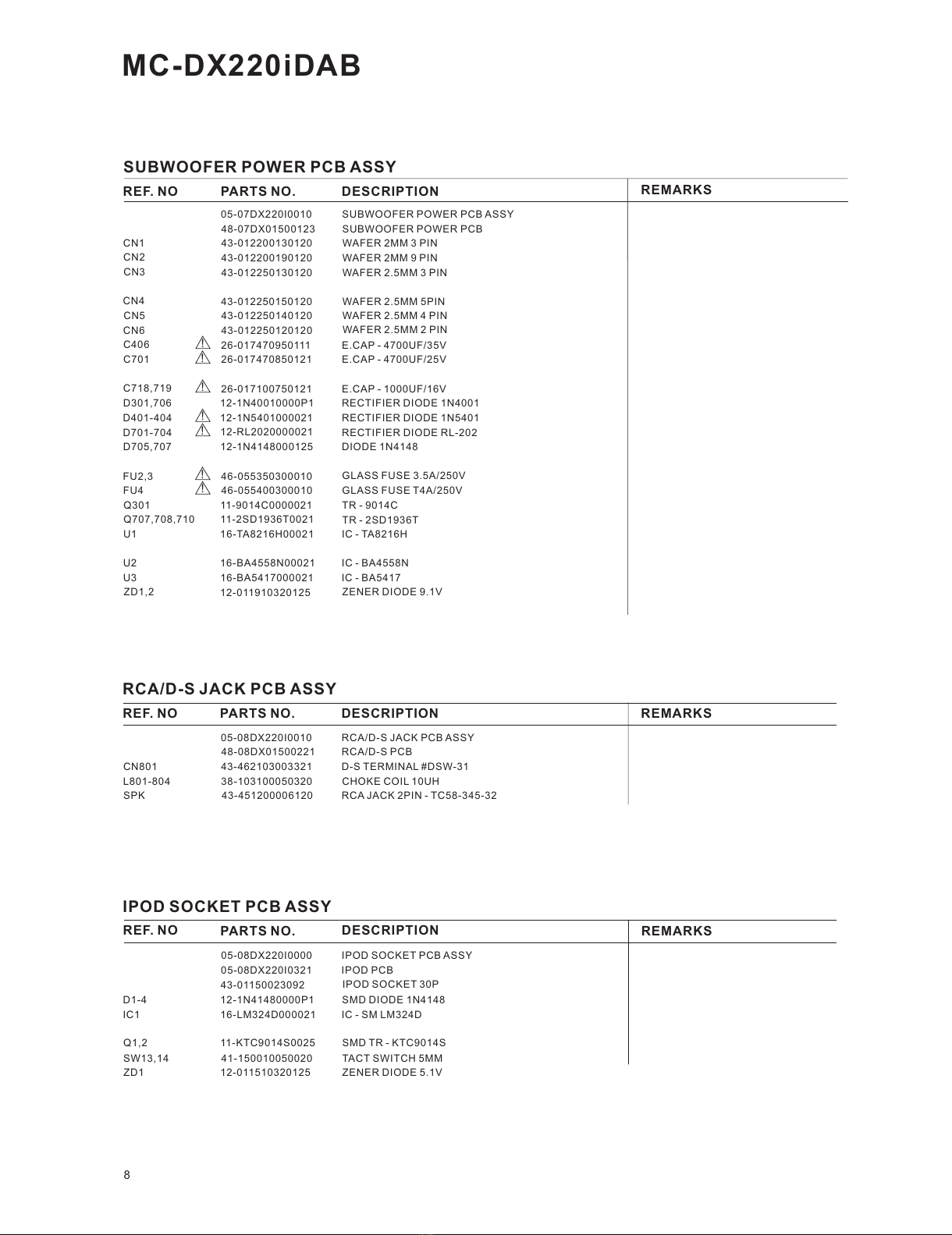

SUBWOOFER POWER PCB ASSY
05-07DX220I0010 SUBWOOFER POWER PCB ASSY
48-07DX01500123 SUBWOOFER POWER PCB
CN1 43-012200130120 WAFER 2MM 3 PIN
CN2 43-012200190120 WAFER 2MM 9 PIN
CN4
43-012250130120 WAFER 2.5MM 3 PIN
CN5 43-012250140120 WAFER 2.5MM 4 PIN
CN6 43-012250120120 WAFER 2.5MM 2 PIN
C701 26-017470850121 E.CAP - 4700UF/25V
C718,719 26-017100750121 E.CAP - 1000UF/16V
C406 26-017470950111 E.CAP - 4700UF/35V
D401-404 12-1N5401000021 RECTIFIER DIODE 1N5401
D701-704 12-RL2020000021 RECTIFIER DIODE RL-202
D705,707 12-1N4148000125 DIODE 1N4148
D301,706 12-1N40010000P1 RECTIFIER DIODE 1N4001
FU2,3
FU4
Q301 11-9014C0000021 TR - 9014C
Q707,708,710 11-2SD1936T0021 TR - 2SD1936T
U1 16-TA8216H00021 IC - TA8216H
U2 16-BA4558N00021 IC - BA4558N
U3 16-BA5417000021 IC - BA5417
ZD1,2 12-011910320125 ZENER DIODE 9.1V
46-055350300010 GLASS FUSE 3.5A/250V
46-055400300010 GLASS FUSE T4A/250V
REMARKS
CN3
43-012250150120 WAFER 2.5MM 5PIN
MC-DX220iDAB
REF. NO PARTS NO. DESCRIPTION
RCA/D-S JACK PCB ASSY
05-08DX220I0010 RCA/D-S JACK PCB ASSY
48-08DX01500221 RCA/D-S PCB
SPK 43-451200006120 RCA JACK 2PIN - TC58-345-32
REMARKS
L801-804 CHOKE COIL 10UH
CN801 43-462103003321 D-S TERMINAL #DSW-31
38-103100050320
!
!
!
!
!
!
8
REF. NO PARTS NO. DESCRIPTION
IPOD SOCKET PCB ASSY
05-08DX220I0000 IPOD SOCKET PCB ASSY
11-KTC9014S0025 SMD TR - KTC9014S
IC1 16-LM324D000021 IC - SM LM324D
REMARKS
D1-4 SMD DIODE 1N4148
ZD1 12-011510320125 ZENER DIODE 5.1V
12-1N41480000P1
05-08DX220I0321 IPOD PCB
Q1,2
SW13,14 41-150010050020 TACT SWITCH 5MM
!
43-01150023092 IPOD SOCKET 30P
All manuals and user guides at all-guides.com

SUBWOOFER POWER PCB
MC-DX220iDAB
9
RCA/D-S JACK PCB IPOD SOCKET PCB
All manuals and user guides at all-guides.com

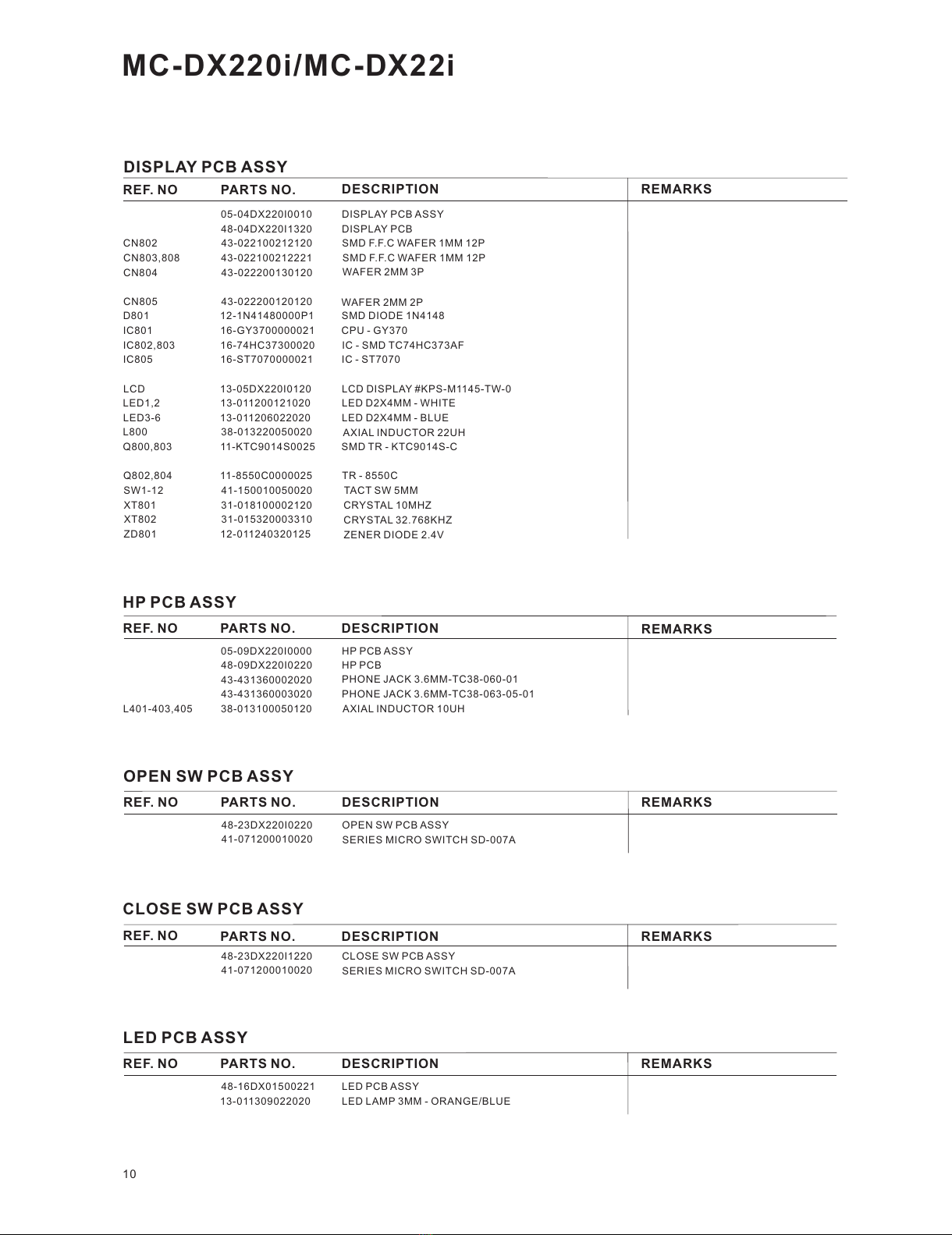

DISPLAY PCB ASSY
REF. NO PARTS NO. DESCRIPTION
DISPLAY PCB
Q802,804 11-8550C0000025 TR - 8550C
LED3-6 13-011206022020 LED D2X4MM - BLUE
LED1,2 13-011200121020 LED D2X4MM - WHITE
LCD 13-05DX220I0120 LCD DISPLAY #KPS-M1145-TW-0
REMARKS
DISPLAY PCB ASSY
05-04DX220I0010
REF. NO PARTS NO. DESCRIPTION
HP PCB ASSY
05-09DX220I0000 HP PCB ASSY
48-09DX220I0220 HP PCB
L401-403,405 38-013100050120 AXIAL INDUCTOR 10UH
43-431360002020
43-431360003020 PHONE JACK 3.6MM-TC38-063-05-01
REMARKS
REF. NO PARTS NO. DESCRIPTION REMARKS
OPEN SW PCB ASSY
48-23DX220I0220 OPEN SW PCB ASSY
41-071200010020 SERIES MICRO SWITCH SD-007A
REF. NO PARTS NO. DESCRIPTION REMARKS
CLOSE SW PCB ASSY
48-23DX220I1220 CLOSE SW PCB ASSY
41-071200010020 SERIES MICRO SWITCH SD-007A
REF. NO PARTS NO. DESCRIPTION REMARKS
LED PCB ASSY
48-16DX01500221 LED PCB ASSY
13-011309022020 LED LAMP 3MM - ORANGE/BLUE
MC-DX220i/MC-DX22i
48-04DX220I1320
Q800,803 11-KTC9014S0025 SMD TR - KTC9014S-C
ZD801 12-011240320125 ZENER DIODE 2.4V
D801 12-1N41480000P1 SMD DIODE 1N4148
IC801 16-GY3700000021 CPU - GY370
XT802 31-015320003310
CRYSTAL 10MHZ
XT801 31-018100002120
CRYSTAL 32.768KHZ
SW1-12 41-150010050020 TACT SW 5MM
CN802 43-022100212120 SMD F.F.C WAFER 1MM 12P
CN803,808 43-022100212221 SMD F.F.C WAFER 1MM 12P
CN805 43-022200120120 WAFER 2MM 2P
CN804 43-022200130120 WAFER 2MM 3P
PHONE JACK 3.6MM-TC38-060-01
10
IC802,803 16-74HC37300020 IC - SMD TC74HC373AF
IC805 16-ST7070000021 IC - ST7070
L800 38-013220050020 AXIAL INDUCTOR 22UH
All manuals and user guides at all-guides.com
