Teac MCDV88 User manual

MCDV88
DVD Micro System with 7” LCD Screen

WARRANTY PROCEDURE v1.5.2: DEC 2011
Please read the owner’s manual carefully and ensure that you have followed the correct installation and operating
procedures.
1. Please read this warranty card.
2. Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service.
3. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for
assistance. Please ensure that you have the model number, serial number and purchase receipt ready when
you call.
Please complete the section below and keep this information for your own records.
Owner’s Name
Owner’s Address
Postcode
Model Name/No. Serial No.
Dealer’s Name
Dealer’s Address
Postcode
Authorised Service Centres in Major Australian Cities
NSW
151 Arthur Street
Homebush West, NSW 2140
Queensland
Unit 1, 320 Curtin Ave West
Eagle Farm, QLD 4009
Western Australia
Unit 2, 50 Pilbara Street
Welshpool, WA 6106
South Australia
11 McInnes Street
Ridleyton, SA 5008
Victoria
282 Normanby Road
South Melbourne, VIC 3205
Thank you for selecting a TEAC product.
If you should require assistance with your product regarding its setup
or operation, or if any difficulties arise, please call us directly for advice
between Monday to Friday at 8.30AM – 6PM AEST at the
TEAC Customer Support Hotline
1300 553 315
[e-mail]
www.teac.com.au

WARRANTY INFORMATION v1.5.2: DEC 2011
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure.
Warranty Terms & Conditions
1. TEAC warrants that this product is free from defects in material and workmanship under normal domestic use with
reasonable care and skill. Maintenance and cleaning (i.e. laser head) is not covered by this warranty. The TEAC
warranty only applies to TEAC products purchased, used and serviced in Australia.
2. The benefits to the consumer given by this Warranty are in addition to other rights and remedies of the consumer
under a law in relation to goods or services to which the warranty relates, being the Australian Consumer Law.
3. Refund or replacement via your retailer is available for a period of 14 days after purchase for goods that have been
inspected and determined to have a major failure. Refund and exchange is not applicable for change of mind.
4. Subject to the terms herein, this warranty effectively covers the equipment as specified in the Warranty Periods
Table below from the date of purchase.
TEAC PRODUCT WARRANTY PERIOD
LED/LCD TV 32” (80 cm) and above 1 Year (In-Home Service/ Pick up Available)*
All other TEAC products 1 Year (Carry-in Service)
5.
This service will only be provided as part of this warranty if all the following conditions are met;
In Home Service/Pick up* Service
a) The product is indicated in the Warranty Period Table.
b) The product is within the warranty period.
c) The product is located within the normal service area of the local TEAC Authorised Service Centre.
If TEAC determines that the product is not repairable on site, TEAC can complete the repair by taking the product to
a TEAC Authorised Service Centre.
Where In-Home service/Pick up* is not available, the purchaser is required to send the product to the nearest TEAC
Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After
the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in-
home service can be made available at a fee upon request.
Carry-in Service
6. A 12-month replacement warranty is applicable to all Accessories such as Remote, Power Adaptors and Cables.
7. TEAC will ensure to the best of its abilities that all required parts are made available for any required service/repair.
8. TEAC Australia Pty Ltd and its Authorised Service Centres will use their best endeavours to complete product
repairs within a reasonable period based on available resources and workload during the time when service is
requested and performed.
9. Refurbished parts may be used to repair the product. In the case of a replacement, the product may be replaced,
with a refurbished unit of the same type or, if one is unavailable, a similar refurbished model with equal or better
features & specifications.
10. Please be advised that if the product presented for repair is capable of retaining user-generated data, the data may
be lost during servicing. Customers are strongly encouraged to back up all important information/data before
sending the product in for service/repair.
11. Service will be provided only during normal business hours and under safety conditions and circumstances. TEAC
and its authorised service agents can refuse any repair if safety, in relation to OH&S, becomes a concern to its staff
or authorised service agents’ personnel.
12. The warranty is void and warranty claims may be refused, subject to the Australian Consumer Law, if:
a) The product was not transported, installed, operated or maintained according to manufacturer instruction, or
b) The product was abused, damaged, tampered, altered or repaired by any unauthorised persons, or
c) Product failure is due to accidents during use, installation or transit, power surges, use of defective or
incompatible external devices, exposure to abnormal conditions such as excessive temperatures or humidity, or
entry of liquids, objects or creatures into the product.
13. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with the
sale of any equipment other than as stated in this warranty and outlined above.
14. TEAC reserves the right to inspect and verify whether the product is exhibiting a major failure as claimed by
customers/retailers.
15. LCD dead pixel policy, please contact TEAC Customer Support Hotline on 1300 553 315 for assistance.

3
9
10
11
11
9
9
9
9
9
10
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
FFuun
nccttiioonnaall DDeessccrriippttiioonn ooff rreemmoottee ccoonnttrrooll 5
CCoon
nnneeccttiioonn OOff DDVVDD aanndd TTVV 6
CCoon
nnneeccttiioonn DDiiggiittaall aauuddiioo oouuttppuutt 7
SSyys
stteemm ccoonnnneeccttiioonn 8
Panel overview

17
19
23
21
Media Operating Instruction
Cdripping
22
12
13
12
12
14
15
16
MICsetup 20
Specifiation 24

This is Class electrical appliance.

2

S

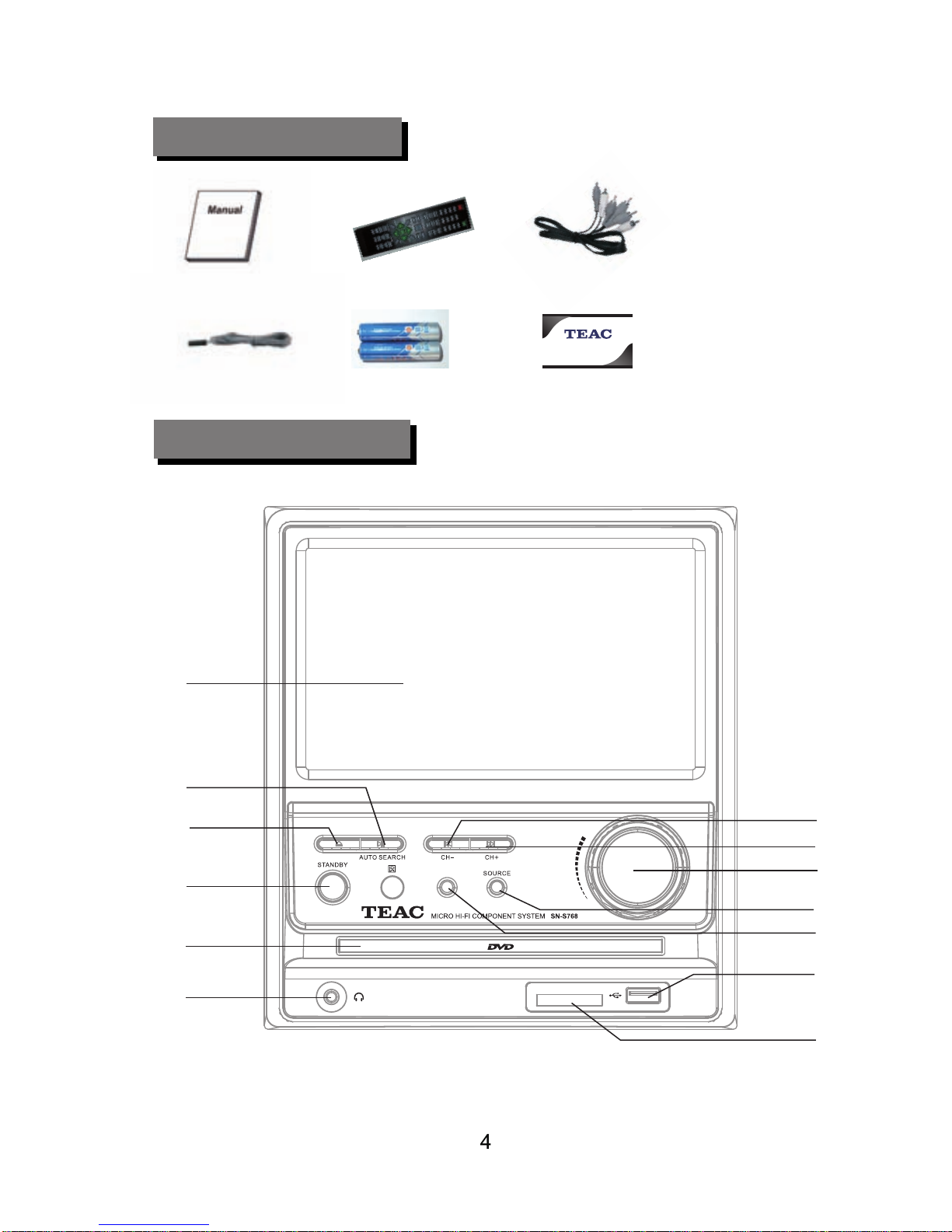

ACCESSORY LIST
PANEL OVERVIEW
CUSTOMER SUPPORT HOTLINE:
[email protected]
www.teac.com.au
1300553315
SD/MMC/MS
7"TFT
PLAY/PAUSE/
AUTO SEARCH
OPEN/CLOSE
STANDBY
DVD DOOR
USB JACK
SOURCE
VOLUME
NEXT/CH+
PREV/CH-
CARD SLOT
HEADPHONE JACK
SCREEN
User Manual
FM Antenna
Remote Control
2x AAA Batteries Contact Card
AV Cable
SOUND
SOUND

5
INITIAL SET UP
CAUTION: Always disconnect units from power when making or changing any cable
connections to avoid risk of electric shock.
Unit Connection
1. Connect the SPEAKERS OUT R+ channel of the DVD player to the jack of the R+ jack on
the right speaker, and the R- channel to the R- jack on the right speaker.
2. In the same way, connect the L+ and L- channels to the L+ and L- jacks on the left speaker.
Remote Control Battery Installation
1. Open the battery compartment on the back of the remote control.
2. Insert 2x AAA batteries by matching the +/- polarities marked in the compartment.
3. Close the battery compartment.
Note: To avoid leaking or cracking cells, install the batteries correctly according to polarity.
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time. Do not expose batteries to heat or flame.
Remote Control Operating Range
The remote control can be used up to approximately 5 meters straight ahead of the unit. It
can also be operated at a horizontal angle up to 30ofrom the remote control sensor.
If the remote control doesn’t operate properly:
- Check the polarity of the installed batteries (+/-)
- Check if the batteries are drained
- Check if the remote control sensor is blocked by obstacles.
- Check if there is any flourescent lighting, sunlight or other interferences nearby.

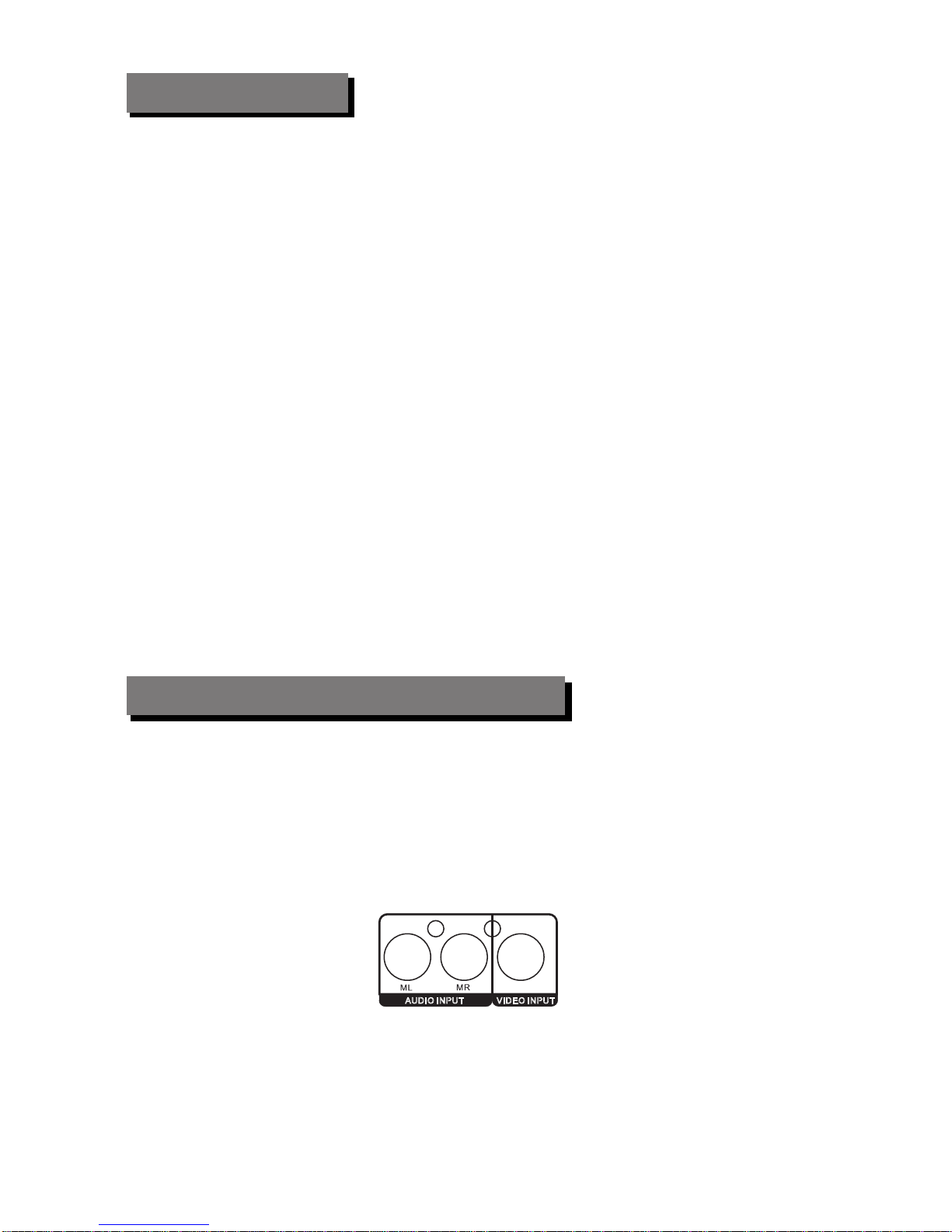

Use this connection method to input audio and video from compatible external media players
to be played on the DVD player’s LCD screen and its speakers.
1. Use a composite AV cable and connect the Audio L and R plugs to the DVD player’s
AUDIO INPUT ML and MR jacks.
2. Connect the Video plug (yellow) to the DVD player’s VIDEO INPUT jack.
3. After connections are complete, turn on the unit and press the SOURCE button on the
remote control to select AV input mode.
CONNECTING EXTERNAL INPUTS
AUDIO INPUT VIDEO INPUT
VIDEO

3

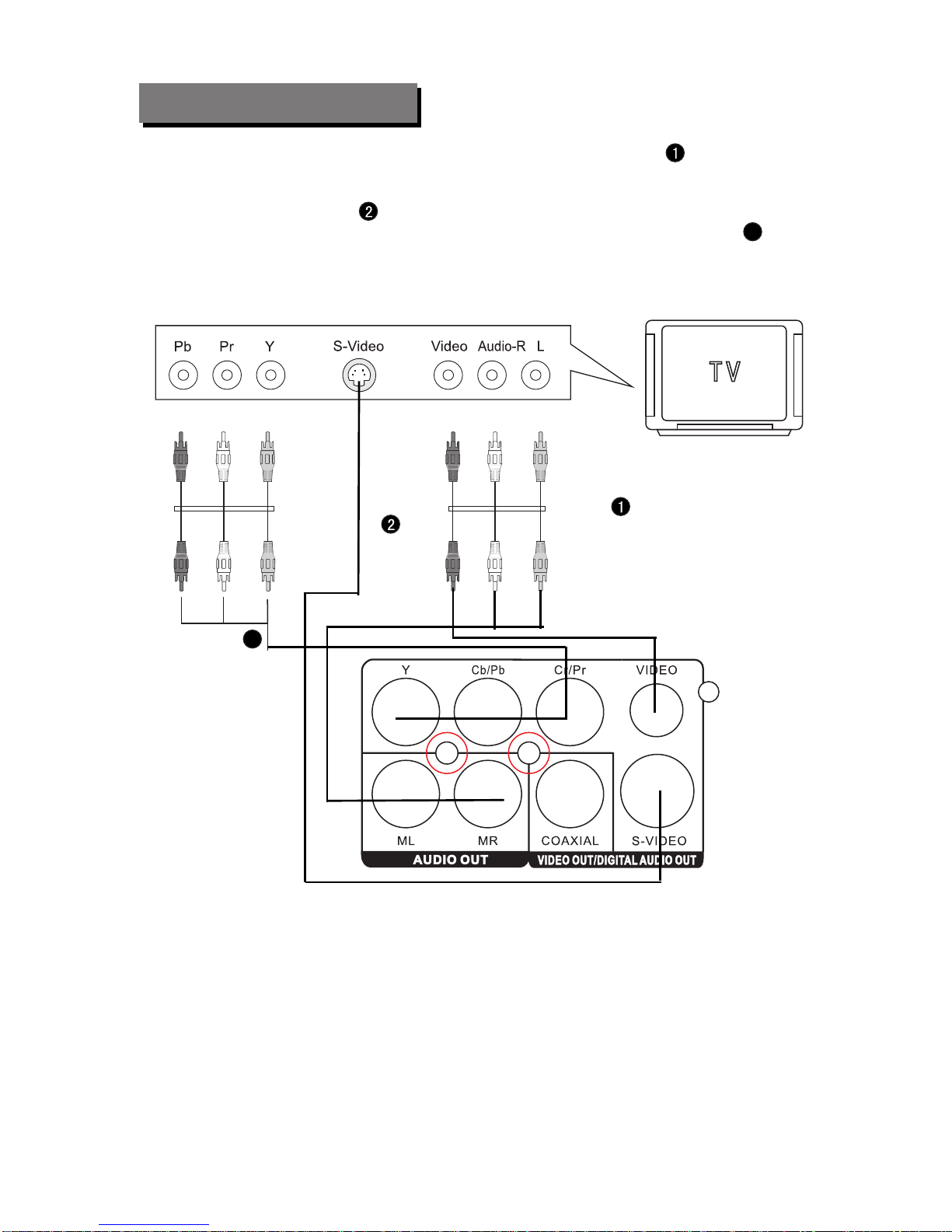

1. For a basic connection, connect the provided AV cables according to in the figure below. Set
the TV toAV input mode.
2. If your TV or screen has a S-Video jack, you can use 4-pin S-Video connectors to get a better
quality picture as shown in .
3. For a more vivid picture, use AV wires to connect the YPbPr jacks according to in the
figure below.
CAUTION: Ensure that all units are turned off and disconnected from theAC power outlet before
making or changing cable connections.
1. When watching discs in different video formats, adjust video format settings so that the formats
match. (NTSC/PAL/AUTO)
2. If there are multiple connections between the DVD player and the TV, we recommend that one
of them is selected and the rest are unplugged so that image and sound quality is not affected.
3. Do not switch the power on and off quickly in succession, please allow an interval of 3 seconds
before switching the power on/off again.
Option
Option
Option 3
CONNECTING VIDEO
6

7
Amplifier
FM Antenna
FM ANT IN
Dolby Amplifier

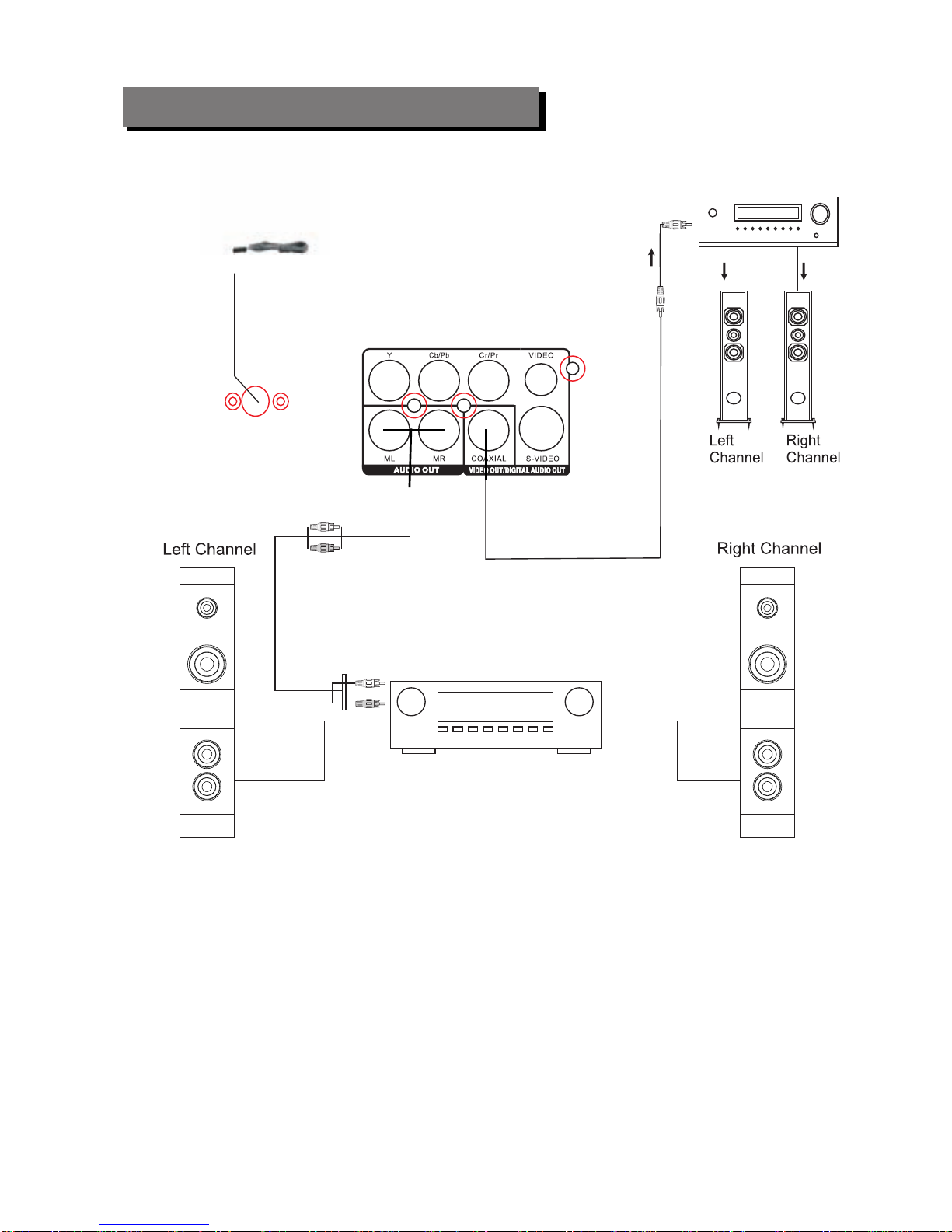

CONNECTING AUDIO AND FM
Audio output
Option 1
Audio output
Option 2
FM connection
CAUTION: Ensure that all units are turned off and disconnected from the AC power outlet before
making or changing cable connections.

8
1A 19 18
16
12 11 10
50
CH+
SOURCEUSB/CAR
VOLUME
V-MODE
LOUDNESS
MUTE
LANGUAGE
RETURN
STOPSLOW
ZOOM
I
I
14
16
14
16 14
16
PROG
DISPLAY
A-B
ANGLE
REPEAT
PLAY/PAUSE
SEARCHCH-
MENU
PBC
SETUP
ENTER
-
+
TV-MODE
OPEN/CLOSEPOWER
POWER
NUMBER
DISPLAY
ANGLE
PROG
STOP
PLAY/PAUSE
SEARCH
MENU
SETUP
VOLUME
LOUDNESS
SOURCE
USB/CAR
LANGUAGE
TV-MODE
MUTE
V-MODE
ZOOM
PBC
ENTER
PREV/CH-
NEXT/CH+
RETURN
SLOW
A-B
REPEAT
OPEN/CLOSE
DIRECTION

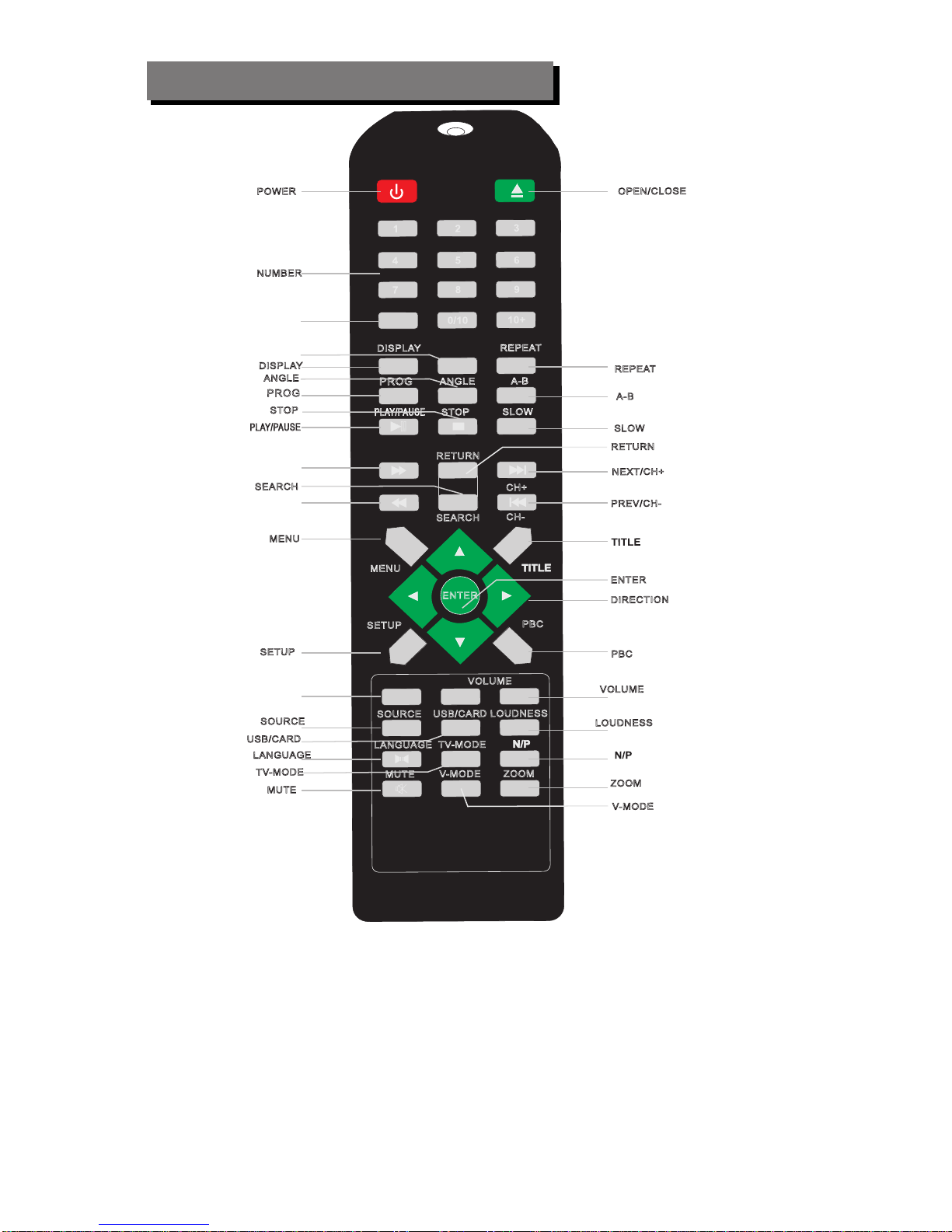

REMOTE CONTROLOVERVIEW
GOTOGOTO
SUBTITLE
COPY
SUBTITLE/COPY
FWD/SCAN+
REV/SCAN-
SCAN+
SCAN-
SOUND
SOUND
D
Battery Installation
1. Open the battery compartment by taking out the battery cover.
2. Insert a 3V battery cell, making sure to match +/- polarities correctly.
3. Close the battery compartment securely.
Note: Remove battery if the remote control is not used for a long time.
Do not mix old and new batteries.
D

9
To play a disc, select DVD Mode with the
SOURCE button. If you are using video
output to a TV, turn on the TV and switch
it to the correct input mode according to
the connection type being used.
DVD
a logo
(|<<)
(>>|)
(＞＞)scan+
(＜＜)scan-
exit the screen saver.
.if the screen saver turns on

10

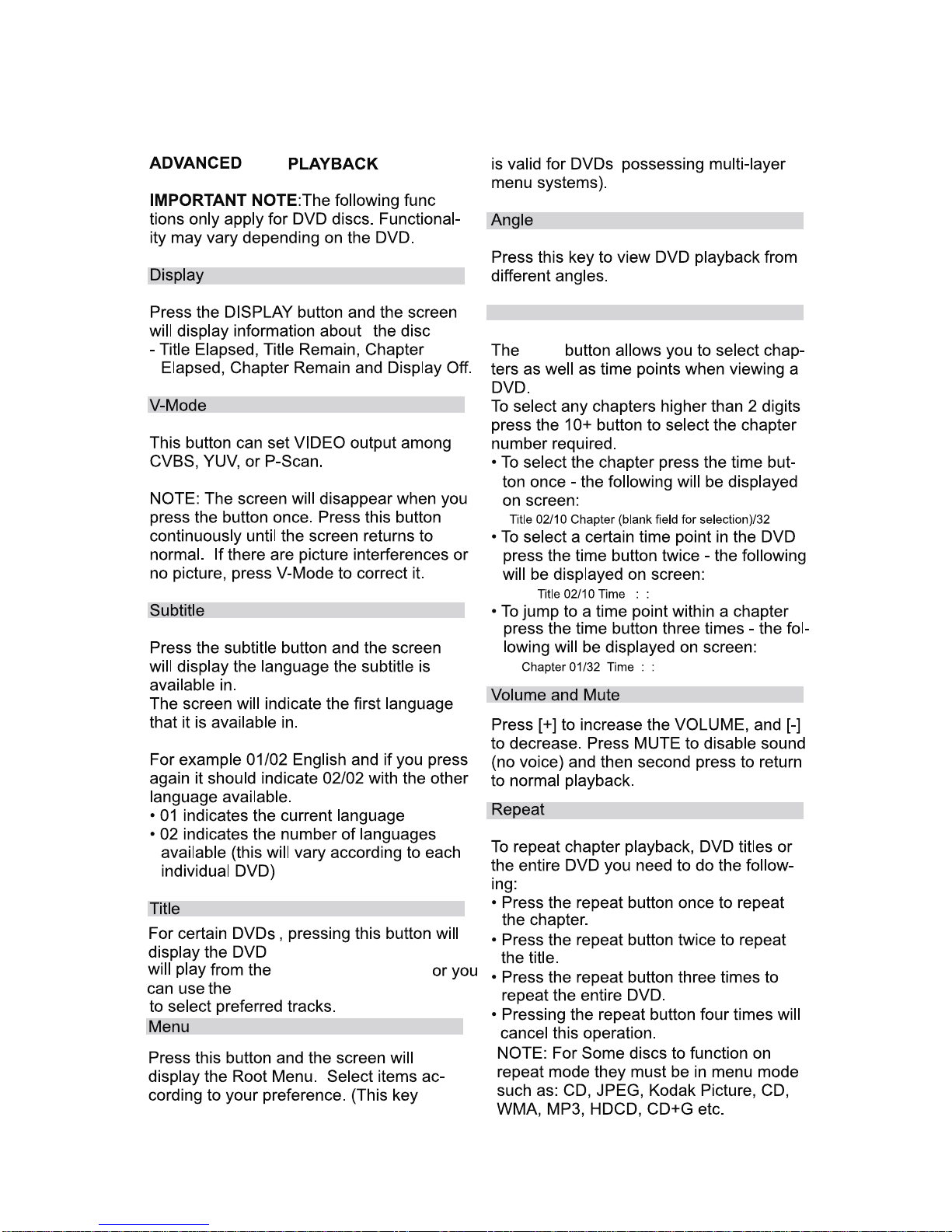

DVD
if available on the DVD
GOTO
title selection menu.The unit
beginning of the disc
digits or arrow navigation buttons
GOTO

11

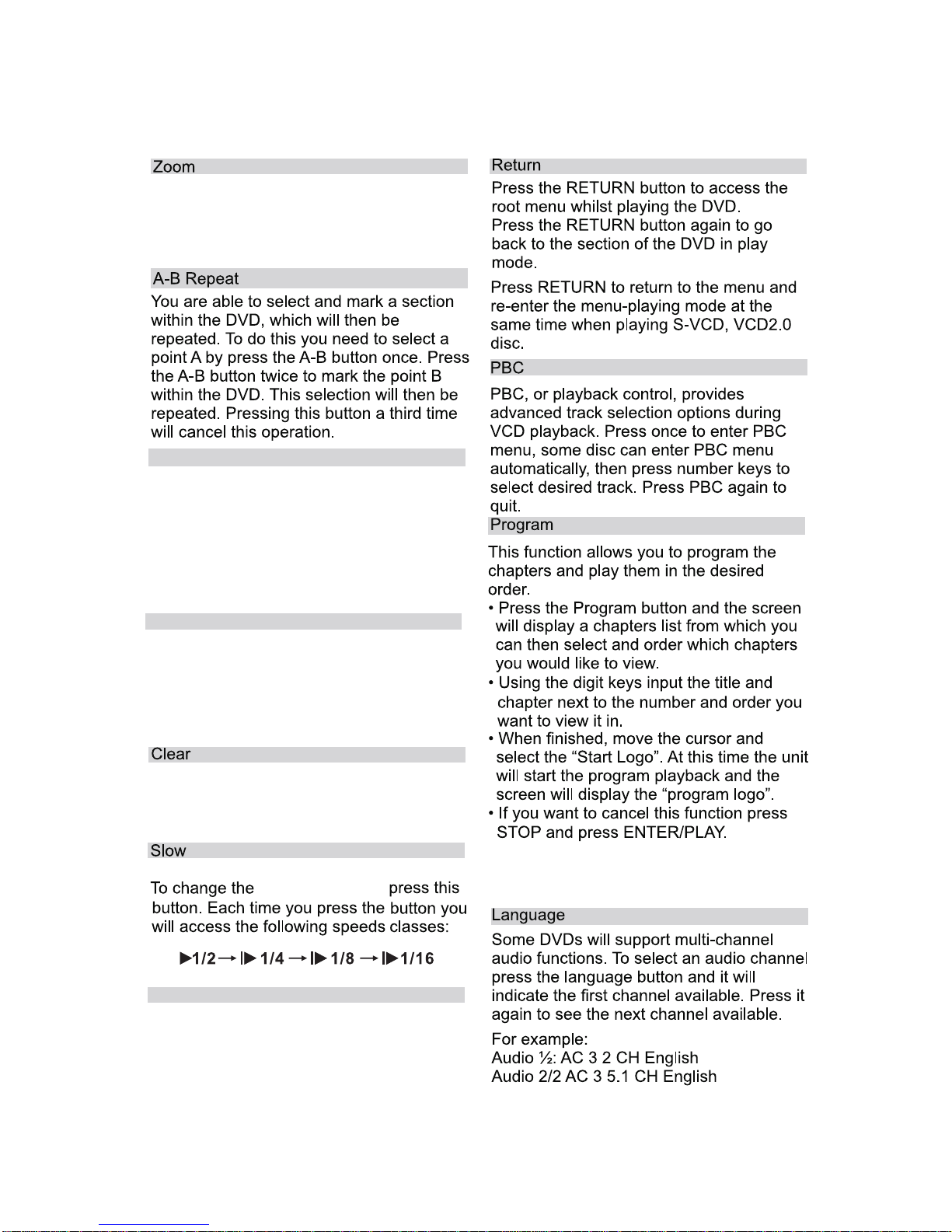

SOURCE
Press this button repeatedly for different
zoom options: 2x, 3x, 4x, 1/2x, 1/3, 1/4x,
1x. When zoomed in, use the arrow buttons
to move the viewing frame.
USB/CARD
Press this button in DVD Mode to switch to
USB/CARD playback. A compatible USB
flash drive or SD/MMC/MS card containing
compatible media files must be connected
to use this feature.
NOTE: Press the SOURCE button to enter
DVD Mode.
SOUND
Press this button for sound balance
adjustment. Press it repeatedly to cycle
through the following: TREBLE, BASS,
VOLUME. Use the volume +/- buttons to
increase/decrease the settings.
This option is in the PROGRAM menu
and enables you to remove a highlighted
chapter in the programmed list.
playback speed
Press this button to cycle through the
following input sources: DVD/AV/FM.
Note: The programmed list is not saved
in memory when the disc is ejected or the
unit is powered off

001/172
00:01 03:11 128kbps
001
002
003
004
12

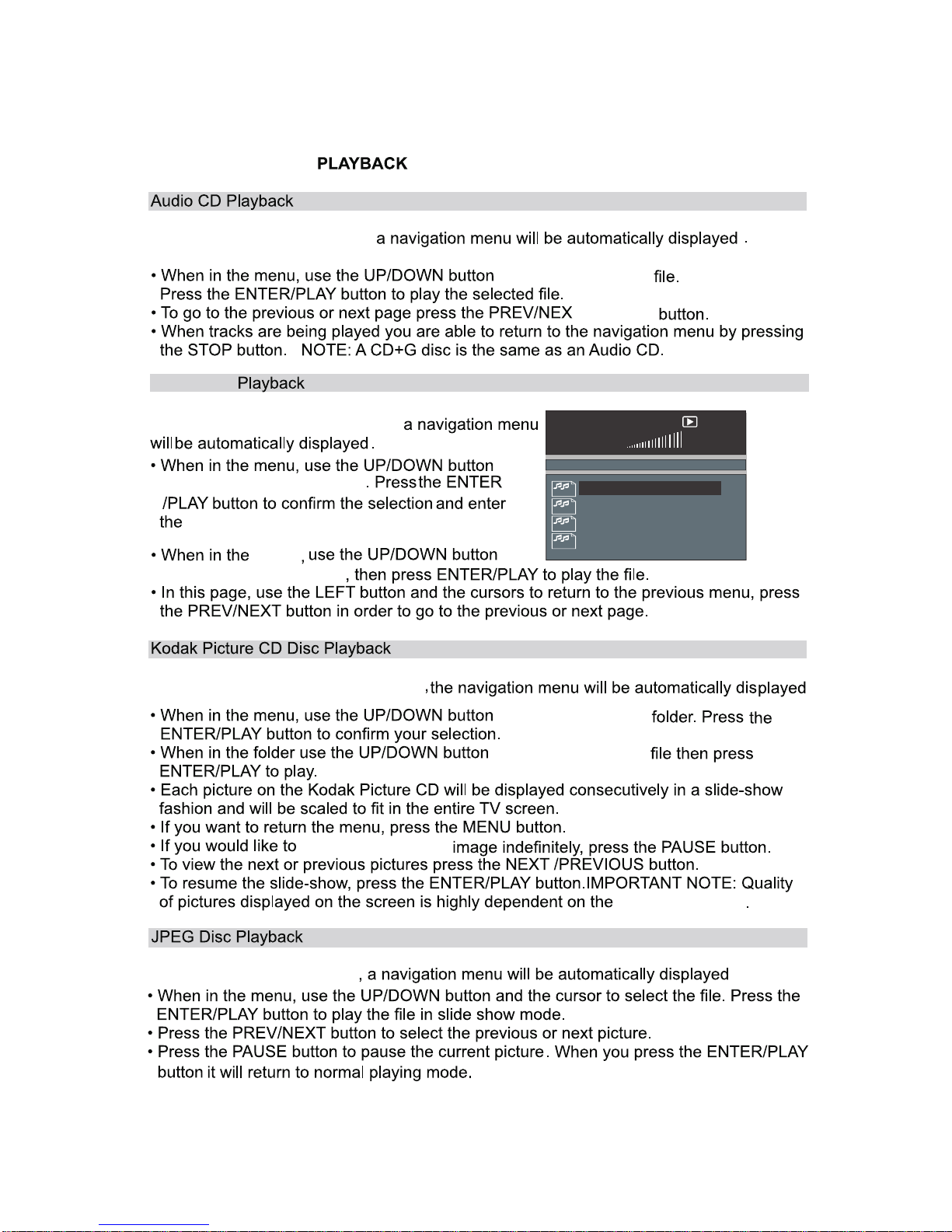

MUSIC/PICTURE
After an audio disc is loaded,
to select a desired
(|<</ >>|)
Music File
When a music data disc is loaded,
to select a desired folder
folder.
file list
to select a desired file
After a Kodak Picture CD is loaded .
to select a desired
to select a desired
display the current
picture file formats
After a JPEG CD is loaded .

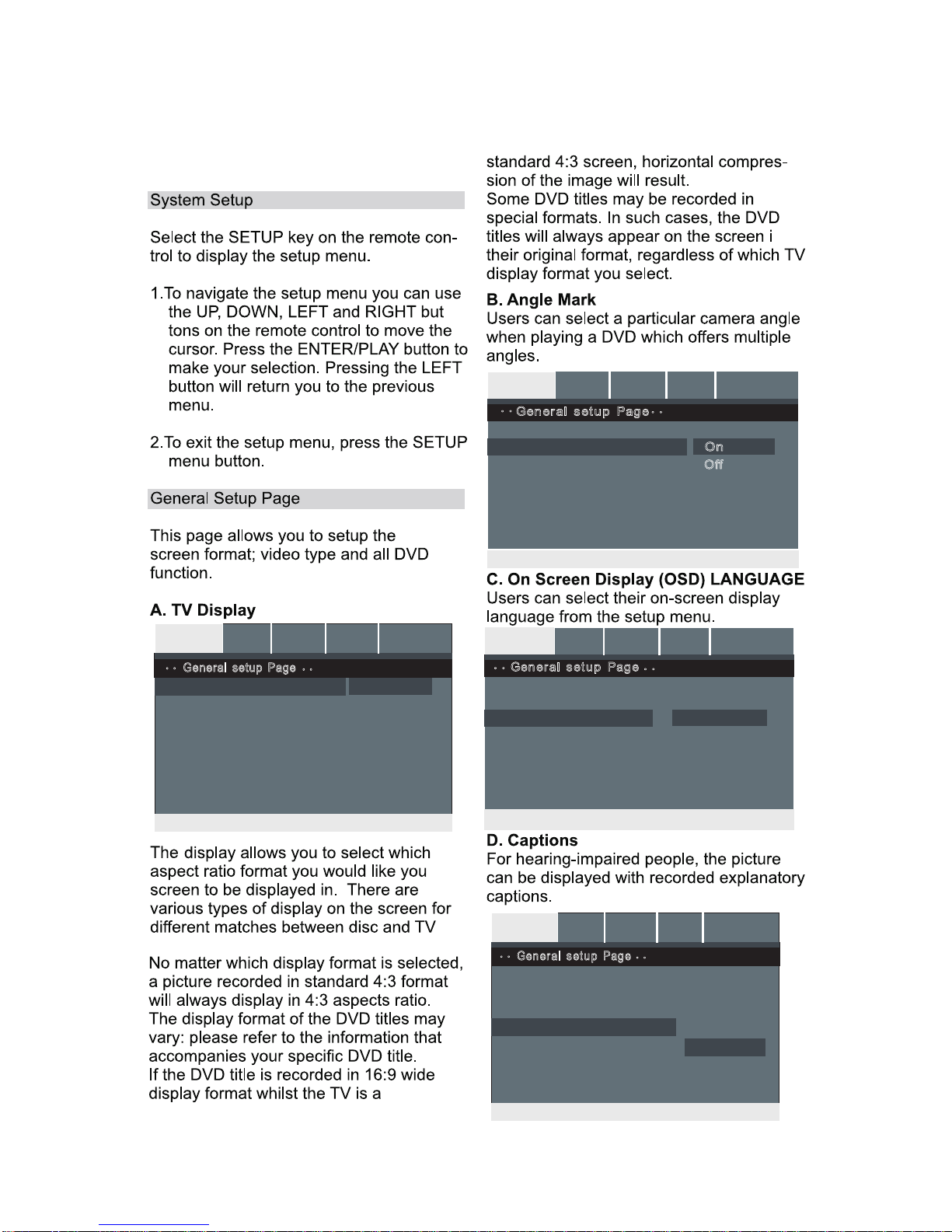

General
Audio
Tv Display
General setup Page
Angle Mark On
Osd Lang ENG
Caption
Off
Screen Saver
On
Last Memory
On
Set Tv Display Mode
Dolby
Video
Preference
●● ●●
PS
Wide
●
General
Audio
General setup Page
Closed Caplion
Dolby Video Preference
●● ●●
Off
General Audio Dolby Video
Preference
Off
Osd Lang
Caption
Tv Display
General setup Page
●● ●●
PS
Angle Mark On
ENG
Off
Screen Saver
On
On
Set Angle Mark
General
Audio
Tv Display
Tv Display
General setup Page
Angle Mark
Angle Mark
On
On
Osd Lang
Osd Lang
ENG
ENG
Caption
Off
Screen Saver
On
Set Osd Language
Dolby Video Preference
●● ●●
PS
PS
English
French
German
Spanish
On
Normal/Ps
Normal/Lb
13
HDCD
1X
Last Memory
On
DH CD
1X
a
L st Memory
On
HDCD
1X
MP3 Lyric mode
On
MP3 Lyric mode
On
Caption
Off
Screen Saver
On
Last Memory
On
DH CD
1X
MP3 Lyric mode
On
MP3 Lyric mode
On
MENU SETUP

General
General
Audio
Audio
General selup Page
General selup Page

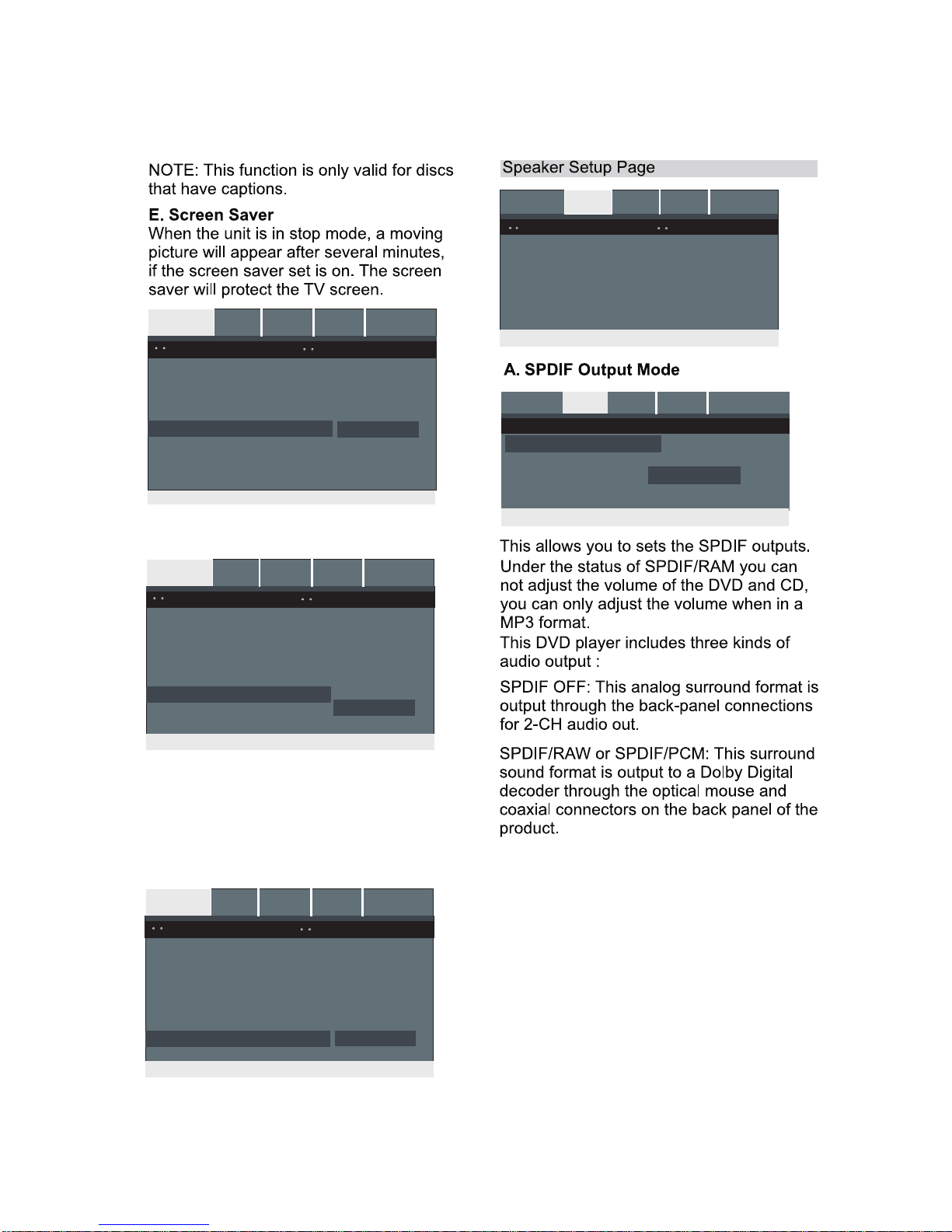

Screen Saver
Dolby
Dolby
Video
Video
Preference
Preference
●● ●●
●● ●●
On
On
Off
Off
Video
Preference
Spdif Setup
General
Audio
Audio Setup Page
Go To Speaker Setup Page
Dolby
●
●●●
Video
Preference
Spdif Off
General
Audio
DIGITAL AUDIO SETUP PAGE
Spdif Output
Setup Spdif
Dolby
Spdif/Raw
Spdif/Pcm
Tv Display
Tv Display
Angle Mark
Angle Mark
On
On
Osd Lang
Osd Lang
ENG
ENG
Caption
Caption
Off
Off
Screen Saver
Screen Saver
On
On
Last Momory
Last Momory
On
PS
PS
14
When the power is cut off suddenly,DVD
player can remember what it is displaying.
After DVD player has power again, it can
contiune to display beginning from its
memory;
F.Last Memory
Last Memory
On
HDCD
1X
E.HDCD
High definition compatible digital cd.
2X
General
Audio
General selup Page
Dolby
Video
Preference
●● ●●
Tv Display
Angle Mark
On
Osd Lang
ENG
Caption
Off
Screen Saver
On
PS
Last Memory
On
HDCD
1X
HDCD
HDCD
1X
1X
Off
MP3 Lyric mode On
MP3 Lyric mode On
MP3 Lyric mode On
K araoke Setup
Lpcm Out 48 k
