Teac CX-225iDAB User manual

CX-225iDAB/MC-DX450iDAB
NOTES CONTENTS
1 SPECIFICATIONS ........................................................................ 2
2 MICROCONTROLLER PIN FUNCTIONS.................. 3
3 EXPLODED VIEW AND PARTS LIST........................... 6
4 PC BOARDS AND PARTS LISTS .................................... 9
5 INCLUDED ACCESSORIES............................................... 17
Micro Hi-Fi System
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit
diagrams supplied pripor to this manual.
Parts marked with this sign are safety critical components.
They must be replaced with designated components.
[ FOR UK ]
!

2
CX-225iDAB/MC-DX450iDAB
1 SPECIFICATIONS
AMPLIFIER section
Output Power (L+R) 5 W + 5 W
Output Power (Subwoofer) 15 W
Input Sensitivity 500 mV
Frequency Response 50 to 20,000 Hz
Radio Section (FM)
Frequency Range 87.50 to 108.00 MHz (50 kHz step)
Sensitivity (S/N30dB) 10 dBμV/m
Radio Section (DAB)
Frequency Range Band III: 5A to 13F
(174.928 MHz to 239.200 MHz)
CD PLAYER Section
Frequency Response 20 to 20,000 Hz (±1 dB)
Signal-to-Noise Ratio 55 dB
Wow and Flutter Unmeasurable
SPEAKER
Type Full range flat type
Impedance 4 ohms
SUBWOOFER
Impedance 8 ohms
GENERAL
Power Requirements 230 V AC, 50 Hz
Power Consumption 74 W ( Standby: 0.35W )
Dimension (W x H x D)
Main Unit 247 x 169.5 x 135 mm
L & R Speakers 210 x 169.5 x 85 mm
Subwoofer 170 x 220 x 325 mm
Weight (Net)
Main Unit 1.3 kg
L & R Speakers 0.6 kg each
Subwoofer 4.6 kg
Standard Accessories
Remote control unit (RC-1196) x 1
Battery for remote control unit (CR2025) x 1
Subwoofer cable x 1
Speaker cable x 2
DAB antenna x 1
FM antenna x 1
Dock adapter x 3
(adapter “60GB (color) + Photo 40GB/60GB” premounted)
Wall mount bracket x 4
Screw x 8
Guide sheet for wall mounting x 2
Owner’s manual x 1
Quick guide for connection x 1
Warranty card x 1

3
CX-225iDAB/MC-DX450iDAB
2 MICROCONTROLLER PIN FUNCTIONS
T5CC1, MAIN PCBA IC 21
2-1 Pin Assignment
T5CC1

4
CX-225iDAB/MC-DX450iDAB
Use
ON Pull-up NoUse init stby Act.
1 VREF VREFL ADC Reference LOW( GND )
DNG_CDASSVASSVA2
rewopUCMV3.3+UCMCCVA3
4 P70/TA0IN N.C I/O X OPEN I
5 P71/TA1OUT N.C I/O X OPEN I
6 P72/TA3OUT N.C I/O X OPEN I
7 P73/TA4IN N.C I/O X OPEN I
8 P74/TA5OUT N.C I/O X OPEN I
9 P75/TA7OUT N.C I/O X OPEN I
10 P80/TB0IN0/INT5 N.C I/O X OPEN I
11 P81/TB0IN1/INT6 N.C I/O X OPEN I
12 P82/TB0OUT0 N.C I/O X OPEN I
13 P83/TB0OUT1 N.C I/O X OPEN I
14 P84/TB1IN0/INT7 VFD_RESET I/O O X I H L vfd reset
15 P85/TB1IN1/INT8 VFD_DO I/O O X I - - vfd data
16 P86/TB1OUT0 VFD_CS I/O OXI - - vfd chip select
17 P87/TB1OUT1 VFD_CLK I/O O X I - - vfd clock
18 P90/TXD0 DAB TXD I/O O X I - - DAB TXD
19 P91/RXD0 DAB RXD I/O I X I - - DAB RXD
,tcelesetarepopihcV3.3+UCM0MA42
,rewopUCMV3.3+UCMCCVD52
)zHM72(rotallicso-O)ZHM72(lat-X2X62
DNGDNGSSVD72
)zHM72(rotallicso-I)ZHM72(lat-X1X82
tcelesetarepopihcV3.3+UCM1MA92
30 RESET Reset I I I I L MCU reset
)zHK867.23(rotallicsoCTRI)ZHK867.23(lat-X1TX/69P13
)zHK867.23(rotallicsoCTRO)ZHK867.23(lat-X2TX/79P23
33 EMU0 N.C O OPEN
34 EMU1 N.C O OPEN
36 PA1/INT2 RDS_CLK I I X I - - rds clock
37 PA2/INT3 EX_INT. I I O I L
38 PA3/INT4 BUS_IN I I X I - - bus input
39 PA4 ST-BY_LED I/O O X I L H Stand-by LED control
40 PA5 DAB_ON I/O O X I H L dab on
41 PA6 PWR_ON I/O O X I L H power on
42 PA7 FM/AM_ON I/O O X I H L FM/AM on
NEPOXC.NELA34
44 P00/AD0 SYSTEM_MUTE I/O X I H L system mute
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN I - - RTC SQW/OUT
OPEN I - - Real time ic clock
OPEN I - - Real time ic data
61 P21/A1/A17 RTC_SWITCH I/O I O I - - Remote selector( system or single )
DNGDNGSSVD26
rewopUCMV3.3+UCMIMN36
rewopUCMV3.3+UCMCCVD46
65 P22/A2/A18 N.C I/O X OPEN
66 P23/A3/A19 N.C I/O X OPEN
67 P24/A4/A20 N.C I/O X OPEN
68 P25/A5/A21 N.C I/O X OPEN
69 P26/A6/A22 N.C I/O X OPEN
70 P27/A7/A23 N.C I/O X OPEN
Note
pin
No O/IemaNtroP Status
Description
20 P92/SCLK0/CTS0 N.C I/O X OPEN I
21 P93/TXD1 UPDATE_TXD I/O O X I - - MCU Updata TXD
22 P94/RXD1 UPDATE_RXD I/O I X I - - MCU Updata RXD
23 P95/SCLK1/CTS1 P_DWN I/O I X I I L Power down
35 PA0/INT1 REMOTE_IN I I X I - - remote in
45 P01/AD1 N.C I/O X
46 P02/AD2 N.C I/O X
47 P03/AD3 N.C I/O X
48 P04/AD4 N.C I/O X
49 P05/AD5 N.C I/O X
50 P06/AD6 N.C I/O X
51 P07/AD7 BUS_OUT I/O O X I - - Bus output
52 P10/AD8/A8 N.C I/O X
53 P11/AD9/A9 N.C I/O X
54 P12/AD10/A10 N.C I/O X
55 P13/AD11/A11 N.C I/O X
56 P14/AD12/A12 N.C I/O X
57 P15/AD13/A13 N.C I/O X
58 P16/AD14/A14 RTC_SQW/OUT I/O I X
59 P17/AD15/A15 RTC_CLK I/O O X
60 P20/A0/A16 RTC_DOUT I/O O X
Pin Functions

5
CX-225iDAB/MC-DX450iDAB
75 P34/BUSRQ DAB_SYS_RST I/O O O I - - DAB system reset(Does not use)
76 P35/BUSAK N.C I/O I O I - -
77 P36/R/W N.C I/O X OPEN
78 P37/BOOT BOOT_MODE I/O O O I H L update mode select
79 P40/CS0 N.C I/O X OPEN
80 P41/CS1 N.C I/O X OPEN
81 P42/CS2 RDS_DATA I/O I X I - - tuner RDS data input
82 P43/CS3 PLL_CE I/O O X I - - tuner PLL ic enable
83 P60/SCK PLL_CLK I/O O X I - - tuner PLL IC clock
84 P61/SO/SDA PLL_DOUT I/O O X I - - tuner PLL IC data out
85 P62/SI/SCL PLL_DINI/O I X I - - tuner PLL IC data input
86 P63/INT0 T_MUTE I/O I O I - - tuner PLL IC mute
87 P64/SCOUT TUNED_IN I/O I O I - L tuned in
88 P65 STEREO_IN I/O I O I - L stereo in
rewopUCMV3.3+UCMCCVD98
90 P66 N.C I/O X OPEN I
DNGDNGSSVD19
92 P50/AN0 KEY0 I I O I - - key0 input
93 P51/AN1 KEY1 I I O I - - key1 input
94 P52/AN2 N.C I I O I - -
95 P53/AN3/ADTRG SCROL_UP I I O I - - Scrol up
96 P54/AN4 SCROL_DWN I I O I - - scrol down
97 P55/AN5 V_PROTECT I I O I - - voltage protect
98 P56/AN6 N.C I O
99 P57/AN7 OPTION I I O I - - Version Option
100 VREFH MCU +3.3V ADC Reference HIGH( VCC )
Use
ON Pull-up NoUse init stby Act. Note
pin
No O/IemaNtroP Status
Description
71 P30/RD N.C I/O X OPEN
72 P31/WR N.C I/O X OPEN
73 P32/HWR EEPROM_DATA I/O O O I - - EEPROM DATA
74 P33/WAIT EEPROM_CLK I/O O O I - - EEPROM CLOCK

6
CX-225iDAB/MC-DX450iDAB

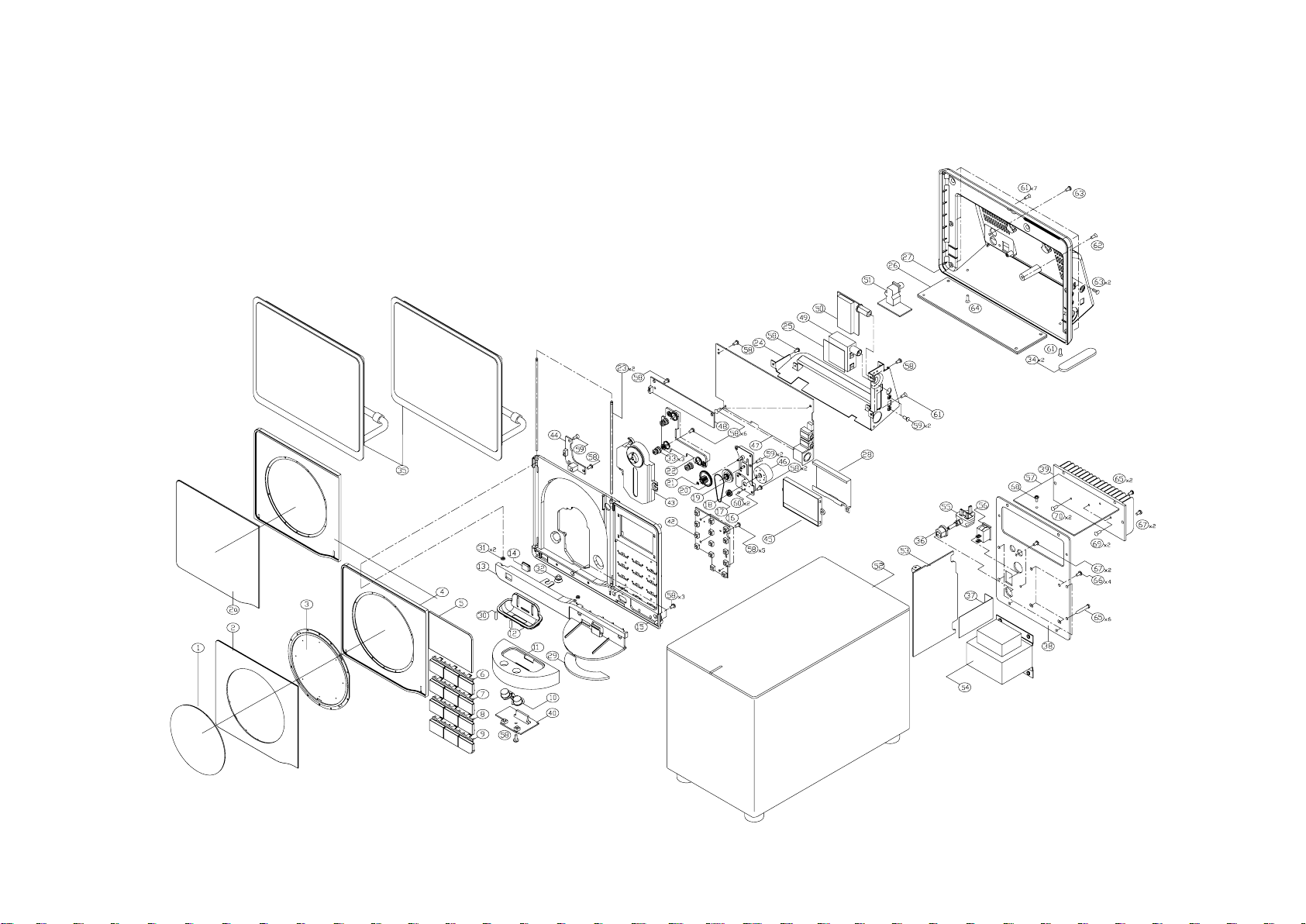

3 EXPLODED VIEWS AND PARTS LIST
EXPLODE VIEW

7
CX-225iDAB/MC-DX450iDAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 ORNAMENT, DOOR A (450iDABS)
2 ORNAMENT, DOOR B (450iDABS)
2a WINDOW, DOOR (225iDABB)
3 WINDOW, DOOR (450iDABS)
4 CGR1A458YA CD DOOR ASSY (450iDABS)
CGR1A458XA CD DOOR ASSY (225iDABB)
5 CGU1A428XA30 WINDOW, LCD (225iDABB)
CGU1A428WA30 WINDOW, LCD (450iDABS)
6 CBT1A1090Z KNOB , FUNCTION A (225iDABB)
CBT1A1090M7TG5 KNOB , FUNCTION A (450iDABS)
7 CBT1A1090Y KNOB , FUNCTION A (225iDABB)
CBT1A1090M7SG5 KNOB , FUNCTION A (450iDABS)
8 CBT1A1090X KNOB , FUNCTION A (225iDABB)
CBT1A1090M7UG5 KNOB , FUNCTION A (450iDABS)
9 CBT1A1091Z KNOB , FUNCTION B (225iDABB)
CBT1A1091M7XG5 KNOB , FUNCTION B (450iDABS)
10 CBT1A1093ZB38 KNOB, VOLUME(225iDABB) (supplied under mane of KNOB, POWER B)
CBT1A1093M7YG5 KNOB, VOLUME(450iDABS) (supplied under mane of KNOB, POWER B)
11 CGR1A463ZB38 ORNAMENT , IPOD (225iDABB)
CGR1A463M7YG5 ORNAMENT , IPOD (450iDABS)
12 CGR1A466ZA ADAPTOR DOCK ASSY(60GB) , IPOD (225iDABB)
CGR1A466YA ADAPTOR DOCK ASSY(60GB) , IPOD (450iDABS)
13 CGR1A462XB38 ORNAMENT , FRONT A MC-DX225iDABB
CGR1A462M7YG5 ORNAMENT , FRONT A MC-DX450iDABS
14 CGU1A429A8 WINDOW , SENSOR
15 CGW1A469B38 PANEL, FRONT (225iDABB)
CGW1A469M7G53 PANEL, FRONT (450iDABS)
16 CMD1A685 BRACKET , MOTOR
17 CDV1A006 BELT
18 CDR1A002 PULLY
19 CGR1A029 GEAR , PULLY
20 CDG1A028 GEAR , CD DOOR
21 CNW1A043 WASHER
22 CMH1A290 SUPPORT , CD , MECH
23 CDF1A025 SHAFT , DOOR
24 CUA1A290 PLATE , BOTTOM
25 CMX1A261 INSULLATOR , TUNER
26 CUA1A291 PLATE , WEIGHT
27 CKD4A066XB38 COVER , REAR (225iDABB)
CKD4A066M7WG5 COVER , REAR (450iDABS)
28 CMC1A356 PLATE , EARTH
29 CHG1A419 FOOT , IPOD
30 CHG1A423Z RUBBER , SILICONE
┗RUBBER , SILICONE (225iDABB) Supplied with Ref. No. 12
  RUBBER , SILICONE (450iDABS) Supplied with Ref. No. 12
31 CHG1A417 RUBBER , SHAFT
32 CHG1A416Z ABSORBER , MECH (B)
33 CHG1A415Y ABSORBER , MECH (A)
34 CHG1A418 FOOT , SET
35 CASDX450NXTBK NXT SPEAKER (225iDABB)
CASDX450NXTSL NXT SPEAKER (450iDABS)
36 CHR1A302 BUSHING , AC CORD
37 CMX1A245 SHEET , TRANS
38 CKF1A395Z PANEL , REAR
EXPLODED VIEW

8
CX-225iDAB/MC-DX450iDAB
39 CMY1A308Z HEATSINK
40 IPOD PCB ASSY .................................................................... United on PCBA-MAIN, Refer to page 9
41 Not in use
42 COP12112B FRONT (KEY PAD) PCB ASSY
43 CJDDA23Z1F TRAVERSE UNIT , DA23Z1F
44 CLOSE SW (REMOTE SENSOR) PCB ASSY ........................ United on PCBA-FRONT, Refer to page 15
45 CFLICG1602017BTLWA LCD , IC-G160201-7BTLWA
46 CDMCCM03030R139 MOTOR (CCM03030R139)
47 COP12113B MAIN PCB ASSY
48 OPEN SW PCB ASSY ........................................................... United on PCBA-FRONT, Refer to page 15
49 CNVMW104MA1N51W MODULE , TUNER
CNVMW104FA1N51 MODULE , FM TUNER ONLY DAB
50 CNVFS2025V22A MODULE , DAB, FS2025V22A DAB
51 VIDEO PCB ASSY ................................................................. United on PCBA-MAIN, Refer to page 9
52 CKADX225SWBEUR SUB WOOFER CABINET ASSY (225IDABB)
CKADX450SWSUK SUB WOOFER CABINET ASSY (450IDABS)
┗CAS16LP286SEZ WOOFER UNIT
53 POWER PCB ASSY ............................................................... United on PCBA-AMP, Refer to page 13
54 CLT5P048ZE TRANS , POWER , EUR (230V, 50Hz)
55 CJA2E086Z CORD , POWER
56 CSH1A009ZV SWITCH , POWER MOMS
57 COP12110B AMP PCB ASSY
58 CTB3+8JR SCREW
59 CTS3+8JR SCREW
60 CTB1.7+2.3FR SCREW
61 CTS3+10JFC SCREW Silver
CTS3+10JFB SCREW Black
62 CTS3+16JR SCREW
63 CTB3+8JFZR SCREW
64 CTB3+6JFZR SCREW
65 CTB35+22AFZR SCREW (6 X 3.5 X 1.4P X 22L Black)
66 CTB4+10FFZR SCREW
67 CTBD3+8JFZR SCREW
68 CTB3+6FFZR SCREW
69 CTB3+10JFZR SCREW
70 CHD1A012R SCREW , SPECIAL
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS

9
CX-225iDAB/MC-DX450iDAB
MAIN PCB , TOP
4 PC BOARDS AND PARTS LIST
CUP12113Z-2
IPOD PCB
CUP12113Z-3
VIDEO PCB
CUP12113Z- 4
USB PCB
( No mount )
CUP12113Z-1
MAIN PCB

10
CX-225iDAB/MC-DX450iDAB

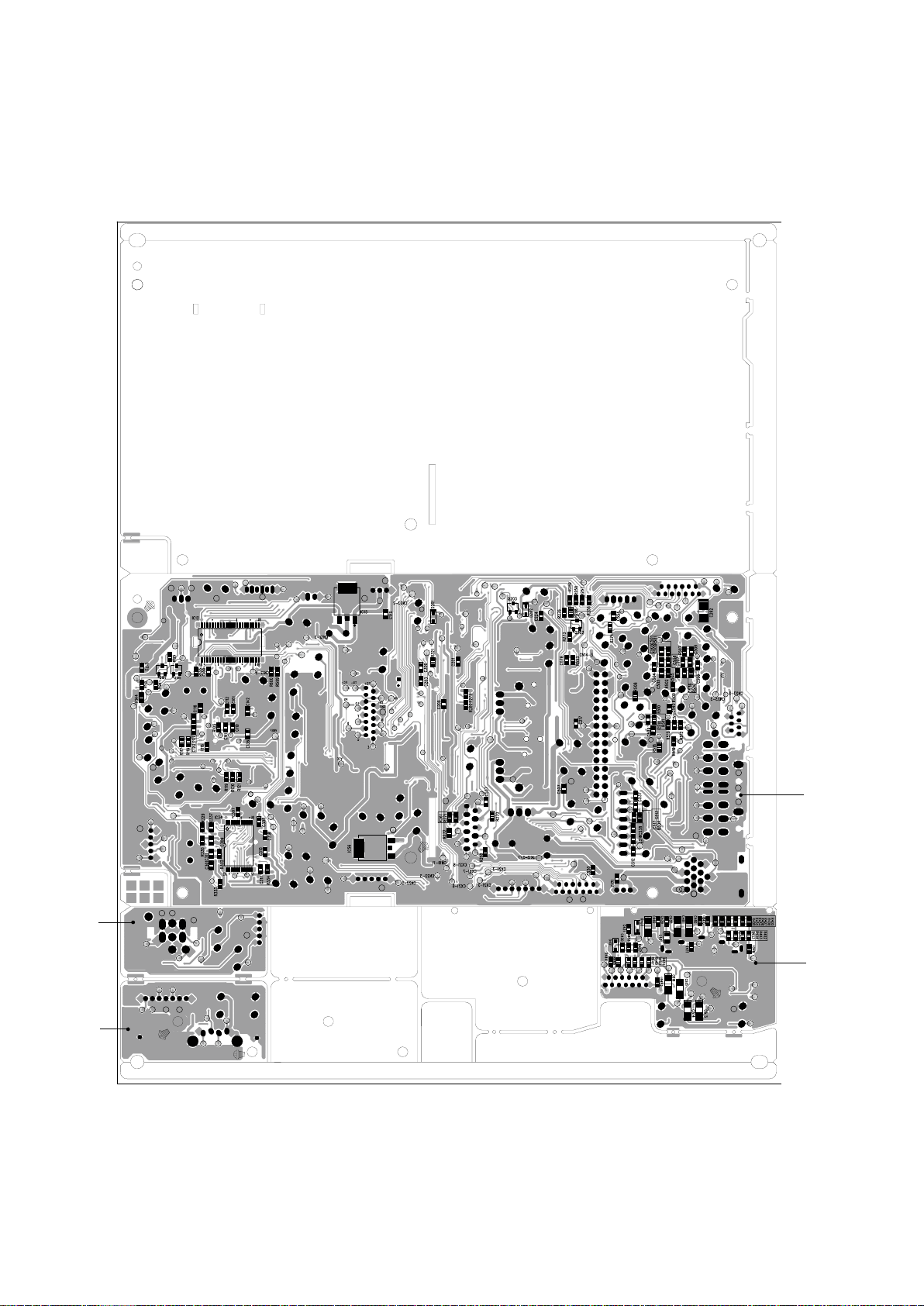

MAIN PCB , BOTTOM
CUP12113Z-2
IPOD PCB
CUP12113Z-1
MAIN PCB
CUP12113Z-3
VIDEO PCB
CUP12113Z- 4
USB PCB
( No mount )

11
CX-225iDAB/MC-DX450iDAB
CUP12113Z-2
IPOD PCB
CUP12113Z-1
MAIN PCB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12113B MAIN PCB ASSY
CUP12113Z PCB , MAIN
CUP12113Z-1 MAIN PCB
C592 CCEA1EH102E CAP , ELECT, 1000uF/25V
C594 CCEA1CH222E CAP , ELECT, 2200uF/16V
CN11 CJP16GA117ZY WAFER , CD MECHA
CN12 CJP06GA229ZB WAFER . STRAIGHT(6P, 1.5MM)
CN13 CJP02GB231ZB WAFER , 2P(2MM)
CN14 CJP05GB46ZY WAFER
CN16 CJP13GA117ZY WAFER , CARD CABLE
CN17 CJP03GB46ZY WAFER , ANGLE(3PIN)
CN19 CJP11GB116ZY WAFER
CN20 CJP05GB46ZY WAFER
CN21 CJP07GA19ZY WAFER , STRAIGHT(7PIN)
CN23 CJP07GB113ZY WAFER , CARD CABLE
D101,201,202 CVD1SS355T DIODE , CHIP, 1SS355
D203 HVDRB160L60TE25 DIODE , SCHOTTKEY RB160L60TE25
IC11 CVITC94A70FG I.C , CD DSP, TC94A70FG
IC12 HVITA2125AFG I.C , MOTOR DRIVER , TA2125AFG
IC13,55 CVIKIA1117S33 I.C , REGULATOR, KIA1117S33
IC14 CVIKIA1117S15 I.C , REGULATOR, KIA1117S15
IC15 CVIKIA7808AF I.C , REGULATOR, KIA7808AF
IC21 CVIANAM1426CR I.C , U-COM MC-DX40(CVIT5CC1)
CVIT5CC1 I.C , FLASH U-COM, T5CC1(TOSHIBA)
IC22 CVIAT24C02NSU18 I.C , EEPROM (2K), AT24C02NSU18
IC24 HVIRH5VT18C I.C , RESET, RH5VT18C
IC26 CVIKIA1117S00 I.C , REGULATOR
IC27 CVIKIA1117S33 I.C , REGULATOR,
IC28 CVIKIA78R33F I.C , REGULATOR, KIA78R33F
IC31 I.C , USB DECODER, No mount
IC33 I.C , CURRENT LIMITER, No mount
IC34 I.C , FLUSH 512K No mount
IC51 CVINJU7391V I.C , FUNCTION + VOLUME, NJU7391V
IC52 HVIBA4560RF I.C , OP AMP, BA4560RF
IC53 HVINJM4556AL I.C , HEADPHONE, NJM4556AL
IC56 BVIBA50BC0FP I.C , REGULATOR CHIP , BA50BC0FP
IC57 CVIMCDX40ZA HEATSINK ASS'Y (CMY1A239, 5V + 8V)
HVIKIA7805API I.C , REGULATOR , KIA7805API
HVIKIA7808API I.C , REGULATOR , KIA7808API
CMY1A239 HEATSINK
CTB3+8JR SCREW
IC59 HVIKIA7809API I.C , REGULATOR KIA7809API
JK13 CJJ6L001Z JACK , DIN 13P
JK21,51 HJJ2E027Z JACK , HEADPHONE
L101 CLQ09E100KRZ COIL , CHIP(10uH, 3216)
L102,104,203,204 CLZ9R001Z FERRITE , CHIP BEAD (60ohm, 2012)
Q101 HVTKTA1504SYRTK T.R , CHIP, KTA1504SYRTK
Q102,504,508,605 HVTKRC107S T.R , CHIP, C107S
Q103,201,503,507 HVTKRA107S T.R , CHIP, A107S
Q104,105,501,502 HVTKTD1304T T.R , CHIP , D1304T
Q505,506,509~512
Q106,107 HVTKTD1304T T.R , CHIP, D1304
Q203 HVTKRA107S T.R , CHIP, A107S
X101 HOX16934A120C CRYSTAL
X201 HOX27000E180S CRYSTAL , CHIP (27MHZ,SMD)
X202 HOX00032K120I CRYSTAL , 32.768KHZ
X301 HOX12000E200C 12MHz CRYSTAL
CUP12113Z-2 iPOD PCB
CY22 CJP13GB113ZY CARD CABLE , WAFER
MAIN PCB ASSY

12
CX-225iDAB/MC-DX450iDAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
IC44 HVIBA4560RF I.C , OP AMP, BA4560RF
JK41 CJJ9L014ZT CONNECTOR , IPOD (30P)
S401,402 CST1A012ZT SW , TACT
CUP12113Z-3 VIDEO PCB
C656, 657 CCEA1CH471T CAP , ELECT , 470uF/16V
CN61 CJP05GA19ZY WAFER, STRAIGHT
JK61 CJJ9N006Z JACK , S-VIDEO+CVBS (GOLD, 2P)
CUP12113Z-4 USB PCB
CN21 WAFER, STRAIGHT (7PIN) No mount
C356 CAP , ELECT , 10uF/50V No mount
C357 CAP , ELECT , 100uF/16V No mount
JK31 JACK , USB BLK/JACK, USB SLV No mount
L302, 303 FERRITE , CHIP BEAD(60ohm, 2012) No mount

13
CX-225iDAB/MC-DX450iDAB
AMP PCB
CUP12110-1
POWER PCB
CUP12110-2
AMP PCB

14
CX-225iDAB/MC-DX450iDAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12110B AMP PCB ASSY
CUP12110Z PCB , POWER(AMP)
CUP12110-1 POWER PCB
BD78,79 KLZ9H001Z BEAD , CORE
C702 CCEA1CH102E CAP , ELECT, 100uF/50V
C705 CCEA1CH471T CAP , ELECT, 470uF/16V
C717 CCEA1CH682E CAP , ELECT, 6800uF/50V
C719 CCEA1EH101T CAP , ELECT, 100uF/25V
C751 CCEA1EH332E CAP , ELECT, 3300uF/25V
C752,754,762 CCEA1EH102E CAP , ELECT, 100uF/25V
C753 CCEA1EH470T CAP , ELECT, 47uF/25V
CN72 CJP03GA19ZY WAFER , STRAIGHT(3PIN)
CN73 CJP02KA060ZY WAFER
CN74 CJP02GA89ZY WAFER
CN77 CJP05GA01ZY WAFER(YMW025-05R)
CN81 CJP02GA89ZY WAFER
D701~704 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D706 CVD11EQS10GT DIODE , SCHOTTKY (100V/1A)
D707 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D708,710 CVD1SS133MT DIODE, 1SS133
D711,715 CVD1N4003SRT DIODE , RECT, 1N4003SRT
D712,714,716,717 CVD1N4003ST DIODE , RECT, 1N4003ST
D718 CVD1SS133MT DIODE, 1SS133
F701 KJCFC5S HOLDER , FUSE
┗KBA2C2000TLEZ FUSE , 2 AT - 250 V
F702 KBA1A3000FAT FUSE , SUBMINIAITURE US
F703 KBA1A3000FAT FUSE , SUBMINIAITURE US
IC74 CVIKIA278R12PIBA I.C HEAT SINK ASS'Y(CMY3A222)
┗HVIKIA278R12PI I.C , REGULATOR, KIA278R12PI
CMY3A222 HEATSINK
CTB3+8JR SCREW
IC75 HVIKIA7912PI I.C , REGULATOR, KIA7912PI
IC76 BVIBA50BC0FP I.C , REGULATOR, BA50BC0FP
JK71 CJJ6L001Z JACK , DIN 13P
Q702,703,706,707 HVTKRC107MT T.R, C107M
Q709,710
Q703 HVTKRA102MT T.R, A102M
RY71 CSL1E002ZE RELAY , AC POWER
T701 CLT5I009ZE TRANS , SUB CD6002/N
CUP12110-2 AMP PCB
BD72~77 KLZ9H001Z BEAD , CORE
C707,708 CCEA1ERD332EH CAP , ELECT, 3300uF/25V
C713~716 CCEA1HH2R2T CAP , ELECT, 2.2uF/50V
C726,727 CCEA1HH4R7T CAP , ELECT, 4.7uF/50V
C755 CCEA1CH471T CAP , ELECT, 470uF/16V
CN70 CJP11GA19ZY WAFER , STRAIGHT
CN76 CJP03GA90ZY WAFER
CN78 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN79 CJP05GA01ZY WAFER(YMW025-05R)
D709 HVDGBJ1006 DIODE , BRIDGE, GBJ1006
D713 CVD1SS133MT DIODE, 1SS133
IC71,72 HVITDA7265 I.C , AMP, TDA7265
Q704 HVTKRA102MT T.R, A102M
Q705 HVTKRC107MT T.R, C107M
AMP PCB ASSY

15
CX-225iDAB/MC-DX450iDAB
REF. NO. PARTS NO. DESCRIPTION REMARKS
RY72 CSL3A018ZE RELAY , L/R NXT SPK
RY73 CSL3A018ZE RELAY , SUBWOOFER
JK72 CJJ4N083Z JACK , 2P RCA(W/R, SILVER PLATE)

16
CX-225iDAB/MC-DX450iDAB
FRONT PCB
CUP12112Z-1
FRONT(KEY PAD) PCB
CUP12112Z-3
CLOSE SWITCH PCB
CUP12112Z-2
OPEN SWITCH PCB

17
CX-225iDAB/MC-DX450iDAB
CUP12112Z-1
FRONT(KEY PAD) PCB
REF. NO. PARTS NO. DESCRIPTION REMARKS
COP12112C FRONT PCB ASSY
CUP12112Z PCB , FRONT
CUP12112Z-1 FRONT (KEY PAD) PCB
S301,302,601~612 CST1A012ZT SW , TACT
CUP12112Y-2 OPEN SW PCB
SW62 CSH1A011Z SW , DETECTOR(1C1P)
CUP12112Y-3 CLOSE SW (REMOTE/SENSOR) PCB
C651 CCEA1CKS101T CAP, ELECT, 100uF/16V
IC6 CRVKSM603TH2E SENSOR, REMOTE
SW61 CSH1A011Z SW, DETECTOR (1C1P)
FRONT PCB ASSY

18
CX-225iDAB/MC-DX450iDAB
PARTS NO. DESCRIPTION REMARKS
CARTMCDX450IDAB REMOTE CONTROL UNIT RC-1196
BATTERY CR2025 (Supplied with Remote control units)
CQX1A1386Y MANUAL , INSTRUCTION MC-DX450iDAB
CQX1A1400Y MANUAL , INSTRUCTION CX-225iDAB
CQE1A418Z SHEET, QUICK GUIDE (225iDABB)
CQE1A417Z SHEET, QUICK GUIDE (450iDABS)
CQE1A419Z SHEET , GUIDE MOUNT(S)
CSA1A018Z FM 1 POLE ANT
CSA272 ANT , DAB T
CJS4M037Z CORD , 1P PIN(2150MM, RED, ANGLE)
CJS4M038Z CORD , 1P PIN(2150MM, WHITE, ANGLE)
CJS6L001Z CABLE , SUBWOOFER DIN 13P BLACK , 2M (225iDABB)
CQB1A622 CABLE , SUBWOOFER DIN 13P SILVER , 2M (450iDABS)
CMD1A689Z BRACKET , WALL MAIN UNIT
CTW3+8JR SCREW
CGR1A465ZA ADAPTOR DOCK ASSY(20GB), IPOD (225iDABB)
CGR1A465YA ADAPTOR DOCK ASSY(20GB), IPOD (450iDABS)
CGR1A467ZA ADAPTOR DOCK ASSY(NANO), IPOD (225iDABB)
CGR1A467YA ADAPTOR DOCK ASSY(NANO), IPOD (450iDABS)
INCLUDED ACCESSORIES
5 INCLUDED ACCESSORIES

SKTE-SM0904007
PREPARED IN CHINA
April 2009
TEAC CORPORATION 1-47, Ochiai, Tama-shi, Tokyo 206-8530, Japan Phone: [phone]
TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: [phone]
TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: [phone]
TEAC MEXICO, S.A. De C.V
TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: [phone]
TEAC EUROPE GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone: [phone]
Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México Phone:[phone]
CX-225iDAB/MC-DX450iDAB

CX-225iDAB/MC-DX450iDAB
Micro Hi-Fi System
CX-225iDAB/MC-DX450iDAB
TESER
1
2
S
R
3
BSC
4
LCS
5
6
S
S
V
7
8
T
U
O
_V
9
0
1
N1C
11
2
1
3
1
I
S
P
1
C
DN
G
22XC
D
CL
K
A
N
I_
V
KL
C
_
M
O
RPE
E
ATA
D_
M
O
R
P
EE
IPOD_Rx IPOD_Tx
SSVD
DVSS
S
SV
D
AVSS
CCVD
DVCC
DVCC
AVCC
EDOMTOOB C.N
ATAD_V
_
F
NI_ETOME
R
N.C
HFER
V
C
C
VD
DVCC
N
I-
X
T
U
O-X
TES
E
R
OTI_Rx OTI_Tx
C.N
CD_BUCK
CD_BUS3
N.C
1
C
C
5
T
IV
C
AD_BA
D
C.N
LED_POWER_ON
I
S
_D
CL
TESER_DCL
KL
C_
BAD
C
.N
P_DOWN
0
Y
EK
1YEK
DVCC
CD_CCE
N.C
DSP_RST
CD_LIMIT_SW
CD_CLOSE_SW
CD_OPEN_SW
MT_STB
CD_OPEN_M
CD_CLOSE_M
H
CT
A
L_V_F
N.C
N.C
N.C
B
SC_DCL
USB_PON
K
LC
_V
_F
N.C HP_IN
SP_ON
HP_MUTE
1
TX
2TX
NI_
T
X
T
UO
_TX
IPOD_DET
C.N
C.
N
C.
N
F_MUTE
PWR_CTL
C
.
N
CD_BUS2
0
A
1A
2A
DN
G
CCV
PW
LC
S
A
D
S
K2MORPEE
K
6
5
2
U
CM
z
H
K
8
67
.23LAT'
X
zHM72 L
A
T'X
TRAPBAD/R
E
NUT/U
CM
D
N
GA
R
-
UT
CCV
KLC_C
2
I
A
TAD_
C
2
I
A
L
XEV
CII
I
S
DR
L
-
U
T40TE
E
H
S
tra
P
R
E
NUT
traP BAD
40
T
EEHS
TESE
R V8
.1
0
.
5
E
CI
NEV
V
2.
1
V
3.3
DN
G
DNG
4
1
CO
I
PG
11B
_
OIPG
5
AOIPG
51
CO
IPC
1
B
OIPC
21
A
O
I
PC
4
B
O
IPG
01BOIPG
A
T
A
D
2
PCS
KLC
2
PCS
N
I
D1S
TUO
D
1
S
2
S
CIP
S
4
1A
OI
P
G
TESE
R
_
S
YS
T
U
OFI
D
P/
S
OSI
M
_
IPS
ISOM_IPS
K
LCS_IPS
K
LC
M
_DUA
RF
S
_DUA
K
L
C
S
_DU
A
0TUODS_D
U
A
D
NG_
A
L
D
U
A
RDU
A
10
TE
EHS
10
TEE
H
S
VREFL
K
7
.
4
NOITPO
V
1
V5.1
K
2
.8
BA
D
0
4
X
D
-
C
M
BA
D
i
5
4
X
D-C
M
n
oisreV
K
8
.1
R
UE
0
4X
D
-
CM V5.0
EG
A
TL
OV
2
5
2
R
>
.
SERNO
ITP
O
<
MA/MF
1
L_
U
T
2
D
N
GA
3
R_
UT
4
)V
3
.
3
(CC
V
5
6
A
T
A
D_C2I
7
8
XEV
9
01
ISDR
K
L
C_C
2
I
C
I
I
AL
9
1N
C
81NC
L
_
D
UA
AT
AD
2PC
S
R
_DUA03
92
KL
C2PC
S41
3
1
DNG
4
DN
G
3
V3.32
V2
.
11
40TEEHS
ELUDO
M
BA
D
E
LU
D
O
M RE
NU
T
DAB MODULE
40
T
EEH
S30
TEE
H
S
N
I_
ETOMER
N
I_
E
TOMER
V
3.
3
DN
G
1V
3
.3T
S
+
2
N
I
_
ET
OM
ER
3
D
NG
0
2
NB
RO
S
N
E
S
C
.N
:
NIP reh
t
O *
D
N
G
1
2
D
NG3
71NC
R
O
SN
E
S
IS
DR
ISD
R
T
ES
E
R
S
R
BSC
LC
S
I
S
S
S
V
D
DV
T
UO_V
P
1C
N
1C
A
K
DOP
I
V
3
.3TS
+
0
YE
K
1
YE
K
DN
G
D
NG
SHEET 04
USB_OC
ATAD_R
E
NUT
KLC_R
E
N
U
T
IPOD_nRESET
IPOD_I2C_DATA
IPOD_I2C_CLK
AUX _IN
NI_V
OTI_RESET
LCS_D
C
L
N.C
AL
C.N
C.
N
C.N
C
.
N
C.N
C.N
C
.N
LCS_
C
2I
ADS_
C2
I
T
E
SER
n
CC
V
1
E
D
OM0ED
O
M
N
OI
T
A
C
ITN
E
HTUA
yl
no
BA
D
i
5
2
2
-
X
C/B
A
Di05
4
X
D
-
C
M
b0
.
2.reV
ELPPA
SUTATS
L
A
NG
I
SS
S
E
RDDAC
2
I
DAERETI
R
W0EDOM
1
EDOM
01 02
x
012x0
132x
0
22x01
NOIT
P
OSSERDDA52CI
TUNER MODULE
11P FFC CABLE 30P WAFER
D'B DO
P
I
ELBACCFFP51
D'BWSPO/DEL
REFAWP5
D'BDAPYEK
R
EFAWP5
E
L
U
D
O
M D
CL
EL
B
ACCFFP31
D'B LC/
ROS
NE
S
R
EFAWP3
DN
GA
GND
GND
RESET
VCC
RX
TX
BOOT
1
)
V
3
.
3(
CC
V
TESER2
3
X
T
4
XR
5
T
OOB
32NC
6
DNG
ET
A
DPU UCM
ET
A
DP
U UC
M
ELBACCFFP7
20
E
P
YT
7
D
N
G
W
S-
N
E
P
O
W
S
-
ES
OL
C
D
NGM
W
S_NEP
O
DN
G
M
D
NGM
WS
_
E
S
O
L
C4
D
N
G
M
5
TI
M
I
L
T
N
E
R
RU
C
1
2
NC
D
'BBSU
1
D
N
G
2
3
)V5
(T
UO
V
4
+
D
5
6
7
D
N
G
-D
DN
G
1
Y
E
K
D
'BB
S
U
ELBACREFAWP7
VOUT
GND
D+
GND
D-
GND
KEY1
IPOD_R
IPOD_L
VOUT
IPOD_RX
IPOD_TX
KEY1
1
2
3
4HCL_DOPI
5
6
7
8
9
01
1
1
1
Y
E
K
XT_DOPI
DNG
D
NG
V5
+
XR
_DO
P
I
TE
D_D
OPI
HC
R
_
T
O
P
I
D
N
G
21
3
1
C-
S
_DOPI
Y-
S_
DOPI
S
BVC_D
O
P
I
IPOD_CVBS
IPOD_S-C
IPOD_S-Y
IPOD_CVBS
IPOD_S-C
IPOD_S-Y
GND GND
TUO
O
EDI
VDOP
I
IPOD_DET
BA
Di054
X
D-CM
BAD04XD-CM
SR_
DCL
THG
IL
K
C
AB
REWO
P
9
L
H
9

L
9

H
H
5:3
B
'&
/
2
WS
1
WS
L
6
8
7$76
<//8)
<%76

)/$+
)
)
2B
'
&/
t
r
a
PREN
U
T
M
F
BA
Di522-
X
C
CD_CLOSE_SW_2
1
V3.3
TS
+
2
1Y
EK
3
D
N
G
41
N
C
D
APYEK
0YEK4
5
D
NG
V
5.
1
K
2.8
y
l
no
B
A
Di
5
22-
X
C
524
2
3222
1
20291
8
1716151
4
1
3
1211
1
01987
6
5
4
3
2
1
62
7
2
82
92
03
13
23
3
3
4
3
53
63
73
83
93
04
14
2
4
34
44
54
6
4
74
84
94
05
15
2
53
5
455565
7
5859506
1
62
6
3
6
465666768696071
7
27374757
67
7
7
87
97
08
1
8
28
38
4
8
58
6
8
78
88
9
8
09
19
29
39
4
9
59
6
9
7
9
89
9
9
001
12CI
X202
32.768KHz
602C
P2
1
702
C
P
2
1
X201
27MHz
502C
P22
4
0
2C
P
2
2
R221
1M
522
R
0
C201 0.1uF
R238 33
R237 33 R236 33
R235 33
R234 33
8765
4 3 2 1
22
C
I
K2
MOR
P
E
E
132R 33
032R 33
R232 3.3K R233 3.3K
R239 33
C210 0.01uF
5
62R 001
662R 001
C216
100P
C217
100P
3
6
2R 0
4
62
R0
912R
K
1
GND VDD
OUT
321
4
2CI C
81T
V
5H
R
R220
10K
29 30
27 28
17 18
19 20
21 22 24
23 25
2616
1513
1412
11
10
9
8 7
6 53
4
1 2
CN18
C220
0.1uF C256
47/25V
C218
0.1uF
C254
47/25V
n
ItuO
GND
3
1
2
7
2CI
V3.3
n
ItuO
GND
3
1
2
62CI
V
2
.1
5
4
2R 0
742R 0
C202
0.1uF
C251
1000/6.3V
R217 33
R216 33
R215
100K
7
62
R
33
86
2R 0
9
62
R0
072R 3
3
172R 33
2
7
2R 33
L203
60R
C221
0.1uF
C257
47/25V
1
02
R33
R202 0
R203 0
8
22
R33
72
2R 33
62
2R 33
422R 0
3
2
2R 0
222R
3
3
R206 0
R205
10K
R213 0 R212 0
R240
0
142
R
C
.
N
R242
0
R214 33
44
2
R3
3
3
4
2
R3
3
R218 47
C214
220P
C208
100P
C209 0.1uF
C211
0.1uF
3
02C
Fu1
.
0
212
C
Fu1
.0
152RK
0
1
9
42R
K
22
0
5
2
RK22
R252
OPTION
R209 0
R210 10K
R211 0
13
12
11
10
9
8
7
6
5
4
3
2
1
CN16
6
5
2
R
0
9
52R 0
7
5
2
R0
852R 0
R285 0
R284 0
R283
0
R282
0
R281
0
5
12C
F
u
1
852C V
05/2.
2
452R 0
3
5
2
R0
R262
10K
R261
10K
R255 10K
R204 10K
R207 10K R208 10K
R229 10K
C259
47/25V
C233
0.022u
10
2Q
S
7
0
1A
09
2
R
001
R293
27K
R291
47K
C260
100/50V
102
D
T
5
5
3
S
S
1
C222
0.01uF
R292
100K
3
3
764R
8
6
4
R33
R466
10K
R465
10K
1 2 3 4 5
6 7 8 9
10
1112131415
16 17 18 19 20
5
2
C
I
B02
D
OPI21
1
VPCIV
C
R469
0
R462
1K
R461
10
R470
N.C
R463
0
R464
N.C
C234
0.1uF
R294 0
R295 0 R296 0
L204
60R
5
2
1C
C
.N
73
6
5
42
1
32
N
C
43
2
1
NIV
G
LF
N
E
5
D
N
G
TUOV
3
3CI
CI
T
IMIL
T
NERRUC
R324
10K
C396
0.1uF
K
0
0
1
5
23
R
C358
10/16V
C331
0.1uF
7654321
CN21
R299
0R298
0
R297
0
5
4
321
22NC
455
C
F
u
1
75
5C
F
u1
9
9
2
C
Fu1.0
0
03C
Fu
1
.0
472R 0
20
2Q
HVTKTD1304T
C255
330/10V
R276
5R6
R273
6.8K
R289 10K
R286 10K
54321
CN14
321
CN17
C224
0.1uF
C262
N.C
5
4
3
2
1
C
I ci
fic
e
p
S
82CI
F
33R87A
I
KI
V
C
C223
0.1uF
C261
47/25V
R275
N.C
54321
CN20
3 11
10
9
8
7
6
5
42
1
91NC
3
1
21
11
01
9
8
7
6
5
4
3
2
1
1
2
XC
302Q
S701A
R260
N.C
D203
RB160L60TE25
20
2
D
T
553
S
S
1DV
C
5
06
Q
S701CRK
C213
0.1uF
R146
10K
R147
33
R287
33
R288 33
R300 33
R499
0
R320
33
R321
10K
V3.3TS+
CD_LIMIT_SW
CD_OPEN_M CD_CLOSE_M
DSP_RESET
CD_CCE
CD_BUCK
CD_BUS3
CD_BUS2
V3.3TS+
MT_STBY
L_R
E
N
U
T
R
_
RENUT
R
_B
A
D
L
_
B
A
D
D
NG
DNG
D
NG
DN
G
D
N
G
D
NG
DNG
DN
G
D
N
G
V3.3BA
D
+
V2.1BAD+
A
T
A
D_V_F
KLC
_
V
_F
OTI_TX OTI_RX
IPOD_TX IPOD_RX
V
3.3
TS
+
+TUNER3.3V
V3
.3
R
EN
UT
+
DNG
V5NIAM
+
D
N
G
DNG
DNG
HCT
AL
_V
_
F
HP_MUTE
PWR_CTL
V
3.3T
S
+
F_MUTE
DN
G
D
N
G
ISDR
AL
ATAD_RENUT
K
L
C_RE
N
UT
DNG
V3.3
TS+
V
3.
3TS
+
D
N
G
TOO
B
BOOT
DN
G
V
5CCA
+
D
N
G
USB/IPOD_R
USB/IPOD_L
USB_PON
IPOD_DET
IS
D
R
SP_ON
OTI_RESET
V5
T
S+
V5
TS
+
DN
G
NI
_
ET
OM
ER
1
YEK
0
YEK
BSC
_
DCL
LCS_DCL
IS_
D
CL
TE
SE
R_D
C
L
KLC
_
RENU
T
A
T
A
D
_
RENUT
V
3
.3
REN
U
T+
AL
HP_IN
USB_OC
LC
S
_D
CL
I
S_DC
L
B
S
C
_
D
CL
T
ES
E
R_DCL
D
NG
0
Y
E
K
1
Y
EK
V
3.
3T
S+
DNG
DNG DNGDNG
P_DOWN
V
3.3
T
S
+
V
3
.
3
U
C
M
+
V
3
.3U
C
M
+
DNG
V3.3UCM+
DNG
IPOD_NRESET IPOD_I2C_CLK IPOD_I2C_DATA
DN
G
IPOD_NRESET
D
N
G
IPOD_I2C_CLK
IPOD_I2C_DATA
+MCU3.3V
A
D
_BAD
KL
C
_B
A
D
A
D
_BAD
V3.3
T
S+ D
N
G
DN
G
D
N
G
M
D
N
G
M
CD_CLOSE_SW
CD_OPEN_SW
DN
G
D
N
G
DN
G
USB_PON
USB_OC
V
5C
CA+
D+
D-
D
N
G
D
NG
KEY1
DNG
IPOD_RX
IPOD_TX
KEY1
S
R_
D
C
L
SR_DCL
DNGDN
G
V3.3
T
S+
KLC_
BAD
P_DOWN
TED
_
D
OP
I
V
3.3TS+
D
NG
DN
G
DNG
V5N
IA
M+
V3.
3
TS+
2WS_R
E
MMID
1WS_RE
MMID
V
3
.3TS+ V
3
.3T
S
+
2WS_REMMID
1WS_
R
EMMID
DNG
WS
_
E
SO
L
C_D
C
NI
_
E
TO
M
E
R
WS_NE
P
O_
DC
DNG
USB_DETECT
USB_UPDATE
ETA
D
P
U_BSU
M
O
R_T
X
E
ED
O
M_P
S
I
AUX_IN
BADi054XD-CM
BAD04
X
D-C
M
y
l
no
B
A
D
i
5
22-
X
C
04XD-CM yl
no
86 74 52 31
E
D
C
B
A
MAIN PCB
