Teac Smart & Elite User manual

TEAC Flash Drive Smart & Elite User’s Guide
User's Guide
(Rev 1.0 28/10/2003)
Flash Drive
Smart & Elite

TEAC Flash Drive Smart & Elite User’s Guide Page 1 of 14
Table Of Contents Page
1 FLASH DRIVE SMART & ELITE’S FEATURES 2
2 USING YOUR FLASH DRIVE SMART & ELITE 3
3 FLASH DRIVE SMART & ELITE DRIVER
INSTALLATION FOR WINDOWS98 AND
WINDOWS98 SE
3
3.1 FILES LIST 3
3.2 PROCEDURE FOR INSTALLING FLASH
DRIVE SMART & ELITE DRIVER AND
CONTROLLER. (Windows98 & 98’SE):
4
4 FLASH DRIVE SMART & ELITE SPECIFICATIONS 9
5 WARRANTY AND CERTIFICATION
INFORMATION
10
6 LICENSE GRANT 12
7 TRADEMARKS 13
8 SALE AND TECHNICAL SUPPORT SERVICES 14

TEAC Flash Drive Smart & Elite User’s Guide Page 2 of 14
1 FLASH DRIVE SMART & ELITE’S FEATURES
Flash Drive Smart & Elite epitomizes plug & play. No more troublesome installation of drivers
to detect the drive on most operating systems. Simply plug in the Flash Drive Smart & Elite to
the USB port on any laptop or desktop and start transferring your files. With faster data transfer
rate and higher storage capacity; this revolutionary portable storage device will replace your
floppy disks and drives.
•Supports USB 2.0 and USB 1.1.
•Bus-powered with no external power supply.
•Mass storage compliant.
•Hot Plug (Plug and Play) via USB port.
•No mechanical drive, well-integrated smart Removable Storage Device.
•No installation required+
•Compact, light and very low power consumption.
•Capacity: 128MB/256MB/512MB.
•Disk write protection switch to protect your files/data from being
overwritten.
•10-years of data retention.
+Except for Windows 98 & Windows 98SE, which requires driver installation

TEAC Flash Drive Smart & Elite User’s Guide Page 3 of 14
2 USING YOUR FLASH DRIVE SMART & ELITE+
1. Remove the cap from the Flash Drive Smart & Elite.
2. Insert Flash Drive Smart & Elite into the USB port
3. Read or write your data.
3 FLASH DRIVE SMART & ELITE DRIVER INSTALLATION FOR WINDOWS98/
WINDOWS98 SE
3.1 Files List
- TD2SM_G6.inf
- TD2SM_G6.sys
- TD2SM_G6.pdr
+ For Windows 98 & 98SE, install drivers before performing the steps

TEAC Flash Drive Smart & Elite User’s Guide Page 4 of 14
3.2 Procedure for installing Flash Drive Smart & Elite driver and
controller (Windows98 & 98 SE):
When the PC/Notebook has been powered up, insert the CD-ROM labeled
”Flash Drive Smart & Elite Installation Disk” into the CD-ROM drive and
follow the procedures below to install the Flash Drive Smart & Elite drivers
and controllers.
1. Insert your Flash Drive Smart & Elite into your PC/Notebook’s USB
port. Windows will detect that a new hardware has been connected and the
“Add New Hardware Wizard” screen will appear. To install the drivers, click
the “Next” button.

TEAC Flash Drive Smart & Elite User’s Guide Page 5 of 14
2. The dialog box gives you two options to search for the windows
drivers. Select “Search for the best driver for your device. (Recommended)”
and click the “Next” button to continue the installation.

TEAC Flash Drive Smart & Elite User’s Guide Page 6 of 14

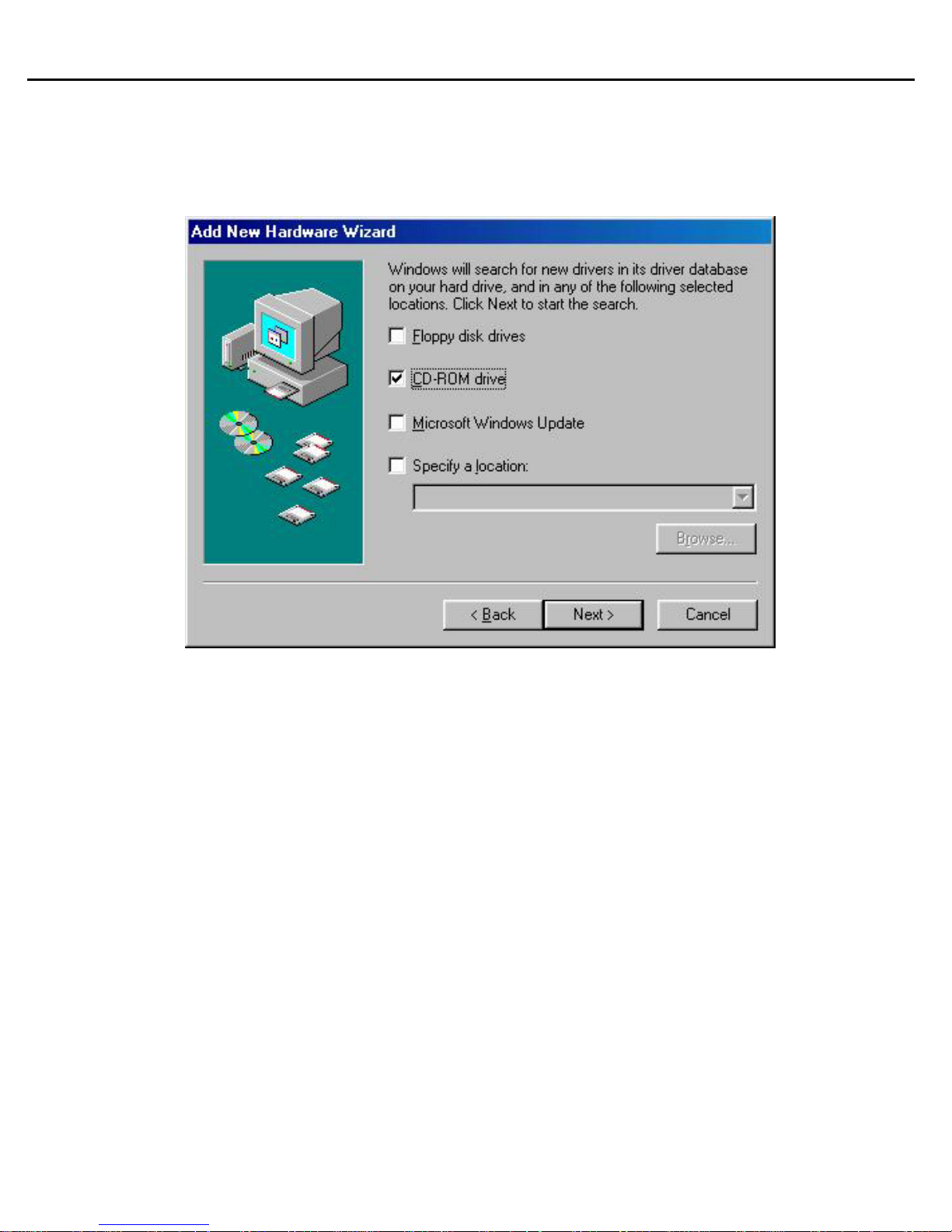

3. The dialog box presents several locations to search for the drivers.
Check the “CD-ROM drive” checkbox and uncheck the rest. Click the
“Next” button to proceed.

TEAC Flash Drive Smart & Elite User’s Guide Page 7 of 14
4. The wizard finds the appropriate driver and Windows is now ready to install
the driver. Click the “Next” button to begin installing the drivers. Click the “Back”
button to specify the location again if drivers are not found.

TEAC Flash Drive Smart & Elite User’s Guide Page 8 of 14

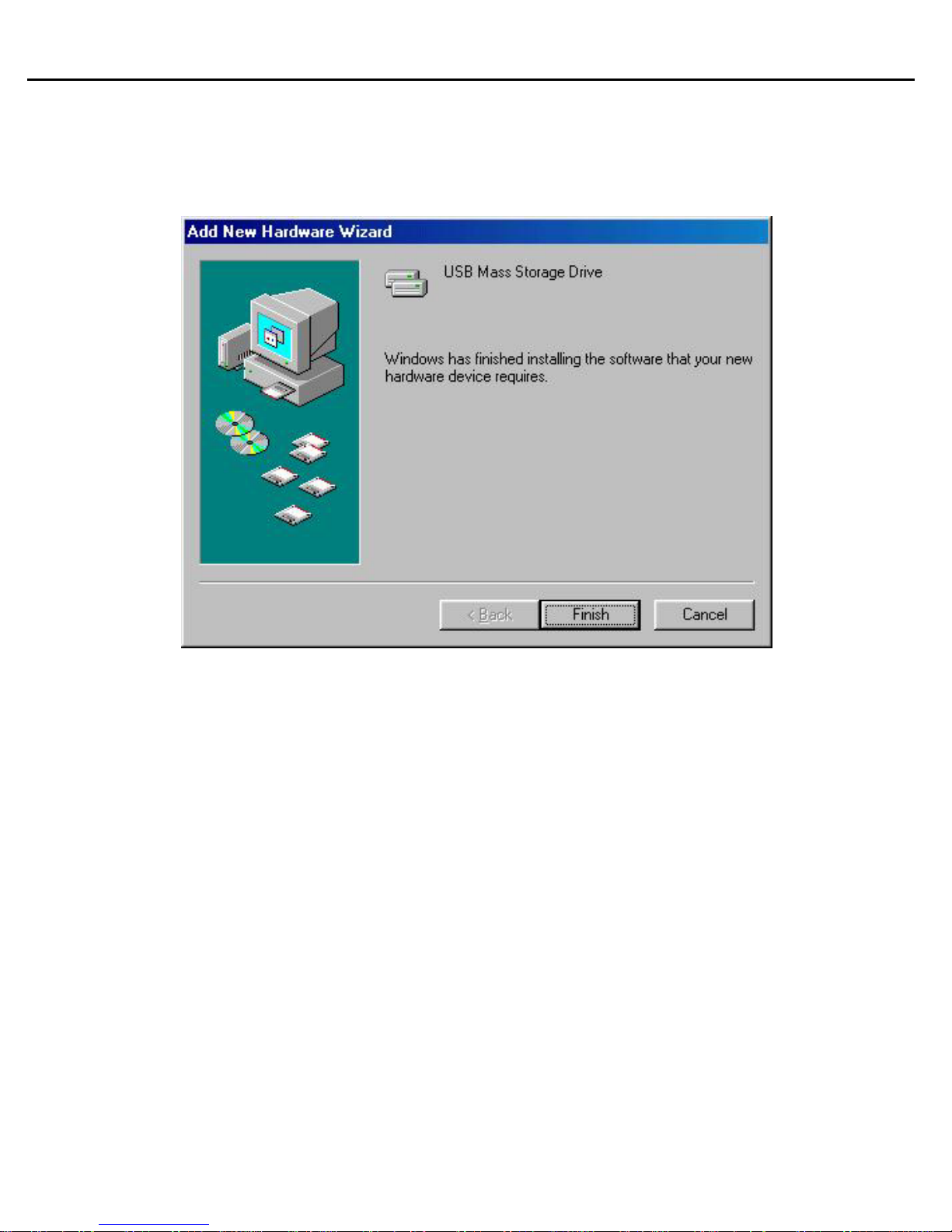

5. When the drivers have been installed, the dialog box shows that
Windows has finished the installation of the Flash Drive Smart & Elite
driver. Click the “Finish” button.
Now the drivers have been installed into your system, you should see the
Removable Disk icon appearing in the window when you activate “My
Computer” icon.
WARNING: It is not advised to remove Flash Drive Smart & Elite from the
USB port while LED is still blinking. This is to ensure that files/data will not
be lost.

TEAC Flash Drive Smart & Elite User’s Guide Page 9 of 14
4 FLASH DRIVE SMART & ELITE SPECIFICATIONS
Items Descriptions
Supported PC System with USB Ports IBM PC/AT Notebook and Sub-Notebook
Supported Operating Systems Windows98/ 98’SE/ 2000/ ME/ XP and Mac OS 9.x
and above
Power Supply USB bus-powered (4.5V to 5.5V)
Capacity (MB) ** 128/ 256/ 512
Host Interface Universal Serial Bus, USB Spec. 2.0:
EHCI (Enhanced Host Controller Interface)
Universal Serial Bus, USB Spec. 1.1:
UHCI (Universal Host Controller Interface)
OHCI (Open Host Controller Interface)
Operating Current < 150mA
Suspend Current < 500uA
Data Retention 10 years
Write Protection Yes, with write protection switch
1 LED built-in LED on: Flash Drive Smart & Elite connected and
enumerated
LED blinking: Data receiving and transmitting
Data Reading Speed
(Flash Drive Smart & Elite to Host)
7.0MBytes/Sec (Depending on PC system)
Data Writing Speed
(Host to Flash Drive Smart & Elite)
4.5MBytes/Sec (Depending on PC system)
Operating Temperature 0°C ~ +50°C
Storage Temperature -20°C ~ +80°C
Relative Humidity under operation
(Non-Condensation)
20% ~ 80%
Relative Humidity under storage
(Non-Condensation)
5% ~ 95%
Dimension (L x W x H) 68 mm x 19 mm x 8 mm
Weight 12g (approx.)
EMI Compliance FCC Class B, CE, VCCI, C-TICK
*For reference only. We reserve the rights to make changes on any specifications without any notice.
**These are nominal values. Due to the characteristics of flash memory chip, bad memory bits or blocks may
be present. Factory specifies that actual memory is not less than 95%of nominal on delivery.
