Teac CT-F5151 User manual

SERVICE MANUAL
CTF5151
51CM CTV
MAR04 SERVCTF5151
All manuals and user guides at all-guides.com
all-guides.com

TEAC
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List ……………………… ……………...............................9

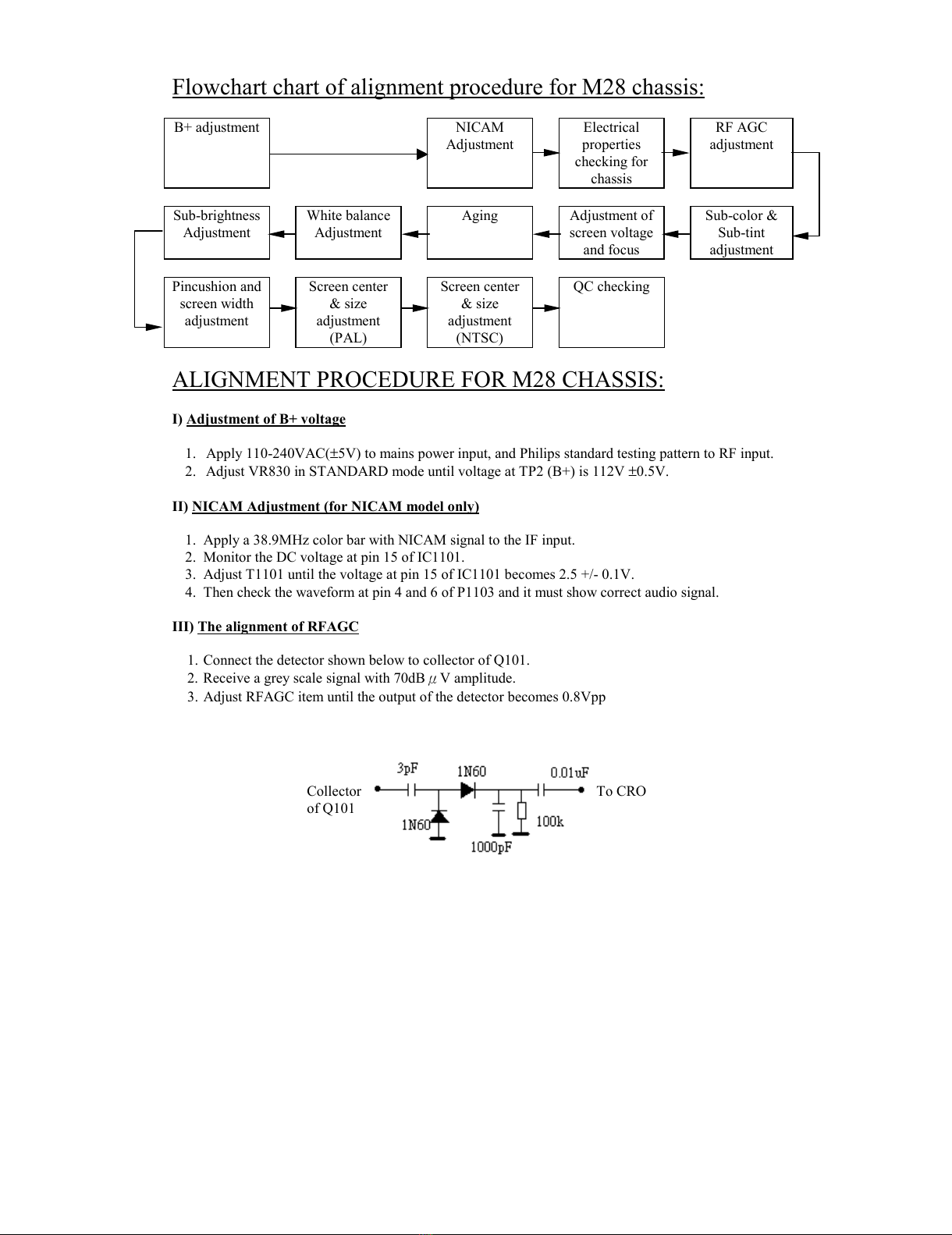

4. Alignment Procedure………………………………………….…29
5. Block Diagram……………………………………………………36
6. Schematic Diagram………………………………………………37
7. PCB Layout………….……………………………………………38
8. Explode Diagram…….……………………………………………39
This manual is the latest at the time of
p
rintin
g
, and does not
include the modification which ma
y
be made after the
p
rintin
g
, b
y
the constant improvement of product.
EC-21166
All manuals and user guides at all-guides.com

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous
All manuals and user guides at all-guides.com

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS
All manuals and user guides at all-guides.com

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
All manuals and user guides at all-guides.com

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off
All manuals and user guides at all-guides.com
all-guides.com

PFS2 FORMAT-1 Report
Date: 2003-9-16 15:12
ProductView......:
Re
p
ort b
y
............:
Specs / Products
MasterData
Customer Id TEAC AUSTRALIA PTY LTD
Version 0.1
Status New
Brand TEAC
EAN \
UPC \
Rece
p
tion
+Tunin
g
-
p
resets/channels 100
+Tunin
g
- technolo
gy
VST
+Tunin
g
- Indication X
+Fre
q
Bands UVSH
+Channels 100
+IF Fre
q
+TV S
y
stems Off Ai
r
PAL B/G
+Add Systems Ext In NTSC 3.58, NTSC 4.43, NTSC
Play Back, PAL 60
+TV S
y
stems Multi PAL-Multi
+Sound S
y
stems AV Stereo
Picture - Processin
g
+Scan Standard
+Scan Modes 4;3
+Wide Screen Switchin
g
+Combfilter
+Picture Control Brightness, Colour, Contrast,
Color Temperature, Hue,
Sharpness Cont Var, Smart Pict.
4 Modes
+Pict Enhancement Black Stretch
+Pict Noise Reduction
Picture - Dis
p
la
y
+Dis
p
la
y
T
ype
DV - CRT - RF
+Screen Format 4:3
+Size
(
Visual
)
" - size/vis. cm 21"
+Deflection S
y
stem
(
CRT onl
y)
+Tube Technolo
gy
(
CRT onl
y)
Black Matrix, Iron
+CRT Defl
+CRT Gun Stand Gun
+CRT Ma
g
n field Neutral
+Resolution
+Coatin
g
(
onl
y
for D.V. sets
)
+White Point
Sound
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features Mute
+Sound Control Volume
Sound - S
p
eakers
+S
p
eaker confi
g
uration 2
+S
p
eakers used Normal
+S
p
eaker Size
User Interface
+Interface Name L01- Full Interface
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Lan
g
ua
g
es English
+Special Features No signal Auto Standby,Timer
Power ON/OFF, Favorite
Channel, Sleep timer, Game,
Calendar, Notebook, Hotel lock ,
Auto Search
+O
p
erational Features
+PP Features
+Tuning/Install Features Auto Store, Factory Mode, Fine
Tuning, Manual Search/Store,
Manual Sort, Service Mode
+Clock/Timer Functions Clock, On/off timer, Sleep timer
Product:
CT-M5110H
2003-9-16 15:13 21166 PFS 1 of 3
All manuals and user guides at all-guides.com

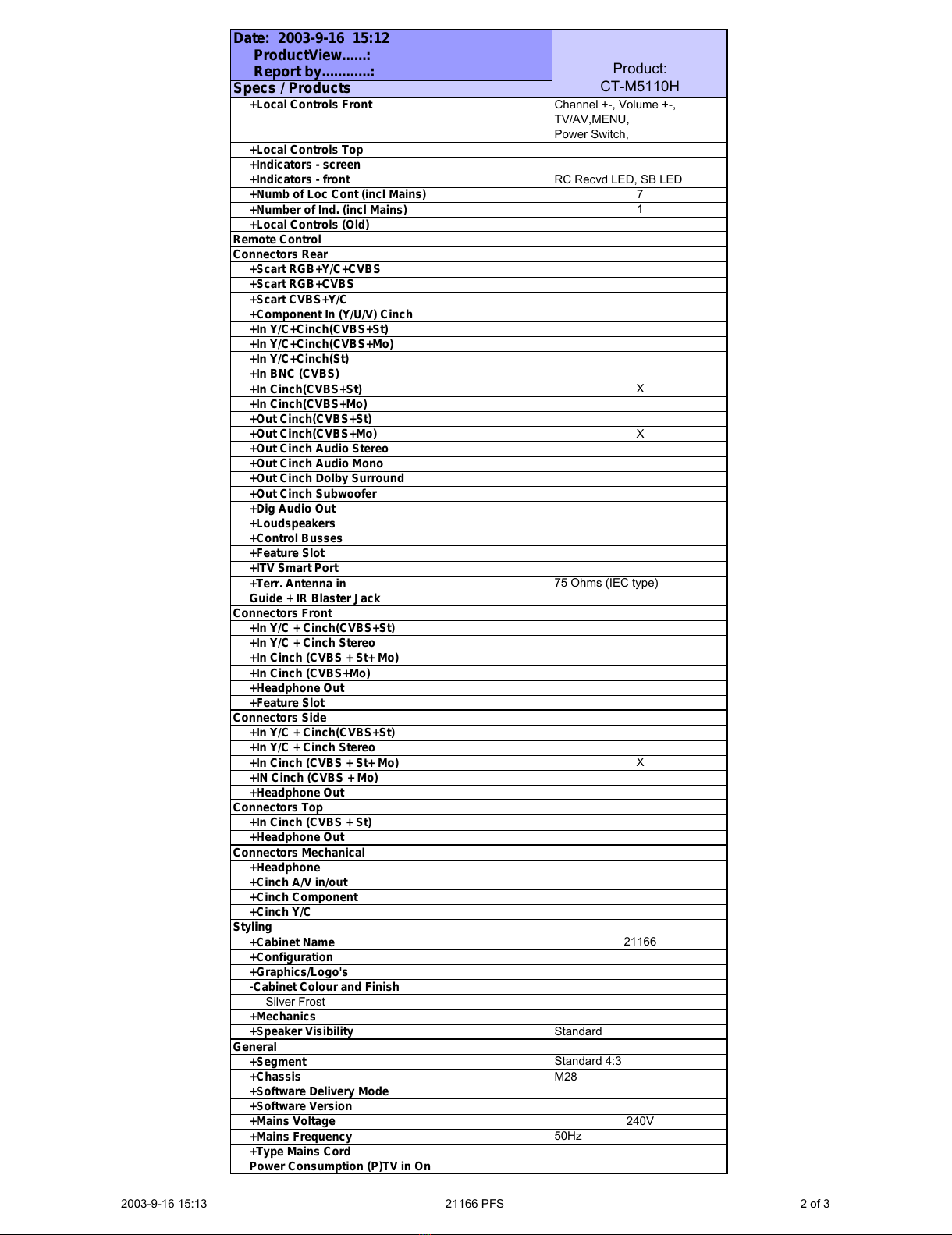

Date: 2003-9-16 15:12
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:
CT-M5110H
+Local Controls Front Channel +-, Volume +-,
TV/AV,MENU,
Power Switch,
+Local Controls To
p
+Indicators - screen
+Indicators - front RC Recvd LED, SB LED
+Numb of Loc Cont
(
incl Mains
)
7
+Number of Ind.
(
incl Mains
)
1
+Local Controls
(
Old
)
Remote Control
Connectors Rea
r
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
p
onent In
(
Y/U/V
)
Cinch
+In Y/C+Cinch
(
CVBS+St
)
+In Y/C+Cinch
(
CVBS+Mo
)
+In Y/C+Cinch
(
St
)
+In BNC
(
CVBS
)
+In Cinch
(
CVBS+St
)
X
+In Cinch
(
CVBS+Mo
)
+Out Cinch
(
CVBS+St
)
+Out Cinch
(
CVBS+Mo
)
X
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
y
Surround
+Out Cinch Subwoofer
+Di
g
Audio Out
+Louds
p
eakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms (IEC type)
Guide + IR Blaster Jack
Connectors Fron
t
+In Y/C + Cinch
(
CVBS+St
)
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St+ Mo
)
+In Cinch
(
CVBS+Mo
)
+Head
p
hone Out
+Feature Slot
Connectors Side
+In Y/C + Cinch
(
CVBS+St
)
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St+ Mo
)
X
+IN Cinch
(
CVBS + Mo
)
+Head
p
hone Out
Connectors To
p
+In Cinch
(
CVBS + St
)
+Head
p
hone Out
Connectors Mechanical
+Head
p
hone
+Cinch A/V in/out
+Cinch Com
p
onent
+Cinch Y/C
St
y
lin
g
+Cabinet Name 21166
+Confi
g
uration
+Gra
p
hics/Lo
g
o's
-Cabinet Colour and Finish
Silver Frost
+Mechanics
+S
p
eaker Visibilit
y
Standard
General
+Se
g
ment Standard 4:3
+Chassis M28
+Software Deliver
y
Mode
+Software Version
+Mains Volta
g
e240V
+Mains Fre
q
uenc
y
50Hz
+T
yp
e Mains Cord
Power Consum
p
tion
(
P
)
TV in On
2003-9-16 15:13 21166 PFS 2 of 3
All manuals and user guides at all-guides.com

Date: 2003-9-16 15:12
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:
CT-M5110H
Power Consum
p
tion SB in Watts Less then 3W
Power Consum
p
tion Semi SB in W
+Power in "ON" for
+Power in Standb
y
for
+Power in "OFF" for
Wei
g
ht
(
P
)
TV
(
incl. Packa
g
in
g)
Wei
g
ht
(
P
)
TV
(
excl. Packa
g
e
)
Wei
g
ht AVUnit excl Packa
g
in
g
+INDICATION on BACKCOVE
R
+Channel
Final E
q
ui
p
ment
+Packa
g
in
g
- methods
+Documents and manuals
+Lan
g
ua
g
es DFU
+Cables Su
pp
lied
+Antenna Su
pp
lied
+Stand Su
pp
lied
+Aux E
q
ui
p
m Su
pp
lied
Packa
g
in
g
- width cm
Packa
g
in
g
- hei
g
ht cm
Packa
g
in
g
- de
p
th cm
Miscellaneous
+EAN Indication
+A
pp
robation
+Tests
+Local Inte
g
ration
V
arious Perf. Param.
+Service Call-Rate
PIP/POP
+T
ype
+Features No
Di
g
ital Rece
p
tion
+Transmission
Built-in Data S
y
stem
+Text Standard
+
(
Tele
)
text Features No
+Nbr bck
g
rnd
p
a
g
e / Mem Size No
+Text Technolo
gy
No
+Di
g
ital Data handlin
g
+Pro
g
ram Guide
Built-in Clock/Timer
+T
ype
+Features
Built-in Radio
+T
ype
Built-in PC dis
p
la
y
+PC S
y
nch
+PC Control
Built-in DVD drive
+T
yp
e of Medium
+T
yp
e of Dec
k
+Version of Deck
Phased Out Items
+Tuner/Frontend
+Sensitivit
y
+CRT EHT
+Li
g
htnin
g
Protection
+Accoun
t
+XX
(
Radio Antenna in
)
+Non Volatile Memor
y
+In Y/C + Cinch
(
CVBS+Mo
)
Version of deck
2003-9-16 15:13 21166 PFS 3 of 3
All manuals and user guides at all-guides.com

Flowchart chart of alignment procedure for M28 chassis:
B+ adjustment NICAM
Adjustment
Electrical
properties
checking for
chassis
RF AGC
adjustment
Sub-brightness
Adjustment
White balance
Adjustment
Aging Adjustment of
screen voltage
and focus
Sub-color &
Sub-tint
adjustment
Pincushion and
screen width
adjustment
Screen center
& size
adjustment
(PAL)
Screen center
& size
adjustment
(NTSC)
QC checking
ALIGNMENT PROCEDURE FOR M28 CHASSIS:
I) Adjustment of B+ voltage
1. Apply 110-240VAC(±5V) to mains power input, and Philips standard testing pattern to RF input.
2. Adjust VR830 in STANDARD mode until voltage at TP2 (B+) is 112V ±0.5V.
II) NICAM Adjustment (for NICAM model only)
1. Apply a 38.9MHz color bar with NICAM signal to the IF input.
2. Monitor the DC voltage at pin 15 of IC1101.
3. Adjust T1101 until the voltage at pin 15 of IC1101 becomes 2.5 +/- 0.1V.
4. Then check the waveform at pin 4 and 6 of P1103 and it must show correct audio signal.
III) The alignment of RFAGC
1. Connect the detector shown below to collector of Q101.
2. Receive a grey scale signal with 70dBμV amplitude.
3. Adjust RFAGC item until the output of the detector becomes 0.8Vpp
Collector
of Q101
To CRO
All manuals and user guides at all-guides.com

IV) Adjustment of Sub-contrast, Sub-tint and Sub-colour for NSTC and PAL signal.
1. Enter D-mode, and connect the probe of Oscilloscope to the conjunction between R201 and P201
(B-out).
2. Apply the Grey-scale/Colour-bar (NTSC signal) to the AV input, in STANDARD status.
3. Select CNTC to adjust the sub-contrast, until that the amplitude “A” is 2.5V P-P as shown below.
4. Select COLC to adjust the sub-colour by tuning the amplitude of “a” and “d” to the same.
5. Select TNTC to adjust the sub-tint by tuning the amplitude of “b” and “c” to the same.
6. Apply the Grey-scale/Colour-bar (PAL signal) to the AV input, in STANDARD status.
7. Select COLP to adjust the sub-colour by tuning the amplitude of “a”, “b”, “c” and “d” to the
same.
V) Adjustment of Focus, Screen Voltage and Sub-brightness
1. Receive a crosshatch pattern.
2. Adjust the “FOCUS” VR on the flyback the make the picture clear.
3. Enter D-mode and press “MUTE” key and the screen will become a horizontal line. Then adjust
the “SCREEN” VR on the flyback transformer to set the intensity of the line to a minimum visible
level (the line can just be seen).
4. Press “MUTE” key again and the TV will become full raster.
5. Select BRTC to adjust the sub-brightness, until that the 2nd dark bar of 8 level grey scales just can
be seen.
VI) Adjustment of White balance
1. Receive a black and white pattern at STANDARD status.
2. Use a color analyzer to measure the black side of the screen. By changing the value of BB and
GB, set the reading of the color analyzer to x=284, y=299.
3. Then measure the white side of the screen. By changing the value of BD and GD, set the reading
of the color analyzer to x=284, y=299.
4. Repeat step 2&3 until you can get the correct reading for both black and white sides.
VII) Adjustment of Pincushion and Picture Width (for pure flat model only)
1. Receive a crosshatch pattern.
2. Adjust VR302 until the vertical line become straight.
3. Adjust VR303 for horizontal size.
A
a
b
c
d
All manuals and user guides at all-guides.com
all-guides.com

VIII) Adjustment of Picture Geometry (PAL)
1. Apply the crosshatch pattern (PAL signal) to the RF input, in STANDARD status.
2. Select HPOS to adjust the Horizontal center.
3. Select VP50 to adjust the Vertical center.
4. Select HIT to adjust the Vertical amplitude.
5. Select VLIN to adjust the vertical linearity.
6. Select VSC to adjust the vertical S-correction.
IX) Adjustment of Picture Geometry (NTSC)
1. Apply the crosshatch pattern (NTSC signal) to the RF input, in STANDARD status.
2. Select HPS to adjust the Horizontal center.
3. Select VP60 to adjust the Vertical center.
4. Select HITS to adjust the Vertical amplitude.
5. Select VLIS to adjust the vertical linearity.
6. Select VSS to adjust the vertical S-correction.
X) Adjustment of OSD position
1. Enter D-mode and press key “1”, then choose OSDH(OSDHS) item and adjust the OSD vertical
position 50HZ(60HZ).
2. Enter D-mode and press key “NOTE”, then choose the OSD1 item and adjust the OSD horizontal
position(Volume bar,Picture bar,Half blue panel OSD).
3. Enter D-mode and press key “NOTE”, then choose the OSD2 item and adjust the OSD horizontal
position except OSD1 item.
XI)D-mode:
1. press D-Mode ON/OFF key, and then you can enter the D-mode.
2. press VOLUME DOWN key on the unit until the volume decrease to minimum level, then press the
DISPLAY key on the remote handset (don’t release the volume key) and you can enter D- mode.
After enter D-mode you can adjust the setting according to the following procedure,
All manuals and user guides at all-guides.com

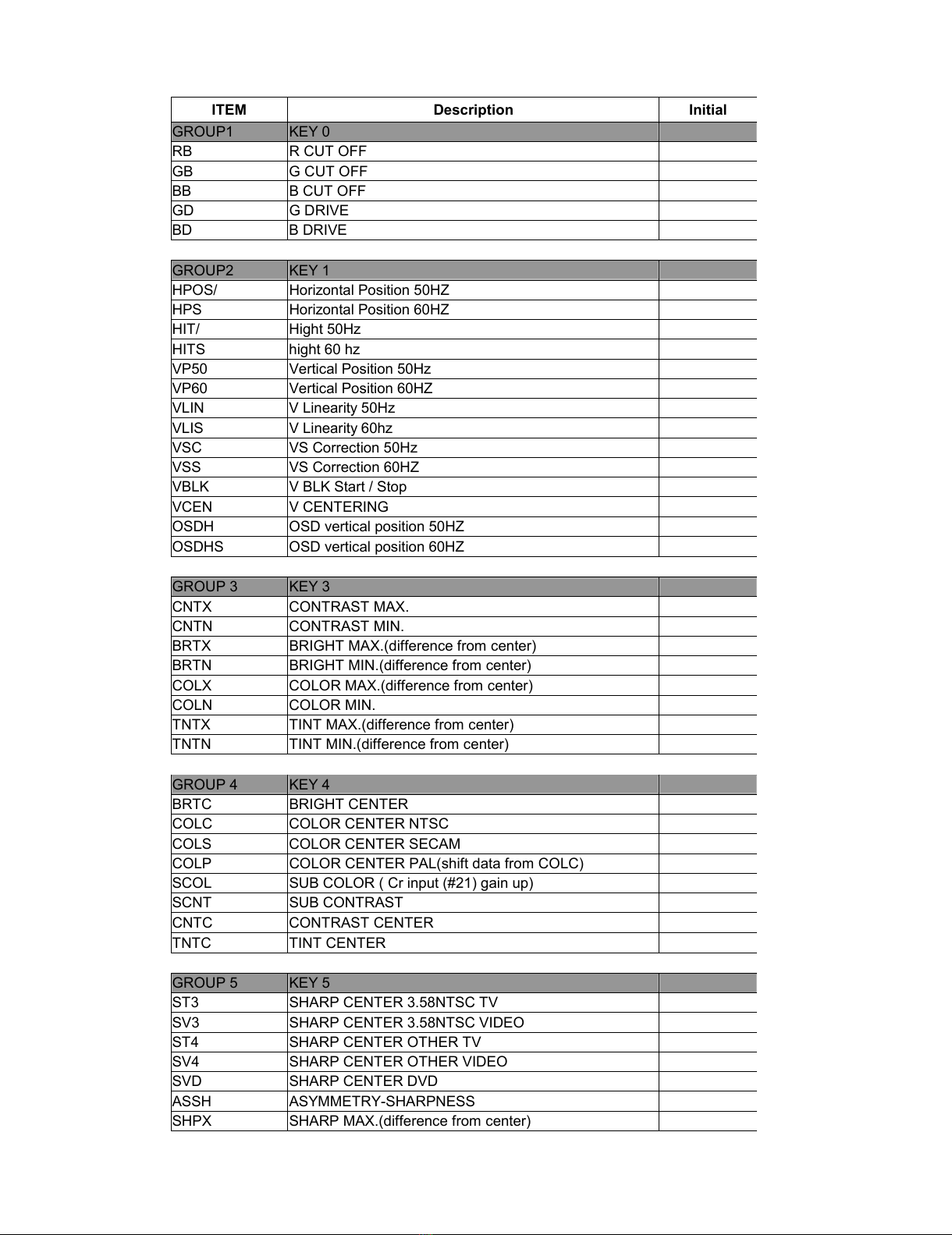

ITEM Description Initial
GROUP1 KEY 0
RB R CUT OFF
GB G CUT OFF
BB B CUT OFF
GD G DRIVE
BD B DRIVE
GROUP2 KEY 1
HPOS/ Horizontal Position 50HZ
HPS Horizontal Position 60HZ
HIT/ Hight 50Hz
HITS hight 60 hz
VP50 Vertical Position 50Hz
VP60 Vertical Position 60HZ
VLIN V Linearity 50Hz
VLIS V Linearity 60hz
VSC VS Correction 50Hz
VSS VS Correction 60HZ
VBLK V BLK Start / Stop
VCEN V CENTERING
OSDH OSD vertical position 50HZ
OSDHS OSD vertical position 60HZ
GROUP 3 KEY 3
CNTX CONTRAST MAX.
CNTN CONTRAST MIN.
BRTX BRIGHT MAX.(difference from center)
BRTN BRIGHT MIN.(difference from center)
COLX COLOR MAX.(difference from center)
COLN COLOR MIN.
TNTX TINT MAX.(difference from center)
TNTN TINT MIN.(difference from center)
GROUP 4 KEY 4
BRTC BRIGHT CENTER
COLC COLOR CENTER NTSC
COLS COLOR CENTER SECAM
COLP COLOR CENTER PAL(shift data from COLC)
SCOL SUB COLOR ( Cr input (#21) gain up)
SCNT SUB CONTRAST
CNTC CONTRAST CENTER
TNTC TINT CENTER
GROUP 5 KEY 5
ST3 SHARP CENTER 3.58NTSC TV
SV3 SHARP CENTER 3.58NTSC VIDEO
ST4 SHARP CENTER OTHER TV
SV4 SHARP CENTER OTHER VIDEO
SVD SHARP CENTER DVD
ASSH ASYMMETRY-SHARPNESS
SHPX SHARP MAX.(difference from center)
All manuals and user guides at all-guides.com

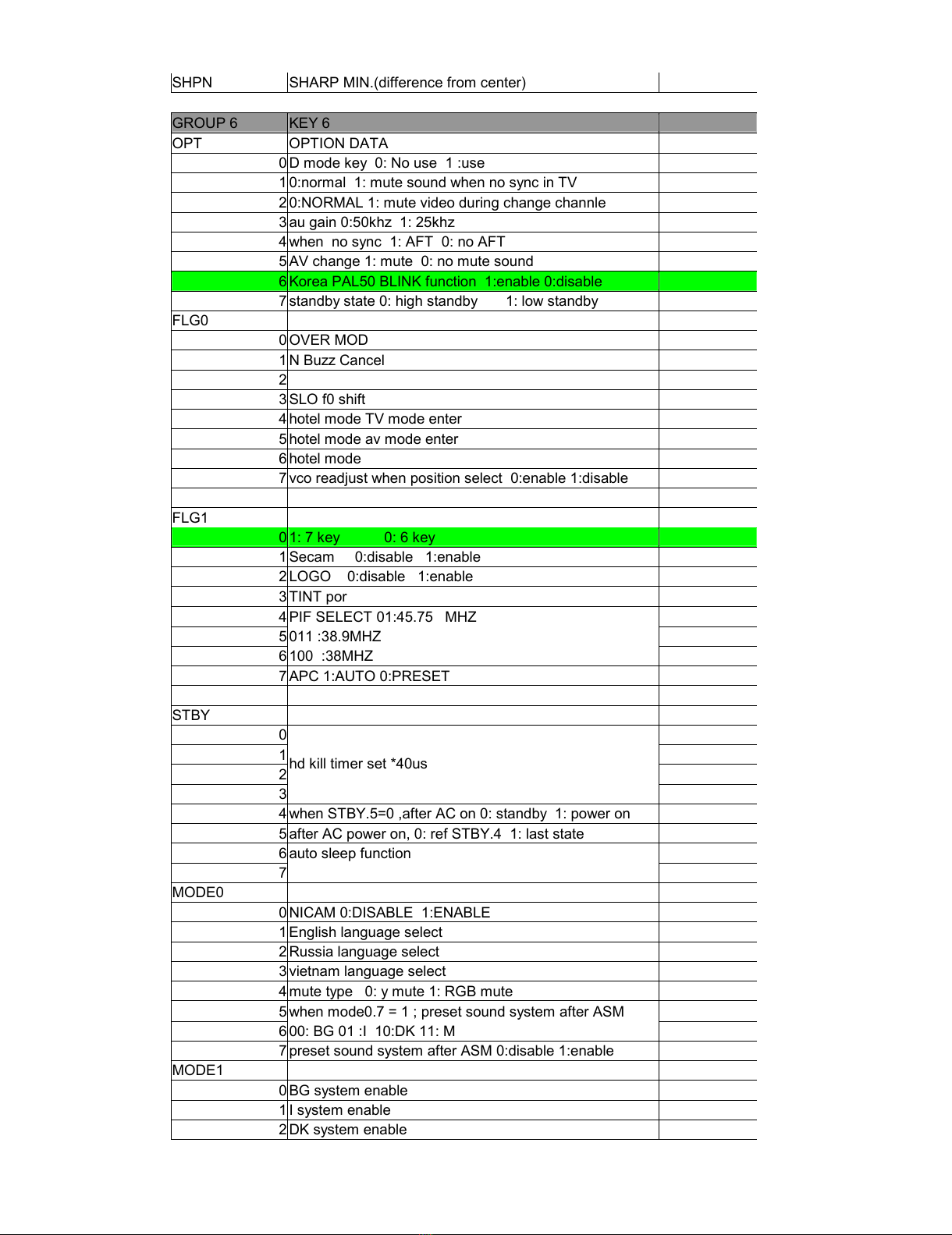

SHPN SHARP MIN.(difference from center)
GROUP 6 KEY 6
OPT OPTION DATA
0D mode key 0: No use 1 :use
10:normal 1: mute sound when no sync in TV
20:NORMAL 1: mute video during change channle
3au gain 0:50khz 1: 25khz
4when no sync 1: AFT 0: no AFT
5AV change 1: mute 0: no mute sound
6Korea PAL50 BLINK function 1:enable 0:disable
7standby state 0: high standby 1: low standby
FLG0
0OVER MOD
1N Buzz Cancel
2
3SLO f0 shift
4hotel mode TV mode enter
5hotel mode av mode enter
6hotel mode
7vco readjust when position select 0:enable 1:disable
FLG1
01: 7 key 0: 6 key
1Secam 0:disable 1:enable
2LOGO 0:disable 1:enable
3TINT por
4PIF SELECT 01:45.75 MHZ
5011 :38.9MHZ
6100 :38MHZ
7APC 1:AUTO 0:PRESET
STBY
0
1
2
3
hd kill timer set *40us
4when STBY.5=0 ,after AC on 0: standby 1: power on
5after AC power on, 0: ref STBY.4 1: last state
6auto sleep function
7
MODE0
0NICAM 0:DISABLE 1:ENABLE
1English language select
2Russia language select
3vietnam language select
4mute type 0: y mute 1: RGB mute
5when mode0.7 = 1 ; preset sound system after ASM
600: BG 01 :I 10:DK 11: M
7preset sound system after ASM 0:disable 1:enable
MODE1
0BG system enable
1I system enable
2DK system enable
All manuals and user guides at all-guides.com

3M system enable
4VIDEO2 enable
5video3 enable
6YUV enable
7Thailand Dual language 0:Disable 1:Enable
MUTTstandby -->wake time
STAT contrast up timer afer standy off
GROUP 7 KEY 7
RF AGC RF AGC
SBY SECAM B-YBLACK ADJUST
SRY SECAM R-Y BLACK ADJUST
BRTS SUB BRIGHT shift data of BRTC
TXCX TEXT RGB CONTRAST MAX.
RGCN TEXT RGB CONTRAST MIN.
SECD SECAM MODE
GROUP 9 KEY 8
V25 VOLUME 25
V50 VOLUME 50
V100 VOLUME 100
GROUP 10 KEY 9
SVM SVM
PYNX Normal H.SYNC max
PYNN Normal H.SYNC min
PYXS Search H.SYNC max
PYNS Search H.SYNC min
GROUP 11 KEY CALENDAR
CLTO TV mode & SOUND SYS != M
CLTM TV mode & SOUND SYS = M
CLVO VIDEO
CLVD YUV MODE
CLTO CLTM CLVO CLVD bit setting
7KILLER OFF
6P/N ID
5C GAMMA
4
3NTSC-MATRIX
2
1
0
Y DL
ABL ABL SETUP
5TB1254N RGB ABL
4TB1254N WPS
3
2
1
0
ABLpoint setup
DCBS VIDEO DATA SETUP
All manuals and user guides at all-guides.com

0~3Y GAMMA BLACK STRETCH
4~5OSD LEVEL
DEF V AGC SELECT
0V AGC reference, 0:depends on YC Vcc
1:Depends on integrated regulator
GROUP 14 KEY NOTE-BOOK
OSD1 OSD Horizontal Position(volume bar, Picture bar,Half
blue panel OSD)
OSDF1 OSD PLL DATA(volume bar, Picture bar,Half blue panel
OSD)
OSD2 OSD Horizontal Position except OSD1 items
OSDF2 OSD PLL DATA except OSDF1 items
HAFC
0when nois.2 = 1 ; TV hafc gain
1if nois.2 = 0 TV hafc gain depend on noise(0~1)
2in video mode hafc gain
3
NOIS HAFC DATA
0noise det
1
2fix the hafc gain
UCOM MCU DATA
All manuals and user guides at all-guides.com
all-guides.com

PART NO. DESCRIPTION QTY Location
08-02188H-CRY ASS'Y - CRT BD
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q510
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q501
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q502
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q503
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R501
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R504
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R507
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R522
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R524
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R502
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R505
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R508
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R525
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R526
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R527
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R523
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R503
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R506
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R509
18-CD0104-JNX RES. C.F. 100K OHM 1/4W +/-5% 1 R521
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R514
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R515
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R518
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R510
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R511
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R512
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C504
26-AMK221-KBX CAP. CER 220PF 2KV +/-10% B 1 C505
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C514
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C507
26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C510
26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C511
26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C512
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C501
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C502
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C503
35-139730-00X FERR. BEAD BF60 2
40-02135S-CRD P.C.B. CRT BD 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J502
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J501
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J504
46-10967W-01X PIN BASE *1 TJC1-1A 1 P503
46-28816H-05X HS 5P24 500 TJC3-5Y/SCN-5Y 1
46-30615H-04X HS 4P24 460 F/W TJC3-4Y/SCN-4 1
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C508
Page 1 of 14 CTF5151
All manuals and user guides at all-guides.com

47-CRT004-XX0 CRT SOCKET GZS10-2-AC2 1
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J505
08-0D166H-PW1 ASS'Y - POWER BD
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D830
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D802
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D833
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D805
10-1SS136-ABX DIODE 1SS136 1 D804
10-1SS136-ABX DIODE 1SS136 1 D835
10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D839
10-HER108-FBX DIODE HER108 1 D806
10-HS16VC-DBX DIODE 500mW 16HSC 1 D838
10-HS6V2B-DBX DIODE 6V2 500mW 1 D840
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q832
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q831
11-SC2688-LAX TRANSISTOR 2SC2688L (NPN) 1 Q830
11-SK2996-0AX TRANSISTOR 2SK2996 (MOS) 1 Q801
13-0HPC92-2CP PHOTO COUPLER HPC922-C 1 IC802
13-44608P-40P IC MC44608P40 1 IC801
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R809
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R844
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R834
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R838
18-CB0362-JNX RES. C.F. 3.6K OHM 1/6W +/-5% 1 R807
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R806
18-CB0622-JNX RES. C.F. 6.2k OHM 1/6W +/-5% 1 R850
18-CD0123-JNX RES. C.F. 12K OHM 1/4W +/-5% 1 R804A
18-CD0220-JNX RES. C.F. 22 OHM 1/4W +/-5% 1 R811A
18-CD0221-JNX RES. C.F. 220 OHM 1/4W +/-5% 1 R833
18-CD0392-JNX RES. C.F. 3.9K OHM 1/4W +/-5% 1 R835
18-CD0471-JNX RES. C.F. 470 OHM 1/4W +/-5% 1 R811
18-CE0479-JNX RES. C.F. 4.7 OHM 1/2W +/-5% 1 R832
18-CE0563-JNX RES. C.F. 56k OHM 1/2W +/-5% 1 R831
18-DD0104-FNX RES. M.F. 0.1M OHM 1/4W +/-1% 1 R804
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R837
18-KF0825-JH3 RES. H.VOLT.CC 8.2M OHM 1W +/-5% 1 R812
20-TR103H-5CX TRIMMER B10K HORIZ TYPE 1 VR830
22-NTC479-XX0 NTC 4.7 OHM +/-18% NTC4.7D2-14 1 RT802
25-382890-M1X CAP. ELEC 150UF 400V +/-20% 30X30 1 C806
25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C849
25-BEB100-M1X CAP. ELEC 10 UF 35V +/-20% 1 C812
25-BJG101-M1X CAP. ELEC 100 UF 160V +/-20% 1 C835
26-ABC221-JZX CAP. CER 220 PF 50V +/-5% SL 1 C841
26-AGK221-KRX CAP. CER 220 PF 250V +/-10% 1 C830
26-AIC472-KBX CAP. CER 4700 PF 500V +/-10% B 1 C807
26-AIC472-KBX CAP. CER 4700 PF 500V +/-10% B 1 C808
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C834
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C805
26-AKK221-KRX CAP. CER 220 PF 1KV +/-10% R 1 C833
26-AMK102-KRX CAP. CER 1000 pF 2KV +/-10% R 1 C815
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C848
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C804A
27-AQT224-MVH CAP. M.PP 0.22 UF 275VAC 20% 1 C801
Page 2 of 14 CTF5151
All manuals and user guides at all-guides.com

27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C836
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C850
27-MHM104-K0X CAP. METAL P.E. 0.1UF 400V 10% 1 C802A
27-RJP472-J0X CAP. PP 4700 PF 630V +/-5% 1 C809
34-R101K2-1BX COIL CHOKE 100 UH +/-10% 1 L804
34-R330J2-0EX COIL PL - 33 UH +/-5% 1 L843
35-139730-00X FERR. BEAD BF60 2
35-139730-00X FERR. BEAD BF60 2
35-139730-00X FERR. BEAD BF60 2
35-139730-00X FERR. BEAD BF60 2
36-LIF004-XX0 LINE FILTER LCL-2821 1 T801
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800A
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800B
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800C
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J800D
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801A
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801B
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801C
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J801D
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J810
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J809
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J812
41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J805
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 R804B
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J822
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J827
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 R807A
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J824
41-WJ0110-B00 WIRE BARE JUMPER 11MM 2
41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J823
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J804
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J808
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J832
41-WJ0145-B00 WIRE BARE JUMPER 14.5MM 1 J826
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J802
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J821
41-WJ0160-B00 WIRE BARE JUMPER 16MM 1 J825
41-WJ0170-B00 WIRE BARE JUMPER 17MM 1 J830
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J807
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J831
41-WJ0190-B00 WIRE BARE JUMPER 19MM 1 J811
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J828
41-WJ0195-B00 WIRE BARE JUMPER 19.5MM 1 J829
46-10962W-02X PIN BASE *2 TJC2-2A 1 P801
46-28559W-02X PIN BASE *2 TJC1-2A 1 P802
50-02000D-1VS7 FUSE 250V/2A 1 F801
64-B30100-104 M/C SCREW B 3 X 10 1
66-20516X-0B0 FUSE HOLDER 2
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 4
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 6
71-DYP000-WX1 LABEL 1
Page 3 of 14 CTF5151
All manuals and user guides at all-guides.com

90-209770-SR1 SILICONE GREASE G-746 0.0006
66-382330-0B7 RIVET 2.0X3.7X3.5 8
67-H35984-5A0 HEAT SINK 1
18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R810
26-EBP101-JCX CAP. CER 100PF 50V +/-5% CH 1 C814
25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C832
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C851
10-0RU3AM-F0X DIODE RU3AM (FAST RECOVERY) 1 D831
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C813
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C831
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C842
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D815
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D816
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D817
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D818
22-PTC200-XX1 PTC 20 OHM +/-20% 1 RT801
36-TRF133-AX0 TRANSFORMER CONV.BCK-3546 1 T803
18-GJ0103-KUX RES. CEMENT 10K OHM 5W +/-10% 1 R836
18-GJ0223-KUX RES. WIRE ROUND 22k OHM 5W +/-10% 1 R808
26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C816
26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C803
26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C804
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C843
08-0D181H-FC2 ASS'Y - FRONT CAB(LS-PM)
02-GND021-XX0 ASS"Y - CRT GND WIRE&HOUSE 1
36-DEG210-BX3 DEGAUSSING COIL 2500mm 1
42-51208D-AX1 SPEAKER 5W 8 OHM 1 W601
42-51208D-AX1 SPEAKER 5W 8 OHM 1 W602
44-21RFLS-PM2A 21"CRT A51LYZ095X90 1 CRT01
46-27250H-02X HS 2P24 450/5 F/W TJC3-02H 1
46-37144H-02X HS 2P 2468#22 450mm S11-2Y/7mm 1
54-113970-0U0 PVC TUBE #5 L=ROLL 0.32
54-128700-0X0 FIBRE WASHER 3.3 X 10 X 0.8 1
54-205140-000 SPACER CRT MOUNTING T=2MM 4
55-D181FC-0AN FRONT CABINET 1
56-396460-0HA DECORATIVE LENS 1
56-D181FB-0HA PUSH BUTTON 1
56-D181LS-0HC LENS 1
56-D181PK-0HA POWER KNOB 1
59-130460-00X RUBBER PAD (25mmX7mm) 2
62-345690-1UN ASSISTANT RAIL HIPS-KINGFA 113 (VO) 1
63-B30080-AB4 S/T SCREW B 3 X 8 AB 1
63-S30100-AB4 S/T SCREW S 3 X 10 AB 2
63-B30100-AB4 S/T SCREW B 3 X 10 AB 3
63-W30100-AB4 S/T SCREW W 3 X 10 AB 8
63-W30100-AB4 S/T SCREW W 3 X 10 AB 2
63-W30120-AB4 S/T SCREW W 3 X 12 AB 22
65-A60200-20E WASHER 6 X 20 X 2MM 4
67-X12668-0E0 SPRING CRT 6mmX40mmX0.5mm 1
67-X24970-0E0 SPRING 1
57-10654X-00F cable ties(2.5mmX95mm) 10
54-314740-0X0 CRT FIBRE SHEET (22mmX22mmX0.8mm) 8
46-27688H-04X HS 4P A/B 400/13 RBGW TJC1/4Y 1
Page 4 of 14 CTF5151
