Teac CTM415 User manual

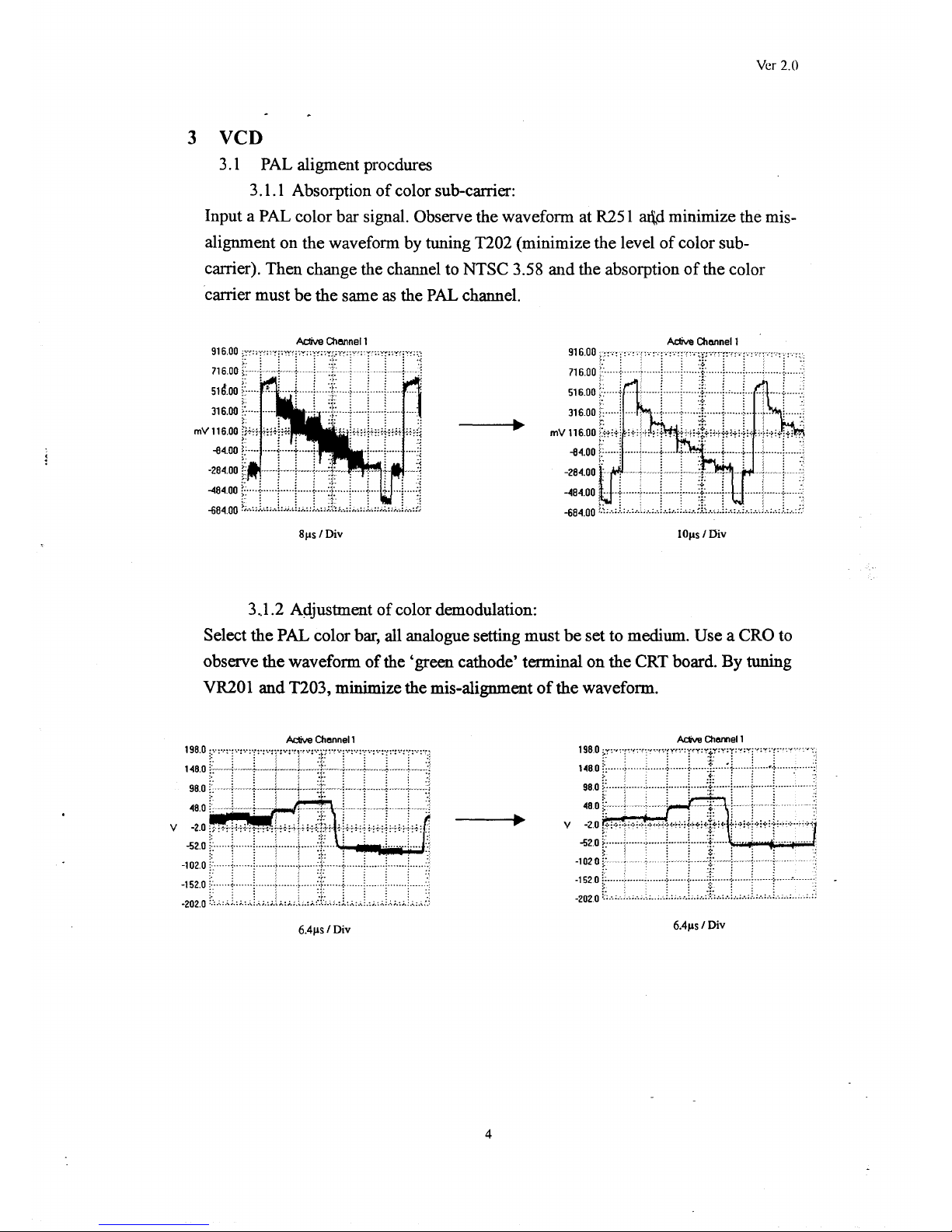

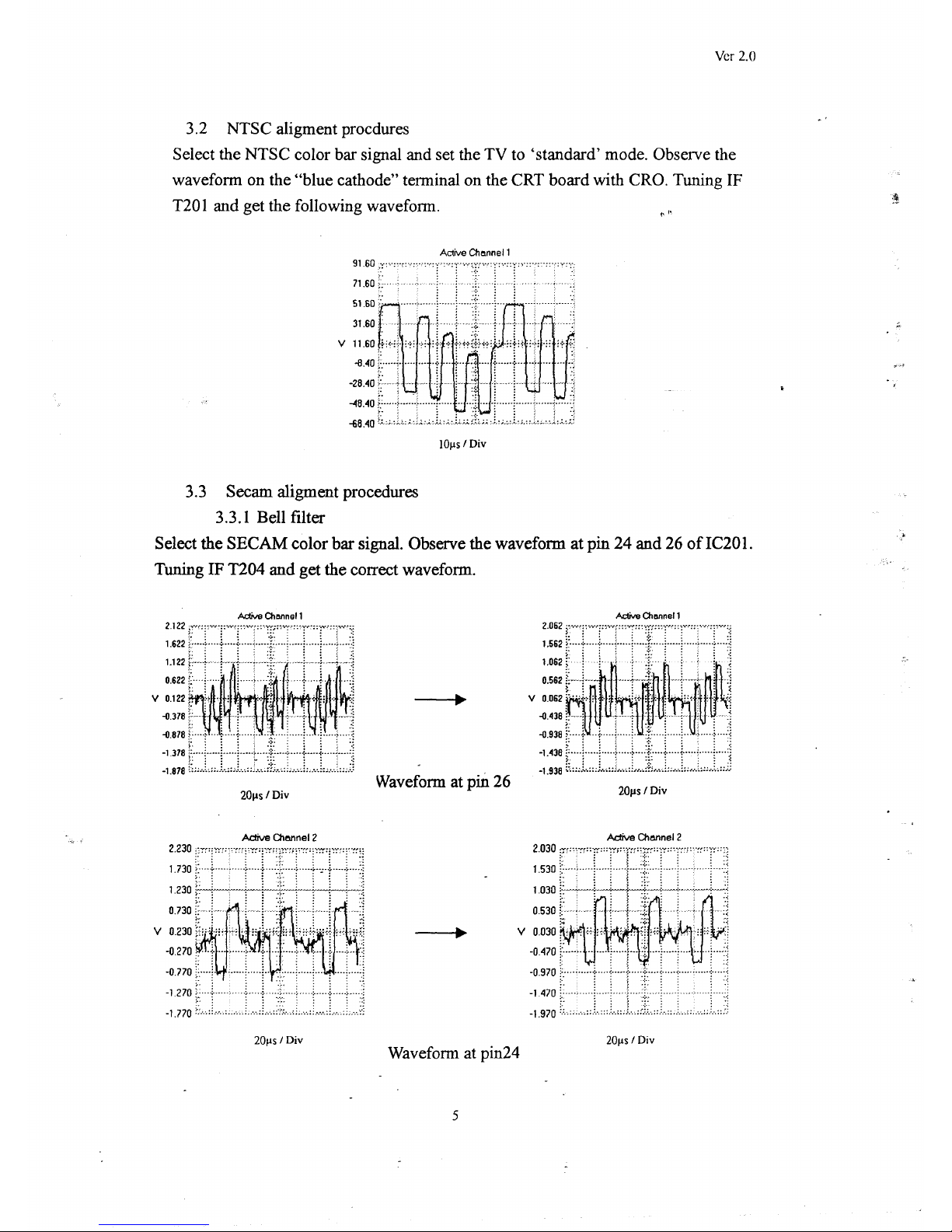

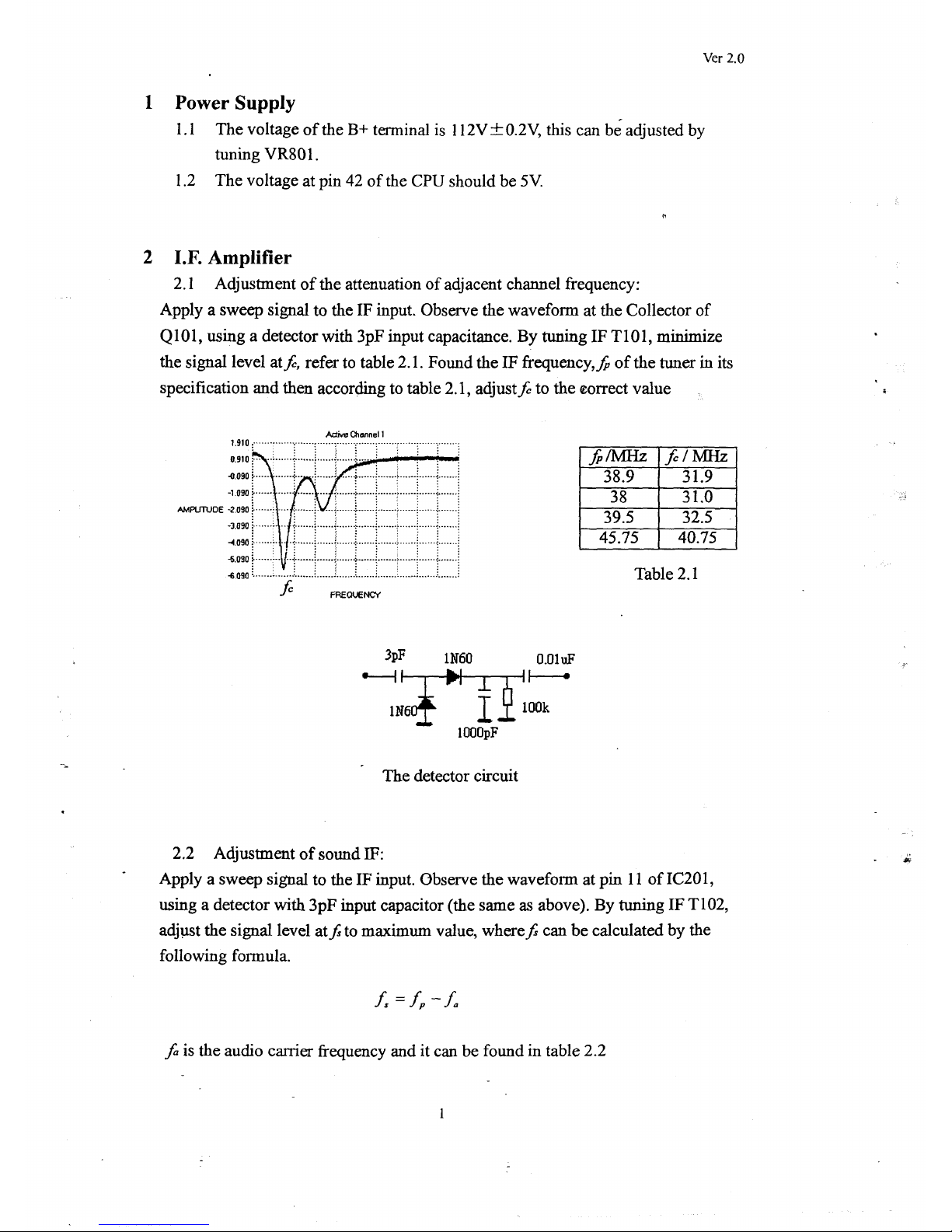

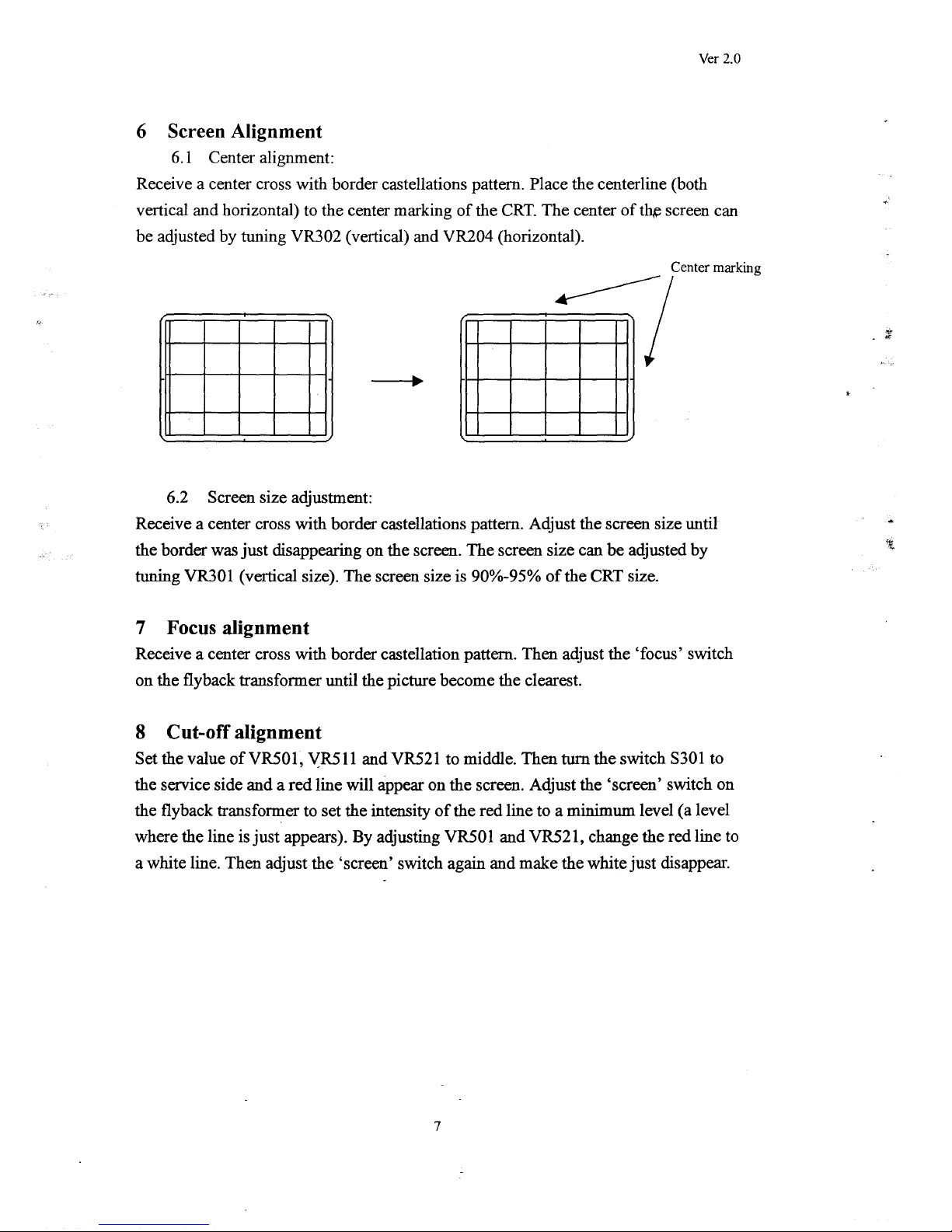

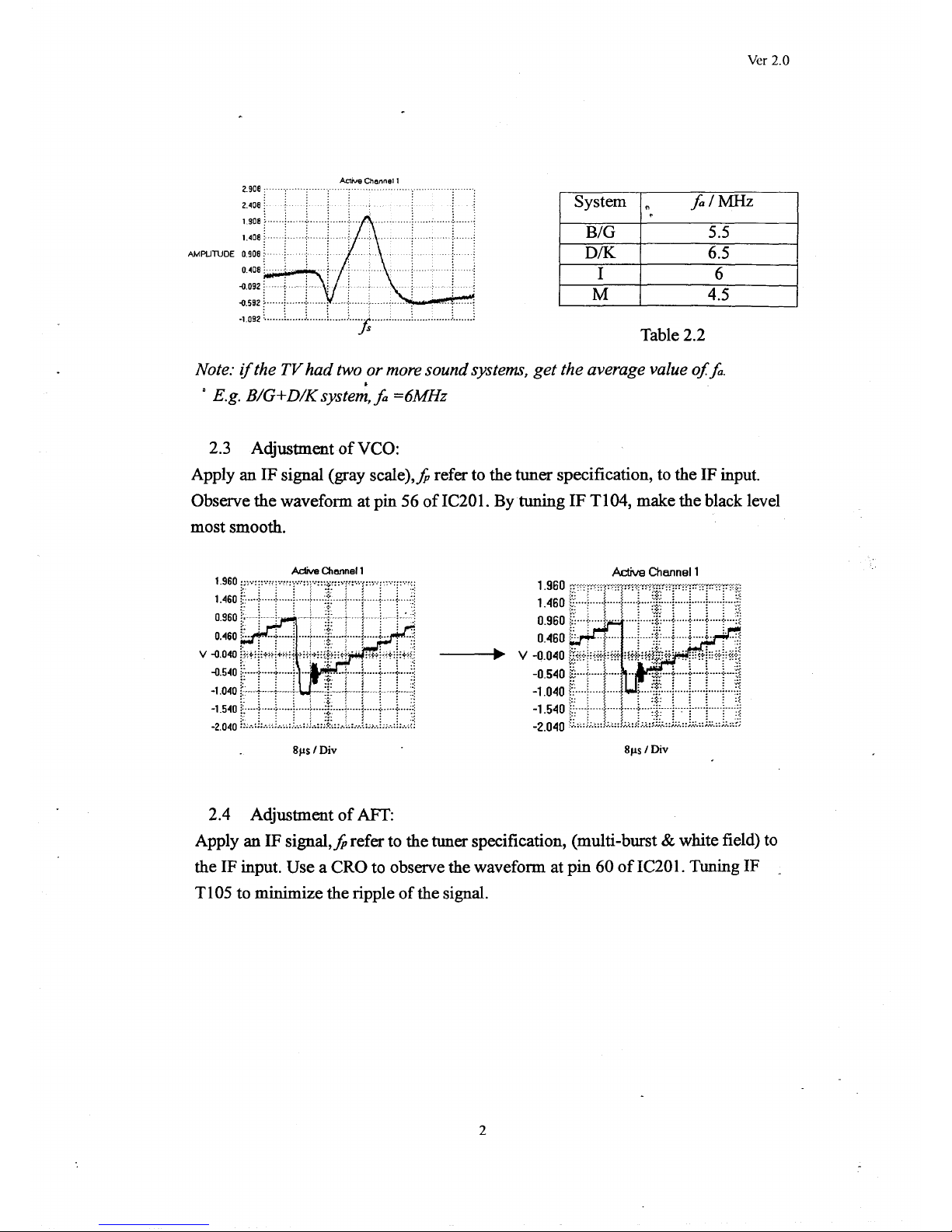

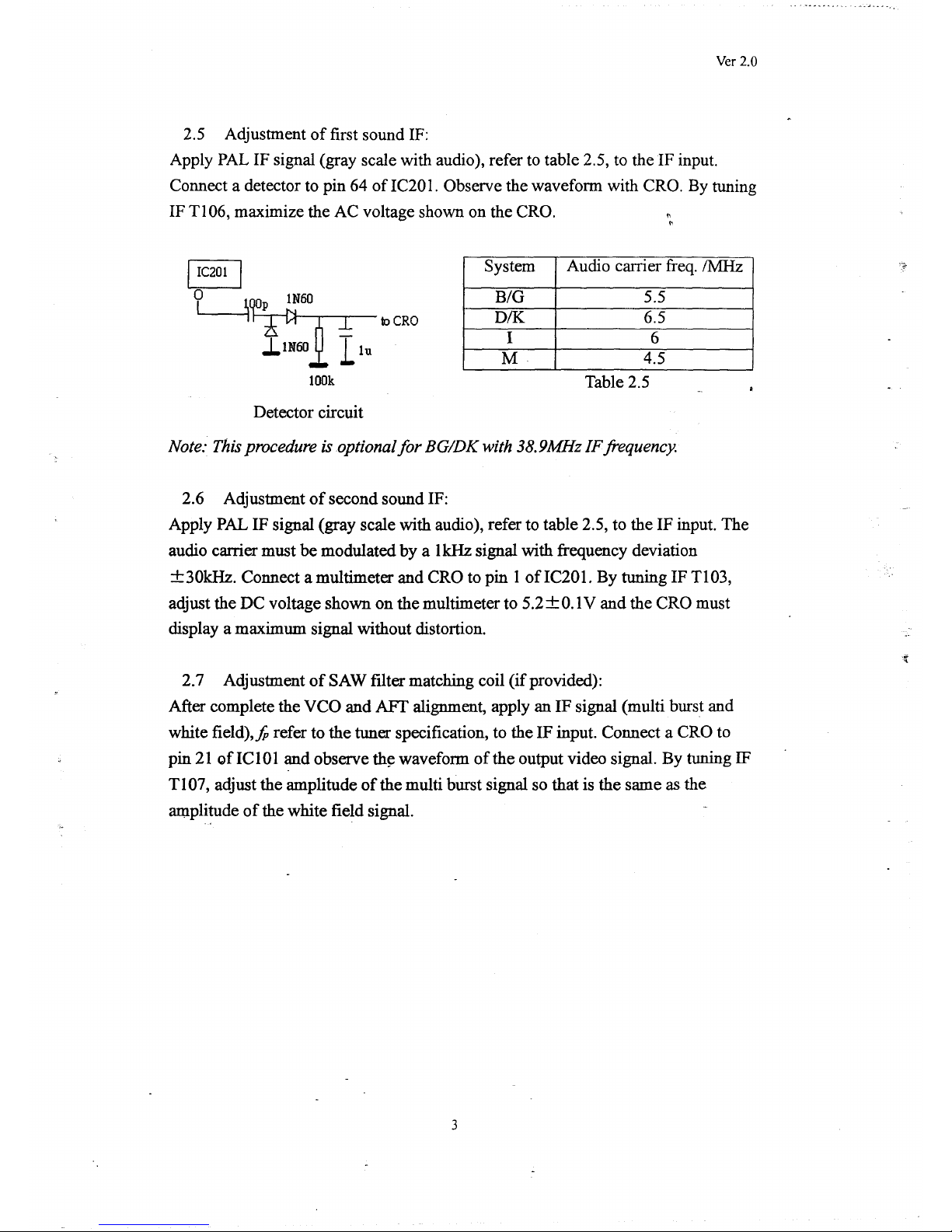

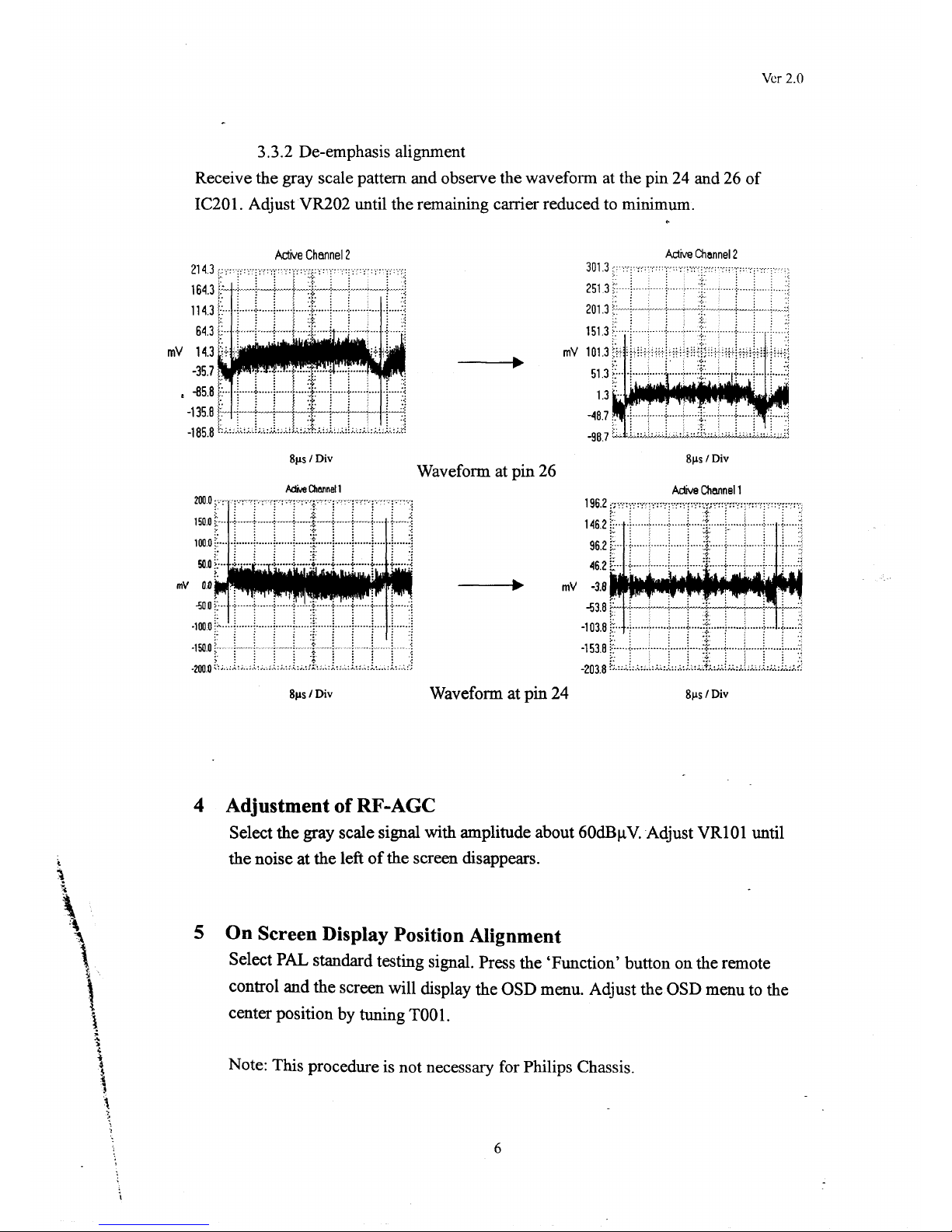

SERVICE MANUAL
41 cm CTV
Effective: JUNE 1998 CTM415SERV

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
08-289671-001 ASS'Y - MAIN BD
02-270090-001 IR RECEIVER MODULE TFMS-5380 1
10-0FR104-EB1 DIODE FR104 (FAST RECOVERY) 3
10-1N4001-EB1 DIODE 1N4001 (RECTIFIER) 1
10-1N4002-EB1 DIODE 1N4002 (RECTIFIER) 2
10-1N4148-AB1 DIODE 1N4148 (SWITCHING) 15
10-79C5V1-DB1 DIODE ZENER 5.1V 1/2W 5% 1
10-79C9V1-DB1 DIODE ZENER 9.1V 1/2W 5% 4
10-PC574J-DJ1 DIODE ZENER UPC 574J 1
11-2N3904-0B1 TRANSISTOR 2N3904 1
11-A562TM-0B1 TRANSISTOR 2SA562TM-0 1
11-SA1015-YB1 TRANSISTOR 2SA1015Y 6
11-SC1815-YB1 TRANSISTOR 2SC1815Y 11
11-SC2482-0B1 TRANSISTOR 2SC2482 1
11-SC3779-DB1 TRANSISTOR 2SC3779D (RF AMPL) 1
11-SD2499-0A1 TRANSISTOR 2SD2499 (POWER) 1
11-TC144E-SB1 TRANSISTOR DTC144ES (TP) 6
13-000040-53P IC 4053 (ANALOG SW) 1
13-00AN52-65S IC AN5265 (AUDIO AMPL.) 1
13-00MC78-09S IC MC7809C LINEAR +9V 1A 1
13-TV222S-1AP IC CTV222S, PRC1.1A (ENGL) CPU 1
13-0DBL20-44S IC DBL2044(BAND SELECT) 1
13-0LA768-5JP IC LA7685J P/N IF+VCD 1
13-0TA844-5KS IC TA8445K (VERT OUTPUT) 1
13-ST24C0-2FP IC ST24C02FB6 EEPROM 2K 1
14-269140-LR1 LED RED L34HD 1
18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 13
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 3
18-CB0105-JNX RES. C.F. 1M OHM 1/6W +/-5% 2
18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/05% 1
18-CB0122-JNX RES. C.F. 1.2K OHM 1/6W +/-5% 1
18-CB0123-JNX RES. C.F. 12K OHM 1/6W +/-5% 3
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 2
18-CB0152-JNX RES. C.F. 1.5K OHM 1/6W +/-5% 3
18-CB0154-JNX RES. C.F. 150K OHM 1/6W +/-5% 1
18-CB0184-JNX RES. C.F. 180K OHM 1/6W +/-5% 2
18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 2
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 3
18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% 11
18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% 6
18-CB0224-JNX RES. C.F. 220K OHM 1/6W +/-5% 2
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 2
18-CB0274-JNX RES. C.F. 270K OHM 1/6W +/-5% 1
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 3
18-CB0334-JNX RES. C.F. 330K OHM 1/6W +/-5% 1
18-CB0391-JNX RES. C.F. 390 OHM 1/6W +/-5% 2
1 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 8
18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% 14
18-CB0474-JNX RES. C.F. 470K OHM 1/6W +/-5% 1
18-CB0511-JNX RES. C.F. 510 OHM 1/6W +/-5% 1
18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 3
18-CB0564-JNX RES. C.F. 560K OHM 1/6W +/-5% 1
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 2
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 3
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 5
18-CB0824-JNX RES. C.F. 820K OHM 1/6W +/-5% 1
18-CD0100-JNX RES. C.F. 10 OHM 1/4W +/-5% 1
18-CD0184-JNX RES. C.F. 180K OHM 1/4W +/-5% 1
18-CD0221-JNX RES. C.F. 220 OHM 1/4W +/-5% 1
18-CD0331-JNX RES. C.F. 330 OHM 1/4W +/-5% 1
18-CE0331-JNX RES. C.F. 330 OHM 1/2W +/-5% 1
18-EF0109-JG1 RES. FUS 1 OHM 1W +/-5%(LS) 2
18-FF0103-JGX RES. M.O. 10K OHM 1W +/-5% 2
18-FF0122-JGX RES. M.O. 1.2K OHM 1W +/-5% 1
18-FF0189-JGX RES. M.O. 1.8 OHM 1W +/-5% 1
18-FF0330-JGX RES. M.O. 33 OHM 1W +/-5% 1
20-141610-302 TRIMMER B3K VERT TYPE 1
25-BCA102-M11 CAP. ELEC 1000 UF 16V +/-20% 1
25-BCB100-M11 CAP. ELEC 10 UF 16V +/-20% 18
25-BCB101-M11 CAP. ELEC 100 UF 16V +/-20% 6
25-BCB220-M11 CAP. ELEC 22 UF 16V +/-20% 4
25-BCB330-M11 CAP. ELEC 33 UF 16V +/-20% 1
25-BCB331-M11 CAP. ELEC 330 UF 16V +/-20% 2
25-BCB471-M11 CAP. ELEC 470 UF 16V +/-20% 3
25-BDA471-M11 CAP. ELEC 470 UF 25V +/-20% 1
25-BEA471-M11 CAP. ELEC 470 UF 35V +/-20% 1
25-BEB101-M11 CAP. ELEC 100 UF 35V +/-20% 1
25-BFB100-M11 CAP. ELEC 10 UF 50V +/-20% 1
25-BFB109-K1A CAP. ELEC 1 UF 50V 10% CEC-K 1
25-BFB109-M11 CAP. ELEC 1 UF 50V +/-20% 6
25-BFB228-M11 CAP. ELEC 0.22UF 50V +/-20% 1
25-BFB229-K1A CAP. ELEC 2.2UF 50V 10% CEC-K 1
25-BFB229-M11 CAP. ELEC 2.2 UF 50V +/-20% 4
25-BFB478-M11 CAP. ELEC 0.47 UF 50V +/-20% 3
25-BFB479-M11 CAP. ELEC 4.7 UF 50V +/-20% 1
25-BHA100-M11 CAP. ELEC 10 UF 100V +/-20% 1
25-BJA109-M11 CAP. ELEC 1 UF 160V +/-20% 1
25-BLA100-M11 CAP. ELEC 10 UF 250V +/-20% 1
26-EBP100-JC1 CAP. CER 10 PF 50V +/-5% CH 1
26-EBP101-JC1 CAP. CER 100 PF 50V +/-5% CH 1
26-EBP102-KB1 CAP. CER 1000PF 50V 10% B TUBU 3
26-EBP103-ZF1 CAP. CER 0.01UF 50V +80-20% F 21
2 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
26-ABC104-ZFX CAP. CER 0.1UF 50V +80-20% F 1
26-EBP150-JC1 CAP. CER 15 PF 50V +/-5% CH 2
26-ABC180-JZX CAP. CER 18 PF 50V +/-5% SL 3
26-EBP220-JZ1 CAP. CER 22 PF 50V 5% SL TUBU 2
26-EBP221-JC1 CAP. CER 220 PF 50V +/-5% CH 1
26-EBP221-JC1 CAP. CER 220 PF 50V +/-5% CH 5
26-ABC222-KBX CAP. CER 2200 PF 50V +/-10% B 1
26-ABC240-JZX CAP. CER 24 PF 50V +/-5% SL 2
26-EBP241-JC1 CAP. CER 240 PF 50V +/-5% CH 1
26-EBP270-JC1 CAP. CER 27 PF 50V +/-5% CH 1
26-EBP330-JZ1 CAP. CER 33 PF 50V 5% SL TUBU 1
26-ABC339-CZX CAP. CER 3.3 PF 50V +/-0.25PF 1
26-EBP470-JZ1 CAP. CER 47 PF 50V +/-5% SL TU 3
26-EBP471-JC1 CAP. CER 470 PF 50V +/-5% CH 2
26-ABC560-JZX CAP. CER 56 PF 50V +/-5% 1
26-EBP561-JC1 CAP. CER 560 PF 50V +/-5% CH 1
26-EBP680-JZ1 CAP. CER 68 PF 50V 5% SL TUBU 2
26-EBP829-JC1 CAP. CER 8.2PF 50V +/-5% CH 1
26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1
26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% 3
27-AHR274-J01 CAP. PP 0.27 UF 400V +/-5% 1
27-ALR922-J01 CAP. M.PP 0.0092UF 1.6KV +/-5% 1
27-MBC104-J01 CAP. M. P.E. 0.1 UF 50V +/-5% 4
27-MBC224-J01 CAP. M. P.E. 0.22 UF 50V +/-5% 1
27-PBC102-J01 CAP. P.E. 0.001 UF 50V +/-5% 1
27-PBC103-J01 CAP. P.E. 0.01 UF 50V +/-5% 5
27-PBC223-J01 CAP. P.E. 0.022 UF 50V +/-5% 1
27-PBC333-J01 CAP. P.E. 0.033 UF 50V +/-5% 1
27-PBC472-J01 CAP. P.E. 0.0047 UF 50V +/-5% 1
27-PBC473-J01 CAP. P.E. 0.047 UF 50V +/-5% 3
27-PBC562-J01 CAP. P.E. 0.0056 UF 50V +/-5% 1
34-A100K0-0IX COIL CHOKE 10 UH +/-10% 1
34-A568K0-1IX COIL CHOKE 0.56 UH +/-10% 1
34-A608K6-1BX COIL CHOKE 0.6 UH +/-10% 1
34-R100J2-0EX COIL PL - 10 UH +/-5% 3
34-R330J2-0EX COIL PL - 33 UH +/-5% 2
34-R569J2-0EX COIL PL - 5.6 UH +/-5% 1
34-R829J2-0EX COIL PL - 8.2 UH +/-5% 1
36-107483-A02 TRANSFORMER HORIZ DRIVER 1
36-278440-017 COIL LINEARITY 58 UH 1
36-285600-017 COIL WIDTH 200 UH LC-201-TCL 1
38-138270-000 COIL DEMODULATION (TY-6045) 2
38-236550-000 COIL I.F.T. 236550 FOR AFT 1
38-236560-000 COIL I.F.T. 236560 FOR VCO 1
38-257980-00X COIL I.F.T. 3350D 1
38-262530-000 COIL CHR0MA 4.43MHZ MT251-1154 1
3 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
38-264630-00X COIL I.F.T. 264630 SIF 1
41-AJ0100-BEE WIRE BARE JUMPER 10MM 1
41-BF0070-5BB WIRE UL 1007 #24 70MM GREEN 1
41-BF0100-7BB WIRE UL 1007 #24 100MM VIOLET 1
41-BF0150-2BB WIRE UL 1007 #24 150MM RED 1
41-BF0150-8BB WIRE UL 1007 #24 150MM GREY 1
41-BF0250-3BB WIRE UL 1007 #24 250MM ORG. 1
41-DE0280-2BB WIRE UL 1015 #22 280MM RED 1
41-DE0320-0BB WIRE UL 1015 #22 320MM BLACK 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 10
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1
41-WJ0150-B00 WIRE BARE JUMPER 15MM 14
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 9
41-WJ0200-B00 WIRE BARE JUMPER 20MM 10
43-278460-004 DELAY LINE CHROMA YCS-FN6P5A11 1
45-107190-10X CRYSTAL 4.43 MHZ 1
45-107742-401 CER. FILTER 5.5MHZ 1
45-117410-10X CRYSTAL 3.58 MHZ 1
45-135070-600 CER. TRAP TPS 5.5MHZ 1
45-228590-10X CRYSTAL 10MHZ 1
45-261530-200 CERAMIC RESONATOR CSB500F55 1
45-126172-300 SAW FILTER F1037C 1
46-10960W-047 PIN BASE *4 TJC3-4A 1
46-10964W-067 PIN BASE *6 TJC3-6A 1
46-20598W-047 PIN BASE *4 TJC1-4A 1
47-272430-00X RCA JACK BD 6P (VERT TYPE) 1
48-282910-005 SW TACT L=16.5MM GR 4
48-282960-005 SW TACT L=12.5MM GR 9
62-10654X-00F UNI - TIE 2.5X95MM 10
62-215870-0UH MOUNTING SPACER FBT 1
62-227680-0UA HOLDER CABLE FOR FBT 1
62-249190-0HH BRACKET PCB SUPPORTER 1
62-269920-0HA LED HOLDER 1
63-B4020X-AB2 S/T SCREW B 4 X 20 AB 1
64-B3006X-104 M/C SCREW B 3 X 6 2
64-P3510X-104 M/C SCREW P 3.5 X 10 3
65-Z3506X-26E NUT M 3.5 3
67-203020-0M2 HEAT SINK I ( L TYPE ) 1
67-249280-3A0 HEAT SINK 1
67-251660-0M2 HEAT SINK 1
71-270870-0A9 LABEL 2
90-209770-000 SILICONE GREASE G-746
90-269080-000 CLEAN COATING
20-201260-203 TRIMMER B20K VERT TYPE 2
20-202980-503 TRIMMER B50K VERT TYPE 1
20-215450-103 TRIMMER B10K HORIZ TYPE 1
38-266610-000 COIL I.F.T. 266610 SIF 1
4 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
38-257970-001 COIL I.F.T. TRF 3800D 1
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 12
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 4
25-BJA470-M11 CAP. ELEC 47 UF 160V +/-20% 1
18-FG0100-JHX RES. M.O. 10 OHM 2W +/-5% 1
18-FG0682-JHX RES. M.O. 6.8K OHM 2W +/-5% 1
18-FH0242-JIX RES. M.O. 2.4K OHM 3W +/-5% 1
34-R150J2-0EX COIL PL - 15 UH +/-5% 1
41-WJ0060-B00 WIRE BARE JUMPER 6MM 12
41-WJ0060-B00 WIRE BARE JUMPER 6MM 11
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 12
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 12
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 12
41-WJ0100-B00 WIRE BARE JUMPER 10MM 12
41-WJ0100-B00 WIRE BARE JUMPER 10MM 12
41-WJ0100-B00 WIRE BARE JUMPER 10MM 12
41-WJ0100-B00 WIRE BARE JUMPER 10MM 6
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 12
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 12
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1
10-79C18V-DB1 DIODE ZENER 18V 1/2W 5% 1
18-CB0183-JNX RES. C.F. 18K OHM 1/6W +/-5% 1
18-DF0109-JGX RES. M.F. 1 OHM 1W +/-5% 1
48-114820-00X SW. CHANNEL BAND SELECTOR 1
70-271510-00A SERVICE CARD 1
26-AMK331-JZ1 CAP. CER 330 PF 2KV +/-5% SL 1
18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 12
71-265650-0A0 LABEL FUSE T2L250V 1
41-WJ0060-B00 WIRE BARE JUMPER 6MM 11
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 7
18-CB0823-JNX RES. C.F. 82K OHM 1/6W +/-5% 1
18-CB0153-JNX RES. C.F. 15K OHM 1/6W +/-5% 4
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1
18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 2
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 12
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 11
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 3
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 11
18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% 3
54-128373-00X FIBRE TUBE D=1MM L=15MM 1
18-CB0563-JNX RES. C.F. 56K OHM 1/6W +/-5% 1
20-200560-102 TRIMMER B1K HORIZ TYPE 1
37-JF0501-A02 FLYBACK JF0501-1214A (54CM) 1
46-12866W-027 PIN BASE *2 TJC3-2A 1
46-12866W-027 PIN BASE *2 TJC3-2A 1
46-12866W-02X PIN BASE *2 S11-02W 1
5 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
40-271341-0AF P.C.B. MAIN BD (2128SZ) 1
18-FE0681-JNX RES. M.O. 680 OHM 1/2W +/-5% 1
10-1N4148-AB1 DIODE 1N4148 (SWITCHING) 1
07-TSR7SD-050 TUNER VTSR7SD05 38.9MHZ CB/IEC 1
26-EBP331-JC1 CAP. CER 330 PF 50V +/-5% CH 1
41-AJ0075-BEE WIRE BARE JUMPER 7.5MM 2
08-289681-001 ASS'Y - POWER PARTS (EC1701)
10-0RL255-EB1 DIODE RL255 (RECTIFIER) 4
10-0RU3AM-E01 DIODE RU3AM (FAST RECOVERY) 1
10-1N4004-EB1 DIODE 1N4004 (RECTIFIER) 2
10-1N4148-AB1 DIODE 1N4148 (SWITCHING) 1
10-79C12V-DB1 DIODE ZENER 12V 1/2W 5% 1
10-79C20V-DB1 DIODE ZENER 20V 1/2W 5% 1
11-SC1815-YB1 TRANSISTOR 2SC1815Y 2
11-SC2230-YB1 TRANSISTOR 2SC2230Y 1
11-SD2498-0A1 TRANSISTOR 2SD2498 (POWER) 1
13-0TDA46-01S IC TDA4601 1
18-BE0105-KN1 RES. C.C. 1M OHM 1/2W +/-10% 1
18-BE0475-KN1 RES. C.C. 4.7M OHM 1/2W +/-10% 2
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1
18-CB0222-JNX RES. C.F. 2.2K OHM 1/6W +/-5% 1
18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% 2
18-CB0332-JNX RES. C.F. 3.3K OHM 1/6W +/-5% 1
18-CB0472-JNX RES. C.F. 4.7K OHM 1/6W +/-5% 1
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1
18-CD0103-JNX RES. C.F. 10K OHM 1/4W +/-5% 2
18-CD0221-JNX RES. C.F. 220 OHM 1/4W +/-5% 1
18-CE0102-JNX RES. C.F. 1K OHM 1/2W +/-5% 1
18-CE0109-JNX RES. C.F. 1 OHM 1/2W +/-5% 1
18-CE0122-JNX RES. C.F. 1.2K OHM 1/2W +/-5% 1
18-CE0470-JNX RES. C.F. 47 OHM 1/2W +/-5% 1
18-FF0470-JGX RES. M.O. 47 OHM 1W +/-5% 1
18-FF0472-JGX RES. M.O. 4.7K OHM 1W +/-5% 1
20-215450-103 TRIMMER B10K HORIZ TYPE 1
22-202BG3-602 POSISTOR PTH451C202BG360N270 1
25-267980-M11 CAP. ELEC 100 UF 16/25V +/-20% 1
25-BCB101-M11 CAP. ELEC 100 UF 16V +/-20% 1
25-BEA471-M11 CAP. ELEC 470 UF 35V +/-20% 2
25-BEB101-M11 CAP. ELEC 100 UF 35V +/-20% 1
25-BFB100-M11 CAP. ELEC 10 UF 50V +/-20% 1
25-BFB479-M11 CAP. ELEC 4.7 UF 50V +/-20% 1
25-BJA109-M11 CAP. ELEC 1 UF 160V +/-20% 1
25-BJG101-M11 CAP. ELEC 100 UF 160V +/-20% 1
25-BMJ221-M11 CAP. ELEC 220 UF 400V +/-20% 1
26-EBP101-JC1 CAP. CER 100 PF 50V +/-5% CH 1
26-EBP103-ZF1 CAP. CER 0.01UF 50V +80-20% F 2
26-EBP221-JC1 CAP. CER 220 PF 50V +/-5% CH 1
6 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1
26-AIM103-KBX CAP. CER 0.01 UF 500V +/-10% B 1
26-AMK102-KR1 CAP. CER 1000 PF 2KV +/-10% R 2
26-AMK152-KR1 CAP. CER 1500 PF 2KV +/-10% R 1
26-APK222-MEJ CAP. CER 2200PF 400VAC+/-20% E 1
26-AQK472-ZF1 CAP.CER 4700PF 250VAC +80-20%F 2
27-ALQ222-J01 CAP. M.PP 0.0022UF 1.6KV +/-5% 1
27-MHW104-K01 CAP. METAL P.E. 0.1UF 400V 10% 1
27-PBC682-J01 CAP. P.E. 0.0068 UF 50V +/-5% 3
34-R101K2-1BX COIL CHOKE 100 UH +/-10% 1
34-R109J2-0EX COIL PL - 1 UH +/-5% 2
35-139730-00X FERR. BEAD BF60 2
36-238300-A02 LINE FILTER 1
36-258740-A02 TRANSF. CONVERTER FOR TDA4601 1
41-AJ0025-BEE WIRE BARE JUMPER 2.5MM 1
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1
41-WJ0200-B00 WIRE BARE JUMPER 20MM 2
46-10962W-027 PIN BASE *2 TJC2-2A 1
48-256460-0C0 SW. POWER TV8 (PCB MOUNTING) 1
50-26930D-1VS FUSE 2.0AT 250V 5X20MM BELL 1
54-113971-0U4 PVC TUBE #6 L=20MM 2
62-249790-0HH BRACKET PCB SUPPPORTER 1
62-262660-0HA POWER SW. ADAPTOR 1
62-269980-0HG CABLE CLAMP 1
63-B3510X-AB4 S/T SCREW B 3.5 X 10 AB HARD 2
64-B3008X-102 M/C SCREW B 3 X 8 1
64-B3010X-104 M/C SCREW B 3 X 10 1
65-E3305X-07E SPRING WASHER 3.3 X 5.0 X 0.7 2
65-Z3005X-23M NUT M 3 2
67-258760-0A0 HEAT SINK 1
71-242640-0A2 LABEL WARNING LIVE PARTS 1
74-010050-40C POLYBAG FOR POWER CORD 1
90-209770-000 SILICONE GREASE G-746
51-JC0243-0CC POWER CORD 8FT W/PIN TERM. SAA 1
18-FG0153-JHX RES. M.O. 15K OHM 2W +/-5% 1
18-FH0390-JIX RES. M.O. 39 OHM 3W +/-5% 1
18-FH0472-JIX RES. M.O. 4.7K OHM 3W +/-5% 2
10-79C18V-DB1 DIODE ZENER 18V 1/2W 5% 1
10-79C33V-DB1 DIODE ZENER 33V 1/2W 5% 1
71-221930-0AA LABEL FUSE REPLACEMENT 1
27-AQT224-MVF CAP. M.PP 0.22UF 250VAC 20% CB 1
27-MDK104-MVF CAP. M.PE 0.1UF 125/250VAC CB 1
66-20516X-0B0 FUSE HOLDER 2
10-0FR104-EB1 DIODE FR104 (FAST RECOVERY) 6
18-GM0339-KTX RES. CEMENT 3.3 OHM 7W +/-10% 1
7 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
18-FF0154-JGX RES. M.O. 150K OMH 1W +/-5% 2
18-FF0124-JGX RES. M.O. 120K OMH 1W +/-5% 2
08-289690-001 ASS'Y - IR TRANSMITTER BD
11-A562TM-0B1 TRANSISTOR 2SA562TM-0 1
11-SC1815-YB1 TRANSISTOR 2SC1815Y 1
13-00PT22-10P IC PT2210 28PINS (IR TRANS.) 1
15-0TSU54-02D DIODE INFRARED TSU5402 1
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1
18-CB0229-JNX RES. C.F. 2.2 OHM 1/6W +/-5% 1
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1
18-CB0680-JNX RES. C.F. 68 OHM 1/6W +/-5% 1
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1
25-BBA100-K31 CAP. TAN 10 UF 10V +/-10% 1
40-270280-0AC P.C.B. HANDSET BD 1
41-AJ0175-BEE WIRE BARE JUMPER 17.5MM 2
45-120550-20X CER RESONATOR 455KHZ 1
49-269530-00XAA RUBBER PAD 40 KEYS 1
67-26958X-0E2 BATTERY CONTACT SPRING (+) 1
67-26959X-0E2 BATTERY CONTACT SPRING (-) 1
67-26968X-0E2 BATT. TERMINAL (+/-) 1
74-009022-60C POLYBAG HANDSET 1
58-26957S-3UIAC INLAY IR TRANSMITTER BD 1
55-269540-0HABD CASE UPPER - REMOTE HANDSET 1
55-269550-0HAAN CASE LOWER - REMOTE HANDSET 1
55-269560-0HAAN DOOR BATT. - REMOTE HANDSET 1
08-289700-001 ASS'Y - FRONT CABINET
02-278410-00X ASS'Y CRT GND WIRE & HOUS.(17) 1
36-278420-017 DEGAUSSING COIL 2240+20MM (17) 1
42-272410-00X SPEAKER 50X120MM 16 OHM 3W D50 2
46-14026H-027 HS 2P24 570/7 F/W TJC3-2Y 1
46-20600H-047 HS 4P A/B 360/13 RBGW TJC1-4Y 1
48-259140-00X SW. DOOR LOCK PR4 1
54-113971-0UE PVC TUBE #6 L=160MM 2
54-205140-000 SPACER CRT MOUNTING T=2MM 4
54-271620-000 SPACER CRT MOUNTING T=1MM 4
62-10654X-00F UNI - TIE 2.5X95MM 15
62-269930-0UA HOLDER POWER CORD 1
63-H5025X-0B4 S/T SCREW H 5 X 25 B 4
63-P2606X-BT4 S/T SCREW P 2.6 X 6 BT 1
63-W3010X-AB4 S/T SCREW W 3 X 10 AB 8
65-A5020X-20E WASHER 5 X 20 X 2MM 4
67-126680-0E0 SPRING CRT 6 X 40 X 0.5 MM 1
67-249700-0E0 SPRING PWR KNOB 1
62-238130-0HA HOLDER BRAND 1
58-27548S-0UIAC INLAY CONTROL (CT-M415) 1
8 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
67-13461S-0A0AE INLAY LOGO EMBLEM PLATE (TEAC) 1
56-275460-0HCAB LENS - SENSER & LED (EC1701) 1
59-130460-00X RUBBER PAD 25MM X 7MM 2
59-130460-00X RUBBER PAD 25MM X 7MM 8
54-205140-000 SPACER CRT MOUNTING T=2MM 2
59-130460-00X RUBBER PAD 25MM X 7MM 2
46-13902H-02X HS 2P24 360/5 F/W S11-02H 1
44-289480-00K CRT 41CM A41ECV40X01 (HF) 1
55-27542X-0CAAJ CABINET FRONT (CT-M415) 1
55-27544X-0HAAP DOOR (CT-M415) 1
56-275450-0HAAG POWER KNOB (CT-M415) 1
08-289710-001 ASS'Y - REAR CABINET
59-130460-00X RUBBER PAD 25MM X 7MM 2
59-279090-000 SPONGE RUBBER (15X15X1.5) 3
63-B4020X-AB3 S/T SCREW B 4 X 20 AB (BLACK) 5
63-F3008X-BT3 S/T SCREW F 3 X 8 BT BLACK 2
58-11484S-0UIJU PLATE MODEL NO. (CT-M415) 1
58-29171S-0UIAC INLAY TERMINAL BD (RCA-6) 1
54-114000-00X FELT TAPE 150X19MM 13
55-275430-1ANAB CABINET REAR (CT-M415) 1
08-289720-001 ASS'Y - PACKING
74-022032-6WE POLYBAG 22 X 32CM 1
74-104088-6YC POLYBAG W/SUFFOCATION WARNING 1
72-1701K4-EY0AA OPERATION MANUAL (CT-M415) 1
49-268110-000 BATTERY AA SIZE CARBON ZINC 2
70-281020-00AAA TOTAL CARE SHEET (TEAC) 1
71-290670-0A0AA LABEL P.O. NO. (CT-M415) 2
75-288540-C00 POLYFOAM "UR" (EC1701) 1
75-288550-C00 POLYFOAM "UL" (EC1701) 1
75-288560-C00 POLYFOAM "LR" (EC1701) 1
75-288570-C00 POLYFOAM "LL" (EC1701) 1
70-278170-00AAD EASY TUNE CARD (CT-M415) 1
71-293810-0A0AA LABEL BAR CODE 2
71-278180-0A0AE LABEL SERIAL NO. (CT-M415) 3
76-28858X-02AAB CARTON BOX (CT-M415) 1
71-293820-0A0AA LABEL SCREEN NON-STICK (TEAC) 1
71-276630-0A0AB LABEL SERVICE STATION (TEAC) 1
47-137000-000 ASS'Y - TWO ROD ANT.W/RIB.65CM 1
36-110590-000 CONVERTER 300 OHM/75 OHM 1
08-289360-002 ASS'Y - CRT BD (17" TEAC)
11-SC1815-YB1 TRANSISTOR 2SC1815Y 3
11-SC2482-0B1 TRANSISTOR 2SC2482 3
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1
18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/05% 3
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 3
20-203700-201 TRIMMER B200 VERT TYPE (8MM) 2
9 of 10

CTM415
TEAC MODEL : CT-M415
Part No.
Item Description
Quantity
20-216050-302 TRIMMER B3K VERT TYPE (8MM) 3
25-BCB101-M11 CAP. ELEC 100 UF 16V +/-20% 1
26-EBP101-JC1 CAP. CER 100 PF 50V +/-5% CH 3
26-EBP103-ZF1 CAP. CER 0.01UF 50V +80-20% F 1
26-EBP331-JC1 CAP. CER 330 PF 50V +/-5% CH 1
26-ABC391-JZX CAP. CER 390 PF 50V +/-5% SL 1
26-EBP471-JC1 CAP. CER 470 PF 50V +/-5% CH 1
26-EBP561-JC1 CAP. CER 560 PF 50V +/-5% CH 2
26-AMK102-KR1 CAP. CER 1000 PF 2KV +/-10% R 1
34-R100K2-1CX COIL CHOKE 10 UH +/-10% 1
34-R220K2-1CX COIL CHOKE 22 UH +/-10% 1
35-139730-00X FERR. BEAD BF60 2
40-264590-0AC P.C.B. CRT BD(22.5MM) 1
46-10967W-017 PIN BASE *1 TJC1-1A 1
46-20389H-047 HS 4P24 460/5 F/W TJC3-4Y 1
46-22134H-067 HS 6P26 450/5 F/W TJC3-6Y 1
18-BE0272-KN1 RES. C.C. 2.7K OHM 1/2W +/-10% 3
26-EBP102-KB1 CAP. CER 1000PF 50V 10% B TUBU 1
18-FG0153-JHX RES. M.O. 15K OHM 2W +/-5% 3
47-208530-007 SOCKET CRT GZS 8-6-4 22.5MM 1
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 4
25-BLA100-M11 CAP. ELEC 10 UF 250V +/-20% 1
10 of 10
