Team C T8 V3 User manual

尺寸：
T8 V3
1:8 Scale GP 4WD TOURING CAR
Length …………………………………………………………………………630mm
Width …………………………………………………………………………320mm
Height …………………………………………………………………………160mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net

9
8
7
610
11
12
13
14

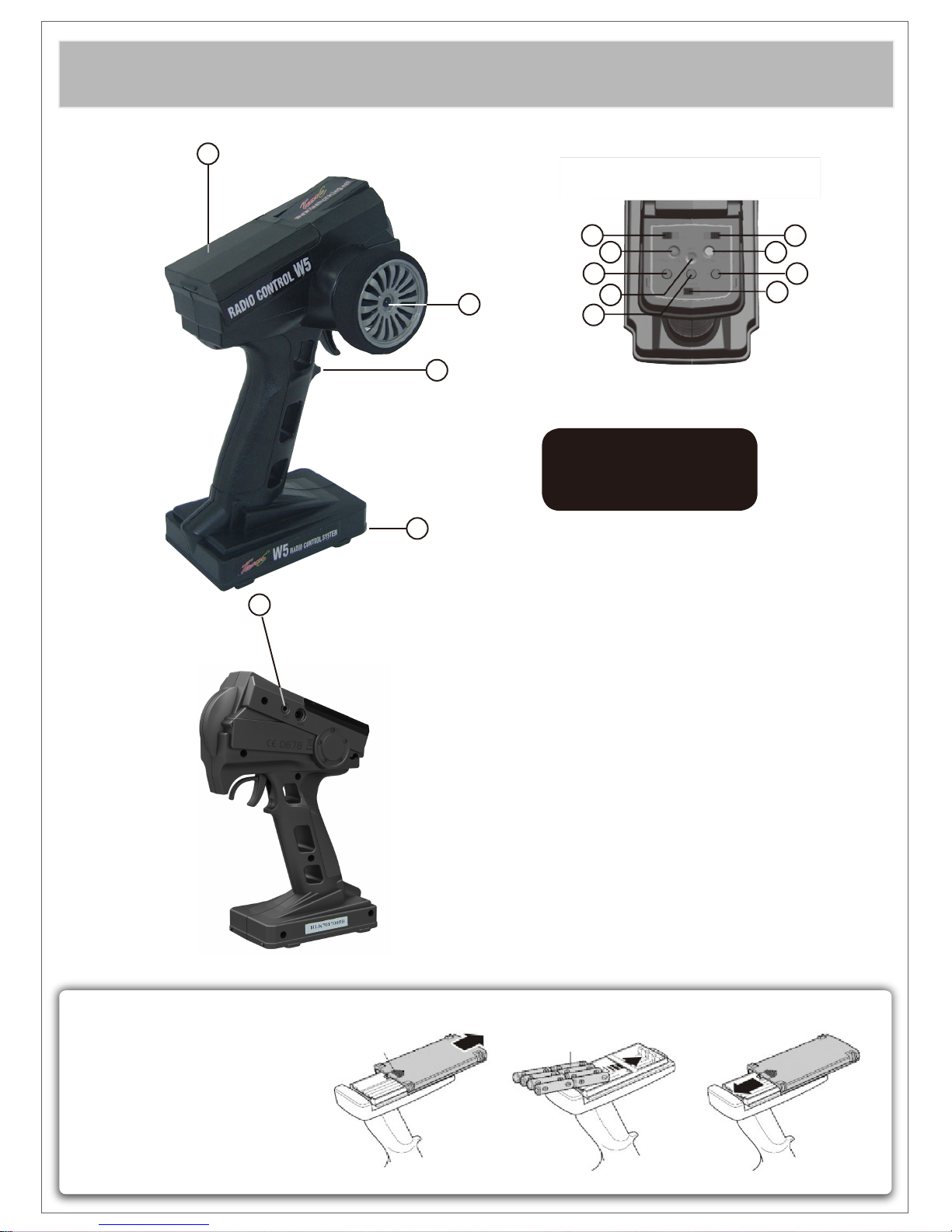

電池蓋
調整遙控器
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
AA 堿性電池
遙控器電池安裝
Transmitter Preparation
AA Alkaling Batteries
8X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
Battery Cover
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
4 Battery Compartment
5 Charging Jack
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
GLG20
2.4GHz
1
5
3
4
2
控制面板
轉向輪
油門板扣
電池盒
充電接口
轉向正逆轉開關
電源指示燈
轉向调節
設定按扭
油門正逆轉開關
電池電壓
轉向大小微調
電源開關
油門微調

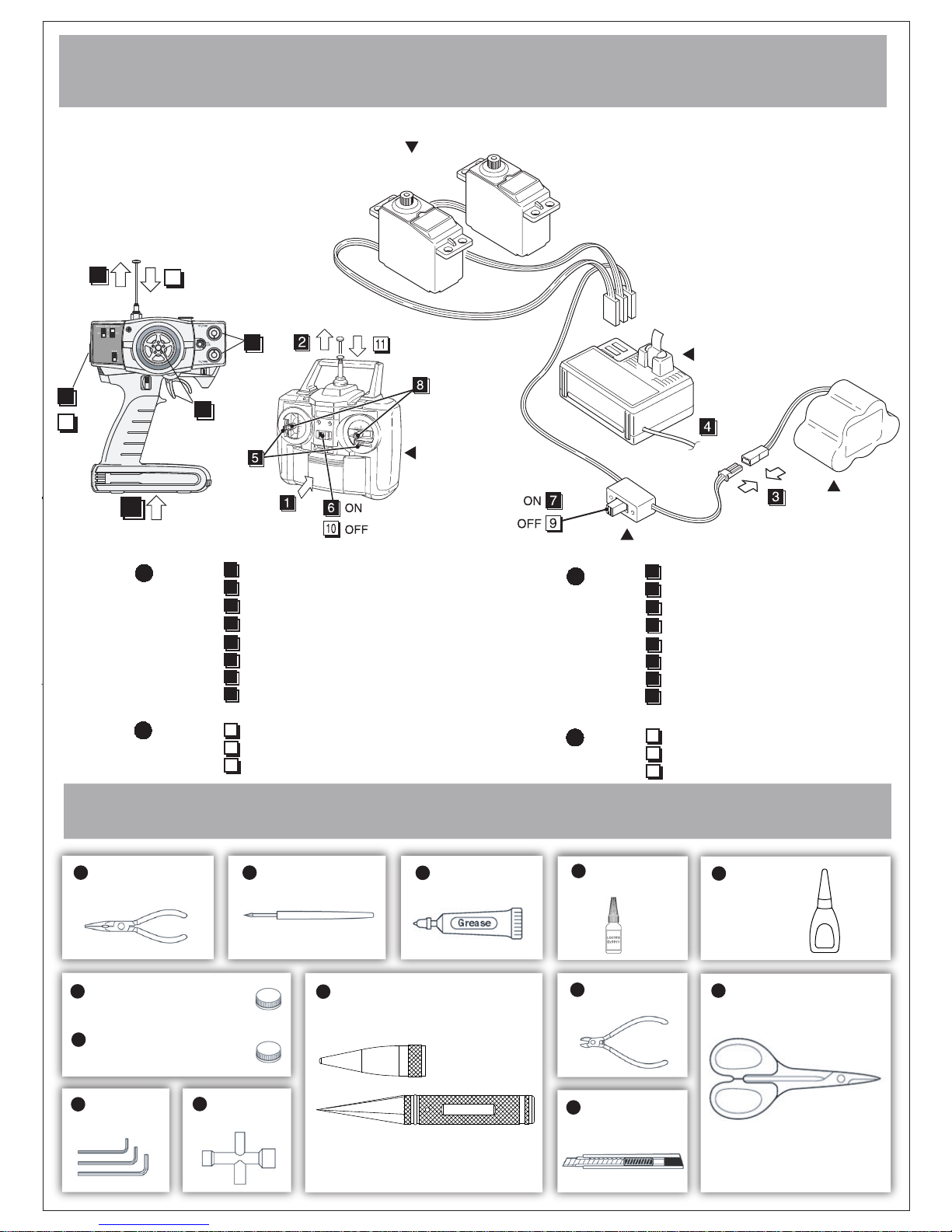

調整遙控器
Transmitter Preparation
如下圖所示安裝接收機控制系統.
Set up the radio control system as indicated below.
開始
結束
安裝電池(發送機)
拉出天線(發送機)
連接電池
拉出天線(接收機)
中心對整齊
打開開關(發送機)
打開開關(接收機)
確定控制伺服機
關閉開關(接收機)
關閉開關(發送機)
收回天線(發送機)
組裝需要的工具
Tools required
1
8
7
2
5
3
4
6
9
10
11
Start
Finish
Install batteries.(Transmitter)
Extend the antenna.(Transmitter)
Connect the battery
Extend the antenna.(Reveiver)
Center the trims.
Switch on.(Transmitter)
Switch on.(Reveiver)
Make sure the servos are in command.
Switch off.(Reveiver)
Switch off.(Transmitter)
Retract the antenna(Transmitter)
1
8
7
2
5
3
4
6
9
10
11
Needie Nose Pllers Awl Grease
潤滑油
Screw Cement
螺絲膠水
瞬間膠水
Instant Glue
Hex Wrench
六角板手
Differential Grease
差速油
Molybdenum Grease(Black)
鉬油(黑)
錐
尖嘴鉗
Hex Wrench
十字套筒
Body Reamer
車殼絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確地鑽1mm-15mm
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
ROUND CUTTER
剪刀
For trimming bodies!
用於修剪車殼！
H154
H162
H096
電池
伺服機
接收機
開關
Battery
Servo
Receiver
Switch
發送機
Transmitter
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
11
2
6
10
ON
OFF
5
8
1

1Servo Saver Turnbuckle
伺服拉桿
………1
T08674 M3x15 Screw
M3x15螺絲
1
1:1
Approx.23mm
▲Projection.Note direction
注意方向
T08643 3x40 Turnbuckle
3x40 拉桿
…………1
T08606 5.8 Ball End
5.8 球頭座
…………2
T08606 5.8 Ball stud
5.8球頭
……………………2
T08666 M3 Nylon Nut
M3尼龍螺母
…………………1
………1
T08674 M3x14 Screw
M3x14 螺絲
T08666 M3 Nylon Nut
M3尼龍螺母
…………………1
T02081 3x7x0.8 Washer
3x7x0.8墊片
…………………2
T08651 Buffer Screw
緩沖螺絲
……2
Approx.8mm
1:1
Ture-to -scale diagram
圖形比例
T08666 M3
T08674 M3x15
大約8mm
T08650
Servo Saver Nut
緩沖螺母
T08650
Servo Saver Spring
緩沖弹簧
T08762
Servo Saver-Top
緩沖座-上
T08762
Servo Saver-Bottom
緩沖座-下
T08650
Servo Saver Body
緩沖筒身
T08651
T08674 M3x14
T08651
Steering Rack
轉向緩沖連接板
T08666 M3
T08620
Steering Servo Horn-F
轉向伺服臂-F
Select the servo horn matching the servo being used.
根據伺服機選擇伺服臂
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08762
Servo Saver-Left
緩沖座-左
大約23mm
Buffer Screw
緩沖螺絲
T02081 3x7x0.8
2Buffer
緩沖
4mm
T08643
3x40 Turnbuckle
3x40 拉桿
T08606
5.8 Ball End
5.8 球頭座
T08606
5.8 Ball End
5.8 球頭座
T08606
5.8 Ball stud
5.8球頭
T08606
5.8 Ball stud
5.8球頭
Bag-A
Bag-A

Apply threadlocker(screw cement)
打螺絲膠水
2
…………7
T08674 M3x8 Screw
M3x8螺絲
T08674 M4x10 Screw
M4x10螺絲
…………2
…………1
T08674 M3x10 Screw
M3x10 螺絲
T08674 M4x10 Screw
M4x10 螺絲
…………2
T08666 M3 Nylon Nut
M3 尼龍螺母
…………………2
T08662 6x10x3 Ball Bearing
6x10x3 軸承
T08610
Side Plate-Left
側板-左
T08610
Side Plate-Right
側板-右
T08674 M3x8
T08674 M4x10
T08938
Chassis
底盤
T08674 M3x8
T08650
Servo Saver Post
緩沖柱
Screw
Cement
T08673 M3x10
T08666 M3
T08674 M3x10
………………4
………1
T08674 M3x14 Screw
M3x14 螺絲
T08674 M3x12
T08674 M3x14
T08674 M4x10
T08674 M4x10
T08619
Front Chassis Stiffener
前支撐桿
T08941
Buffer Plate-Plastic
緩沖頂板-塑膠
T08612
Front Body Mount
前車殼柱
T08662 6x10x3
T08662 6x10x3
4
Buffer
緩沖
3
Servo Saver Post/Side Plate
緩沖柱/側板
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement
Bag-A
Bag-ABag-B
…………1
T08674 M3x12 Screw
M3x12 螺絲

Apply threadlocker(screw cement)
打螺絲膠水
3
T08304 13.1x15.9x0.2 Washer
13.1x15.9x0.2 墊片
…………2
T08663 6x13x5 Ball Bearing
6x13x5 軸承
………2
T08673 M3x16 Screw
M3x16 螺絲
……2
T08641 M5x4 Screw
M5x4 螺絲
………………1
T08641 M5x4
T08641
84mm Center Front CVD
84mm中前CVD
T08601
Differential Case
差速箱
T08636
10T Gear
10T齒輪
T08673 M3x16
T08601
Differential Case
差速箱
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5

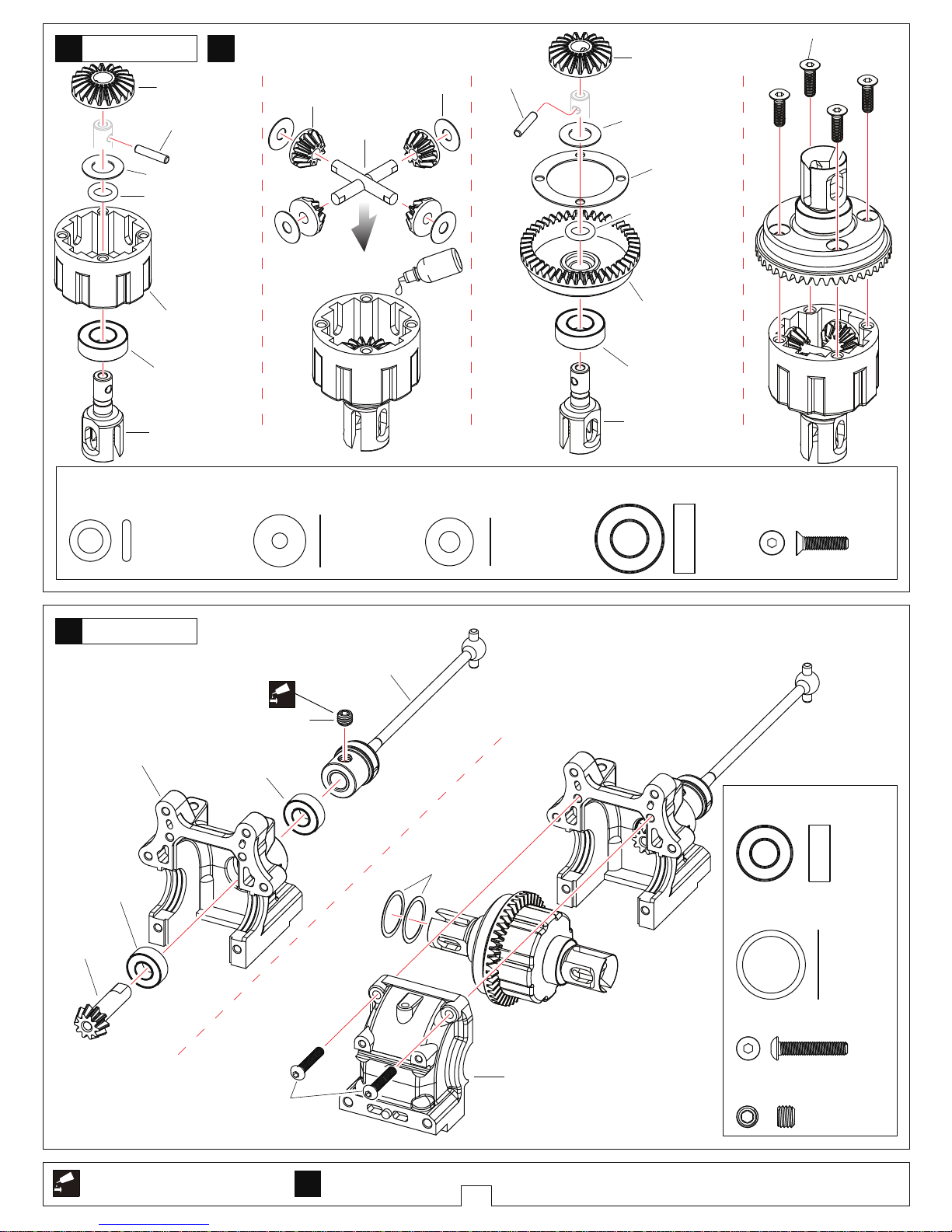

6Front Differential Case
前差速箱
x2
Assemble as many times as specified
需組裝數量
Screw
Cement
Screw
Cement
Bag-CBag-D
T08600/T08636 5.8x1.9 O-Ring
5.8x1.9 O環
…………………4
T08633 4.1x12x0.2 Washer
4.1x12x0.2墊片
…………8
T08664 8x16x5 Ball Bearing
8x16x5 軸承
………4 ……8
T08636 M3x12 Screw
M3x12螺絲
T08633
20T Diff Gear
20T差速齒輪
T08633
10T Diff Gear
10T差速齒輪
T08633
20T Diff Gear
20T差速齒輪
T08633
2.5x11.5 Pin
2.5x11.5 鋼針
T08633
2.5x11.5 Pin
2.5x11.5 鋼針
T08634
Diff Connecting Cup
差速接杯
T08634
Diff Connecting Cup
差速接杯
T08600
Differential Housing
差速殼
T08633 4.1x12x0.2
T08633
Diff Shaft
差速軸
T08600
Differential Pads
差速墊片
T08636
43T Diff Gear
43T差速齒輪
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
T08636 5.8x1.9
T08664 8x16x5
Oil
5Front/Rear Differential
前/後差速器
x2
5000# for Front
2000# for Rear
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08669 6.1x11x0.2 Washer
6.1x11x0.2墊片
…………4

x2
4
………………3
T08674 M2.5x8 Screw
M2.5x8螺絲
……………………4
T08601/T08606 M3x3 Screw
M3x3螺絲
LR
LR
Assemble both Left and Right
組裝左和右
T08606 6.8 Ball stud
6.8球頭
…………………2
T08606 6.8 Ball stud
6.8球頭
………………………2
x2
Assemble as many times as specified
需組裝数量
T08606 M3x3
T08606 6.8 Ball End
6.8球頭座
T08606
………………2
T08601 M3x3
T08674 M2.5x8
T08601
Swaybar Mount
防傾桿固定座
T08647
Front Swaybar
前防傾桿
8Front Hub Carrie
前輪座

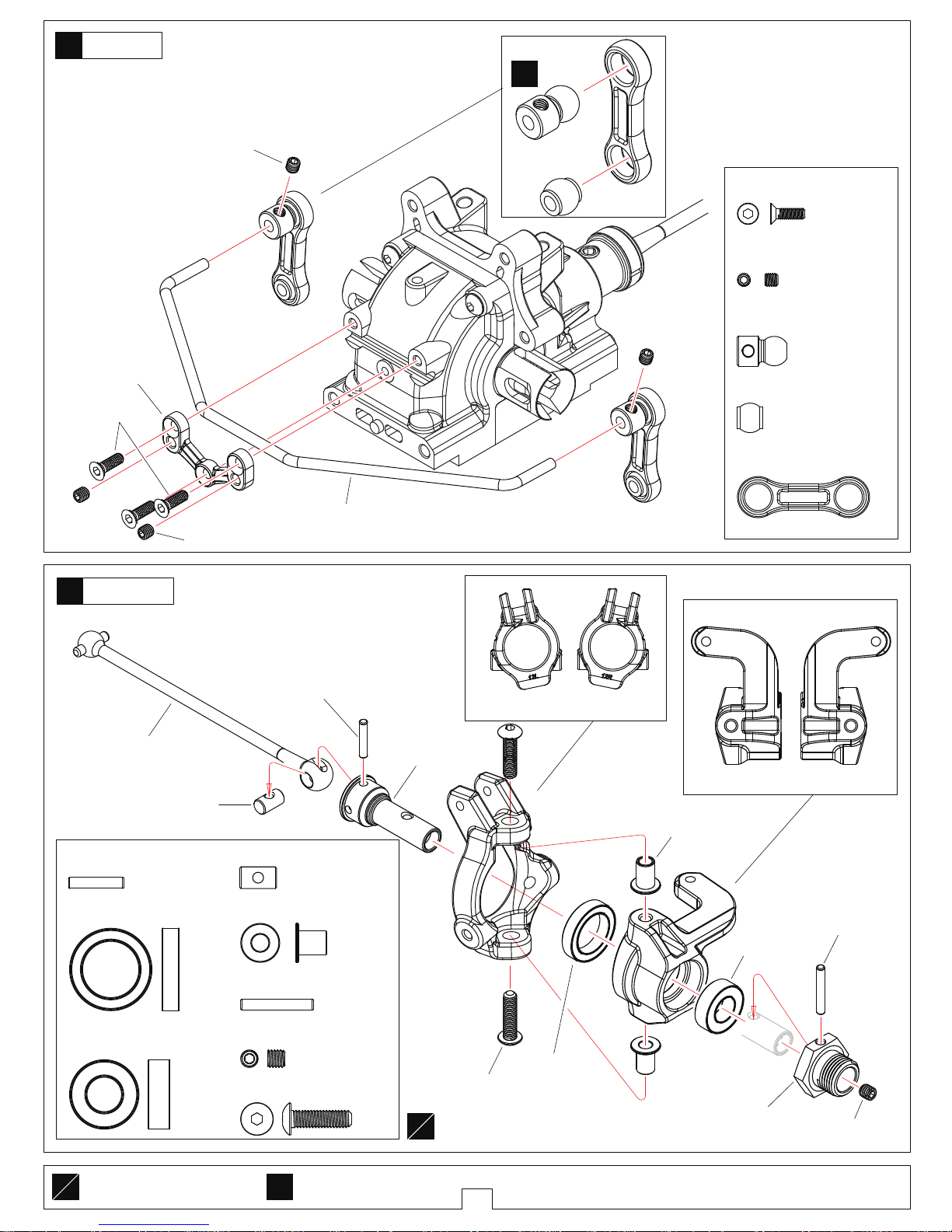

7Front Swaybar
前防傾桿
……4
T08673 M4x14 Screw
M4x14 螺絲
T08664 8x16x5 Ball Bearing
8x16x5 軸承
T08665 13x19x4 Ball Bearing
13x19x4 軸承
………2
………2
………4
…………………2
T08639 M4x4 Screw
M4x4 螺絲
……………2
T08649 2.5x16.8 Pin
2.5x16.8 鋼針
T08604
Steering Block-Left
转向臂-左
Steering Block-Right
转向臂-右
T08673 M4x14
T08603
Front Hub Carriers 12 Degree
前輪座12度
T08639
T08639 M4x4
T08649 2.5x16.8
T08649
Wheel Hex Hub
六角輪座
T08603
T08665 13x19x4
T08664 8x16x5
T08639 2.5x12.8
T08639 5x8.5
T08639
T08639 2.5x12.8 Pin
2.5x12.8鋼針
………………2
T08639 5x8.5 CVD Shaft
5x8.5 CVD軸
……………………2
T08603 King Pin Bushing
大王銷軸套
King Pin Bushing
大王銷軸套
Left Right
Bag-D
Bag-D
95.5mm Front CVD
95.5mm前CVD

5
LR
Assemble both Left and Right
組裝左和右
……4
T08673 M4x16 Screw
M4x16 螺絲
………4
T08675 M4x10 Screw
M4x10 螺絲
……………2
LR
T08673 M3x16 Screw
M3x16 螺絲
……2
T08645 4x73 Arm Pin
4x73 擺臂軸
……2
T08674 M3x35 Screw
M3x35 螺絲
…………2
T08674 M3x15 Screw
M3x15 螺絲
………2
T08673 M4x16
T08673 M4x16
T08675 M4x10
T08607
T08607
Front Lower Arm
前下擺臂
T08763
Front Arm Mount-F
前擺臂固定座-前
TU0839
Front Arm Mount-R
前擺臂固定座-後
T08645 4x73
T08645 4x73
T08674 M3x35
T08674 M3x15
T08673 M3x16
T08673 M3x16
9Front Hub Carrie
前輪座
10 Front Suspension
前懸吊系統
Front Hub Carrier Bushing
前輪座軸套
T08607 Front Hub Carrier Bushing
前輪座軸套
Bag-D
Bag-D

6
T08674 M3x12 Screw
M3x12 螺絲
……4
T08673 M3.5x25 Screw
M3.5x25 螺絲
…2 ……2
T08622 Shock cap ball
避震蓋球頭
T08643 5x58 Turnbuckle
5x58 拉桿
1:1 x1
1:1 x1
T08606 7.8 Ball stud
7.8 球頭
………2 ……………2 ……………2
T08606 7.8 Ball stud
7.8 球頭
Approx.32mm
▲Projection.Note direction
注意方向
大約32mm
▲Projection.Note direction
注意方向
Approx.32mm
大約32mm
T08606 7.8 Ball End-Front Upper
7.8 球頭座-前上
…………4
Front Upper-Left
前上-左
Front Upper-Right
前上-右
11 Front Shock Tower
前避震架
12 Front Upper Turnbuckle
前上拉桿
1:1
Ture-to -scale diagram
圖形比例
x1
Assemble as many times as specified
需組装数量
Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement
Screw
Cement
T08643
5x58 Turnbuckle
5x58 拉桿
T08606
7.8 Ball End-Front Upper
7.8 球頭座-前上
T08606
7.8 Ball stud
7.8 球頭
T08606
7.8 Ball stud
7.8 球頭
T08606
7.8 Ball End-Front Upper
7.8 球頭座-前上
5mm
T08631
Front Shock Tower
前避震架
T08622
Ball stud
球頭
T08674 M3x12
T08673
M3.5x25
Bag-D
Bag-D

7
T08643 4x53 Turnbuckle
4x53 拉桿 T08606 6.8 Ball stud
6.8球頭
………2 ……………2 ……………2
T08606 6.8 Ball stud
6.8球頭
T08676 M3x25 Screw
M3x25 螺絲
……2
T08674 M3x16 Screw
M3x16 螺絲
……2
T08666 M3 Nylon Nut
M3尼龍螺母
…………6 ……2
T08676 M3x18 Screw
M3x18 螺絲
T08606 6.8 Ball End-Steering
6.8 球頭座-轉向
……………4

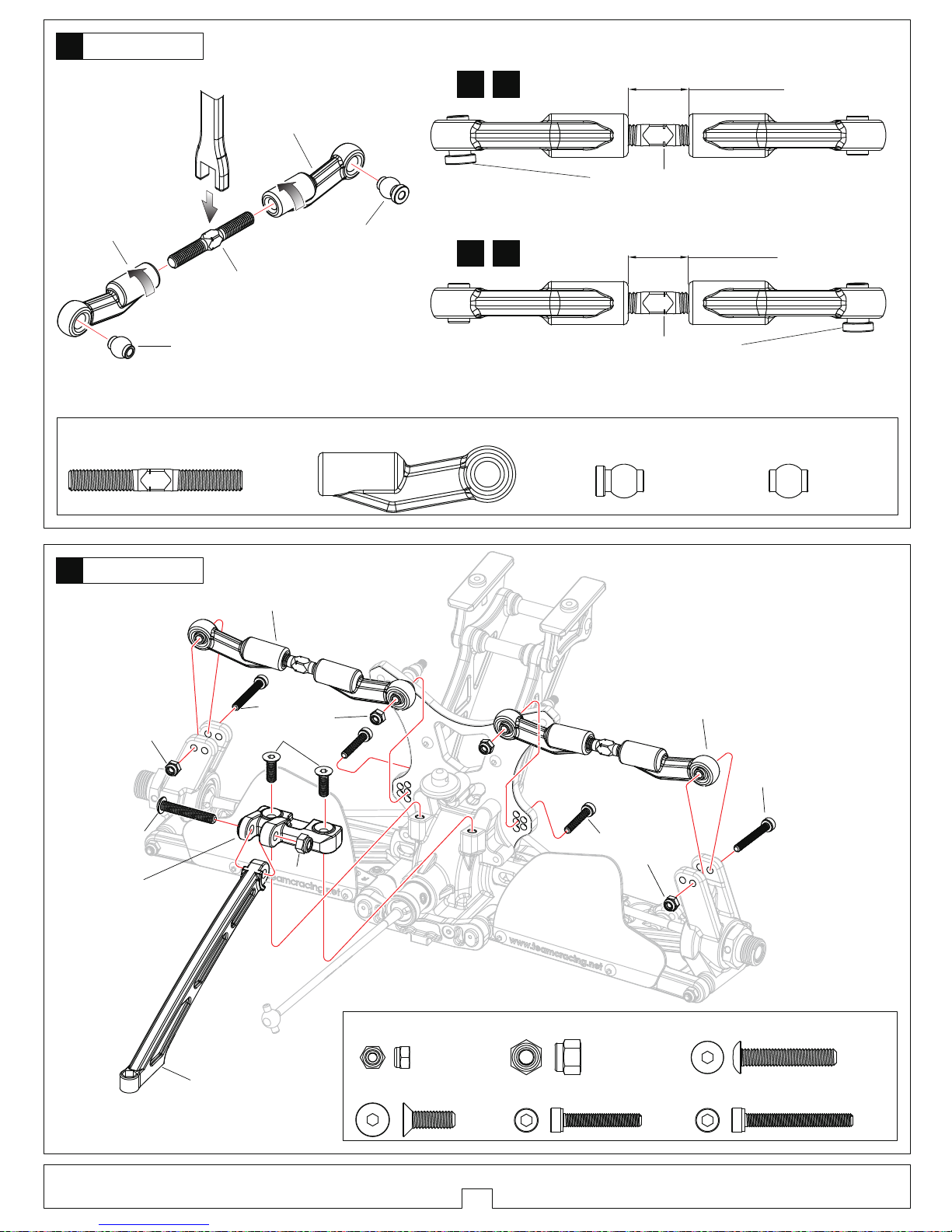

13 Steering Turnbuckle
轉向拉桿
14
1:1
Ture-to -scale diagram
圖形比例
x1
Assemble as many times as specified
需組装数量
Front Upper/Steering Turnbuckle
前上/轉向拉桿
T08643
4x53 Turnbuckle
4x53 拉桿
T08606
6.8 Ball End-Steering
6.8 球頭座-轉向
T08606
6.8 Ball End-Steering
6.8 球頭座-轉向
T08606
6.8 Ball stud
6.8球頭
T08606
6.8 Ball stud
6.8球頭
Front Upper Turnbuckle-Left
前上拉桿-左
Front Upper Turnbuckle-Right
前上拉桿-右
Steering Turnbuckle-Left
轉向拉桿-左
Steering Turnbuckle-Right
轉向拉桿-右
T08674 M3x16
T08674 M3x16
T08676 M3x25
T08676 M3x25
T08676 M3x18
T08666 M3
T08666 M3
T08666 M3
T08666 M3
5mm
Bag-D
Bag-D
1:1 x1
1:1 x1
Steering-Right
轉向-右
Steering-Left
轉向-左 Approx.27mm
大約27mm
▲Projection.Note direction
注意方向
Approx.27mm
大約27mm
▲Projection.Note direction
注意方向

8
T08674 M4x10 Screw
M4x10 螺絲
…………2
T08674 M4x14 Screw
T08674 M3x18 Screw
M3x18 螺絲
……2

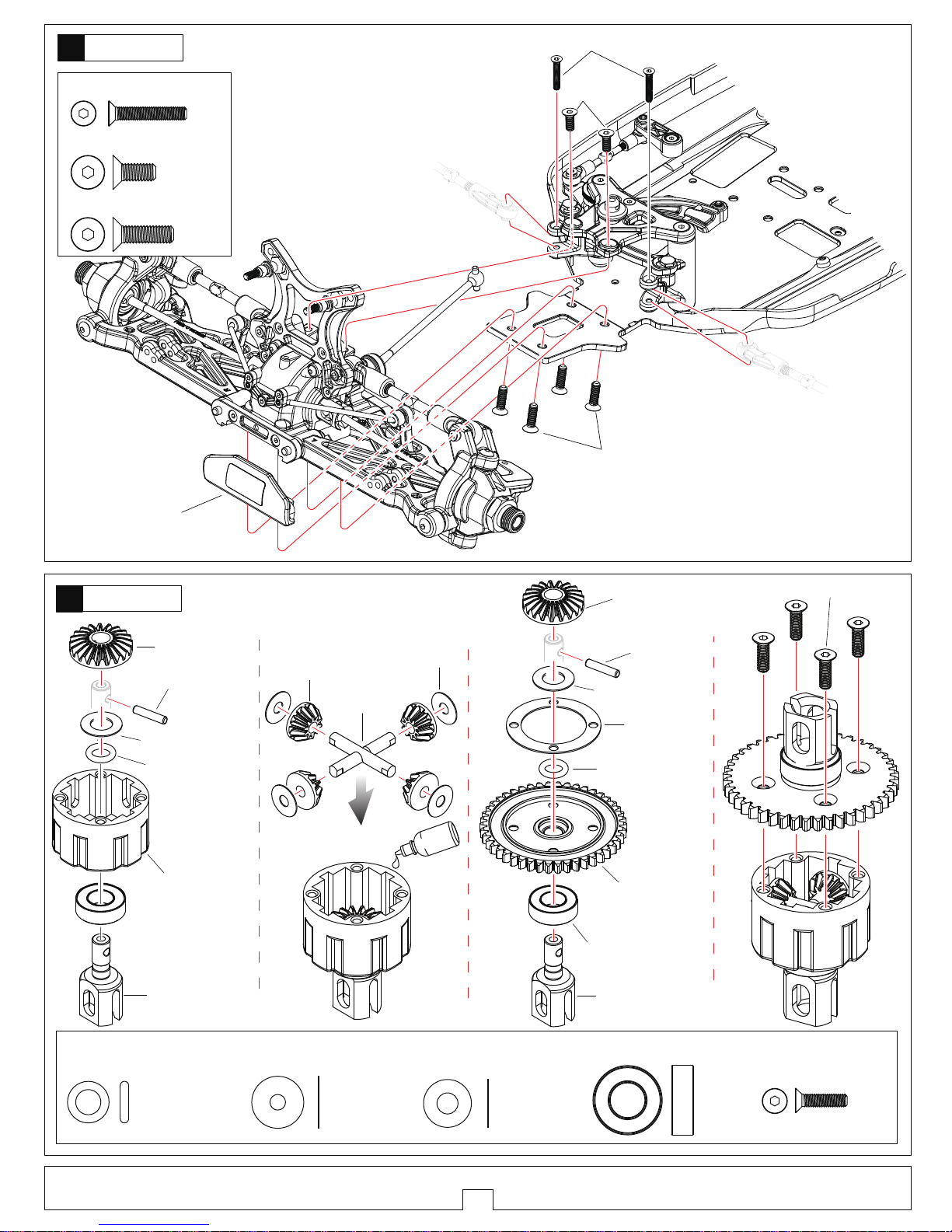

15 Front Suspension
前懸吊系統
T08674 M4x14
T08674 M4x10
T08674 M3x18
T08611
Front Bumper
前防撞板
Bag-D
T08633
10T Diff Gear
10T差速齒輪
T08633
20T Diff Gear
20T差速齒輪
T08633
2.5x11.5 Pin
2.5x11.5 鋼針
T08600
Differential Housing
差速殼
T08633 4.1x12x0.2
T08633
Diff Shaft
差速軸
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
5000#
T08638
44T Center Diff Gear
44T 中差速齒輪
T08633
20T Diff Gear
20T差速齒輪
T08633
2.5x11.5 Pin
2.5x11.5 鋼針
T08664 8x16x5
T08635
Center Diff Connecting Cup
中差速接杯
T08637 5.8x1.9
T08600
Differential Pads
差速墊片
16 Center Differential
中央差速器
T08635
Center Diff Connecting Cup
中差速接杯
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08600/T08636 5.8x1.9 O-Ring
5.8x1.9 O環
…………………2
T08633 4.1x12x0.2 Washer
4.1x12x0.2墊片
…………4
T08664 8x16x5 Ball Bearing
8x16x5 軸承
………2 ……4
T08636 M3x12 Screw
M3x12螺絲
T08669 6.1x11x0.2 Washer
6.1x11x0.2墊片
…………2
M4x14 螺絲
………4

9
T08602 Brake Screw
剎車螺絲
………4
T08602 M3x8 Screw
M3x8 螺絲
…………………2
T08653 M3x3 Screw
M3x3螺絲
T08677 5x8x2.5 Ball bearing
5x8x2.5軸承
………………2
……………4
T08602 M3x30 Screw
M3x30 螺絲
T08677 5x8x2.5
T08677 5x8x2.5
T08653
Brake Shaft-Front
剎車軸-前
T08653
Brake Shaft-Rear
剎車軸-後
T08653
Brake Rod
剎車桿
T08653
Brake Rod
剎車桿
T08653 M3x3
T08653 M3x3
T08602 M3x30
……………4
T08602 M3x8
18
17
Brake
剎車
Brake
剎車
Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement
Screw
Cement
Screw
Cement
T08602
Bag-C
Bag-C
3.5
T08781
Brake Screw
剎車螺絲
T08652
Disk Brake Plate
剎車夾片
T08652
Brake Disk Rotor-Big
剎車盤-大
T08602
Center Differential Mount-Rear Bottom
中央差速器固定座-後下
T08602
Center Differential Mount-Front Bottom
中央差速器固定座-前下
T08602
Center Differential Mount-Front Top
中央差速器固定座-前上
T08602
Center Differential Mount-Rear Top
中央差速器固定座-後上
T08652
Brake Disk Rotor-Small
剎車盤-小
T08781
Brake Pad Spring
剎車夾片彈簧

10
T08674 M4x12 Screw
M4x12螺絲
………4
……………………6
T08618 M3x3 Screw
M3x3螺絲
T08666 M2.5 Nylon Nut
M2.5尼龍螺母
…………………1
T08666 3.1x7x1 Plastic Washer
3.1x7x1 塑膠墊片
…………………2
……………1
T08676 M2.5x8 Screw
M2.5x8 螺絲
……1
T08676 M2.5x18 Screw
M2.5x18 螺絲
T08676 M2.5x8
T08676 M2.5x18
T08666 M2.5
T08618 M3x3
T08618 M3x3
T08618 M3x3
T08618 M3x3
T08666 3.1x7x1
T08618
Throttle Spring
油門弹簧
T08618
Brake Spring
剎車弹簧
T08618
1.8x58 Rod
1.8x58 拉桿
T08618
1.8x58 Rod
1.8x58 拉桿
T08618
1.8x58 Rod
1.8x58 拉桿
T08618
T08618
T08618
T08618
T08618
T08618
T08618
T08620
Throttle Servo Arm
油門伺服臂
T08618

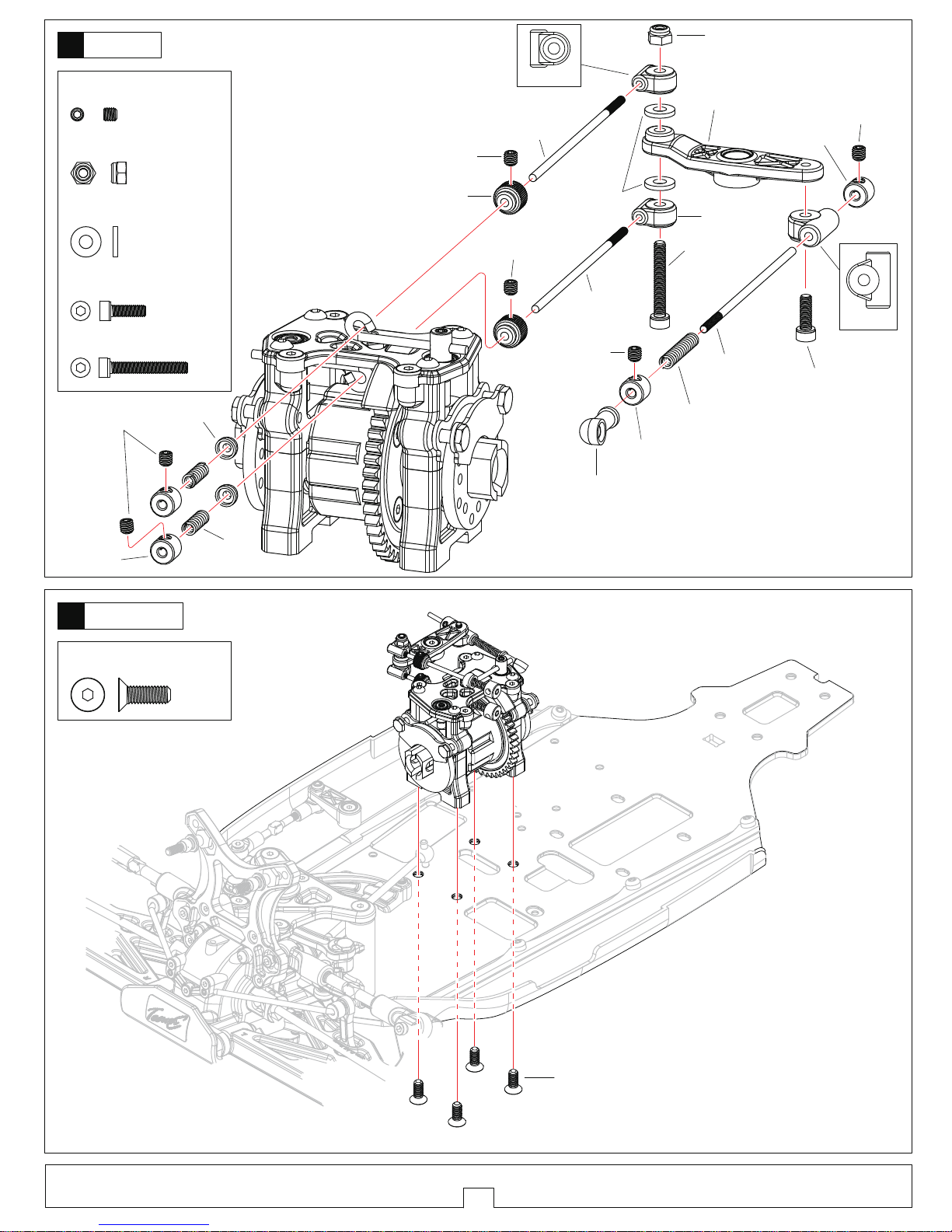

19 Brake/Throttle
剎車/油門
20 Center Differential
中央差速器
T08674 M4x12
Bag-C
Bag-C
T08618 M3x3
T08618

11
……………………4
T08601/T08606 M3x3 Screw
M3x3 螺絲
T08606 6.8 Ball stud-Swaybar
6.8 球頭-防傾桿
…………………2
T08606 6.8 Ball stud-Swaybar
6.8 球頭-防傾桿
………………………2
………………3
T08601 M2.5x8 Screw
M2.5x8 螺絲
T08606
22
21 Rear Differential Case
後差速箱
T08304 13.1x15.9x0.2 Washer
13.1x15.9x0.2 墊片
…………2
T08663 6x13x5 Ball Bearing
6x13x5 軸承
………2
T08673 M3x16 Screw
M3x16 螺絲
……2
T08641 M5x4 Screw
M5x4 螺絲
………………1
T08641 M5x4
T08642
110mm Center Rear CVD
110mm中後CVD
T08601
Differential Case
差速箱
T08636
10T Gear
10T齒輪
T08673 M3x16
T08601
Differential Case
差速箱
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5
Rear Swaybar
後防傾桿
x2
x2
Assemble as many times as specified
需組裝数量
Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement
Screw
Cement
Bag-E
Bag-CBag-E
T08606 M3x3
T08606 M3x3
T08601 M3x3
T08601 M3x3
T08601 M2.5x8
T08601 M2.5x8
T08601 M2.5x8
T08601
Swaybar Mount
防傾桿固定座
T08647
Rear Swaybar
後防傾桿
Screw
Cement
Screw
Cement

LR
Assemble both Left and Right
組裝左和右
Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement
Screw
Cement
12
T08666 M3 Nylon Nut
M3尼龍螺母
………………2
……………2
T08675 M4x10 Screw
M4x10 螺絲
………………4
T08605 3.1x9x2.5 Plastic Washer
3.1x9x2.5 墊片
……………2
T08646 3x51.5 Arm Pin
3x51.5 擺臂軸
T08664 8x16x5 Ball Bearing
8x16x5 軸承
T08665 13x19x4 Ball Bearing
13x19x4 軸承
………2
………2
……………………2
T08640 M4x4 Screw
M4x4 螺絲
………………2
T08649 2.5x16.8 Pin
2.5x16.8 鋼針
T08605
Rear Hub Carriers-L
後輪座-左
T08605
Rear Hub Carriers-R
後輪座-右
T08640
T08640
M4x4
T08664 8x16x5
T08665 13x19x4
T08649 2.5x16.8
T08649
Wheel Hex Hub
六角輪座
T08666 M3
T08646 3x51.5
T08675 M4x10
T08605 3.1x9x2.5
T08608
Rear Lower Arm-Left
後下擺臂-左
Rear Hub Carrie
後輪座
Rear Hub Carrie
後輪座
T08640 2.5x12.8 Pin
2.5x12.8鋼針
………………2
T08640 5x8.5 CVD Shaft
5x8.5 CVD軸
……………………2
T08640 2.5x12.8
Oil
油
T08640 5x8.5
T08640
LR
LR
23
24
Bag-E
Bag-E
94mm Rear CVD
94mm後CVD

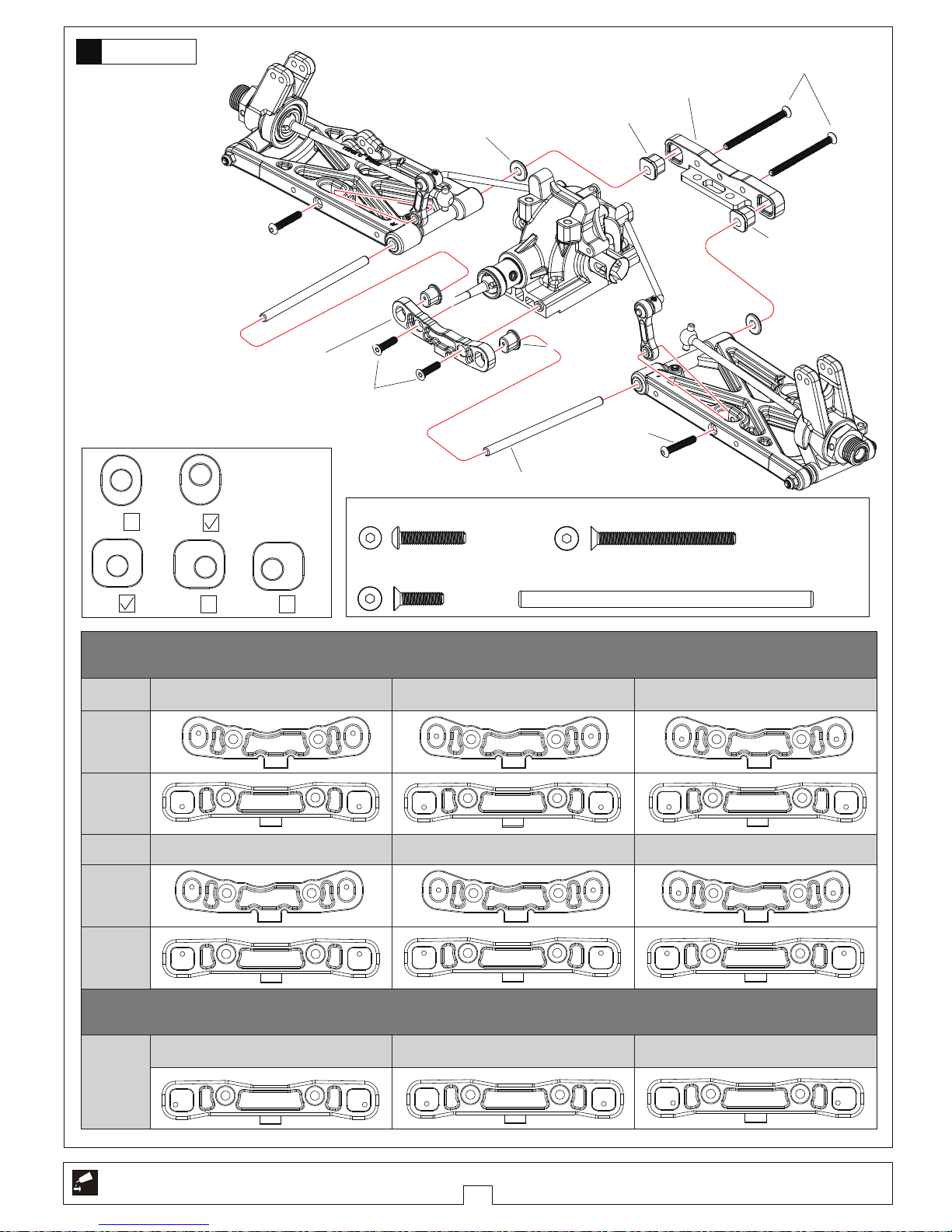

25 Rear Suspension
後懸吊系統
Bag-E
T08945 4x71 Arm Pin
4x71 擺臂軸
………2
T08673 M3x16 Screw
M3x16 螺絲
….....…2
T08674 M3x12 Screw
M3x12 螺絲
…………2
T08674 M3x35 Screw
M3x35 螺絲
………2
T08673 M3x16
T08945 4x71
T08674 M3x35
T08674 M3x12
T08944
1 Degree Bushing
1 度軸套
T08944
0 Degree Bushing-Left
0 度軸套-左
T08944
0 Degree Bushing-Right
0 度軸套-右
T08942
Rear Arm Mount-F
後擺臂固定座-前
T08943
Rear Arm Mount-R
後擺臂固定座-後
T08608
13
Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement
ANTI -SQUAT
TOE -IN
RF
=3.5° =2.5° =1.5°
=2.5° =1.5° =0.5°
=4° =3° =2°
RR
RF
RR
RF
0° 1°
0° 1° 1°
X2 X2
X2 X2 X2

14
1:1
Ture-to -scale diagram
圖形比例
x1
Assemble as many times as specified
需組裝数量
T08673 M3x6 Screw
M3x6 螺絲
……………4
T08622 Shock cap ball
避震蓋球頭
T08674 M3x10 Screw
M3x10螺絲
T08673 M3.5x25 Screw
M3.5x25 螺絲
…………2
……2
……2
26 Rear Shock Tower
後避震架 Screw
Cement
T08673 M3x10 Screw
M3x10 螺絲
…………1
T08611
Dirtcover Rear-Left
後擋泥板-左
T08611
Dirtcover Rear-Right
後擋泥板-右
T08612
Rear Body Mount
後车殼柱
T08673 M3.5x25
T08674 M3x10
T08632
Rear Shock Tower
後避震架
T08622
Ball stud
球頭
T08673 M3x6
T08673 M3x10
Bag-E
T08666 M3 Nylon Nut
M3尼龍螺母
…………………2
T08673 M3x18 Screw
M3x18 螺絲
…2
T08673 M3x16 Screw
M3x16 螺絲
……6
27 Wing
尾翼
Bag-E
T08673 M3x16
T08673 M3x18
T08612
Wing Mount
尾翼固定座
T08673 M3x16
T08666 M3
T08673 M3x16

15
T08643 5x40 Turnbuckle
5x40 拉桿
T08606 7.8 Ball End-Rear Upper
7.8 球頭座-後上
………2 ………4 ………………2 ……………2
T08606 7.8 Ball stud
7.8 球頭
T08606 7.8 Ball stud
7.8 球頭
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
1:1 x1
1:1 x1
Rear Upper-Left
後上-左
Rear Upper-Right
後上-右
Approx.14mm
大約14mm
Approx.14mm
大約14mm
28 Rear Upper Turnbuckle
後上拉桿
T08643
5x40 Turnbuckle
5x40 拉桿
T08606
7.8 Ball End-Rear Upper
7.8 球頭座-後上
T08606
7.8 Ball End-Rear Upper
7.8 球頭座-後上
T08606
7.8 Ball stud
7.8 球頭
T08606
7.8 Ball stud
7.8 球頭
5mm
Bag-E
T08666 M3 Nylon Nut
M3尼龍螺母
T08676 M3x18 Screw
M3x18 螺絲 T08676 M3x25 Screw M3x25 螺絲
………1
T08673 M4x22 Screw
M4x22 螺絲
T08666 M4 Nylon Nut
M4 尼龍螺母
T08674 M4x12 Screw
M4x12螺絲
……2 ……2 ……2
………………1……………4
29 Rear Upper Turnbuckle
後上拉桿
T08666 M3
T08666 M3
T08666 M3
T08676 M3x18
T08676 M3x25
T08619
Rear Chassis Stiffener
後支撑桿
T08762
Rear Chassis Stiffener Mount
後支撑桿固定座
T08676 M3x25
T08673 M4x22
T08674 M4x12
Rear Upper Turnbuckle-Right
後上拉桿-右
Rear Upper Turnbuckle-Left
後上拉桿-左
Bag-E
T08666

16
FR
Assemble both Front and Rear
組装前和後
x2
Assemble as many times as specified
需組装数量
T08674 M4x14 Screw
M4x14螺絲
…4
T08674 M3x10 Screw
M3x10螺絲
……1
T08674 M3x12 Screw
M3x12 螺絲
……1
T08666 M3 Nylon Nut
M3尼龍螺母
…………1
30 Rear Suspension
後懸吊系統
T08666 M3
T08674 M4x14
T08674 M3x10
T08674 M3x12
T08674
M4x14
Bag-E
T08627 2.75mm Plastic Washer
2.75mm 塑膠墊片
T08627 3.3x1.9 O-ring
3.3x1.9 O環
T08627 1mm Plastic Washer
1mm 塑膠墊片
…………………4
……………………4
……………………8
T08625/T08626 9x1.0 O-ring
9x1.0 O環
…………………4
T08624 2.7x5.8x0.5 Washer
2.7x5.8x0.5 墊片
……………………4
T08624 M2.5 Nylon Nut
M2.5 尼龍螺母
…………………4
T08624 6.8 Ball stud
6.8 球頭
………………………4
FR
x2
31 Shock
避震器
T08627
3.3x1.9 O-ring
3.3x1.9 O環
T08627
1mm Plastic Washer
1mm 塑膠墊片
T08627
2.75mm Plastic Washer
2.75mm 塑膠墊片
T08625/T08626
9x1.0 O-ring
9x1.0 O環
T08625/
Shock Bottom cover
避震下蓋
T08625
Front Shock Body-Short
前避震筒身-短
T08626
Rear Shock Body-Long
後避震筒身-长
T08624
6.8 Ball stud
6.8 球頭
T08622
6.8 Ball End
6.8 球頭座
T08622 6.8 Ball End
6.8 球頭座
……………4
Front-Short
前-短
Rear-Long
後-长
Bag-F
TU0880
Front Shock Shaft-Titan Coated
前避震軸-鍍鈦
Rear Shock Shaft-Titan Coated
後避震軸-鍍鈦
T08667 2.7x5.8x0.5
T08627
Shock Piston
避震活塞
T08666 M2.5
TU0882

17
FR
Assemble both Front and Rear
組装前和後
x2
Assemble as many times as specified
需組装数量
T08625/T08626 O-Ring
O環
……………4

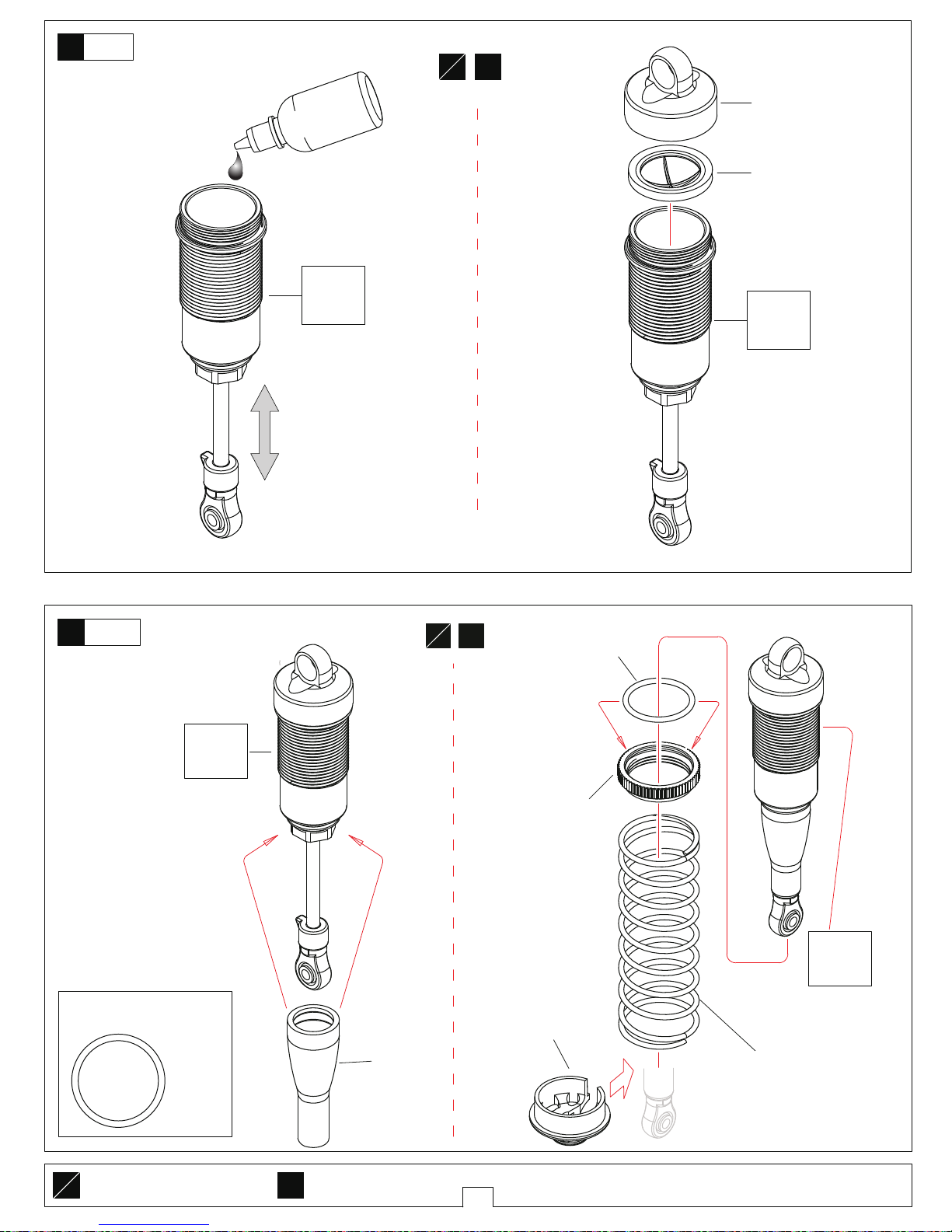

33 Shock
避震器
Bag-F
450#
32
Front-Short
前-短
Rear-Long
後-长
FR
x2
T08622
Diaphragm
氣室
Front-Short
前-短
Rear-Long
後-长
T08625/T08626
Shock Top cover
避震上盖
Shock
避震器
Bag-F
Front-Short
前-短
Rear-Long
後-长
T08625/T08626
T08625/T08626
Spring Adjuster
弹簧调节座
T08622
Spring Mount
弹簧固定座
T08628
Front Shock Spring-Short
前避震弹簧-短
Rear Shock Spring-Long
後避震弹簧-长
FR
x2
Front-Short
前-短
Rear-Long
後-长
T08623
Shock Boot
避震防尘套
