Team C T8TEt8te User manual

T8TE
1:8 Scale Truck
Length …………………………………………………………………………………………580mm
Width …………………………………………………………………………………………430mm
Height …………………………………………………………………………………………200mm
長度
寬度
高度
Dimensions 尺寸：

电池盖
调整遥控器
刹车
更换晶片可以改变频率
注意︰ 你也必须改变接收机晶片﹗
标准的电池
低电的电池(电灯闪烁)
电池标准指示灯
天线
天线拉的越长性能越好
发射机晶片 接收机晶片
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
在遥控器的底部打开电池盖子，安装电池。
跟随电池的指示在电池盒里面指定
AA 碱性电池
这个开关用于选择部分
用来调整转向伺服
用于调整油门中立点
油门/后退(刹车)调整
用于调整转向中立点
方向调整
用於操作油门
竖直(中立)
向左旋转 向右旋转
遥控器电池安装
油门启动
反向开关
工厂安装(当转向/油门反向时调整用)
转向舵角量
第三动作开关
电源
27MHz 发射机晶片(TX)

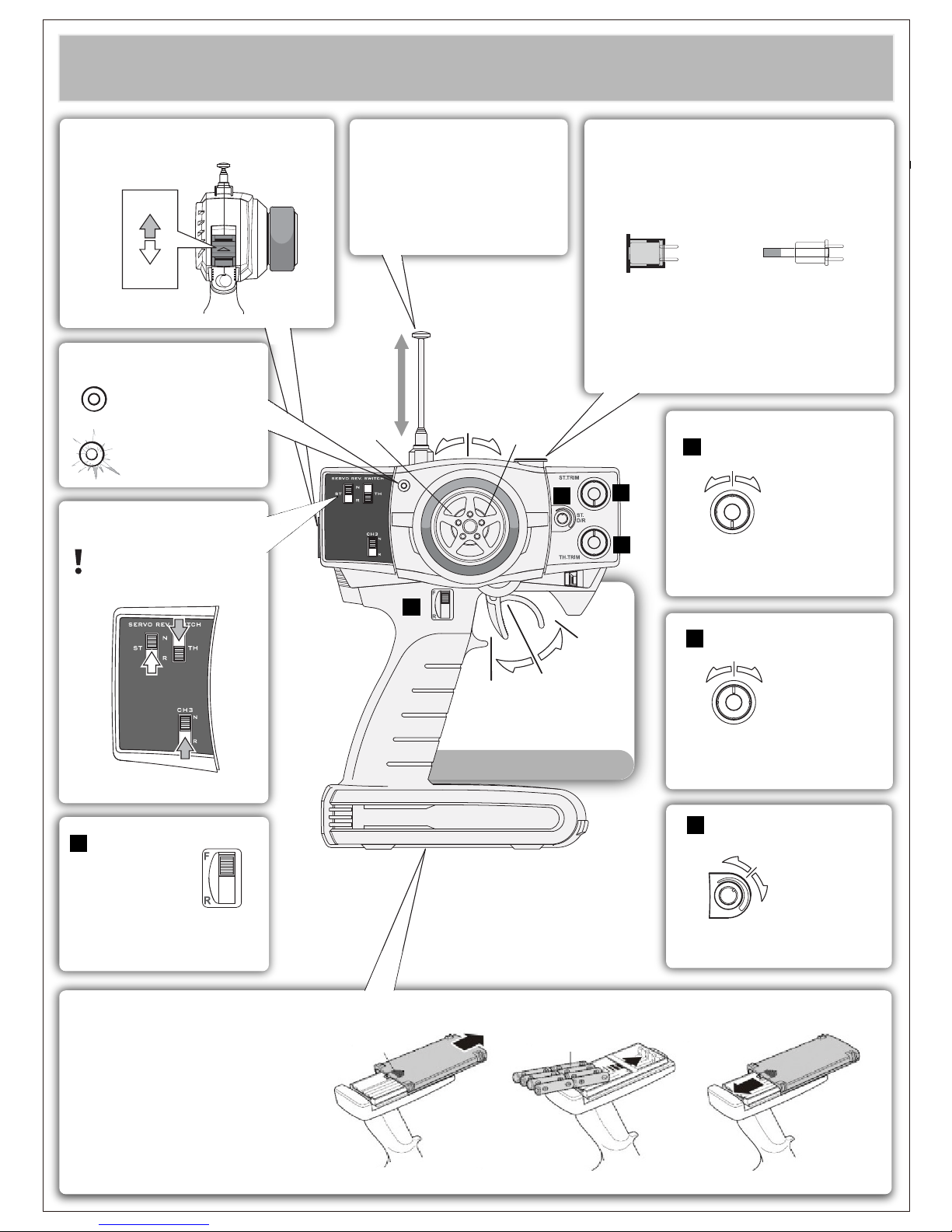

Transmitter Preparation
27MHzTransmitter Crystal （TX）
Transmitter crystal(TX)
Power Switch
ON
OFF
Antenna
Extend the antenna to the maximum
Length for best performance
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
Receiver crystal(RX)
Steering Trim
To be used for trimming the steering
operation
Throttle Trim
Steering Dual Rate
To be used to adjust steering servo throw
AA Alkaling Batteries
8X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
This switch is used for optional parts.
3ch Switch
Reverse Switch
Low Batteries(Light Blinks)
Good Batteries
Battery Level Indicator
Left turn Straight (neutral)
Right turn
Brake
Forward Stop(Neutral)
前进 停止位置
To be used for throttle operation
Throttle Trigger
Battery Cover
Servo Factory Settings
1
1
2
3
2
To be used for trimming the throttle
operation
3
4
4

调整遥控器
Transmitter Preparation
在使用之前，一个新电池必须先充电。详情请参考充电器说明书。
如下图所示安装接收机控制系统。
电池
马达
电子加速控制器
发送机
伺服机
接收机
开关
Battery
A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.
Set up the radio control system as indicated below.
6
5
8
Servo
Receiver
Transmitter
10
4
Switch
7
9
Electronic Speed
Controller
Motor
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
11
2
ON
OFF
6
10
ON
OFF
5
8
1
开始
结束
安装电池(发送机)
拉出天线(发送机)
连接电池
3
拉出天线(接收机)
中心对整齐
开关(发送机)
开关(接收机)
确定控制伺服机
关闭开关(接收机)
关闭开关(发送机)
收回天线(发送机)
组裝需要的工具
Tools required
Needie Nose Pllers Awl Grease
润滑油
Screw Cement
螺丝胶水
瞬间胶水
Instant Glue
Hex Wrench
六角扳手
Differential Grease
差速油
Molybdenum Grease(Black)
钼油(黑)
锥
尖嘴钳
Hex Wrench
十字套筒
Body Reamer
车壳绞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以对预钻的孔准确的钻1mm-15mm
Wire Cutters
钢丝钳
Sharp Hobby knife
美工刀
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車壳！
1
8
7
2
5
3
4
6
9
10
11
Start
Finish
Install batteries.(Transmitter)
Extend the antenna.(Transmitter)
Connect the battery
Extend the antenna.(Reveiver)
Center the trims.
Switch on.(Transmitter)
Switch on.(Reveiver)
Make sure the servos are in command.
Switch off.(Reveiver)
Switch off.(Transmitter)
Retract the antenna(Transmitter)
1
8
7
2
5
3
4
6
9
10
11
H154
H162
H096

1Servo Saver Turnbuckle
伺服拉杆
………1
T08674 M3x14 Screw
M3x14螺丝
1
1:1
T08760 5.8 Ball End
5.8 球头座
…………2
T08759 5.8 Ball stud
5.8球头
……………………2
T08666 M3 Nylon Nut
M3尼龙螺母
…………………1
………1
T08674 M3x14 Screw
M3x14 螺丝
T08666 M3 Nylon Nut
M3尼龙螺母
…………………1
T02081 3x7x0.8 Washer
3x7x0.8垫片
…………………2
T08651 Buffer Screw
缓冲螺丝
……2
Approx.8mm
1:1
Ture-to -scale diagram
图形比例
大约8mm
T08650
Servo Saver Nut
缓冲螺母
T08650
Servo Saver Spring
缓冲弹簧
T08762
Servo Saver-Top
缓冲座-上
T08762
Servo Saver-Bottom
缓冲座-下
T08650
Servo Saver Body
缓冲筒身
T08651
T08674 M3x14
T08651
Buffer Bushing
缓冲轴套
T08651
Steering Rack
转向缓冲连接板
T08666 M3
Select the servo horn matching the servo being used.
根据伺服机选择伺服臂
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08762
Servo Saver-Left
缓冲座-左
Buffer Screw
缓冲螺丝
T02081 3x7x0.8
2Buffer
缓冲
Bag-A
Bag-A
Approx.33mm
▲Projection.Note direction
注意方向
TG8019 3x45 Turnbuckle
3x45拉杆
…………1
T08666 M3
T08674 M3x14
T08620
Steering Servo Horn-F
转向伺服臂-F
大约33mm
4mm
TG8019
3x45 Turnbuckle
3x45拉杆
T08760
5.8 Ball End
5.8 球头座
T08760
5.8 Ball End
5.8 球头座
T08759
5.8 Ball stud
5.8球头
T08759
5.8 Ball stud
5.8球头

Apply threadlocker(screw cement)
打螺丝膠水
2
…………1
T08674 M3x10 Screw
M3x10 螺丝
T08674 M4x10 Screw
M4x10 螺丝
…………2
T08666 M3 Nylon Nut
M3尼龙螺母
…………………3
T08662 6x10x3 Ball Bearing
6x10x3 轴承
TG8003
Side Plate-Left
侧板-左
TG8003
Side Plate-Right
侧板-右
T08674 M3x8
T08674 M4x10
TG8027
Chassis
底盘
T08674 M3x8
T08650
Servo Saver Post
缓冲柱
………………4
………1
T08674 M3x14 Screw
M3x14螺丝
4Buffer
缓冲
3

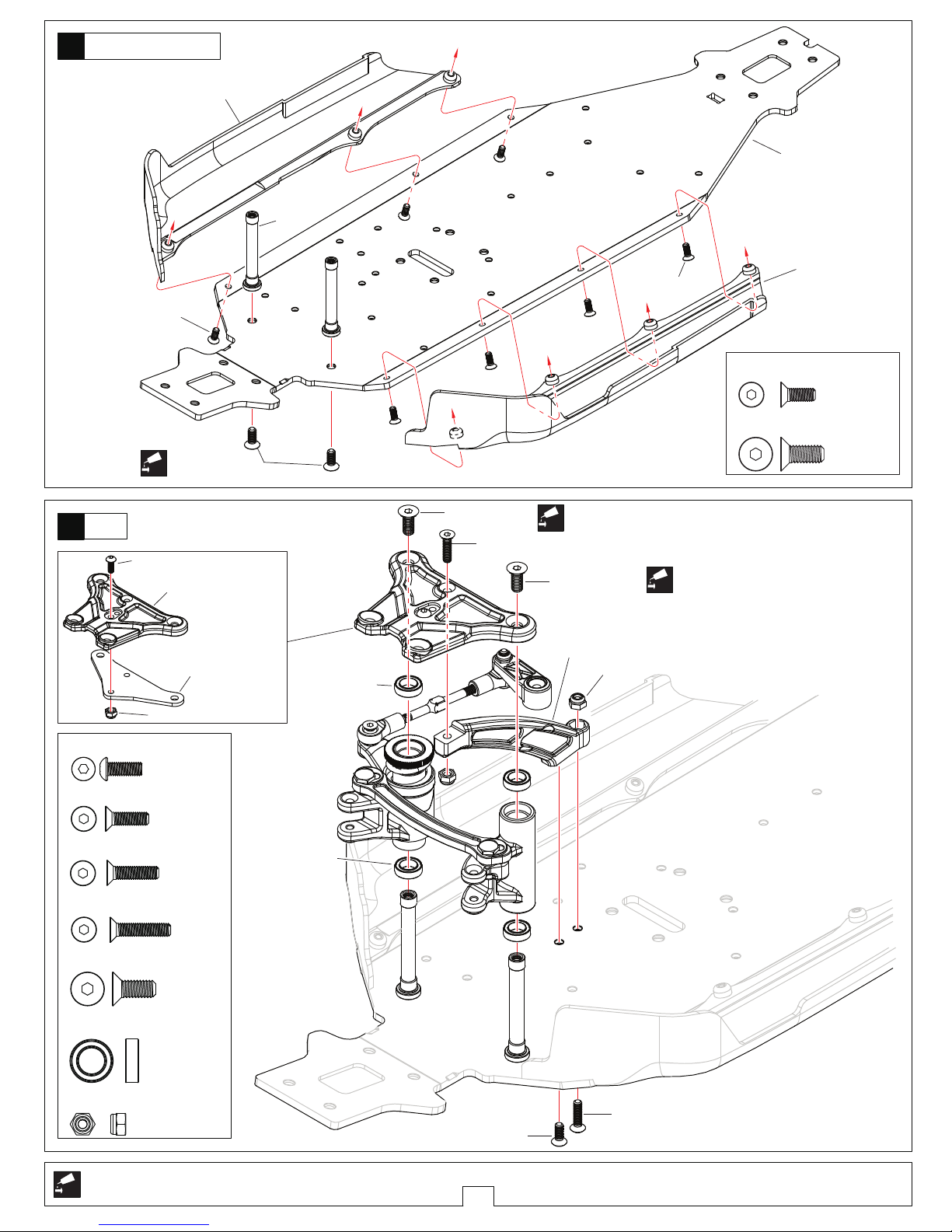

Servo Saver Post/Side Plate
缓冲柱/侧板
Screw
Cement
Screw
Screw
Cement
Screw
Cement
Bag-A
Bag-ABag-B
…………1
T08674 M3x12 Screw
M3x12 螺丝
…………7
T08674 M3x8 Screw
M3x8螺丝
T08674 M4x10 Screw
M4x10螺丝
…………2
T08666 M3
T08674 M3x10
T08674 M3x12
T08674 M3x14
T08674 M4x10
T08674 M4x10
TG8006
Front Chassis Stiffener
前支撑杆
T08761
Buffer Plate-Plastic
缓冲顶板-塑胶
T08761
Buffer Plate-Aluminium
缓冲顶板-铝
T08662 6x10x3
T08662
6x10x3
T08673 M3x8
T08666 M3
T08674 M3x8 Screw
M3x8螺丝
………………1

Apply threadlocker(screw cement)
打螺丝膠水
3
T08304 13.1x15.9x0.2 Washer
13.1x15.9x0.2 垫片
…………2
T08663 6x13x5 Ball Bearing
6x13x5 轴承
………2
T08673 M3x16 Screw
M3x16 螺丝
……2
TG8016 M5x4 Screw
M5x4 螺丝
………………1
TG8016 M5x4
TG8016
87mm Center Front CVD
87mm中前CVD
T08601
Differential Case
差速箱
T08636
10T Gear
10T齿轮
T08673 M3x16
T08601
Differential Case
差速箱
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5

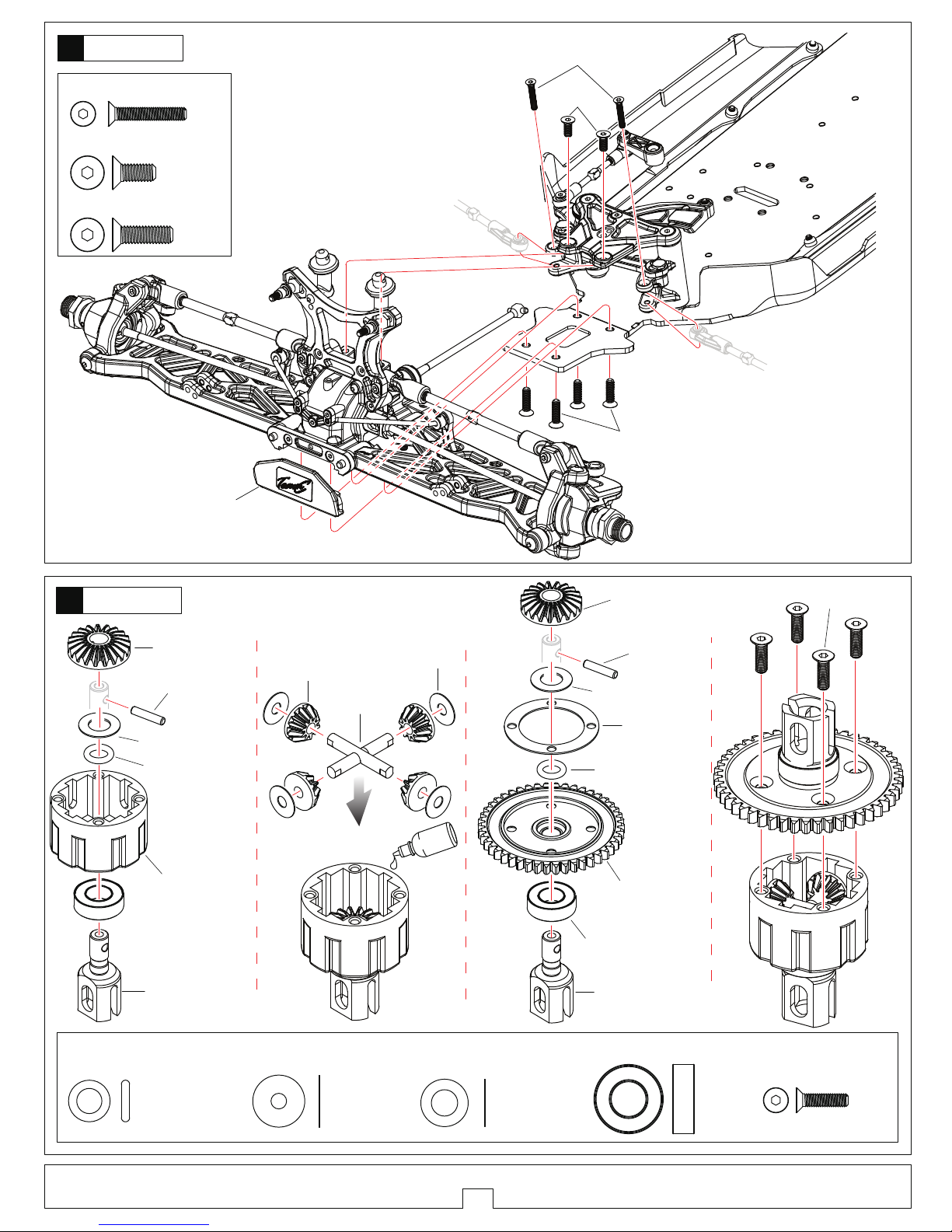

6Front Differential Case
前差速箱
x2
Assemble as many times as specified
需组装数量
Screw
Cement
Screw
Cement
Bag-CBag-D
T08600/T08636 5.8x1.9 O-Ring
5.8x1.9 O环
…………………4
T08633 4.1x12x0.2 Washer
4.1x12x0.2垫片
…………8
T08664 8x16x5 Ball Bearing
8x16x5 轴承
………4 ……8
T08636 M3x12 Screw
M3x12螺丝
T08633
20T Diff Gear
20T差速齿轮
T08633
10T Diff Gear
10T差速齿轮
T08633
20T Diff Gear
20T差速齿轮
T08633
2.5x11.5 Pin
2.5x11.5 钢针
T08633
2.5x11.5 Pin
2.5x11.5 钢针
T08634
Diff Connecting Cup
差速接杯
T08634
Diff Connecting Cup
差速接杯
T08600
Differential Housing
差速壳
T08633 4.1x12x0.2
T08633
Diff Shaft
差速轴
T08600
Differential Pads
差速垫片
T08636
43T Diff Gear
43T差速齿轮
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
T08636 5.8x1.9
T08664 8x16x5
Oil
5Front/Rear Differential
前/后差速器
x2
7000# for Front
3000# for Rear
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08669 6.1x11x0.2 Washer
6.1x11x0.2垫片
…………4

x2
4
………………3
T08674 M2.5x8 Screw
M2.5x8螺丝
……………………4
T08601/T08756 M3x3 Screw
M3x3螺丝
LR
LR
Assemble both Left and Right
组装左和右
T08756 6.8 Ball stud
6.8球头
…………………2
T08755 6.8 Ball stud
6.8球头
………………………2
x2
Assemble as many times as specified
需组装数量
T08756 M3x3
T08760 6.8 Ball End
6.8球头座
………………2
T08601 M3x3
T08674
M2.5x8
T08674 M2.5x8
T08601
Swaybar Mount
防倾杆固定座
T08647
Front Swaybar
前防倾杆
8Front Hub Carrie
前轮座
7Front Swaybar
前防倾杆
……4
T08673 M4x14 Screw
M4x14 螺丝
T08664 8x16x5 Ball Bearing
8x16x5 轴承
T08665 13x19x4 Ball Bearing
13x19x4 轴承
………2
………2
……………4
…………………2
T08639 M4x4 Screw
M4x4 螺丝
……………2
TG8015 2.5x16.8 Pin
2.5x16.8 钢针
T08604
Steering Block-Left
转向臂-左
Steering Block-Right
转向臂-右
T08603
Front Hub Carriers 12 Degree
前轮座12度
TG8018
T08603
TG8018 2.5x12.8 Pin
2.5x12.8钢针
………………2
TG8018 5x8.5 CVD Shaft
5x8.5 CVD轴
……………………2
T08603 King Pin Bushing
大王銷軸套
King Pin Bushing
大王銷軸套
Left Right
Bag-D
Bag-D
133mm Drive Shaft
133mm传动轴
T08673 M4x14
T08639 M4x4
TG8015 2.5x16.8
TG8015
Wheel Hex Hub
六角轮座
T08665 13x19x4
T08664 8x16x5
TG8018 2.5x12.8
TG8018 5x8.5
T08772
CVD Connecting Cup
CVD接杯
T08756
T08755
T08760

5
LR
Assemble both Left and Right
组装左和右
……4
T08751 M4x16 Screw
M4x16 螺丝
………4
T08675 M4x10 Screw
M4x10 螺丝
……………2
LR
T08673 M3x16 Screw
M3x16 螺丝
……2
T08645 4x73 Arm Pin
4x73 擺臂軸
……2
T08674 M3x35 Screw
M3x35 螺丝
…………2
T08674 M3x15 Screw
M3x15 螺丝
………2
T08751
9Front Hub Carrie
前轮座
10
Front Suspension
前悬吊系统
Front Hub Carrier Bushing
前輪座軸套
T08751 Front Hub Carrier Bushing
前輪座軸套
Bag-D
Bag-D
T08751 M4x16
T08751 M4x16
T08675 M4x10
TG8001
Front Lower Arm
前下摆臂
T08764
Front Arm Mount-F
前摆臂固定座-前
T08764
Front Arm Mount-R
前摆臂固定座-后
T08645 4x73
T08645 4x73
T08674 M3x35
T08674 M3x15
T08673 M3x16
T08673 M3x16

6
1:1 x1
1:1 x1
11 Front Shock Tower
前避震架
12
1:1
Ture-to -scale diagram
圖形比例
x1
Assemble as many times as specified
需组装数量
Apply threadlocker(screw cement)
打螺丝膠水
Screw
Cement
Screw
Cement
Bag-D
Bag-D
T08674 M3x12 Screw
M3x12螺丝
……4
T08673 M3.5x25 Screw
M3.5x25螺丝
…2 …2
T08622 Shock cap ball
避震蓋球头
TG8022 5x96 Turnbuckle
5x96拉杆
T08758 7.8 Ball stud
7.8 球头
………2
……2 ………2
T08757 7.8 Ball stud
7.8 球头
TG8012
Front Shock Tower
前避震架
T08622
Ball stud
球头
T08674 M3x12
T08673 M3.5x25
TG8022
5x96 Turnbuckle
5x96拉杆
T08760
7.8 Ball End-Front Upper
7.8 球头座-前上
T08757
7.8 Ball stud
7.8 球头
T08758
7.8 Ball stud
7.8 球头
Approx.69.5mm
▲Projection.Note direction
注意方向
大约69.5mm
Approx.69.5mm
▲Projection.Note direction
注意方向
大约69.5mm
T08760 7.8 Ball End-Front Upper
7.8 球头座-前上
……4
Front Upper-Left
前上-左
Front Upper-Right
前上-右
T08760
7.8 Ball End-Front Upper
7.8 球头座-前上
Front Upper Turnbuckle
前上拉杆
5mm
Screw
Cement
TG8005
Front Body Mount
前车壳柱
T08673 M3x12 Screw
M3x12 螺丝
……2
T08673 M3x12

7
1:1 x1
T08676 M3x25 Screw
M3x25 螺丝
……2
T08674 M3x16 Screw
M3x16 螺丝
……2
T08666 M3 Nylon Nut
M3尼龙螺母
…………6 ……2
T08676 M3x18 Screw
M3x18 螺丝
1:1 x1
13 Steering Turnbuckle
转向拉杆
14
1:1
Ture-to -scale diagram
图形比例
x1
Assemble as many times as specified
需组装数量

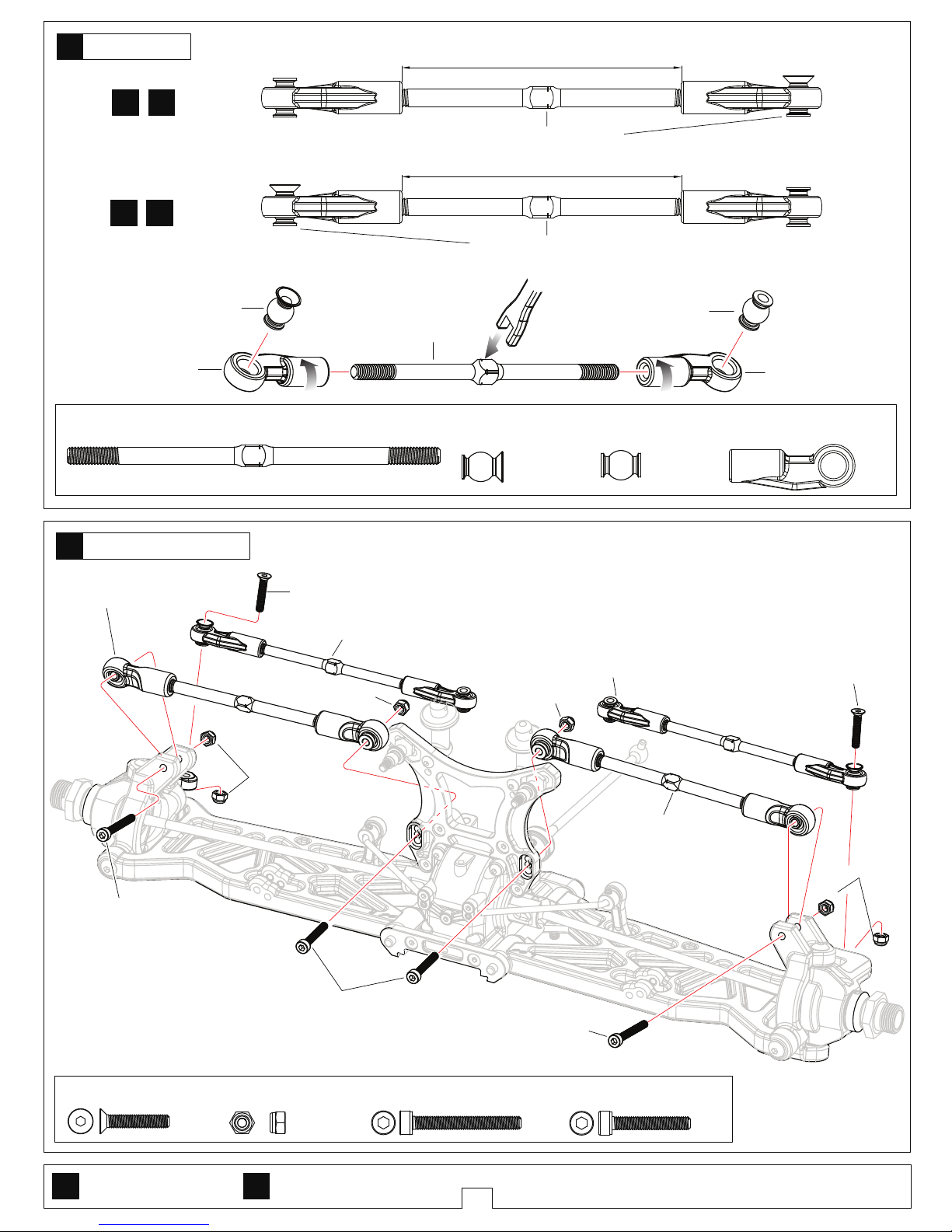

Front Upper/Steering Turnbuckle
前上/转向拉杆
Bag-D
Bag-D
TG8020 4x86 Turnbuckle
4x86 拉杆
T08753 6.8 Ball stud
6.8球头
………2
…………2 …………2
T08754 6.8 Ball stud
6.8球头
TG8020
4x86 Turnbuckle
4x86拉杆
T08760 6.8 Ball End-Steering
6.8 球头座-转向
……4
T08760
6.8 Ball End-Steering
6.8 球头座-转向
T08760
6.8 Ball End-Steering
6.8 球头座-转向
T08754
6.8 Ball stud
6.8球头
T08753
6.8 Ball stud
6.8球头
Steering-Right
转向-右
Steering-Left
转向-左
Approx.64.5mm
大约64.5mm
▲Projection.Note direction
注意方向
Front Upper Turnbuckle-Left
前上拉杆-左
Front Upper Turnbuckle-Right
前上拉杆-右
Steering Turnbuckle-Left
转向拉杆-左
Steering Turnbuckle-Right
转向拉杆-右
T08674 M3x16
T08674 M3x16
T08676 M3x25
T08676 M3x25
T08676 M3x18
T08666 M3
T08666 M3
T08666 M3
T08666 M3
5mm
Approx.64.5mm
大约64.5mm
▲Projection.Note direction
注意方向

8
T08674 M4x10 Screw
M4x10 螺丝
…………2
T08674 M4x14 Screw
M4x14 螺丝
………4
T08674 M3x18 Screw
M3x18 螺丝
……2
15 Front Suspension
前悬吊系统
T08674 M4x14
Bag-D
T08633
10T Diff Gear
10T差速齿轮
T08633
20T Diff Gear
20T差速齿轮
T08633
2.5x11.5 Pin
2.5x11.5 钢针
T08600
Differential Housing
差速壳
T08633 4.1x12x0.2
T08633
Diff Shaft
差速轴
TG8010 M3x12
T08600 5.8x1.9
T08664 8x16x5
7000#
TG8010
48T Center Diff Gear
48T 中差速齿轮
T08633
20T Diff Gear
20T差速齿轮
T08633
2.5x11.5 Pin
2.5x11.5 钢针
T08664 8x16x5
T08635
Center Diff Connecting Cup
中差速接杯
TG8010 5.8x1.9
T08600
Differential Pads
差速垫片
16 Center Differential
中央差速器
T08635
Center Diff Connecting Cup
中差速接杯
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08600/TG8010 5.8x1.9 O-Ring
5.8x1.9 O环
…………………2
T08633 4.1x12x0.2 Washer
4.1x12x0.2垫片
…………4
T08664 8x16x5 Ball Bearing
8x16x5 轴承
………2 ……4
TG8010 M3x12 Screw
M3x12螺丝
T08669 6.1x11x0.2 Washer
6.1x11x0.2垫片
…………2
T08674
M4x10
T08674 M3x18
TG8032
Front Bumper
前防撞板

9
18
17 Center Differential Mount
中央差速器固定座
Motor
马达
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
Bag-C
Bag-C
TG8028
Motor Mount
马达固定座
T08673 M3x10
TG8031
Center Differential Plate
中央差速器固定板
H393 M4x4
TG8028 M3x14
TG8028 3x7x0.8
H393 13T
TG8028 M4x14
TG8028
Motor Mount
马达固定座
TG8028
Center Differential Mount-Rear
中央差速器固定座-后
Tighten the screws with one sheet of paper
两齿轮之间的间隙大约为一张普通纸的厚度。
inserted between both gears.
TG8028 M4x14 Screw
M4x14螺丝
TG8028 3x7x0.8 Washer
3x7x0.8垫片
H393 M4x4 Screw
M4x4螺丝
…………………1
…………………2
………2
Screw
Cement
TG8028 M3x14 Screw
M3x14螺丝
T08673 M3x10 Screw
M3x10 螺丝
…………4
Motor
马达
X
Screw
Cement
Must be purchased separately
需另购物品
X
……2
Screw
Cement

T08674 M4x10 Screw
M4x10螺丝
…………4

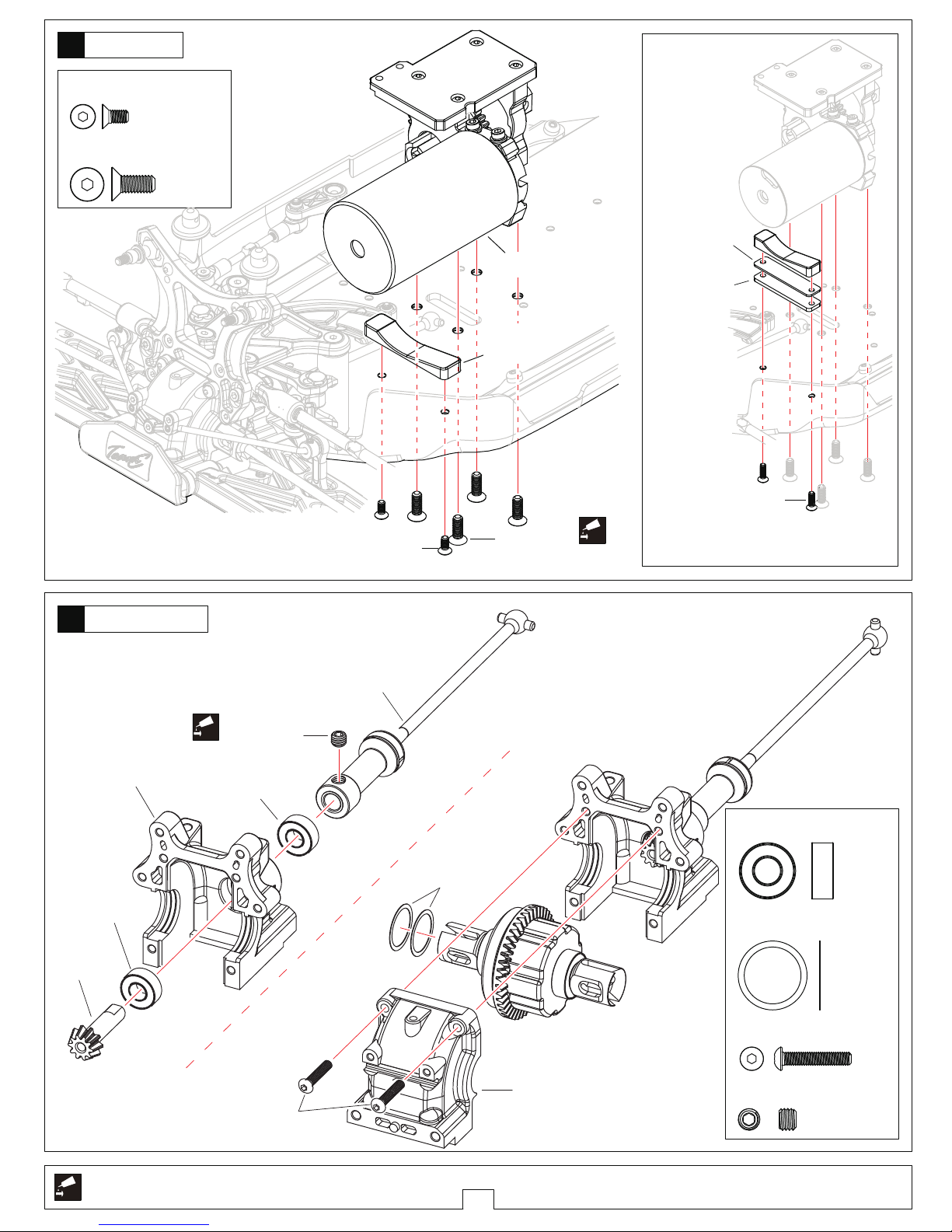

19 Center Differential
中央差速器
20
Bag-C
10
T08674 M4x10
Rear Differential Case
后差速箱
T08304 13.1x15.9x0.2 Washer
13.1x15.9x0.2垫片
…………2
T08663 6x13x5 Ball Bearing
6x13x5 轴承
………2
T08673 M3x16 Screw
M3x16 螺丝
……2
TG8017 M5x4 Screw
M5x4 螺丝
………………1
TG8017
133mm Center Rear CVD
133mm中后CVD
T08304
13.1x15.9x0.2
Screw
Cement
Bag-CBag-E
T08673 M3x16
T08601
Differential Case
差速箱
TG8017 M5x4
T08601
Differential Case
差速箱
T08636
10T Gear
10T齿轮
T08663 6x13x5
T08663 6x13x5
Screw
Cement
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
TG8030 M3x6 Screw
M3x6螺丝
…………………2
TG8030 M3x6
T08674 M3x10
TG8029
1mm Washer
1mm垫片
TG8029
Motor Mount
马达扶持座
TG8029
2mm Washer
2mm垫片
马达外径是36时请使用以上配置
Please use the above configuration when motor-
outside diameter is 36mm
马达外径42
Motor outside 42

LR
Assemble both Left and Right
组装左和右
Apply threadlocker(screw cement)
打螺丝胶水
Screw
Cement
Screw
Cement
11
T08664 8x16x5 Ball Bearing
8x16x5 轴承
T08665 13x19x4 Ball Bearing
13x19x4 轴承
………2
………2
……………………2
84001 M4x4 Screw
M4x4螺丝
………………2
TG8015 2.5x16.8 Pin
2.5x16.8钢针
Rear Hub Carrie
后轮座
TG8018 2.5x12.8 Pin
2.5x12.8钢针
………………2
TG8018 5x8.5 CVD Shaft
5x8.5 CVD轴
……………………2
TG8018
LR
21
22
Bag-E
133mm Drive Shaft
133mm传动轴
T08605
Rear Hub Carriers-L
后轮座-左
T08605
Rear Hub Carriers-R
后轮座-右
84001 M4x4 T08664 8x16x5
T08665 13x19x4
TG8015 2.5x16.8
TG8015
Wheel Hex Hub
六角轮座
TG8018 2.5x12.8
Oil
油
TG8018 5x8.5
T08772
CVD Connecting Cup
CVD接杯
……………………4
T08601/T08756 M3x3 Screw
M3x3螺丝
T08756 6.8 Ball stud-Swaybar
6.8球头-防倾杆
…………………2
T08755 6.8 Ball stud-Swaybar
6.8球头-防倾杆
………………………2
………………3
T08601 M2.5x8 Screw
M2.5x8螺丝
Rear Swaybar
后防倾杆
x2
x2
Assemble as many times as specified
需组装数量
Bag-E
Screw
Cement
Screw
Cement
T08756 M3x3
T08756 M3x3
T08601 M3x3
T08601 M3x3
T08601 M2.5x8
T08601 M2.5x8
T08601
Swaybar Mount
防倾杆固定座
T08647
Rear Swaybar
后防倾杆
T08755
T08756
T08760

T08646 4x77 Arm Pin
4x77 擺臂軸
……………2
T08666 M4 Nylon Nut
M4 尼龙螺母
………………2
T08673 M3x16 Screw
M3x16 螺丝
……2
T08674 M3x12 Screw
M3x12 螺丝
…………2
T08674 M3x35 Screw
M3x35 螺丝
……………2
24
23 Rear Hub Carrie
后轮座
Rear Suspension
后悬吊系统
Bag-E
12
T08673 M3x16
T08666 M4
T08646 4x77
T08674 M3x35
T08674 M3x12
T08767
0 Degree Bushing
0 度轴套
T08767
+1 Degree Bushing-Left
+1度轴套-左
T08767
+1 Degree Bushing-Right
+1 度轴套-右
T08765
Rear Arm Mount-F
后摆臂固定座-前
T08766
Rear Arm Mount-R
后摆臂固定座-后
T08666 M3 Nylon Nut
M3尼龙螺母
………………2
……………2
T08675 M4x10 Screw
M4x10 螺丝
………………4
T08605 3.1x9x2.5 Plastic Washer
3.1x9x2.5 垫片
……………2
T08646 3x51.5 Arm Pin
3x51.5 擺臂軸
T08666 M3
T08646 3x51.5
T08675 M4x10
T08605 3.1x9x2.5
TG8002
Rear Lower Arm-Left
后下摆臂-左
LR
Bag-E
LR
Assemble both Left and Right
组装左和右

T08666 M3 Nylon Nut
M3尼龙螺母
…………………2
T08673 M3x18 Screw
M3x18 螺丝
T08673 M3x16 Screw
M3x16 螺丝
……6
25 Rear Shock Tower
后避震架
26 Wing Mount
尾翼固定架
13
…2
Bag-E
T08673 M3x16
T08673 M3x18
T08612
Wing Mount
尾翼固定座
T08673 M3x16
T08666 M3
T08673 M3x16
L
R
Screw
Cement
TG8004
Dirtcover Rear-Left
后挡泥板-左
TG8004
Dirtcover Rear-Right
后挡泥板-右
TG8005
Rear Body Mount
后车壳柱
T08673 M3.5x25
T08674
M3x12
TG8013
Rear Shock Tower
后避震架
T08622
Ball stud
球头
T08673 M3x6
T08673
M3x12
Bag-E
T08673 M3x6 Screw
M3x6螺丝
…………………4
T08674 M3x12 Screw
M3x12螺丝
T08673 M3.5x25 Screw
M3.5x25螺丝
………………2
…2
T08673 M3x12 Screw
M3x12螺丝
……………2
T08673 M3x12
T08674
M3x12
Screw
Cement
Apply threadlocker(screw cement)
打螺丝胶水

14
28

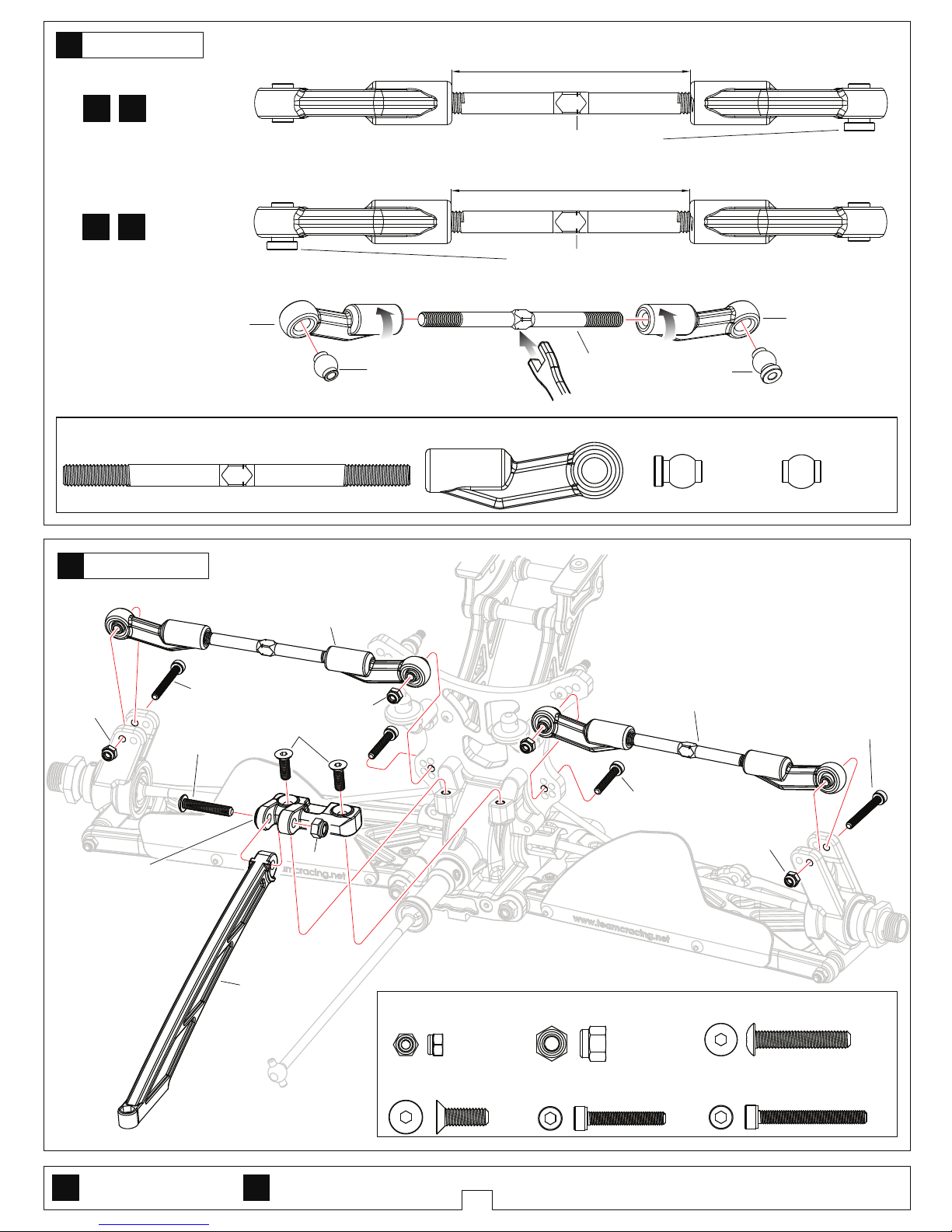

27 Rear Upper Turnbuckle
后上拉杆
Bag-E
T08666 M3 Nylon Nut
M3尼龙螺母
T08676 M3x18 Screw
M3x18 螺丝 T08676 M3x25 Screw
M3x25 螺丝
……1
T08673 M4x22 Screw
M4x22 螺丝
T08666 M4 Nylon Nut
M4 尼龙螺母
T08666 M3
T08666 M3
T08666 M3
T08676 M3x18
T08676 M3x25
TG8006
Rear Chassis Stiffener
后支撑杆
T08762
Rear Chassis Stiffener Mount
后支撑杆固定座
T08676 M3x25
T08674 M4x12 Screw
M4x12螺丝
…2 …2 …2
……………1
…………4
T08673 M4x22
T08674 M4x12
Rear Upper Turnbuckle-Right
后上拉杆-右
Rear Upper Turnbuckle-Left
后上拉杆-左
T08666 M4
1:1 x1
1:1 x1
1:1
Ture-to -scale diagram
图形比例
x1
Assemble as many times as specified
需组装数量
Bag-E
TG8021 5x80 Turnbuckle
5x80 拉杆 T08760 7.8 Ball End-Rear Upper
7.8 球头座-后上
………2
…4 …………2 …………2
T08758 7.8 Ball stud
7.8 球头
T08757 7.8 Ball stud
7.8 球头
▲Projection.Note direction
注意方向
Rear Upper-Left
后上-左
Rear Upper-Right
后上-右
TG8021
5x80 Turnbuckle
5x80 拉杆
T08760
7.8 Ball End-Rear Upper
7.8 球头座-后上
T08760
7.8 Ball End-Rear Upper
7.8 球头座-后上
T08757
7.8 Ball stud
7.8 球头
T08758
7.8 Ball stud
7.8 球头
Approx.55mm
大约55mm
5mm
▲Projection.Note direction
注意方向
Approx.55mm
大约55mm
Rear Upper Turnbuckle
后上拉杆

15
FR
Assemble both Front and Rear
组装前和后
T08627 2.75mm Plastic Washer
2.75mm塑胶垫片
T08627 3.3x1.9 O-ring
3.3x1.9 O环
T08627 1mm Plastic Washer
1mm 塑胶垫片
…………………4
……………………4
……………………8
T08625/T08626 9x1.0 O-ring
9x1.0 O环
…………………4
T08624 2.7x5.8x0.5 Washer
2.7x5.8x0.5 垫片
……………………4
T08624 M2.5 Nylon Nut
M2.5 尼龍螺母
…………………4
T08622 6.8 Ball stud
6.8 球头
………………………4
FR
x2

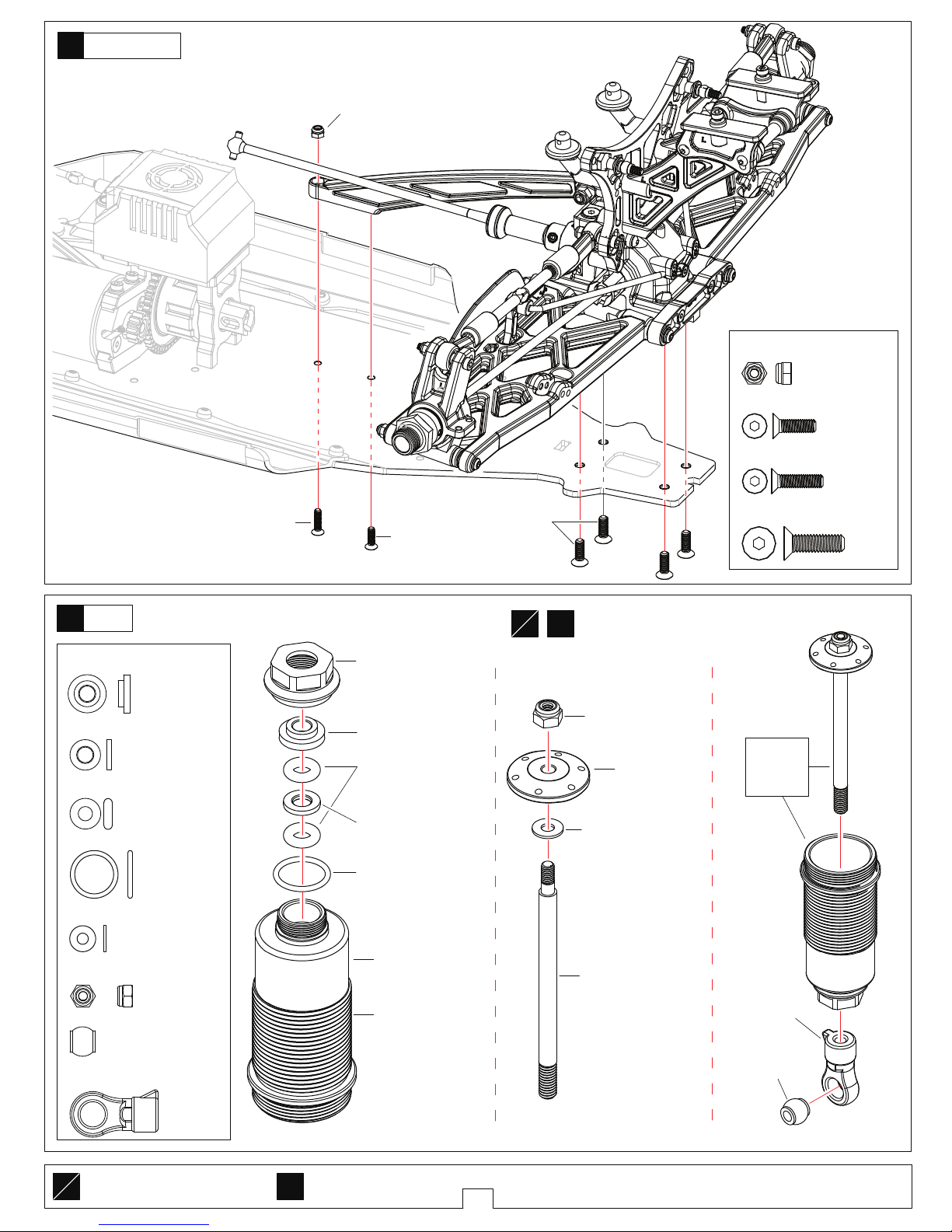

29 Rear Suspension
后悬吊系统
30
T08627
3.3x1.9 O-ring
3.3x1.9 O环
T08627
1mm Plastic Washer
1mm 塑胶垫片
T08627
2.75mm Plastic Washer
2.75mm 塑胶垫片
T08625/T08626
9x1.0 O-ring
9x1.0 O环
T08625/
Shock Bottom cover
避震下盖
T08625
Front Shock Body-Short
前避震筒身-短
T08626
Rear Shock Body-Long
后避震筒身-长
T08624
Front Shock Shaft-Short
前避震轴-短
Rear Shock Shaft-Long
后避震轴-长
T08624 2.7x5.8x0.5
T08627
Shock Piston
避震活塞
T08624 M2.5
T08622
6.8 Ball stud
6.8 球头
T08622
6.8 Ball End
6.8 球头座
T08622 6.8 Ball End
6.8 球头座
……………4
Front-Short
前-短
Rear-Long
后-长
x2
Assemble as many times as specified
需组装数量
Shock
避震器
Bag-F
Bag-F
T08674 M4x14 Screw
M4x14螺丝
………4
T08674 M3x10 Screw
M3x10螺丝
……………1
T08674 M3x12 Screw
M3x12螺丝
…………1
T08666 M3 Nylon Nut
M3尼龙螺母
…………………1
T08666 M3
T08674 M3x10
T08674 M3x12 T08674 M4x14

T08625/T08626 18.5x1.5 O-Ring
18.5x1.5 O环
…………4
16
LR
Assemble both Left and Right
组装左和右
31
32
T08673 M3x18 Screw
M3x18 螺丝
…………………2
T08666 M3.5 Nylon Nut
M3.5 尼龍螺母
………………………2
T08622 Plastic Bushing
塑胶衬套
……2
T08670 3.5x9x1 Washer
3.5x9x1 垫片
…………………2
LR
Shock
避震器
Front Shock
前避震器
FR
Assemble both Front and Rear
组装前和后
x2
Assemble as many times as specified
需组装数量
FR
x2
T08623
Shock Boot
避震防尘套
Bag-F
Bag-F
T08673 M3x18
T08666 M3.5
T08670 3.5x9x1
T08622
Plastic Bushing
塑胶衬套
550#
Front-Short
前-短
Rear-Long
后-长
T08622
Diaphragm
气室
Front-Short
前-短
Rear-Long
后-长
T08625/T08626
Shock Top cover
避震上盖
Front-Short
前-短
Rear-Long
后-长
T08625/T08626 18.5x1.5
TU0854
Front Shock Spring-Hard
前避震弹簧-硬
Rear Shock Spring-Hard
后避震弹簧-硬
T08625/T08626
Spring Adjuster
弹簧调节座
T08622
Spring Mount
弹簧固定座
TU0856

17
33
34
T08673 M3x18 Screw
M3x18 螺丝
…………………2
T08666 M3.5 Nylon Nut
M3.5 尼龍螺母
………………………2
T08622 Plastic Bushing
塑胶衬套
……2
T08670 3.5x9x1 Washer
3.5x9x1 垫片
…………………2
LR
Rear Shock
后避震器
LR
Assemble both Left and Right
组装左和右
Bag-F
Bag-B
Receiver/Servo
接收机/伺服机
T08622
Plastic Bushing
塑胶衬套
T08822
Receiver Box
接收机盒
T02081 3x7x0.8 Washer
3x7x0.8 垫片
……………………4
T02081
3x7x0.8
T08793 M3x15
T08822
Servo Mount
伺服机座
T08822
Receiver Cover
接收机盖
T08673 M3x8 Screw
M3x8 螺丝
……………1
T08673 M3x8
T08674 M3x8
T08674 M3x8 Screw
M3x8螺丝
……………1
T08675 M3x5 Screw
M3x5 螺絲
…………………1
T08675 M3x5
T02087
Antenna Pipe
天线管
Servo
伺服机
Receiver
接收机
Must be purchased separately
需另购物品
T08793 M3x15 Screw
M3x15 螺丝
…………4
X
X
X
T08673 M3x18
T08670
3.5x9x1
T08666 M3.5
Bag-J
T08822
Servo Spacer
伺服垫片
