Rollplay W458AC-F Assembly instructions

Owner’s Manual and Assembly Instructions
Model #: W458AC, W458AC-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V Audi R8 Spyder
Scan here
to view the
assembly video

Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.net.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.net
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3 Years and Up
MAX WEIGHT 35 KG (77 lbs)
PRODUCT SIZE 1.2 m x 62 x 50 cm (47.2 x 24.4 x 19.7 in.)
SPEED 4.0 km/h (2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.net as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

This page is intentionally left blank.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Rear Wheels.....................11
Dashboard/Windshield Assembly ..........12
Assemble the Steering Wheel ................13
Attach the Mirrors ...................................14
Attach the Seat ........................................15
Operation Instructions ............................16
Battery Removal ......................................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
FCC Information ......................................22
Service and Repairs ................................23
Warranty ...................................................24
Product Registration ...............................26

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes
ALWAYS sit on the seat
RISK OF FIRE. Do not bypass.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

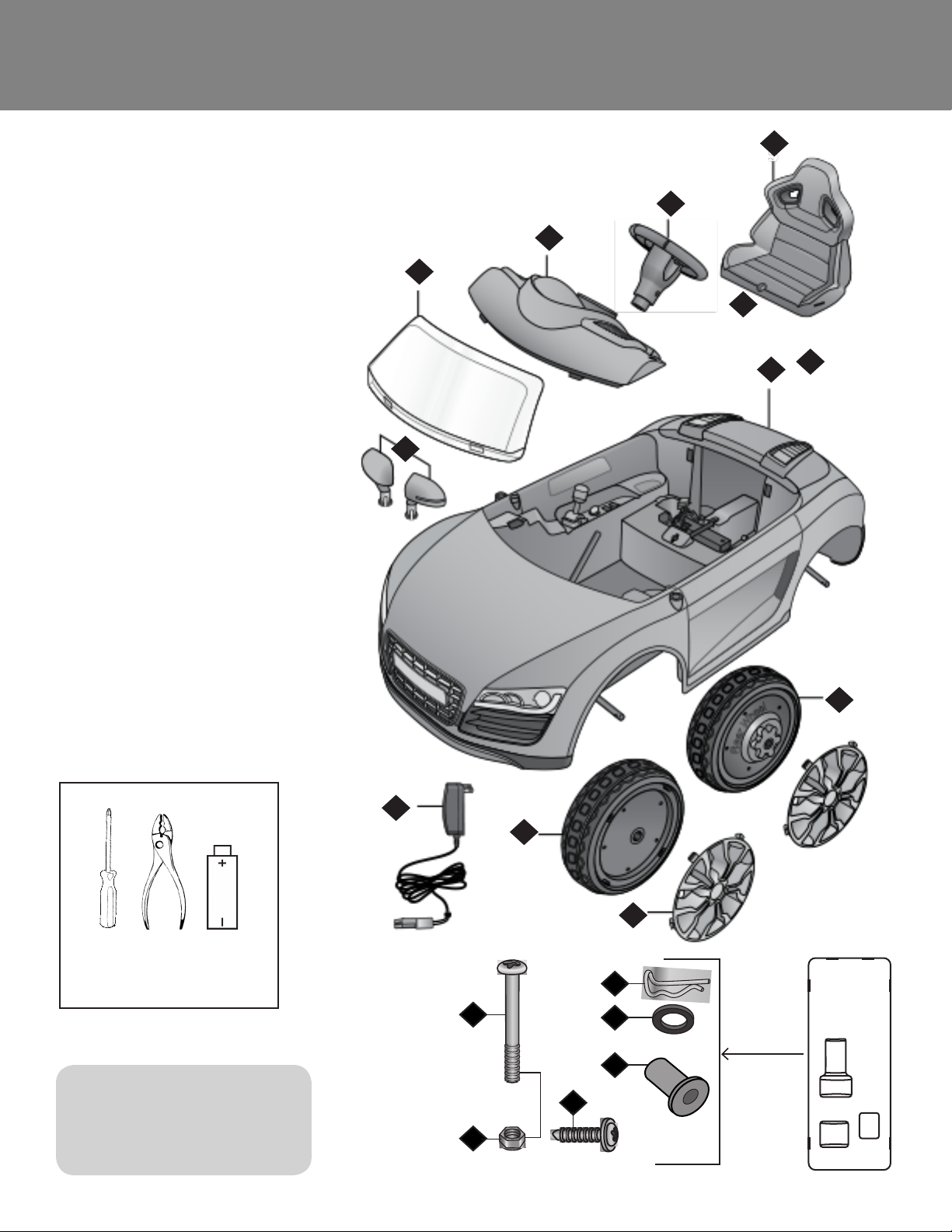

8Parts
1. Car Body
2. Seat
3. Steering Wheel
4. Dashboard
5. Windshield
6. Left and Right Mirrors
7. Front Wheel (2)
8. Rear Wheel (2)
9. Hubcap (4)
10. Battery Charger (1)
11. Steering Wheel Screw (1)
12. Steering Wheel Nut (1)
13. Dashboard Screw (2)
14. Snap pin (4)
15. Large Washer (7)
16. Inner Wheel Spacer
• Phillips screwdriver
• Pliers
• 2 AAA Batteries
Not Included:
1
2
3
4
5
6
7
8
9
10
13
14
Helpful Tip:
1. Parts 11-16 are located in the
blister pack
13
11
14
15
16
12

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the vehicle is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
from the red engine connector.
4. Connect the red battery connector
to the red battery charger
connector
5. Plug into a 120 V outlet.
To Unplug the Battery:
6. Unplug the battery charger from
the outlet.
7. Unplug the red battery connector.
8. Reconnect the red battery
connector to the red engine
connector.
9. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 17.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!

10 Assemble the Front Wheels
1. Locate the snap pins (14) and large washers (15) from the blister box. Slide the
large washer (15) onto the axle
2. Slide the front wheel (7) onto the axle. Ensure that the side of the wheel with the
slots is facing out
3. Slide the large washer (15) onto the axle
4. Insert the straight side of the snap pin (14) through the hole at the end of the axle
to keep the wheel in place
5. Position the hubcap (9) over the holes on the wheel, and snap the hubcap into
place
6. Repeat sets 1-5 for the other front wheel
16
15
17
4
7
Helpful Tip:
1. Using pliers will make
it easier to remove
the snap pin from the
wheel axle

11

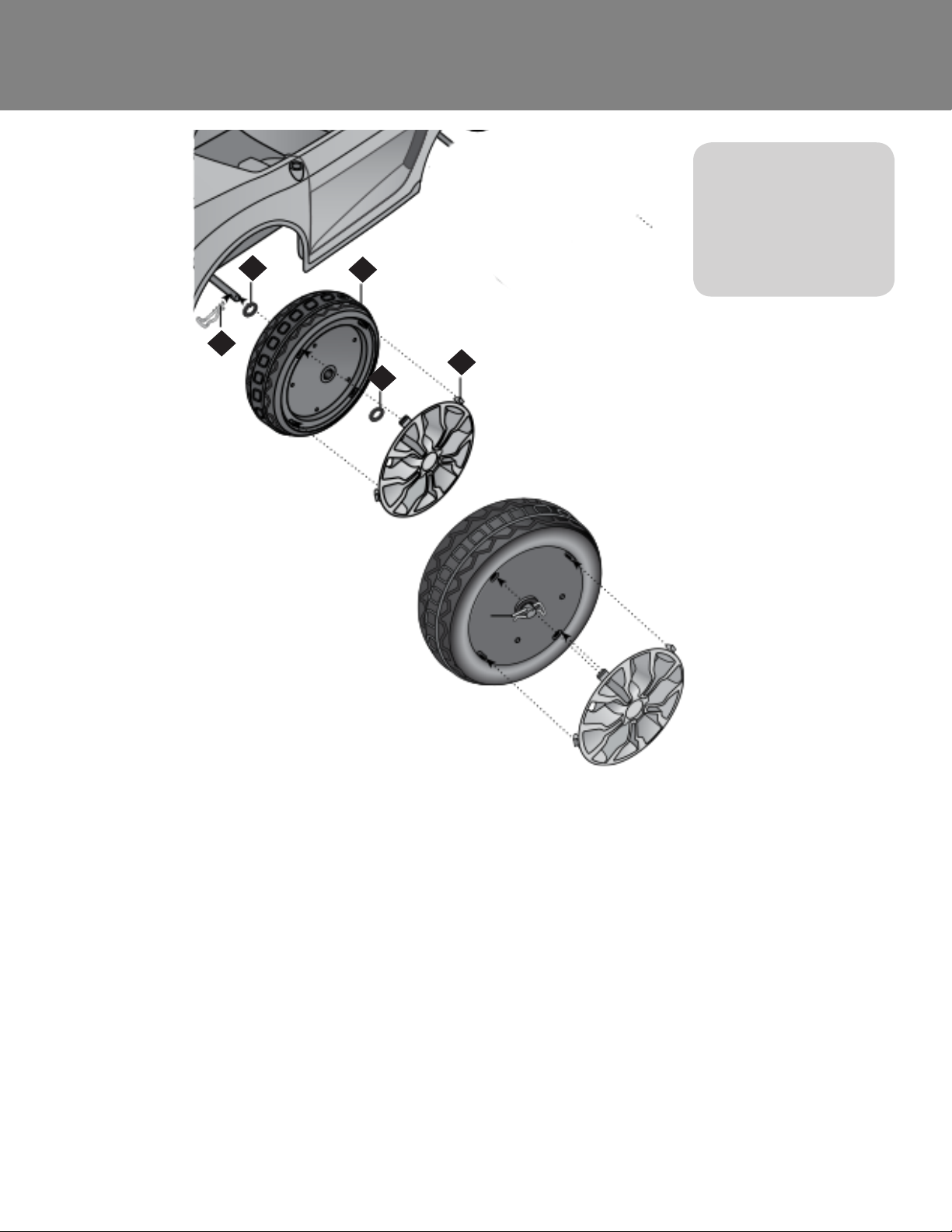

Assemble the Rear Wheels
Note: The right side of the vehicle will only have 1 washer. Locate the inner wheel
spacer (16), snap pins, (14) and large washers (15) from the blister box.
Left Rear Wheel
1. Slide the large washer (15) onto the axle.
2. Slide the inner wheel spacer (16) onto the axle with the wide end facing out.
3. Slide the left rear wheel (8) onto the axle with the gear teeth facing inward.
4. Slide the large washer (15) onto the axle.
5. Insert the straight side of the snap pin (14) through the hole at the end of the axle
to keep the wheel in place.
6. Position the hubcap (9) over the holes on the wheel, and snap the hubcap into
place.
Right Rear Wheel
7. Slide the right rear wheel (8) onto the axle with the gear teeth facing inward. Ensure
that the gear teeth connect with the gear box that is pre-installed on the axle.
8. Repeat steps 3-5.
8
4
17
14
16
Helpful Tip:
1. If you encounter
trouble tting both
wheels onto the rear
axle, then your rear
wheel axle may need
to be realigned.
2. Remove both wheels
from the rear wheel
axle. Using two hands,
push down on the rear
wheel axle and slide
it gently toward the
side of the vehicle that
needs more room.

12
1313

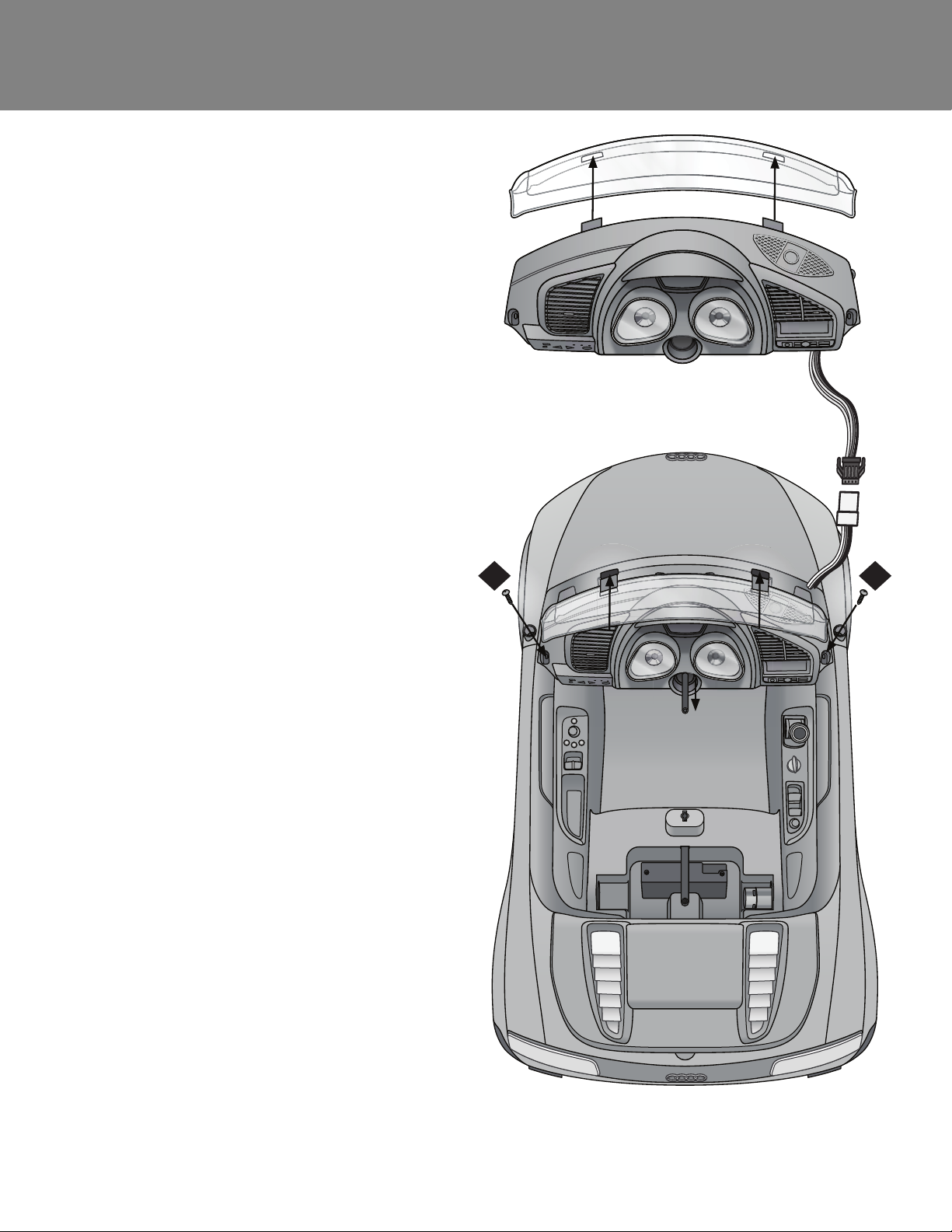

Dashboard/Windshield Assembly
1. Position the two front tabs
on the dashboard above the
slots on the windshield.
2. Snap the windshield onto
the dashboard.
3. Connect the wire from the
dashboard to the wire from
the car body.
1. Holding the dashboard/
windshield assembly
together, insert the steering
rod on the car body through
the hole of the dashboard.
2. Align the dashboard with
the slots on the car, and
slide the dashboard into
place
3. Use a Phillips-head
screwdriver to fasten the
dashboard screw (13)
into the two screw hole
locations on either side of
the dashboard.
Steering Rod

13

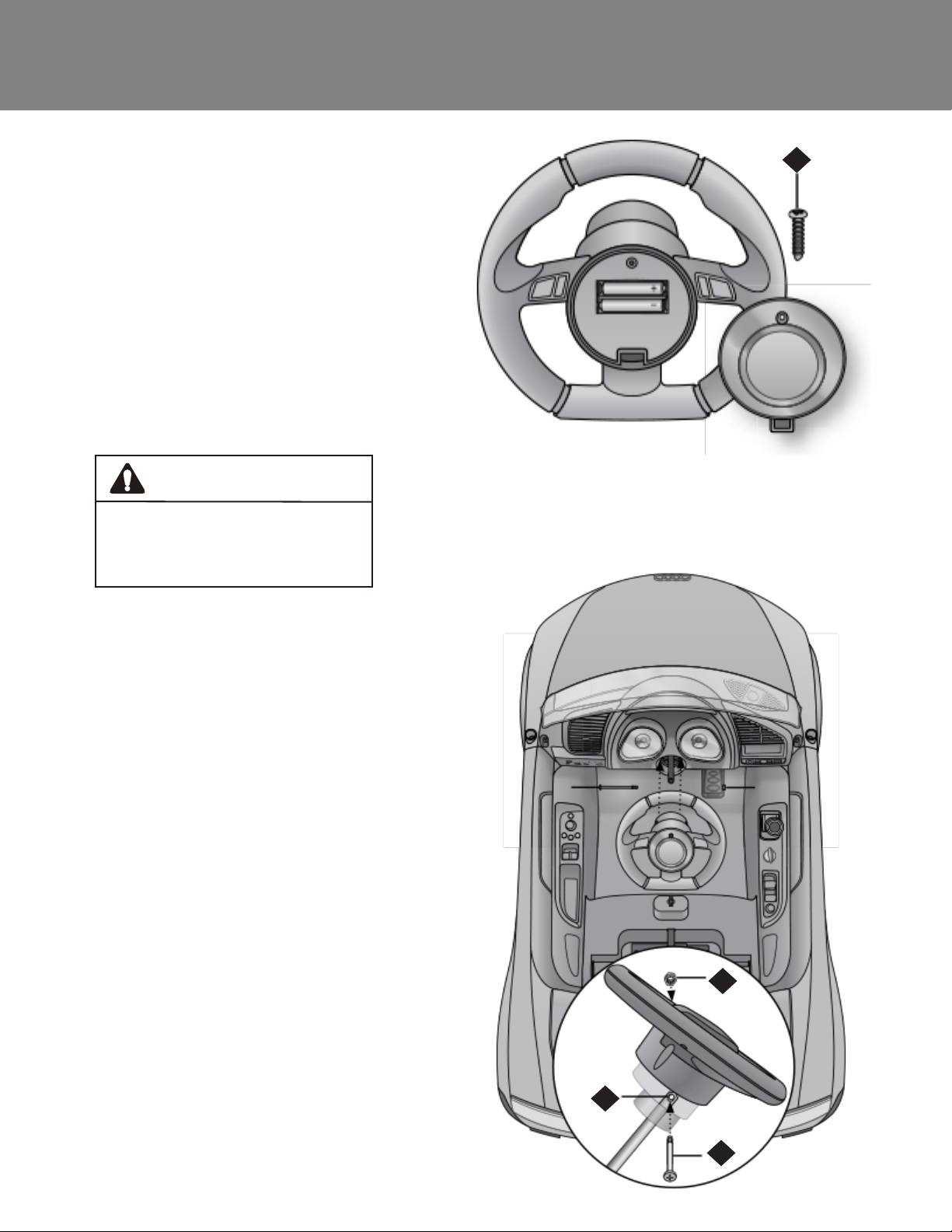

Assemble the Steering Wheel
3
1. Use a Phillips head
screwdriver to remove
the screw on the battery
compartment of the steering
wheel.
2. Insert two AAA batteries into
the battery compartment.
3. Replace cover and use the
screwdriver to fasten.
1. Slide the steering wheel (3)
onto the steering rod
2. Align the holes on the
steering wheel with the
holes on the steering rod.
3. Slide the steering wheel
screw (11) through the
steering wheel and steering
rod.
4. Fasten the nut (12) to
the end of the screw and
tighten the screw with a
screwdriver.
12
3
11
WARNING
• Do not mix old batteries with new batteries or
batteries of different types.
• Do not mix alkaline, standard (carbon-zinc), or
rechargable (nickel-cadmium) batteries.

14 Attach the Mirrors
1. Align the bottom of the
mirror with the hole on
the car body near the
dashboard.
2. Gently press the mirror
down into place.
3. Repeat for the other mirror.
6 6

15
Attach the Seat
1. Ensure the lock on the car seat (2) is in the unlock position.
2. Align the two hooks on the back of the car seat (2) with the holes
on the back of the battery compartment.
3. Insert the hooks into the holes and rotate the seat down into place.
4. Use a at head screwdriver or a coin to turn the seat to the locked
position.
2

16 Operation Instructions
Power Switch
Forward/Reverse
Shifter
Push Buttons for
Sounds
Press Pedal to
Go, Release
Pedal to Stop
Press Button to
Access the Trunk
Turn steering wheel left to
steer left, right to steer right
Seat Lock
Unlocks and
Locks Seat
Mirrors Turn In
and Out

17
Battery Removal
1. Unlock and remove the seat
2. Disconnect the red battery connector from the red engine connector
3. Loosen and remove the screw from the battery strap using a Phillips
screwdriver
4. Slide the battery strap out from the battery strap slot
5. Remove the battery
Note: It is not necessary to remove the battery for charging. However,
if the battery does not reach the outlet, then it can be removed for
charging.
Battery Strap

18 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
• Charge the battery for 24 hours before using the vehicle for the rst
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Only use the charger specied with the original item. Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 23 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

19
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 23 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

20 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (35
kg/77 lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
