Thank you for selecting this HPI RACING product! This kit is designed to be fun to drive and uses top quality parts for durability and perfor-
mance. The instruction manual you are reading was designed to be easy to follow yet thorough in its explanations. HPI Racing wants you to
enjoy driving your new R/C kit. If you come across any problems or need some help getting through a step, give us a call and we will do our very
best to help you.
This is a high performance R/C kit, and it requires regular maintenance for best performance. If you don’t do regular maintenance the perfor-
mance will suffer. HPI has all the necessary parts and accessories available to keep your car performing at its best.
The caution or attention symbols will warn you about steps that can be very dangerous.
Please read and understand the instructions carefully before proceeding.
●
●
●
Attention Failure to follow these instructions can
cause injury to yourself or others.
You might also cause property damage
or damage your kit.
Cautions Failure to follow these instructions
can damage your kit, and cause
serious bodily injury or death.
Cautions
Before Running
While Operating
Before Operating
After Running
Battery safety
●Please read manual (with parent, guardian or a responsible adult if necessary).
●
Please do not run on a public street, this could cause serious accidents, personal injuries and/or property damage.
●Please do not run near pedestrians or small children.
●Please do not run in small or conned areas.
●Make sure that all screws and nuts are properly tightened.
●Always use fresh batteries for your transmitter and receiver to avoid losing control of the model.
●Please conrm the neutral throttle trigger position.
●Turn OFF receiver rst, then turn OFF transmitter. This will prevent the car from losing control.
●After running a HPI RACING product, it is necessary to perform routine maintenance.
Failure to do this can result in increased wear and damage to the engine and chassis.
● Please be careful when handling the battery. It will be hot after running. If the wire is frayed, a short circuit can cause a re.

111833
AC MULTIPLUG CHARGER
2
mm
Z904
2.0mm
1. 5
mm
Z901
1.5mm
Allen Wrench
101939 (US/EU)
AA Alkaline Batteries (4pcs.)
101929
PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK
7
mm
1

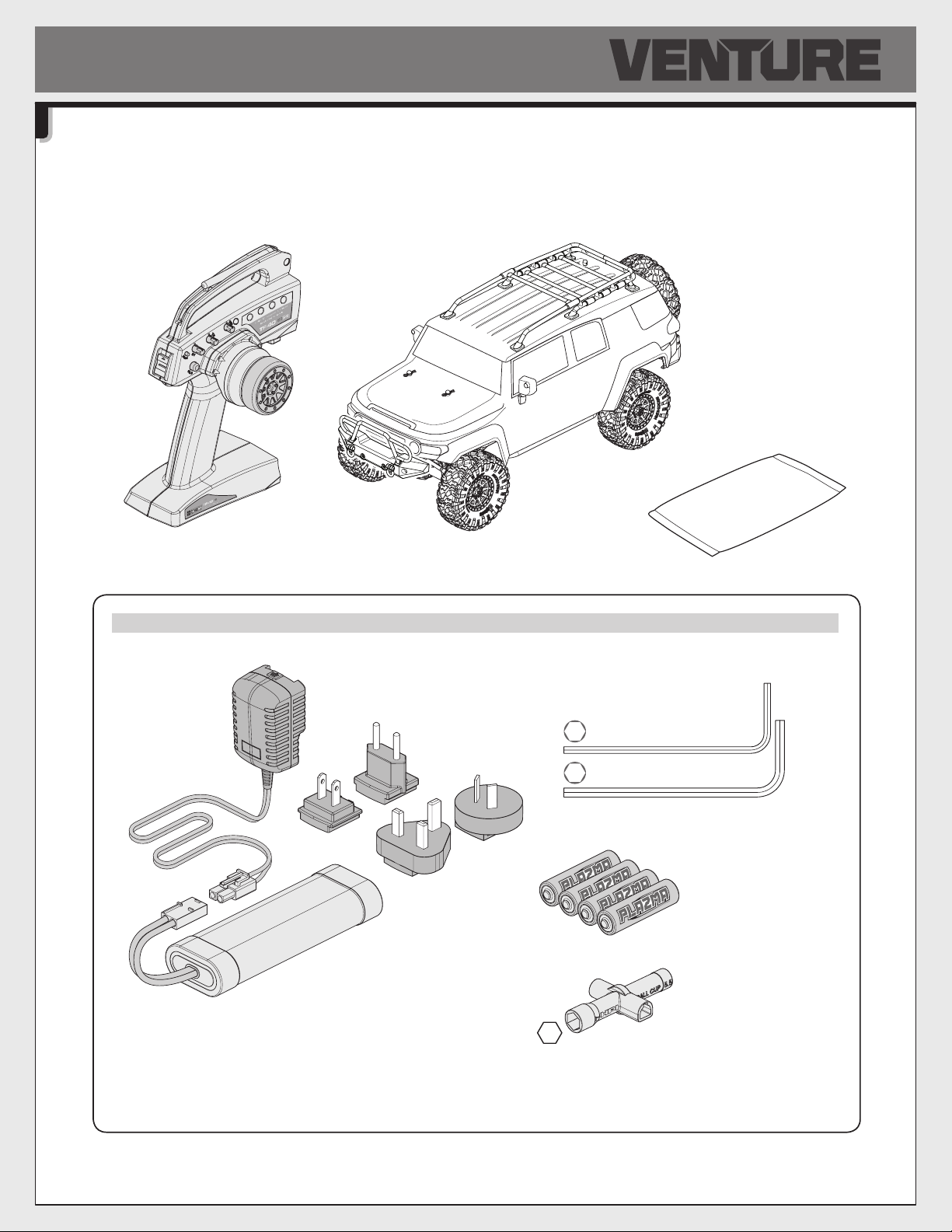

Components
Radio Control Car
Transmitter
Parts Bag
Included Items
Z950
Cross Wrench

101929
PLAZMA 7.2V 2000mAh NI-MH BATTERY PACK
2-1Charging Batterys
2Start Up Guide
Cautions
Charge time 6 hours. Overcharging can
cause damage or explosion.。
1
Cautions Do not use Nickel Cadmium battery charger for Nickel Metal Hydride batteries. If you do not use the special
charger for Nickel Metal Hydride batteries, the batteries will be damaged.
2
Choose the correct plug for your adapter.
1
Remove
2
Plug into a wall outlet
US/JP EU UK AU

2 Transmitter Preparation
Setup Before Starting
2-2
1
Transmitter Battery Installation
Battery Cover
Adjustment tool
Note Direction.
Open battery cover at the bottom of transmitter. Install batteries. Follow the direction of batteries
designated in the inside of the battery box.
105381
HPI TF-40 2.4GHz TRANSMITTER (2ch)
101939 (US/EU)
AA Alkaline Batteries
Mode Switch
P.3 5
Reverse Switch
Switch factory setting.
Switch factory setting.
1
2
Attention
Switch factory setting.
Adjustment tool
When in France, switch France mode
Switching modes clears binding and fail safe.。

3 Preparing The Chassis

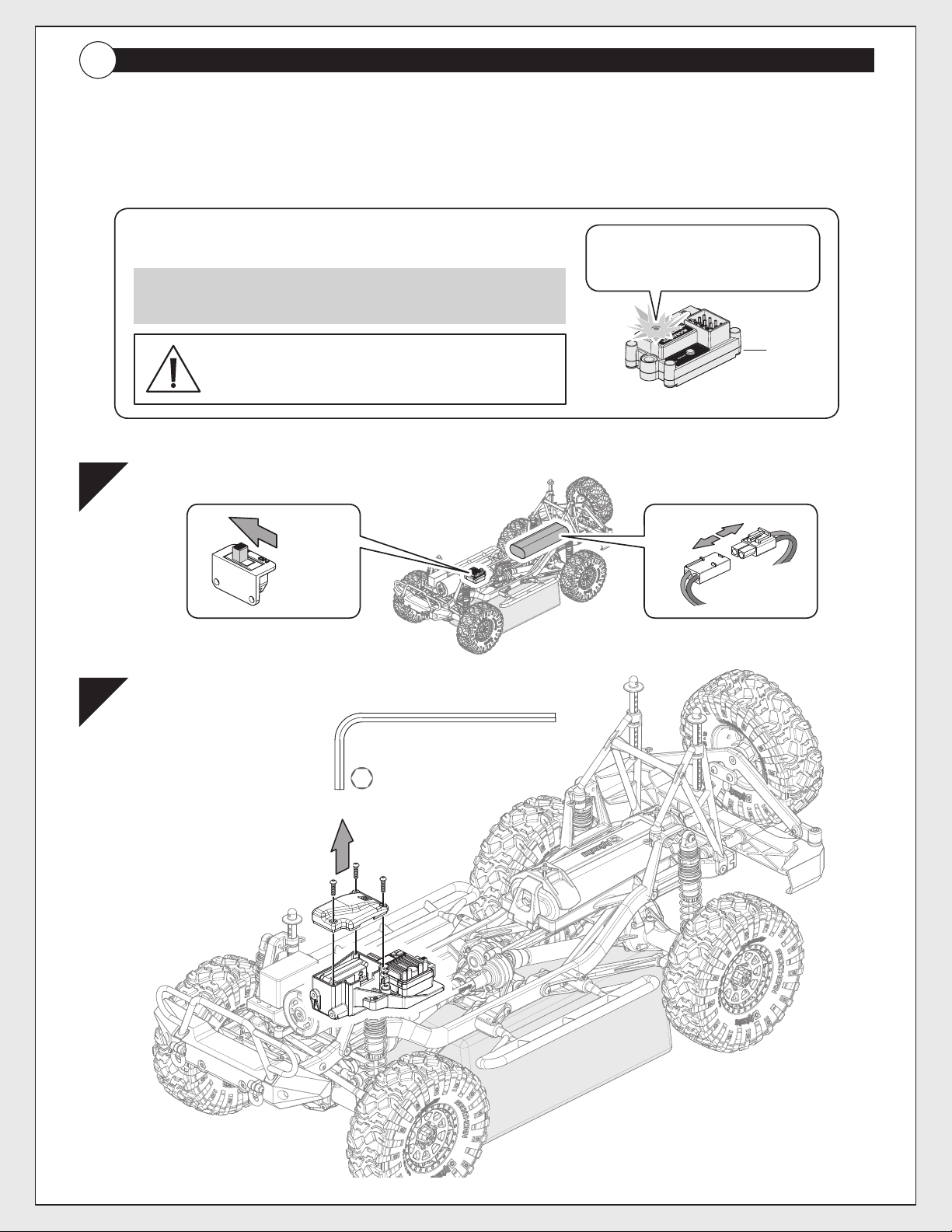

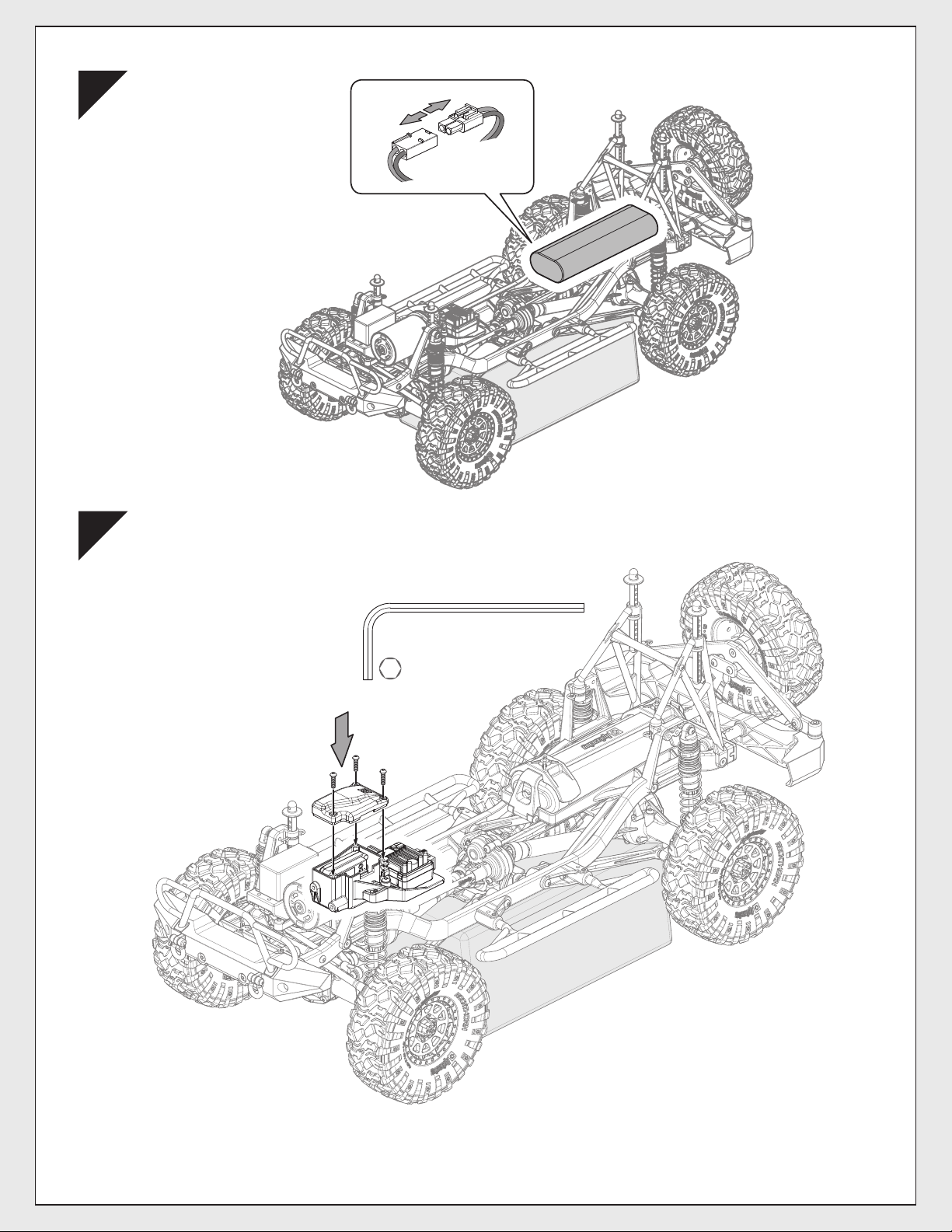

4 Battery Installation
Removing the Body 75106
Body Clip (6mm/black)
75106
Body Clip (6mm/black)
OFF

10
5 ESC Setup
NiMH
NiMH
LiPo
LiPo
There are two battery modes to choose from (NiMH or LiPo). Factory setting is set to NiMH mode.
Lipo Battery Mode LiPo Akku Modus Mode batterie LiPo LiPoバッテリー設定
Drag Brake Function
If the power is cutting off and on (pulsing) while driving, the LiPo battery cutoff has been activated in the speed control. Stop driving the car im-
mediately and recharge or replace the battery.
2S LiPo Output reduces to 50% at 6.5V. ESC cuts off at 6.0V when battery cannot supply enough voltage.
Output reduces to 50% at 9.75V. ESC cuts off at 9.0V when battery cannot supply enough voltage.
3S LiPo
Output reduces to 50% at 4.5V. ESC cuts off at 4.0V when battery cannot supply enough voltage.
5-9 cells
NiMH
Low voltage cut-off protection
If the voltage of the battery pack is lower than the threshold for 2 seconds, the ESC will enter the protection mode.
When the car stops, the red LED blanks on the ESC to indicate that the low voltage cut-off protection has been activated.
Drag Brake
Battery type
LiPo NiMH
80% Drag Brake 100% Drag Brake Drag Brake Off
Drag Brake
Drag Brems
Frein de traînée
ドラッグブレーキ
Battery type
Akkutyp
Type de batterie
バッテリータイプ LiPo NiMH
80% Drag Brake 100% Drag Brake Drag Brake Off
Drag Brake
Drag Brems
Frein de traînée
ドラッグブレーキ
Battery type
Akkutyp
Type de batterie
バッテリータイプ LiPo NiMH
80% Drag Brake 100% Drag Brake Drag Brake Off
Drag Brake
Drag Brems
Frein de traînée
ドラッグブレーキ
Battery type
Akkutyp
Type de batterie
バッテリータイプ LiPo NiMH
80% Drag Brake 100% Drag Brake Drag Brake Off
80%DB100%DB
DB OFF
This function will maintain a smooth controlled speed while descending. When the throttle position is at neutral, brakes will be applied automatically. Additional
braking can be applied manually as needed for extreme descents. Once throttle position is returned to neutral, HDC will continue to function.
Recommended Settings

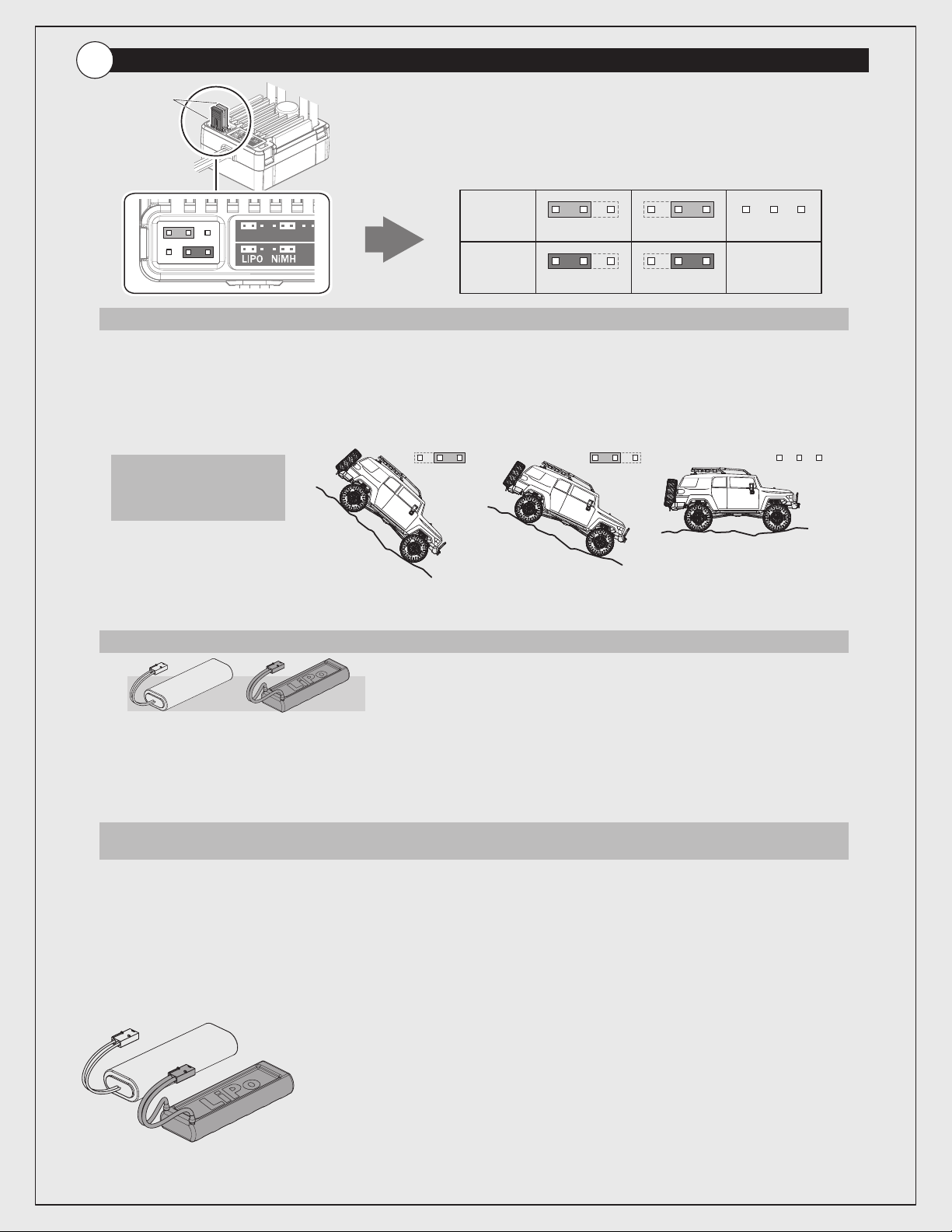

The ESC is programmed with the use of jumpers to select setting.
(Tweezers are recommended to plug in the jumpers)
Jumper
100%
Steep and rough
terrain.
80%
Moderately steep terrain
OFF
Higher speeds. Open trail driving

11
This car has a built-in fail safe system. If the radio glitches, because of interference or the car goes out of range, it will go into neutral to protect your car.
The fail safe system has been setup at the factory, but you should become familiar with the function of the fail safe and check the operation before running.
Situation when the fail safe will operate.
When transmitter radio signal is cut off.
The fail safe can not completely protect your car.
Attention
When fail safe is operating, LED light will turn off.
116504
HPI RF-40WP
Receiver (2.4GHz)
OPEN
OFF
2
6
Checking Fail Safe Operation
1

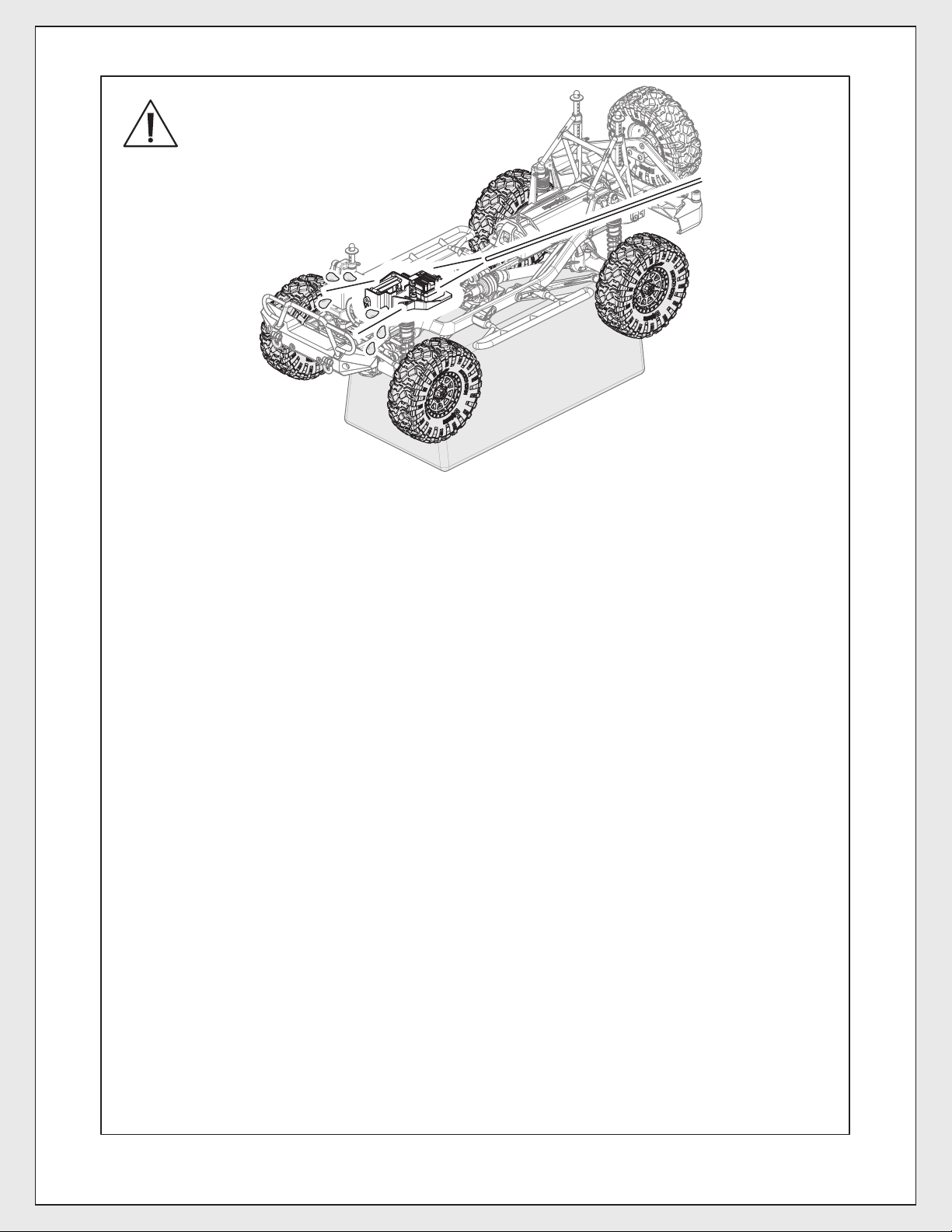

Put the car on a stand.
Allen Wrench
2
mm
Z904
2.0mm
2
mm

12
If the red LED is ashing, the car should be in neutral. The ESC should not be applying
throttle, brake or reverse. If car is not in neutral, please perform the fail-safe setup procedure.
Cautions
LED light will flash and vehicle will not move.This means that the fail safe is working properly.
123
P.35
Reference Section
Abschnitt
4
2
OFFON ON
When fail safe is operating, the red LED will continuously flash.
OFF

13
4
5
Allen Wrench
2
mm
Z904
2.0mm
2
mm

123
1
3
4
2-3
1
2
Beep
Center throttle trim.
Extend the antenna
Antenna
ON
Good Batteries
Low Batteries (Light Blinks)
1
23
Radio Control Car Operating Procedures
If you hear a tone signal, the set-up of the speed control has been completed.
OFF ON
Turn on Switch
Put the car on a stand.
Do not touch throttle
Stop (Neutral)
1 short Beep The battery is NiMH/NiCd
2 short Beeps The battery is 2S LiPo
3 short Beeps The battery is 3S LiPo
1 long Beep
Self-test and throttle calibration is okay. The ESC is ready to run.
Beep Sound

Caution
2
3
P.33
Turn steering trim to set tires in
completely centered position.
Steering Trim
Reference Section
To properly check the range, have a friend hold the truck and walk to the farthest distance that you plan to operate your model. Operate the controls
to make sure the model responds correctly. Do not operate the model if there are any problems with the radio system. If you switch on the R/C car
first before the transmitter, you may lose control of the R/C car.
Check Max. Range
4-5
Steering Trim Setup
Front
Checking radio range
2.4GHz radio frequency only functions by line of sight. If you drive behind a solid object or around a corner and lose sight of the vehicle, you may lose
control of the RC car.

1
4
Left turn Right turnStraight (Neutral)
Transmitter Operation
Steering Wheel
Left turn Right turn
Front
Throttle Trigger
A
B
If your vehicle is moving, adjust the throttle trim until it stops.
Stop (Neutral)Forward
Brake / Reverse
Throttle Trim
Reverse operation ●A and B show the two ways to go in reverse.
Reverse
Reverse
Forward 1st Time Brake
Stop (Neutral)
Stop (Neutral)
Reverse
2nd Time Reverse
Stop → Reverse
Forward → Brake Twice → Reverse
Vorwärts → Zweimal bremsen → Rückwärts
Steering Dual Rate
To be used to adjust steering servo throw.
P.33
2

5
6
Attention
Turning R/C Unit Off
Turn off receiver first, then turn off transmitter.
If you switch off the transmitter first before the R/C car, you may lose control of the R/C car.
Cautions
12
Make sure receiver is turned OFF before connecting the
battery, the vehicle may run out of control.
CautionsCautions・
Do not run on public streets or highways. This could cause serious accidents, personal injuries, and/or property damage.Do not run on public streets or highways. This could cause serious accidents, personal injuries, and/or property damage.
Do not run in water or sand.
123
OFF
4
Practice Turning
Install body and enjoy!
Allow the car to cool down for 15 minutes between each run.
When the car is running toward the driver, the directions of the steering wheel are reversed.
Once you become comfortable driving your RC car, practice driving on a track with pylons.
Right turn
OFF
OFF

Attention
Driving in Wet Conditions
This HPI vehicle is designed to provide water protection for the on-board radio system components so it can be driven in wet conditions.
The vehicle is not designed to be completely submerged in water. Driving in wet conditions will require additional vehicle maintenance.
Notes:
Never drive the vehicle in stormy conditions where lightning could be present. The transmitter is not waterproof; always keep it protected
from rain and water. Remove all water/mud and dry the vehicle completely after driving. Check the vehicle for trapped water in the tires,
transmission, etc. Some metal parts like bearings and hinge pins will need lubrication after driving in wet conditions. The electric motor is
not designed to be submerged in water. If water gets inside, it can reduce the life of the motor. Most LiPo battery packs are not designed to
operate in wet conditions. Consult the instruction manual or manufacturer for limitations. Inspect the inside of the waterproof radio enclo-
sure after driving in wet conditions. Adjust wiring and seals as needed to prevent water damage. After running in water, dry off any water
from ESC and connectors.

3
Trouble Shooting
If R/C car does not move or you have no control, see below.
Problem Cause Remedy Section
Does Not Move. Battery is not placed properly in the transmitter. Place batteries in the transmitter properly.
2-2
2-1
Weak or no battery in model. Install charged battery.
4-5
Damaged motor. Replace with new motor.
4-5
Frayed or broken wiring. Splice and insulate wiring completely.
4-5
ESC is shut down by heat protection circuit. Stop driving immediately, do not drive the car until the Speed
Controller cools down.
No Control.
Install charged or fresh batteries.Weak or no batteries in transmitter or model. 2-1 2-2
4-5
Improper antenna on transmitter or model. Fully extend antenna.
2-3
Neutral position or trim is incorrect. Adjust the steering trim referring to Page 15.
Steering and Throttle
Func-tion Reversed.
4-5
Binding Setup is incorrect. Make sure binding is setup properly.
4-52-2
Servo reverse switch is in the wrong position. Set to correct position see page 8.
4-5
Refer to page 34. It will show how to connect the motor. Wires from ESC to motor are inproperly connected.
4-3

x1 x10x20
4
Maintenance
Maintenance Chart
For maintenance schedule, refer to bottom chart. After running, clean the chassis and check all moving parts for damage. If any parts are broken or damaged,
repair or replace them before the next run. Regular maintenance is necessary to prevent damage to the car and maintain its performance.
Refer to sellable number to purchase parts.
Look for any damaged parts.
Shock
Wheel
Drive Shaft & Wheel Axle
Motor
Every Pack Every 10 Packs Every 20 Packs
Maintenance Item
Reference Section
Transmission Maintenance - Center Gear Box
Page27 4-3
Page30 4-3
Shock Maintenance
Page26 4-3
Page22 4-3
Transmission Maintenance - Diff Gear
Wheel Maintenance
Page22 4-2
Chassis Maintenance
Page21 4-1
Page31 4-4
Transmission Maintenance -
Motor and Pinion Gear Replacement
Page33 4-5
Radio Maintenance

2
mm
7
mm
2
mm
2
mm
1. 5
mm
1. 5
mm
5.5
mm
7
mm
5
mm
5.5
mm
7
mm
5
mm
Chassis Maintenance
4-1

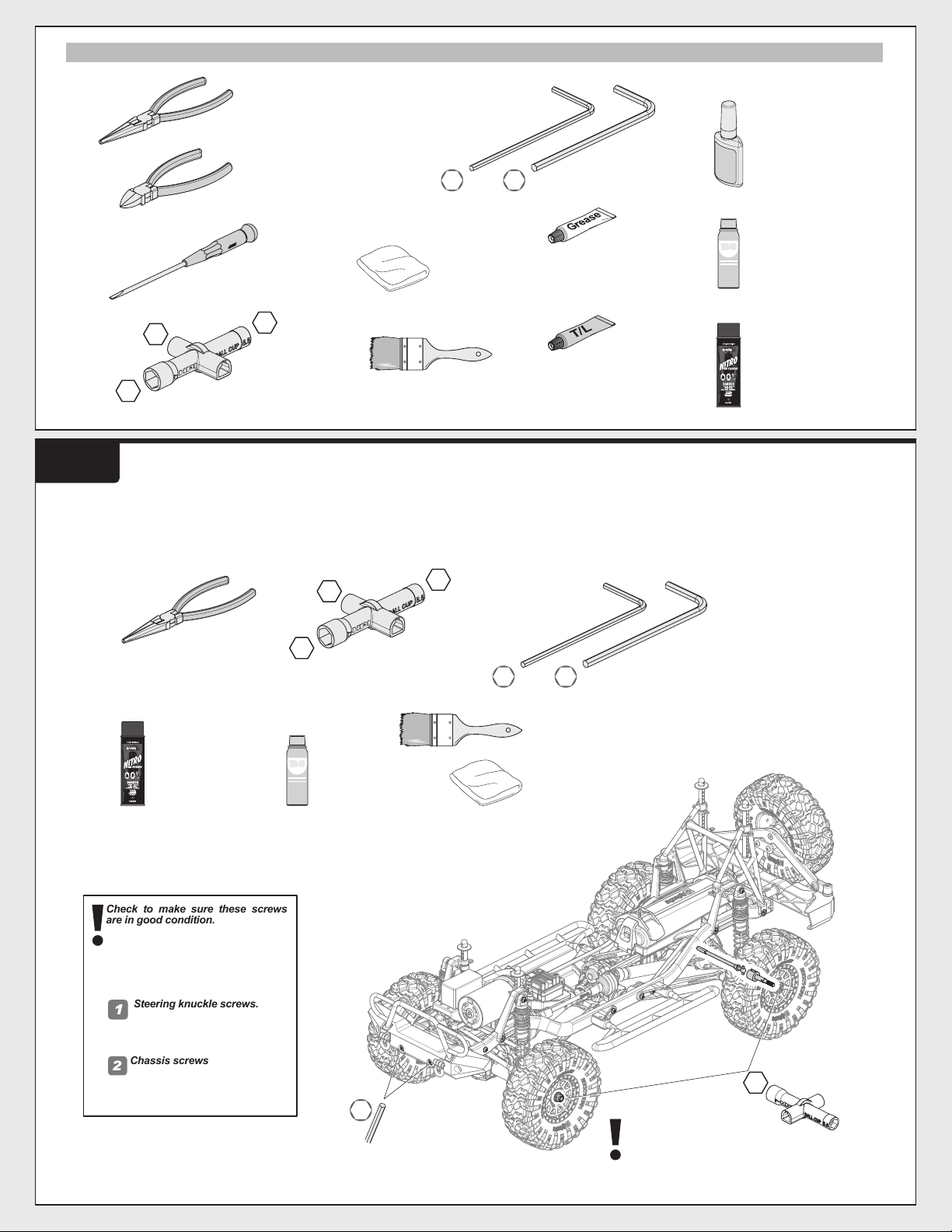

Necessary for Maintenance
Look for any damaged parts.
Z904
2.0mm
Needle Nosed Pliers
Needle Nosed Pliers
Brush
Brush
Rag
Rag
Putzlappen Z164
Grease
Oil Spray
Oil Spray
9062 (US,EU)
9063 (JP)
Nitro Car Cleaner
9062 (US,EU)
9063 (JP)
Nitro Car Cleaner

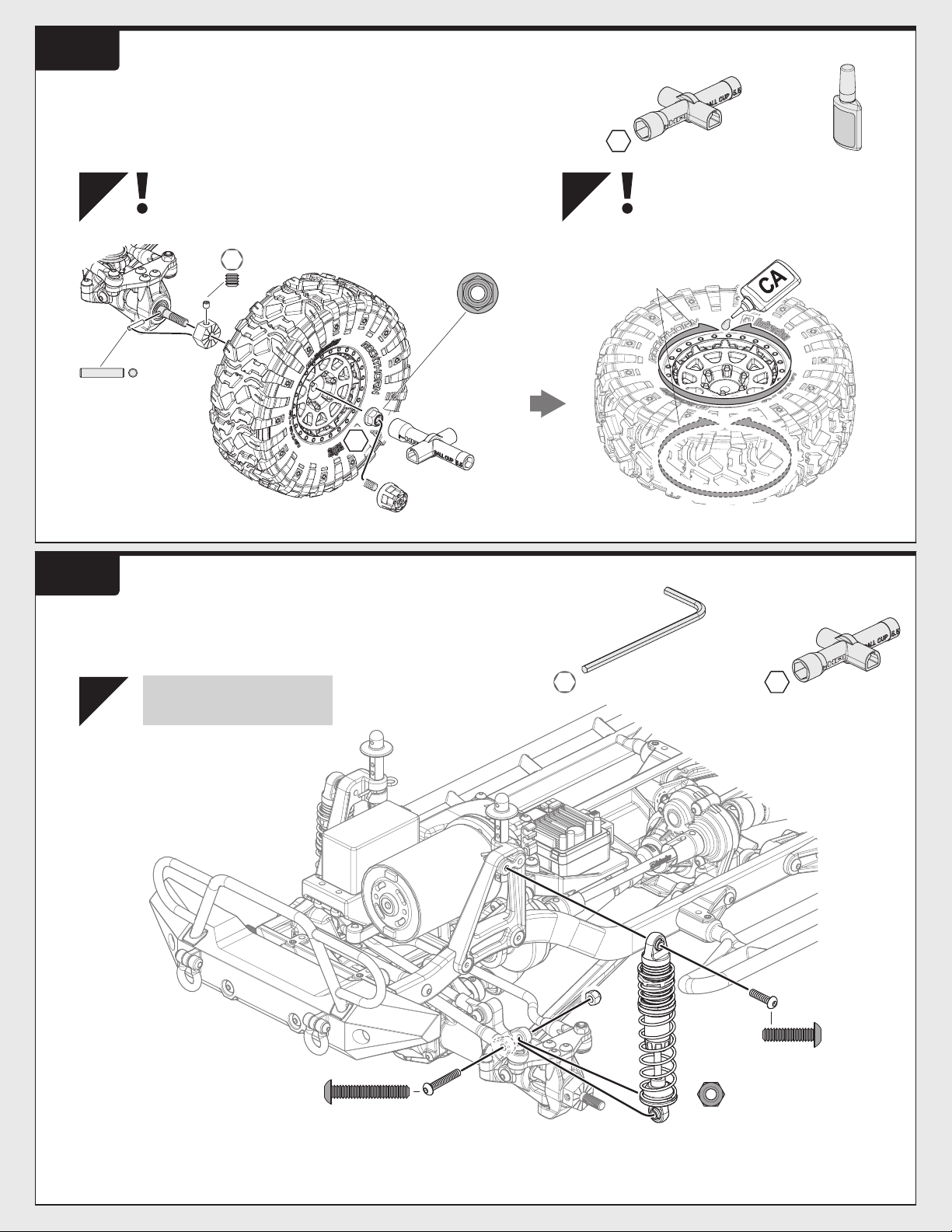

After running, clean the car and lubricate metal to metal contacts. Replace damaged parts, check that all the screws are tight.
Instant Cement
Allen Wrench
Allen Wrench
Z159
Thread Lock (Green)
Side Cutters
Screwdriver
Z904
Z904
Z901
Z901
Z950
Cross Wrench
Z950
Cross Wrench
1
Steering knuckle screws.
2
Chassis screws
Check to make sure these screws
are in good condition.

1
1 2
Z684
Flanged Lock Nut M4
Stoppmutter Mit Flansch M4
Ecrou a collerette M4
フランジロックナットM4
Z684
Flanged Lock Nut M4
Stoppmutter Mit Flansch M4
Ecrou a collerette M4
フランジロックナットM4
Z264
Pin 2x10mm
Stift 2x10mm
Goupille 2x10mm
ピン2x10mm
2
mm
7
mm
Z700
Set Screw M3x3mm
Madenschraube M3x3mm
Vis sans tête M3x3mm
イモネジM3x3mm
Z700 Set Screw M3x3mm Madenschraube M3x3mm Vis sans tête M3x3mm
イモネジM3x3mm
1. 5
mm
7
mm
Transmission Maintenance - Diff Gear
4-2 Wheel Maintenance
Make sure the tires are secured on the wheels. Re-glue if necessary.
Transmission Maintenance
4-3
Use small amount to secure tire.This step is the same for front and rear shock maintenance.
Instant Cement
Allen Wrench
Z904
Z950
Cross Wrench
Glue both sides. 30035 (JP)
Instant Cement
Z950
Cross Wrench
116840
Z663
Z356
Button Head Screw M3x18mm Z663
Lock Nut M3
Stoppmutter
Z354
Button Head Screw M3x12mm
Flachkopfschraube
Vis tête ronde
ナベネジ
Z354
Button Head Screw M3x12mm
Flachkopfschraube
Vis tête ronde
ナベネジ
7
mm
Z950
Cross Wrench

2
3
5.5
mm
116865 Z354
Z354
Button Head Screw M3x12mm
Flachkopfschraube
Vis tête ronde
ナベネジ
Z354
Button Head Screw M3x12mm
Flachkopfschraube
Vis tête ronde
ナベネジ
Z353
Button Head Screw M3x10mm
Flachkopfschraube
Vis tête ronde
ナベネジ
Z676
Lock Nut M3 Thin Type
Stoppmutter M3 (Flach)
Ecrou nysltop M3 (fin)
ロックナットM3薄型
