TEC TECDrive TEC-3 Series User manual

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
1
1
Quick Start Up
TECDrive
User Guide
IP20 & IP66 (NEMA 4X)
AC Variable Speed Drive
0.37 –22kW (0.5 –30HP)
110 –480V
Distributed by TEC Electric Motors www.tecmotors.co.uk/tecdrive

TECDrive TEC-3 User Guide Revision 1.20
2
www.tecmotors.co.uk/tecdrive
1
Quick Start Up
Di and Operating Instructions

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
3
1
Quick Start Up
1. Quick Start Up...................................................................................................................................................................... 5
1.1. Important Safety Information 5
1.2. Quick Start Process 6
1.3. Quick Start Overview 7
2. General Information and Ratings ......................................................................................................................................... 8
2.1. Identifying the Drive by Model Number 8
2.2. Drive Model Numbers 8
3. Mechanical Installation........................................................................................................................................................ 9
3.1. General 9
3.2. UL Compliant Installation 9
3.3. Mechanical Dimensions and Mounting –IP20 Open Units 9
3.4. Guidelines for Enclosure Mounting –IP20 Units 9
3.5. Mechanical Dimensions –IP66 (Nema 4X) Enclosed Units 10
3.6. Guidelines for mounting (IP66 Units) 10
3.7. Gland Plate and Lock Off 11
3.8. Removing the Terminal Cover 11
3.9. Routine Maintenance 11
4. Power & Control Wiring..................................................................................................................................................... 12
4.1. Connection Diagram 12
4.2. Protective Earth (PE) Connection 12
4.3. Incoming Power Connection 13
4.4. Motor Connection 13
4.5. Motor Terminal Box Connections 13
4.6. Control Terminal Wiring 14
4.7. Using the REV/0/FWD Selector Switch (Switched Version Only) 14
4.8. Control Terminal Connections 14
4.9. Motor Thermal overload Protection 15
4.10. EMC Compliant Installation 15
4.11. Optional Brake Resistor 15
5. Operation .......................................................................................................................................................................... 16
5.1. Managing the Keypad 16
5.2. Operating Displays 16
5.3. Changing Parameters 16
5.4. Read Only Parameter Access 16
5.5. Resetting Parameters 16
5.6. Resetting a Fault 16
6. Parameters ........................................................................................................................................................................ 17
6.1. Standard Parameters 17
6.2. Extended Parameters 18
6.3. Advanced Parameters 21
6.4. P-00 Read Only Status Parameters 22
7. Analog and Digital Input Macro Configurations ................................................................................................................. 23
7.1. Overview 23
7.2. Macro Functions Guide Key 23
7.3. Macro Functions –Terminal Mode (P-12 = 0) 23
7.4. Macro Functions - Keypad Mode (P-12 = 1 or 2) 24
7.5. Macro Functions - Fieldbus Control Mode (P-12 = 3, 4, 7, 8 or 9) 24
7.6. Macro Functions - User PI Control Mode (P-12 = 5 or 6) 24
7.7. Fire Mode 25
7.8. Example Connection Diagrams 25
8. Modbus RTU Communications........................................................................................................................................... 26
8.1. Introduction 26
8.2. Modbus RTU Specification 26
8.3. RJ45 Connector Configuration 26
8.4. Modbus Register Map 26
9. Technical Data ................................................................................................................................................................... 27
9.1. Environmental 27
9.2. Rating Tables 27
9.3. Single Phase Operation of Three Phase Drives 27
9.4. Additional Information for UL Compliance 28
9.5. EMC Filter Disconnect 28
10. Trouble Shooting ........................................................................................................................................................... 29
10.1. Fault Code Messages 29

TECDrive TEC-3 User Guide Revision 1.20
4
www.tecmotors.co.uk/tecdrive
1
Quick Start Up
Declaration of Conformity
TEC Electric Motors hereby states that the TECDrive TEC-3 product range conforms to the relevant safety provisions of the following council
directives:
2004/108/EC (EMC) and 2006/95/EC (LVD) (Valid until 20.04.2016)
2014/30/EU (EMC) and 2014/35/EU (LVD) (Valid from 20.04.2016)
Designed and manufacture is in accordance with the following harmonised European standards:
EN 61800-5-1: 2007
Adjustable speed electrical power drive systems. Safety requirements. Electrical, thermal and energy.
EN 61800-3: 2004
/A1 2012
Adjustable speed electrical power drive systems. EMC requirements and specific test methods
EN 55011: 2007
Limits and Methods of measurement of radio disturbance characteristics of industrial, scientific and
medical (ISM) radio-frequency equipment (EMC)
EN60529 : 1992
Specifications for degrees of protection provided by enclosures
Electromagnetic Compatibility
All TECDrive products are designed with high standards of EMC in mind. All versions suitable for operation on Single Phase 230 volt and Three
Phase 400 volt supplies and intended for use within the European Union are fitted with an internal EMC filter. This EMC filter is designed to
reduce the conducted emissions back into the mains supply via the power cables for compliance with the above harmonised European
standards.
It is the responsibility of the installer to ensure that the equipment or system into which the product is incorporated complies with the EMC
legislation of the country of use, and the relevant category. Within the European Union, equipment into which this product is incorporated
must comply with the EMC Directive 2004/108/EC. This User Guide provides guidance to ensure that the applicable standards may be achieved.
All rights reserved. No part of this User Guide may be reproduced or transmitted in any form or by any means, electrical or mechanical including
photocopying, recording or by any information storage or retrieval system without permission in writing from the publisher.
Copyright Invertek Drives Ltd © 2016
All TECDrive units carry a 2 year warranty against manufacturing defects from the date of manufacture. The manufacturer accepts no liability
for any damage caused during or resulting from transport, receipt of delivery, installation or commissioning. The manufacturer also accepts no
liability for damage or consequences resulting from inappropriate, negligent or incorrect installation, incorrect adjustment of the operating
parameters of the drive, incorrect matching of the drive to the motor, incorrect installation, unacceptable dust, moisture, corrosive substances,
excessive vibration or ambient temperatures outside of the design specification.
The local distributor may offer different terms and conditions at their discretion, and in all cases concerning warranty, the local distributor
should be contacted first.
This user guide is the “original instructions” document. All non-English versions are translations of the “original instructions”.
The contents of this User Guide are believed to be correct at the time of printing. In the interest of a commitment to a policy of continuous
improvement, the manufacturer reserves the right to change the specification of the product or its performance or the contents of the User
Guide without notice.
This User Guide is for use with version 3.04 Firmware.
User Guide Revision 1.20
Invertek Drives Ltd adopts a policy of continuous improvement and whilst every effort has been made to provide accurate and up to date
information, the information contained in this User Guide should be used for guidance purposes only and does not form the part of any
contract.
This manual is intended as a guide for proper installation. Invertek Drives Ltd cannot assume responsibility for the compliance
or the non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated
equipment. A hazard of personal injury and/or equipment damage exists if codes are ignored during installation.
This TECDrive contains high voltage capacitors that take time to discharge after removal of the main supply. Before working on
the drive, ensure isolation of the main supply from line inputs. Wait ten (10) minutes for the capacitors to discharge to safe
voltage levels. Failure to observe this precaution could result in severe bodily injury or loss of life.
Only qualified electrical personnel familiar with the construction and operation of this equipment and the hazards involved
should install, adjust, operate, or service this equipment. Read and understand this manual and other applicable manuals in
their entirety before proceeding. Failure to observe this precaution could result in severe bodily injury or loss of life.

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
5
1
Quick Start Up
1. Quick Start Up
1.1. Important Safety Information
Please read the IMPORTANT SAFETY INFORMATION below, and all Warning and Caution information elsewhere.
Danger: Indicates a risk of electric shock, which, if not
avoided, could result in damage to the equipment and
possible injury or death.
Danger: Indicates a potentially hazardous situation
other than electrical, which if not avoided, could
result in damage to property.
This variable speed drive product (TECDrive) is intended for professional incorporation into complete equipment or systems as
part of a fixed installation. If installed incorrectly it may present a safety hazard. The TECDrive uses high voltages and currents,
carries a high level of stored electrical energy, and is used to control mechanical plant that may cause injury. Close attention is
required to system design and electrical installation to avoid hazards in either normal operation or in the event of equipment
malfunction. Only qualified electricians are allowed to install and maintain this product.
System design, installation, commissioning and maintenance must be carried out only by personnel who have the necessary
training and experience. They must carefully read this safety information and the instructions in this Guide and follow all
information regarding transport, storage, installation and use of the TECDrive, including the specified environmental limitations.
Do not perform any flash test or voltage withstand test on the TECDrive. Any electrical measurements required should be carried
out with the TECDrive disconnected.
Electric shock hazard! Disconnect and ISOLATE the TECDrive before attempting any work on it. High voltages are present at the
terminals and within the drive for up to 10 minutes after disconnection of the electrical supply. Always ensure by using a suitable
multi-meter that no voltage is present on any drive power terminals prior to commencing any work.
Where supply to the drive is through a plug and socket connector, do not disconnect until 10 minutes have elapsed after turning
off the supply.
Ensure correct earthing connections. The earth cable must be sufficient to carry the maximum supply fault current which
normally will be limited by the fuses or MCB. Suitably rated fuses or MCB should be fitted in the mains supply to the drive,
according to any local legislation or codes.
Ensure correct earthing connections and cable selection as per defined by local legislation or codes. The drive may have a
leakage current of greater than 3.5mA; furthermore the earth cable must be sufficient to carry the maximum supply fault current
which normally will be limited by the fuses or MCB. Suitably rated fuses or MCB should be fitted in the mains supply to the drive,
according to any local legislation or codes.
Do not carry out any work on the drive control cables whilst power is applied to the drive or to the external control circuits.
Within the European Union, all machinery in which this product is used must comply with Directive 2006/42/EC, Safety of
Machinery. In particular, the machine manufacturer is responsible for providing a main switch and ensuring the electrical
equipment complies with EN60204-1.
The level of integrity offered by the TECDrive control input functions –for example stop/start, forward/reverse and maximum
speed is not sufficient for use in safety-critical applications without independent channels of protection. All applications where
malfunction could cause injury or loss of life must be subject to a risk assessment and further protection provided where needed.
The driven motor can start at power up if the enable input signal is present.
The STOP function does not remove potentially lethal high voltages. ISOLATE the drive and wait 10 minutes before starting any
work on it. Never carry out any work on the Drive, Motor or Motor cable whilst the input power is still applied.
The TECDrive can be programmed to operate the driven motor at speeds above or below the speed achieved when connecting
the motor directly to the mains supply. Obtain confirmation from the manufacturers of the motor and the driven machine about
suitability for operation over the intended speed range prior to machine start up.
Do not activate the automatic fault reset function on any systems whereby this may cause a potentially dangerous situation.
IP20 drives must be installed in a pollution degree 2 environment, mounted in a cabinet with IP54 or better.
TECDrives are intended for indoor use only.
When mounting the drive, ensure that sufficient cooling is provided. Do not carry out drilling operations with the drive in place,
dust and swarf from drilling may lead to damage.
The entry of conductive or flammable foreign bodies should be prevented. Flammable material should not be placed close to the
drive
Relative humidity must be less than 95% (non-condensing).
Ensure that the supply voltage, frequency and no. of phases (1 or 3 phase) correspond to the rating of the TECDrive as delivered.
Never connect the mains power supply to the Output terminals U, V, W.
Do not install any type of automatic switchgear between the drive and the motor
Wherever control cabling is close to power cabling, maintain a minimum separation of 100 mm and arrange crossings at 90
degrees
Ensure that all terminals are tightened to the appropriate torque setting
Do not attempt to carry out any repair of the TECDrive. In the case of suspected fault or malfunction, contact your local Invertek
Drives Sales Partner for further assistance.

TECDrive TEC-3 User Guide Revision 1.20
6
www.tecmotors.co.uk/tecdrive
1
Quick Start Up
1.2. Quick Start Process
Step
Action
See Section
Page
1
Identify the Enclosure Type, Model Type and ratings of
your drive from the model code on the label. In particular
-Check the voltage rating suits the incoming supply
-Check the output current capacity meets or exceeds
the full load current for the intended motor
2.1
Identifying the Drive by Model Number
8
2
Unpack and check the drive. Notify the supplier and
shipper immediately of any damage.
3
Ensure correct ambient and environmental conditions for
the drive are met by the proposed mounting location.
9.1
Environmental
27
4
Install the drive in a suitable cabinet (IP20 Units) ensuring
suitable cooling air is available. Mount the drive to the
wall or machine (IP66).
3.1
3.3
3.4
3.5
3.6
General
Mechanical Dimensions and Mounting –IP20 Open Units
Guidelines for Enclosure Mounting –IP20 Units
Mechanical Dimensions –IP66 (Nema 4X) Enclosed Units
Guidelines for mounting (IP66 Units)
9
9
9
10
5
Select the correct power and motor cables according to
local wiring regulations or code, noting the maximum
permissible sizes
9.2
Rating Tables
27
6
If the supply type is IT or corner grounded, disconnect the
EMC filter before connecting the supply.
9.5
EMC Filter Disconnect
28
7
Check the supply cable and motor cable for faults or short
circuits.
8
Route the cables
9
Check that the intended motor is suitable for use, noting
any precautions recommended by the supplier or
manufacturer.
4.10
EMC Compliant Installation
15
10

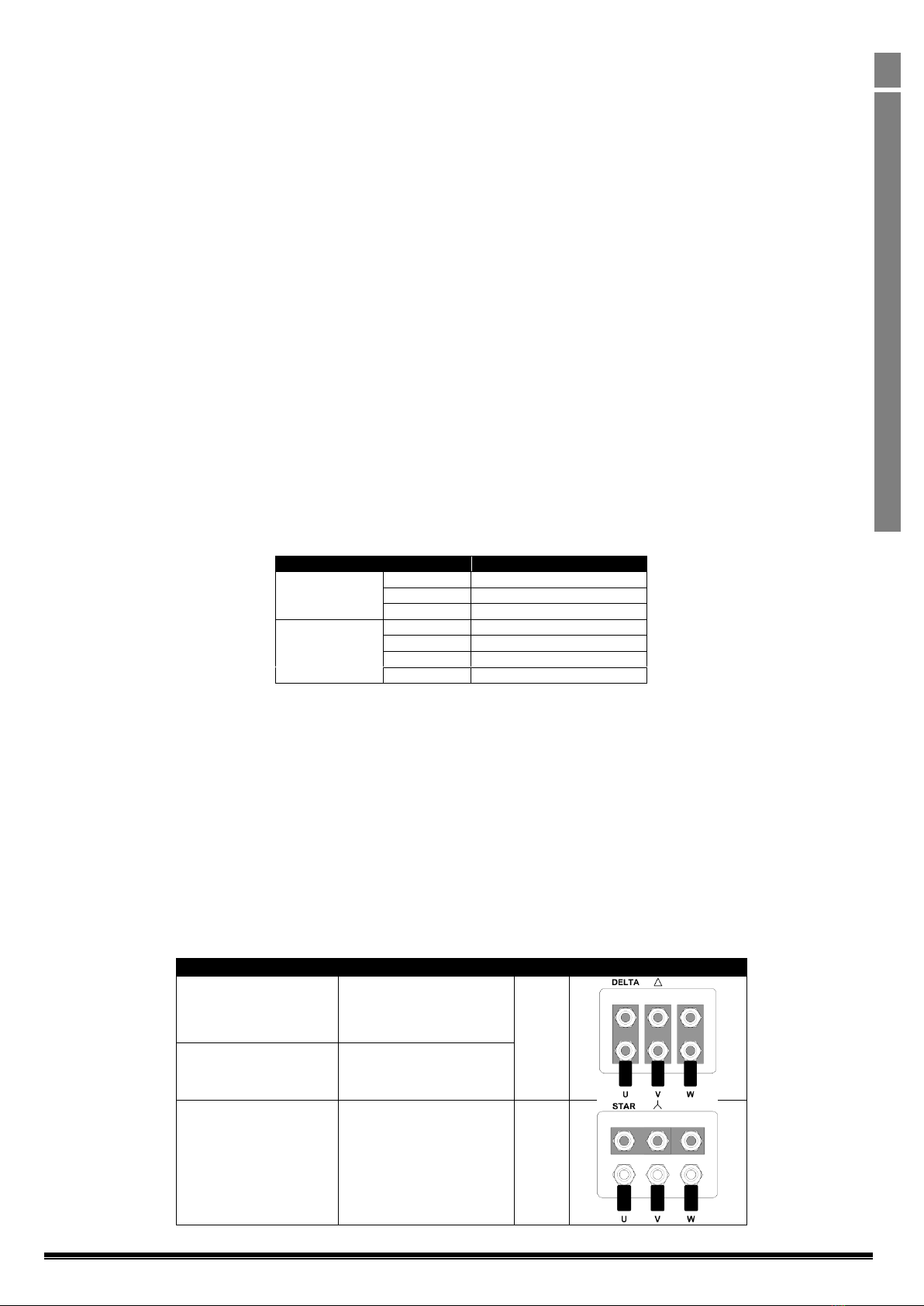

Check the motor terminal box for correct Star or Delta
configuration where applicable
4.5
Motor Terminal Box Connections
13
11
Ensure suitable wiring protection is providing, by installing
a suitable circuit breaker or fuses in the incoming supply
line
4.3.2
9.2
Fuse / Circuit Breaker Selection
Rating Tables
13
27
12
Connect the power cables, especially ensuring the
protective earth connection is made
4.1
4.2
4.3
4.4

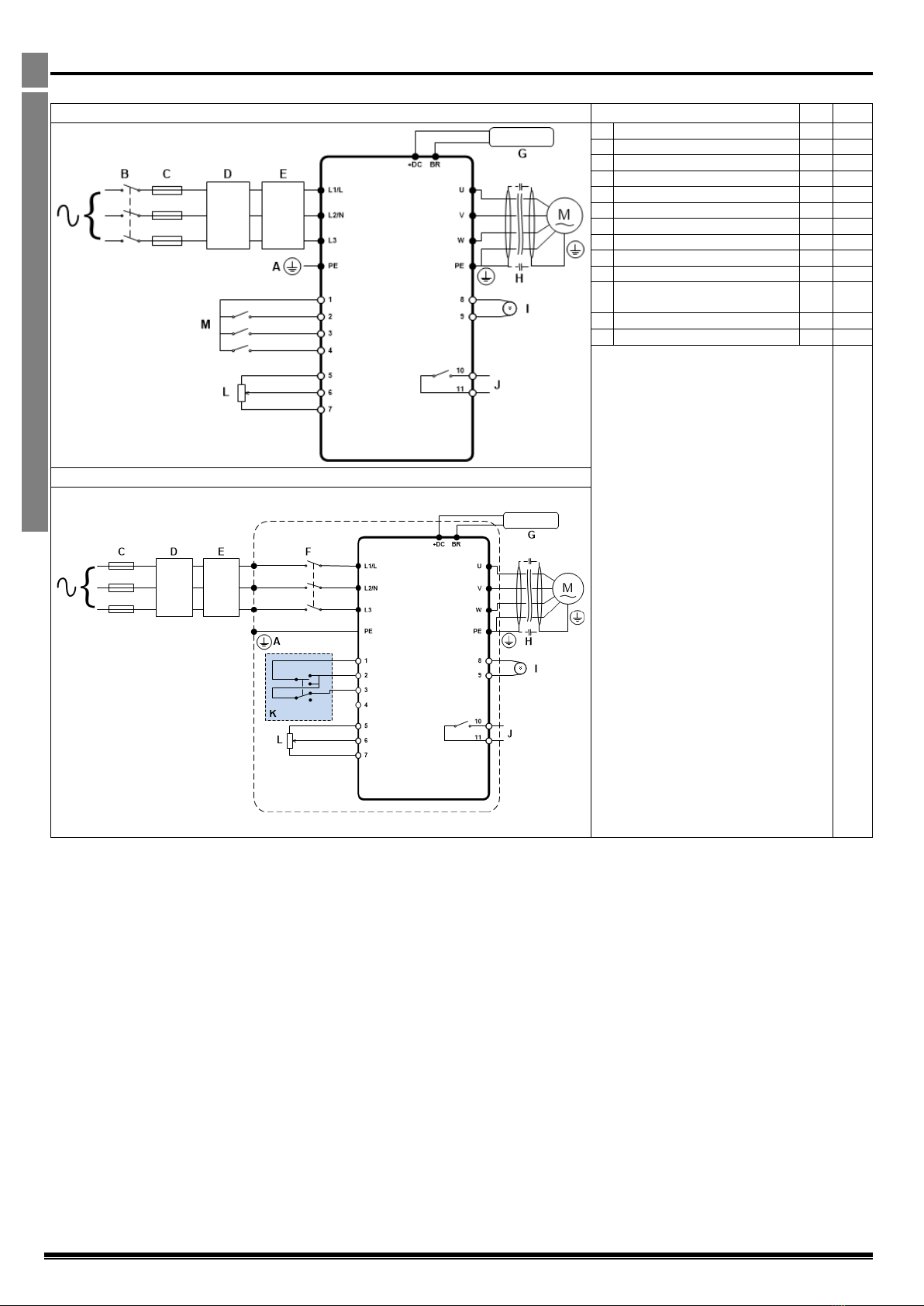

Connection Diagram
Protective Earth (PE) Connection
Incoming Power Connection
Motor Connection
12
12
13
13
13
Connect the control cables as required for the application
4.6
4.10
7
7.8
Control Terminal Wiring
EMC Compliant Installation
Analog and Digital Input Macro Configurations
Example Connection Diagrams
14
15
23
25
14
Thoroughly check the installation and wiring
15
Commission the drive parameters
5.1
6
Managing the Keypad
Parameters
16
17
1.3. Installation Following a Period of Storage
If the drive has not been powered, either unused or in storage, the DC Link Capacitors require reforming before power may be connected to the
drive. Refer to your local sales partner for information regarding the correct procedure.

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
7
1
Quick Start Up
1.4. Quick Start Overview
Quick Start –IP20 & IP66 Non Switched
•Connect a Start / Stop switch between control terminals 1 & 2
oClose the Switch to Start
oOpen to Stop

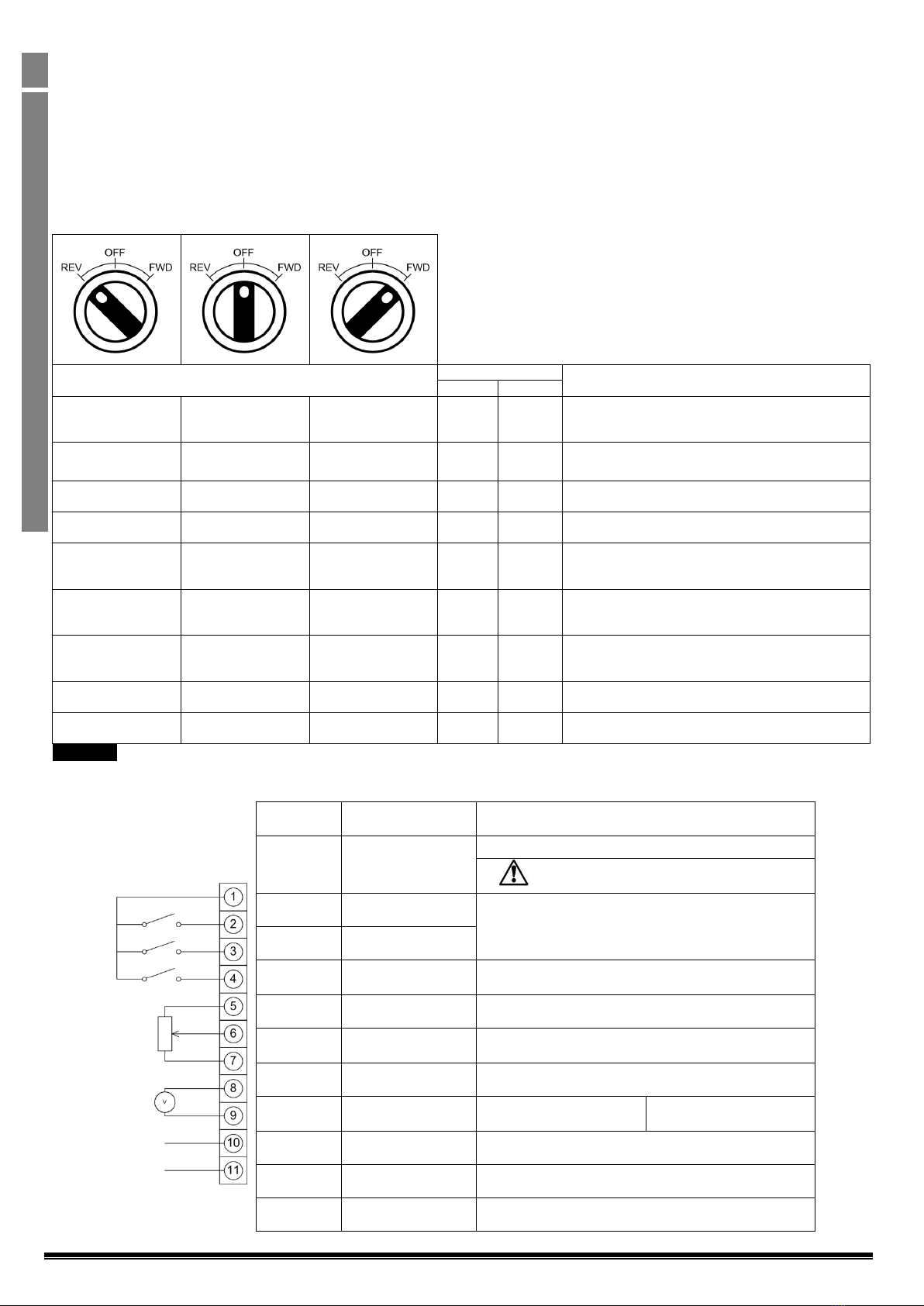

•Connect a potentiometer (5k –10kΩ) between terminals 5, 6 and 7 as shown
oAdjust the potentiometer to vary the speed from P-02 (0Hz default) to P-01 (50 / 60 Hz
default)
Quick Start –IP66 Switched
Switch the mains power on to the unit using the built in isolator switch on the front panel.
The OFF/REV/FWD will enable the
output and control the direction of
rotation of the motor.
The potentiometer will control the motor shaft rotational speed.

TECDrive TEC-3 User Guide Revision 1.20
8
www.tecmotors.co.uk/tecdrive
2
General Information and Ratings
2. General Information and Ratings
This chapter contains information about the TECDrive E3 including how to identify the drive
2.1. Identifying the Drive by Model Number
Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the drive
nameplate. The model number includes the drive and any options.
TEC
-
3
-
1
2
0021
-
1
F
1
2
Product Family
IP Rating
2 = IP20
X = IP66 Non Switched
Y = IP66 Switched
Generation
Dynamic Brake
Transistor
1 = Not Fitted
4 = Internal Transistor
Frame Size
Filter Type
0 = No Filter
F = Internal EMC Filter
Input Voltage
1 = 110 –115
2 = 200 –240
4 = 380 - 480
No. Of Input Phases
Output Current x 10
2.2. Drive Model Numbers
110 –115V + / - 10% - 1Phase Input –3 Phase 230V Output (Voltage Doubler)
Model Number
kW
HP
Output
Current (A)
Frame
Size
With Filter
Without Filter
N/A
TEC-3-110023-101#
0.5
2.3
1
N/A
TEC-3-110043-101#
1
4.3
1
N/A
TEC-3-210058-104#
1.5
5.8
2
200 –240V + / - 10% - 1Phase Input –3 Phase Output
Model Number
kW
HP
Output
Current (A)
Frame
Size
With Filter
Without Filter
TEC-3-120023-1F1#
TEC-3-120023-101#
0.37
0.5
2.3
1
TEC-3-120043-1F1#
TEC-3-120043-101#
0.75
1
4.3
1
TEC-3-120070-1F1#
TEC -3-120070-101#
1.5
2
7
1
TEC-3-220070-1F4#
TEC-3-220070-104#
1.5
2
7
2
TEC-3-220105-1F4#
TEC-3-220105-104#
2.2
3
10.5
2
N/A
TEC-3-320153-104#
4.0
5
15.3
3
200 –240V + / - 10% - 3Phase Input –3 Phase Output
Model Number
kW
HP
Output
Current (A)
Frame
Size
With Filter
Without Filter
N/A
TEC-3-120023-301#
0.37
0.5
2.3
1
N/A
TEC-3-120043-301#
0.75
1
4.3
1
N/A
TEC-3-120070-301#
1.5
2
7
1
TEC-3-220070-3F4#
TEC-3-220070-304#
1.5
2
7
2
TEC-3-220105-3F4#
TEC-3-220105-304#
2.2
3
10.5
2
TEC-3-320180-3F4#
TEC-3-320180-304#
4.0
5
18
3
TEC-3-320240-3F4#
TEC-3-320240-304#
5.5
7.5
24
3
TEC-3-420300-3F4#
TEC-3-420300-304#
7.5
10
30
4
TEC-3-420460-3F4#
TEC-3-420460-304#
11
15
46
4
380 –480V + / - 10% - 3Phase Input –3 Phase Output
Model Number
kW
HP
Output
Current (A)
Frame
Size
With Filter
Without Filter
TEC-3-140022-3F1#
TEC-3-140022-301#
0.75
1
2.2
1
TEC-3-140041-3F1#
TEC-3-140041-301#
1.5
2
4.1
1
TEC-3-240041-3F4#
TEC-3-240041-304#
1.5
2
4.1
2
TEC-3-240058-3F4#
TEC-3-240058-304#
2.2
3
5.8
2
TEC-3-240095-3F4#
TEC-3-240095-304#
4
5
9.5
2
TEC-3-340140-3F4#
TEC-3-340140-304#
5.5
7.5
14
3
TEC-3-340180-3F4#
TEC-3-340180-304#
7.5
10
18
3
TEC-3-340240-3F42
TEC-3-340240-3042
11
15
24
3
TEC-3-440300-3F42
TEC-3-440300-3042
15
20
30
4
TEC-3-440390-3F42
TEC-3-440390-3042
18.5
25
39
4
TEC-3-440460-3F42
TEC-3-440460-3042
22
30
46
4
NOTE
For IP20 units, replace ‘#’ with ‘2’
For IP66 Non Switched Units, replace ‘#’ with ‘X’
For IP66 Switched Units, replace ‘#’ with ‘Y’

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
9
3
Mechanical Installation
3. Mechanical Installation
3.1. General
The TECDrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral mounting holes
or DIN Rail clip (Frame Sizes 1 and 2 only).
IP20 TECDrives must be installed in a pollution degree 1 or 2 environment only.
Do not mount flammable material close to the TECDrive
Ensure that the minimum cooling air gaps, as detailed in section 3.5 and 3.7 are left clear
Ensure that the ambient temperature range does not exceed the permissible limits for the TECDrive given in section 9.1
Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the TECDrive
3.2. UL Compliant Installation
Refer to section 9.4 on page 28 for Additional Information for UL Compliance.
3.3. Mechanical Dimensions and Mounting –IP20 Open Units
Drive
Size
A
B
C
D
E
F
Weight
Weight
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
Kg
Kg
1
173
6.81
83
3.27
123
4.84
162
6.38
50
1.97
50
1.97
1.0
1.0
2
221
8.70
110
4.33
150
5.91
209
8.23
63
2.48
63
2.48
1.7
1.7
3
261
10.28
131
5.16
175
6.89
247
9.72
80
3.15
80
3.15
3.2
3.2
4
420
16.54
171
6.73
212
8.35
400
15.75
125
4.92
125
4.92
9.1
9.1
Mounting Bolts
Frame Size 1 - 3
4 x M5 (#8)
Frame Size 4
4 x M8
Tightening Torques
Frame Sizes 1 –3
Control Terminals
0.5 Nm (4.5 lb-in)
Power Terminals
1 Nm (9 lb-in)
Frame Size 4
Control Terminals
0.5 Nm (4.5 lb-in)
Power Terminals
2 Nm (18 lb-in)
3.4. Guidelines for Enclosure Mounting –IP20 Units
IP20 drives are suitable for use in pollution degree 1 environments, according to IEC-664-1. For pollution degree 2 or higher environments,
drives should be mounted in a suitable control cabinet with sufficient ingress protection to maintain a pollution degree 1 environment around
the drive.
Enclosures should be made from a thermally conductive material.
Ensure the minimum air gap clearances around the drive as shown below are observed when mounting the drive.
Where ventilated enclosures are used, there should be venting above the drive and below the drive to ensure good air circulation. Air should be
drawn in below the drive and expelled above the drive.
In any environments where the conditions require it, the enclosure must be designed to protect the TECDrive against ingress of airborne dust,
corrosive gases or liquids, conductive contaminants (such as condensation, carbon dust, and metallic particles) and sprays or splashing water
from all directions.
High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
The enclosure design and layout should ensure that the adequate ventilation paths and clearances are left to allow air to circulate through the
drive heatsink. Invertek Drives recommend the following minimum sizes for drives mounted in non-ventilated metallic enclosures:-
Drive
Size
X
Above &
Below
Y
Either
Side
Z
Between
Recommended
airflow
mm
in
mm
in
mm
in
CFM (ft3/min)
1
50
1.97
50
1.97
33
1.30
11
2
75
2.95
50
1.97
46
1.81
22
3
100
3.94
50
1.97
52
2.05
60
4
100
3.94
50
1.97
52
2.05
120
Note :
Dimension Z assumes that the drives are mounted side-by-side with
no clearance.
Typical drive heat losses are 3% of operating load conditions.
Above are guidelines only and the operating ambient temperature of
the drive MUST be maintained at all times.

TECDrive TEC-3 User Guide Revision 1.20
10
www.tecmotors.co.uk/tecdrive
3
Mechanical Installation
3.5. Mechanical Dimensions –IP66 (Nema 4X) Enclosed Units
Drive Size
A
B
D
E
F
G
H
I
J
Weight
mm
in
mm
in
mm
in
mm
in
mm
In
mm
in
mm
in
mm
in
mm
in
kg
lb
1
232.0
9.13
207.0
8.15
189.0
7.44
25.0
0.98
179.0
7.05
161.0
6.34
148.5
5.85
4.0
0.16
8.0
0.31
3.1
6.8
2
257.0
10.12
220.0
8.67
200.0
7.87
28.5
1.12
187.0
7.36
188.0
7.40
176.0
6.93
4.2
0.17
8.5
0.33
4.1
9.0
3
310.0
12.20
276.5
10.89
251.5
9.90
33.4
1.31
252
9.92
211.0
8.30
197.5
7.78
4.2
0.17
8.5
0.33
7.6
16.7
Mounting Bolts
All Frame Sizes
4 x M4 (#8)
Tightening Torques
All Frame Sizes
Control Terminals
0.5 Nm (4.5 lb-in)
Power Terminals
1 Nm (9 lb-in)
3.6. Guidelines for mounting (IP66 Units)
Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in section 9.1
The drive must be mounted vertically, on a suitable flat surface
The minimum mounting clearances as shown in the table below must be observed
The mounting site and chosen mountings should be sufficient to support the weight of the drives
Using the drive as a template, or the dimensions shown above, mark the locations required for drilling
Suitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are pre-moulded into
the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as required.
Drive Size
X Above & Below
Y Either Side
mm
in
mm
in
1
200
7.87
10
0.39
2
200
7.87
10
0.39
3
200
7.87
10
0.39
Note:
Typical drive heat losses are approximately 3% of operating load
conditions.
Above are guidelines only and the operating ambient temperature of
the drive MUST be maintained at all times.
Cable Gland Sizes
Drive Size
Power Cable
Motor Cable
Control Cables
1
M20 (PG13.5)
M20 (PG13.5)
M20 (PG13.5)
2
M25 (PG21)
M25 (PG21)
M20 (PG13.5)
3
M25 (PG21)
M25 (PG21)
M20 (PG13.5)

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
11
3
Mechanical Installation
3.7. Gland Plate and Lock Off
The use of a suitable gland system is required to maintain the appropriate IP / Nema rating. The gland plate has pre moulded cable entry
holes for power and motor connections suitable for use with glands as shown in the following table. Where additional holes are required,
these can be drilled to suitable size. Please take care when drilling to avoid leaving any particles within the product.
Cable Gland recommended Hole Sizes & types:
Power & Motor Cables
Control & Signal Cables
Moulded Hole
Size
Imperial Gland
Metric Gland
Knockout Size
Imperial Gland
Metric Gland
Size 1
22mm
PG13.5
M20
22mm
PG13.5
M20
Size 2 & 3
27mm
PG21
M25
22mm
PG13.5
M20
Flexible Conduit Hole Sizes:
Drill Size
Trade Size
Metric
Size 1
28mm
¾ in
21
Size 2 & 3
35mm
1 in
27
•UL rated ingress protection ("Type" ) is only met when cables are installed using a UL recognized bushing or fitting for a flexible-
conduit system which meets the required level of protection ("Type")
•For conduit installations the conduit entry holes require standard opening to the required sizes specified per the NEC
•Not intended for installation using rigid conduit system
Power Isolator Lock Off
On the switched models the main power isolator switch can be locked in the ‘Off’ position using a 20mm standard shackle padlock (not
supplied).
IP66 / Nema 4X Gland Plate
IP66 / Nema 4X Unit Lock Off
3.8. Removing the Terminal Cover
To access the connection terminals, the drive front cover needs to be removed as shown.
IP66 / Nema 4X Units
Removing the 2 screws on the front of the product allows access to the connection terminals, as shown below.
3.9. Routine Maintenance
The drive should be included within the scheduled maintenance program so that the installation maintains a suitable operating environment,
this should include:
•Ambient temperature is at or below that set out in the “Environment” section.
•Heat sink fans freely rotating and dust free.
•The Enclosure in which the drive is installed should be free from dust and condensation; furthermore ventilation fans and air filters
should be checked for correct air flow.
Checks should also be made on all electrical connections, ensuring screw terminals are correctly torqued; and that power cables have no signs
of heat damage.

TECDrive TEC-3 User Guide Revision 1.20
12
www.tecmotors.co.uk/tecdrive
4
Power & Control Wiring
4. Power & Control Wiring
4.1. Connection Diagram
4.1.1. IP20 & IP66 (Nema 4X) Non- Switched Units
Key
Sec.
Page
A
Protective Earth (PE) Connection
4.2
12
B
Incoming Power Connection
4.3
13
C
Fuse / Circuit Breaker Selection
4.3.2
13
D
Optional Input Choke
4.3.3
13
E
Optional External EMC Filter
4.10
15
F
Internal Disconnect / Isolator
4.3
13
G
Optional Brake Resistor
4.11
15
H
Motor Connection
I
Analog Output
4.8.1
15
J
Relay Output
4.8.2
15
K
Using the REV/0/FWD Selector
Switch (Switched Version Only)
4.7
14
L
Analog Inputs
4.8.3
15
M
Digital Inputs
4.8.4
15
4.1.2. IP66 (Nema 4X) Switched Units
4.2. Protective Earth (PE) Connection
Grounding Guidelines
The ground terminal of each TECDrive should be individually connected DIRECTLY to the site ground bus bar (through the filter if installed).
TECDrive ground connections should not loop from one drive to another, or to, or from any other equipment. Ground loop impedance must
confirm to local industrial safety regulations. To meet UL regulations, UL approved ring crimp terminals should be used for all ground wiring
connections.
The drive Safety Ground must be connected to system ground. Ground impedance must conform to the requirements of national and local
industrial safety regulations and/or electrical codes. The integrity of all ground connections should be checked periodically.
Protective Earth Conductor
The Cross sectional area of the PE Conductor must be at least equal to that of the incoming supply conductor.
Safety Ground
This is the safety ground for the drive that is required by code. One of these points must be connected to adjacent building steel (girder, joist), a
floor ground rod, or bus bar. Grounding points must comply with national and local industrial safety regulations and/or electrical codes.
Motor Ground
The motor ground must be connected to one of the ground terminals on the drive.
Ground Fault Monitoring
As with all inverters, a leakage current to earth can exist. The TECDrive is designed to produce the minimum possible leakage current whilst
complying with worldwide standards. The level of current is affected by motor cable length and type, the effective switching frequency, the
earth connections used and the type of RFI filter installed. If an ELCB (Earth Leakage Circuit Breaker) is to be used, the following conditions
apply: -
•A Type B Device must be used
•The device must be suitable for protecting equipment with a DC component in the leakage current
•Individual ELCBs should be used for each TECDrive

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
13
4
Power & Control Wiring
Shield Termination (Cable Screen)
The safety ground terminal provides a grounding point for the motor cable shield. The motor cable shield connected to this terminal (drive end)
should also be connected to the motor frame (motor end). Use a shield terminating or EMI clamp to connect the shield to the safety ground
terminal.
4.3. Incoming Power Connection
4.3.1. Cable Selection
•For 1 phase supply, the mains power cables should be connected to L1/L, L2/N.
•For 3 phase supplies, the mains power cables should be connected to L1, L2, and L3. Phase sequence is not important.
•For compliance with CE and C Tick EMC requirements, refer to section 4.10 EMC Compliant Installation on page 15.
•A fixed installation is required according to IEC61800-5-1 with a suitable disconnecting device installed between the TECDrive and the AC
Power Source. The disconnecting device must conform to the local safety code / regulations (e.g. within Europe, EN60204-1, Safety of
machinery).
•The cables should be dimensioned according to any local codes or regulations. Maximum dimensions are given in section 9.2.
4.3.2. Fuse / Circuit Breaker Selection
•Suitable fuses to provide wiring protection of the input power cable should be installed in the incoming supply line, according to the data in
section 9.2 Rating Tables. The fuses must comply with any local codes or regulations in place. In general, type gG (IEC 60269) or UL type J
fuses are suitable; however in some cases type aR fuses may be required. The operating time of the fuses must be below 0.5 seconds.
•Where allowed by local regulations, suitably dimensioned type B MCB circuit breakers of equivalent rating may be utilised in place of fuses,
providing that the clearing capacity is sufficient for the installation.
•The maximum permissible short circuit current at the TECDrive Power terminals as defined in IEC60439-1 is 100kA.
4.3.3. Optional Input Choke
•An optional Input Choke is recommended to be installed in the supply line for drives where any of the following conditions occur:-
oThe incoming supply impedance is low or the fault level / short circuit current is high
oThe supply is prone to dips or brown outs
oAn imbalance exists on the supply (3 phase drives)
oThe power supply to the drive is via a busbar and brush gear system (typically overhead Cranes).
•In all other installations, an input choke is recommended to ensure protection of the drive against power supply faults. Part numbers are
shown in the table.
Supply
Frame Size
AC Input Inductor
230 Volt
1 Phase
1
OPT-2-L1016-20
2
OPT-2-L1025-20
3
N/A
400 Volt
3 Phase
2
OPT-2-L3006-20
2
OPT-2-L3010-20
3
OPT-2-L3036-20
4
OPT-2-L3050-20
4.4. Motor Connection
•The drive inherently produces fast switching of the output voltage (PWM) to the motor compared to the mains supply, for motors which
have been wound for operation with a variable speed drive then there is no preventative measures required, however if the quality of
insulation is unknown then the motor manufacturer should be consulted and preventative measures may be required.
•The motor should be connected to the TECDrive U, V, and W terminals using a suitable 3 or 4 core cable. Where a 3 core cable is utilised,
with the shield operating as an earth conductor, the shield must have a cross sectional area at least equal to the phase conductors when
they are made from the same material. Where a 4 core cable is utilised, the earth conductor must be of at least equal cross sectional area
and manufactured from the same material as the phase conductors.
•The motor earth must be connected to one of the TECDrive earth terminals.
•Maximum permitted motor cable length for all models: 100 metres shielded, 150 metres unshielded.
4.5. Motor Terminal Box Connections
Most general purpose motors are wound for operation on dual voltage supplies. This is indicated on the nameplate of the motor. This
operational voltage is normally selected when installing the motor by selecting either STAR or DELTA connection. STAR always gives the higher
of the two voltage ratings.
Incoming Supply Voltage
Motor Nameplate Voltages
Connection
230
230 / 400
Delta
400
400 / 690
400
230 / 400
Star

TECDrive TEC-3 User Guide Revision 1.20
14
www.tecmotors.co.uk/tecdrive
4
Power & Control Wiring
4.6. Control Terminal Wiring
•All analog signal cables should be suitably shielded. Twisted pair cables are recommended.
•Power and Control Signal cables should be routed separately where possible, and must not be routed parallel to each other.
•Signal levels of different voltages e.g. 24 Volt DC and 110 Volt AC, should not be routed in the same cable.
•Maximum control terminal tightening torque is 0.5Nm.
•Control Cable entry conductor size: 0.05 –2.5mm2/ 30 –12 AWG.
4.7. Using the REV/0/FWD Selector Switch (Switched Version Only)
By adjusting the parameter settings the TECDrive can be configured for multiple applications and not just for Forward or Reverse.
This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries.
Switch Position
Parameters to Set
Notes
P-12
P-15
Run Reverse
STOP
Run Forward
0
0
Factory Default Configuration
Run Forward or Reverse with speed controlled from the
Local POT
STOP
STOP
Run Forward
0
5,7
Run forward with speed controlled form the local POT
Run Reverse - disabled
Preset Speed 1
STOP
Run Forward
0
1
Run Forward with speed controlled from the Local POT
Preset Speed 1 provides a ‘Jog’ Speed set in P-20
Run Reverse
STOP
Run Forward
0
6, 8
Run Forward or Reverse with speed controlled from the
Local POT
Run in Auto
STOP
Run in Hand
0
4
Run in Hand –Speed controlled from the Local POT
Run in Auto 0 Speed controlled using Analog input 2 e.g.
from PLC with 4-20mA signal.
Run in Speed Control
STOP
Run in PI Control
5
1
In Speed Control the speed is controlled from the Local
POT
In PI Control, Local POT controls PI set point
Run in Preset Speed
Control
STOP
Run in PI Control
5
0, 2, 4,5,
8..12
In Preset Speed Control, P-20 sets the Preset Speed
In PI Control, POT can control the PI set point
(P-44=1)
Run in Hand
STOP
Run in Auto
3
6
Hand –speed controlled from the Local POT
Auto –Speed Reference from Modbus
Run in Hand
STOP
Run in Auto
3
3
Hand –Speed reference from Preset Speed 1 (P-20)
Auto –Speed Reference from Modbus
NOTE
To be able to adjust parameter P-15, extended menu access must be set in P-14 (default value is 101)
4.8. Control Terminal Connections
Default Connections
Control
Terminal
Signal
Description
1
+24Vdc User Output
+24Vdc user output, 100mA.
Do not connect an external voltage source to
this terminal.
2
Digital Input 1
Positive logic
“Logic 1” input voltage range: 8V … 30V DC
“Logic 0” input voltage range: 0V … 4V DC
3
Digital Input 2
4
Digital Input 3 /
Analog Input 2
Digital: 8 to 30V
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
5
+10V User Output
+10V, 10mA, 1kΩ minimum
6
Analog Input 1 /
Digital Input 4
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
Digital: 8 to 30V
7
0V
0 Volt Common, internally connected to terminal 9
8
Analog Output /
Digital Output
Analog: 0 to 10V,
Digital: 0 to 24V
20mA maximum
9
0V
0 Volt Common, internally connected to terminal 7
10
Relay Common
11
Relay NO Contact
Contact 250Vac, 6A / 30Vdc, 5A

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
15
4
Power & Control Wiring
4.8.1. Analog Output
The analog output function may be configured using parameter P-25, which is described in section 6.2 Extended Parameters on page 18.
The output has two operating modes, dependent on the parameter selection.
•Analog Mode
oThe output is a 0 –10 volt DC signal, 20mA max load current
•Digital Mode
oThe output is 24 volt DC, 20mA max load current
4.8.2. Relay Output
The relay output function may be configured using parameter P-18, which is described in section 6.2 Extended Parameters on page 18.
4.8.3. Analog Inputs
Two analog inputs are available, which may also be used as Digital Inputs if required. The signal formats are selected by parameters as follows
•Analog Input 1 Format Selection Parameter P-16
•Analog Input 2 Format Selection Parameter P-47
These parameters are described more fully in section 6.2 Extended Parameters on page 18.
The function of the analog input, e.g. for speed reference or PID feedback for example is defined by parameters P-15. The function of these
parameters and available options is described in section 7 Analog and Digital Input Macro Configurations on page 23.
4.8.4. Digital Inputs
Up to four digital inputs are available. The function of the inputs is defined by parameters P-12 and P-15, which are explained in section 7
Analog and Digital Input Macro Configurations on page 23.
4.9. Motor Thermal overload Protection
4.9.1. Internal Thermal Overload Protection
The drive has an in-built motor thermal overload function; this is in the form of an “I.t-trP” trip after delivering >100% of the value set in P-08
for a sustained period of time (e.g. 150% for 60 seconds).

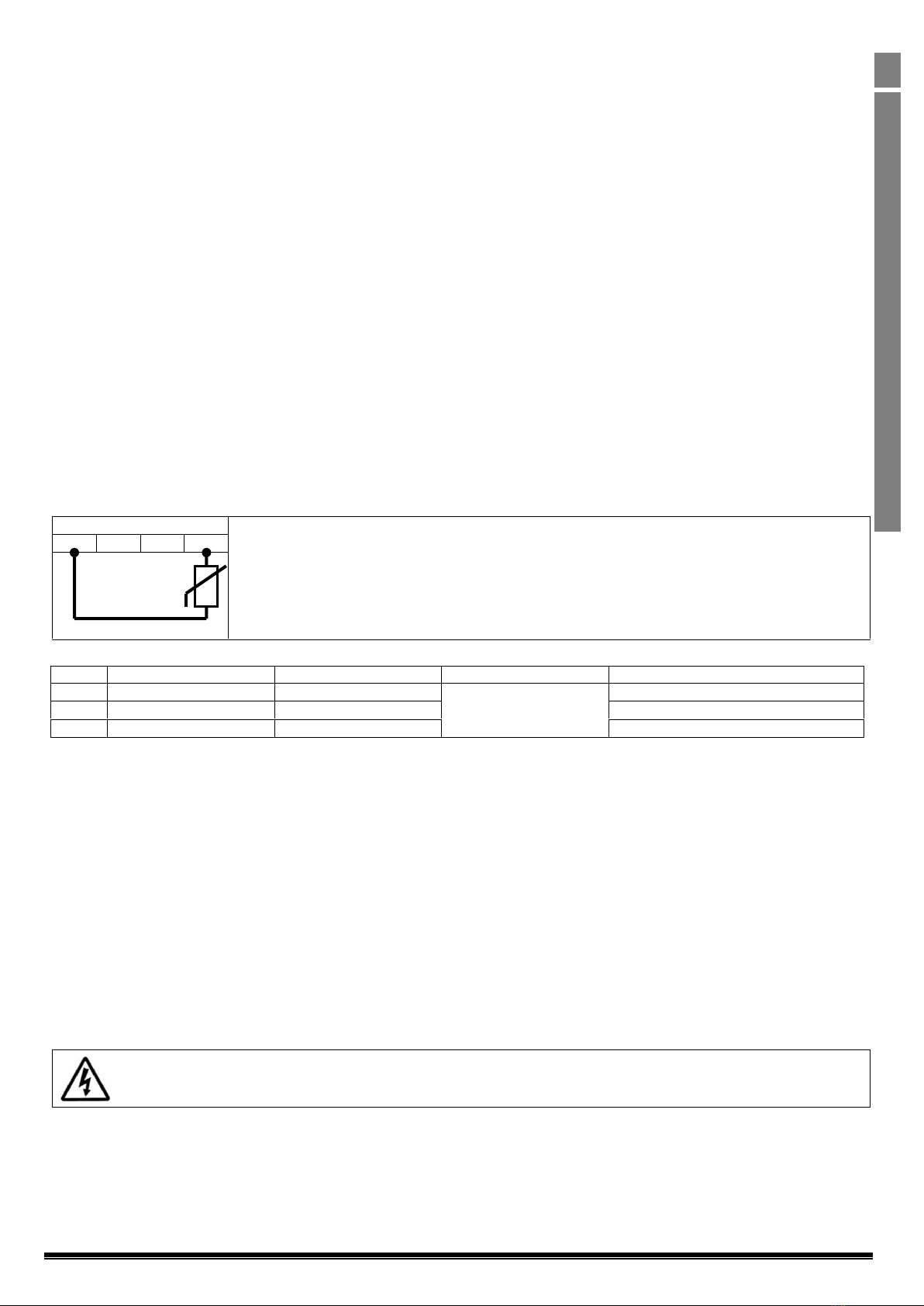

4.9.2. Motor Thermistor Connection
Where a motor thermistor is to be used, it should be connected as follows:-
Control Terminal Strip
Additional Information
•Compatible Thermistor : PTC Type, 2.5kΩtrip level
•Use a setting of P-15 that has Input 3 function as External Trip, e.g. P-15 = 3. Refer to section 7 for
further details.
•Set P-47 = “"
1
2
3
4
4.10. EMC Compliant Installation
Category
Supply Cable Type
Motor Cable Type
Control Cables
Maximum Permissible Motor Cable Length
C16
Shielded1
Shielded1,5
Shielded4
1M / 5M7
C2
Shielded2
Shielded1, 5
5M / 25M7
C3
Unshielded3
Shielded2
25M / 100M7
1/ A screened (shielded) cable suitable for fixed installation with the relevant mains voltage in use. Braided or twisted type screened cable
where the screen covers at least 85% of the cable surface area, designed with low impedance to HF signals. Installation of a standard cable
within a suitable steel or copper tube is also acceptable.
2/ A cable suitable for fixed installation with relevant mains voltage with a concentric protection wire. Installation of a standard cable within a
suitable steel or copper tube is also acceptable.
3/ A cable suitable for fixed installation with relevant mains voltage. A shielded type cable is not necessary.
4/ A shielded cable with low impedance shield. Twisted pair cable is recommended for analog signals.
5/ The cable screen should be terminated at the motor end using an EMC type gland allowing connection to the motor body through the largest
possible surface area. Where drives are mounted in a steel control panel enclosure, the cable screen may be terminated directly to the control
panel using a suitable EMC clamp or gland, as close to the drive as possible. For IP66 drives, connect the motor cable screen to the internal
ground clamp.
6/ Compliance with category C1 conducted emissions only is achieved. For compliance with category C1 radiated emissions, additional
measures may be required, contact your Sales Partner for further assistance.
7/ Permissible cable length with additional external EMC filter
4.11. Optional Brake Resistor
TECDrive E3 Frame Size 2 and above units have a built in Brake Transistor. This allows an external resistor to be connected to the drive to
provide improved braking torque in applications that require this.
The brake resistor should be connected to the “+” and “BR” terminals as shown.
The voltage level at these terminals may exceed 800VDC
Stored charge may be present after disconnecting the mains power
Allow a minimum of 5 minutes discharge after power off before attempting any connection to these terminals
Suitable resistors and guidance on selection can be obtained from your Invertek Sales Partner.

TECDrive TEC-3 User Guide Revision 1.20
16
www.tecmotors.co.uk/tecdrive
5
Operation
5. Operation
5.1. Managing the Keypad
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes
UP
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode
DOWN
Used to decrease speed in real-time mode or to decrease
parameter values in parameter edit mode
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
START
When in keypad mode, used to Start a stopped drive or to
reverse the direction of rotation if bi-directional keypad
mode is enabled
5.2. Operating Displays
5.3. Changing Parameters
5.4. Read Only Parameter
Access
5.5. Resetting Parameters


Drive Stopped
/ Disabled


Press and hold
the Navigate
key > 2
seconds


Press and hold
the Navigate
key > 2
seconds

To reset
parameter
values to their
factory default
settings, press
and hold Up,
Down and Stop
buttons for > 2
seconds.
The display will
show “”
.

Drive is
enabled /
running,
display shows
the output
frequency (Hz)


Use the up and
down keys to
select the
required
parameter


Use the up and
down keys to
select P-00
.

Press the
Navigate key
for < 1 second.
The display
will show the
motor current
(Amps)


Press the
Navigate key
for < 1 second


Press the
Navigate key
for < 1 second

Press the Stop
key.
The display will
show “”
.

Press the
Navigate key
for < 1 second.
The display
will show the
motor power
(kW)


Adjust the
value using the
Up and Down
keys


Use the up and
down keys to
select the
required Read
Only
parameter


If P-10 > 0,
pressing the
Navigate key
for < 1 second
will display the
motor speed
(RPM)


Press for < 1
second to
return to the
parameter
menu


Press the
Navigate key
for < 1 second
to display the
value
5.6. Resetting a Fault

Press the Stop
key.
The display will
show “”


Press for > 2
seconds to
return to the
operating
display


Press and hold
the Navigate
key > 2
seconds to
return to the
operating
display


TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
17
6
Parameters
6. Parameters
6.1. Standard Parameters
Par.
Description
Minimum
Maximum
Default
Units
P-01
Maximum Frequency / Speed Limit
P-02
500.0
50.0 (60.0)
Hz / RPM
Maximum output frequency or motor speed limit –Hz or RPM. If P-10 >0, the value entered / displayed is in RPM
P-02
Minimum Frequency / Speed Limit
0.0
P-01
0.0
Hz / RPM
Minimum speed limit –Hz or RPM. If P-10 >0, the value entered / displayed is in RPM
P-03
Acceleration Ramp Time
0.00
600.0
5.0
s
Acceleration ramp time from zero Hz / RPM to base frequency (P-09) in seconds.
P-04
Deceleration Ramp Time
0.00
600.0
5.0
s
Deceleration ramp time from base frequency (P-09) to standstill in seconds. When set to 0.00, the value of P-24 is used.
P-05
Stopping Mode / Mains Loss Response
0
3
0
-
Selects the stopping mode of the drive, and the behaviour in response to a loss of mains power supply during operation.
Setting
On Disable
On Mains Loss
0
Ramp to Stop (P-04)
Ride Through (Recover energy from load to maintain operation)
1
Coast
Coast
2
Ramp to Stop (P-04)
Fast Ramp to Stop (P-24), Coast if P-24 = 0
3
Ramp to Stop (P-04) with AC Flux Braking
Fast Ramp to Stop (P-24), Coast if P-24 = 0
P-06
Energy Optimiser
0
1
0
-
0 : Disabled
1: Enabled. When enabled, the Energy Optimiser attempts to reduce the overall energy consumed by the drive and motor by
reducing the output voltage during constant speed, light load operation. The Energy Optimiser is intended for applications where
the drive may operate for some periods of time with constant speed and light motor load, whether constant or variable torque.
P-07
Motor Rated Voltage / Back EMF at rated speed (PM / BLDC)
0
250 / 500
230 / 400
V
For Induction Motors, this parameter should be set to the rated (nameplate) voltage of the motor (Volts).
For Permanent Magnet or Brushless DC Motors, it should be set to the Back EMF at rated speed.
P-08
Motor Rated Current
Drive Rating Dependent
A
This parameter should be set to the rated (nameplate) current of the motor
P-09
Motor Rated Frequency
10
500
50 (60)
Hz
This parameter should be set to the rated (nameplate) frequency of the motor
P-10
Motor Rated Speed
0
30000
0
RPM
This parameter can optionally be set to the rated (nameplate) RPM of the motor. When set to the default value of zero, all speed
related parameters are displayed in Hz and the slip compensation (where motor speed is maintained at a constant value regardless
of applied load) for the motor is disabled. Entering the value from the motor nameplate enables the slip compensation function, and
the TECDrive display will now show motor speed in RPM. All speed related parameters, such as Minimum and Maximum Speed,
Preset Speeds etc. will also be displayed in RPM.
Note If P-09 value is changed, P-10 value is reset to 0
P-11
Low Frequency Torque Boost Current
0.0
Drive
Dependent
Drive
Dependent
%
Low frequency torque can be improved by increasing this parameter. Excessive boost levels may however result in high motor
current and increased risk of tripping on Over Current or Motor Overload (refer to section 10.1)
This parameter operates in conjunction with P-51 (Motor Control Mode) as follows :-
P-51
P-11
0
0
Boost is automatically calculated according to autotune data
>0
Voltage boost = P-11 x P-07.This voltage is applied at 0.0Hz, and linearly reduced until P-09 / 2
1
All
Voltage boost = P-11 x P-07.This voltage is applied at 0.0Hz, and linearly reduced until P-09 / 2
2, 3, 4
All
Boost current level = 4*P-11*P-08
For IM motors, when P-51 = 0 or 1, a suitable setting can usually be found by operating the motor under very low or no load
conditions at approximately 5Hz, and adjusting P-11 until the motor current is approximately the magnetising current (if known) or
in the range shown below.
Frame Size 1 : 60 –80% of motor rated current
Frame Size 2 : 50 –60% of motor rated current
Frame Size 3 : 40 –50% of motor rated current
Frame Size 4 : 35 –45% of motor rated current
P-12
Primary Command Source
0
9
0
-
0: Terminal Control. The drive responds directly to signals applied to the control terminals.
1: Uni-directional Keypad Control. The drive can be controlled in the forward direction only using the internal keypad, or an
external remote Keypad.
2: Bi-directional Keypad Control. The drive can be controlled in the forward and reverse directions u using the internal keypad, or
an external remote Keypad. Pressing the keypad START button toggles between forward and reverse.
3: Modbus Network Control. Control via Modbus RTU (RS485) using the internal Accel / Decel ramps
4: Modbus Network Control. Control via Modbus RTU (RS485) interface with Accel / Decel ramps updated via Modbus
5: PI Control. User PI control with external feedback signal
6: PI Analog Summation Control. PI control with external feedback signal and summation with analog input 1
7: CAN open Control. Control via CAN (RS485) using the internal Accel / Decel ramps
8: CAN open Control. Control via CAN (RS485) interface with Accel / Decel ramps updated via CAN
9: Slave Mode. Control via a connected Invertek drive in Master Mode. Slave drive address must be > 1.
NOTE When P-12 = 1, 2, 3, 4, 7, 8 or 9, an enable signal must still be provided at the control terminals, digital input 1

TECDrive TEC-3 User Guide Revision 1.20
18
www.tecmotors.co.uk/tecdrive
6
Parameters
P-13
Operating Mode Select
0
2
0
-
Provides a quick set up to configure key parameters according to the intended application of the drive. Parameters are preset
according to the table.
0: Industrial Mode. Intended for general purpose applications.
1: Pump Mode. Intended for centrifugal pump applications.
2: Fan Mode. Intended for Fan applications.
Setting
Application
Current Limit (P-54)
Torque Characteristic (P-28 & P-29)
Spin Start (P-33)
0
General
150%
Constant
0 : Off
1
Pump
110%
Variable
0 : Off
2
Fan
110%
Variable
2 : On
P-14
Extended Menu Access code
0
65535
0
-
Enables access to Extended and Advanced Parameter Groups. This parameter must be set to the value programmed in P-37 (default:
101) to view and adjust Extended Parameters and value of P-37 + 100 to view and adjust Advanced Parameters. The code may be
changed by the user in P-37 if desired.
6.2. Extended Parameters
Par.
Description
Minimum
Maximum
Default
Units
P-15
Digital Input Function Select
0
17
0
-
Defines the function of the digital inputs depending on the control mode setting in P-12. See section 7 Analog and Digital Input
Macro Configurations for more information.
P-16
Analog Input 1 Signal Format
See Below
U0-10
-
 = Uni-polar 0 to 10 Volt Signal. The drive will remain at minimum speed (P-02) if the analog reference after scaling and
offset are applied is =<0.0%. 100% signal means the output frequency / speed will be the value set in P-01.
 = Uni-polar 0 to 10 Volt Signal, bi-directional operation. The drive will operate the motor in the reverse direction of rotation
if the analog reference after scaling and offset are applied is <0.0%. E.g. for bidirectional control from a 0 –10 volt signal, set P-35 =
200.0%, P-39 = 50.0%
 = 0 to 20mA Signal
 = 4 to 20mA Signal, the TECDrive will trip and show the fault code  if the signal level falls below 3mA
 = 4 to 20mA Signal, the TECDrive will run at Preset Speed 1 (P-20) if the signal level falls below 3mA
 = 20 to 4mA Signal, the TECDrive will trip and show the fault code  if the signal level falls below 3mA
 = 20 to 4mA Signal, the TECDrive will run at Preset Speed 1 (P-20) if the signal level falls below 3mA
 = 10 to 0 Volt Signal (Uni-polar). The drive will operate at Maximum Frequency / Speed if the analog reference after scaling
and offset are applied is =<0.0%
P-17
Maximum Effective Switching Frequency
4
32
8
kHz
Sets maximum effective switching frequency of the drive. If “rEd” is displayed when the parameter is viewed, the switching frequency has
been reduced to the level in P00-32 due to excessive drive heatsink temperature.
P-18
Output Relay Function Select
0
9
1
-
Selects the function assigned to the relay output. The relay has two output terminals, Logic 1 indicates the relay is active, and
therefore terminals 10 and 11 will be connected.
0:Drive Enabled (Running). Logic 1 when the motor is enabled
1: Drive Healthy. Logic 1 when power is applied to the drive and no fault exists
2:At Target Frequency (Speed). Logic 1 when the output frequency matches the setpoint frequency
3: Drive Tripped. Logic 1 when the drive is in a fault condition
4:Output Frequency >= Limit. Logic 1 when the output frequency exceeds the adjustable limit set in P-19
5:Output Current >= Limit. Logic 1 when the motor current exceeds the adjustable limit set in P-19
6:Output Frequency < Limit. Logic 1 when the output frequency is below the adjustable limit set in P-19
7:Output Current < Limit. Logic 1 when the motor current is below the adjustable limit set in P-19
8: Analog Input 2 > Limit. Logic 1 when the signal applied to analog input 2 exceeds the adjustable limit set in P-19
9: Drive Ready to Run. Logic 1 when the drive is ready to run, no trip present.
P-19
Relay Threshold Level
0.0
200.0
100.0
%
Adjustable threshold level used in conjunction with settings 4 to 8 of P-18
P-20
Preset Frequency / Speed 1
-P-01
P-01
5.0
Hz / RPM
P-21
Preset Frequency / Speed 2
-P-01
P-01
25.0
Hz / RPM
P-22
Preset Frequency / Speed 3
-P-01
P-01
40.0
Hz / RPM
P-23
Preset Frequency / Speed 4
-P-01
P-01
P-09
Hz / RPM
Preset Speeds / Frequencies selected by digital inputs depending on the setting of P-15
If P-10 = 0, the values are entered as Hz. If P-10 > 0, the values are entered as RPM.
Note Changing the value of P-09 will reset all values to factory default settings
P-24
2nd Ramp Time (Fast Stop)
0.00
600.0
0.00
s
This parameter allows a 2nd ramp time to be programmed into the drive.
This ramp time is automatically selected in the case of a mains power loss if P-05 = 2 or 3. When set to 0.00, the drive will coast to
stop.
When using a setting of P-15 that provides a “Fast Stop” function, this ramp time is also used.
In addition, if P-24 > 0, P-02 > 0, P-26=0 and P-27 = P-02, this ramp time is applied to both acceleration and deceleration when
operating below minimum speed, allowing selection of an alternative ramp when operating outside of the normal speed range,
which may be useful in pump and compressor applications.

TECDrive TEC-3 User Guide Revision 1.20
www.tecmotors.co.uk/tecdrive
19
6
Parameters
Par.
Description
Minimum
Maximum
Default
Units
P-25
Analog Output Function Select
0
11
8
-
Digital Output Mode. Logic 1 = +24V DC
0: Drive Enabled (Running). Logic 1 when the TECDrive is enabled (Running)
1: Drive Healthy. Logic 1 When no Fault condition exists on the drive
2: At Target Frequency (Speed). Logic 1 when the output frequency matches the setpoint frequency
3: Drive Tripped. Logic 1 when the drive is in a fault condition
4:Output Frequency >= Limit. Logic 1 when the output frequency exceeds the adjustable limit set in P-19
5:Output Current >= Limit. Logic 1 when the motor current exceeds the adjustable limit set in P-19
6:Output Frequency < Limit. Logic 1 when the output frequency is below the adjustable limit set in P-19
7:Output Current < Limit. Logic 1 when the motor current is below the adjustable limit set in P-19
Analog Output Mode
8: Output Frequency (Motor Speed). 0 to P-01, resolution 0.1Hz
9: Output (Motor) Current. 0 to 200% of P-08, resolution 0.1A
10: Output Power. 0 –200% of drive rated power
11: Load Current. 0 –200% of P-08, resolution 0.1A
P-26
Skip frequency hysteresis band
0.0
P-01
0.0
Hz / RPM
P-27
Skip Frequency Centre Point
0.0
P-01
0.0
Hz / RPM
The Skip Frequency function is used to avoid the TECDrive operating at a certain output frequency, for example at a frequency which
causes mechanical resonance in a particular machine. Parameter P-27 defines the centre point of the skip frequency band, and is
used in conjunction with P-26. The TECDrive output frequency will ramp through the defined band at the rates set in P-03 and P-04
respectively, and will not hold any output frequency within the defined band. If the frequency reference applied to the drive is
within the band, the TECDrive output frequency will remain at the upper or lower limit of the band.
P-28
V/F Characteristic Adjustment Voltage
0
P-07
0
V
P-29
V/F Characteristic Adjustment Frequency
0.0
P-09
0.0
Hz
This parameter in conjunction with P-28 sets a frequency point at which the voltage set in P-29 is applied to the motor. Care must be
taken to avoid overheating and damaging the motor when using this feature.
P-30
Start Mode, Automatic Restart, Fire Mode Operation
Index 1 : Start Mode & Automatic Restart
N/A
N/A
Edge-r
-
Selects whether the drive should start automatically if the enable input is present and latched during power on. Also configures the
Automatic Restart function.
: Following Power on or reset, the drive will not start if Digital Input 1 remains closed. The Input must be closed after a
power on or reset to start the drive.
: Following a Power On or Reset, the drive will automatically start if Digital Input 1 is closed.
 To : Following a trip, the drive will make up to 5 attempts to restart at 20 second intervals. The numbers of restart
attempts are counted, and if the drive fails to start on the final attempt, the drive will trip with a fault, and will require the user to
manually reset the fault. The drive must be powered down to reset the counter.
Index 2 : Fire Mode Input Logic
0
1
0
-
Defines the operating logic when a setting of P-15 is used which includes Fire M, e.g. settings 15, 16 & 17.
0: Normally Closed (NC) Input. Fire Mode active if input is open. 1: Normally Open (NO) Input. Fire Mode active if input is closed
Index 3 : Fire Mode Input Type
0
1
0
-
Defines the input type when a setting of P-15 is used which includes Fire Mode, e.g. settings 15, 16 & 17.
0: Maintained Input. The drive will remain in Fire Mode, only as long the fire mode input signal remains (Normally Open or Normally
Closed operation is supported depending on Index 2 setting).
1: Momentary Input. Fire Mode is activated by a momentary signal on the input. Normally Open or Normally Closed operation is
supported depending on Index 2 setting. The drive will remain in Fire Mode until disabled or powered off.
P-31
Keypad Start Mode Select
0
7
1
-
This parameter is active only when operating in Keypad Control Mode (P-12 = 1 or 2) or Modbus Mode (P-12 = 3 or 4). When settings
0, 1, 4 or 5 are used, the Keypad Start and Stop keys are active, and control terminals 1 and 2 must be linked together. Settings 2, 3,
6 and7 allow the drive to be started from the control terminals directly, and the keypad Start and Stop keys are ignored.
0 : Minimum Speed, Keypad Start
1 : Previous Speed, Keypad Start
2 : Minimum Speed, Terminal Enable
3 : Previous Speed, Terminal Enable
4 : Current Speed, Keypad Start
5 : Preset Speed 4, Keypad Start
6 : Current Speed, Terminal Start
7 : Preset Speed 4, Terminal Start
P-32
Index 1 : Duration
0.0
25.0
0.0
s
Index 2 : DC Injection Mode
0
2
0
-
Index 1: Defines the time for which a DC current is injected into the motor. DC Injection current level may be adjusted in P-59.
Index 2 : Configures the DC Injection Function as follows :-
0: DC Injection on Stop. DC is injected into the motor at the current level set in P-59 following a stop command, after the output
frequency has reduced to P-58 for the time set in Index 1.
Note If the drive is in Standby Mode prior to disable, the DC injection is disabled
1: DC Injection on Start. DC is injected into the motor at the current level set in P-59 for the time set in Index 1 immediately after
the drive is enabled, prior to the output frequency ramping up. The output stage remains active during this phase. This can be used
to ensure the motor is at standstill prior to starting.
2: DC Injection on Start & Stop. DC injection applied as both settings 0 and 1 above.

TECDrive TEC-3 User Guide Revision 1.20
20
www.tecmotors.co.uk/tecdrive
6
Parameters
Par.
Description
Minimum
Maximum
Default
Units
P-33
Spin Start
0
2
0
-
0 : Disabled
1: Enabled. When enabled, on start up the drive will attempt to determine if the motor is already rotating, and will begin to control
the motor from its current speed. A short delay may be observed when starting motors which are not turning.
2: Enabled on Trip, Brown Out or Coast Stop. Spin start is only activated following the events listed, otherwise it is disabled.
P-34
Brake Chopper Enable (Not Size 1)
0
4
0
-
0 : Disabled
1: Enabled With Software Protection. Brake chopper enabled with software protection for a 200W continuous rated resistor
2: Enabled Without Software Protection. Enables the internal brake chopper without software protection. An external thermal
protection device should be fitted.
3: Enabled With Software Protection. As setting 1, however the Brake Chopper is only enabled during a change of the frequency
setpoint, and is disabled during constant speed operation.
4: Enabled Without Software Protection. As setting 2, however the Brake Chopper is only enabled during a change of the frequency
setpoint, and is disabled during constant speed operation.
P-35
Analog Input 1 Scaling / Slave Speed Scaling
0.0
2000.0
100.0
%
Analog Input 1 Scaling. The analog input signal level is multiplied by this factor, e.g. if P-16 is set for a 0 –10V signal , and the scaling
factor is set to 200.0%, a 5 volt input will result in the drive running at maximum frequency / speed (P-01)
Slave Speed Scaling. When operating in Slave Mode (P-12 = 9), the operating speed of the drive will be the Master speed multiplied
by this factor, limited by the minimum and maximum speeds.
P-36
Serial Communications Configuration
See Below
Index 1 : Address
0
63
1
-
Index 2 : Baud Rate
9.6
1000
115.2
kbps
Index 3 : Communication loss protection
0
3000
t 3000
ms
This parameter has three sub settings used to configure the Modbus RTU Serial Communications. The Sub Parameters are
1st Index : Drive Address : Range : 0 –63, default : 1
2nd Index: Baud Rate & Network type: Selects the baud rate and network type for the internal RS485 communication port.
For Modbus RTU: Baud rates 9.6, 19.2, 38.4, 57.6, 115.2 kbps are available.
For CAN Open: Baud rates 125, 250, 500 & 1000 kbps are available.
3rd Index: Watchdog Timeout: Defines the time for which the drive will operate without receiving a valid command telegram to
Register 1 (Drive Control Word) after the drive has been enabled. Setting 0 disables the Watchdog timer. Setting a value of 30, 100,
1000, or 3000 defines the time limit in milliseconds for operation. A ‘’ suffix selects trip on loss of communication. An ‘’ suffix
means that the drive will coast stop (output immediately disabled) but will not trip.
P-37
Access Code Definition
0
9999
101
-
Defines the access code which must be entered in P-14 to access parameters above P-14
P-38
Parameter Access Lock
0
1
0
-
0: Unlocked. All parameters can be accessed and changed
1: Locked. Parameter values can be displayed, but cannot be changed except P-38.
P-39
Analog Input 1 Offset
-500.0
500.0
0.0
%
Sets an offset, as a percentage of the full scale range of the input, which is applied to the analog input signal. This parameter
operates in conjunction with P-35, and the resultant value can be displayed in P00-01.
The resultant value is defined as a percentage, according to the following :-
P00-01 = (Applied Signal Level(%) - P-39) x P-35)
P-40
Index 1 : Display Scaling Factor
0.000
16.000
0.000
-
Index 2 : Display Scaling Source
0
3
0
-
Allows the user to program the TECDrive to display an alternative output unit scaled from either output frequency (Hz), Motor
Speed (RPM) or the signal level of PI feedback when operating in PI Mode.
Index 1: Used to set the scaling multiplier. The chosen source value is multiplied by this factor.
Index 2 : Defines the scaling source as follows :-
0: Motor Speed. Scaling is applied to the output frequency if P-10 = 0, or motor RPM if P-10 > 0.
1: Motor Current. Scaling is applied to the motor current value (Amps)
2: Analog Input 2 Signal Level. Scaling is applied to analog input 2 signal level, internally represented as 0 –100.0%
3: PI Feedback. Scaling is applied to the PI feedback selected by P-46, internally represented as 0 –100.0%
P-41
PI Controller Proportional Gain
0.0
30.0
1.0
-
PI Controller Proportional Gain. Higher values provide a greater change in the drive output frequency in response to small changes
in the feedback signal. Too high a value can cause instability
P-42
PI Controller Integral Time
0.0
30.0
1.0
s
PI Controller Integral Time. Larger values provide a more damped response for systems where the overall process responds slowly
P-43
PI Controller Operating Mode
0
1
0
-
0: Direct Operation. Use this mode if when the feedback signal drops, the motor speed should increase.
1: Inverse Operation. Use this mode if when the feedback signal drops, the motor speed should decrease.
2: Direct Operation, Wake at Full Speed. As setting 0, but on restart from Standby, PI Output is set to 100%
3: Reverse Operation, Wake at Full Speed. As setting 0, but on restart from Standby, PI Output is set to 100%
P-44
PI Reference (Setpoint) Source Select
0
1
0
-
Selects the source for the PID Reference / Setpoint
0: Digital Preset Setpoint. P-45 is used
1: Analog Input 1 Setpoint. Analog input 1 signal level, readable in P00-01 is used for the setpoint.
P-45
PI Digital Setpoint
0.0
100.0
0.0
%
When P-44 = 0, this parameter sets the preset digital reference (setpoint) used for the PI Controller as a % of the feedback signal.
