Uni cistern 4-4
A  drain valve -
F  filling valve -
Cistern 8 cm 4-8
Filling valve F  -
Drain valve A  -
Throttle set -
Installation 4-11
Toilet flush plates -
U1 TECE urinalflush valve 4-13
Mechanical flush valve -
U electronic flush valve -
Urinal flush valve assembly instructions -
Programming the urinal infrared electronics -
Flush plates for the new U urinal valve -
U2 TECEfilo urinal flush valve 4-19
U urinalflush valve assembly instructions -
Programming the U urinal electronics -
Contents

4-4
Uni cistern
Uni cistern
The Uni cistern from TECE is a universally usable stand-
ard cistern. By using dierent frames, the cistern can be
installed in dry or wet-wall constructions. The cistern is
always equipped with the same internal technology and is
therefore compatible with all TECE flush plates. The univer-
sality of the cistern results in a clear product range, simple
stock-keeping and spare parts supply.
Features of the cistern:
• Pre-assembled and sealed
• Can be combined with all TECE flush plates
• Single or dual-flush systems available
• Robust lever mechanism
• -litre safety tank: enough water when needed
• Flush volume adjustment for every application:
. and  litres,
 and  litres,
. and  litres or
 and  litres.
• Cistern tank made of impact-resistant plastic
• Easy to install
• Self-explanatory technology

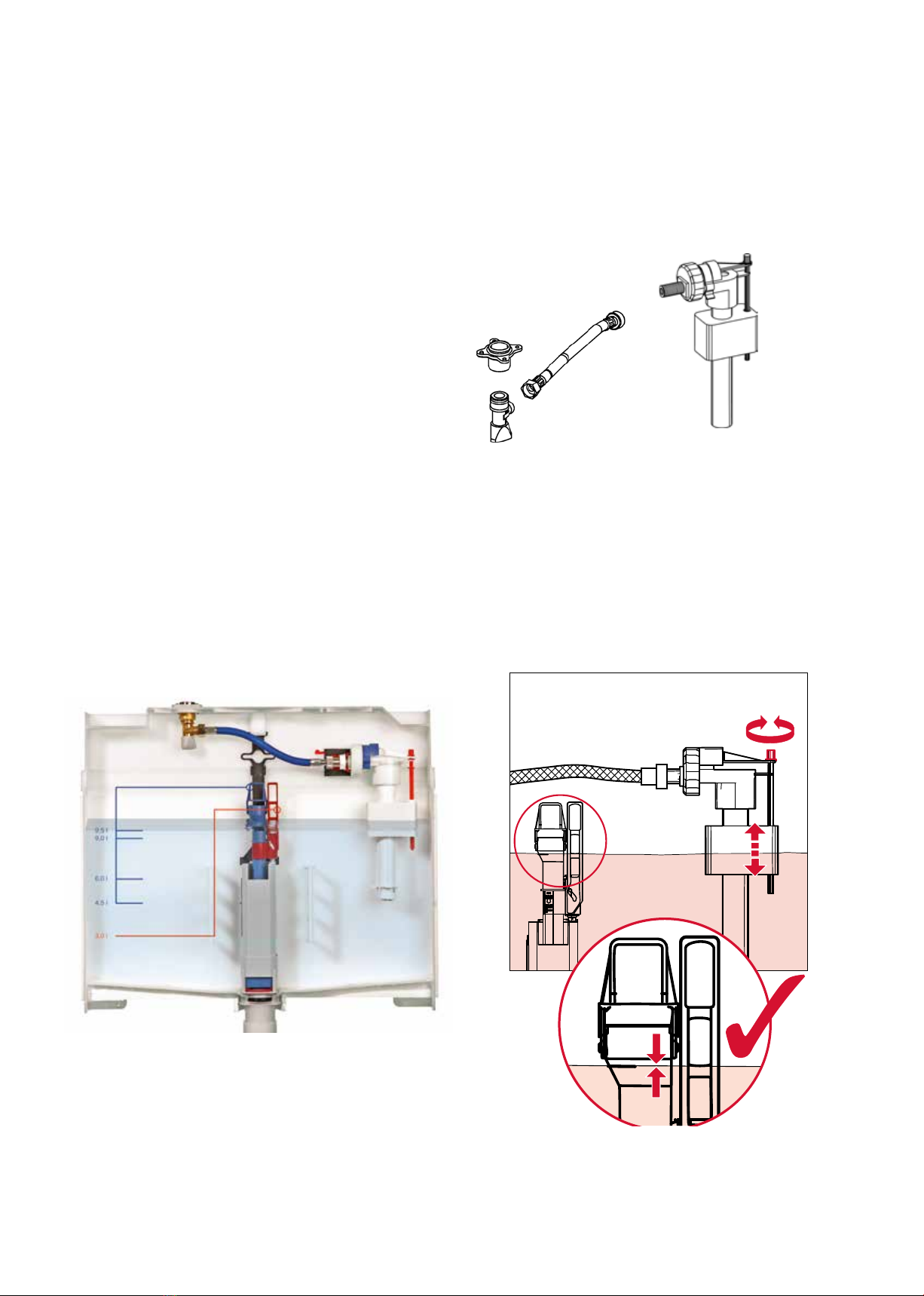

TECE cistern with
1. Corner valve
2. Reinforced hose
3. Filling valve 3/8" standard connection
4. Filling valve holder
5. Drain valve (here, F 10)
6. Valve seat (with throttle)
Tank
As the tank volume is  litres, there is always plenty of
water for flushing. Even after flushing with the large flush
volume, water is always available for a follow-up flush. The
tank is made of impact-resistant plastic and is insulated
against condensation water.
A 2 drain valve
The current A  drain valve has been installed in TECE
cisterns since .
A2 drain valve, important components
Dual-flush technology
During everyday use, a considerable amount of potable
water is used to flush toilets. Here, the intelligent solu-
tions from TECE can make an active contribution to saving
water. With dual-flush technology, the small flush volume
is set to  litres, and the large flush volume can be set to
.//. or  litres. The default setting for the dual-vol-
ume flush is litres for the large flush volume and litres
for the small flush volume.
Single-flush technology
Single-flush technology is also possible with TECE cisterns
and TECE drain valves. However, with this flush option,
only the large flush volumes of .//. or  litres are
available.
General information
Due to the easily adjustable drain valve settings, the flush
volumes can be adapted to each specific situation. In the
new building sector with adapted pipelines, slopes and
when using a . litre ceramic, the . litre economy flush
can be used in combination with the  litre flush. However,
pipe systems are often installed which need a larger flush
volume to ensure that they work correctly. In this case,
flush volumes of up to  litres can be chosen to ensure
this.
12
3
6
5
4
Draw bar
small volume
Adjustment slider for
flow rate adjustment
Draw bar
large volume
Foot seal
(bell seal)

4-5
Uni cistern
Setting the flush volumes
The flush volume is adjusted centrally via an adjustment
slide on the back of the drain valve. The adjustable flush
quantities are clearly marked on the valve.
A2 drain valve, adjusting the flush volume
Throttle set
If the flushing of a toilet ceramic is not adequate, the flush-
ing pressure can be reduced or increased with the help of
the throttle set.
The throttle set includes eight dierent throttles:
Brown: mm diameter (approx. % flushing pressure)
Red: mm diameter (approx. % flushing pressure)
Yellow: mm diameter (approx. % flushing pressure)
Blue: mm diameter (approx. % flushing pressure)
Green: mm diameter (approx. % flushing pressure)
Grey: mm diameter (approx. % flushing pressure)
Black: mm diameter (approx. % flushing pressure)
White: mm diameter (approx. % flushing pressure)
Reducing the flushing pressure:
The throttle set can be used to reduce the flushing pres-
sure if water sprays out of the toilet ceramics. To control
the flushing pressure, a throttle with a smaller internal
diameter can be used.
Increasing the flushing pressure:
If the toilet ceramics are not being cleaned correctly, the
flushing pressure for standard cisterns can be subse-
quently increased. To increase the flushing pressure, install
a throttle with a larger internal diameter or remove the
inserted throttle.

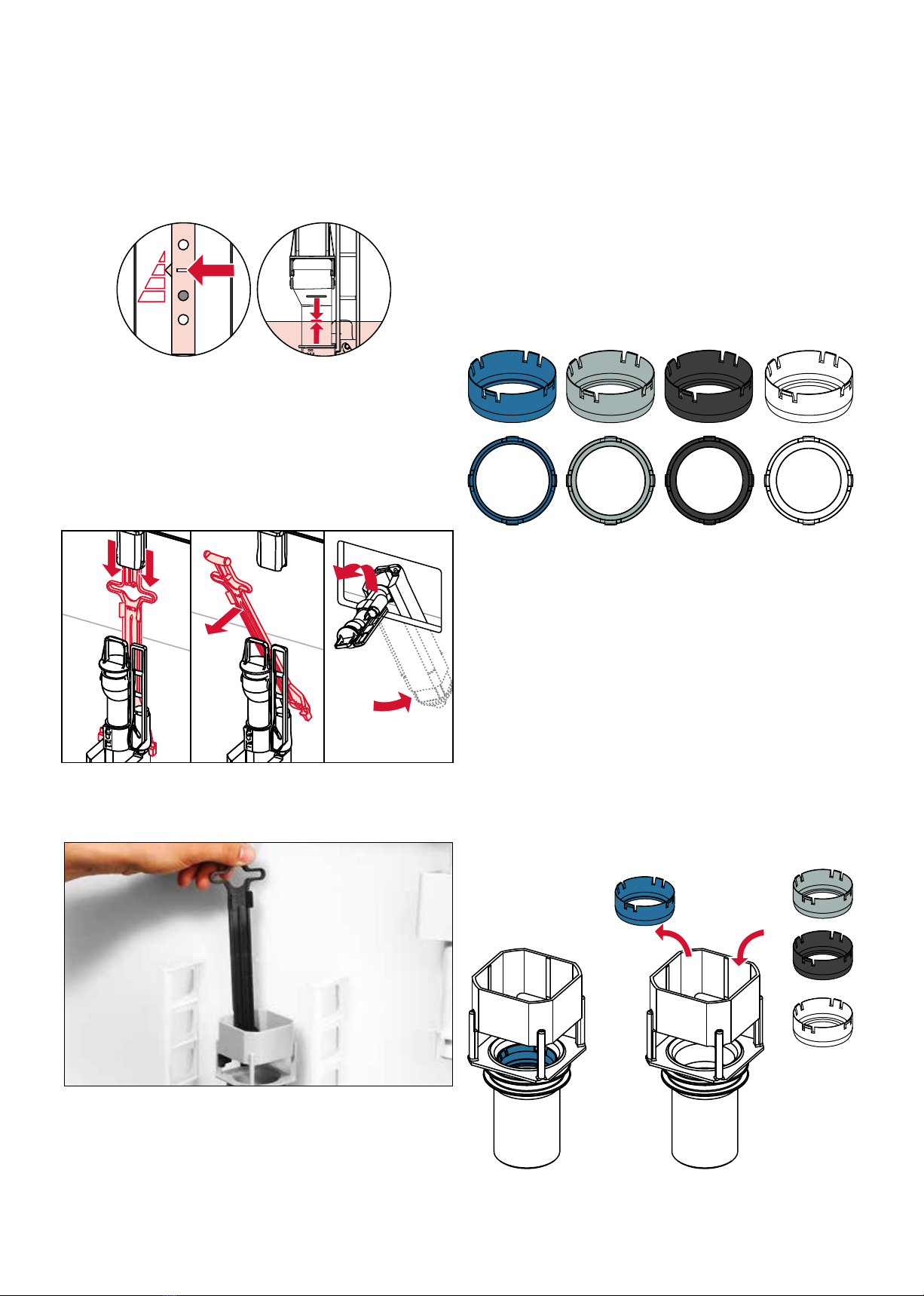

The flush flow throttle can be easily installed in the valve
seat of the drain valve.
Ø 36 mmØ 39 mmØ 42 mmØ 46 mm
Ø 28 mmØ 30 mmØ 32 mmØ 34 mm
Installing/removing the flush flow throttle in the valve seat

4-6
Uni cistern
Converting drain valve A 1 to version A 2
If a drain valve is replaced as a spare part or the new
drain valve is modified because of the additional functions
(./. litre flush, throttle set), the new A drain valve
oers full compatibility with the old A  version.
The operating lever, twothrottles and valve seat are
included in the scope of delivery along with the A  drain
valve.
36 mm
42 mm
Conversion set 9820223, scope of delivery
The TECE cistern drain valve can be easily replaced.
The old A  drain valve should be disposed of, together
with the associated valve seat and seal.
When replacing an old A  drain valve with a new A  one,
care must be taken to ensure that the operating lever is
also replaced.
F 10 filling valve
The F  replacement filling valve (item no. )
universally fits in all TECE cisterns and in many competing
cisterns.
F 10 filling valve
Features:
• Low-noise in accordance with acoustic group  (DIN
)
• Field of application:  hPa to , hPa
• Minimum flow pressure:  hPa
• Adjustable filling level
• Compact design
• Adjustable outlet pipe

4-7
Uni cistern
Filling level setting (filling valve)
The filling level in the cistern can be set by turning the
adjustment spindle on the filling valve.
The height should be set so that the water reaches the
upper mark on the overflow of the drain valve and the
upper mark in the cistern (see illustration).

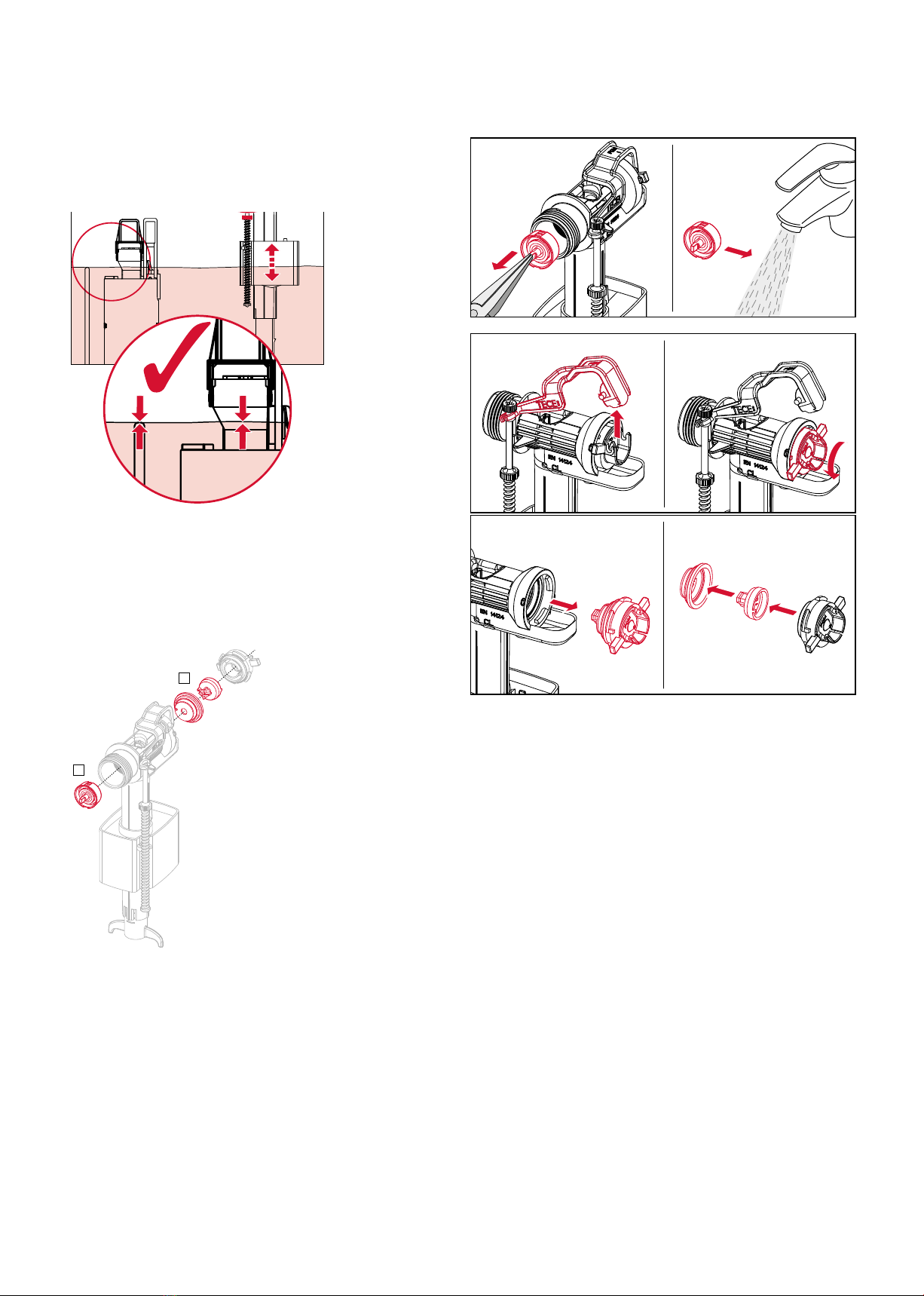

Cleaning the filling valve
A
B
The inflow element (A) or the membrane of the pilot valve
(B) can be cleaned if they become dirty due to polluted
water.
To do this, remove the parts and simply hold them under
running water.
If necessary, you can obtain replacement parts for the
filling valve with item nos.  (valve lever set) and
 (seal set).
A
B

4-8
Cistern 8 cm
Cistern 8 cm
The concealed cistern from TECE is a universally usable
 cm cistern. By using dierent frames, the cistern can be
installed in dry or wet-wall constructions. The cistern is
always equipped with the same internal technology and is
therefore compatible with all TECE flush plates. The univer-
sality of the cistern results in a clear product range, simple
stock-keeping and spare parts supply.
Features of the cistern:
• Pre-assembled and sealed
• Can be combined with all TECE flush plates
• Single or dual-flush technology available
• Robust lever mechanism
• .-litre safety tank: enough water when needed
• Compatible with standard market spare parts
• Cistern connection with ½” internal thread
• -litre pre-set standard flush volume
• . /  and -litre flush volume can be set as an option at
any time
• -litre part-flush with dual-flush system
• Cistern tank made of impact-resistant plastic and insu-
lated against condensation water
• Easy to install
• Self-explanatory technology
TECE cistern with:
1. Corner valve
2. Reinforced hose
3. Filling valve F 1 with standard connection 3/8“
4. Filling valve holder
5. Drain valve A 3
6. Valve seat of drain valve
7. Reinforcements
Filling valve F 1
Thanks to the high technical quality standard of the filling
system (valve, hose and F valve) the TECE cistern is char-
acterised by the lowest sound level on the market - Lap ≤
 dB(A).
Intake and filling valve F 1
Setting the filling level
The filling level in the cistern can be set by turning the
adjustment spindle on the filling valve.
The height should be set so that the water reaches the
upper mark on the overflow and the mark on the actuation
block (see illustration).

4-9
Cistern 8 cm
Drain valve A 3
The drain valve A  is installed exclusively in the  cm
cistern.
Drain valve A 3 (order number 9820224) with
1. Connecting rod large
2. Connecting rod small
3. Sliding lever for flush volume
4. Foot seal
Dual-flush technology
During everyday use, a considerable amount of drinking
water is used to flush toilets. Here, the intelligent solu-
tions from TECE can make an active contribution to saving
water. With dual-flush technology the small flush volume is
set to  litres and the large flush volume can be set to . /
 or  litres. The default setting for the dual-volume flush is
 litres for the large flush volume and  litres for the small
flush volume
Single-flush technology
Single-flush technology is also possible with TECE cisterns
and TECE drain valves. However, with this flush option,
only the large flush volumes of . /  or  litres are avail-
able.
General information
Due to the easily adjustable drain valve settings, the flush
volumes can be adapted to each specific situation. In the
new building sector with adapted pipelines, slopes and
when using a . litre ceramic, the . litre economy flush
can be used in combination with the  litre flush.
However, pipe systems are often installed which need a
larger flush volume to ensure that they work correctly. In
this case, flush volumes of up to  litres can be chosen to
ensure this.
4,5
6
9
Setting the flush volumes
The flush volume is adjusted centrally via an adjustment
slide on the back of the drain valve. The adjustable flush
quantities are clearly marked on the valve.
The large flush volume can be set to . / . or . litres.
The default setting is  litres. To change the large flush
volume, the drain valve must be removed from the cistern.
To do this, the splash guard and the actuation block must
be removed. Then the drain valve can be taken out of the
cistern. The sliding lever is located on the side of the main
part of the drainage valve. Move the sliding lever to the
desired flush volume. This increases or decreases the flush
volume.
This does not change the small flush volume and it
remains set to  litres.
4,5
6
9
4,5
6
9
4,5
6
9
4,5
6
9
4,5 L
6 L
9 L

4-10
Installation
To reduce the default large volume to . and the small
volume to . litres, the tank water level lever above the
filling valve must also be moved to the lowest mark on the
overflow.
Removing the drain valve
Totake outthe filling valve, open the splash guard with the
actuation block. Press the hold-down device downwards
as shown in the illustration and remove it from the tank.
Now pull the filling valve upwards out of the valve seat,
snap o the top part and take it out.
After removing the drain valve, the valve seat can be
removed by pulling it upwards.
Throttle set
If the flushing of a toilet ceramic is not adequate, the flush-
ing pressure can be reduced or increased with the help of
the throttle set.
The throttle set includes four dierent throttles:
• Blue: Diameter  mm (%)
• Grey: Diameter  mm (%)
• Black: Diameter  mm (%)
• White: Diameter  mm (%)
Reducing the flushing pressure
The throttle set can be used to reduce the flushing pres-
sure if water sprays out of the toilet ceramics To control the
flushing pressure, a throttle with a smaller internal diame-
ter can be used.
Increasing the flushing pressure
If the toilet ceramics are not being cleaned correctly, the
flushing pressure for  cm cisterns can be subsequently
increased. To increase the flushing pressure, install a throt-
tle with a larger internal diameter or remove the inserted
throttle.
The flush flow throttle can be easily installed in the valve
seat of the drain valve.
Ø 28 mmØ 29 mmØ 30 mmØ 32 mm

4-11
Installation
Installation
Shell installation
The corner valve of the cistern is closed and pre-installed
as a complete unit. The pressure test can be carried out
without having to open the cistern. The cistern only needs
to be opened during the fine installation phase. During the
shell construction stage, the cistern remains sealed. An
unbroken seal during fine installation work guarantees that
the cistern is clean and functional. A damaged seal shows
that the cistern has already been opened.
Splash guard with seal
Fine installation
The cistern can only be opened if the seal on the splash
guard is broken. If the seal is untouched for fine installa-
tion, the inside of the cistern is dirt-free and intact.
The connection pipe must be flushed properly before the
cistern is put into operation. To do this, the hose can be
lead out of the cistern towards the outside. After being
flushed out, the reinforced hose can be screwed onto the
filling valve without the need for any tools.
A special feature of the TECE cistern is the actuation block
mounted on the splash guard. When the cistern is opened,
it is completely removed. This also works with the support
frame for the actuation.
Splash guard with actuation block
Despite the small inspection opening, there is sucient
space for work inside the cistern. The operating levers are
shaped in such a way that they find their own way into the
drawbar eyelets of the drain valve when inserted.

4-12
Installation
Toilet flush plates
All manual TECE flush plates fit the Uni and  cm cisterns.
The electronic actuators can only be used on the Uni cis-
tern with front actuation and an actuation height of  m.
Overview of TECE toilet flush plates
TECElux Mini
TECEsquare II metal
TECEsquare glass
TECEloop plastic
TECEloop glass
TECEsolid
TECEplanus
TECEnow
TECEambia
TECEbase
Toilet flush handle
The toilet flush plates shown here only give an overview
of the available product range. See the whole range online
at www.tece.com/en. Here you can also find a flush plate
configurator, which allows you to select the material and
colour for the buttons and covers.

4-13
U 1 TECE urinal flush valve
U 1 TECE urinal flush valve
The TECE U urinal flush valve is based on a further
development of tried and tested flush valve technology.
Well designed details and improved materials ensure dura-
bility and high reliability.
The TECE urinal flush valve is suitable for mechanical and
electronic actuation. The same housing is used in both
cases. The flush volume can be set from  to a maximum
of about  litres.
+
mechanical cartridge
or
electronic cartridge
Housing for urinal flush valve and cartridges
Manual and electronic cartridges have the same flush
valve housing and the same high flush performance of >
. l/s at  bar.
Using the following flow diagram, you can calculate the
flush volume for the urinal flushing valve depending on the
pipe pressure and flushing time.
Urinal electronics flow diagram
Example:
Pipe pressure  bar: Flushing flow = . l/s
Flushing time e.g. . s: Flushing volume approx:  litres
The shut-o valve is located in the valve housing and is
adjusted by means of an Allen key (size  mm). Turn °
anti-clockwise to close, ° clockwise to open the shut-o
valve.
Shut-o valve
Mechanical flush valve
The mechanical flush valve (to DIN EN ) is hydrau-
lically controlled and is sturdy and reliable. An automatic
jet cleaning function ensures long and maintenance-free
operation. Regardless of the pipe pressure, the adjustable
flushing volume always remains constant.
Mechanical cartridge
Volume adjustment
The flushing volume of the mechanical cartridge can be set
to ,  or  litres using a retaining ring. When the retaining
ring is removed, the flusher can be set to  –  litres.
Shut-o valve
“Open” “Closed”
Flow [? l/s?]
Pressure [?bar?]

4-14
U 1 TECE urinal flush valve
Adjusting the volume on the mechanical cartridge
All TECE manual urinal flush plates can be used together
with the U mechanical urinal flush valve.
U 1 electronic flush valve
Touch-free electronics are often required particularly in the
public sector. As the covers of the TECEplanus electronics
are made of metal and they are also equipped with vandal
protection, the TECE electronics are particularly suitable
for this application.
TECEplanus urinal electronic unit with infrared sensor
The infrared sensor reliably detects every use by means
of autofocus. With a magnetic key, dierent settings of the
electronics are still possible even after installation.
Electronic cartridge
The TECEplanus infrared electronics can be supplied with
electricity in two dierent ways:
•  V battery
•  V/ V mains power supply
6 V battery version
The electronics on the battery version have one connec-
tion to a battery (connector with white marking) and one to
an electronic cartridge (connector with black marking).
Urinal electronics, 6 V battery version
Power is supplied by a  V battery, type  CR  Lithium  V
Based on a service life of two years, the battery lasts for
• , flushes or
• approx.  flushes/day.
When the voltage drops to . V, the voltage is no longer
sucient for the operation of the electronics and the bat-
tery must be changed. The electronics notify you of this by
beeping during the flush process. If the voltage drops any
further, flushing is disabled and the electronics will only
beep when a person is in the detection range.
Technical data urinal infrared electronics, 6 V battery
Minimum flow pressure . bar
Max. operating pressure  bar
Flow rate at  bar . l/s
Operating voltage  V DC
Power input  W
Max. power input  W
Battery type Lithium  V,  CR 
Max. battery service life Approx.  years
Protection class III
Safety extra-low voltage
(SELV)

4-15
U 1 TECE urinal flush valve
Flushing time, factory setting  s
Flushing time, setting range - s
Pre-flush, factory setting O
Pre-flush, setting range .- s
Pause function, factory setting O
Hygiene flush, factory setting O
Hygiene flush, setting range O,  hours,  hours
230 V/12 V mains version
The mains version is powered by a transformer that con-
verts the  V alternating current to  V direct current (
item number , please order separately).
The electronics has one connection to the transformer
(connector with white marking) and one to an electronic
cartridge (connector with black marking). The third cable
is used to earth the electronics on the flush valve's brass
housing.
Urinal electronics, 230 V/12 V mains version
Up to five urinal electronic units can be operated simul-
taneously with the transformer. For this reason, the
transformer is not (!) located in the flush valve's bare-wall
protection system. The transformer fits conveniently in a
standard flush-mounted installation box.
The electronics must be connected in parallel in a series
installation and the connection cable may be max.  m
long between the connection at the transformer and the
most distant electronics.
Series installation of 5 urinal electronics, schematic diagram
It is recommended that only TECE original products are
used for the installation. Make sure that the polarity is cor-
rect when connecting the cables.
Technical data urinal infrared electronics, 230 V/12 V
mains
Minimum flow pressure . bar
Max. operating pressure  bar
Flow rate at  bar . l/s
Mains voltage  V
Operating voltage  V ( ± %)
Power input  W
Max. power input  W
Protection class III
Safety extra-low voltage
(SELV)
Flushing time, factory setting  s
Flushing time, setting range - s
Pre-flush, factory setting O
Pre-flush, setting range .- s
Pause function, factory setting O
Hygiene flush, factory setting O
Hygiene flush, setting range O,  hours,  hours

4-16
U 1 TECE urinal flush valve
Technical data 230 V/12 V mains transformer
Input voltage  V AC (± %)
Frequency – Hz
Output Rated voltage  V DC (± %)
Output voltage tolerance ± %
Residual ripple <  mVpp
Output Rated current . A
Nominal power  W
Minimum load 
Energy eciency %
Electronic overload protection
Electronic short circuit protection
Type of protection IP 
Protection class II
CE low voltage power
supply
Operating temperature – °C to + °C
Safety standard EN  /EN  
EMV standard EN  /B
Technology Switching
Switching frequency  KHz
Dielectric resistance , V/ min
MTBF (MIL HDBK) , h
Urinal flush valve assembly instructions
Note: This section provides instructions for the essential
points of installation. The notes are thus explained sections
from the overall assembly procedure. The entire installa-
tion procedure is shown in the assembly instructions for
the corresponding items.
The installation procedures for the mechanical and the
electronic flush valves are practically identical up to the
installation of the cartridge:
Flush out the pipe suciently.
Observe the following:
When performing the pressure test, the shut-o valve of
the flushing valve must be set to free-flow.
Before mounting the cartridge, ensure that the shut-o
valve is closed so that no water can leak out during assem-
bly. Close the shut-o using an Allen key. In the free-flow
setting, the goove of the shut-o is parallel to the housing,
and in the closed setting, it is at right angles to the hous-
ing.

4-17

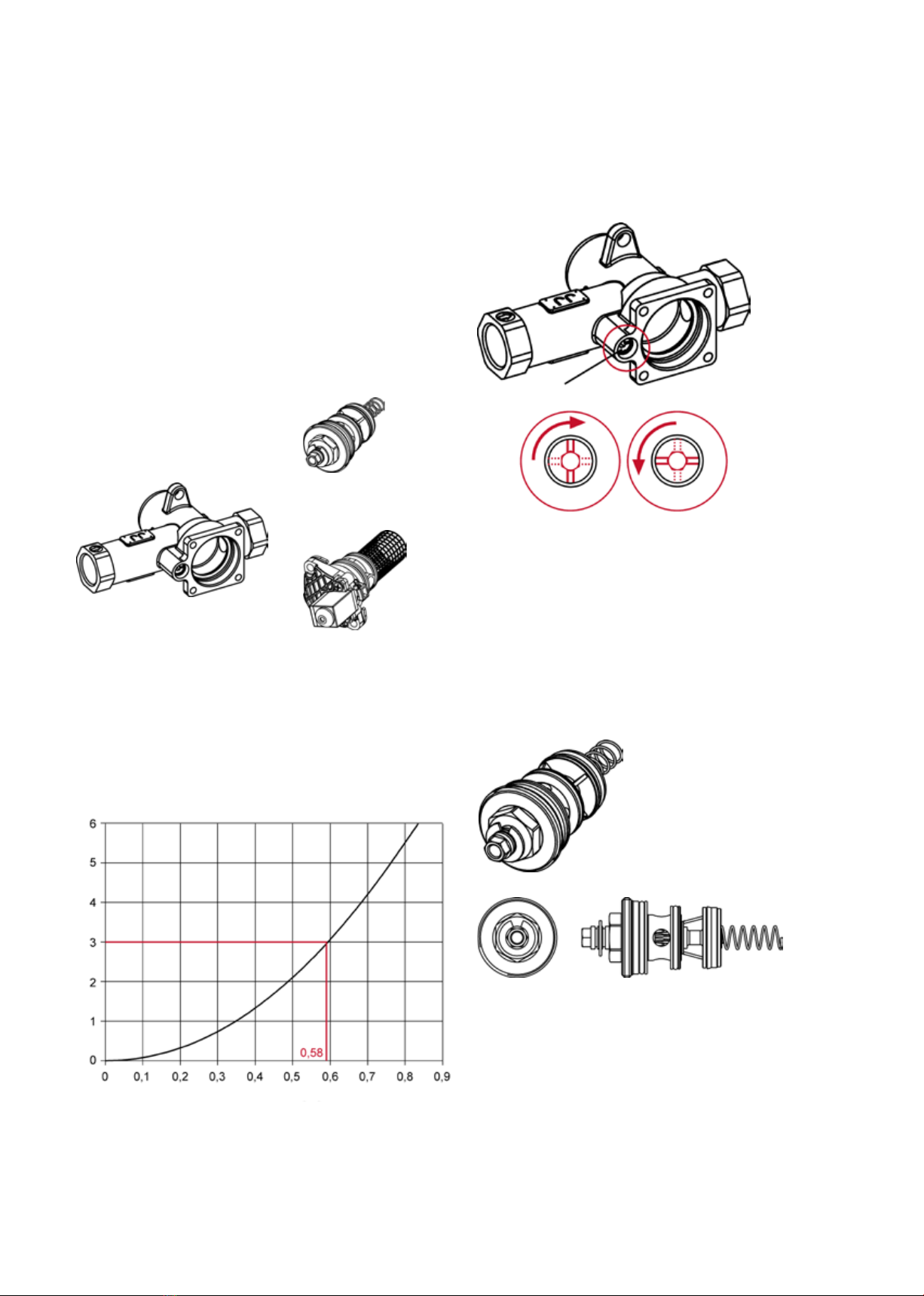

U 1 TECE urinal flush valve
The mechanical cartridge is simply screwed into the hous-
ing.
Install the electric cartridge (do not insert with a tool!) and
tighten the screws by hand.
Note:
When installing the electronic cartridge, it is particularly
important to place it in the correct position. As can be
seen on the right-hand side of the diagram, the position
also depends on the installation situation of the flush
valve housing: Horizontal housing = shut-o on the left,
electronics on the right; vertical housing = shut-o at the
top, electronics at the bottom. If the cartridge is installed
incorrectly, it may happen that the function is initially given
but malfunctions occur after a certain time.
Programming the urinal infrared electronics
After installing the electrical supply, the electronics can
be programmed within one hour using the magnetic key
supplied. In order to change the program, the power
supply must be interrupted. Thanks to a memory module,
the previously set programme is always active despite the
power cut.
Approximately five seconds after being connected to the
power supply, TECE electronics can be programmed in the
first  minutes. Each configurable function is assigned a
position.
Position Function
1 Pause function “o”
2 Pause function “on”
3 Flushing time 2 s
4 Flushing time 2.5 s
5 Flushing time 3 s
6 Flushing time 3.5 s
7 Flushing time 4 s
8 Flushing time 5 s
9 Flushing time 6 s
10 Flushing time 8 s
11 Flushing time 10 s
12 Pre-rinsing “o”
13 Pre-rinsing 0.5 s
14 Pre-rinsing 1 s
15 Pre-rinsing 2 s
16 Hygiene flush “o”
17 Hygiene flush 24 h
18 Hygiene flush 255 h
19 Sensor sensitivity “low”
... ...
23 Distance “standard”
24 Distance “short”
25 Distance “long”
... ...
28 Factory setting
29 Urinal covers “o”
30 Urinal covers “on”
= Factory setting
Programming list for the urinal electronics
In programming mode, the electronics can be set with the
magnetic key. In standard mode, only the cleaning function
can be activated with this key.
• Cleaning function:
When cleaning the urinal, automatic flushing is generally
not required as the cleaning agent needs time to take
eect. For this reason, flushing can be delayed by 
minutes.
• Pre-flush (optional):
(Duration – seconds) Briefly humidifies the ceramics

4-18
U 2 TECEfilo urinal flush valve
before use, preventing adhesion of urine. Desired side
eect: The pre-flush stimulates the urge to urinate.
• Pause function (optional):
The volume of water is automatically reduced if the
urinal is flushed at intervals of less than two minutes.
A cleaning flush is performed  minutes after the last
water-saving flush.
• Variable flushing time:
(Duration – seconds) The flush volume can be
adapted to requirements throughout the flush time.
• Distance:
The modern autofocus sensor optical system operates
reliably in varying construction situations. Nevertheless,
the optical system's recognition range can be changed
on extremely small or large urinal systems.
• Hygiene flush (optional):
If this function is activated, a regular cleaning flush pre-
vents the siphon from drying out and emitting unpleasant
odours, and also prevents residues from being depos-
ited (choice of  or  hours after the last flush).
• Siphon refill (optional):
Modern urinals generally suck the siphon contents
completely away and then refill enough water to fill the
siphon back up again. If this does not work, the refill
function of the electronics can be activated. A short flush
impulse fills the siphon back up.
How to program the TECE electronics:
• Hold the programming key in front
of the sensor window. The pro-
gramming mode starts with a quick
series of short beeps.
• After the start-up phase, a sequence of the same beeps
can be heard. Count the beeps until you reach your
desired function.
• Now remove the programming key. A long beep indi-
cates that the programming key has been removed.
Example: Setting the flush time to  seconds
. . . .
Hold the program
ming key in front
of the sensor
Remove the program-
ming key
Start 1 2 3 4 5 OK
Count the individual beeps until
the desired position is reached
Flush plates for the new U 1 urinal valve
TECEsquare II metal
TECEsquare glass
TECEsquare metal
TECEloop plastic
TECEloop glass
TECEsolid
TECEplanus
TECEnow
TECEambia
The urinal flush plates shown here only give an overview
of the available product range. See the whole range online
at www.tece.com/en. All urinal flush plates are shown in
this overview. For more information on TECE flush plates,
refer to the “Flush plates” technical guidelines.

4-19
U 2 TECEfilo urinal flush valve
U 2 TECEfilo urinal flush valve
The TECEfilo urinal electronics are available with a metal,
glass or plastic surface. As a result, their look harmonis-
es perfectly with various TECE toilet flush plates such as
with theTECEsquare metal, TECEsquare glass or with the
TECEnowtoilet flush plate. The TECEfilo urinal electronics
with a glass or plastic surface can also be mounted flush to
the surface with the TECEfilo installation frame.
The new TECEfilo-Solid, which is available with a painted
or unpainted metal surface, does not require an installation
frame.
4
100
150
100
150
7
5
100
150
TECEfilo, metal
TECEfilo, glass
TECEfilo, plastic
6
98
150
TECEfilo-Solid, metal

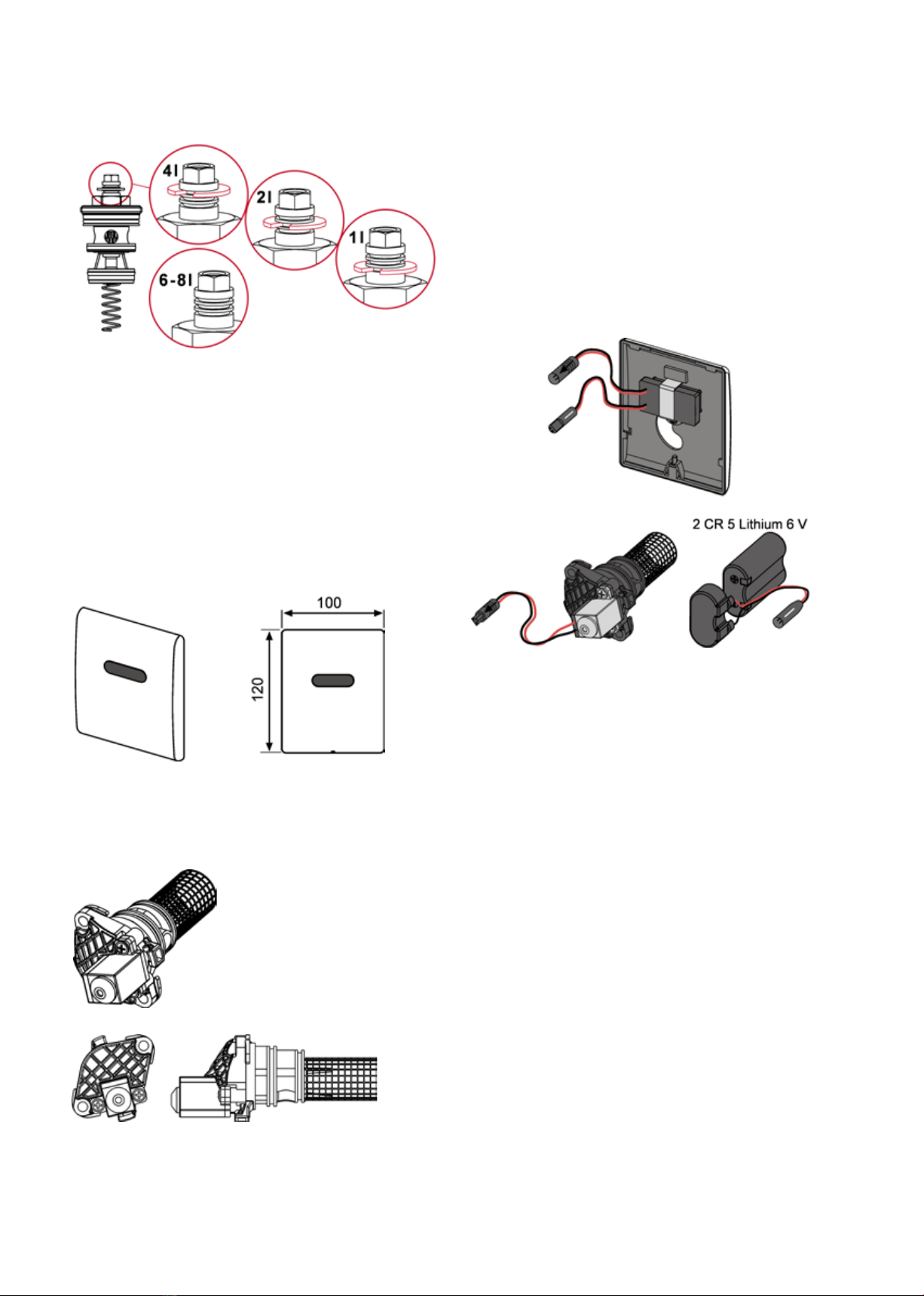

Based on a service life of two years, the battery lasts for
• , flushes or
• approx.  flushes/day.

4-20
U 2 TECEfilo urinal flush valve
The U2 TECE urinal flusher is suitable for installation in dry
and brick-wall constructions. For dry-wall constructions,
installation is performed together with the TECE urinal
module. The transformer is already integrated into the two
shell elements which means that it is suitable for direct
230 V connection.
U2 TECEbox urinal flush valve
housing for brick-wall construction
(9370040)
Compatible with the  V mains
and the . V battery versions.
The transformer for  V mains
operation is already integrated.
210
80
200
130
min. 83
TECEprofil urinal module with U2
flush valve housing (9320013)
Compatible with the  V mains
and the . V battery versions.
The transformer for  V mains
operation is already integrated.
min. 75
0 -200
500
1120-13000
max. 1070
500-910
450-770
200-600
OKFF
min. 14
80
130
1153-1333
TECEfilo installation frame for
flush-mounted installation, for
dry-wall constructions only
(9242040/41/42)
The TECEfilo plastic electronics,
like the glass ones, can be mount-
ed with the TECEfilo installation
frame for flush-mounted installa-
tions in dry-wall structures.
170
157
110
107
220
160
U 2 urinal flush valve assembly instructions
Note: This section provides instructions for the essential
points of installation. The notes are thus explained sections
from the overall assembly procedure. The entire installa-
tion procedure is shown in the assembly instructions for
the corresponding items.

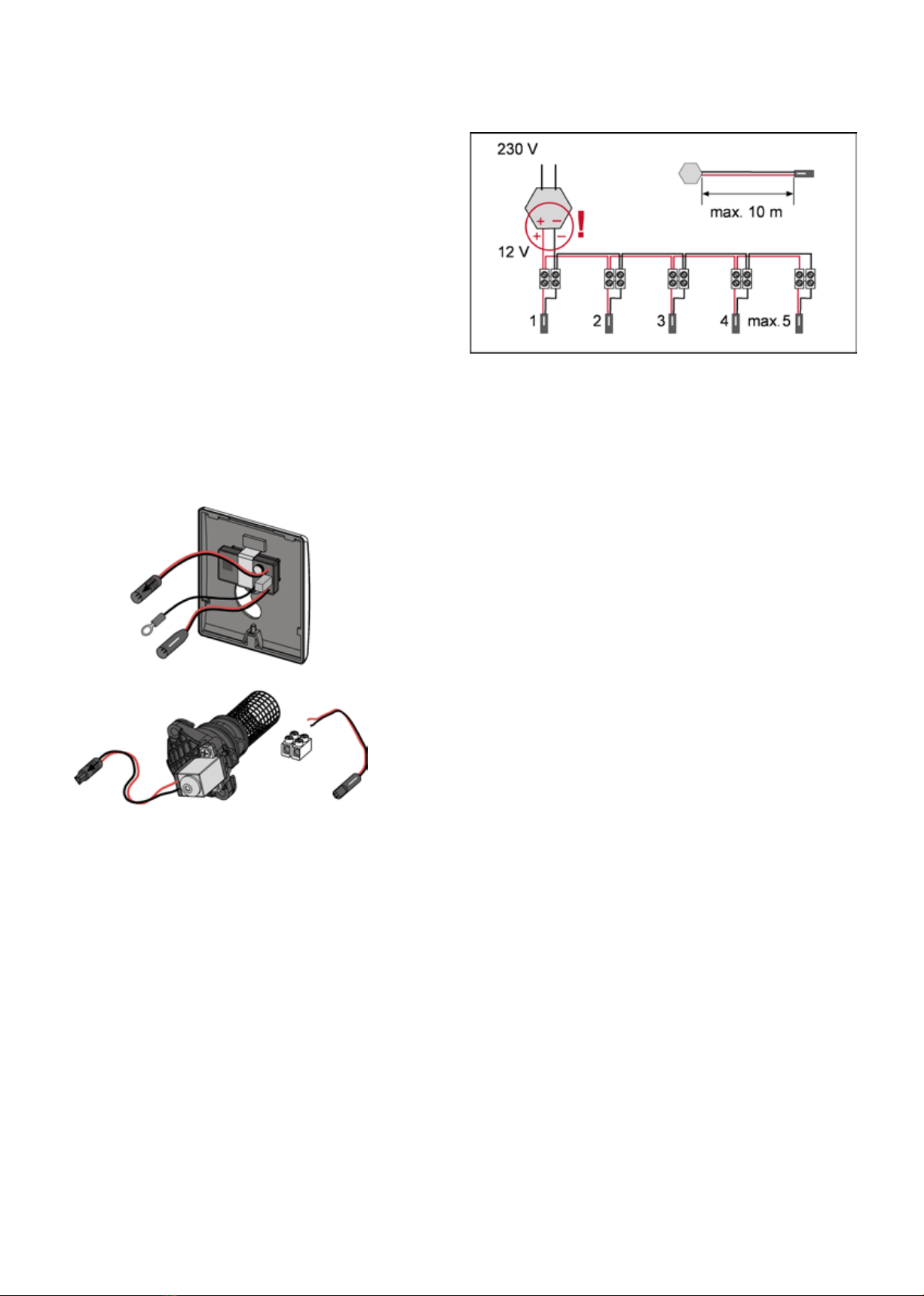

The U flush valve housing can be installed in dry-walls
and brick-walls. For better coordination of the trades, the
transformer is already integrated into the flusher housing.
The transformer can therefore be directly connected with a
 V cable.
It is also possible to loop the connection.
R 1/2 "
!
To connect the pipe, hold the connection housing as
shown in ill. .
