TrendGeek®* User Manual

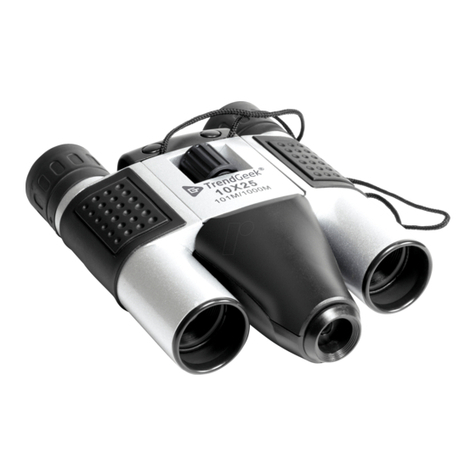

Binoculars with camera TG-125
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using
the device the first time, please read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute
from German fixed-line and 42 cent/minute from mobile networks).
Free Email: [e-mail]
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capacities, or by persons
lacking in experience or knowledge, unless they are supervised or
instructed on the use of this device by a person responsible for their
safety. Children should be supervised to ensure they do not play with this
device.
Keep this user manual for future reference or product sharing carefully.
Do the same with the original accessories for this product. In case of
warranty, please contact the dealer or the store where you bought this
product. Warranty 2 years
Enjoy your product * Share your experience and opinion on one of
the well-known internet portals.
Features
•Magnification of 10 times
•Field of view of 101m at 1000m
•Telescope focus range of 3m to infinity
•Camera focus range of 50m to infinity
•HD Photo resolution
•VGA Video resolution
•MicroSD card up to 32GB (not included)

Product overview
1
Camera lens
7
Diopter adjustment
2
Focusing Wheel
8
Battery cover
3
On/Off / Camera-Shutter
9
Mini-USB connection
4
Video button
10
Red LED
5
MicroSD Card slot
11
Rubber eyecup
6
Blue LED

Specifications
Magnification
10 times
Lens diameter
25mm
Field of View
101m at 1000m
Sensor Type
CMOS
Effective pixels
1.3 Million
Photo file size
1280x960
Video resolution / frame
640x480 / 30fps
Photo / Video / Audio format
JPEG / MPEG / 16Bit
Connection
Mini-USB
Memory expansion
MicroSD up to 32GB (not included)
Weight/Dimensions
230g / 17.2x13.5x6.5cm
Power supply
2x AA Batteries (LR6, Lithium, NiMH) (not
included)
Package contents
TrendGeek TG-125, Mini-USB cable,
Cleaning cloth, User manual
Insert or replace batteries
Remove the battery cover (8) on
the back of the device. Insert two
AA (1.5V LR6) batteries
observing the correct polarity
indicated. Close the battery
compartment with the battery
cover.
Adjustment
The distance between the eyes,
called “interpupillary distance”,
varies from person to person. To
achieve perfect alignment of lens
to eyes, follow these simple steps:
1. Hold your binoculars in the
normal viewing position.
2. Grasp each barrel firmly. Move
the barrels closer together or
further apart until you see a single
circular field of view. Always reset
your binoculars to this position.

Note: If you are too close or too far from the target, the quality of the
photos or videos will not be optimal. Stand at a distance between 100
and 1000 meters from the target. If you are within 100 meters of the
target the framing may be distorted and the photo or video will be slightly
shifted downwards.
Starting up
Press the On/Off button (3) for 2 seconds to start up the device. The red
LED blinks two times. The device is now in the standby mode. In standby
mode the red LED and the blue LED blinks alternately (with a cycle of 2
seconds).
Insert MicroSD card
Insert the MicroSD card into the
MicroSD card slot (5).
If the detection of the MicroSD
card fails or there is not enough
storage, the red LED shines
continuously and the blue LED
blinks 8 times, then the device
shut down.
Note: Proper operation cannot be
guaranteed for all memory cards.
Video recording function
Briefly press the video button (4). The device starts video recording.
During the recording process the blue LED blinks and the red LED turns
off. For stop video recording repress the Video button (4). Now the
device is back into the standby mode and the video file is saved. Note: If
the MicroSD card does not have enough remaining space, the red LED
keeps shining and the blue LED blinks 8 times, then the device turns
power-off.
Photo function
Press the Camera-Shutter button (3). The device makes a photo. The
blue LED and the red LED blinks simultaneously. The device saves the
photo and turns to standby mode.

Power off
Press the On/Off button. If the device is recording a video, the video file
will be saved. The blue LED and the red LED blinks five times
simultaneously, then the device shut down. Note: If the device is in the
standby status and there is no operation for five minutes the device will
shut down automatically. If the battery is too low, the blue LED shines
and the red LED blinks eight times, then the device turns Off.
Connecting with computer
Please connect the Mini-USB cable
with the device as shown in the left
picture. Please connect the other
end with the computer. If the
device is connected to the
computer, it enters the USB-Mode
automatically. The red LED shines
and the blue LED blinks.
Date and Time setting (while connected with computer)
1. Create a new text file named time.
→go to Desktop →click on the right mouse button →click on new →click
on Text Document →now you can change the file name to time
2. Open the file time and write the date and the time in the following way:
YYYY-MM-DD HH:MM:SS
(Example →2018-12-31 23:59:59)
3. Now save the file.
4. Copy the file on the MicroSD card.
5. Now you can eject the USB device.
Note: If you change the batteries, the date and time must be set again.
Care and maintenance
Clean the device only with a dry or slightly damp, lint-free cloth.
Do not use abrasive cleaners to clean the device.
This device is a high-precision optical instrument, so in order to avoid
damage, please avoid the following practice:
●Use the device in ultra-high or ultra-low temperature.
●Keep it or use it in moist environment for long.
●Use it in rainfalls or in water.
●Deliver or use it in strongly shocking environment.

Hints
●The device is intended exclusively for private and not for commercial
use. ●Only use this device as described in this user manual. ●Do not
place any part of this device in water or any other liquid. ●Do not handle
the device with wet hands. ● When disconnecting the cable, always pull
at the plug. Do not pull on the cable itself. ●Do not let the power cord on
the edge of a table or work surface. ●Prevent it comes into contact with
hot surfaces. ●Keep it away from heat sources to avoid deformation of
plastic parts. ● Do not put out the memory card during the video
recording process. This can damage the video files and the memory
card. ●Please remove the battery after use.
Safety Instructions
● Never use this device to look directly at the sun or in the direct
proximity of the sun. Doing so may result in a risk of blindness.
● Children should only use the device under adult supervision. ●Keep
packaging material, like plastic bags and rubber bands, out of the reach
of children, as these materials pose a choking hazard. ●Do not place
the device, particularly the lenses, in direct sunlight. The concentration of
light could cause a fire. ●Do not disassemble the device. ●Do not
expose the device to high temperatures. ●The device is intended only
for private use. ● Please heed the privacy of other people. ●Do not use
this device to look into apartments, for example.
Security and Disposal Hints for Batteries: Hold children off
batteries. When a child swallowed a battery go to a doctors place or
bring the child into a hospital promptly! Look for the right polarity (+)
and (–) of batteries! Always change all batteries. Never use old and
new batteries or batteries of different types together. Never short,
open, deform or load up batteries! Risk of injury! Never throw
batteies into fire! Risk of explosion!
Hints for Environment Protection: Packages materials are raw
materials and can be recycled. Do not disposal old devices or
batteries into the domestic waste. Cleaning: Protect the device from
contamination and pollution (use a clean drapery). Avoid using rough,
coarse-grained materials or solvents/aggressive cleaner. Wipe the
cleaned device accurately. Important Notice: Should battery fluid
leak from a battery, wipe the battery case with a soft cloth dry.
Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105,
60388 Frankfurt a.M., Germany
