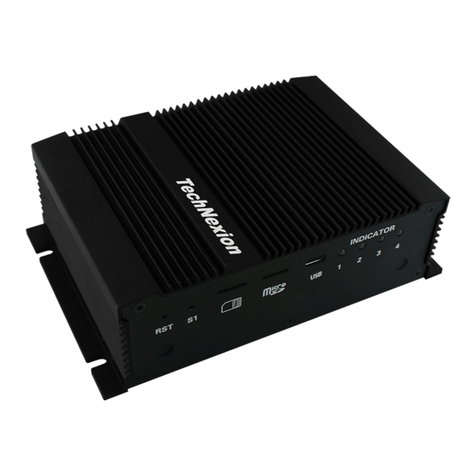

TechNexion TEK3-BSW User manual

3.1 Surface Mounng
TEK3-BSW
Quickstart Guide
3 Installaon Instrucons
This secon describes the mounng procedures for TEK series device. The material in the mounng area must provide sufficient strength for support of this embedded
box PC.
There are 4 mounng holes (M5) on the front side of the device required for surface mounng. Four M4 or M5 screws with at least 8mm head-to-p length are
required to secure this device to the surface.
3.2 DIN Mounng
The device can be mounted on a DIN rail by using a DIN-rail bracket. There are four mounng holes (M3) on the rear side of the device required for DIN bracket
mounng (30mm DIN rail standard). Secure the DIN bracket to the back of this device by using two M3 screws with at least 5mm head-to-p length.
INNOVATORS OF TECHNOLOGY
Top view:
Boom view:
2 Dimensions
1 Safety Precauons
Thank you for purchasing a TechNexion TEK series device. This installaon guide will be helpful in the installaon, wiring and inspecon of your TechNexion embedded
fanless box PC. Before using the product, please read this guide to ensure correct use. You should thoroughly understand all safety precauons before proceeding with
the installaon, wiring, and operaon. Place this instrucon sheet in a safe locaon for future reference. The following suggesons will help you.
• Keep the device dry. Precipitaon, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet,
allow it to dry completely.
• Do not use or store the device in dusty or dirty areas. Its parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage baeries, and warp or melt certain plascs.
• Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
• Do not aempt to open the device. This product is designed for specific applicaons and needs to be installed by qualified personnel.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not paint the device. Paint can clog the parts and prevent proper operaon.
• Unauthorized modificaons or aachments could damage the device and may violate regulaons governing radio devices.
• Do not touch any internal or exposed parts of the device as electrical shock may result.
• Do not open the device while power is on. Otherwise electrical shock may result.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Be sure the venlaon holes are not obstructed during operaon. Otherwise malfuncon may result due to bad venlaon or overheang.
These suggesons apply equally to your device, baery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.
•Make sure that the available power source matches the required input power of the device. Failure to observe this cauon may result in electric shock or fire.
•Do not power the unit by DC input when you apply power over the PoE (RJ45).
1.1 Storage and Installaon
1.2 Wiring
1.3 Maintenance and Inspecon
!
Unit : mm
168
109
71.5
30
30
157
54.2
1 2

4 External Connectors
• All Rights Reserved. No part of this document may be photocopied, reproduced, stored in a retrieval system, or transmied, in any form or by any means whether, electronic, mechanical, or otherwise
without the prior wrien permission of TechNexion Ltd.
• No warranty of accuracy is given concerning the contents of the informaon contained in this publicaon. To the extent permied by law no liability (including liability to any person by reason of
negligence) will be accepted by TechNexion Ltd., its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
• TechNexion Ltd. reserves the right to change details in this publicaon without noce. Please download the most updated version at: hps://www.technexion.com/support/download-center/
Phone: [phone] Web: www.technexion.com
16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan © 2001-2019 TechNexion Ltd.
2019-05-27
5.1 Galvanic Isolated Connectors Pin Definion(TEK3-xxxxx-Rxx-Lxxx-xxx-xxxx-XG21-xxxx-xxxx) (oponal)
5.2 Non-Galvanic Isolated Connectors Pin Definion (TEK3-xxxxx-Rxx-Lxxx-xxx-xxxx-XS21-xxxx-xxxx) (oponal)
5.1.1 Galvanic Isolated Serial Port Connector (RS-XXX) (oponal)
5.1.2 Galvanic Isolated Digital I/O Connectors (GPIO1 / GPIO2) (oponal)
5.2.1 Non-Galvanic Isolated Serial Port Connector (RS-XXX) (oponal)
5.2.2 Non-Galvanic Isolated Digital I/O Connectors (GPIO1 / GPIO2) (oponal)
5 Addional I/O Connectors: GPIO1, GPIO2, and RS-XXX (oponal)
6 LED Light Indicators
This product is available with three oponal connectors: GPIO1, GPIO2, and RS-XXX that can be ordered in either a galvanic
isolated or non-galvanic isolated version.
The dual 4-wire galvanic isolated serial port is set by default as follows: The primary and secondary serial ports are both set as
RS-232 during manufacturing. For seng details of TEK3-BSW serial ports in other modes, please refer to the TEK3-BSW
HARDWARE MANUAL.
The dual 4-wire non-galvanic isolated serial port can be configured as follows: The primary and secondary serial port can only be
used as a standard RS-232.
The TEK3-BSW has four programmable LED Light indicators.
For detailed sengs informaon of the TEK3-BSW GPIO ports, please refer to the TEK3-BSW HARDWARE MANUAL.
Header: Molex 43045-1012 (10-pin Micro-Fit 3.0).
Cable receptacle: Molex 43025-1000 (10-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007.
For detailed sengs informaon of the TEK3-BSW GPIO ports, please refer to the TEK3-BSW
HARDWARE MANUAL.
Header: Molex 43045-0800 (8-pin Micro-Fit 3.0).
Cable receptacle: Molex 43025-0800 (8-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007.
Header: Molex 43045-1000 (10-pin Micro-Fit 3.0).
Cable receptacle: Molex 43025-1000 (10-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007.
Description No.No. Description
1
2
3
4
5
6
12
13
14
15
16
17
7
8
9
10
11
18
19
20
21
22
23
24
25
26
USB Host connector
USB Host connector
HDMI connector
miniDP connector
USB OTG (Type-C) connector
LAN2 RJ45 connector
3.5mm jack Line out
3.5mm jack Line in
3.5mm jack Mic in
Power Input connector
LAN1 RJ45 connector
GPIO1 connector (optional)
GPIO2 connector (optional)
RS-XXX (Serial Port) connector (optional)
Power button
Reset button
Micro-SIM cardslot
MicroSD cardslot
LED Light 1 indicator
LED Light 2 indicator
LED Light 3 indicator
LED Light 4 indicator
Antenna hole
Antenna hole
Antenna hole
Antenna hole
LED# Color
PCB Location
Registered Address
1 LED-D12
LED-D11
LED-D10
LED-D9
Green
Green
Green
Green
0xFED8C400_BIT1(Memory)
0x99_BIT7(SIO)
0x81_BIT0(SIO)
0xE1_BIT4(SIO)
2
3
4
RS-XXX:
GPIO1/GPIO2:
RS-XXX:
DIG_IN1
DIG_IN2
Ground for digital I/O
Common Ground
DIG_OUT5
DIG_OUT6
Supply input for digital I/O
Supply output
Max. 5.25V
Max. 5.25V
Max. 12.39V
Max. 12.39V
Max. 12.39V
12V
Voltage
GPIO1A
GPIO1B
GND_DIO
GND
GPIO1C
GPIO1D
VCC_DIO
VCC
DIG_IN1
DIG_IN2
Ground for digital I/O
Common Ground
DIG_OUT5
DIG_OUT6
Supply input for digital I/O
Supply output
GPIO2A
GPIO2B
GND_DIO
GND
GPIO2C
GPIO2D
VCC_DIO
VCC
Port Pin # GPIO1 Signal
GPIO1 Description GPIO2 Description GPIO2 Signal
1
2
3
4
5
6
7
8
1234
5678
Header: Molex 43045-0800 (8-pin Micro-Fit 3.0).
Cable receptacle: Molex 43025-0800 (8-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007.
Note: LED Light 4 indicator is set as Power LED during manufacturing. The Power LED Light indicator is lit,
when the system is powered on.
GPIO1/GPIO2:
INDICATOR:
DIG_IN1/OUT1
DIG_IN2/OUT2
Common Ground
DIG_IN5/OUT5
DIG_IN5/OUT6
Supply Output
3.3V
3.3V
3.3V
3.3V
12V
Voltage
GPIO1A
GPIO1B
NC
GND
GPIO1C
GPIO1D
NC
VCC
DIG_IN1/OUT1
DIG_IN2/OUT2
Common Ground
DIG_IN5/OUT5
DIG_IN5/OUT6
Supply Output
GPIO2A
GPIO2B
NC
GND
GPIO2C
GPIO2D
NC
VCC
Port Pin #
GPIO1 Signal
GPIO1 Description GPIO2 Description GPIO2 Signal
1
2
3
4
5
6
7
8
1234
5678
68
Front view:
31 2 4 579
10 11 12 13 14
Rear view:
23 24 25 26
15 16 17 18 19 20 21 22
12345
678910
Port Pin #
RS-232 + RS-232 (default)
Device
1
2
3
4
5
7
6
8
9
10
GND
SERIAL1A_TXD
SERIAL1A_RXD
SERIAL1A_RTS
SERIAL1A_CTS
GND
SERIAL1B_TXD
SERIAL1B_RXD
SERIAL1B_RTS
SERIAL1B_CTS
GND
SERIAL1A_TXD
SERIAL1A_RXD
SERIAL1A_RTS
SERIAL1A_CTS
GND
SERIAL1B_TXD
SERIAL1B_RXD
SERIAL1B_RTS
SERIAL1B_CTS
RS-232 + RS-422 RS-232 + RS-485
GND
SERIAL1A_TXD
SERIAL1A_RXD
SERIAL1A_RTS
SERIAL1A_CTS
GND
SERIAL1B_TXD+
SERIAL1B_RXD-
SERIAL1B_RXD+
SERIAL1B_TXD-
GND
SERIAL1A_TXD
SERIAL1A_RXD
SERIAL1A_RTS
SERIAL1A_CTS
GND
SERIAL1B+
NC
NC
SERIAL1B-
COM1
COM1
COM1
COM1
COM2
COM2
COM2
COM2
12345
678910
Port Pin #
RS-232 + RS-232 Device
1
2
3
4
5
7
6
8
9
10
COM1
COM1
COM1
COM1
COM2
COM2
COM2
COM2
The unit is by default preloaded with soware that can download and install a selecon of Linux OS images over hardwired network. Simply connect a display to the
unit though the miniDP or HDMI connector and a network through the Ethernet LAN RJ45 connector and power it up, then follow the steps on the screen to load the
soware.Local proxies will interfere with this process. For more informaon, go to our Knowledge Base at: hps://www.technexion.com/support/knowledge-base/
To download drivers for the Windows operang systems, go to our Download Center at:
hps://www.technexion.com/support/download-center/
For more informaon about installing and configuring the Windows operang systems, see: hps://msdn.microso.com/en-us/
7 Soware and Driver Installaon
