SPECIFICATIONS

1. Note
Refertotheservice manual for Model No. SA-EH590EG, SA-EH590EP (OrderNo. AD0302008C8)
for information on Accessories and Packaging.
2. Location of Controls
3. Operation Checks and Component Replacement /
Procedures
-Thissection describes procedures forchecking theoperation of
themajorprintedcircuitboardsand replacing themain
components.
-Forreassemblyafteroperation checks orreplacement, reverse the
respectiveprocedures. Special reassemblyprocedures are
describedonlywhenrequired.
3.1. Checking forthemainP.C.B.
-Check themainP.C.B. as shownabove.
3.2. Checking fortheoperation P.C.B.
-Follow the(Step1) -(Step3) ofitem3.1.
2

3

-Check theoperation P.C.B. as shownbelow.

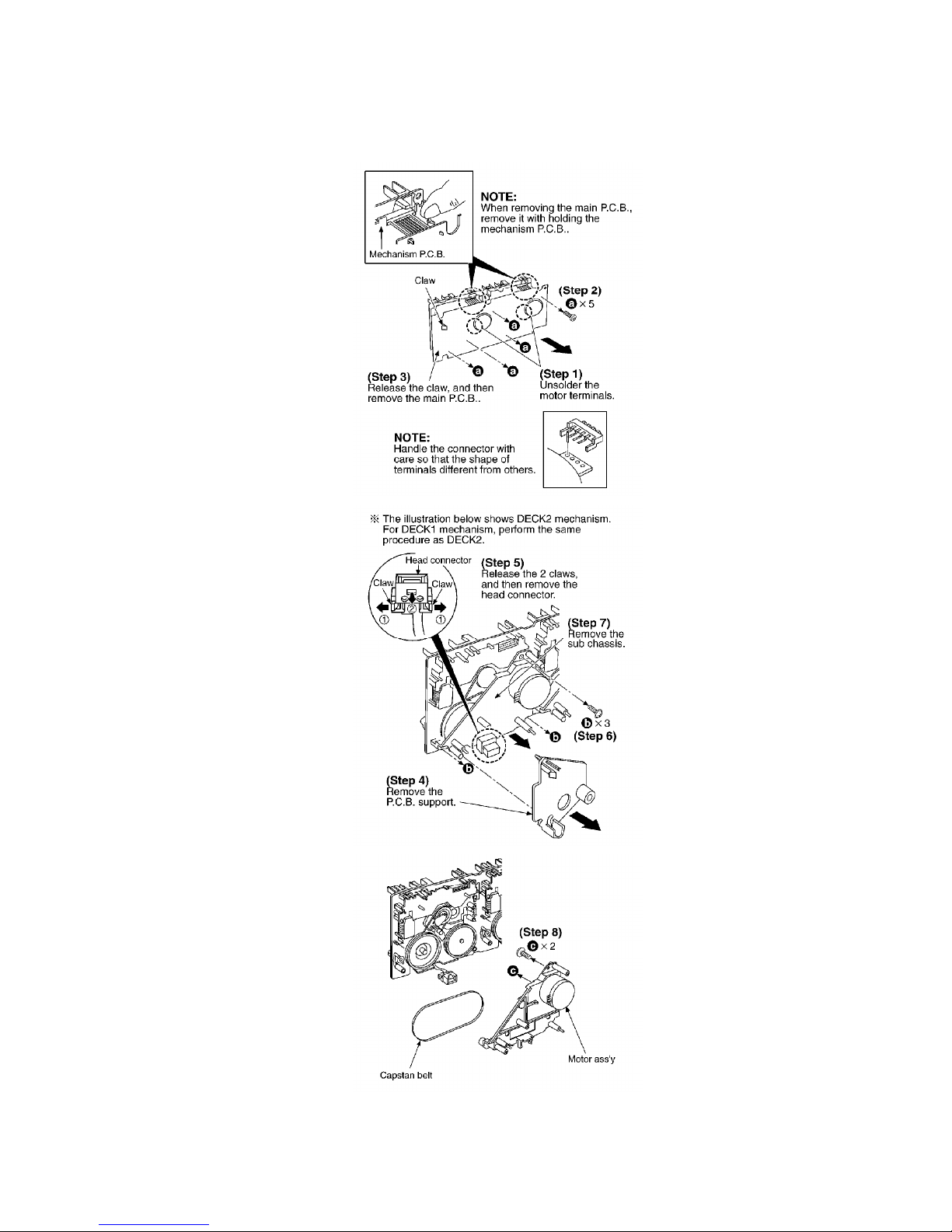

3.3. Replacementforthemotorass’y, capstanbeltand winding belt
-Follow the(Step1) -(Step3) ofitem3.1.
4

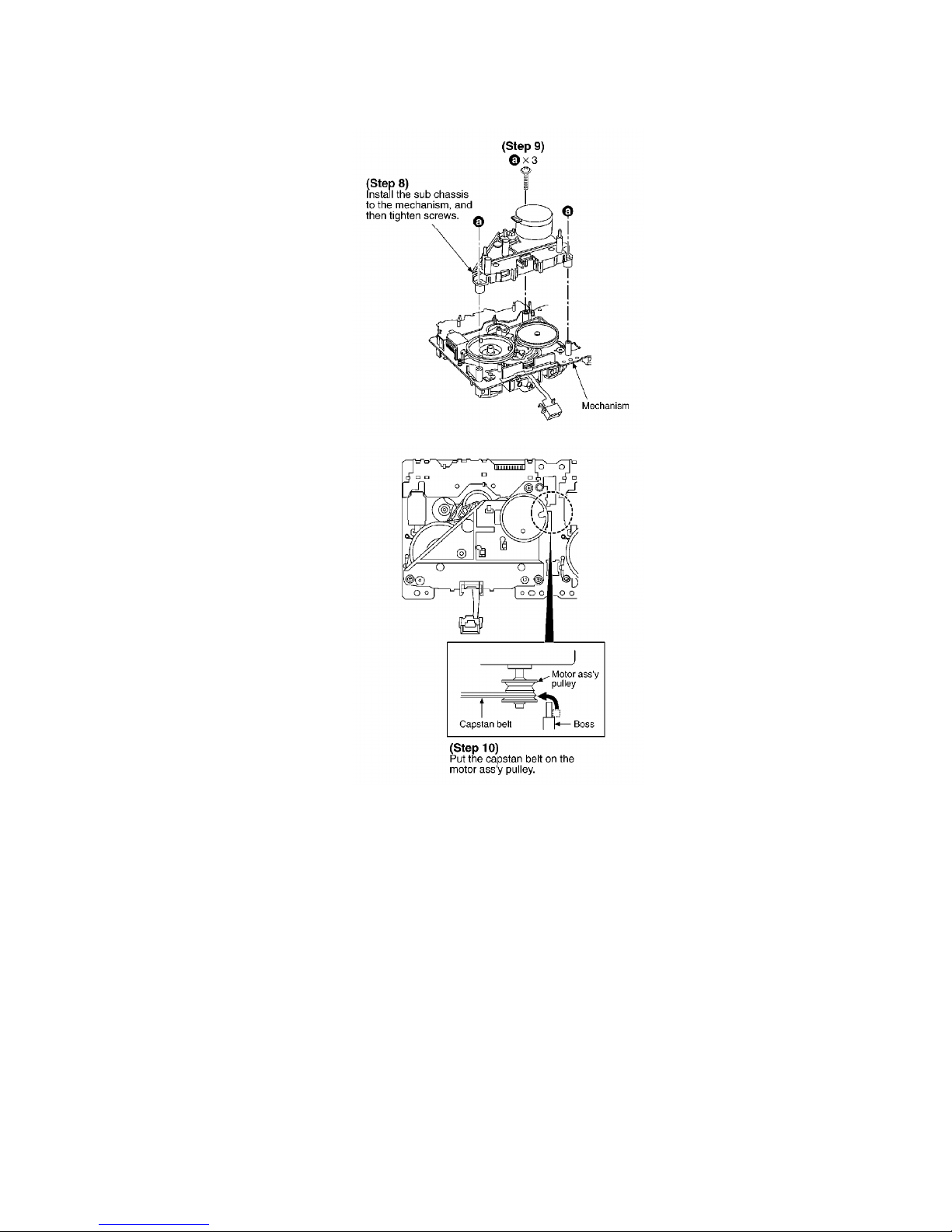

-Follow the(Step1) -(Step7) ofitem3.2.
5

6

7

3.4. Replacementforthecomponents parts on themechanismP.C.B.
-Follow the(Step1) -(Step3) ofitem3.1.
-Follow the(Step1) -(Step7) ofitem3.2.
-Follow the(Step1) -(Step4) ofitem3.3.
8

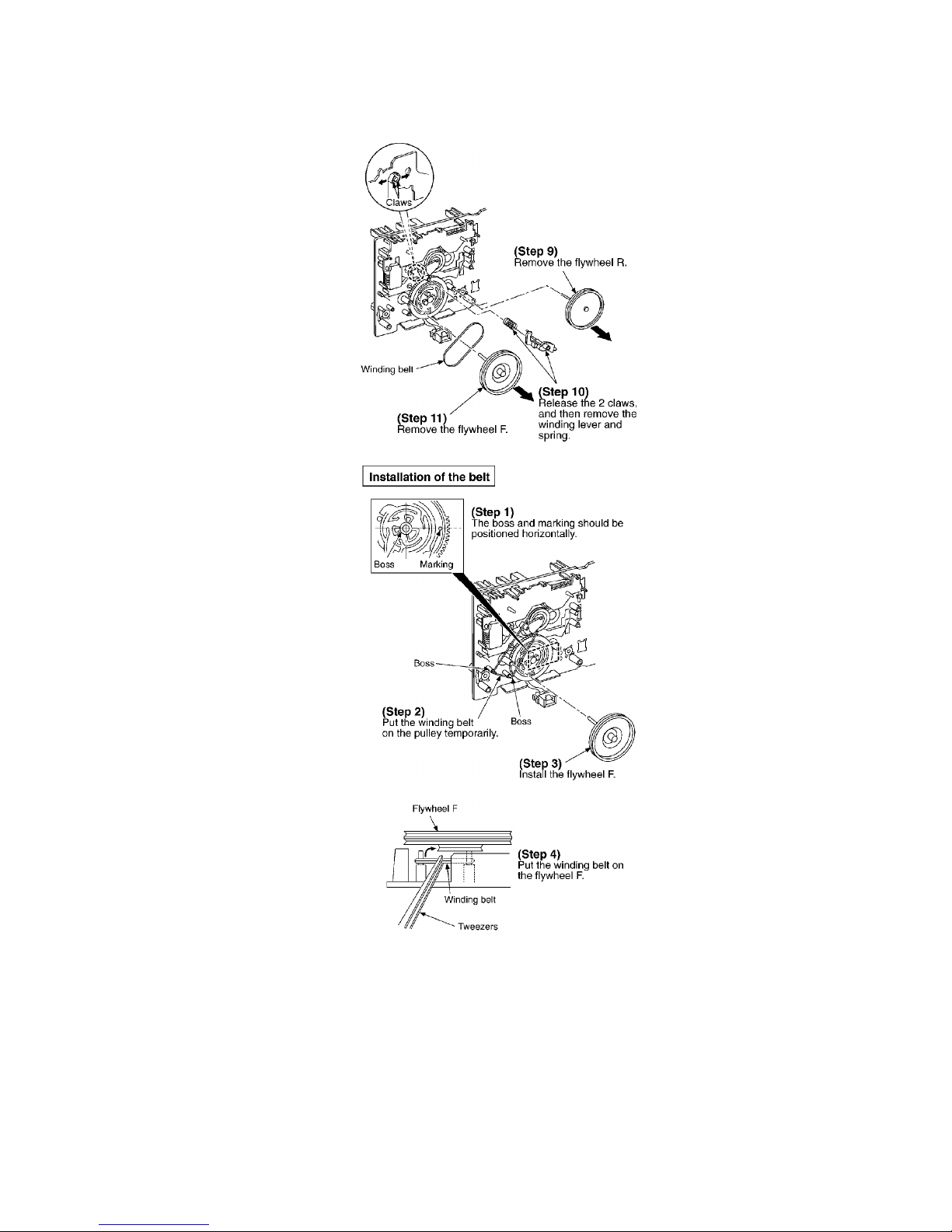

3.5. Replacementforthepinchrollerass’yand headblock
-Follow the(Step1) -(Step3) ofitem3.1.
-Follow the(Step1) -(Step7) ofitem3.2.
-Follow the(Step1) -(Step5) ofitem3.3.
3.6. Replacementforthecassette lidass’y
-Follow the(Step1) -(Step3) ofitem3.1.
9

3.7. Replacementforthecassette holder
-Follow the(Step1) -(Step3) ofitem3.1.
-Follow the(Step1) -(Step11) ofitem3.2.
10

4. ToSupplyPowerSource
Thisunitisdesignedtooperateon powersuppliedfrom system connected. / Whenacomponent
requires service, use thesystem connectionstosupplypowersource. / For system connections,
referto Fig.4-1.
Fig. 4-1.
5. Service Mode Function of CassetteMechanism
Thisunitisequippedwithaservice modefunction ofcassettemechanism, sothatiftheunit
operates incorrectly, thefaultdisplayedusing anerror codeon theFL display oftheTuner/
Amplifier(SA-EH590). Thesystem control ICand FLdisplay arepartoftheTuner/Amplifierso
make surethesystem has beenconnectedproperlybeforeusing thisfunction. Use thisfunction
during maintenance tocheck faultsofitemsbelow.
5.1. Cassette tapetobeprepared
Metal tape:
Recordedmusictapewithonlyoneerasureprevention tabintact. /
(use middleportion oftape)
Normal tape:/ CrO2tape:
Recordedmusictapewithbotherasureprevention tabsintact. /
(use middleportion oftape)
11

5.2. Selecting service mode
1. Turnon thepowertotheunit.
2. Make surethat no tapeisinsertedinthecassette deck. (Service
modecannotbeselectedwithatapeinsertedinthecassette deck.)

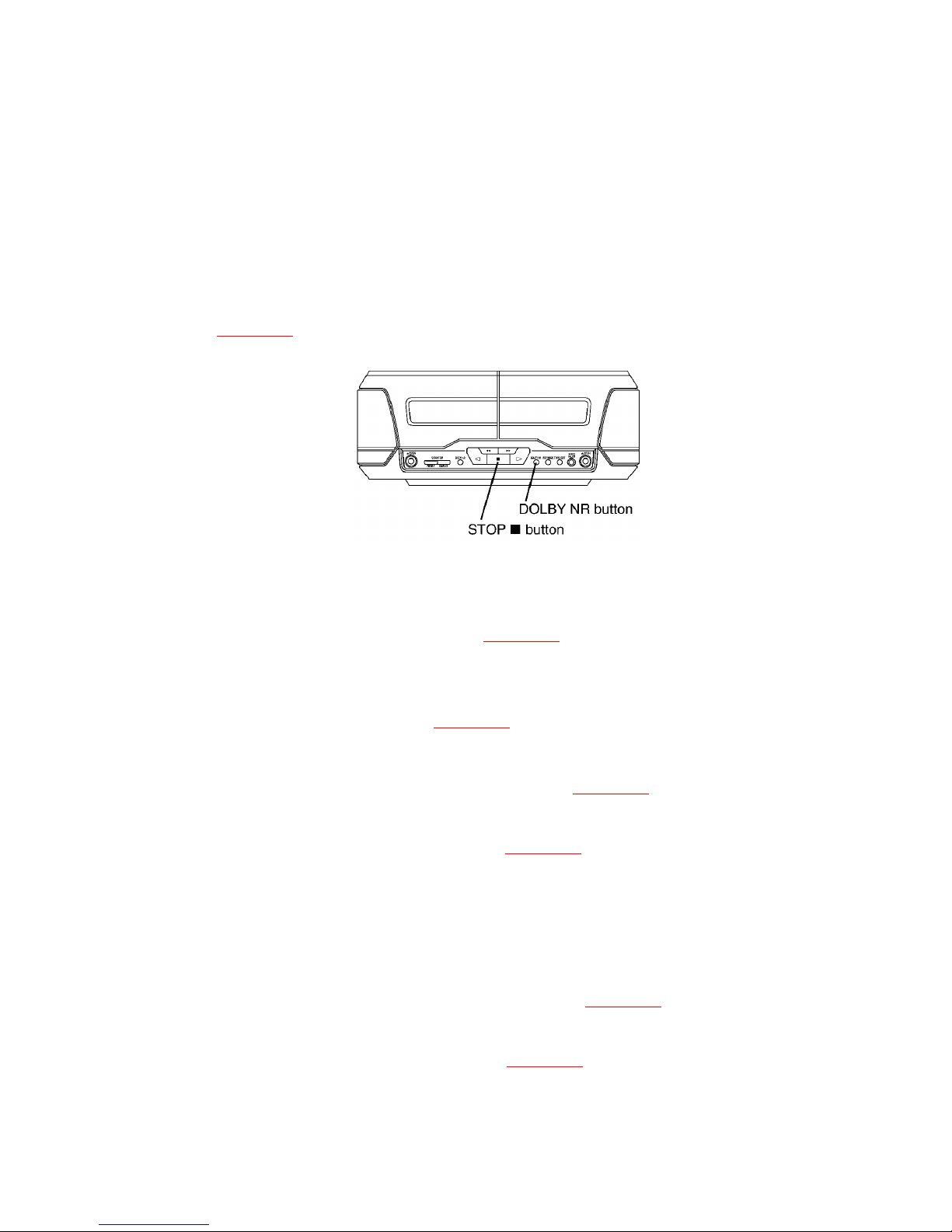

3. Press theDOLBYNR button forabout2seconds, and keep
pressing it, alsopress theSTOPbutton forabout2seconds. Refer
to Fig. 5-1.
Fig. 5-1.
5.3. Deck 1mechanismcheck
1. Press theDeck 1/deck 2select button tochangetheflashing Deck
2indicatortoDeck 1. Referto Fig. 5-2. / (Nochangerequiredif
Deck 1indicatoralreadyflashing.)
2. Press theDeck 1cassette holderopenbutton toopentheDeck 1
cassette holder. Referto Fig. 5-2.
3. InsertaCrO2tapeintotheDeck 1and close thecassette holder.
4. Press theFast forwardbutton. Referto Fig. 5-2. / (Tapefast
forwardsforabout2secondsthenstops.)
5. Press thePLAYbutton. Referto Fig. 5-2. / (AfterTPS operation
and check, thetapestops.)
6. OpentheDeck 1cassette holderand replace thetapewitha
normal tape.
7. Close theDeck 1cassette holder.
8. Press theRecordpause button. Referto Fig. 5-2. / (Norecord
operation.)
9. Press theSTOPbutton. Referto Fig. 5-2. Amechanismerrorcode
isdisplayed. RefertoTable5-1. EachtimetheSTOPbutton is
12

pressed, thefaultitemsaredisplayedinsequence.
Fig. 5-2.
Table5-1.
FL display Symptom Cause
H01 Cassettedeck does notoperatecorrectly. Faultycassettedeck mechanism
mode
switch(Deck 1:S951, Deck 2:S971),
plunger
and capstanmotor. / (Check and
replace)
H02 Unitdoes notrecord or theunitgoes into
recording modeevenwhentheerasure
prevention tabshave beenremovedfrom the
cassette.
Faultyerasureprevention tabsdetect
switch
(S974, S975)or short-circuit. (Check
and
replace)
H03 Tapedoes notplay evenwhenthetapedeck
play button ispressed.
Themotor operates whenthetapedeck play
button ispressedevenifcassetteisloadedin
thedeck.
Faultytapedetectswitch(Deck 1:
S952
S972)or short-circuit. (Check and
replace)
H06 Cassettedeck does notdetectCrO2tape. FaultyCrO2tapedetectswitch(Deck
1
Deck 2:S973). / (Check and replace)
H07 Cassettedeck does notdetectMetal tape. FaultyMetal tapedetectswitch(
S976).
and replace)
F01 Whenthetapeplay button ispressed, tape
advances onlyslightlyand thenstops.
Reel pulse error (FaultyHall IC). (
Check
replace)
F02 TPS (tapeprogram search)does notwork. FaultyTPS signal detection or faulty
plunger
control. / (Check and replace
mechanism
control IC)
5.4. Deck 2mechanismcheck
1. Press theDeck 1/deck 2select button tochangetheflashing Deck
1indicatortoDeck 2. Referto Fig. 5-3.
2. Press theDeck 2cassette holderopenbutton toopentheDeck 2
13

cassette holder. Referto Fig. 5-3.
3. Insertametal tapeintotheDeck 2withanintact erasure
prevention tabon therightside.
4. Close theDeck 2cassette holder.
5. Press theFast forwardbutton. Referto Fig. 5-3. / (Tapefast
forwardsforabout2secondsthenstops.)
6. OpentheDeck 2cassette holderand turnoverthemetal tape.
(intact erasureprevention tabon theleft side.)
7. Close theDeck 2cassette holder.
8. Press theRewind button. Referto Fig. 5-3. / (Taperewindsfor
about2secondsthenstops.)
9. OpentheDeck 2cassette holderand replace themetal tapewitha
CrO2tape.
10. Close theDeck 2cassette holder.
11. Press thePLAYbutton. Referto Fig. 5-3. / (AfterTPS operation
and check, thetapestops.)
12. OpentheDeck 2cassette holderand replace theCrO2tapewitha
normal tape.
13. Close theDeck 2cassette holder.
14. Press theRecordpause button. Referto Fig. 5-3. / (Norecord
operation.)
15. Press theSTOPbutton. Referto Fig. 5-3. Amechanismerror
codeisdisplayed. RefertoTable5-1. EachtimetheSTOPbutton is
pressed, thefaultitemsaredisplayedinsequence.
Fig. 5-3.
14

5.5. Exiting service mode
1. Press theSTOPbutton formorethan5seconds. (Diagnostic
contents storedinmemoryforbothDeck 1and 2areerased.)
2. Removethecassette tapefromthecassette holder.
3. Turnoff theunit.
6. SchematicDiagramNotes
-Thisschematicdiagrammaybemodifiedat anytimewiththe
developmentofnew technology.
Notes:
S900:
Stop switch( )
S901:
Deck 2cassette holderopenswitch( OPEN)
S903:
Tapeeditswitch(TAPE EDIT)
S904:
Recordpause switch/ ( RECPAUSE)
S905:
Dolbynoise reduction switch/ (DOLBYNR)
S906:
15

Fast forward, TPS switch( )
S907:
Forwardsideplayback switch( )
S909:
Reverse sideplayback switch( )
S910:
Rewind, TPS switch( )
S911:
Reverse modeswitch/ (REV MODE)
S912:
Deck 1/deck 2select switch/ (DECK 1/2)
S913:
Counterdisplayswitch/ (COUNTERDISPLAY)
S914:
Counterreset switch/ (COUNTERRESET)
S915:
Deck 1cassette holderopenswitch( OPEN)
S951:
Deck 1modedetect switch
S952:
Deck 1halfdetect switch
S953:
Deck 1CrO2tapedetect switch
S971:
Deck 2modedetect switch
S972:
Deck 2halfdetect switch
S973:
Deck 2CrO2tapedetect switch
16

S974:
Deck 2reverse siderecordprevention tabdetect switch
S975:
Deck 2forwardsiderecordprevention tabdetect switch
S976:
Deck 2METALtapedetect switch
VR101:
Deck 1playback gainadjustmentVR/ (Rch)
VR102:
Deck 2playback gainadjustmentVR/ (Lch)
VR103:
Deck 2playback gainadjustmentVR/ (Rch)
VR104:
Deck 1playback gainadjustmentVR/ (Lch)
VR801:
Deck 1tapespeedadjustmentVR(normal)
VR803:
Deck 2tapespeedadjustmentVR(normal)
-Indicatedvoltagevalues arethestandardvalues fortheunit
measuredbytheDC electroniccircuittester(high-impedance) with
thechassistakenas standard. Therefore, theremayexist some
errorsinthevoltagevalues, depending on theinternal impedance
oftheDC circuittester.
Nomark
:Playback
()
:Recording
-Importantsafetynotice:
Components identifiedbymarkhavespecial characteristics
importantforsafety.
Furthermore, special parts whichhavepurposes offire-retardant
(resistors), high-qualitysound (capacitors), low-noise (resistors),
etc. areused.
17

Whenreplacing anyofcomponents, besuretouse only
manufacturer’sspecifiedparts shownintheparts list.
-Thesupplypartnumberisdescribedaloneinthereplacementparts
list.
-Caution!
ICand LSI aresensitivetostaticelectricity.
Secondarytroublecanbepreventedbytaking careduring repair.
Covertheparts boxes madeofplastics withaluminumfoil.
Ground thesoldering iron.
Putaconductivemat on theworktable.
DonottouchthelegsofICorLSI withthefingersdirectly.
-Voltageand signal line
:Positivevoltageline
:Playback signal line
:Recording signal line
7. SchematicDiagram
8. Printed Circuit BoardDiagram
9. Type Illustration of ICs, Transistorsand Diodes
10. Wiring Connection Diagram
11. Block Diagram
12. Terminal Function of ICs
12.1. IC701 (M38503M2406F):/ SystemControl
18

Pin
No.
Terminal
Name
I/O Function
1VCC IPowersupplyterminal
2VREF I Reference voltageinput
3AVSS -GND terminal
4LMT O Muting control signal output
5PL1 O Deck 1solenoidcontrol signal
output
6M1 O Deck 1motor drive control
signal output
7HALT I Powerfailuredetectsignal input
8REQ I Serial communication request
signal input
9CS I Serial communication complete
signal input
10 CLK O Serial communication clock
signal output
11 DATA
OUT
OSerial communication data
signal output
12 DATAIN I Serial communication data
signal input
13 METAL2 I Deck 2tapedetectswitchsignal
(METAL)input
14 CRO22 IDeck 2tapedetectswitchsignal
(CrO2)input
15 VSS -GND terminal
16 FWDLED O LEDdrive control signal (FWD)
output
17 REV LED O LEDdrive control signal (REV)
output
18 RESET I Resetsignal input
19 XIN I Oscillator connectedterminal (F
=8MHz)
20 XOUT O
21 VSS -GND terminal
22 CRO21 IDeck 1tapedetectswitchsignal
(CrO2)input
23 MODE I Deck 1mechanism switch
signal (MODE)input
24 HALF1 I Deck 1mechanism switch
signal (Half) input
25 TPS I TPS signal input
26 ADATA O Serial datasignal outputfor IC
101
27 ACLK O Serial clock signal outputfor IC
101
28 ALATCH OSerial latchsignal outputfor IC
101
19

101
Pin
No.
Terminal
Name
I/O Function
29 PL2 O Deck 2solenoidcontrol signal
output
30 M2 O Deck 2motor drive control
signal output
31 ENC/DEC O DolbyNR record/playback mode
selectsignal output
32 DOLBY
ON/OFF
ODolbyNR ON/OFF control signal
output
33 E CS - EEPROMchipselectsignal
output
(Notused, open)
34
|
36
NC - Notused, open
37 LEDCNT O LEDcolor control signal output
38 PHOTO2T IDeck 2reel pulse detectsignal
input
39 ADSW I Deck 2mechanism switch
signal input
(Half, Mode, FRECINH., RREC
INH.)
40 PHOTO1T IDeck 1reel pulse detectsignal
input
41 KEY2 I Operation key signal input
42 KEY1 I Operation key signal input
13. Measurementsand Adjustments
Note:
ThisunitRS-DV290 isdesignedtooperate on powersuppliedfrom
systemconnected.
13.1. Measurementcondition
-DolbyNR switchisOFF
-Make sureheadsareclean
-Make surecapstanand pressurerollerareclean
-Temperatureis20 ±5°C
13.2. Measurementinstrumentand special tool
-ElectronicVoltmeter
-FrequencyCounter
20
