Technika Freeview STBHDIS2010 User manual

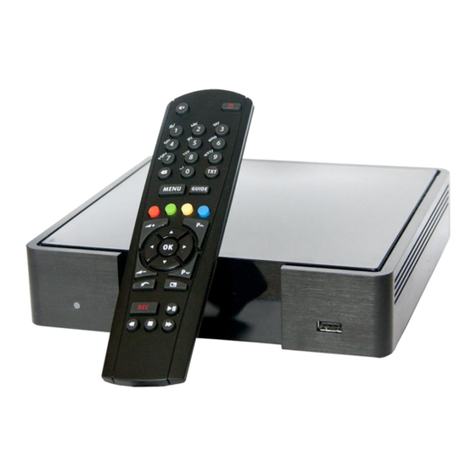

Freeview™ HD Set Top Box
Model: STBHDIS2010

1
Contents....................................................
Quick Start Guide......................................
Connecting your box ...........................
Tuning your box ...................................
Receiving Channel Zero .......................
Introduction...............................................
Safety is important ...............................
In the box .............................................
Safety information......................................
Important Safety Instructions ..............
Electrical Safety Information .................
Parts identication .....................................
Front Panel ...........................................
Rear Panel..............................................
Remote control ....................................
Remote control ..........................................
Installing batteries ................................
Using the remote control ......................
Connecting the box ...................................
Connecting the TV aerial .......................
Connecting to the TV and other devices ...
Coaxial cable ...................................
SCART cable ...................................
HDMI cable .....................................
Basic operating instructions ......................
Switching on for the rst time .............
Standby ...............................................
Source selection ..................................
Selecting a channel ..............................
Volume .................................................
Programme swap .................................
Information display ..............................
Subtitles................................................
Audio Description ................................
Channel list ...........................................
Channel favourites list ..........................
TV Guide ...............................................
Setting the timer ...................................
Digital text ..........................................
Menu operations ................................
Channels menu ..................................
Channel organizer ..............................
Channel groups ..................................
Install menu .......................................
Channel tune ......................................
Factory reset ......................................
Version ...............................................
Ethernet...............................................
Settings ..............................................
Language ............................................
TV .......................................................
Time ...................................................
Audio Description................................
Parental pin ........................................
Advanced.............................................
Updates ..............................................
Channel Zero ......................................
Accessing Channel Zero services ..
Troubleshooting guide ..............................
Additional information ..............................
Specications .....................................
Warranty ............................................
1
2
2
3
3
4
4
4
5
5
6
7
7
7
8
9
9
9
10
10
10
10
10
11
12
12
12
12
13
13
13
13
14
14
14
15
15
16
17
17
18
18
19
20
20
21
21
22
23
23
23
24
24
25
25
26
27
27
28
29
29
29
Contents

2
Connecting your box
SCART Cable
SCART Cable
TV
RF Cable
HDMI Cable
UHF Aerial
RF In
Connector
Internet
RF Out
Connector Scart to VCR / Recorder
Scart Input on VCR / Recorder
VCR/ Recorder
RF In Connector
VCR/ Recorder
RF Out Connector
TV RF In
Connector
Scart Output to TV
VCR / Recorder
Scart Input on TV
1. Connecting to your TV
2. Connecting to a VCR
or DVD recorder
RF IN RF OUT ETHERNET HDMI VIDEO
TV VCR
AC 110-240V~,
50/60Hz, 9W
L
R
SPDIF
USB
Quick start guide

3
Quick start guide
Receiving Channel Zero
Press the button to put the box into
standby, Channel Zero interactive services
will now be downloaded to your box. See
Channel Zero on page 27.
2. Press the OK button to enter the tuning
menu.
3. Once the automatic search has been
completed, all channels are stored and the
rst available channel is shown.
Services will be fully loaded when the red
light on the front of the box changes to
amber. This should take a few hours.
Tuning your box
The rst time you switch your box on, it will
automatically tune all available Freeview TV
and radio channels.
1. Press the button to turn the box on. A
welcome menu appears after a short time

4
Safety is important
To ensure your safety and the safety of
others, please read the Safety information
BEFORE you operate this product.
Keep this information in a safe place for
future reference.
In the box
You will nd the following:
1. Quick Start Guide
2. Switchover Leaet
3. Channel Zero Leaet
4. User Guide
5. AAA Battery x 2
6. Remote Control
7. Set Top Box
Note: If any of the items listed
are damaged or missing, please
contact the TESCO electrical
help line on 0845 456 6767.
Introduction

5
IMPORTANT SAFETY INSTRUCTIONS -
READ CAREFULLY BEFORE USE
Keep these instructions
1. Do not use this box near water
2. Clean only with a slightly damp cloth
3. Do not block any ventilation openings
4. Install in accordance with the supplied
Quick Start Guide and this User Guide
5. Do not install or operate near any heat
sources such as radiators, stoves, or other
apparatus that produce heat
6. Protect the power cord from being walked
on or pinched, particularly at plugs, and
the point where it exits from the box
7. Do not allow the power cord to overhang
the edge of a table
8. Unplug this box from the mains and aerial
during lightning storms or when unused
for long periods of time
9. To avoid interference, switch this box off
while operating other radio devices in the
immediate vicinity
1 0.Refer all servicing to qualied service
personnel. Servicing is required when the
box has been damaged in any way, such
as the power cord or plug being damaged,
liquid being spilled on or objects have
fallen onto the box, the box has been
exposed to rain or moisture, does not
operate normally, or has been dropped
11. No naked ame sources such as candles
should be placed on the box
WARNING: TO REDUCE THE
RISK OF FIRE OR ELECTRICAL
SHOCK, DO NOT EXPOSE THIS
BOX TO WATER OR MOISTURE.
T H E B O X M U S T N O T B E
EXPOSED TO DRIPPING AND
SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS SHOULD
BE PLACED ON THE BOX
WARNING: RISK OF ELECTRIC
SHOCK. THIS BOX CONTAINS
NO USER SERVICEABLE
PARTS. DO NOT REMOVE ANY
COVERS
WARNING: DO NOT EXPOSE
THE BATTERIES IN THE
REMOTE CONTROL UNIT
TO EXCESSIVE HEAT SUCH
A S C A N B E C A U S E D B Y
SUNLIGHT, FLAME, OR OTHER
HEAT SOURCE.
MAINS PLUG IS USED AS
DISCONNECT DEVICE, THE
DISCONNECT DEVICE SHALL
REMAIN READILY OPERABLE.
Safety information

6
Important
This box generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with these
instructions, may cause harmful interference
to radio communication.
Howev er , th is i s no g uar an te e th at
interference will not occur in a particular
installation. If the set top box does cause
harmful interference to electrical devices,
which can be determined by turning the
box off and on, the user is encouraged to
try to correct the interference by one of the
following measures:
1. Re-orient or relocate the receiving aerial
2. Increase the separation between the
external device and the box.
3. Connect the external device into an outlet
on a circuit different from that to which
the box is connected.
4. Consult the dealer or an experienced radio/
TV technician for help.
Electrical information
Mains supply
The mains operating voltage is detailed on
the rear of the box.
The mains lead on this box may be supplied
with a moulded plug incorporating a fuse.
Should the fuse need to be replaced, an
ASTA or BSI approved BS1362 fuse must
be used of the same rating. If the fuse cover
is detachable never use the plug with the
cover removed. If a replacement fuse cover
is required, ensure it is of the same colour as
that visible on the pin face of the plug.
If there is no alternative to cutting off the
mains plug, dispose of it immediately, having
first removed the fuse, to avoid a possible
shock hazard by inadvertent connection to
the mains supply.
Safety information

7
Parts identication
1. STANDBY Power On/Standby.
2. Channel up / channel down
3. Volume up / volume down
4. OK Confirm selection in menu/on screen displays.
5. MENU Open the menu so that you can change the settings of your Digital Box
1. Connect to RF in
2. Connect to RF out
3. ETHERNET- for future interactivity
4. USB- for future interactivity
5. HDMI output (High Definition
Multimedia Interface)
6. Composite video
7. Coaxial Digital audio
8. Right Audio Out
9. Left Audio Out
10. TV Scart: connect to TV
11. VCR Scart: connect to a VCR or a DVD Recorder
12.
Power lead
1 2 5
3 4
RF IN RF OUT ETHERNET HDMI
SPDIF TV VCR
L
R
VIDEO
USB
1
4 7 8 12
2 3 5 6 9 10 11
Front Panel
Rear Panel
AC 110-240V~,
50/60Hz, 9W

8
NUMBER PAD Enter values and
select the channel directly by
entering its number
MENU Open the menu so that
you can change the setting of
your Digital Box
STANDBY Power on/standby
TV/VCR Switch between TV and VCR
programmes
TV/R Switch between TV and
radio programmes
MUTE Turn the volume on and off
Channel Zero( ) Selects channel
zero interactive services
BACK Switch between the current
channel and previous one; Goes back
to the previous level of menu.
FAV( ) Favourites channel
NAVIGATION
Navigate up/down/left/right
in menus/on screen displays OK Confirm selection in menu/on
screen display
RED, GREEN, YELLOW and BLUE
For interactive functions
EXIT Exit from current menu;
invoke the service information
menu when no menu active
INFO Display the information bar
WIDE Adjust the aspect ratio of
the video output
TEXT Display digital teletext
where available
SUB Show subtitles
GUIDE Selects the TV guide
Play
Fast Forward
Pause
Fast Rewind
Reserved
For future interactivity
Skip Back
Skip Forward
Stop
VOL +/- Volume up / down
AD Switch on /off audio description
when available
AUDIO Change audio language
P +/- Channel up / down
Parts identication
Remote Control

9
Installing batteries in the remote
control
1. Remove the battery compartment cover at
the rear of the remote control by
depressing the retaining clip.
2. Install two AAA batteries as shown,
ensuring the polarity matches that shown
in the battery compartment.
3. Replace the battery compartment cover.
Using the remote control
To use the remote control, point it at the box
and press the required buttons.
You must be within 6 metres and at an angle
of less than 30 degrees from the centre of
the box.
WARNING! DO NOT LEAVE
BATTERIES IN THE REMOTE
CONTROL FOR EXTENDED
PERIODS AS THEY CAN LEAK
OR CORRODE CAUSING
DAMAGE TO THE REMOTE
CONTROL. CHECK THEM
PERIODICALLY AND REPLACE
THEM AS REQUIRED.
WARNING! DO NOT MIX
BATTERY TYPES. WHEN
INSERTING BATTERIES,
REPLACE ALL BATTERIES AT
THE SAME TIME. DO NOT MIX
OLD AND NEW BATTERIES.
W A R N I N G ! E X H A U S T E D
BATTERIES MUST BE TREATED
WITH CARE AND DISPOSED OF
ACCORDING TO ANY SAFETY
OR RECYCLING REGULATIONS
IN FORCE IN YOUR LOCAL
AREA. NEVER DISPOSE OF
BATTERIES INTO GENERAL
WASTE, OR FIRE.
Remote control
Note: Sunshine or other strong
light sources may interfere
with the signal from the remote
control. In this situation turn the
box away from the light source.

10
WARNING! ENSURE THE
TV AND ALL ANCILLARY
EQUIPMEN ARE UNPLUGGED
FROM THE MAINS BEFORE
MAKING ANY CONNECTIONS!
Connecting the TV aerial
Connect the TV aerial to the ‘RF IN’ socket
on the rear of the box with a 75 ohm coaxial
plug. For best results use a high gain TV
aerial, preferably roof or loft mounted.
Use a professionally installed external, roof
mounted aerial wherever possible.
To improve the picture quality in a poor
signal area, purchase and install a signal
amplier.
Connecting the box
RF IN RF OUT
Connecting to the TV and other
devices
The Quick Start Guide shows the simplest
and most effective way to connect the box to
ancillary equipment. Alternate methods are
listed below.
Coaxial cable
If your TV does not have a SCART socket,
you can connect the box to the TV using
a coaxial cable. Connect the coaxial cable
between the ‘RF OUT’ socket on the rear of
the box and the aerial socket on your TV.
Using this connection method will also allow
your TV to receive a signal when the box is
switched off.
SCART cable
You can connect the box to your TV and VCR
using a SCART cable. This connection uses
component video signals, i.e. the red, green
and blue (RGB) content of the video are sent
on separate signals.
To connect the box to your TV, connect the
SCART cable between the ‘TV’ SCART socket
on the rear of the box and the SCART socket
on your TV.

11
Note: Please consult your VCR
instruction guide for details on
how to connect your box to your
VCR.
HDMI cable
You can connect the box to your TV HDMI
socket with a HDMI cable. This connection
will output the uncompressed digital video
and audio signals.
To connect the box to your TV, connect the
HDMI cable between the HDMI socket on the
rear of the box and the HDMI socket on your
TV.
Connecting the box

12
Note: You can re-tune your box
again at any time. See Channel
tune on page 20~21.
Operating the box
3. Press OK to begin the automatic tune.
4. The box searches for and displays all
the available TV and radio channels.
5. Once the automatic search has been
completed, you will be prompted to
select ‘Yes’ to see the list of channels or
‘No’ to start watching TV.
Basic operating instructions
Switching on for the rst time
You need to perform automatic channel
tuning when you turn the box on for the rst
time
To perform automatic tuning:
1. Make sure your box is connected to the
mains and that it is connected to the aerial
2. Press to turn the box on. After a short
time, a welcome menu will be displayed.
Standby
Press to put the box into standby,
Channel Zero’s services and content are
loaded in standby. See Channel Zero on page
27.
The box automatically goes into standby after
3 hours if you do not use the remote control.
You can adjust this time by changing the TV
settings. See TV on page 23.
Note: You can put the box into
low-power standby by pressing
for 3 seconds.
However, this will cause Channel
Zero’s content to be lost and the
box will have to be re-loaded
according to the basic operating
instructions – see Accessing
Channel Zero services on page
27.
Source selection
Press the TV / R button to switch between TV
and radio channels.

13
Note: Pressing a leading ‘0’ causes
activation of the Channel Zero
interactive service feature. See
Channel Zero on page 27.
Volume
Press the VOL+ or VOL- button to increase
or decrease the volume. A volume indicator
appears at the bottom of the screen.
Mute
Press the MUTE button to mute the sound.
The speaker symbol on the volume indicator
is crossed out .Press the MUTE button again
or the VOL+ or VOL- button to restore the
sound. The speaker symbol on the volume
indicator will no longer be crossed out.
Operating the box
Selecting a channel
Press the NUMERIC buttons to select the
channel you require. Do not use leading ‘0’s
For example to select channel 17, press the 1
button, the 7button and then the OK button.
Press the P+ or P- button to scroll up or
down through the channels.
Programme swap
Press the BACK button to switch between the
current channel and previous channel.
Information display
Press the INFO button to show the
Information display screen. Press the INFO
button again to clear the display.
The Information display shows the following:
• Channel name and number.
• Viewing progress bar.
• Programme description.
• Date and time.
• Colour icons show which groups a
channel belongs to.
• A heart icon is displayed if the channel
has been set as a favourite.

14
Operating the box
Subtitles
1. To turn subtitles on, press the SUB button.
A subtitles ‘ON’ indicator is shown at the
top of the screen with language.
2. To turn subtitles off, press the SUB button
again. A subtitles ‘OFF’ indicator is shown
at the top of the screen.
• A lock icon is displayed if parental lock
has been set.
• A stripe icon is displayed if the channel
has subtitles.
• A ‘TXT’ icon is displayed if a digital text
service is available.
• An ‘AD’ icon is displayed if the channel
has audio description.
• A ‘HD’ icon is displayed if the channel
is a high denition program.
• A ‘SD’ icon is displayed if the channel
is a standard denition program.
1. Press the ◄or ►buttons to display
information for the next programme on
the same channel.
2. Press the ▲or ▼buttons to see
information for the previous or next
channel without changing channel
3. Press the INFO button again to clear the
Information display screen .
Note: See Language on page 23
to change the subtitle language
within the Settings Menu.
2. Press the ▲or ▼buttons to select a
channel. Also, you can press the P+ and
P- buttons to scroll up and down a page of
channels at a time.
3. Press the OK button to change the
selected channel in the Channel list.
Channel list
The Channel list provides a complete listing
of all the available TV and Radio channels.
1. Press the OK button to display the Channel
List.
Audio Description
1. To turn Audio Description on, press the
AD button. An Audio Description ‘ON’
indicator is shown at the top of the screen
with language.
2. To turn Audio Description off, press the
AD button again. An Audio Description
‘OFF’ indicator is shown at the top of the
screen.

15
Operating the box
Note: Refer to Channel groups on
page 19 for how to create groups
of channels.
Press the 0 button to display all channels.
Channel favourites list
The Channel favourites list displays just your
favourite channels.
1. Press the FAV button to display the
Channel favourites list.
4. Press the BACK button to exit the Channel
list without changing channel.
If you have created any channel groups,
press the corresponding colour button to
display only the channels that belong to that
group.
2. Press the ▲or ▼buttons to select a
favourite channel. You can also press the
P+ and P- buttons to scroll up and down a
page of channels at a time.
3. Press the OK button to change the
selected channel.
4. Alternatively, you can press the BACK
button to exit the Channel favourites list
without changing the channel.
TV Guide
Press the GUIDE button to display a guide of
channel and programme information for the
next 7 days in the form of a list. Typically the
GUIDE will provide
• Current time and date
• Current channel number and name
• Preview pane of the current channel
• Broadcast schedule of programmes for the
next 7 days, 5 channels at a time

16
Operating the box
1. To display the TV Guide, press the GUIDE
button.
2. Press the ▲/▼/ ◄ and ►buttons to
navigate through the channels and
programmes. You can also press the P+
and P- buttons to scroll up and down a
page of channels at a time.
3. Press the GREEN button to view the
programme schedule for the next day.
4. Press the RED button to view the
programme schedule for the previous day.
With a programme selected, you can view
information, such as the start and nish
time, the programme name and a brief
description.
1. Press the ▲/▼/ ◄ and ►buttons to
highlight the programme.
2. Press the INFO button once. The full
programme description is shown in the
upper half of the screen.
Setting the timer
You can set your box within TV Guide to
wake up and tune to a programme. To do
this:
1. Press the ▲/▼/ ◄ and ►buttons to
highlight the programme.
2. Press the YELLOW button. The highlighted
programme changes colour to indicate
that the programme is scheduled to be
played. (You can clear the timer recording
by pressing the YELLOW button again).
3. Press the INFO button again to clear the
description.
4. Press the BACK button to exit the TV
Guide.

17
Operating the box
Note: Please consult your VCR
instruction guide for details on
how to connect your box to your
VCR, and how to programme it to
record from the box at the right
time.
3. Press to put the box into standby.
4. The box will wake up and tune to the
programme and return to standby when it
is nished.
Digital text
Digital text is an information service that
displays text on your TV screen.
You can view pages of information on a
variety of topics which are listed in the Digital
text menu.
1. Press the TEXT button to display Digital
text.
2. Press the ▲and ▼buttons to select a
topic such as weather or news.
3. Press the OK button to select a topic.
4. Press the ▲/▼/ ◄ and ►buttons to
navigate around the topic pages.
5. Press the RED, GREEN, YELLOW and
BLUE buttons to use the Digital Text
shortcuts.
6. Press the TEXT button to exit Digital text.
Note: Digital text may not be
available for all channels
Menu operations
The on-screen menus allows you to adjust
and control the box.
1. Press the MENU button to access the
on screen menus.
2. Press the ▲and ▼buttons to view the
different menus.
3. Press the ►or OK buttons to access the
menu options.
4. Press the ▲and ▼buttons to view the
menu options.
5. Press the OK button to access a menu
option, Press the BACK or ◄button to
exit the menu options.
6. Press the BACK button to exit an
on screen menu.

18
Operating the box
Channels menu
The Channels sub-menu allows you to
manage your channels. You can create
groups, choose favourites, and much more.
Channel organizer
The Channel organizer sub-menu allows you
to manage your channels.
• mark a channel as a favourite
• set a parental lock
• skip a channel when the P+ and P- buttons
are pressed when watching TV
• delete a channel
Note: Any changes made in this
menu will affect the Channel list,
Favourite list and TV Guide
1. Press the MENU button, then press the
▲/▼/ ◄ and ►buttons to navigate to
the ‘Organise’ label under the ‘Channels’
section in Menu.
2. Press the ▲and ▼buttons to select a
channel.
3. Press the 1button to mark the channel as
a favourite. A heart icon appears in the
‘Fav’ column. The channel can be
unmarked by pressing the 1button again.
4. Press the 2button to lock a channel. A
lock icon appears in the ‘Lock’ column
next to the channel name. Once a channel
is locked, the channel can only be viewed
by entering the password. For more
information on passwords, see Parental
Pin on page 25.
5. Press the 3button to skip a channel. A tick
icon appears in the ‘Skip’ column next to
the channel name.Once you choose to
skip a channel, you can no longer select it
using the P+ and P- buttons. The ‘skip’
feature can be cleared by pressing the 3
button again.
6. Press the 4button to choose a channel to
delete. A cross icon appears in the
‘Delete’ column next to the channel name.
Press the OK button to delete the
channels marked for deletion.Press the
BACK button to exit Channel organiser
without deleting the channels.
7. Press the 5 button to rename a channel. A
keypad screen (similar to a mobile phone)
is displayed.
