Technika 32-601 User manual

32” HD Digital LCD TV/DVD
FREEVIEW
TM built-in
CI slot - capability to
Integrated DVD player
subscribe to selected
PayTV channels e.g.
Model 32-601
User Guide

Contens
Introduction
HDMI5
Safety is Important 5
In the box 5
Safety Information
Keep these instructions 6
Important 6
ElectricalInformation 7
Parts Identification
Front panel 8
Localkeyboard panel (Right panel) 8
Back panel9
Connecting the TV
Connecting the TVantenna10
Connecting external devices10
Connectingdiagram11
Common Interface slot
Common Interface 12
Wall Mounting
WallMounting13
Remote Control
Remote buttons 14

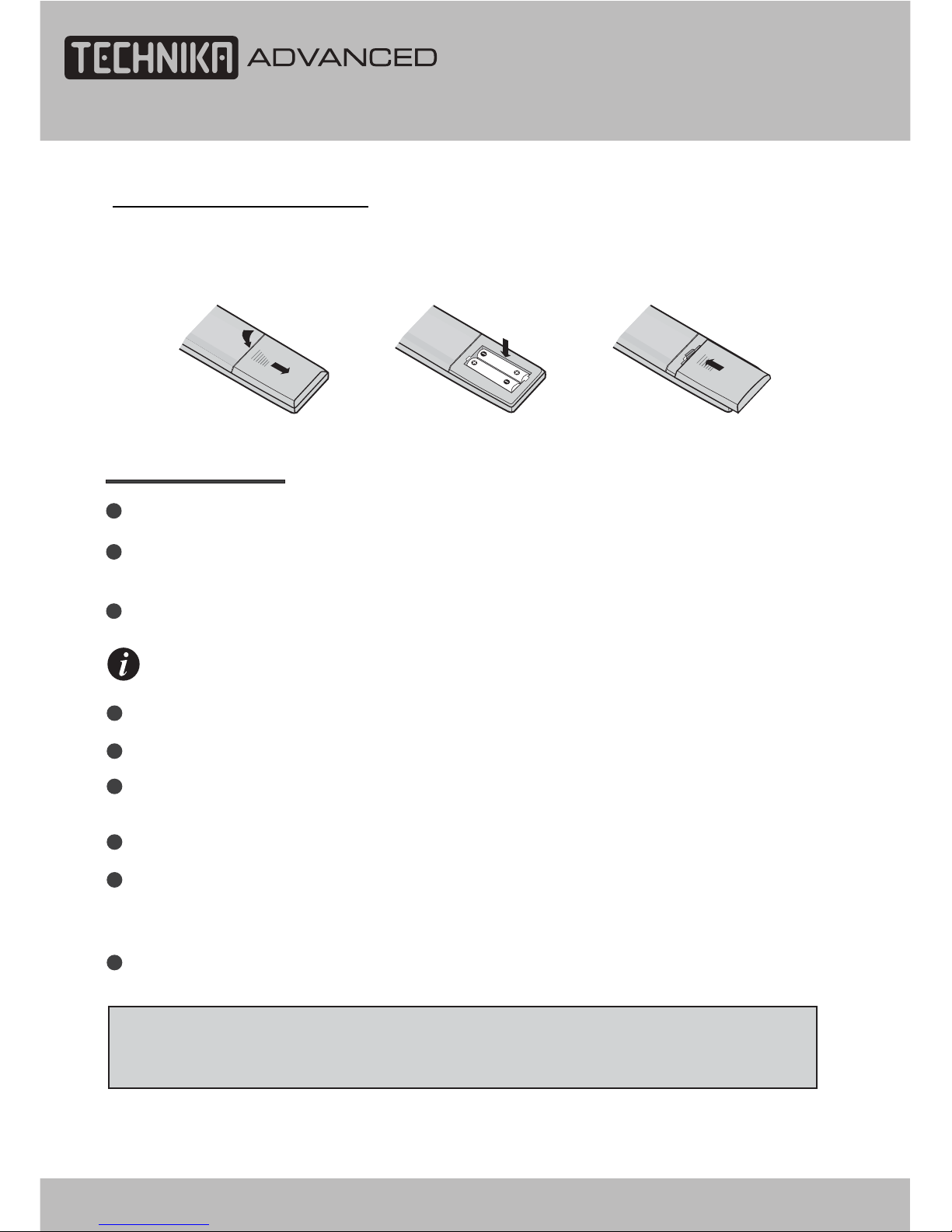

Bartery Installation 16
Let‘s Start
Switching on 17
Selecting source operation 17
DTV Menu Setup
ATV Menu Setup
TeletextFunction
Teletext Function 26
SCART / S-VIDEO / HDMI Menu
Setup
Video Setting Menu 27
VGA Menu Setup
VGA Setting 28
Sound 28
Function 29
DVD Operation
Brief Introduction 30
Comparison between
DVDand other Discs 30
Function Introduction30
Features 31
Compatible Disctypes32
Region code 32
Playback 33
Volumecontrol 33
VCD, SVCDMenu Playback 34
Memory 34
Select track to play directly by
Number buttons 35
Select Language / Audio 35
Repeat Playback 36
Repeat Playback of
selectedSegment36
Fast Playback 37
Play from the Desired Position 37
Zooming the Displayed Frame 38
MPEG4 and JPEG file Playback 39
DTV Setting 18
Picture 21
Sound 22
Function 22
ATV Setting 23
Picture 24
Sound 25
Function 25

Contens
DVD Function Setup
Picture 42
Sound 42
DVD Settting 42
Function 44
Troubleshooting
Display Troubleshooting 45
Sound and TVTroubleshooting 45
DVDTroubleshooting 46
Specifications
Specifications 47
Display Mode
DisplayMode 49
Additional Information
Care and Maintenance
(Handling Discs)
50
Disposal
50
Warranty
50

Introduction
Thank you for purchasing this Technika ADVANCED
HD Digital LCD TV/DVD which has been
designed and manufactured to give you many
years of trouble-free service.
You may already be familiar with using a
similar product but please take time to read
these instructions which have been written
to ensure you get the very best from your
purchase.
Throughout the remainder of this user guide
the Technika ADVANCED HD Digital LCD TV/DVD will
be referred to as the ‘TV’.
HDMI
HDMI (High Definition Multimedia Interface)
is the next generation of digital interface.
Unlike conventional connections, it transmits
uncompressed digital and audio signals using
a single cable. This TV supports high-definition
video input (720p and 1080i) via the HDMI
sockets on the back of the TV.
Safety is Important
To ensure your safety and the safety of others,
please read the Safety precautions BEFORE
you operate this product.
Keep this information in a safe place for
future reference.
In the box
You will find the following:
• HD Digital LCD TV/DVD
• User Guide
• Power Cable
• Remote Control
• 2x AAA Batteries
Note: If any of the items listed are
damaged or missing, please contact
the TESCO electrical help line on
0845 456 6767.
32" HD Digital LCD TV/DVD User Guide 5

Safety Information
IMPORTANT SAFETY INSTRUCTIONS -
READ CAREFULLY BEFORE USE
Take note of the following safety information
which appears on the back of this TV.
CAUTION! RISK OF ELECTRIC SHOCK
DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK).
NO USER-REMOVABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this TV.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this TV.
Keep these instructions.
• Do not use this TV near water.
• Clean only with a slightly damp cloth.
• Do not block any ventilation openings.
• Install in accordance with the supplied
Quick Start Guide and this User Guide.
• Do not install or operate near any heat
sources such as radiators, stoves, or other
apparatus that produce heat.
• Protect the power cord from being walked
on or pinched, particularly at plugs, and the
point where it exits from the TV.
• Do not allow the power cord to overhang
the edge of a table.
• Unplug this TV during lightning storms or
when unused for long periods of time.
• To avoid interference, switch this TV off
while operating other radio devices in the
immediate vicinity.
• Refer all servicing to qualified service
personnel. Servicing is required when the TV
has been damaged in any way, such as the
power cord or plug being damaged, liquid
being spilled on or objects have fallen onto
the TV, the TV has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
WARNING! TO REDUCE THE RISK
OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS TV TO RAIN
OR MOISTURE. THE TV MUST NOT
BE EXPOSED TO DRIPPING AND
SPLASHING AND NO OBJECTS FILLED
WITH LIQUIDS SHOULD BE PLACED ON
THE TV.
• No naked flame sources such as candles
should be placed on the TV.
Caution! Changes or modifications not
expressly approved by the manufacturer
could void the user’s authority to operate this
device.
Caution! Usage of controls or adjustments or
performance of procedures other than those
specified herein may result in hazardous
exposure.
Important
This TV generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with these instructions,
may cause harmful interference to radio
communication. However, this is no guarantee
that interference will not occur in a particular
installation. If the TV does cause harmful
interference to electrical devices, which can
be determined by turning the TV off and on,
32" HD Digital LCD TV/DVD User Guide6

Safety Information
the user is encouraged to try to correct the
interference by one of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the
external device and the TV.
• Connect the external device into an outlet
on a circuit different from that to which the
TV is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
Electrical Information
Mains Supply
The mains operating voltage is detailed on the
rating plate on the rear of the TV.
The mains lead on this equipment may be
supplied with a moulded plug incorporating
a fuse. Should the fuse need to be replaced,
an ASTA or BSI approved BS1362 fuse must
be used of the same rating. If the fuse cover
is detachable never use the plug with the
cover removed. If a replacement fuse cover
is required, ensure it is of the same colour
as that visible on the pin face of the plug. If
there is no alternative to cutting off the mains
plug, dispose of it immediately, having first
removed the fuse, to avoid a possible shock
hazard by inadvertent connection to the mains
supply.
32" HD Digital LCD TV/DVD User Guide 7

TV/AV
CH+
CH-
VOL+
VOL-
MENU
POWER
PLAY\ II
EJECT
COVER SIDE IN FRONT
2. Indicator (the indicatorisred when in standbymode, and green when in workingnormally).
1. IR sensor window
Parts Identification
TV/AV – select input source
CH+ - increase channel number
CH- - decrease channel number
VOL+ - increase sound volume
VOL- - decrease sound volume
MENU – enter or exit menu
POWER – switch between standby and power-on mode
PLAY\ II– start ofplayorpause ofplay
EJECT– takethe disk out
32" HD Digital LCD TV/DVD User Guide8
FRONT PANEL
LOCAL KEYBOARD PANEL (RIGHT PANEL)
1
2

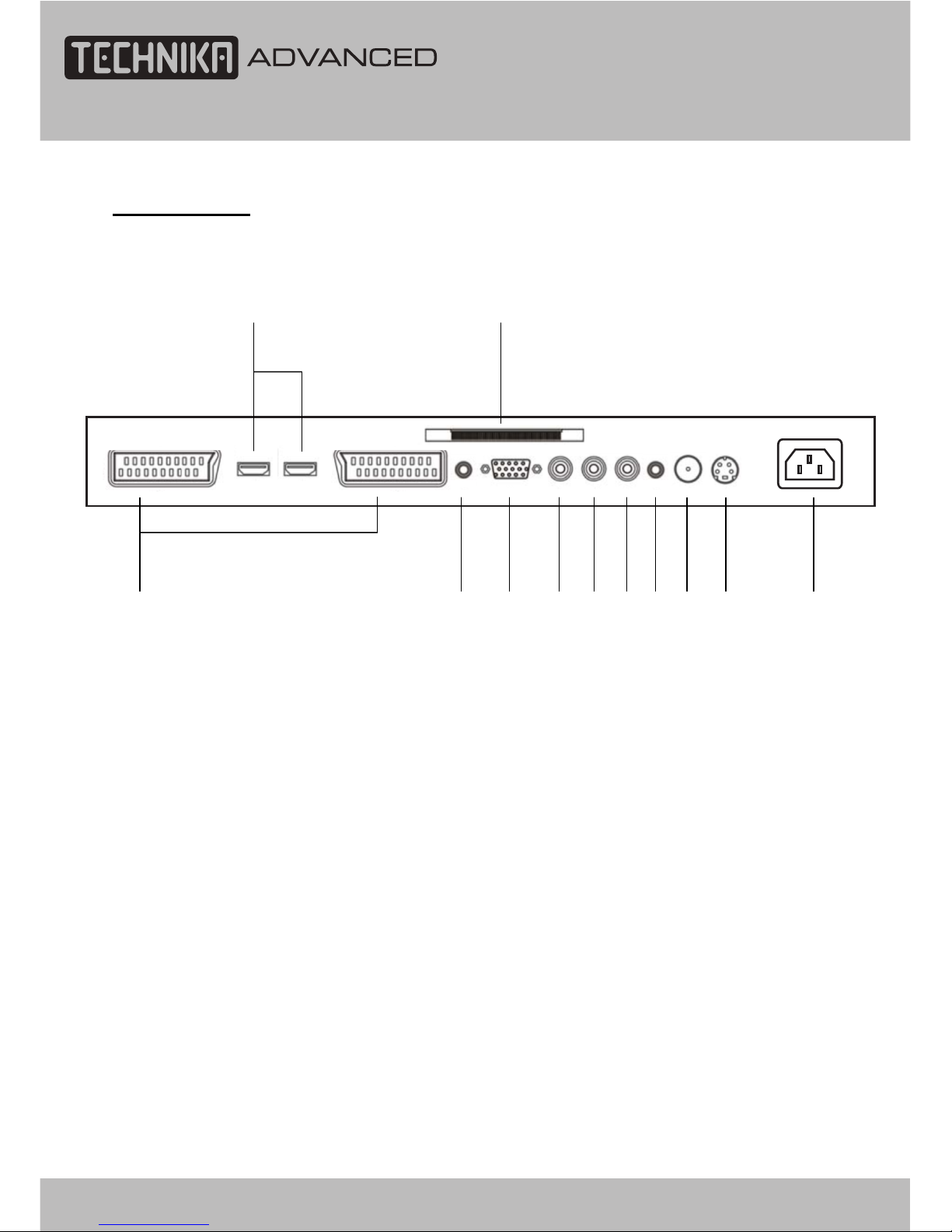

BACK PANEL
Parts Identification
32" HD Digital LCD TV/DVD User Guide 9
1
2 3
4 5 6 7 8 9 10 11 12
12. AC Power supply
2. HDMI inputs
5. PC VGA input
1. SCART connecting terminals
3. CI connector
11. S-Video input
6. Y input
7. Pb input
8. Pr input
4. PC audio input
9. Audio Earphone output
10. TV signal input (75 Ohm)

Connecting the TV
WARNING! ENSURE THE TV AND
ALL ANCILLARY EQUIPMENT IS
UNPLUGGED FROM THE MAINS
BEFORE MAKING ANY CONNECTIONS!
Connecting the TV antenna
Connect the TV antenna to the aerial socket
with a 75 ohm co-axial plug. For best results
use a high gain TV aerial, preferably roof or
loft mounted.
• To improve picture quality in a poor signal
area, purchase and install a signal ampli er.
• If the antenna needs to be split for two
TV‘s, use a 2-Way Signal Splitter
(not supplied).
Connecting external devices
SCART lead
You can connect this TV to a compatible
device using a SCART lead. The connection
uses component video signals, i.e. the red,
green and blue (RGB) content of the video are
sent on separate signals.
VGA cable
You can use your TV as a monitor for your
personal computer by using a VGA cable.
Sound from your personal computer may also
be played through the TV. This requires the
audio output of the personal computer to be
connected to the AUDIO IN connection of the
TV.
S-VIDEO lead
You can connect this TV to a compatible
device using an S-VIDEO lead.
Note: The TV will connect through
the HDMI cable by default. Only use
the HDMI cable and one other option.
Connecting more than one option
may cause interference.
HDMI lead
You can connect this TV to a compatible
device using a HDMI lead. This method will
give the best picture.
Connect the cable from the HDMI equipment
to the TV HDMI socket.
Component Input
(Y/Pb/Pr cables)
You can connect this TV to a compatible
device using Y/Pb/Pr cables. Connect
the red, green and blue outputs to
the matching coloured inputs on the
compatible device. An additional audio
input is required.
32" HD Digital LCD TV/DVD User Guide10

NOTE
You should insert all necessary cables BEFORE plugging in power cord.
32" HD Digital LCD TV/DVD User Guide 11
Connecting the TV
CONNECTING DIAGRAM

Common Interface slot
The Common Interface (CI) slot is designed to
accept the Conditional Access Module (CAM)
and Smart Card in order to view the pay TV
programmes and additional services. Contact
your Common Interface service provider to
get more information about the modules and
subscription.
Note: Conditional Access Modules and
Smart Cards are sold separately.
WARNING: SWITCH OFF YOUR TV
BEFORE ANY MODULE IS INSERTED IN
THE COMMON INTERFACE SLOT.
The CI slot is located on the side of your TV.
Insert the CAM correctly into the CI slot, then
add the Smart Card to the CAM.
COMMON INTERFACE
32" HD Digital LCD TV/DVD User Guide12

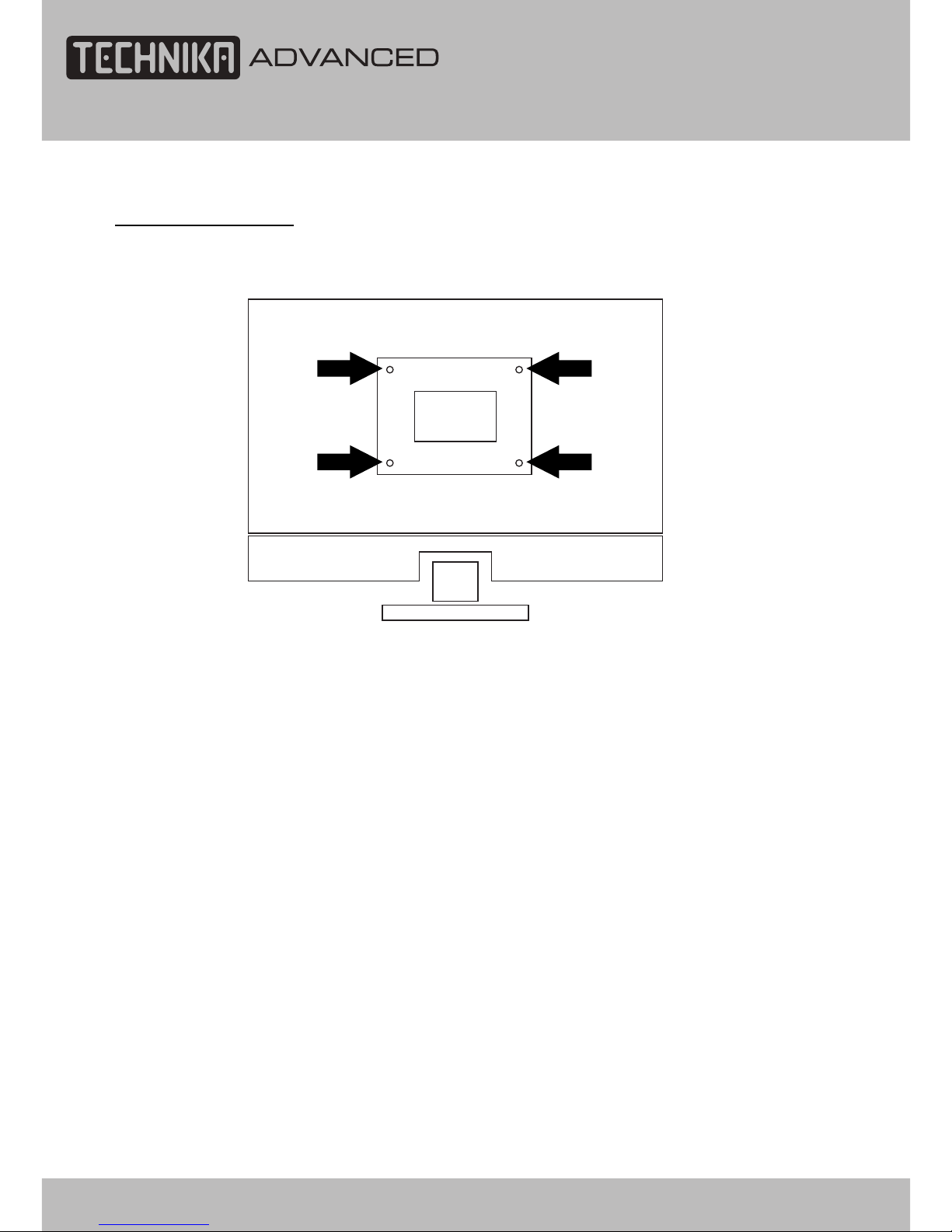

Wall Mounting
WALL MOUNTING
1. The base must rst be removed. Place
the TV face down.
2. Remove the four screws holding the
base in position.
3. Remove and store the base and
screws.
4. Use four machine screws (M4 x 10 mm - supplied)
to mount the TV on the bracket.
Mounting the wall bracket - please refer
to the user instructions supplied with
the wall bracket (not supplied).
Suitable for wall mounting - VESA 400 x 200 mm
32" HD Digital LCD TV/DVD User Guide 13

Remote Control
REMOTE BUTTONS
1
13
11
9
3
12
19
15
21
4
6
10
22
20
18
17
16
14
8
7
21 34
56 7 8
9 0
POWER MUTE
SLEEP SCALER
RECALL
SOURCE
CALLEXITSETUP
CH-
CH+
P.MODE S.MODE
VOL+
VOL-
T E X T M I X INDEX I /II
CA N C ELR E VE A LHOLD S IZE
PAGE+PAGE-
S.PAGE
AUDIO
GOTO A-B REPEAT ANGLE
DVD-MENU TITLE PBC
FAV
DISPLAY TV/RADIO EPG SUBTITLE
ZOOM-
IZOOM+ S.TITLE
2
5
EJECT/FAV
2
Disc in/out ,validin DVD mode/To switch in
favourite list, validin digital TV mode.
OK button
11
Toconfirm the selections.
19 PBC/PAGE+
Tosetup the PBCon/off in DVD mode
/browse the nextpage of teletextin
analog TV mode.
18 ANGLE/BLUE
Tochange camera angle in DVD modewhen playing
DVD disc/select pagein analog TVteletext mode
/Fast enter menu(not valid in digital TVand DVD)
20 AUDIO
Tochange the audio language and sound
track, valid indigital TV andDVD mode.
17 REPEAT/YELLOW
Torepeat playback(valid in DVD mode)/selet
page in analogTV teletext mode/Fastenter
menu(not valid in digital TV and DVD).
10Left/Right cursor(menu adjustment)
Tomove leftward/ rightward or adjust theselected
item in themenu, or adjust sound volume (not valid
in DVD, digitalTV).
21 SUBTITLE
Toselect language or switch
to JPEG displaymode, valid inDVD and
digital TV mode.
subtitle's
MUTE
1
Sound mute switch.
SCALER
3
Toswitch video formatbetween "Auto", "16:9"
4:3, ZOOM1, ZOOM2 (not valid in VGA)
SLEEP
4
Tosetup the sleeptimer.
RECALL
6
Toswap between aprevious program andthe
current program inanalog TV and digital TV.
TWO-DIGIT number button
7
Toswitch between oneor two-digit number
valid in DVD.
.
SOURCE
8
Toselect input source: DTV, ATV, DVD, SCART,
AV, S-VIDEO,HDMI and VGA.
CALL
5
Todisplay the informationon screen.
VOL+/-
12
Toincrease or decreasesound volume.
13 INDEX/
Todisplay main content page when playingthe teletext
in analog TV/To stop playingvalid in DVDmode.
14
.
To switch theaudio channel in NICAM
/A2 or MonoTV channel(valid inanalog TV)
I/II
15 HOLD/
Tostop teletext on current page in analog TV/To
select the previouschapter or track,valid in DVD
mode.
16
Tomagnify teletext pagein analog TV/To
select the nextchapter or trackin DVD mode.
SIZE/
22 ZOOM+/EPG
Tozoom in tothe picture validin DVD
mode/
valid in digitalTV mode
Todisplay the programguide
.
Number button
9
Toselect program number.
To display the teletext time in TV mode (not valid
for MHEG5).
32" HD Digital LCD TV/DVD User Guide
14

Remote Control
REMOTE BUTTONS
38
39
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
21 34
56 7 8
9 0
POWER MUTE
SLEEP SCALER
RECALL
SOURCE
CALLEXITSETUP
CH-
CH+
P.MODE S.MODE
VOL+
VOL-
TEXT MIX INDEX I/II
PAGE+PAGE-
S.PAGE
AUDIO
G O T O A - B R E P E A T A N G L E
DVD-MENU TITLE PBC
DISPLAY TV/RADIO EPG SUBTITLE
ZOOM+ S.TITLE
ZOOM-
I
FAV
CANCEL REVEAL HOLD SIZE
POWER
23
Toswitch between standbymode and
power-on mode.
P-MODE
24
Toselect picture mode:Standard, Dynamic,
Soft, User(not valid in VGA mode).
SETUP
26
Todisplay setup menu,different in different
source mode.
EXIT
27
Toexit or backprevious menu.
UP/DOWN cursor
28
Toselect upward/downward inthe menu or
change the channel,valid in analogTV and
digital TV mode.
CH+/-
29
Toincrease or decreaseprogram number
valid in analogTV and digital TV mode.
MIX/
30
Todisplay analog TV and teletextin the sametime
/pause playing/steps playbackin pause mode,
valid in DVDmode.
TEXT/
31
Toenable or disablethe function ofteletext or
MHEG5 /To playback, validin DVD mode.
REVEAL/
32
Todisplay the hiddenteletext information inanalog
TV/Tofast-forwards DVD playback,valid in DVD
mode.
CANCEL/
33
Tocancel teletext inanalog TV/ To fast backward
playback, valid inDVD mode.
A-B/GREEN
34
Tosegment repeat(valid inDVD mode)/select
page in analogTV teletext mode/Fast enter
menu(not valid in digital TV,DVD and FM).
GOTO/RED
35
Toplay from acertain time point(validin DVD
mode)/select page inanalog TV teletext mode
/fast enter menu(not valid in digital TV, DVD
and FM).
DVD-MENU/S.PAGE
36
Togo to themenu of DVDmenu ,valid inDVD
mode/Togo to thesub page ofteletext, valid
in analog TV mode.
TITLE/PAGE-
37
Togo to themenu of DVDmenu ,
valid in DVDmode/browse the
previous page ofteletext in
TV mode.analog
DISPLAY
38
Todisplay track timein DVD
mode/Display information in
digital TV mode
TV/RADIO/ZOOM-
39
Toswitch between TV and radio
modes, valid indigital TV mode
/Tozoom out tothe picture valid
in DVD mode.
S-MODE
25
Toselect sound fieldmodes: Music, Film,
News and User.
32" HD Digital LCD TV/DVD User Guide 15

Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of
the battery to the -/+ marks inside the battery compartment, as follows:
BATTERY LIFE
Normally, battery can be used one year.
If the remote control is still invalid when very near to the TV's remote sensor window,
please use new battery.
Please use SUM-4(AAA) battery.
NOTES
Never use rechargeable battery.
Never charge, short-circuit, disassemble and heat the battery, or throw it into fire.
Pay attention not to fall or knock the remote controller, which will cause damage or
function failure to it.
Do not use new and old battery together.
If electrolyte splashes into body, please clean it with water.
CAUTION：
Please put battery in the place children cannot touch. If swallow by accident, please
contact with the local doctor immediately.
When not using the remote controller for a long time, please take out battery to avoid
liquid leakage. Before replacing new battery, please clean the electrolyte in the remote
controller.
Remote Control
BATTERY INSTALLATION
32" HD Digital LCD TV/DVD User Guide16

You can select input source by using source menu. Press[SOURCE] button toshow the
menu as follows:
The current sourceitem is highlighted.Through press [ ] buttonon the remotecontrol
or [ CH+/CH-] key onthe left sideof LCD TV to select your desire, Press[ ] button,
[VOL+/VOL-] key or[OK] button toconfirm your choice .
SELECTING SOURCEOPERATION
INDICATOR STANDBY
After the unithas been suitablyplaced / fixed,on the desk or on the wall, and all necessary
cables include powerhave connected,
Press the [STANDBY] button onthe remote controlto make the unit switch to power-on
mode - youwill see theLED indicator turngreen. Now youcan enjoy the many features of
your new TV.
The next youshould do is:
STANDBY
21 3
456
789
0
POWER MUTE
SLEEP
RECALL
SOURCE
CALL
EXIT
SETUP
P.MODE S.MODE
FAV
SCALER
EXIT
Let's Start
SWITCHING ON
32" HD Digital LCD TV/DVD User Guide 17
Input Source
ATV
SCART 1
AV
DVD
VGA
HDMI 1
EXIT OK
DTV
S-VIDEO
HDMI 2
SCART 2

DTV Menu Setup
32" HD Digital LCD TV/DVD User Guide18
Select Return
SETUP
Adjust
Manual Tuning item enables to change channel settings.
Auto Tuningitem enables to adjust channel setting automatically.
Select Return
SETUP
Adjust
Subtitle Language
DTV SETTING
Manual Tuning
Audio Language
Programme Edit
Time
Preference
English
English
Off
Auto Tuning
Please select country first,
Then select Start to update info.
Country selection Australia
New Add Cancel
ManualTuning
VHF 5 104.50MHz
Please select channel then
Press OK to search
NO SIGNAL
Bad Normal Good
EXIT OK SETUP
Channel Tuning
6 %... UHF 24
DTV : 0 Programme(s)
Radio : 0 Programme(s)
Select DTV SETTING item to adjust channels.
You may select auto Tuning, Manual Tuning,
Programme Edit,Audio Language, Subtitle
Language, Timeand Preference.
Do you want to exit tuning?
Yes No
SETUP exit
EXIT exit
AutoTuning
Time
English
English
Programme Edit item enables to enter submenu to
ProgrammeEdit
5 five
16 QVC
17 UK Gold
23 bid-up.tv
25 TCM
26 UK Style
27 Discovery
28 DiscoveryH&L
32 Cartoon Nwk
33 Boomerang
DELETE SKIP FAV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
MOVE
Subtitle Language
DTV SETTING
ManualTuning
AudioLanguage
Programme Edit
Preference
DTV SETTING

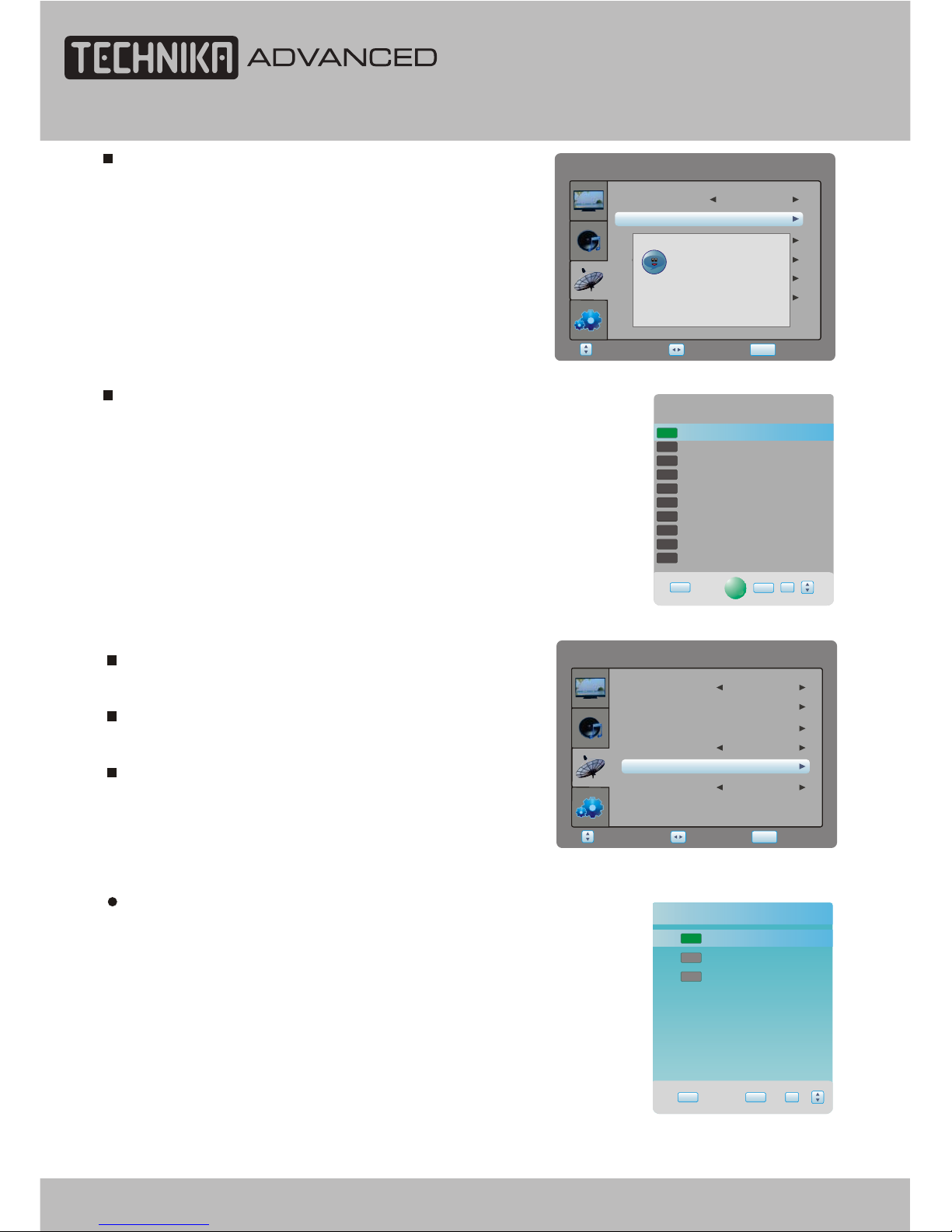

In TV mode, press[SETUP] button intothe main menuand the mainmenu will show as follows:D
Through pressing [ ] button onthe remote control,you can selectmain menu sections
(main menu sectionsconsist of .
Press [ ] or [OK] button to enter thismenu section.
" DTV SETTING" , "PICTURE ", "SOUND " , " FUNCTION ")
Press [ ]button on theremote control toselect the item,and then press [ ] button to
adjust parameter value.Press [SETUP] buttonto return tomain menu sections.

DTV Menu Setup
32" HD Digital LCD TV/DVD User Guide 19
Lock System item enablesto lock theauto tuning,
manual tuning, programme edit andblock
programme. if you want to change the lock
system, you must enterpassword first.
Select Return
SETUP
Adjust
DTV SETTING
CI Infrormation
Change Password
Parental Guidance
Block Programme
OffLock System
Hearing Impaired Off
Off
Pleaseenterpassword
___
Preference item enables toenter the lock system sub menu.
EXIT OKSETUP
Audio Language
English
MPEG L R
English
MPEG VI
Audio Language item enables to adjust audio language.
Time item enablesto enter sub menu.
Clock to adjustthe real time.
Time Zone to adjust the time zone from Canary
GMT to Berlin GMT+1.
Daylight to adjustsummer time off or on.
Select Return
SETUP
Adjust
DTV SETTING
Time Zone
Daylight
Clock __ __ __ __
Canary GMT
Off
EXIT OK SETUP
Subtitle Language
Off
English
Subtitle language item enables to adjust subtitle language.

DTV Menu Setup
32" HD Digital LCD TV/DVD User Guide20
EXIT OKSETUP
FAVOURITE LIST
5 five
DTV
16 QVC
DTV
17 UK Gold
DTV
Favourite List item enablesto display favourite channel and
select the current channel in the list.
Change password item enables tochange the lock
system password.
Block Programme item enables toset the lock
channel.
Blockprogramme
5 five
16 QVC
17 UK Gold
23 bid-up.tv
25 TCM
26 UK Style
27 Discovery
28 DiscoveryH&L
32 Cartoon Nwk
33 Boomerang
LOCK
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
EXIT OK
SETUP
Select Return
SETUP
Adjust
DTV SETTING
CI Information
Parental Guidance
Block Programme
OffLock System
Off
Change Password
Hearing Impaired Off
Please enter password
___
____
New
Confirm
Select Return
SETUP
Adjust
DTV SETTING
Parental Guidance
Block Programme
OffLock System
Off
Change Password
CI Information
Hearing Impaired Off
Parental Guidance item enables to set guidance
(0ff, from 4to 18).
CI Information item enables to read the card
information.
SMART
Hearing Impaired item enables to set the hearing
impaired off oron.
