TECHWOOD TVB-4093 User manual


INDOOR STAND MIST FAN
INSTRUCTION MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
2

❑This device can be used by children aged 8 years and older
and adults, with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
❑Cleaning and maintenance must not be made by children
without supervision.
❑Keep the appliance and its cord out of reach of children aged
less than 8 years of age when it is energized or cooling down.
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑In order to ensure your children’s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Warning! Never use without the guards in place. After
assembly, do not remove the guards for maintenance
purpose or cleaning.
❑Caution! Do not allow small children to play with the foil:
THERE IS A DANGER OF SUFFOCATION!
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
❑If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
3

❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Disconnect the power source cable when filling and cleaning
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
4

approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there
are visible signs of damage.
❑This appliance is only intended for household use.
❑Regarding filling, cleaning and descaling, please refer to
below paragraphs.
SPECIFIC SAFETY REQUIRED FOR THIS PRODUCT
1. Use the fan always set it on a flat surface.
2. Do not carry the device by holding the power cord.
3. Do not insert objects through the protective grill.
4. Do not use the device in a bathroom
5. Always use the fan with the included foot and upright.
6. Do not use near curtains etc.
No warranty will be applied if the appliance is used for other
than its intended use.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
5

The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
Appliance for tropical climates.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
6

collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
TO KNOW IT’S UNIT
1. Misting outlet (nozzle)
2. Diffuser tube of the atomiser
3. Front grille
4. Fixing nozzle on the grid
7

5. Clamp
6. Fixing Nut of the blades
7. Blades
8. Fixing Nut of the rear grille
9. Rear grille
10. Engine and its support
11. Nut for attaching the motor base
to the device
12. Back of the device
13. Base of the device
14. Casters
15. Fixing Screws base / device
16. Water tank
17. Spring pliers
18. Drain plug
Assembling
Assembling the device
1. Remove the engine and the column from the
packing box.
2. Insert the connection wire and tube into the
column.
3. Tighten the fastening knob. Figure 1.
Assembly of the casters
1. Remove the base and the casters from the
packing box.
2. Depress the casters by inserting the shafts into
the mounting holes in the base.
Figure 2
Assembly of the base on the column
1. Put the 3 screws in the holes of the base, and
screw them into the nuts embedded in the bottom
of the column. Figure 3
Assembly of the rear grille and blades
1. Mount the rear grille on the motor shaft.
2. Tighten the protection nut,
2

3. Mount the blades on the motor shaft and
tighten the fixing nut.
4. Engage the clamp (but do not tighten) on the
rear rack. Figure 4
Front grille and sprayer assembly
1. Insert the spray tip of atomiser into the diffusion
tube.
2. Secure the set tube / nozzle to the front grille
with the screws. Figure 5
Fit the front grille and the diffuser
2. Mount the front grille on the rear grille and
position the clamp in the middle. Tighten the
collar.
3. Insert the bottom of the diffusion tube onto the
top of the column. Figure 6.
USE
• Unwind the power cord completely.
• Check that the voltage in the country where you are, corresponds to that
indicated on the device.
• Connect the appliance to a good electrical outlet, (earthed if the appliance is
class I), to avoid any danger.
• Disconnect the power cable from the power supply before performing any
maintenance cleaning and accessory fitting.
• Never modify the device.
After switching on, the buzzer beeps and the indicator light comes on.

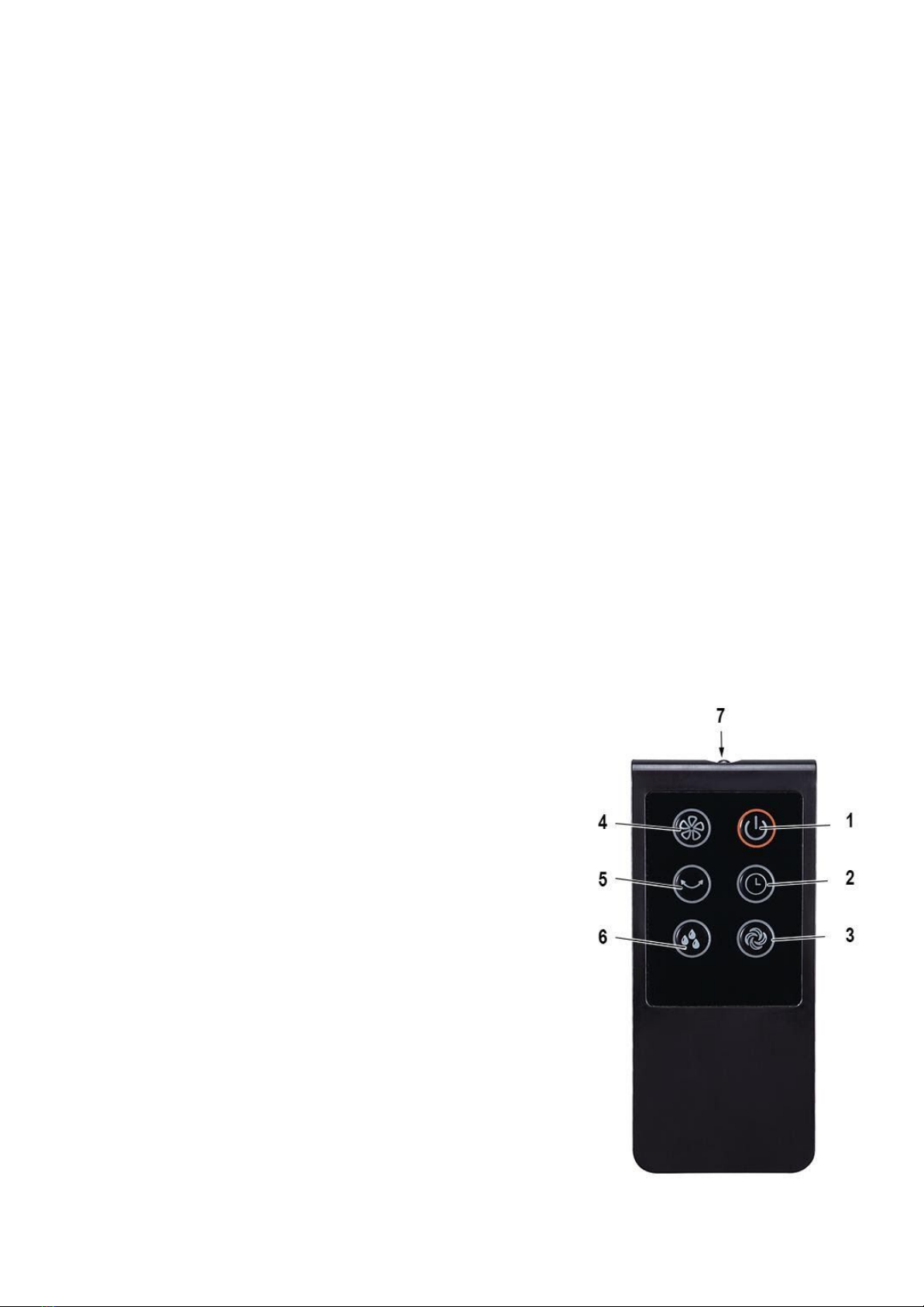

ON OFF
By pressing the On / Off button, the fan enters Normal mode. "
The operation at the lowest level is the one used and the ambient temperature is
displayed on the screen.
By pressing the button again the fan power is disconnected and the fan stops.
SPEED
2

Fan speed control by pressing:
"Speed +" or "speed -"
TIMER
Fan timer switch; it works in the following order: 1H-2H-4H-8H and back to 0.
MIST
Humidification switch; see paragraph: MISTING.
MODE
Ventilation cycle type selector; it operates in the following order : Normal
ventilation - Natural ventilation - Night ventilation Return to Normal ventilation.
ECO / TEMP
Intelligent ventilation function; by pressing this function, the fan automatically
selects an appropriate level according to the temperature change according to
programming.
OSC
Oscillation switch: It controls rotation from left to right and back.
3

MIST
Instructions for using the humidification or misting function.
· Remove the water tank from the unit and unscrew the
tank cap counter clockwise.
· Fill with fresh and cold water. Never put water above 40 °
C and screw on the water tank cap.
Check that there are no leaks.
· Replace the water tank in the appliance (return to its
location according to the angle of the drawing), and wait a
few minutes for the buffer tank in the appliance to fill with
water.
· Press the "Misting" button, the indicator light comes on indicating the beginning
of fogging.
Note: If the indicator flashes (and goes out after 10 seconds), it indicates a lack
of water or a low water level. (Check that the tank float of the unit is placed
correctly.)
PRECAUTIONS
Before first use, check that the unit has been assembled correctly.
· Before turning on the power, check that the voltage used is the same
than that indicated on the plate of the apparatus.
· When the appliance is working, do not insert fingers or objects through the grill or
into the body of the machine.
. When using a mosquito repellent product, make sure that it is out of reach of
children, and if it is accidentally swallowed, seek immediate medical attention.
· When the humidifier is used, the water tank should use clean soft water below 40
°. If possible, it is recommended to use deionized water or distilled water
containing less impurities.
· Do not place this unit on a sloping floor to prevent tipping, and, do not remove
the water tank when the humidifier is running.
If the device accidentally spills when it contains water,
4

1. Unplug the power cord.
2. Remove the water tank
3. Check that there is no water accumulated in the unit before reuse.
· When using the humidifier:
Do not add disinfectant, vinegar, perfume or essential oils.
Never fog in front of furniture, appliances or near walls to avoid excessive
moisture damage.
Change the water every 2 days, because the water, in the water tank, can
easily generate bacteria.
Clean the tank every 2-3 weeks.
NOTE: The unit is intended for indoor use.
Before cleaning the Mist fan:
Cut off the power,
Remove the spring clip and the drain plug, and clean the remaining water in the
unit.
Note: After use for a while, the float and the inside of the tank of the device are
subject to the accumulation of limestone or scale.
Put hot water and a small amount of detergent in the tank of the device, soak for
about 30 minutes then rinse with clean water several times.
· Re-Screw in the drain plug and refit the spring clip.
· Do this cleaning after heavy or continuous use.
Allow the machine to dry in the shade before
re-use.
1. On / Off
2. Timer
3. Mode: Normal - Natural - Night
4. Speed selector 1/2/3
5. Control of the Oscillation
6. Misting control
7. Infrared sensor
5

6

CLEANING AND MAINTENANCE
• Always unplug the appliance and allow it to cool before cleaning.
• Clean the outside of the appliance with a slightly damp sponge or cloth.
• Never immerse the appliance in water or any other liquid!
• Never use abrasive products, wire brushes or other sharp objects.
• The front and rear grilles can be cleaned with a brush or a soft, damp cloth.
• The motor housing and feet can be cleaned with a soft, damp cloth.
• Use only original accessories.
• Grasp the appliance only by the handle provided.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by the
consumer.
The documents in proof of guarantee are:
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts are
not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by a
specialized trade or a repair service.
7

SPECIFICATIONS
Power supply 220-240V~ 50Hz
Power 95W
Norm Class II
Maximum fan flow rate 69.66 m3/min
Fan power input 42.30W
Service value 1.65 (m3/min)/W
Standby power consumption 0.15
Season electricity consumption 13.70 kWh/a
Fan sound power level 58.22 dB(A)
Maximum air velocity 2.89 meters/sec
Measurement standard for
Service value COMMISSION REGULATION (EU)
No 206/2012 & (EU) 2016/2282
2009/125/EC
IEC 60879: 1986 (corr, 1992)
EN 60704-2-7: 1998
EN 60704-1: 2010+A11: 2012
EN 50564: 2011
MADE IN PRC
The characteristics can change without preliminary preventing
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous bois - France

8

9
