Tecnoautomazione T181S User manual

EXTERNAL
RECEIVER
RC2
+5
GND
DISABLED
6 SECONDS 12 SECONDS
21 345 6 78 9 10 11 12 21 345 6 78 9 10 11 12
N.C. LIMIT SWITCHES CONTACT NORMALLY
CLOSE N.O. LIMIT SWITCHES CONTACT NORMALLY
OPEN
N.C. INPUTS ENABLED
TERMINAL 1: START FUNCTION
TERMINAL 7: PEDESTRIAN FUNCTION
TERMINAL 1: OPEN FUNCTION
TERMINAL 7: CLOSE FUNCTION
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
DIP 3 OFF
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
DIP 9 OFF
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
21 345 6 78 9 10 11 12
DIP 4 OFF
DIP 5 OFF
DIP 6 OFF
DIP 7 OFF / DIP 8 OFF
DIP 10 OFF
DIP 11 OFF
DIP 12 OFF
SLOW DOWN
SOFT START
TESTS
MODES
LIMIT SWITCHES
MOTOR BREAK
MOTOR POWER
21 345 6 78 9 10 11 12 40% 21 345 6 78 9 10 11 12 60% 21 345 6 78 9 10 11 12 80% 21 345 6 78 9 10 11 12 100%
DIP 1 OFF / DIP 2 OFF
AUTOMATIC
CLOSURE
COMMUNITY
MODE +
AUTOMATIC
CLOSURE
STEP-BY-STEP
MODE
STEP-BY-STEP
MODE +
AUTOMATIC
CLOSURE
DIP 1 ON / DIP 2 OFF DIP 1 OFF / DIP 2 ON DIP 1 ON / DIP 2 ON
DIP 3 ON
DIP 7 ON / DIP 8 OFF DIP 7 OFF / DIP 8 ON DIP 7 ON / DIP 8 ON
DIP 9 ON
DIP 10 ON
DIP 11 ON
DIP 12 ON
DIP 4 ON
DIP 5 ON
DIP 6 ON
ON
OFF
INPUTS
2 3 4567
1
12 3 4567
FLASHING LAMP MAX 5W
A
B
C
RC1 RC2
R1
R2
R3
R4
S1 S2 S3
STATUSPROGRAM
TIME
GROUND
PHOTO TEST
REMOTE
OUT 2 OUT 2
OUT 1 OUT 1
MOTOR
21 345 6 78 9 10 11 12
ON
9
GND
10 11 12
OPEN
CLOSE
COM
NL
13 14 15
2019
x
230 VAC
GND
8
+ 24 VDC
2A FUSE
RC1
GND
+5
INTERNAL
RECEIVER
ANTENNA
21 345 6 78 9 10 11 12
LAMP 230 VAC
TERMINAL BLOCK:
1. START N.O.
2. STOP N.C.
3. EXTERNAL PHOTOCELL N.C.
4. INTERNAL PHOTOCELL N.C.
5. CLOSING LIMIT SWITCH N.C. / N.O.
6. OPENING LIMIT SWITCH N.C. / N.O.
7. PEDESTRIAN N.O.
8. +VDC / COMMON
9. PHOTOCELLS TEST
10. GND
11.12. FLASHING LAMP
13. MOTOR CLOSE
14. MOTOR COMMON
15. MOTOR OPEN
20.X.19. 230 VAC
DIP-SWITCHES:
1.2. MOTOR POWER
3. SLOW DOWN
4. SOFT START
5. PEDESTRIAN WORKING TIME
6. TESTS
7.8. MODES
9. LIMIT SWITCHES
10. DISABLE NOT WIRED N.C. INPUTS
11. START AND PEDESTRIAN / OPEN AND CLOSE
12. MOTOR BRAKE
LEDs:
S1.S2.S3. CONTROL BOARD STATUS LEDS
RC1.RC2.R1.R2.R3.R4. RADIO LEDS
RC1. SHOWS THAT A SIGNAL HAS BEEN RECEIVED FROM THE INTERNAL RADIO RC1
RC2. SHOWS THAT A SIGNAL HAS BEEN RECEIVED FROM THE EXTERNAL RADIO RC2
R1.START: INDICATES THAT A START BUTTON ON THE REMOTE HAS BEEN PRESSED
R2.STOP: INDICATES THAT A STOP BUTTON ON THE REMOTE HAS BEEN PRESSED
R3. PEDESTRIAN: SHOWS THAT A START PEDESTRIAN BUTTON ON THE REMOTE
HAS BEEN PRESSED
R4. OUT1 ON/OFF: SHOWS THAT A OUT1 BUTTON ON THE REMOTE HAS BEEN
PRESSED
A. C. PROGRAMMING LEDSB.
1.2.3.4.5.6.7. INPUT LEDS AUXILIARY OUTPUTS:
OUT1. ENABLED/DISABLED VIA REMOTE (R4)
OUT2. COURTESY LIGHT / ENABLED DURING
OPENING FOR 3 MINUTES
21 345 6 78 9 10 11 12

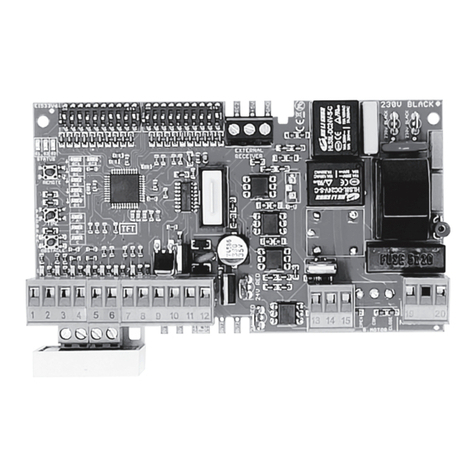

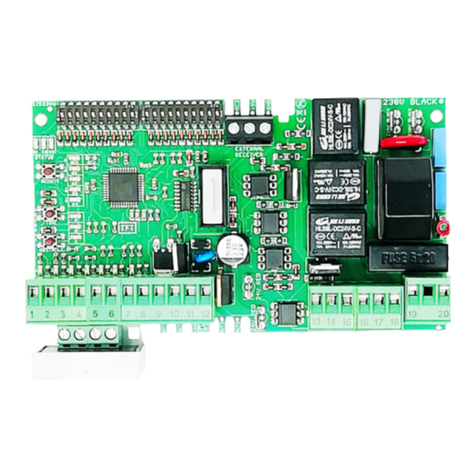

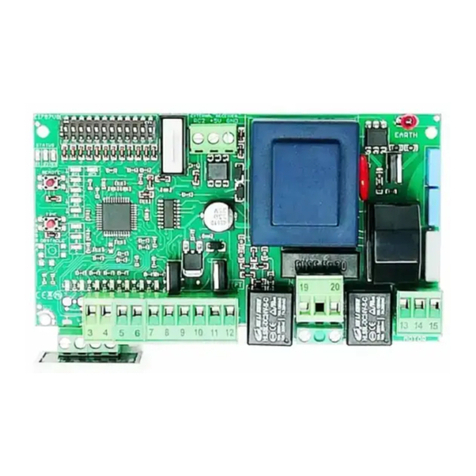

T181S. SLIDING GATE CONTROL UNIT. 230 VAC POWER SUPPLY. 433.92 MHz FREQUENCY . 100 STORABLE CODES.
ENABLED.
THE MOTOR WORKS AT THE MAXIMUM
POWER (100%) DURING THE SLOW PHASE.
DISABLED.
THE MOTOR STARTS AT THE POWER
LEVEL SET BY DIP 1 AND DIP 2.
ENABLED.
1.2. SECONDS. THE MOTOR POWER
INCREASES GRADUALLY TILL IT REACHES ITS
MAX VALUE.
PEDESTRIAN WORKING TIME
MOTOR TEST AND PHOTOCELLS TEST
DISABLED MOTOR TEST AND PHOTOCELLS TEST ARE PERFORMED BEFORE ANY GATE MOVEMENT
DISABLE NOT WIRED N.C. INPUTS
NOT WIRED NC INPUTS DISABLED. WHEN A
N.C. INPUT IS WIRED, IT IS AUTOMATICALLY
ENABLED
START AND PEDESTRIAN / OPEN AND CLOSE
DISABLED ENABLED. MOTOR BREAK ON FOR 0.2
SECONDS IF GATE REACHES LIMIT SWITCH
WITHOUT SLOWING DOWN.
STAND BY, GATE CLOSED
GATE IN OPENING OR CLOSING PHASE, GATE OPEN
CONTROL BOARD IN PROGRAMMING PHASE
PHOTOCELLS TEST ERROR
MOTOR TEST ERROR: CONNECTION ERROR
OR MOTOR OVERHEATING
PROGRAMMING ERROR
BOARD STATUS:S1 S2 S3

POWER SUPPLY START STOP MOTOR
X
N
L
1920
13 14 15
M
5678910 11 122 3 4
1
56789
TEST GND
10 11 122 3 4
156789
N.C.
RX RX
GND+VDC
10 11 122 3 4
1
EXTERNAL PHOTOCELL INTERNAL PHOTOCELL PEDESTRIAN
FLASHING LAMP AUXILIARY OUTPUTS
PHOTOCELLS TRANSMITTER
56789
GND+VDC
10 11 122 3 4
1
N.C.
TX
5678910 11 122 3 4
1
5678910 11 122 3 4
5678 9 10 11 122 3 4
1
CLOSING LIMIT SWITCH
5678910 11 122 3 4
1
21 345 6 78910 11 12
21 345 6 78910 11 12
+VDC
OPENING LIMIT SWITCH
1
5678910 11 122 3 4
1
21 345 6 78910 11 12
21 345 6 78910 11 12
+VDC
OUT 1 OUT 2
OUT2. COURTESY
LIGHT / ENABLED
DURING OPENING
FOR 3 MINUTES
OUT1. ENABLED/
DISABLED VIA
REMOTE
MAX 5 W
TERMINAL BLOCK CONNECTIONS
OUT1 ON/OFF
R1. OFF
R2. OFF
R3. OFF
R4. ON
X4
RC1
RC2
ON
PEDESTRIAN
R1. OFF
R2. OFF
R3. ON
R4. OFF
X3
STOP
R1. OFF
R2. ON
R3. OFF
R4. OFF
X2
START
R1. ON
R2. OFF
R3. OFF
R4. OFF
X1
MEMORIZE A REMOTE
PRESS AND HOLD THE DESIRED BUTTON ON THE REMOTE, SIMULTANEOUSLY PRESS ONCE THE REMOTE BUTTON ON THE CONTROL BOARD TO
MEMORIZE THE START FUNCTION, PRESS TWICE THE REMOTE BUTTON ON THE BOARD TO MEMORIZE THE STOP FUNCTION, PRESS THREE TIMES
THE REMOTE BUTTON ON THE BOARD TO MEMORIZE THE PEDESTRIAN FUNCTION, PRESS FOUR TIMES THE REMOTE BUTTON ON THE BOARD TO
MEMORIZE THE OUT1 ON/OFF FUNCTION. THE CORRESPONDING LED (R1-START, R2-STOP, R3-PEDESTRIAN, OR R4-OUT1) WILL BE STEADY ON TO
CONFIRM MEMORIZATION.
R1. ON
R2. ON
R3. ON
R4. ON
R1. OFF
R2. OFF
R3. OFF
R4. OFF
R1. OFF
R2. ON
R3. ON
R4. ON
R1. OFF
R2. OFF
R3. ON
R4. ON
R1. OFF
R2. OFF
R3. OFF
R4. ON
ERASE ALL REMOTES
TO ERASE ALL SAVED REMOTES PRESS AND HOLD THE REMOTE BUTTON ON THE BOARD FOR 6 SECONDS. LEDS R1, R2, R3, AND R4 WILL GO ON
STEADY THEN WILL GO OFF INDICATING CORRECT DELETION OF ALL REMOTES.
PRESS AND HOLD THE REMOTE
BUTTON ON THE BOARD FOR
ABOUT 6 SECONDS.
OUT1 ON/OFF
R1. OFF
R2. OFF
R3. OFF
R4. ON
X1
START
R1. ON
R2. OFF
R3. OFF
R4. OFF
X4
STOP
R1. OFF
R2. ON
R3. OFF
R4. OFF
X3
PEDESTRIAN
R1. OFF
R2. OFF
R3. ON
R4. OFF
X2
RC1
RC2
ON
DELETE A REMOTE
PRESS AND HOLD THE DESIRED BUTTON ON THE REMOTE, SIMULTANEOUSLY PRESS FOUR TIMES THE REMOTE BUTTON ON THE CONTROL BOARD
TO DELETE THE START FUNCTION, PRESS THREE TIMES THE REMOTE BUTTON ON THE BOARD TO DELETE THE STOP FUNCTION, PRESS TWICE THE
REMOTE BUTTON ON THE BOARD TO DELETE THE PEDESTRIAN FUNCTION, OR PRESS ONCE THE REMOTE BUTTON ON THE BOARD TO DELETE THE
OUT1 ON/OFF FUNCTION.
PROGRAMMING OF GATE WORKING TIMES. The programming must be operated while the gate is closed.
1 2 3 4
A
B
C
S1 S2 S3 A
B
C
S1 S2 S3 A
B
C
S1 S2 S3 A
B
C
S1 S2 S3
PRESS AND HOLD THE
TIME BUTTON FOR 5
SECONDS
PRESS THE TIME BUTTON PRESS THE TIME BUTTON
PRESS THE TIME BUTTON
or a start commande
TO EXIT AND SAVE THE
PAUSE TIME
Led A is steady on. The gate is in the
opening phase. The control board
is acquiring the working me of
motor.
Led A is flashing. The gate connues
the opening phase in slow down
mode. The control board is
acquiring the slow down me of
motor.
Led A and B are steady on. Led C
flashes every second. The control
board is acquiring the pause me. The gate will automacally close
aer the set pause me.
or a start commande or a start commande

MODES
FLASHING LAMP
24 VAC / MAX 5 W
EXTERNAL PHOTOCELLS
CONNECT TO TERMINAL 3.
DURING CLOSING INVERT
THE MOVEMENT.
INTERNAL PHOTOCELLS
CONNECT TO TERMINAL 4.
DURING OPENING INVERT
THE GATE MOVEMENT FOR
2 SECONDS THEN STOP THE
GATE.
ANTENNA
WITH RADIO
CASE
MOTOR
SUGGESTIONS
x x x
FUNCTIONS DESCRIPTION
SLOW DOWN: THE GATE SLOWS DOWN FOR THE SET SLOW DOWN TIME AT THE END OF THE OPENING AND CLOSING PHASES. DURING THE SLOW
DOWN PHASE THE MOTOR WORKS AT ITS MAX POWER.
PEDESTRIAN WORKING TIME: THE GATE OPENS AND CLOSES FOR THE SET PEDESTRIAN WORKING TIME.
SOFT START: THE MOTOR POWER INCREASES GRADUALLY TILL IT REACHES ITS MAX VALUE.
TESTS: THE CORRECT FUNCTIONING OF MOTOR AND PHOTOCELLS ARE CHECKED BEFORE ANY GATE MOVEMENT. IF ONE OF THE TWO TESTS
FAILS THE GATE DOES NOT MOVE. THE LEDS ON THE BOARD INDICATES THE TYPE OF FAILURE. THE MOTOR TEST FAILS WHEN THE MOTOR IS IN
TERMAL PROTECTION OR THERE IS A CONNECTION ERROR. THE PHOTOCELLS TEST FAILS IF TRANSMITTER AND RECEIVER ARE NOT PROPERLY
ALIGNED, IF THERE ARE INSTALLATION ERRORS, OR IF THE PHOTOCELLS ARE DAMAGED.
LIMIT SWITCHES N.C./N.O.: THE LIMIT SWITCHES INPUTS CAN BE NORMALLY CLOSED OR NORMALLY OPEN, DEPENDING ON THE TYPE OF LIMIT
SWITCHES USED.
DISABLE NOT WIRED N.C. INPUTS: DISABLE ALL THE NOT WIRED N.C. INPUTS. IF LATER, A N.C. INPUT IS WIRED, THE BOARD WILL AUTOMATICALLY
ENABLE IT.
MOTOR BREAK: THE BOARD AUTOMATICALLY SLOWS DOWN THE MOTOR IF THE GATE REACHES THE LIMIT SWITCH WITHOUT THE GATE SLOWING
DOWN, PREVENTING MOTOR DAMAGE.
AUTOMATIC CLOSURE: THE GATE AUTOMATICALLY CLOSES AFTER THE SET PAUSE TIME.
• DURING CLOSING, A START OR PEDESTRIAN COMMAND INVERTS THE GATE MOVEMENT.
• DURING OPENING, A START OR PEDESTRIAN COMMAND STOPS THE GATE MOVEMENT.
COMMUNITY PLUS AUTOMATIC CLOSURE: THE GATE AUTOMATICALLY CLOSES AFTER THE SET PAUSE TIME.
• DURING CLOSING, A START OR PEDESTRIAN COMMAND INVERTS THE GATE MOVEMENT.
• DURING OPENING, A START OR PEDESTRIAN COMMAND IS IGNORED.
STEP-BY-STEP: THE GATE STAYS OPEN AT THE END OF THE OPENING PHASE.
• DURING CLOSING AND OPENING, A START OR PEDESTRIAN COMMAND STOPS THE GATE MOVEMENT.
STEP-BY-STEP PLUS AUTOMATIC CLOSURE: THE GATE AUTOMATICALLY CLOSES AFTER THE SET PAUSE TIME.
• DURING CLOSING AND OPENING, A START OR PEDESTRIAN COMMAND STOPS THE GATE MOVEMENT.
TYPICAL INSTALLATION
THE RADIO CASE CAN BE
INSTALLED IN COMBINATION
WITH THE FLASHING LAMP ONE UP.
THE RADIO
MODULE
HOUSED INSIDE
THE RADIO CASE
(RANPC5T).
TO INCREASE THE SIGNAL RANGE DISCONNECT THE RADIO MODULE FROM THE INTERNAL RECEIVER
POSITION AND WIRE IT ON THE TERMINAL BLOCK EXTERNAL RECEIVER POSITION. IF AVAILABLE, WE
SUGGEST YOU USE THE RADIO CASE (CODE RANPC5T).
1. RADIO MODULE CONNECTED IN
INTERNALRECEIVER POSITION
(DEFAULT CONFIGURATION).
2. DISCONNECT THE RADIO
MODULE FROMTHE INTERNAL
RECEIVER POSITION.
3. WIRE THE RADIO MODULE ON THE
TERMINAL BLOCK EXTERNAL RECEIVER
POSITION.
3. WIRE THE RADIO
MODULE ON THE
TERMINAL BLOCK
EXTERNAL
RECEIVER
POSITION.
INTERNAL PROPERTY

MADE IN ITALY
T.A. Tecno Automazione s.r.l. - Via Vicinale snc - 03018 - Paliano - (FR) - Italy - Tel [phone] - Fax [phone] - [email protected] - www.tecnoautomation.com - www.tecnoautomazione.com
USER MANUAL
T181S
ENG
