Ceiling-mount PIR sensor
TME-L-PIR-220

Instruction
Power Source 110 -240V/AC
Power Frequency 50Hz
Ambient Light 3-2000LUX (adjustable)
Time-Delay Min: 10sec ± 3sec
Max: 7min ± 2min
Detection Distance 3-12m(<24°C)
Rated Load 1200W (incandescent lamp)
300W (energy-saving lamp)
Detection Range 360°
Working Temperature -20°C~+50°C
Working Humidity < 93% RH
Installation Height 2.2-4m
Power Consumption 0.45W (work) 0.1W (static)
Detection Motion Speed 0.6 ~1.5m/s
Certificates CE and Rohs
The product is a new saving-energy switch; it adopts good sensitivity detector,
integrated circuit. SMT. It gathers automatism, convenience, safety, saving-
energy and practicality functions. The wide detection field is consist of detec-
tors. It works by receiving human motion infrared rays. When one enters the
detection field, it can start the load at once and identify automatically day and
night; Its installation is very convenient and Its using is very wide. It has func-
tions of power indication and the detection indication.
Specification
Functions
•
Can identify day and night: The consumer can adjust work ambient light. It can work in
the daytime and at night when it is adjusted on the “sun” position (max). It can work in
the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As
for the adjustment pattern, please refer to the testing pattern.
•
SENS adjustable: It can be adjusted according to using location; low sensitivity with
3m for detection distance; high sensitivity with 6 or 12m, it fits for large room.
•
Time-Delay is added continually: When it receives the second induction signals after
the first induction, it will compute time once more on the basic of the first time-delay
rest.
•
Time–Delay is adjustable. It can be set according to the consumer’s desire. The mini-
mum time is 10sec±3sec. The maximum is 7min±2min.
Ceiling-mount PIR sensor
www.tecomat.cz | Teco a.s., Havlíckova 260, 280 02, Kolín 4, Ceská republika | te[email protected] | www.tecomat.com

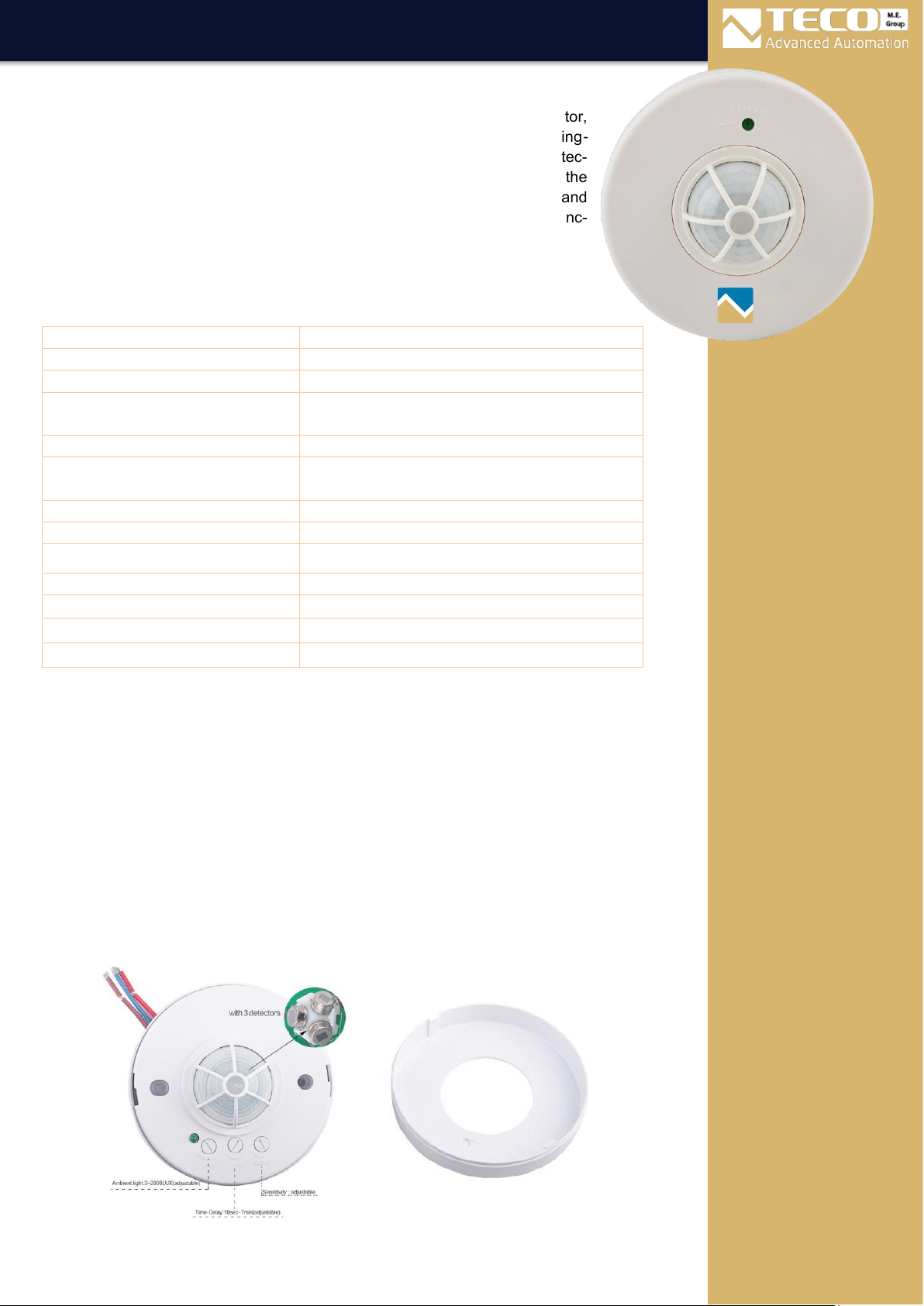

Infrared pir motion sensor switch installation
Connection-weir sketch diagram
•
Switch off the power.
•
Please moving the upper cover with anti-clockwise whirl as per the diagram in
the crust.
•
Fix the bottom on the selected position with the inflated screw
•
Connecting the power and the load to sensor as per the connection-wire
sketch diagram.
•
Buttoning the upper cover on the sensor, whirling the cover with clockwise
Test
•
Turn the LUX knob clockwise on the maximum(sun), turn the TIME knob anti-clockwise
on the minimum, turn the SENS knob clockwise on the maximum.
•
When you switch on the power, the controlled load and indication lamp are both not
working. Preheat 30 seconds later, the load and the indicator lamp are turned on syn-
chronization, in the absence of no inductor signals, the load should be stopped working
within 5-30sec, the indicator lamp is turned off.
•
After the first is out, make it sense again after 5~10sec. The load should work. When
there is no inductor signals in the indicator lamp, the load should be stopped working
within 5-15sec.
•
Turn ambient light knob anti-clockwise on the minimum. If it is adjusted in the less than
3LUX, the inductor load should not work after load stop working. If you cover the detec-
tion window with the opaque objects (towel etc), the load work .under no induction signal
condition, the load should stop working within 5-15sec.
Ceiling-mount PIR sensor
www.tecomat.cz | Teco a.s., Havlíckova 260, 280 02, Kolín 4, Ceská republika | te[email protected] | www.tecomat.com

Notes
Some problem and solved way
•
Electrician or experienced human can install it.
•
The unrest objects can’t be regarded the installation basis-face.
•
In front of the detection window there shouldn’t be hinder or unrest objects
effecting detection.
•
Avoid installing it near air temperature alteration zones for example: air condi-
tion, central heating, etc.
•
For your safety. Please don’t open the case if you find hitch after installation.
•
In order to avoid the unexpected damage of product, please add a safe device
of 6A when installing infrared sensor, for example, fuse, safe tube etc.
•
The load don’t work:
1Check the power and the load.
2Whether the indicator light is turned on after sensing? If yes, please check load.
3If the indicator light do not turn on after sensing, please check if the working light
correspond to the ambient light.
4Please check if the working voltage correspond to the power source.
•
The sensitivity is poor:
1Please check if in front of the detection window there are hinder that effect to re-
ceive the signals.
2Please check the ambient temperature.
3Please check if the signals source is in the detection fields.
4Please check the installation height.
•
The sensor can’t shut automatically the load:
1If there are continual signals in the detection fields.
2If the time delay is set to the longest.
3If the power correspond to the instruction.
4If the air temperature change near the sensor, air condition or central heating etc.
