INSTALLATION
GPS Speed Sensor Installation
1. Place the GPS Speed Sensor in a location inside the vehicle that is easily
viewed while driving.
2. Mount the GPS Speed Sensor using the two screws or Velcro®(included).
3. Connect the GPS Speed Sensor cable to the Rate Controller
(see Miscellaneous Adapter Cables, page 2).
4. Connect the antenna cable to the antenna SMA Connector on the back of
the GPS Speed Sensor.
GPS SPEED SENSOR
INSTALLATION AND SPECIFICATIONS
GPS Speed Sensor Operation
Icon Indicator Color Description
Speed Green LED will blink when a ground
speed signal is present
GPS Status Blue
GPS is detected. The light
will blink consistently when
vehicle moves. If the vehicle
is stationary, the LED will
blink irregularly.
Power Red A solid light indicates power.
Antenna Mounting Considerations
1. The antenna must be located in an area with a clear view of the sky and
mounted at the highest point on the vehicle in the center of the roof.
2. If the vehicle is non-metallic, attach the metal mounting plate via the
Velcro®strips. Place the antenna on the metal plate.
3. Avoid overhead metal objects that may interfere with satellite signals.
4. Avoid mounting in areas that receive excessive vibration.
5. Mount antenna away from sources of electromagnetic output such as
radio antennas and electric motors.
6. Make sure the antenna’s cable can be safely routed to the cab from the
mounting position.
Antenna Installation
1. Make sure the surface of the vehicle is clean, dry, and free of dust
particles.
2. Magnetically mount the antenna to a metal surface.
3. If the vehicle is non-metallic, attach the metal mounting plate via the
Velcro®strips. Place the antenna on the metal plate.
Metal Mounting
Plate 65-05055
Antenna mounts on
top of vehicle
GPS Speed Sensor
mounts inside cab of
vehicle
GPS Status
Indicator
Antenna SMA
Connector
Easily mounts
with two screws or
Velcro®(Included)
Speed Indicator
Antenna
Power Indicator
ConneCtor examples
Amphenol 7 position connector (Radion)
4-pin AMP connector (Mid-Tech/generic)
Conxall 3 position connector (Raven)
Deutsch 3 position connector (TeeJet)
98-01187-ENUS R9 English/US
© TeeJet Technologies 2013
TeeJet Technologies
1801 Business Park Drive
Springeld, Illinois 62703 USA
www.teejet.com
INSTALLATION

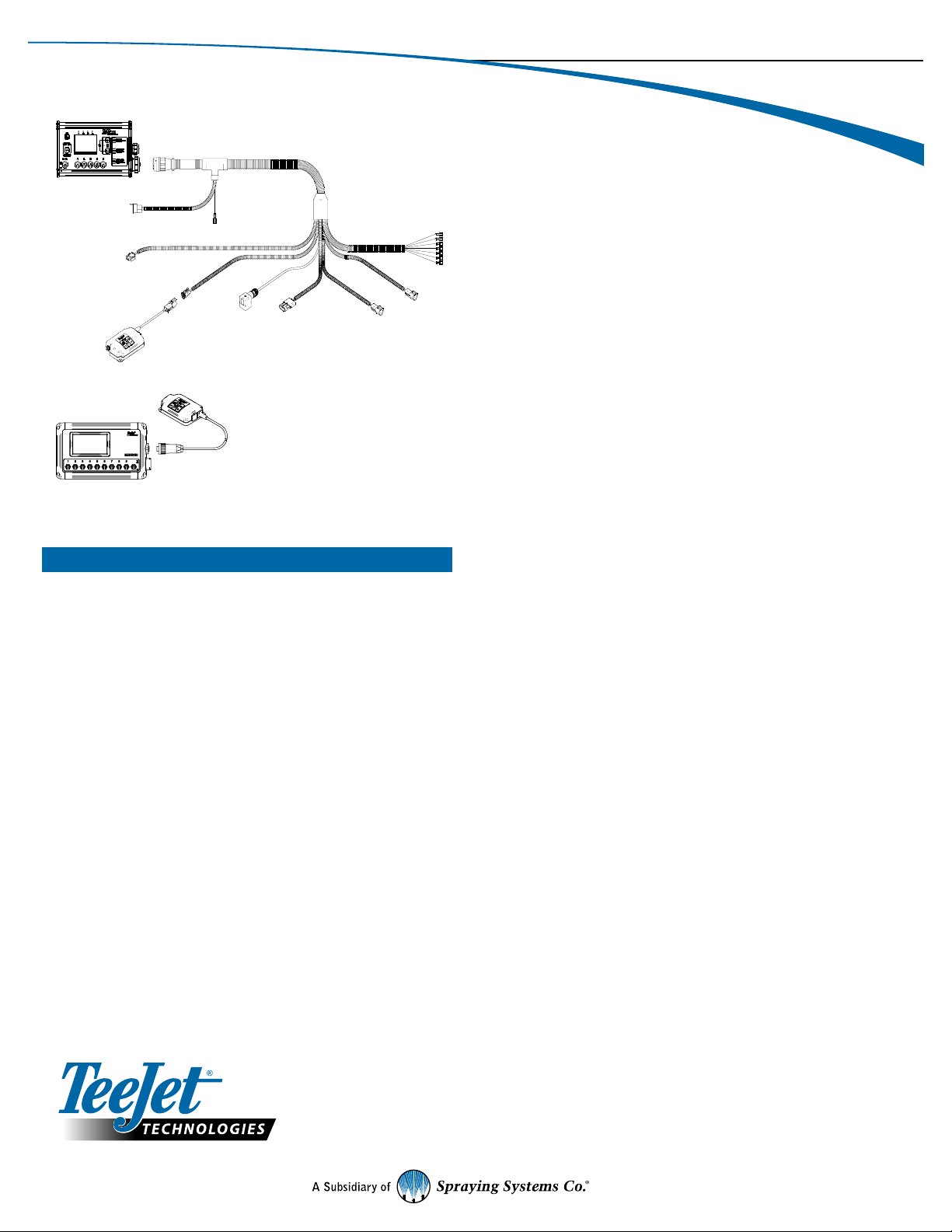

ConneCting to a 800 series Console system
45-05210
DC: XX/XX
45-05210 854 Main Harness
90-02386 GPS Speed Sensor
90-02108 854 Console Kit
ConneCting to a radion Console system
75-50064 Radion 8140-5 Console
75-50065 Radion 8140-7 Console
75-50066 Radion 8140-9 Console
90-02868 GPS Speed Sensor
SPECIFICATIONS
Electrical Connection Specications
4 Position AMP CPC With Pins
1. Ground
2. Speed Frequency Out
3. +12VDC in (9-16V)
4. Radar Sense Out (Tied to Pin 3)
Operating Voltage* ................................................................. 9-16 VDC
Signal 0-12 VDC....................................50% Duty Cycle, Square Wave
Antenna and Speed Sensor Sealed to IP67
Operating Temperature Range ...................................... -40°C to +85°C
Storage Temperature Range ......................................... -40°C to +85°C
* Power for the GPS Speed Sensor is supplied by the Rate Controller
Physical Specications
Sensor Length ................................................................4.4 in / 113 mm
Sensor Width................................................................... 3.2 in / 82 mm
Sensor Depth................................................................... 1.3 in / 32 mm
Sensor Connector (Power and Signal)......4 Position AMP CPC w/ Pins
Sensor Cable Length.......................................................... 6.0 ft / 1.8 m
Antenna Cable Length......................................................... 13.1 ft / 4 m
Antenna (connector)....................................................................... SMA
Performance Specications
GPS Acquisition Time...............................................Less than 1 minute
GPS Update Rate............................................................................5 Hz
Speed Output Update......................................................................5 Hz
Output Frequency.................................................130 Pulses per Meter
............................................58.11 Hz Per mph / 36.11 Hz Per kph
Speed Range............................................0.8 - 80 mph / 1.29 - 130 kph
Calibration Numbers
TeeJet Technologies Typical Speed
Products Calibration Number
Legacy PCM/DCM............................................................................ 769
TASC/ARC........................................................................................ 769
TeeJet Radion 8140.....................................................................13000*
TeeJet 844/854/834.............................................1300 (with RAD “ON”)
LH 70 Series................................................................................. 13000
LH 85............................................................................................ 13000
LH 500 Series............................................................................... 13000
LH 5000........................................................................................ 13000
LH 6000........................................................................................ 13000
LH IC24 ..................................................13000 or 0.769 cm per pulse**
LH IC34 ........................................................................................ 13000
Raven .................................................................. 607 US, 154 Metric***
* Speed Source should be set to “Implement”
** depending on the application
*** this calibration # is entered in conjunction with setting SPII or radar,
whichever is applicable for the console
Part Numbers
Kits and Sensors
90-02868 Kit, GPS Speed Sensor for Radion Console
90-02371 Kit, GPS Speed Sensor for Mid-Tech Controls
90-02386 Kit, GPS Speed Sensor for TeeJet Controls
90-02404 Kit, GPS Speed Sensor for Raven Controls
78-50155 Patch Antenna
78-05068 GPS Speed Sensor with 4 pin AMP connector
78-05070 GPS Speed Sensor with 3 position Conxall connector
78-05071 GPS Speed Sensor with 3 position Deutsch connector
78-05107 GPS Speed Sensor with 7 position amphenol connector
Miscellaneous Adapter Cables
45-05440 Extension cable for GPS Speed Sensor or
DICKEY-john radar (6′ / 1.8 m)
402-0005 Extension cable for GPS Speed Sensor or
DICKEY-john radar (18′ / 5.5 m)
402-0035 Extension cable for GPS Speed Sensor or
DICKEY-john radar (30′ / 9 m)
45-20042 Adapter cable for GPS Speed Sensor or
DICKEY-john radar to TeeJet Controls (1′ / 0.3 m)
402-0003 GPS Speed Sensor or DICKEY-john radar “Y” cable, 2x14″
Leads
402-0015-D “Y” cable for GPS Speed Sensor or DICKEY-john radar.
Provides 2 additional speed signal outputs for Mid-Tech
consoles or equivalent (4-pin AMP CPC connector). Two
console leads @ 8″ (20 cm) long, and one console lead at
6′ (1.8 m).
405-0114-D “Y” cable for GPS Speed Sensor or DICKEY-john radar.
Provides 2 additional speed signal outputs for Mid-Tech
consoles or equivalent (4-pin AMP CPC connector). Two
console leads @ 8″ (20 cm) long, and one console lead at
15′ (4.5 m).
Warranty
1 Year from Date of Purchase
