Teison Portable PRO User manual

le PRO
EV charger Manual

Thank you for purchasing your new Teison
PRO portable EV charger.
Our products are tested before being
dispatched from our factory so you should
find that everything performs as it should and
that there are no visible signs of damage on
the product.
Please take a few minutes to go through this
short instruction manual paying attention to
the important safety information.
Thanks again and lets get charging........

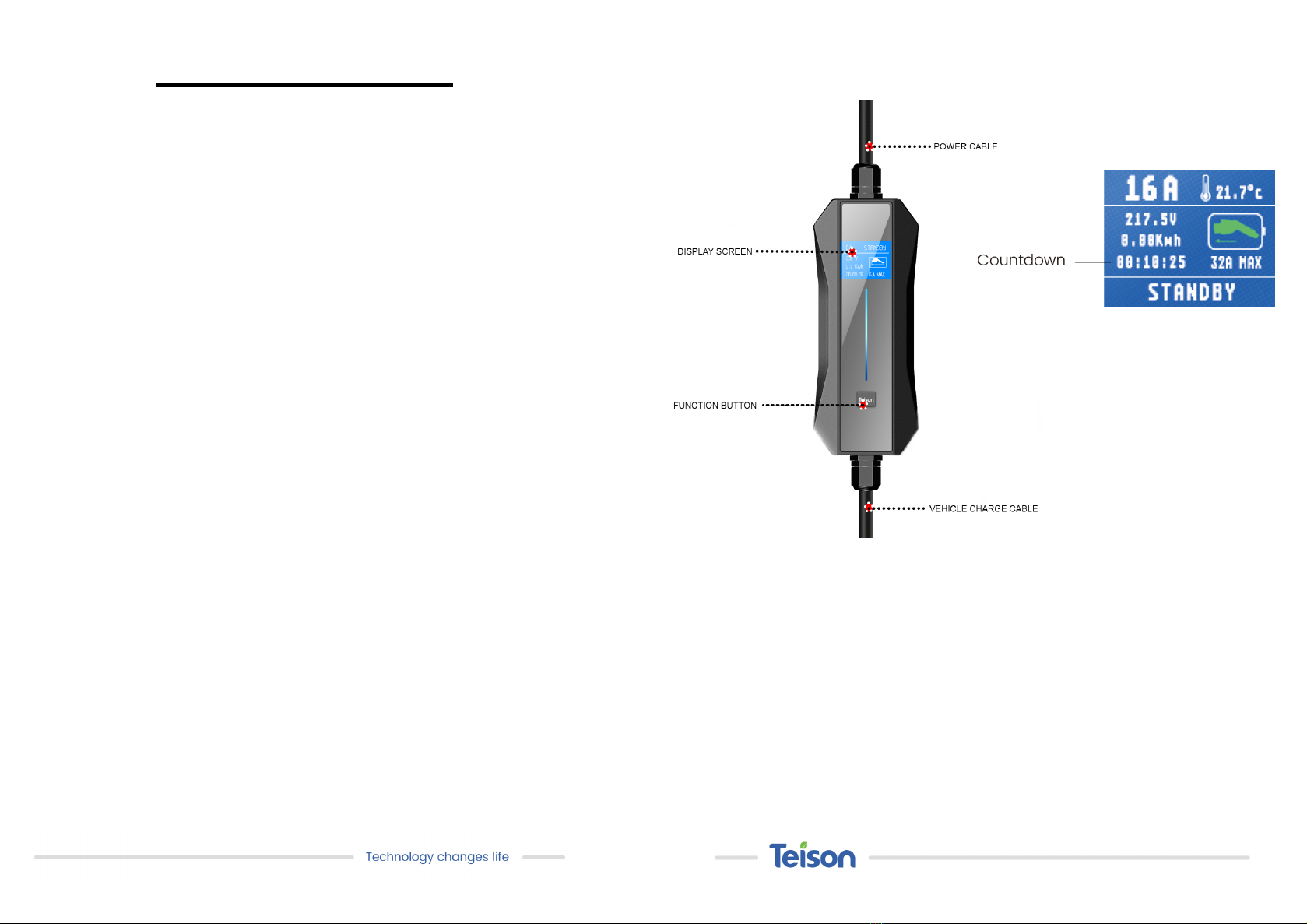

Product Overview Portable PRO
Teison portable EV charger is a portable charging device for electric
vehicles. The product meets the requirements of IEC 61851-1:2017
and IEC/EN 62752:2016 Mode 2 AC charging system. AC charging
connector meets EN 62196-2:2017 and SAE J1772.
Personal Safety
•Never attempt to disassemble any part of the unit or
plug connector.
•This device is not suitable for use by children.
•Disconnect the device immediately should you
notice any damage to the charger or cables.
•Cables or connectors are not repairable, unit should
be replaced in case of physical damage to any part.
•Do not allow the charger unit to get wet during
charging.
•Ensure your home electrical system can supply the
power setting you have set on the device.
•Always allow sufficient slack on the cable, move
your vehicle closer to the power outlet to avoid
excessive preasure on the cable.
•Do not expose or use the charging unit in direct
sunlight.
•Never attempt to insert any object into the charging
plug.
•This Teison product is for charging electric vehicles
equipped with the specific plug attached at the
factory. Never attempt to charge anything but an
electric vehicle or modify the plug.
Product Safety
•Ensure the charging unit is always stored in a
clean and dry condition.
•Before connecting to a power outlet a visual
check of cables must be undertaken.
•This device is not suitable for charging in public
places where there is a risk of injury to children.
•Dropping charger onto hard surfaces should be
avoided.
•Never insert either end of cable to power or
vehicle if the connectors are damp or wet.

QUICK START
1. Charging. Connect the charging unit to a power supply, the
blue indicator light will illuminate to confirm the power supply.
Press the function button to set your desired charging current,
connect the vehicle plug to your vehicle and the charger will
begin charging as soon as communication is established.
Should the connect symbol not change to charging you may
need to press the control button again. Screen will switch to
display power, charge rate, temperature and elapsed charging
time. While charging the solid green indicator light will pulse.
2. Scheduled charging. To use the scheduled charging
feature, keep the function button pressed for 3 seconds, the
screen will show the time delay, keep pressing the function
button to set desired delay time. Release the function button
and delay is set. To reset delay feature simply unplug the unit
from the power supply and reconnect to use.
3. Monitoring the charging process. During the charging
process the current, current leakage and temperature of the
control box are all monitored. If a fault occurs the power supply
stops, the indicator light flashes red and the screen will display
the fault description.
4. Charging is over. As soon as your vehicle tells the charger that the
battery is full charging will stop and the green indicator will change from pulsing
to solid green again. Disconnect the power plug from the outlet (socket).
Disconnect the plug from the vehicle inlet.

Waiting for charging indicator
Blue light is on constantly
Connection indicator
Green light is on constantly
Charging indicator
Green light glows
Fault notification
Red light flashes

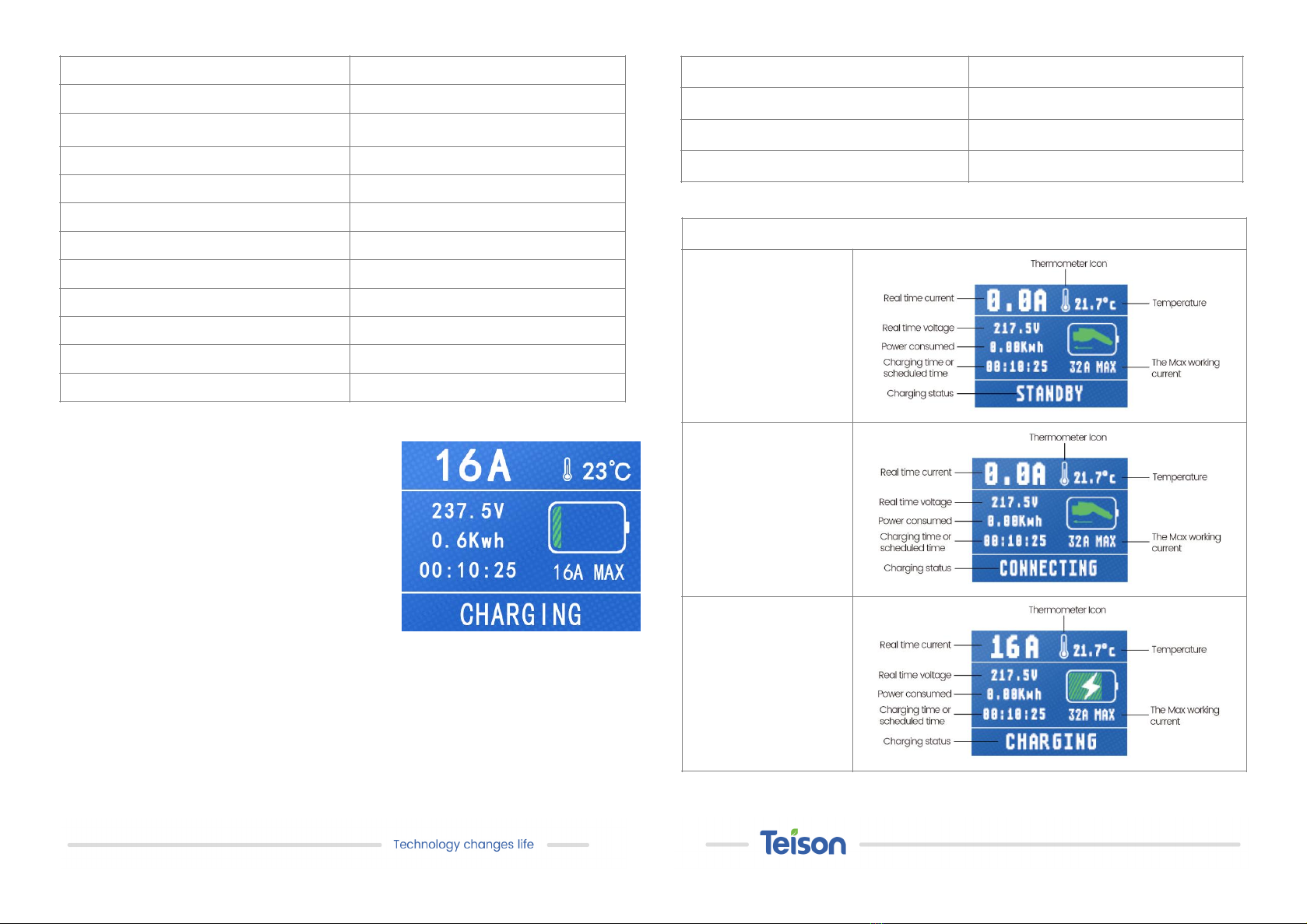

LCD display instruction
Status of Standby
Statue of Connecting
Status of charging
Article Specification
Output current 6A/8A/10A/13A/16A/20A/32A
Leakage ProtectionƯAC 30mA+DC 6mAưSupported
Under voltage protection Supported
Over voltage protection Supported
Over temperature protection Supported
Over current protection Supported
Short circuit protection Supported
Screen display Supported
Schedule charging Supported
Surge protection Supported
EFT Supported
During operation it is normal that the
charger will generate a certain amount of
heat. Should however there be too much
heat generated due to long term charging in
warmer conditions, your Teison portable
charger has under and overheat protection
to keep everything working correctly.
Should the unit temperature rise above 75 degrees the charger will
automatically adjust the current to allow everything to cool down, once below
75 degrees the current and charge rate will increase to its original set level.
Above 85 degrees your charger will shut down, the indicator light will flash red
and "over temperature" will show on the screen. You can leave the charger
connected and as soon as the temperature falls the charger will automatically
begin charging again.
Auto Temperature Adjustment

Flammability
Control box Meets: UL94 LV: V-0
EV Charging Plug Meets: UL94 LV: V-0
EV Charging Cable Meets: UL1581 LV: VW-1
EV rolling test Meets: IEC/EN 62752:2016
Cable Deflection Meets: IEC/EN 62752:2016
Drop Meets: IEC/EN 62752:2016
NotePlug-in and plug-out test is under no-load condition
Specification
Power plug Schuko/UK/AU/NEMA/CEE or customized
Power side cable L1 Length 1000 mm,Specification 3*2.5mm²/
3*6mm²
Control box on cable
IEC 61851-1:2017 & IEC/EN 627522016
Control box size: 255mmƯHư
x109mm(W)x55mm(D)
Car side cable L2 Length4500mm or customized SIZE
3*2.5mm²+2*0.5mm²/3*6mm²+2*0.5mm²
Car side plug 16/32A,TYPE1/2,Meet EN 62196-2:2017/
SAE_J1772-2017
Total cable Length 5.5M or customized
Weight ≤3.6kg
Reference Standard Product Specification
NO. Standard No. Statement
1IEC
61851-1:2017 Electric vehicle conductive charging system – Part 1: General requirements
2IEC/EN 62752
2016
In-cable control and protection device for mode 2
charging of electric road vehicle (IC-CPD)
3 EN 62196-2:2017
Plugs, socket-outlets, vehicle connectors and vehicle
inlets –Conductive charging of electric vehicles – Part 2:
Dimensional compatibility and interchangeability
requirements for a.c. pin and contact-tube accessories
4 SAE-J1772-2017 SAE Electric Vehicle and Plug in Hybrid Electric Vehicle
Conductive Charge Coupler
Subject Specification
Item No. TS-PEC-002
Product Portable EV Charger
Charging Principle

Environmental Performance Electrical Properties
Mechanical Properties
Working temperature -30℃~~60℃
Storage temperature -40℃~~70℃
Working humidity 5%~~95%əNo condensation
IP level
Control box IP67
Plug on carƯUnconnectedưIP54
IP level
Plug on carƯconnectedưIP55
Altitude ≤2000m
Salt spray test MEET IEC/EN 62752:2016
Atmospheric pressure 80kPa~101kPa
Temperature and humidity cycle MEET IEC/EN 62752:2016
NoteAvoide use in flammable or corrosive environments.
Specification
Rated voltage 254V AC
Operating Voltage 120/230V
Rated frequency 50/60Hz
Rated current 16A
Control Pilot
IEC/EN 62752:2016
Duty Ratio 53.3%
Frequency 1000Hz
Leakage Protection
Type A
AC leakage 30mA
DC leakage 6mA
Insulation Resistance 10MΩ
Specification
EV expected
plug life
CEE 16A PLUG 5000 times
AC charging plug 10000 times

After Sale service
At Teison we are proud of the quality and care we put into every one of
our products. Your Teison device has undergone thorough testing
before leaving our factory to ensure many years of uninterrupted use.
Product warranty policy:
Your Teison product is guaranteed for a period of 2 years after purchase.
Should your device develop a fault within the warranty period it may be returned
to us for repair or replacement.
•Physical damage to the unit or cables is not covered by the warranty.
•Units that have been opened or tampered with are not covered by the
warranty.
•Units that have been used for anything other than the intended purpose
are not covered by the warranty.
•Warranty only covers products purchased in the UK by an approved
Teison distributer.
Product name
Model
Purchase date
User name
Contact phone
Address
Purchased from
Email address
Teison UK
4 Jordanvale Ave, Glasgow, G14 0QP, United Kingdom
www.teison.co.uk [email protected]
Product warranty conditions:
