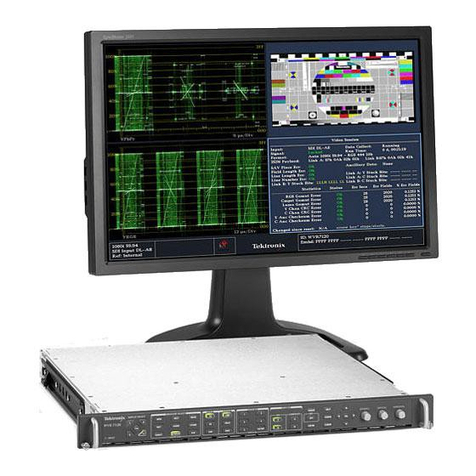

Tektronix WVR6020 Use and care manual

x
WVR6020, WVR7020, WVR7120, WVR6100 Opt. MB,
WVR7000 Opt. MB, and WVR7100 Opt. MB
Waveform Rasterizers
ZZZ
Technical Reference
*P077008201*
077-0082-01

WVR6020, WVR7020, WVR7120, WVR6100 Opt. MB,
WVR7000 Opt. MB, and WVR7100 Opt. MB
Waveform Rasterizers
ZZZ
Technical Reference
xx
www.tektronix.com
077-0082-01

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are
protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all
previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tektronix.com to find contacts in your area.

Warranty
Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of
shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective
product without charge for parts and labor, or will provide a replacement in exchange for the defective product. Parts, modules and
replacement products used by Tektronix for warranty work may be new or reconditioned to like new performance. All replaced
parts, modules and products become the property of Tektronix.
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period
and make suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the
defective product to the service center designated by Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the
product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall
be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and
care. Tektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel
other than Tektronix representatives to install, repair or service the product; b) to repair damage resulting from improper use or
connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of non-Tektronix supplies; or
d) to service a product that has been modified or integrated with other products when the effect of such modification or integration
increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE PRODUCT IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS
IS THE SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX
AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
[W2 – 15AUG04]

Table of Contents
Table of Contents
General Safety Summary ............................................................................................................. iii
Preface................................................................................................................................. v
Where to Find More Information................................................................................................. v
Conventions Used in this Manual ............................................................................................... v
Incoming Inspection ................................................................................................................... 1
Installation Variations.................................................................................................................. 5
Connecting Directly to a PC ..................................................................................................... 5
Connecting to a Network......................................................................................................... 6
Remote Communication ......................................................................................................... 8
Display Information ................................................................................................................... 17
Waveform Display............................................................................................................... 17
Vector Display...................................................................................................................19
Timing Display...................................................................................................................20
Picture Display .................................................................................................................. 22
Audio Display....................................................................................................................25
LTC Waveform Display.......................................................................................................... 28
Gamut Display................................................................................................................... 29
Status Display...................................................................................................................30
Eye Display......................................................................................................................33
Jitter Display..................................................................................................................... 35
Ancillary (ANC) Data Inspector................................................................................................. 37
Supplemental Operating Information . .. .. .. .. .... ................................... ... ... . .. . . . . . . . . . . . . . . . . . . . .. . .. . .. . .. . ... ... . .43
Cloning Setups (Presets) ....................................................................................................... 43
Upgrading Instrument Software ................................................................................................ 49
Description of Cable Types ..................................................................................................... 55
Index
Waveform Rasterizers Technical Reference i

Table of Contents
ii Waveform Rasterizers Technical Reference

General Safety Summary
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it.
To avoid potential hazards, use this product only as specified.
Only qualified personnel should perform service procedures.
To Avoid Fire or Personal Injury
Use Proper Power Cord. Use only the power cord specified for this product and certified for the country of use.
Connect and Disconnect Properly. Connect the probe output to the measurement instrument before connecting the
probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe
input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe
from the measurement instrument.
Ground the Product. This product is grounded through the grounding conductor of the power cord. To avoid electric
shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output
terminals of the product, ensure that the product is properly grounded.
Observe All Terminal Ratings. To avoid fire or shock hazard, observe all ratings and markings on the product. Consult
the product manual for further ratings information before making connections to the product.
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
Power Disconnect. The power cord disconnects the product from the power source. Do not block the power cord; it
must remain accessible to the user at all times.
Do Not Operate Without Covers. Do not operate this product with covers or panels removed.
Do Not Operate With Suspected Failures. If you suspect that there is damage to this product, have it inspected by
qualified service personnel.
Avoid Exposed Circuitry. Do not touch exposed connections and components when power is present.
Use Proper Fuse. Use only the fuse type and rating specified for this product.
Do Not Operate in Wet/Damp Conditions.
Do Not Operate in an Explosive Atmosphere.
Keep Product Surfaces Clean and Dry.
Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has
proper ventilation.
Waveform Rasterizers Technical Reference iii

General Safety Summary
TermsinthisManual
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
Symbols and Terms on the Product
These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the marking.
WARNING indicates an injury hazard not immediately accessible as you read the marking.
CAUTION indicates a hazard to property including the product.
The following symbol(s) may appear on the product:
iv Waveform Rasterizers Technical Reference

Preface
Preface
This manual contains supplemental user information for the following instruments:
WVR6020
WVR7020
WVR7120
WVR6100 with Option MB
WVR7000 with Option MB
WVR7100 with Option MB
Where to Find More Information
Item Purpose Location
Quick Start User Manual Installation and high-level
overview of instrument
operation
Online Help In-depth instrument
operation and UI help
Specifications and
Performance Verification
Specifications and
procedure for checking
instrument performance
WFM, WVR, and AMM
Series Management
Information Base (MIB)
SNMP command
reference for remotely
controlling the instrument
Service Manual Optional manual
supporting module-level
servicing of the
instrument
Conventions Used in this Manual
The following icons are used throughout this manual:
Sequence Step Connect power Network XGA
Waveform Rasterizers Technical Reference v

Preface
vi Waveform Rasterizers Technical Reference

Incoming Inspection
Incoming Inspection
The incoming inspection procedures are optional procedures that check the functionality of the instrument and require
no equipment other than a display. For a more robust inspection, see the performance verification procedures in the
Specifications and Performance Verification manual that is included on the User Documentation CD that was shipped
with your instrument.
BasicTurnOnandSelfTest
1. Connect an XGA monitor to the
instrument.
2. Connect the AC power cord to the rear of
the instrument and to a 100 to 240 VAC
source. There is no power switch on
your instrument: it will turn on as soon
as you apply power.
3. Look at the front panel immediately after
you apply power. All of the buttons, the
text over the three knobs, and the Fault
indicator should light up.
NOTE. After a couple of seconds, the lights
in the buttons and text will turn off. After
about 15 seconds, the fault light should turn
off and the Power On diagnostic page should
appear on the monitor.
4. Verify that the instrument passes all self
tests. Any failures will be shown in Red.
The results of the Power On diagnostics
are erased from the screen, but you
can view them by selecting CONFIG >
Utilities >View Diagnostic Log.
5. After the diagnostics are finished, the
instrument state will be restored. When
the progress indicator in the lower-right
part of the screen is finished, the
instrument has finished initializing.
Waveform Rasterizers Technical Reference 1

Incoming Inspection
Front Panel Test
1. Press FACTORY to restore the factory
preset. Wait for the progress indicator to
show the process is complete.
2. Press FULL to make the active tile be
full screen.
3. Press HELP to display the help screen.
4. Press all the other buttons.
Each button should flash as you press
it. Most buttons bring up related help
text. Some buttons, such as the presets,
bring up the same information. The
HELP button, the four arrow keys, and
the SEL button do not bring up help text
because they traverse the help panes
and content.
5. Press the right arrow key until the Help
Contents pane in the upper-left corner is
highlighted.
6. Turn the GENERAL knob and verify that
the selector box moves up and down the
list.
7. Press HELP to exit help.
2Waveform Rasterizers Technical Reference

Incoming Inspection
XGA and Extended Diagnostics Test
NOTE. Where the following procedure says to press an arrow key, you can use the general knob on the front panel,
if you prefer.
1. Press the CONFIG button to display the
configuration menu.
2. Select Utilities and then press SEL.
3. Select CPU Color Palette Check
and verify that 16 distinct colors are
displayed. This tests the XGA data path
from the CPU.
4. Use the down arrow key to navigate to
Run Advanced Diagnostics and then
press SEL.
5. When the dialog box appears, use the
right arrow key to highlight the Continue
box and then press SEL to run the test.
6. Verify that the XGA DAC is working by
looking at the White and Red ramps at
the top of the screen, and at the Green
and Blue ramps at the bottom of the
screen. They should not have steps but
should show a smooth transition from
dark to light.
Waveform Rasterizers Technical Reference 3

Incoming Inspection
7. Verify that the frequencies shown are
within 10 kHz, and that rates shown are
within 0.1 μs, of the nominal values listed
to the right.
8. Verify that the bus bit activity tests
(labeled Channel A:, Processor Video:,
and Composite Video:, and appearing at
the bottom of the screen) are as follows:
All three tests show both a red and a
green bar in each bit location.
The Processors Video test shows
8bitsfromthe CPU, a space, then
Hsync, a space, Vsync, a space, and
then the blank line. It is normal for
the Vsync bit to blink occasionally.
9. Press SEL or cycle the power to reboot
the unit for normal operation.
QDR Clock = 25.174 MHz
VGA clock = 64.480 MHz
Audio PLL1 = 12.288 MHz
Audio PLL2 = 12.288 MHz
Hsync rate : Width = 0.9 μs
Vsync PW: Width = 62.5 μs
Fan Test
If the fault light in the lower left corner of the front panel is not on (Red), the fans are running. You should also be able to hear
them and feel air coming out the back of the instrument. At low temperatures, the fans will turn slowly and be very quiet.
4Waveform Rasterizers Technical Reference

Installation Variations
Installation Variations
See the Quick Start User Manual that was shipped with your instrument for basic installation instructions. Read the following
information for other installation situations and for remote communication instructions, an optional procedure that is suitable
for incoming inspection of this product.
Connecting Directly to a PC
The following procedure will help you connect your instrument to a PC:
1. Connect the instrument to a PC through
an ethernet hub, as shown. A standard
crossover cable can be substituted for
the hub.
2. Set up the instrument as described in
the following procedures (See page 6,
Connecting to a Network.), choosing
Manual IP mode to set the IP address
manually. Be sure to set an address that
is compatible with the setting of your PC.
3. If you are using an SNMP setup, use the
SNMP setup procedure.
Waveform Rasterizers Technical Reference 5

Installation Variations
Connecting to a Network
The following topics cover configuring the IP settings, so that you can use your instrument over a network, and configuring
SNMP, which is required if you are using commands to control the instrument.
Connection and IP Settings
To allow ne twork access to the instrument, you need to set the IP address. Network addresses can be assigned either
automatically or manually. If your network does not use DHCP, you will have to manually enter the address for the instrument.
To get an address, talk to your LAN administrator.
To connect your instrument to a network and
access it with a remote PC, do the following:
NOTE. To connect directly between your PC
and the instrument, see Connecting Directly
to a PC.
1. Press CONFIG to display the
Configuration menu.
2. Select Network Settings >Web Enable.
Press SEL to select On.
6Waveform Rasterizers Technical Reference

Installation Variations
3. Set the IP Config Mode to Manual or
DHCP, depending on your network setup.
4. If you cannot use DHCP, set the subnet
mask and gateway address network
parameters in this menu; see your
LAN administrator for required values.
(Besuretous
e compatible addresses
between the PC and the instrument.)
You can also set the instrument name
and view the MAC Address.
5. If the password is set, note it. You will
be prompted for it when you connect to
the instrument.
NOTE. For help with entering or changing
the password, select Web Password, and
press the HELP button.
6. Press CONFIG to close the Configuration
menu.
Waveform Rasterizers Technical Reference 7

Installation Variations
SNMP Setup
If you intend to use SNMP commands to control the instrument (SNMP control is primarily intended for access through
automation systems), you need to set up SNMP parameters.
NOTE. The WFM, WVR, and AMM Series Waveform Monitors wfm_mon.mib and the WVR7120.mib can be downloaded
from the instrument Web page.
The procedure to set SNMP settings is similar to that shown on page 2 for IP settings; the parameters that can be set follow:
SNMP Enable This entry in the Network Settings portion of the Configuration menu allows you to
turn on or off the remote access through SNMP.
SNMP Trap Enable This menu entry allows you to turn on or off the traps that are sent out through SNMP.
SNMP Trap Address This menu entry allows you to set IP addresses to which SNMP traps are sent through
SNMP. Traps can be sent to up to four addresses when error conditions are detected.
NOTE. A value of all zeroes for the address will disable that trap output.
Private Community String This menu entry allows you to set the Private Community string. This string is
effectively a password. Without this string, SNMP commands cannot change values
in the instrument.
NOTE. The Private String is necessary for SNMP access to write changes into
the instrument.
Public Community String This menu entry allows you to set the Public Community string. This string is
effectively a password. Without this string, SNMP commands cannot read values
from the instrument.
NOTE. The Public String is necessary for SNMP access to read values from the
instrument.
Remote Communication
The following topics cover remote communications that occur:
Over an Ethernet network through a Web browser
Over an Ethernet network through a Java applet
Over a cable using the optional remote front panel
8Waveform Rasterizers Technical Reference
