Operator’s
Manual
PP016 Passive Probe
2 / 13
2 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
3 / 13
3 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com

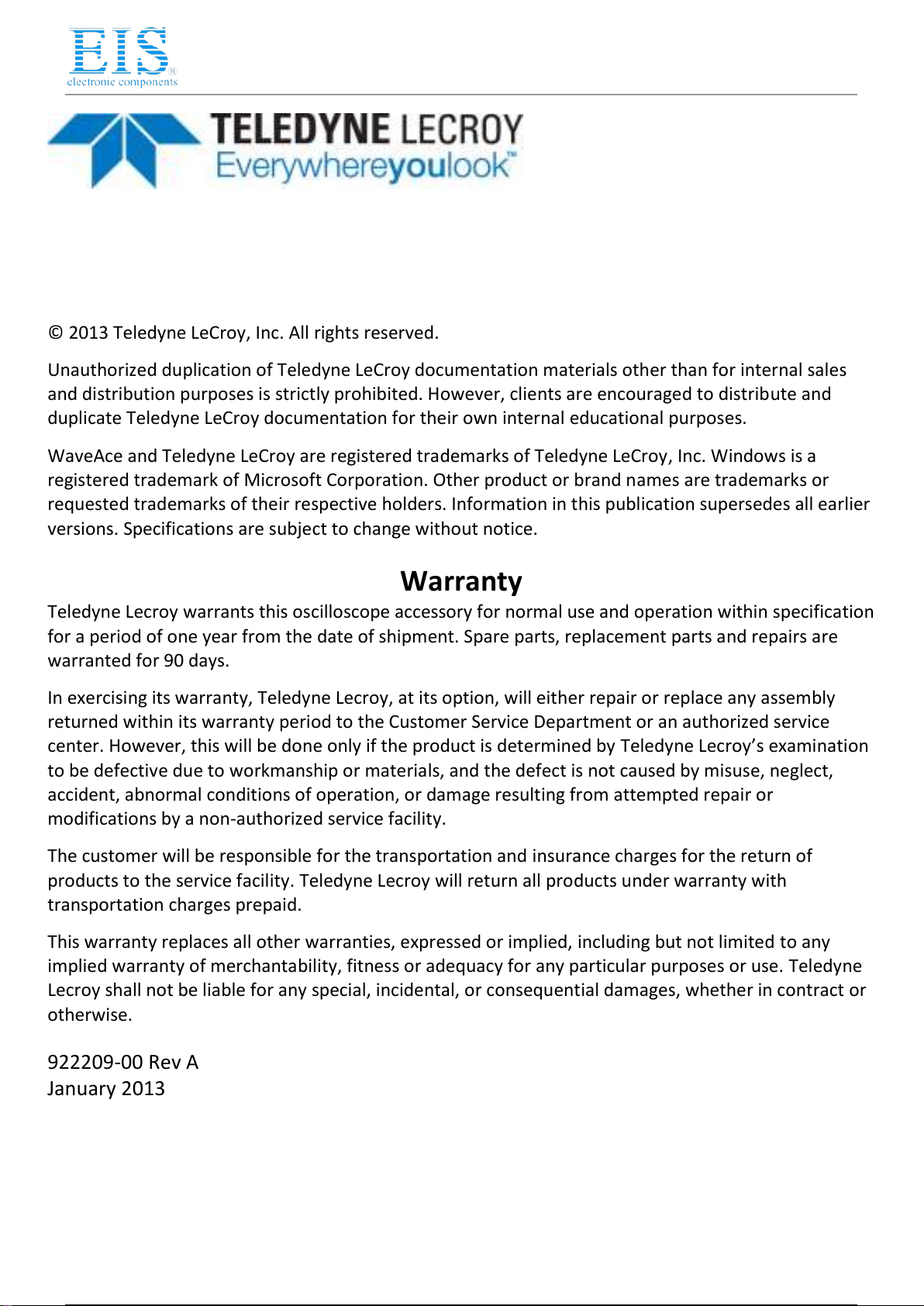

© 2013 Teledyne LeCroy, Inc. All rights reserved.
Unauthorized duplication of Teledyne LeCroy documentation materials other than for internal sales
and distribution purposes is strictly prohibited. However, clients are encouraged to distribute and
duplicate Teledyne LeCroy documentation for their own internal educational purposes.
WaveAce and Teledyne LeCroy are registered trademarks of Teledyne LeCroy, Inc. Windows is a
registered trademark of Microsoft Corporation. Other product or brand names are trademarks or
requested trademarks of their respective holders. Information in this publication supersedes all earlier
versions. Specifications are subject to change without notice.
Warranty
Teledyne Lecroy warrants this oscilloscope accessory for normal use and operation within specification
for a period of one year from the date of shipment. Spare parts, replacement parts and repairs are
warranted for 90 days.
In exercising its warranty, Teledyne Lecroy, at its option, will either repair or replace any assembly
returned within its warranty period to the Customer Service Department or an authorized service
center. However, this will be done only if the product is determined by Teledyne Lecroy’s examination
to be defective due to workmanship or materials, and the defect is not caused by misuse, neglect,
accident, abnormal conditions of operation, or damage resulting from attempted repair or
modifications by a non-authorized service facility.
The customer will be responsible for the transportation and insurance charges for the return of
products to the service facility. Teledyne Lecroy will return all products under warranty with
transportation charges prepaid.
This warranty replaces all other warranties, expressed or implied, including but not limited to any
implied warranty of merchantability, fitness or adequacy for any particular purposes or use. Teledyne
Lecroy shall not be liable for any special, incidental, or consequential damages, whether in contract or
otherwise.
922209-00 Rev A
January 2013
4 / 13
4 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
PP016 Passive Probe
2 922209-00 Rev A

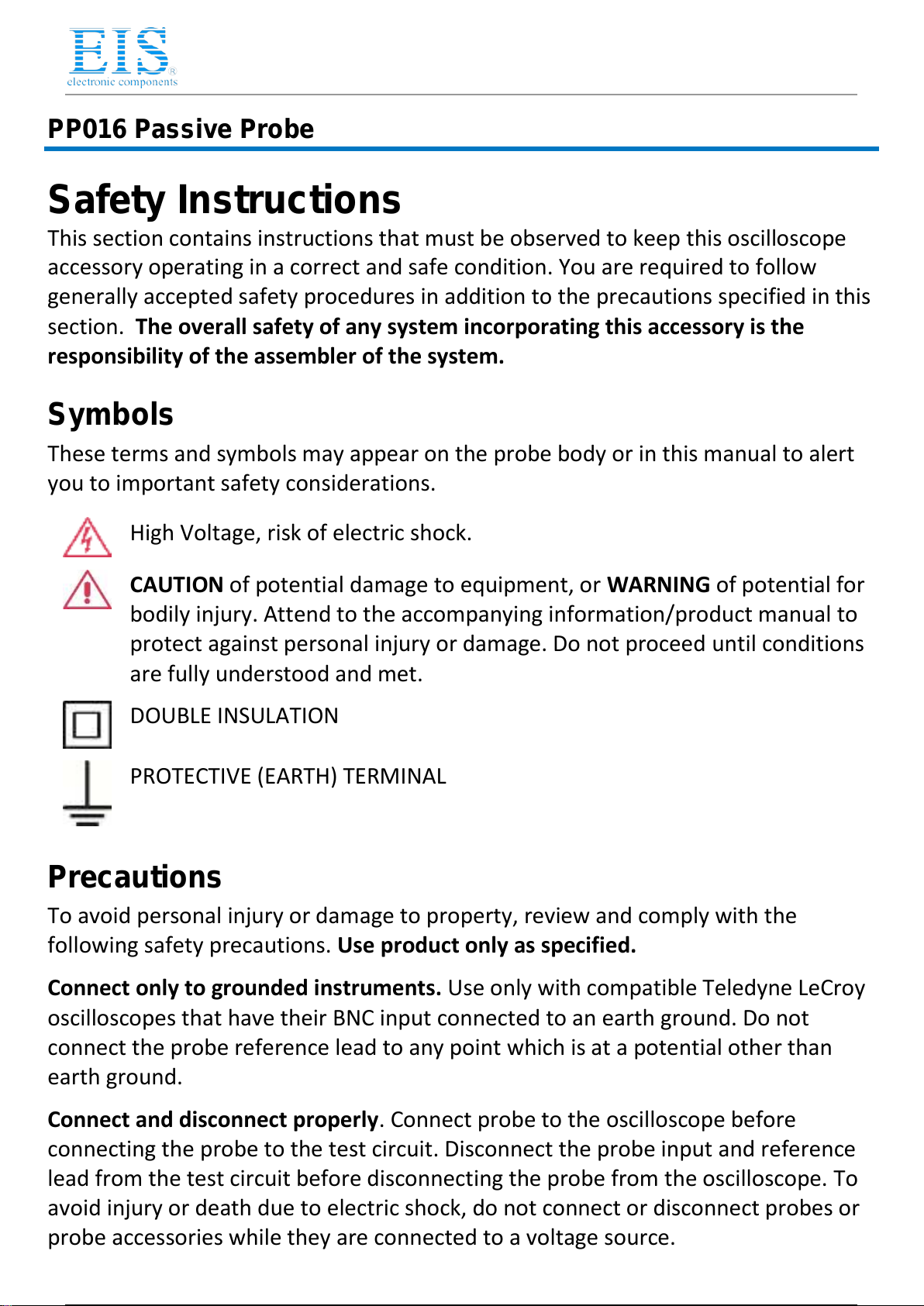

Safety Instructions
This section contains instructions that must be observed to keep this oscilloscope
accessory operating in a correct and safe condition. You are required to follow
generally accepted safety procedures in addition to the precautions specified in this
section. The overall safety of any system incorporating this accessory is the
responsibility of the assembler of the system.
Symbols
These terms and symbols may appear on the probe body or in this manual to alert
you to important safety considerations.
High Voltage, risk of electric shock.
CAUTION of potential damage to equipment, or WARNING of potential for
bodily injury. Attend to the accompanying information/product manual to
protect against personal injury or damage. Do not proceed until conditions
are fully understood and met.
DOUBLE INSULATION
PROTECTIVE (EARTH) TERMINAL
Precautions
To avoid personal injury or damage to property, review and comply with the
following safety precautions. Use product only as specified.
Connect only to grounded instruments. Use only with compatible Teledyne LeCroy
oscilloscopes that have their BNC input connected to an earth ground. Do not
connect the probe reference lead to any point which is at a potential other than
earth ground.
Connect and disconnect properly. Connect probe to the oscilloscope before
connecting the probe to the test circuit. Disconnect the probe input and reference
lead from the test circuit before disconnecting the probe from the oscilloscope. To
avoid injury or death due to electric shock, do not connect or disconnect probes or
probe accessories while they are connected to a voltage source.
5 / 13
5 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
Operator’s Manual
922209-00 Rev A 3
Do not overload. To avoid electric shock or fire, do not apply any potential to the
probe leads that exceeds the maximum rating of the probe.
Comply with voltage derating curve. When measuring higher frequency signals,
comply with the Voltage vs. Frequency Derating Curve.
Observe all terminal ratings. To avoid electric shock or fire, observe all markings on
the oscilloscope before connecting. Consult the respective oscilloscope product
manual for further ratings information.
Do not remove probe casing. Removing the probe’s case or touching exposed
connections may result in electric shock.
Use only within operational environment listed. Do not use in wet or explosive
atmospheres. Keep product surfaces clean and dry.
Use only accessories compatible with the probe.
Handle with care. The probe tip is extremely sharp and may puncture skin or cause
other bodily injury if not handled properly.
Keep fingers behind the finger guard of probe body and accessories.
Do not operate with suspected failures. Before each use, inspect the probe and
accessories for any potential damage such as tears or other defects in the probe
body, cable jacket, accessories, etc. If any part is damaged, cease operation
immediately and sequester the probe from inadvertent use.
Operating Environment
The accessory is intended for indoor use and should be operated in a clean, dry
environment. Before using this product, ensure that its operating environment is
maintained within these parameters:
Temperature: Operating, 5° to 40° C; Non-operating, - 20° to 60° C
Humidity: 5% to 85% relative humidity (%RH) up to +30° C
5% to 65% RH above +30° C to 40° C
5% to 45% RH above 40° C
Altitude: Up to 3000 m (9842 ft)
6 / 13
6 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
PP016 Passive Probe
4 922209-00 Rev A

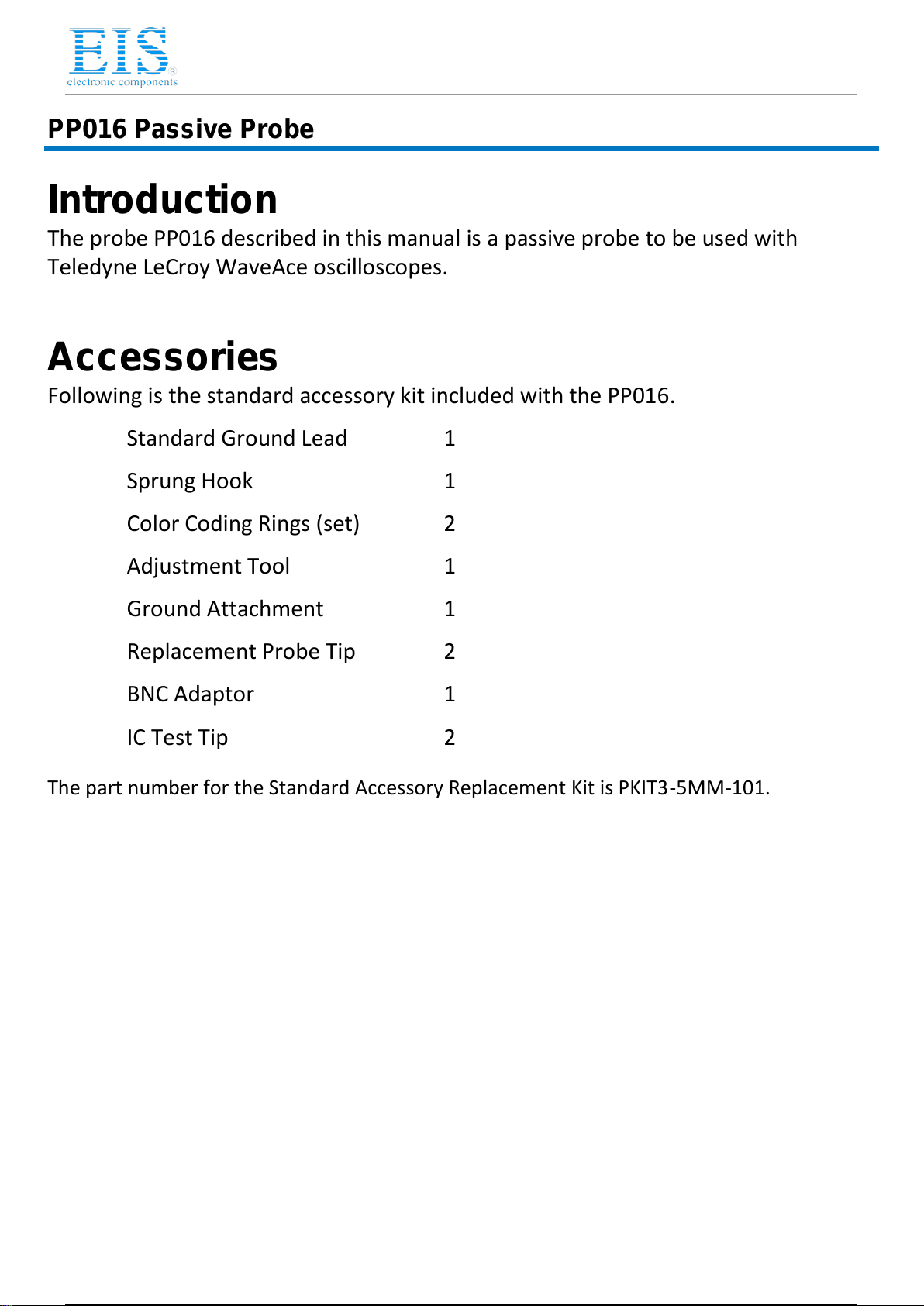

Introduction
The probe PP016 described in this manual is a passive probe to be used with
Teledyne LeCroy WaveAce oscilloscopes.
Accessories
Following is the standard accessory kit included with the PP016.
Standard Ground Lead 1
Sprung Hook 1
Color Coding Rings (set) 2
Adjustment Tool 1
Ground Attachment 1
Replacement Probe Tip 2
BNC Adaptor 1
IC Test Tip 2
The part number for the Standard Accessory Replacement Kit is PKIT3-5MM-101.
7 / 13
7 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
Operator’s Manual
922209-00 Rev A 5
Specifications
Attenuation 1: 1 10:1
Bandwidth (MHz) 10 300
Input R (MΩ) 1 10
Input C (pF) 46 12
Compensation Range (pF) NA 10-35
Maximum Input Voltage 600 V (DC + ACpeak) CAT II
Cable Length 1.2 m
Connector Type BNC
Operating Temperature 5° to 40° C
Storage Temperature -20° to 60° C
Humidity 5% to 85% relative humidity (%RH) up to +30° C
5% to 65% RH above +30° C to 40° C
5% to 45% RH above 40° C
Operating Altitude Up to 3000 m
NOTE: The maximum input voltage derates when frequency response is
approximately 30 kHz or higher. See Voltage Derating curve below.
Voltage Derating
8 / 13
8 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
PP016 Passive Probe
6 922209-00 Rev A
Cleaning
The outside of the probe should cleaned with a soft cloth dampened with either
deionized / distilled water or isopropyl alcohol. Allow the surface to dry completely
before returning the probe to service. Never immerse the probe in any liquid.
Probe Compensation
Proper compensation of the probe is required to assure good amplitude accuracy in
the dynamic portions of the waveform being measured. LF compensation matches
the probe to differences in oscilloscope input capacitance. The LF compensation
should always be checked and adjusted as needed when first connecting a passive
probe to the oscilloscope input. HF compensation matches time constants within
the probe to compensate for normal component tolerances. It is typically not
necessary to adjust HF compensation unless the probe is being used with an
oscilloscope with large differences in input characteristics than the oscilloscope
model it was designed for.
LF compensation is performed by connecting the input of the probe to a low
frequency square wave, such as the oscilloscope calibrator signal set to 1 kHz. The
compensation is adjusted by rotating the adjustment accessible through the small
hole in the center of the housing near the BNC connector. Use the tool supplied
with the probe for this adjustment.
9 / 13
9 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
Operator’s Manual
922209-00 Rev A 7

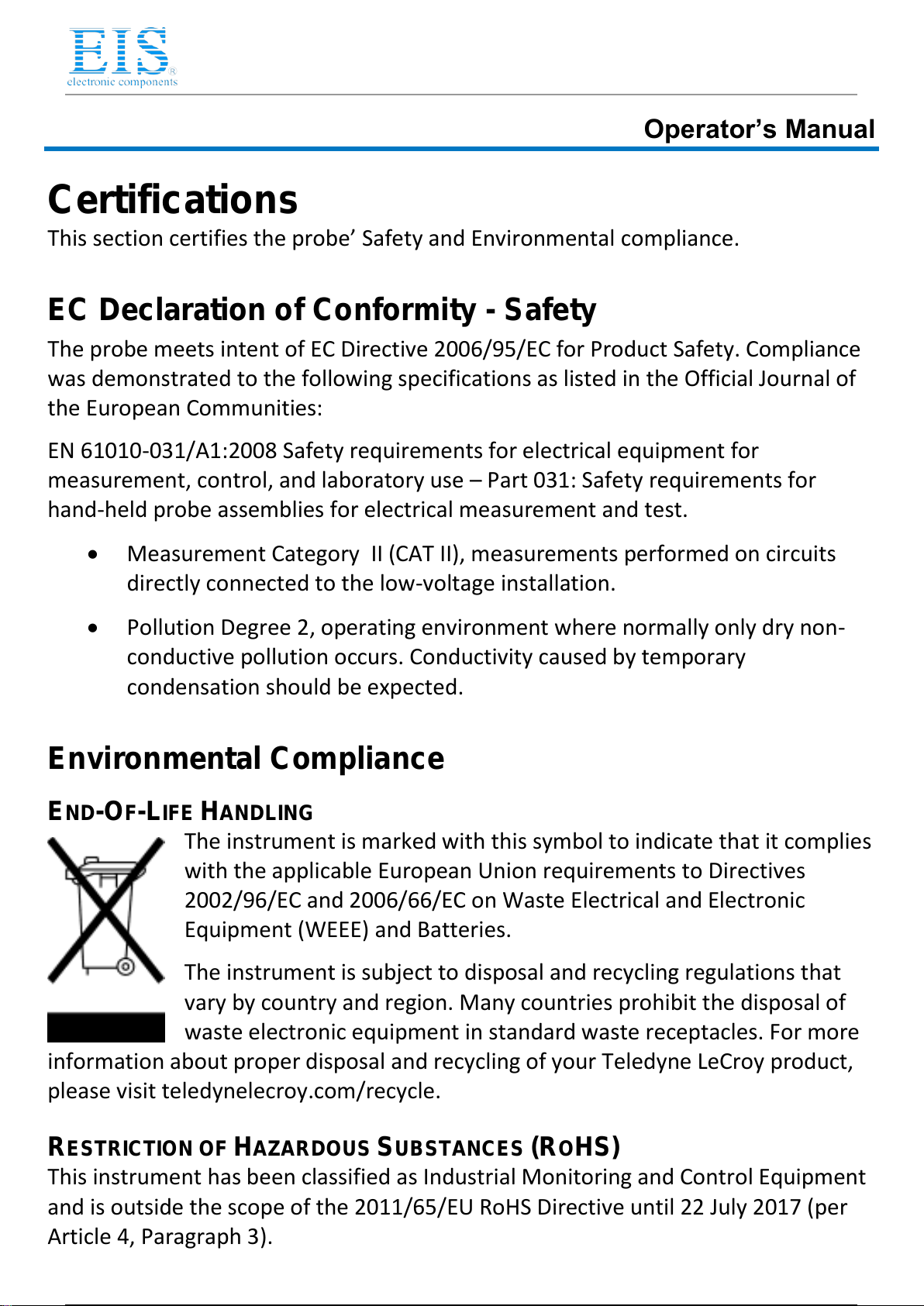

Certifications
This section certifies the probe’ Safety and Environmental compliance.
EC Declaration of Conformity - Safety
The probe meets intent of EC Directive 2006/95/EC for Product Safety. Compliance
was demonstrated to the following specifications as listed in the Official Journal of
the European Communities:
EN 61010-031/A1:2008 Safety requirements for electrical equipment for
measurement, control, and laboratory use –Part 031: Safety requirements for
hand-held probe assemblies for electrical measurement and test.
Measurement Category II (CAT II), measurements performed on circuits
directly connected to the low-voltage installation.
Pollution Degree 2, operating environment where normally only dry non-
conductive pollution occurs. Conductivity caused by temporary
condensation should be expected.
Environmental Compliance
END-OF-LIFE HANDLING
The instrument is marked with this symbol to indicate that it complies
with the applicable European Union requirements to Directives
2002/96/EC and 2006/66/EC on Waste Electrical and Electronic
Equipment (WEEE) and Batteries.
The instrument is subject to disposal and recycling regulations that
vary by country and region. Many countries prohibit the disposal of
waste electronic equipment in standard waste receptacles. For more
information about proper disposal and recycling of your Teledyne LeCroy product,
please visit teledynelecroy.com/recycle.
RESTRICTION OF HAZARDOUS SUBSTANCES (ROHS)
This instrument has been classified as Industrial Monitoring and Control Equipment
and is outside the scope of the 2011/65/EU RoHS Directive until 22 July 2017 (per
Article 4, Paragraph 3).
10 / 13
10 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
PP016 Passive Probe
8 922209-00 Rev A
Contact Teledyne LeCroy
Teledyne LeCroy Service Centers
United States and Canada -
World Wide Corporate Office
Teledyne LeCroy Corporation
700 Chestnut Ridge Road
Chestnut Ridge, NY, 10977-6499, USA
Ph: 800-553-2769 / 845-425-2000
FAX: [phone]
teledynelecroy.com
Support:
[e-mail]
Sales:
[e-mail]
United States - Protocol Solutions Group
Teledyne LeCroy Corporation
3385 Scott Boulevard
Santa Clara, CA, 95054, USA
FAX: [phone]
teledynelecroy.com
Sales and Service:
Ph: 800-909-7211 / 408-727-6600
[e-mail]
Support:
Ph: 800-909-7112 / 408-653-1260
[e-mail]
European Headquarters
Teledyne LeCroy SA
4, Rue Moïse Marcinhes
Case postale 341
1217 Meyrin 1
Geneva, Switzerland
Ph: + 41 22 719 2228 / 2323 /2277
FAX:[phone]
[e-mail]
[e-mail]
teledynelecroy.com/europe
Protocol Analyzers:
Ph: [phone]
Singapore, Oscillosocpes
Teledyne LeCroy Singapore Pte Ltd.
Blk 750C Chai Chee Road #02-08
Technopark @ Chai Chee
Singapore 469003
Ph: ++ 65 64424880
FAX: ++ 65 64427811
Singapore, Protocol Analyzers
Genetron Singapore Pte Ltd.
37 Kallang Pudding Road, #08-08
Tong Lee Building Block B
Singapore 349315
Ph: ++ 65 9760-4682
China
Teledyne LeCroy Corporation Beijing
Rm. 2001 - Office; Rm. 2002 - Service Center
Unit A, Horizon Plaza
No. 6, Zhichun Road, Haidian District
Beijing 100088, China
Ph: ++86 10 8280 0318 / 0319 / 0320
FAX:++86 10 8280 0316
Service:
Rm. 2002
Ph: ++86 10 8280 0245
Korea
Teledyne LeCroy Korea
10th fl.Ildong Bldg.
968-5 Daechi-dong, Gangnam-gu
Seoul 135-280, Korea
Ph: ++ 82 2 3452 0400
FAX: ++ 82 2 3452 0490
Taiwan
LeColn Technology Co Ltd.
Far East Century Park, C3, 9F
No. 2, Chien-8th Road,
Chung-Ho Dist., New Taipei City, Taiwan
Ph: ++ 886 2 8226 1366
FAX: ++ 886 2 8226 1368
Japan
Teledyne LeCroy Japan
Hobunsya Funchu Bldg, 3F
3-11-5, Midori-cho, Fuchu-Shi
Tokyo 183-0006, Japan
Ph: ++ 81 4 2402 9400
FAX: ++ 81 4 2402 9586
teledynelecroy.com/japan
11 / 13
11 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
12 / 13
12 / 13

Distributor of Teledyne LeCroy: Excellent Integrated System Limited
Datasheet of PP016 - PASS PROBE 10:1 300MHZ-WAVEACE
Contact us: [email protected] Website: www.integrated-circuit.com
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org) 13 / 13
13 / 13
