Teledyne Linea CL LA-CM-08K08A User manual

Linea™CL
Camera User’s Manual
2k, 4k, 8k and 16k Monochrome CMOS Line Scan
sensors | cameras | frame grabbers | processors | software | vision solutions
P/N: 03-032-20206-04
www.teledynedalsa.com

Notice
© 2015 –2020 Teledyne Digital Imaging, Inc.
All information provided in this manual is believed to be accurate and reliable. No
responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right
to make changes to this information without notice. Reproduction of this manual in whole or
in part, by any means, is prohibited without prior permission having been obtained from
Teledyne DALSA.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States and other countries. Windows, Windows 7, Windows 8 and Windows 10 are
trademarks of Microsoft Corporation.
All other trademarks or intellectual property mentioned herein belong to their respective
owners.
Document Date: August 10, 2020
Document Number: 03-032-20206-04
Contact Teledyne DALSA
Teledyne DALSA is headquartered in Waterloo, Ontario, Canada. We have sales offices in
the USA, Europe and Asia, plus a worldwide network of representatives and agents to serve
you efficiently. Contact information for sales and support inquiries, plus links to maps and
directions to our offices, can be found here:
Sales Offices: http://www.teledynedalsa.com/en/contact/office-locations/
Technical Support: http://www.teledynedalsa.com/en/support/options/
About Teledyne DALSA
Teledyne DALSA, a business unit of Teledyne Digital Imaging Inc., is an international high
performance semiconductor and electronics company that designs, develops, manufactures,
and markets digital imaging products and solutions, in addition to providing wafer foundry
services.
Teledyne DALSA Digital Imaging offers the widest range of machine vision components in
the world. From industry-leading image sensors through powerful and sophisticated
cameras, frame grabbers, vision processors and software to easy-to-use vision appliances
and custom vision modules.

Linea CL Series Camera Contents 1
Contents
LINEA™ CL SERIES OVERVIEW ......................................................................4
DESCRIPTION ................................................................................................4
CAMERA HIGHLIGHTS .......................................................................................5
Key Features .........................................................................................5
Programmability.....................................................................................5
Applications...........................................................................................5
PART NUMBERS AND SOFTWARE REQUIREMENTS .......................................................6
CAMERA SPECIFICATIONS OVERVIEW .....................................................................7
Compliance, EMI Certifications .................................................................8
SUPPORTED INDUSTRY STANDARDS.......................................................................9
GenICam™............................................................................................9
ASCII COMMANDS ..........................................................................................9
RESPONSIVITY ............................................................................................. 10
Effective Quantum Efficiency.................................................................. 11
LINEA CL CAMERA SETUP ............................................................................12
SYSTEM PRECAUTIONS AND CLEANING ................................................................. 12
Precautions ......................................................................................... 12
Cleaning the Device.............................................................................. 12
Electrostatic Discharge and the CMOS Sensor .......................................... 12
RECOMMENDED SYSTEM REQUIREMENTS ............................................................... 12
SETUP STEPS:OVERVIEW ................................................................................ 13
Step 1: Install and Configure Frame Grabber and Software ....................... 13
Step 2: Connect Camera Link and Power Cables....................................... 13
Step 3: Establish Communication with the Camera ................................... 16
USING CAMEXPERT WITH LINEA CL CAMERAS ............................................18
CamExpert Panes ................................................................................. 18
Creating a Camera Configuration File in the Host...................................... 20
CAMERA OPERATION...................................................................................21
FACTORY SETTINGS ....................................................................................... 21
TYPICAL SETUP AND EVALUATION ....................................................................... 22
Optical Configuration ............................................................................ 22
Camera Timing & Control ...................................................................... 22
Acquiring an Image .............................................................................. 22
CHECK CAMERA AND SENSOR INFORMATION .......................................................... 23
Verify Temperature and Voltage ............................................................. 23
SET BAUD RATE ........................................................................................... 24
CAMERA LINK CONFIGURATION .......................................................................... 25
Pixel Format ........................................................................................ 26
INTERNAL TEST IMAGE GENERATOR..................................................................... 26
CALIBRATING THE CAMERA ............................................................................... 28
Flat Field Parameters ............................................................................ 30
GAIN AND BLACK LEVEL (OFFSET)...................................................................... 32
TRIGGER MODES .......................................................................................... 34
EXPOSURE CONTROLS..................................................................................... 35

2Contents Linea CL Series Camera
BINNING .................................................................................................... 38
PIXEL READOUT DIRECTION (MIRRORING MODE) .................................................... 40
AREA OF INTEREST (AOI) SETUP ....................................................................... 41
SAVING AND RESTORING CAMERA SETTINGS.......................................................... 44
Camera Configuration Selection Dialog.................................................... 44
CAMERA FIRMWARE UPDATES............................................................................ 46
DOWNLOAD A LIST OF CAMERA PARAMETERS.......................................................... 46
FILE ACCESS VIA THE CAMEXPERT TOOL ............................................................... 47
RESETTING THE CAMERA ................................................................................. 48
TECHNICAL SPECIFICATIONS......................................................................49
MECHANICAL SPECIFICATIONS........................................................................... 49
2k and 4k Cameras .............................................................................. 49
8k and 16k Cameras............................................................................. 50
ADDITIONAL NOTES ON LINEA CL IDENTIFICATION AND MECHANICAL............................. 51
EMC DECLARATIONS OF CONFORMITY.................................................................. 52
FCC Statement of Conformance ............................................................. 52
CE Declaration of Conformity ................................................................. 52
ADDITIONAL REFERENCE INFORMATION ....................................................53
OPTICAL CONSIDERATIONS .............................................................................. 53
Illumination ......................................................................................... 53
Light Sources....................................................................................... 53
Lens Modeling...................................................................................... 54
Magnification and Resolution ................................................................. 54
SENSOR HANDLING INSTRUCTIONS ..................................................................... 55
Electrostatic Discharge and the Sensor ................................................... 55
Protecting Against Dust, Oil and Scratches .............................................. 55
Cleaning the Sensor Window ................................................................. 56
APPENDIX A: GENICAM COMMANDS............................................................57
CAMERA INFORMATION CATEGORY ...................................................................... 57
Camera Information Feature Descriptions................................................ 57
CAMERA CONTROL CATEGORY ........................................................................... 59
Camera Control Feature Descriptions ...................................................... 59
I/O CONTROLS CATEGORY ............................................................................... 60
I/O Control Feature Descriptions ............................................................ 60
FLAT FIELD CATEGORY.................................................................................... 61
Flat Field Feature Descriptions ............................................................... 61
IMAGE FORMAT CONTROL CATEGORY ................................................................... 62
Image Format Control Feature Description .............................................. 62
TRANSPORT LAYER CATEGORY ........................................................................... 64
Transport Layer Descriptions ................................................................. 64
DEVICE STREAMING REGISTERS......................................................................... 65
Start –End Command Requirements ...................................................... 65
FILE ACCESS CONTROL CATEGORY...................................................................... 65
File Access Control Feature Descriptions.................................................. 65
APPENDIX B: ASCII COMMANDS .................................................................67
ACCESSING THE THREE LETTER COMMANDS (TLC) .................................................. 67
Port Configuration ................................................................................ 67
Notes on Using Alternatives to HyperTerminal.......................................... 68
ASCII TO GENCP ......................................................................................... 68

Linea CL Series Camera Contents 3
Disabling the Esc Key for Direct Access to ASCII Commands...................... 68
COMMAND REFERENCE .................................................................................... 69
APPENDIX C: ERROR AND WARNING MESSAGES .........................................81
BIST: BUILT IN SELF TEST .............................................................................. 81
OPERATIONAL ERROR CODES ............................................................................ 82
APPENDIX D: CAMERA, FRAME GRABBER COMMUNICATION .......................83
Setting Up Communication between the Camera and the Frame
Grabber ......................................................................................... 83
APPENDIX E: CAMERA LINK CONNECTOR INFORMATION ............................85
DATA CONNECTOR:CAMERA LINK ...................................................................... 85
Full Configuration ................................................................................. 86
Camera Link Bit Definitions.................................................................... 88
Camera Control Configuration ................................................................ 89
CAMERA LINK DRIVE CAPABILITY ....................................................................... 89
Input Signals, Camera Link.................................................................... 89
Output Signals, Camera Link Clocking Signals.......................................... 90
DOCUMENT REVISION HISTORY..................................................................91
CONTACT INFORMATION.............................................................................92
SALES INFORMATION...................................................................................... 92
TECHNICAL SUPPORT...................................................................................... 92

4Linea™ CL Series Overview Linea CL Series Camera
Linea™CL Series Overview
Description
Teledyne DALSA introduces a new CMOS camera family with the 2k, 4k, 8k, and 16k resolution
Linea monochrome cameras. These new camera models use Teledyne DALSA's single line, 7.04
µm x 7.04 µm (2k, 4k, 8k) or 3.52 µm x 3.52 µm (16k) pixel array, delivering both speed and
responsivity at a competitive price.
The Linea CL lines can is a new affordable single line, camera delivering both speed and
responsivity at a competitive price. This small, low power camera is designed for applications such
as materials grading and inspection, transportation safety, automated optical inspection and
general purpose machine vision.
The Linea CL camera is one of a new series of affordable easy to use digital cameras specifically
engineered for industrial imaging applications requiring embedded image processing and improved
network integration. Linea CL provides features to cycle a user defined sequence of imaging
setups, features providing line & frame triggers, image transfer-on-demand, all part of a
comprehensive camera package.
Linea uses industry standard CameraLink protocol to dependably capture and transfer images from
the camera to the host PC.

Linea CL Series Camera Linea™ CL Series Overview 5
Camera Highlights
Teledyne DALSA introduces a new CMOS camera family with the 2k, 4k, 8k, and 16k resolution
Linea monochrome cameras. These new camera models use Teledyne DALSA's single line, 7.04
µm x 7.04 µm (2k, 4k, 8k) or 3.52 µm x 3.52 µm (16k) pixel array, delivering both speed and
responsivity at a competitive price.
These small, affordable, low power cameras are designed for applications such as materials grading
and inspection, transportation safety, automated optical inspection and general purpose machine
vision.
Key Features
•High speed: up to 80 kHz (2k, 4k, 8k) and 48 kHz (16k)
•2048, 4096, 8192, and 16,384 pixel resolutions
•Compact camera body
Programmability
•Multiple regions of interest for calibration and data reduction
•8-bit or 12-bit output
•Small flat field and lens shading correction
•8 programmable coefficient sets
•GenICam or ASCII compliant interfacing
Applications
•Automated optical inspection
•Security systems
•High performance sorting systems
•Materials grading and inspection systems
•Web inspection
•General purpose machine vision

6Linea™ CL Series Overview Linea CL Series Camera
Part Numbers and Software Requirements
This manual covers the Linea CL models summarized below. New models area added to this
manual as they are released by Teledyne DALSA.
Camera
Resolution
Pixel size
Max. Line Rate
Lens Mount
(threaded)
Product Number
Linea 2k CL
2048 x 1
7.04 x 7.04 µm
80 kHz
M42 x 1
LA-CM-02K08A-xx-R
Linea 4k CL
4096 x 1
7.04 x 7.04 µm
80 kHz
M42 x 1
LA-CM-04K08A-xx-R
Linea 8k CL
8192 x 1
7.04 x 7.04 µm
80 kHz
M72 x 1
LA-CM-08K08A-xx-R
Linea 16k CL
16384 x 1
3.52 µm x 3.52 µm
48 kHz
M72 x 1
LA-CM-16K05A-xx-R
Camera
Accessories
Order Number
2k and 4k
M42 x 1 to F-mount adapter for 12mm BFD lens, heavy duty with clip
AC-LA-00115-xx-R
2k and 4k
M42 x 1 to C-mount adapter for 12 mm BFD lens
AC-LC-00001-xx-R
8k and 16k
M72 x 0.75 F, F-mount adapter 12 mm BFD lens, heavy duty
AC-LN-00001-xx-R
8k and 16k
Linea Heatsink
AC-MS-00115-xx-R
For a list of accessories go to http://www.teledynedalsa.com/imaging/products/cameras/accessories/
Optical filters are available from http://www.midwestopticalsystems.com/
Teledyne DALSA Software Platform
Sapera LT version 7.50 or higher
includes CamExpert GUI application
Available for free download:
http://www.teledynedalsa.com/imaging/pr
oducts/software/sapera/lt/
Sapera provides everything needed to develop imaging applications.
Camera Firmware
Embedded within camera
GenICam™ support (XML camera description file)
Embedded within camera
Sapera Processing Imaging Development Library
(available for Windows or Linux - sold separately):
Contact Teledyne DALSA Sales
Third Party GenICam GenCP Software Requirements
Support of GenICam GenApi version 2.3
General acquisition and control. File access: firmware,
FFC, configuration data, upload & download.
Support of GenICam XML schema version 1.1
GenICam™ support — XML camera description file
Embedded within Linea CL

Linea CL Series Camera Linea™ CL Series Overview 7
Camera Specifications Overview
Specifications
Performance
Imager Format
High speed CMOS line scan
Resolution
2048, 4096, 8192, and 16,384 pixels
Pixel Size
7.04 µm x 7.04 µm (2k, 4k, 8k) and 3.52 µm x 3.52 µm (16k)
Pixel Fill Factor
100 %
Line Rate
Up to 80 kHz (2k, 4k, 8k) and up to 48 kHz (16k)
Exposure Time
4 µs to 3 ms
Bit Depth
8-bit or 12-bit, selectable
Connectors and Mechanicals
Control & Data Interface
Base, Medium, Full, and Deca (8k/16k) Camera Link configurations (2 x SDR-26)
Power Connector
Hirose 6-pin male circular
Power Supply
+ 5 V to + 24 V DC (+4.8 V to +25.2 V maximum limits), 2k and 4k
+12 V to + 24 V DC (+11.4 V to +25.2 V maximum limits), 8k and 16k
Power Dissipation
< 4.5 W (2k and 4k), < 8 W (8k), < 11 W (16k)
Size
62.0 mm (W) x 62.0 mm (H) x 30.9 mm (D) (2k and 4k)
76.0 mm (W) x 76.0 mm (H) x 36.7 mm (D) (8k and 16k)
Mass
< 190 g (2k and 4k), < 360 g (8k and 16k)
Operating Temp
0 °C to 65 °C, front plate temperature
Optical Interface
Sensor to Camera Front Distance
12 mm
Sensor Alignment (aligned to sides of camera)
y (parallelism)
x
y
z
z
0.08° or 100 µm
± 300 µm
± 300 µm
± 300 µm
± 0.3°
Compliance
Regulatory Compliance
CE, FCC, and RoHS; GenICam
Operating Ranges
Performance
Notes
2k
4k
8k
16k
Dynamic Range
dB
> 60
> 60
> 60
> 60
Random Noise
DN* rms
< 3.75
< 3.75
< 3.75
< 3.06
FFC enabled
Broadband Responsivity
DN / (nJ / cm2)
320
320
320
80
Gain Nominal range
1x to 10x
1x to 10x
1x to 10x
1x to 10x
DC Offset
DN
7
7
7
7
FFC enabled
PRNU
@ 50% Sat
< 1.5%
< 1.5%
< 1.5%
< 1.5%
FPN
DN
< 7
< 7
< 7
< 5
SEE
nJ / cm2
12.5
12.5
12.5
50
NEE
pJ / cm2
11.7
11.7
11.7
38.1

8Linea™ CL Series Overview Linea CL Series Camera
Operating Ranges
Performance
Notes
2k
4k
8k
16k
Antiblooming
(x Saturation)
> 100
> 100
> 100
> 100
Integral non-linearity
DN
1.5 %
1.5 %
1.5 %
1.5 %
*DN = digital number
Test Conditions:
Values measured using 12-bit @ 1x gain.
10 kHz line rate.
Light source: broadband, quartz halogen, 3250 K with 700 nm IR cut-off filter.
Front plate temperature: 45º C.
Compliance, EMI Certifications
For compliance and EMI certifications refer to the product page on the Teledyne DALSA website.
For more information on FCC and CE compliance refer to the EMC Declarations of Conformity
section.

Linea CL Series Camera Linea™ CL Series Overview 9
Supported Industry Standards
GenICam™
Linea cameras are GenICam™ compliant. They implement a superset of the GenICam™ Standard
Features Naming Convention specification V1.5.
This description takes the form of an XML device description file respecting the syntax defined by
the GenApi module of the GenICam™ specification. The camera uses the GenICam™ Generic
Control Protocol (GenCP V1.0) to communicate over the Camera Link serial port.
For more information see www.genicam.org.
Teledyne DALSA recommends using Sapera CamExpert as your Camera Link compliant camera
interface application. CamExpert is the camera interfacing tool supported by the Sapera library and
comes bundled with SaperaLT. Using CamExpert is the simplest and quickest way to send
commands to and receive information from the camera.
Sapera uses the GenICam™ Generic Control Protocol (GenCP V1.0) to communicate with the
camera over the Camera Link serial port. When communications are first established, Sapera
downloads the GenICam™ XML Description file. This file details how to access and control the
camera.
ASCII Commands
As an alternative to the CamExpert (or equivalent) GUI, you can communicate with this camera
using ASCII-based commands. Using a terminal emulating program, establish a serial port
connection with the camera.
In the ASCII interface press the ESC key; the communication mode will be switched into the ASCII
command mode other than the GenICam mode.
A complete list of the commands and a description of how to access them can be found in Appendix
B: ASCII Commands.

10 Linea™ CL Series Overview Linea CL Series Camera
Responsivity

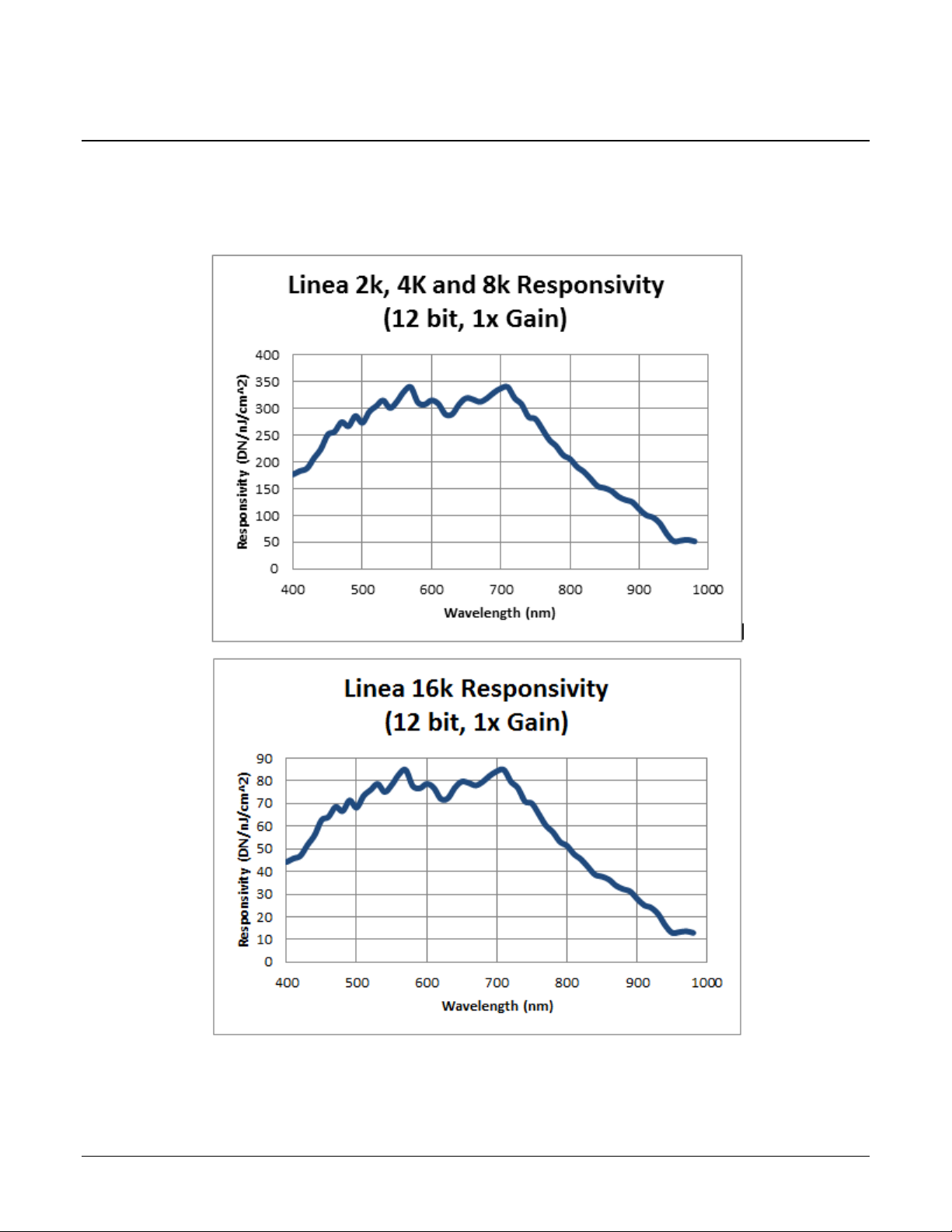

The responsivity graph describes the sensor response to different wavelengths of light (excluding
lens and light source characteristics).

Linea CL Series Camera Linea™ CL Series Overview 11
Effective Quantum Efficiency

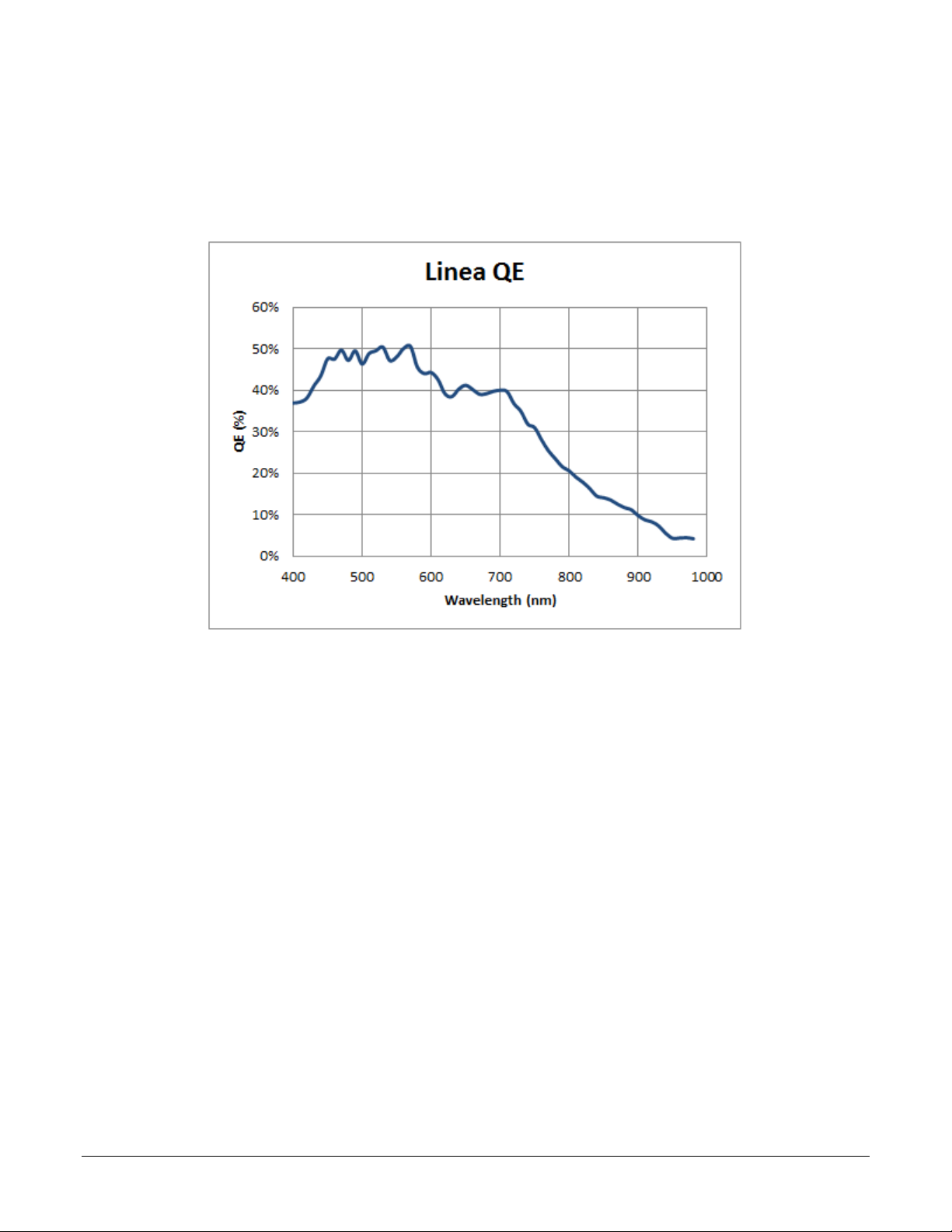

The quantum efficiency graph describes the fraction of photons at each wavelength that contribute
charge to the pixel.

12 Linea CL Camera Setup Linea CL Series Camera
Linea CL Camera Setup
System Precautions and Cleaning
Precautions
Read these precautions and this manual before using the camera.
Do not open the housing of the camera. The warranty is voided if the housing is
opened.
Confirm that the camera’s packaging is undamaged before opening it. If the packaging is
damaged please contact the related logistics personnel.
Keep the camera’s front plate temperature in a range of 0 °C to 65 °C during operation.
Do not operate the camera in the vicinity of strong electromagnetic fields. In addition, avoid
electrostatic charging, violent vibration, and excess moisture.
Though this camera supports hot plugging, it is recommended that you power down and
disconnect power to the camera before you add or replace system components.
Cleaning the Device
To clean the device, avoid electrostatic charging by using a dry, clean absorbent cotton cloth
dampened with a small quantity of pure alcohol. Do not use methylated alcohol.
To clean the surface of the camera housing, use a soft, dry cloth. To remove severe stains use a
soft cloth dampened with a small quantity of neutral detergent and then wipe dry. Do not use
volatile solvents such as benzene and thinners, as they can damage the surface finish.
Electrostatic Discharge and the CMOS Sensor
Image sensors and the camera bodies housing are susceptible to damage from electrostatic
discharge (ESD). Electrostatic charge introduced to the sensor window surface can induce charge
buildup on the underside of the window. If this occurs, the charge normally dissipates within 24
hours and the sensor returns to normal operation.
Recommended System Requirements
To achieve best system performance, the following minimum requirements are recommended:
High bandwidth frame grabber. For example, Teledyne DALSA Xtium-CL series frame
grabbers: http://www.teledynedalsa.com/imaging/products/fg/#digital-cameralink.
Operating systems: Refer to frame grabber documentation for supported platforms.

Linea CL Series Camera Linea CL Camera Setup 13
Setup Steps: Overview
Take the following steps in order to setup and run your camera system. They are described briefly
below and in more detail in the sections that follow.
1. Install and Configure Frame Grabber and Software
2. Connect Camera Link and Power Cables
3. Establish communication with the camera
Step 1: Install and Configure Frame Grabber and Software
Teledyne DALSA recommends its Xtium-CL series frame grabbers or equivalent. Follow the
manufacturer’s installation instructions.
For additional information on configuring frame grabbers, see Appendix D: Camera, Frame Grabber
Communication.
Note: By default, Camera Link mode is set to the standard 8-bit full mode which
allows operation of up to 80 kHz (2k, 4k, 8k) or 48 kHz (16k) line rate. Set your
Camera Link frame grabber up to receive the standard 8-bit full mode.
A GenICam™ compliant XML device description file is embedded within the camera firmware
allowing GenICam™ compliant application to know the camera’s capabilities immediately after
connection.
Installing Sapera LT gives you access to the CamExpert GUI, a GenICam™ compliant application.
Sapera LT is available free of charge for download from the Teledyne Dalsa website.
Step 2: Connect Camera Link and Power Cables
The camera uses Camera Link SDR26 cables for transmitting the Camera Link Base, Medium, Full
or Deca configuration.
Connect the required Camera Link cable(s) from the camera to the frame grabber installed
on the computer.
Connect a power cable from the camera to a power supply that can provide a constant
voltage from +5 VDC to +24 VDC (2k and 4k) or +12 VDC to +24VDC (8k and 16k).
WARNING! Grounding Instructions
Static electricity can damage electronic components. It’s critical that you discharge
any static electrical charge by touching a grounded surface, such as the metal
computer chassis, before handling the camera hardware.
Note: the use of cables types and lengths other than those specified may result in
increased emission or decreased immunity and performance of the camera.
For more information on Camera Link connector specifications, see Appendix E: Camera Link
Connector Information.

14 Linea CL Camera Setup Linea CL Series Camera

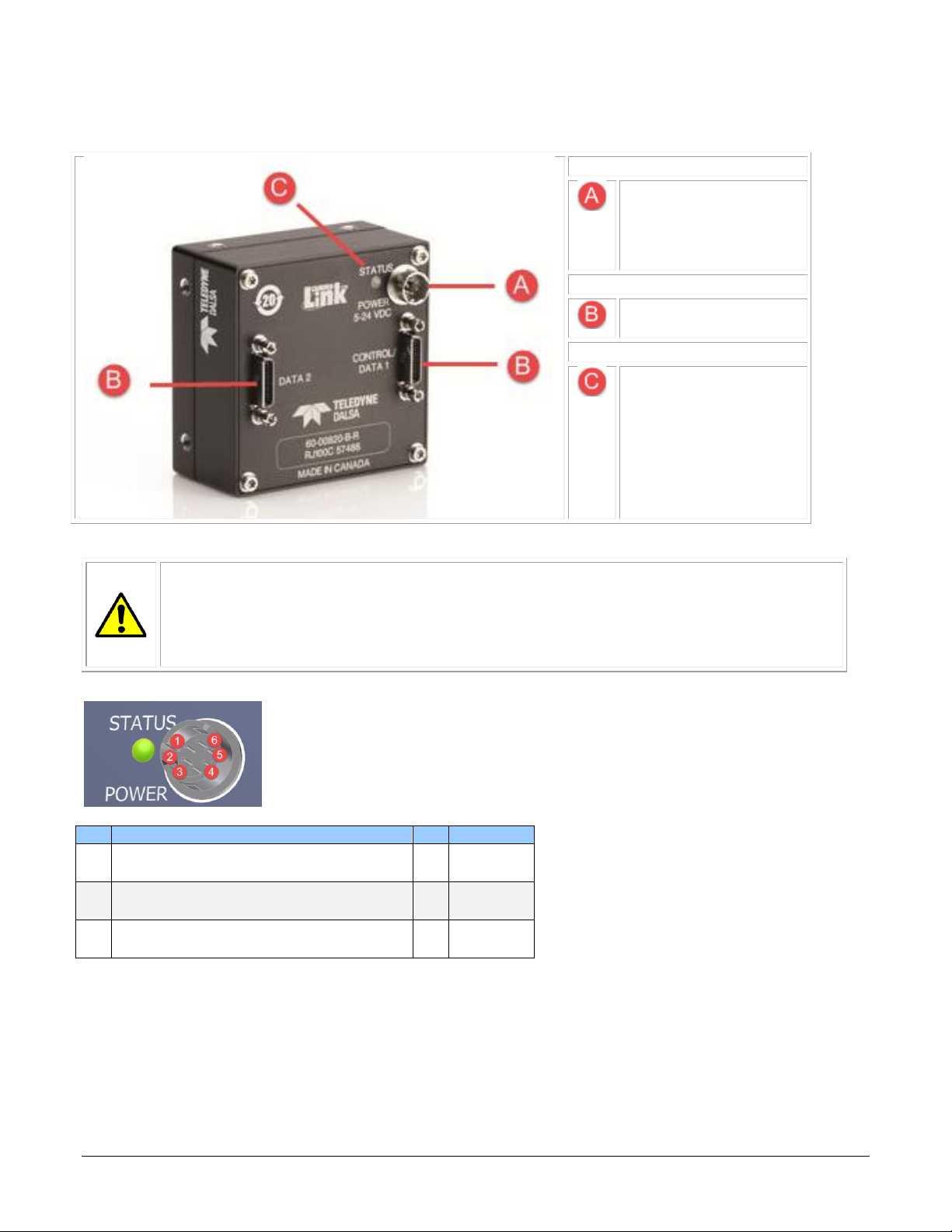

The following figure of the Linea CL back end shows connector and LED locations. See the
Mechanical Specifications section for details on the connectors and camera mounting dimensions.
Power
Hirose 6-pin
+5V to +24V DC
(2k and 4k)
+12V to +24V DC
(8k and 16k)
Control & Data
Camera Link 26-pin
SDR26 connectors
Status
Diagnostic LED
Power Connector
WARNING! Grounding Instructions
It is extremely important that you apply the appropriate voltages to your camera.
Incorrect voltages may damage the camera. Input voltage requirements: +5 VDC to
+24 VDC (2k and 4k models), 1 Amp. +12 VDC to +24 VDC (8k and 16k models), 2
Amp. Before connecting power to the camera, test all power supplies.
Hirose 6-pin Circular Male (Mating Part: HIROSE HR10A-7P-6S)
Pin
Description
Pin
Description
1
+5 V to +24 V DC (2k and 4k)
+12 V to +24 V DC (8k and 16k)
4
GND
2
+5 V to +24 V DC (2k and 4k)
+12 V to +24 V DC (8k and 16k)
5
GND
3
+5 V to +24 V DC (2k and 4k)
+12 V to +24 V DC (8k and 16k)
6
GND

Linea CL Series Camera Linea CL Camera Setup 15
The camera meets all performance specifications using standard switching power supplies,
although well-regulated linear supplies provide optimum performance.
WARNING: When setting up the camera’s power supplies follow these guidelines:
Apply the appropriate voltages.
Protect the camera with a 1 or 2 amp slow-blow fuse between the power
supply and the camera.
Do not use the shield on a multi-conductor cable for ground.
Keep leads as short as possible in order to reduce voltage drop.
Use high-quality supplies in order to minimize noise.
Note: If your power supply does not meet these requirements, then the camera
performance specifications are not guaranteed.
Power over Camera Link
The Linea 2k and 4k Camera Link cameras are Power over Camera Link (PoCL) compatible*, but
are not compliant with the full PoCL specification as their operation is dependent on the frame
grabber used. These cameras exceed the 4 W PoCL power specification, but some frame grabbers,
such as the Xtium frame grabber from Teledyne Dalsa, are able to supply sufficient power for the
camera’s operation.
PoCL can be enabled from within CamExpert. Be sure to connect the power supply to the Xtium
frame gabber in the PC.
PoCL power can only be supplied through the Data 1 (base) camera link port.
* The 8k and 16k models do not support PoCL.
Camera Status LED
The Linea CL has one multicolor LED to provide a simple visible indication of camera state. The
table below summarizes the operating states of the camera and the corresponding LED states.
When more than one condition is active, the LED indicates the condition with the highest priority.
LED State
Definition
LED is off
No power or hardware malfunction
Blinking Green
Powering up or calibrating
Green
Ready
Red
Error. Check the built-in self test (BiST) register for the specific error

16 Linea CL Camera Setup Linea CL Series Camera
Step 3: Establish Communication with the Camera
The camera is designed to power up with a GenICam-compliant interface. CamExpert
provides an easy-to-use GUI that can be used to set up and operate the camera.
The camera also comes with Teledyne DALSA’s three letter command (TLC) interface
option, which can be accessed using a suitable terminal program such as
HyperTerminal™. If you want to use the TLC interface, refer to Appendix B: ASCII
Commands.
To establish communication with the camera:
1. Power on the camera
2. Connect to the frame grabber
3. Connect to the camera
Power on the camera
Turn on the camera’s power supply. You may have to wait while the camera readies itself for
operation. The camera must boot fully before it will be recognized by the camera interface
application (for example, CamExpert) —the LED displays steady green once the camera is ready.
Connect to the frame grabber
1. Start Sapera CamExpert (or equivalent Camera Link compliant application) by double
clicking the desktop icon created during the software installation.
2. CamExpert will search for installed Sapera devices. In the Devices list area on the left side,
the connected frame grabber will be shown.
3. Select the frame grabber device by clicking on the name.
Note: The first time you set up the camera you will need to establish a
communication link between the camera and frame grabber.

Linea CL Series Camera Linea CL Camera Setup 17
Connect to the camera
1. Start a new Sapera CamExpert application (or equivalent Camera Link compliant interface)
by double clicking the desktop icon created during the software installation.
2. In CamExpert, for Teledyne DALSA frame grabbers, the camera appears below the Board
category.
Check LED Status
If the camera is operating correctly at this point, the diagnostic LED is steady green. If the LED is
red, check the Power-on Status field and refer to Appendix C: Error and Warning Messages.
Software Interface
All the camera features can be controlled through the CamExpert interface. For example, under the
Camera Control menu in the camera window you can control the line rate and exposure times.
Operate the Camera
At this point you will be ready to start operating the camera to acquire images, set camera
functions, and save settings.

18 Using CamExpert with Linea CL Cameras Linea CL Series Camera
Using CamExpert with Linea CL
Cameras
The Sapera CamExpert tool is the interfacing tool for GenCP compliant Camera Link cameras, and
is supported by the Sapera library and hardware. When used with a Linea CL camera, CamExpert
allows a user to test most of the operating modes. Additionally CamExpert saves the Linea CL user
settings configuration to the camera or saves multiple configurations as individual camera
parameter files on the host system (*.ccf).
An important component of CamExpert is its live acquisition display window which allows
immediate verification of timing or control parameters without the need to run a separate
acquisition program.
Click on any parameter and a short description is displayed below the Category pane. The same
context sensitive help is available by clicking on the button then click on a camera
configuration parameter. Click on the button to open the help file for more descriptive
information on CamExpert.
Note: The examples shown may not entirely reflect the features and parameters available from
the camera model and camera mode used in your application.
CamExpert Panes
The various areas of the CamExpert tool are described in the figure below. Device Categories and
Parameter features are displayed as per the device’s XML description file. The number of
parameters shown is dependent on the View mode selected (Beginner, Expert, Guru –see
description below).
