TellCard Systems EGT/E6291(2) KB/KU1(2) Owner's manual

1
EGT/E6291(2) KB/KU1(2) Programming Manual
88301 Rev 3
Firmware Rev 1.0.2
Table of Contents:
Features..............................................................................................................Page 2
Quick Start Guide................................................................................................Page 3
Configuration Overview..................................................................................…..Page 4
Manage Users.....................................................................................................Page 5
Configure Lock Functions....................................................................................Page 7
Configure Settings...............................................................................................Page 9
Reset Options......................................................................................................Page 11
Troubleshooting...................................................................................................Page 12
Sample User Chart..............................................................................................Page 13
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Table of Contents

2
Lockset Features
100 users plus one master code
Change function of lock electronically
Emergency Lockdown
oRelock
oPassage
Passage Timer relocks after configurable amount of time
Power options:
oBattery operated with 4 AAAlkaline batteries, or
o12V to 24V DC power input, or
o12V to 24V AC power input
Minimum 130,000 cycles or one year per set of batteries
Low battery warning
Non-volatile memory
All programming entered through keypad
Valid code is 4-8 digits. Digits may be repeated. Codes may start with zero (0)
Entry of three invalid user codes temporarily disables all codes
Mute function: Beeper may be audible or muted
No user numbers to track; user number is access code
Duplicate codes not allowed
Backlit keypad
Factory Default Settings
Function: Relock
Sound: ON
Unlock length: 4 seconds
Anti-tamper Lockout Delay Time: 20 seconds
Power Requirements
Power may be supplied in one of three ways:
Four AA alkaline batteries, or
Hard wired to 12V to 24V DC power supply, or
Hard wired to 12V to 24V AC power supply
External power requirements:
Voltage: 12 to 24VDC or 12 to 24VAC
Current: 0.30 A/12VDC; 0.30 A/24 VDC
Features

3
Install battery pack.
1. After initial battery pack installation, LEDs above keypad will flash rapidly, indicating
lock is waiting to accept a master code.
2. Door is unlocked until a valid master code is entered.
Set Master Code Key Stroke Example
1. 1. Key in a master code with any 4-8 digits.
2. 2. Press *.
DEVICE IS NOW LOCKED AND OPERATIONAL WITH MASTER CODE.
Understanding Light and Beeper Feedback:
Success: Two short beeps and green LED
Error: Long beep and red LED
Low battery: Success beep immediately followed by long error beep
Factory reset: Lights rapidly flashing
Keypad Backlighting:
Press and hold any number key to illuminate the keys. Backlight will automatically turn off
after 5 seconds of inactivity.
Quick Start Guide
2
1
3
4
*

4

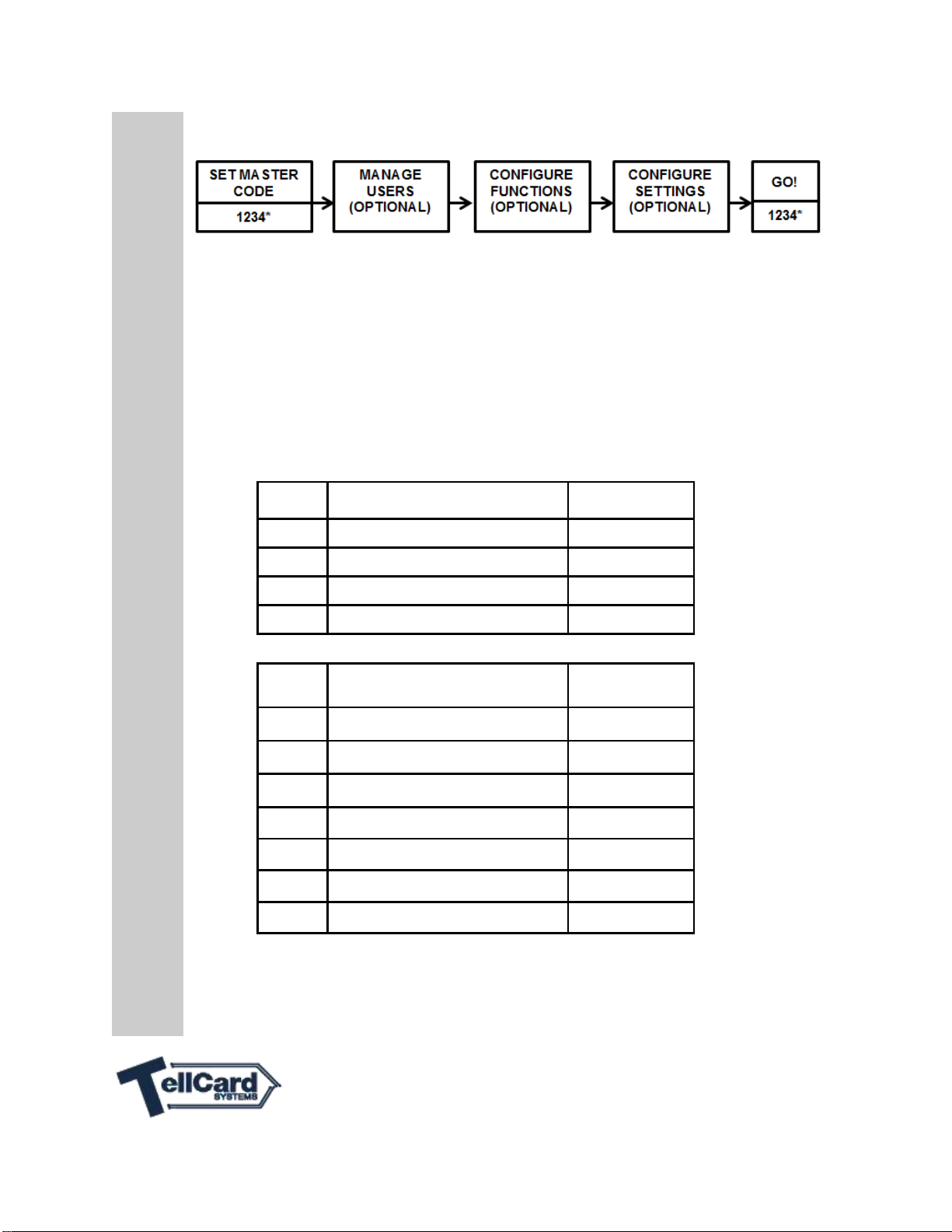

Steps to Fully Configure Lock
Setting Master Code
1. After initial battery pack installation LEDs above keypad will flash rapidly indicating lock is
waiting to accept master code. To conserve battery, LEDs will flash for two minutes.
2. Door is unlocked until a valid master code is entered.
3. Choose and enter a 4-8 digit master code. Press * to complete.
4. Device locks after master code is entered.
DEVICE IS NOW LOCKED AND OPERATIONAL WITH MASTER CODE.
Function Overview:
Mode
Lock Function
Page Number
0
Emergency Lockdown –Mode 0
Page 7
1
Relock –Mode 1
Page 7
2
Passage –Mode 2
Page 8
9
Permanent Passage –Mode 9
Page 8
Mode
Lock Setting
Page Number
3
Passage Mode Timer
Page 9
4
Unlock Delay Time
Page 9
5
Lockout Delay Time
Page 9
6
Remote Release Functionality
Page 10
7
Sound
Page 10
8
Single and Limited Use Code(s)
Page 6
Reset
Reset Options
Page 11
Configuration Overview

5
Set Master Code Key Stroke Example
3. 1. Key in a master code with any 4-8 digits.
4. 2. Press *.
Manage Codes
Valid new user codes are stored with each press of the # key, which results in a successful
entry tone. Pressing the * key exits the programming mode.
When entering a string of codes, all valid codes are immediately stored with each press of
the # key. If a code is rejected, all valid codes preceding the rejected code are stored in
memory.
Key Stroke Example
Add Single
User Code
1. Key in master code.
2. Press #.
3. Key in new code.
4. Press #.
5. Press *.
Add Multiple
User Codes
1. Key in master code.
2. Press #.
3. Key in 1st new code.
4. Press #.
5. Key in 2nd new code.
6. Press #, then *.
Delete Single
User Code
1. Key in master code.
2. Press #.
3. Key in code to delete.
4. Press *.
Delete All
User Codes
1. Key in master code.
2. Press #.
3. Press 10, then #.
4. Press 1, then *.
Delete All
Single and
Limited User
Codes (Regular
codes are
not affected.)
1. Key in master code.
2. Press #.
3. Press 10, then #.
4. Press 2, then *.
2
1
3
4
*
Manage Users
2
1
3
4
#
1
1
2
2
*
3
3
#
2
1
3
4
#
*
2
2
3
3
4
4
#
1
1
2
2
3
3
#
1
1
2
2
3
3
*
2
1
3
4
#
2
1
3
4
#
10
1
#
*
2
1
3
4
#
10
2
#
*

6
Single Use Code(s) –Function 8
Single Use Code(s) - Function 8 allows a single entry. When used, the code is immediately
erased from memory. Single use code(s) are entered one at a time. Multiple single use codes
cannot be entered in a string like the standard user codes.
Key Stroke Example
Single
Use
Code(s) –
Function 8
1. Key in
master code.
2. Press #.
3. Press 8.
4. Press #.
5. Key in
new code.
6. Press #,
then *.
Limited Use Code(s) –Function 8
Limited Use Code(s) - Function 8 allows the user to enter a code for a configurable number of
times; minimum number of entries is 1, maximum is 9.The code is erased from memory im-
mediately after the last allowed access event. Limited use code(s) are entered one at a time.
Multiple limited use code(s) cannot be entered in a string like the standard user codes.
Key Stroke Example
Limited
Use
Code(s) –
Function 8
1. Key in
master code.
2. Press #.
3. Press 8.
4. Press #.
5. Key in
new code.
6. Press #.
7. Press X (1-9
entries allowed)
8. Press, then *.
Manage Users (Cont’d)
#
8
1
1
2
2
*
3
3
#
2
1
3
4
#
#
8
1
1
2
2
3
3
#
*
X
2
1
3
4
#

7
The EGT KB/KU lock has four operational modes (functions):
Emergency Lockdown –Mode 0, Relock –Mode 1, Passage (Toggle) –Mode 2, and
Permanent Passage –Mode 9. The factory default setting is Relock –Mode 1.
Emergency Lockdown –Mode 0
In Emergency Lockdown –Mode 0, the lock temporarily disables all user codes except the
master code, and immediately locks the door. A master code or optional remote release
temporarily unlocks the door to allow entry, then relocks.
1. Enter master code, followed by #.
2. Press zero (0).
3. Press *.
Key Stroke Example
Emergency
Lockdown –
Mode 0
1. Key in master code.
2. Press #.
3. Press zero (0).
4. Press *.
Relock –Mode 1
In Relock –Mode 1, the lock will unlock for 4 seconds, then relock. This mode is used when
you want the lock to remain secure at all times. Setting the device to Relock –Mode 1
immediately secures the door.
1. Enter master code, followed by #.
2. Press 1.
3. Press *.
Key Stroke Example
Relock –
Mode 1
1. Key in master code.
2. Press #.
3. Press 1.
4. Press *.
Configure Lock Functions
2
1
3
4
0
#
*
2
1
3
4
1
#
*

8
Passage (Toggle) –Mode 2
In Passage (Toggle) –Mode 2, the lock will unlock when a valid code is entered. It remains
unlocked until another valid code is entered. Passage (Toggle) –Mode 2 is used when you
want to unlock a door and leave it unlocked for an extended period of time. Setting device to
Passage (Toggle) –Mode 2 does not immediately unlock the door.
1. Enter master code, followed by #.
2. Press 2.
3. Press *.
Key Stroke Example
Passage (Toggle)
–Mode 2
1. Key in master code.
2. Press #.
3. Press 2.
4. Press *.
Permanent Passage –Mode 9
In Permanent Passage –Mode 9, the lock immediately unlocks. It cannot be locked until you
enter another mode such as Relock –Mode 1 or Passage (Toggle) –Mode 2.
1. Enter master code, followed by #.
2. Press 9.
3. Press *.
Key Stroke Example
Permanent
Passage –
Mode 9
1. Key in master code.
2. Press #.
3. Press 9.
4. Press *.
Configure Lock Functions (Cont’d)
2
1
3
4
2
#
*
2
1
3
4
9
#
*

9
Passage Mode Timer
The Passage Mode Timer automatically locks after a configurable number of hours (Passage
(Toggle) –Mode 2). A setting of zero (0) disables this feature. The default setting is disabled
(0); minimum time is 1 hour, maximum is 9 hours.
Key Stroke Example
Passage
Mode Timer
Default = 0
X = Time Choice
(Hours)
1. Key in master code.
2. Press #.
3. Press 3.
3. Press #.
4. Press X
(Time Choice).
5. Press *.
Unlock Delay Time
The Unlock Delay Time function sets the number of seconds the lock remains unlocked when
in Relock –Mode 1. The default time is 4 seconds; minimum is 1 second, maximum is 99
seconds.
Key Stroke Example
Unlock
Delay Time
Default =
4 seconds
X = Time Choice
(Seconds)
1. Key in master code.
2. Press #.
3. Press 4.
4. Press #.
5. Press X
(Time Choice).
6. Press *.
Lockout Delay Time
The Lockout Delay Time function sets the number of seconds the lock will disallow keypad
entry after three unsuccessful code entries. The default time is 20 seconds, zero (0) seconds
disables the feature; maximum is 99 seconds.
Key Stroke Example
Locked
Delay Time
Default =
20 seconds
X = Time Choice
(Seconds)
1. Key in master code.
2. Press #.
3. Press 5.
4. Press #.
5. Press X
(Time Choice).
6. Press *.
Configure Settings
2
1
3
4
3
#
*
#
X
2
1
3
4
4
#
*
#
X
2
1
3
4
5
#
*
#
X

10
Remote Release Functionality
Key Stroke Example
Remote
Functionality
X = Mode Choice
1. Key in master code.
2. Press #.
3. Press 6.
4. Press #.
5. Press X
(Mode Choice).
6. Press *.
X = 0→Default: Matches current function mode.
X = 1→Passage (Toggle) –Mode 2: Reverses current state of door.
Relock –Mode 1: Toggle temporary Passage (Toggle) –Mode 2.
X = 2→Passage (Toggle) –Mode 2 only - Always locks the door.
X = 3→Switches to Emergency Lockdown –Mode 0. Set to Passage (Toggle) –Mode 2 or
Relock –Mode 1 on lock keypad to exit this mode.
X = 4→Disables remote release.
Sound: The sound function toggles confirmation beeps from ON to OFF, and OFF to ON.
Key Stroke Example
Sound
Default = ON
1. Key in master code.
2. Press #.
3. Press 7.
4. Press *.
For information on Single Use and Limited Use Code(s) - Function 8, see page 6.
Configure Settings (Cont’d)
2
1
3
4
6
#
*
#
X
2
1
3
4
7
#
*

11
Reset Options:
Change Master
Code
This mode does not
delete users or
lock settings.

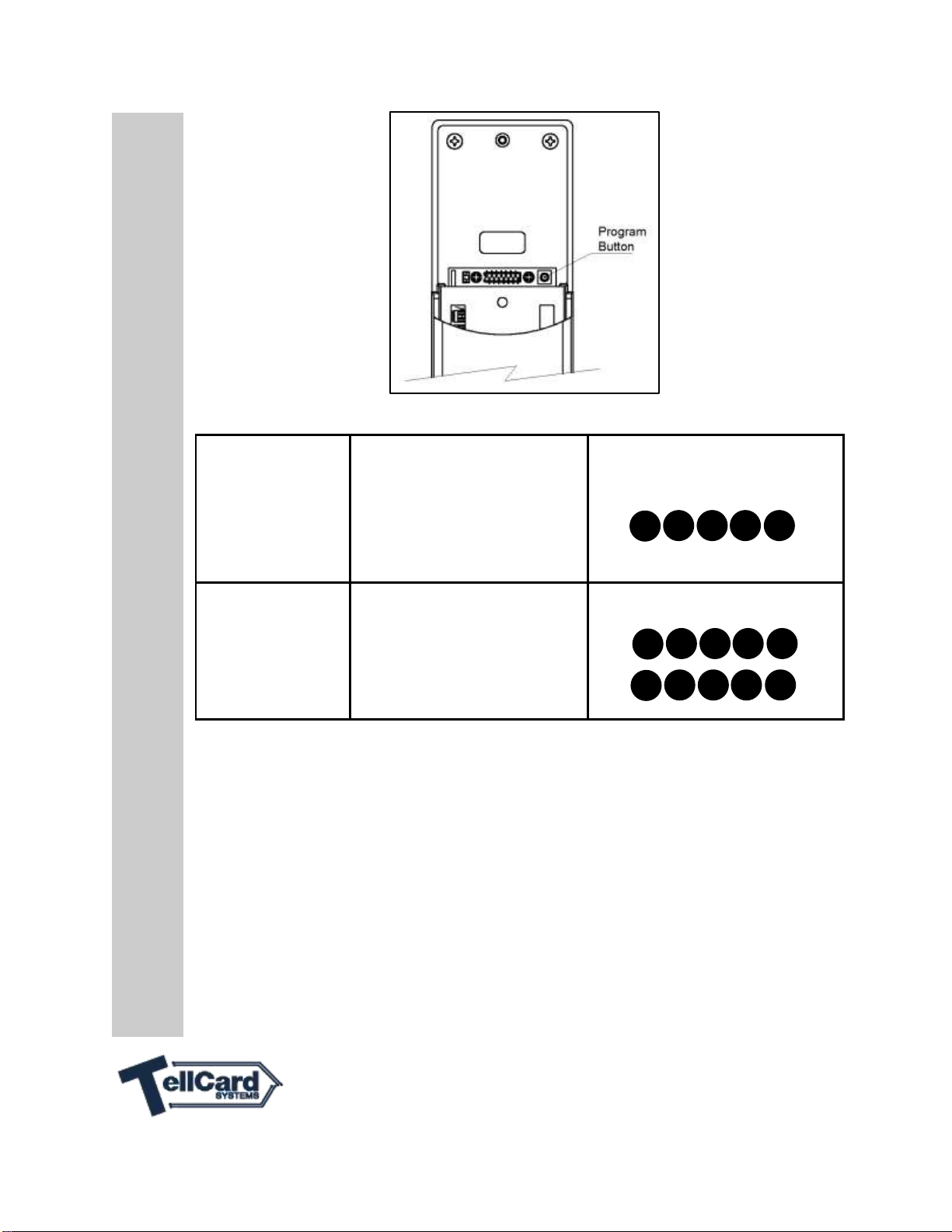

1. Hold program button (shown
above) for 5 seconds until beep
is heard.
2. Release button.
3. Enter new master code.
4. Press *.
< P R O G R A M >
Factory Reset
This mode clears all
codes, and resets all
lock settings.
1. Hold program button (shown
above) for 5 seconds until beep
is heard.
2. Press #, 10 times.
< P R O G R A M >
Reset Options
#
#
#
#
#
2
1
3
4
*
#
#
#
#
#

12
Problem
Possible Cause
Solution
No sound/tone when
buttons are pressed or
when I present my
credentials.
Sound is muted.
Turn sound ON.
See page 10.
I hear a long steady tone
with a green light after I
enter or present my
credentials.
Low battery.
Check and replace
batteries, if necessary.
I hear a long steady tone
with a red light after I enter
or present my credentials.
Invalid user code.
Add user. See page 5.
Emergency Lockout
–Mode 0 is active.
Change mode. See page 7.
The red and green lights
alternately flash.
The unit has been
factory reset.
Enter new master code.
See page 4.
The lock remains unlocked
after I enter/present my
credentials.
Permanent Passage -
Mode 9 is active.
Change mode. See page 8.
There is a long tone and the
red light illuminates with
every button press or
credentials presentation.
More than 3 invalid
credentials were entered
in a row.
Wait 30 seconds depending
on configuration) and try
again. See Lockout Delay
Time on page 9.
Unlocks, but locks again
too quickly.
Unlock delay time too short.
Lengthen Unlock Delay
Time. See page 9.
The lock will not accept the
code I am trying to add.
Code already exists in
the lock.
Enter a different code.
Code length is too short or
too long.
Enter a 4-8 digit code.
You are not in
program mode.
Refer to Managing Users
section. See page 5.
Troubleshooting

13
User #
User Name
Code
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Sample User Chart

14
TellCard Systems
P. O. Box 485
Leola, PA 17540
855-200-2611
