Tellur RVSH1 User manual

TLL331441
User manual
Manual de utilizare
Manual del usuario
Manuel d’utilisation
Manuale d'uso
Benutzerhandbuch
Smart WiFi
Thermostatic Radiator
Valve RVSH1

Thank you for choosing Tellur!
To ensure an optimum performance and safety, please, read
this user manual carefully before using the product. Keep
this user manual safe for future references.
EN
1. What's in the box
2. Product diagram

EN
3. Technical specifications:
Utilization: Thermostatic radiator valves
Brand compatibility: Universal
Power supply: 3 x 1.5V AA Alkaline batteries (not included)
Connector: M30 x 1.5mm
Adapters included: Danfoss RA / RAV / RAVL, Caleffi,
Giacomini, M28
Connectivity: Wi-Fi (no additional gateway required)
Linear travel: 4.3mm
Temperature setting range: 5 - 35° C
Display: LED
Hysteresis: 0.5° C
Temperature measurement accuracy: 0.1° C
Temperature calibration: Yes, by APP
Temperature statistics:Yes, by APP
Weekly programing: Yes, up to 4 periods each day
Frost protection: Yes
Child lock: Yes
Display parameters: Set temperature, Wi-Fi, Heating, Auto,
Low battery
APP name: Tellur Smart
Amazon Alexa: Yes, compatible
Google Assistant: Yes, compatible
Siri Shortcuts: Yes, compatible
Open window detection: Yes, 1.5° C drop in 4.5 minutes
Low battery alarm: Yes
Anti-Scale function: Descaling every Monday at 12:00
Power saving mode: After 5 seconds with no operation
Wireless frequency: 2.4GHz
WiFi standard: IEEE 802.11b/g/n
Security: WPA-PSK/ WPA2-PSK /WPA/WPA2/WEP
Encryption type: WEP/TKIP/AES
Compatibility: Devices with Android 6 / iOS 11 or higher
Color: White
Package includes:
1 x Thermostatic Radiator Valve RVSH1
1 x Adapters set
Product dimensions: 58.4 x 58.4 x 97mm
Product weight: 130gr

EN
3. Technical specifications:
Utilization: Thermostatic radiator valves
Brand compatibility: Universal
Power supply: 3 x 1.5V AA Alkaline batteries (not included)
Connector: M30 x 1.5mm
Adapters included: Danfoss RA / RAV / RAVL, Caleffi,
Giacomini, M28
Connectivity: Wi-Fi (no additional gateway required)
Linear travel: 4.3mm
Temperature setting range: 5 - 35° C
Display: LED
Hysteresis: 0.5° C
Temperature measurement accuracy: 0.1° C
Temperature calibration: Yes, by APP
Temperature statistics:Yes, by APP
Weekly programing: Yes, up to 4 periods each day
Frost protection: Yes
Child lock: Yes
Display parameters: Set temperature, Wi-Fi, Heating, Auto,
Low battery
APP name: Tellur Smart
Amazon Alexa: Yes, compatible
Google Assistant: Yes, compatible
Siri Shortcuts: Yes, compatible
Open window detection: Yes, 1.5° C drop in 4.5 minutes
Low battery alarm: Yes
Anti-Scale function: Descaling every Monday at 12:00
Power saving mode: After 5 seconds with no operation
Wireless frequency: 2.4GHz
WiFi standard: IEEE 802.11b/g/n
Security: WPA-PSK/ WPA2-PSK /WPA/WPA2/WEP
Encryption type: WEP/TKIP/AES
Compatibility: Devices with Android 6 / iOS 11 or higher
Color: White
Package includes:
1 x Thermostatic Radiator Valve RVSH1
1 x Adapters set
Product dimensions: 58.4 x 58.4 x 97mm
Product weight: 130gr
4. Product installation

EN
5. Product utilization
Stop heating and pause heating
Adjust setting temperature Screen rotation

EN
6. Wi-Fi pairing using Tellur Smart APP
Open window detection and Anti-scale function
Child lock function and restore to factory settings
Important notes:
Make sure, that your phone, is connected to the 2.4GHz
wireless network, and you have access to Wi-Fi password
before you start the pairing procedure.
The app does not support Wi-Fi 6 networks with 802.11ax
standard. Please set the 2.4GHz WiFi network to
802.11b/g/n.
We also recommend having the Bluetooth function activated
for an easier pairing.

EN
Pairing the device with APP
1. Download and install the Tellur Smart app, available for
either iOS or Android devices.
2. Once downloaded, the app will ask you to create an
account (if you do not have any already). Enter your email,
select the country you live in and create a password for
your Tellur Smart account.
***Set up router
This device only supports 2.4GHz frequency band router,
does not support 5GHz frequency band router. Please set
the relevant parameters of the router before Wi-Fi
configuration, Wi-Fi passwords do not include special
characters such as ~! @#$%^&*(). When, the device is
connected to the Wi-Fi, keep the mobile phone and device
close to the router to speed up the configuration of the
device.

EN
4. Activate pairing mode
3. Open the Tellur Smart app and click “Add device”
or “+” and then select “Small Home appliances” -> “TRV
(Wi-Fi)”. If Bluetooth function is active the app will detect
the product automatically.
Once, Tellur Smart app is installed on your device and you
have added your smart device to your app you will be able
to control it.

EN
7. Using Tellur Smart to control the device
Mode selection
Weekly programing
Settings

EN
Statistics
8. Failed to add device?
- Make sure the device is powered on.
- Check the Wi-Fi connection of your phone.
- Check if the device is in pairing mode. Reset your smart
device to enter pairing mode.
- Check router or related: If you use a dual-band router,
select the 2.4GHz network to add the device. You also need
to enable the router's broadcasting function. Set
encryption method as WPA2-PSK and authorization type as
AES or set both on "auto".
- Check if the Wi-Fi signal is strong enough. To maintain
the signal strong, keep your router and the smart device as
close as possible.
- Wireless mode should be 802.11.b/g/n (Wi-Fi 6 protocol
802.11ax not supported)
- Make sure you do not exceed the maximum number of
registered devices supported by the app (150).
- Check if the router's MAC filtering function is enabled. If
so, remove the device from the filter list and make sure the
router is not prohibiting the device connection.
- Make sure the Wi-Fi password entered in the app is
correct.
Can I control the device with 2G/3G/4G network?
When adding the device for the first time, the device and
the phone need to be connected to the same Wi-Fi
network. Once, the device it has been successfully paired
with the Tellur Smart app, you can remotely control it via
2G/3G/4G networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" -> "Device sharing"
-> "Sharing sent", tap "Add sharing" and share the device
with the added family members.
Notice - users must install the Tellur Smart app on their
device in order to see shared devices.
How can I manage the devices shared by others?
Open App, go to "Profile" > "Device Sharing" > "Sharing
Received", then you can find the devices shared by other
users. To delete a shared device, swipe left.

EN
8. Failed to add device?
- Make sure the device is powered on.
- Check the Wi-Fi connection of your phone.
- Check if the device is in pairing mode. Reset your smart
device to enter pairing mode.
- Check router or related: If you use a dual-band router,
select the 2.4GHz network to add the device. You also need
to enable the router's broadcasting function. Set
encryption method as WPA2-PSK and authorization type as
AES or set both on "auto".
- Check if the Wi-Fi signal is strong enough. To maintain
the signal strong, keep your router and the smart device as
close as possible.
- Wireless mode should be 802.11.b/g/n (Wi-Fi 6 protocol
802.11ax not supported)
- Make sure you do not exceed the maximum number of
registered devices supported by the app (150).
- Check if the router's MAC filtering function is enabled. If
so, remove the device from the filter list and make sure the
router is not prohibiting the device connection.
- Make sure the Wi-Fi password entered in the app is
correct.
Can I control the device with 2G/3G/4G network?
When adding the device for the first time, the device and
the phone need to be connected to the same Wi-Fi
network. Once, the device it has been successfully paired
with the Tellur Smart app, you can remotely control it via
2G/3G/4G networks.
How can I share my device with family?
Open Tellur Smart app, go to "Profile" -> "Device sharing"
-> "Sharing sent", tap "Add sharing" and share the device
with the added family members.
Notice - users must install the Tellur Smart app on their
device in order to see shared devices.
How can I manage the devices shared by others?
Open App, go to "Profile" > "Device Sharing" > "Sharing
Received", then you can find the devices shared by other
users. To delete a shared device, swipe left.
9. Troubleshooting

EN
10. ALEXA INTEGRATION:
1. Go to Home menu on Alexa app.
2. Select "Skills" / "Skills & Games".
3. Type Tellur Smart in the search bar.
4. Select Tellur Smart and click "Enable" to activate Tellur
Smart.
Enter your Tellur Smart account and password. Now you
have finished the integration with Alexa.
Tellur Smart app is now skilled with Alexa and you can
vocally control the devices added in Tellur Smart.
Remember - if you rename your smart devices, use a
simple name that Alexa can recognize.
Here are some examples for Tellur Thermostat:
Alexa, set the thermostat temperature to 25 degrees”
“Alexa, turn on the thermostat”
“Alexa, what is the thermostat temperature ”

EN
11. GOOGLE HOME INTEGRATION
Before using Google Home to control your devices,
make sure you meet the following conditions:
• You have a Google Home device or an Android device with
Google Assistant.
• You have the newest version of Google Home app.
• You have the newest version of Google app (Android only).
•You have the Tellur Smart app and a related account.
Add devices in Tellur Smart app (refer to app instructions) –
you can skip this part if you've already added some devices
to your Tellur Smart account. Make sure your devices'
names are easily recognizable.

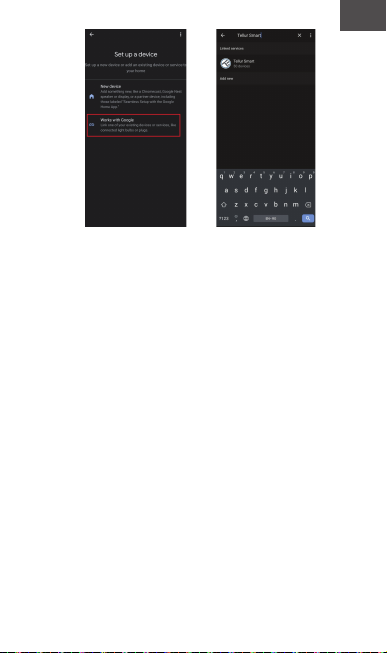

Link account in Home Control
1.Go to Google Home's homepage and tap "+".
2. Hit the "Add new" button, enter Tellur Smart in the search
bar and select the app from the list. Next, select your Tellur
Smart account's region, enter your Tellur Smart account
and password and tap "Link now". After you assign rooms
for devices, your devices will be listed in the Home Control
page.

EN
Now you can control your smart devices through Google
Home.
Here are some examples of commands for Tellur Thermo-
stat:
”Ok Google, raise the temperature for thermostat by 2
degrees”
“Ok Google, turn of the thermostat”
“Ok Google, change the thermostat to Auto”
“Ok Google, set the thermostat to 22 degrees”

EN
DISPOSAL AND RECYCLING INFORMATION
The crossed-out wheeled-bin symbol on your product,
battery, literature or packaging reminds you that all
electronic products and batteries must be taken to separate
waste collection points
at the end of their working lives; they must not be disposed
of in the normal waste stream with household garbage. It is
the responsibility of the user to dispose of the equipment
using a
designated collection point or service for separate recycling
of electrical and electronic equipment waste (WEEE) and
batteries according to local laws. Proper collection and
recycling of your
equipment helps ensure EEE waste is recycled in a manner
that conserves valuable materials and protects human
health and the environment. Improper handling, accidental
breakage,
damage, and/or improper recycling at the end of its life may
be harmful for health and environment.
