GETTING TO
KNOW YOUR
TELSTRA PREPAID
4G MY POCKET
WIFI PLUS

LET’S GET THIS SHOW
ON THE ROAD
Your Telstra Pre-Paid 4G My Pocket Wi-Fi
Plus has been tested to the highest
standards to offer you the best possible
coverage and speed experience on the
network without equal.
This guide will help you get connected
as quickly and as easily as possible.
It’ll guide you through installation and
run through all the handy extra features
that are included.
If all goes to plan you’ll be up and running
in no time, so you can get connected
while you’re on the move.

WHAT’S
INSIDE
03 Safety first
05 Let’s get started
09 Getting connected
13 Monitoring your data usage
15 Wi-Fi home page
19 Extra features
22 Problem solving
26 Extra bits you should know
LET’S GET THIS SHOW
ON THE ROAD
2

SAFETY
FIRST
3
Please read all the safety notices before using this
device. This device is designed to be used at least
20cm from your body. Do not use the device near
fuel or chemicals or in any prescribed area such as
service stations, refineries, hospitals or aircraft.
Obey all warning signs where posted.
Radio frequency safety information
The device has an internal antenna. For optimum
performance with minimum power consumption
do not shield the device or cover it with any object.
Covering the antenna affects signal quality, may
cause the router to operate at a higher power level
than needed, and may shorten battery life.
Radio frequency energy
Your wireless device is a low-power radio
transmitter and receiver. When switched on it
intermittently transmits radio frequency (RF) energy
(radio waves). The transmit power level is optimised
for best performance and is automatically reduced
when there is good quality reception. Maximum
power is used only at the edge of network coverage
so under most circumstances the power output is
very low. Under poor network conditions the device

SAFETY
FIRST
transmits at a higher power, may get hot and may
have a significantly shorter battery life.
Declaration of conformity –
specific absorption rate (SAR)
Your device is designed to be used at least 20cm
from the body. We declare that the product
detailed in this manual, and in combination with
our accessories, conforms with the essential
requirements of the Radio Communications
Standard (Electromagnetic IC Radiation Human
Exposure) 2003 and the Australian Communications
and Media Authority Section 376 of the
Telecommunications Act 1997 when used at a
distance of not less than 20cm from the body.
The worst case SAR test result for 10g tissue size
measured at 10mm distance is 1.458W/kg.
ROHS declaration
(reduction of hazardous substances)
The manufacturer declares that your device is free
from hazardous materials and complies with EU
directive 2002/95/EC (commonly known as RoHS)
and the amendments.
4
N14945

Your package contains the following:
•TelstraPre-Paid4GMyPocketWi-FiPlus
device with built in battery
•TelstraPre-PaidSIMcard(insertedindevice)
•TelstraPre-PaidWelcomeGuide
•ThisGettingStartedGuide
•MicroUSBcable
•ACadapter
•Manufacturer’swarrantycard
LET’S GET
STARTED
5

6
YOUR TELSTRA
PRE-PAID 4G MY
POCKET WIFI PLUS
External Antenna Ports
SIM Card Slot Wi-Fi Protected
Setup
Power

7
The display shows you the status of your
Telstra 4G Pre-Paid My Pocket Wi-Fi Plus.
Number of
users
connected
Signal
strength
Messages
Batterylevel
Data usage
meter
Wi-Fi Name
Wi-Fi
Password

8
Wi-Fi Name (SSID) and Wi-Fi Password
(Security Key)
You can change the Wi-Fi Name and
Wi-Fi Password to your own preferences
via the Wi-Fi home page. See page 15.
Quick reference section
Default Wi-Fi Name
(SSID)
Displayed on the front
screen of your device
when powered on.
Default Wi-Fi
Password
(Security Key)
Case sensitive and is
displayed on the front
screen of your device
when powered on.
Wi-Fi home page http://m.home
Wi-Fi home page
password
password
Restore defaults Press and hold the Reset
button located next to SIM
card slot for 5 seconds.

9
1. Insert SIM card
•YourSIMcardshouldalreadybeinsidethedevice.
Check to make sure. Open the SIM card slot cover
by lifting the flap and insert SIM as shown below.
2. Switch on your Telstra Pre-Paid 4G
My Pocket Wi-Fi Plus
•PressandholdthePowerkeyuntil
the screen lights up.
GETTING
CONNECTED

10
3. Search for wireless networks
•Checktomakesureyourcomputerorother
device has Wi-Fi enabled and search for wireless
networks. Select the Wi-Fi Name displayed on your
device screen.
•EntertheWi-FiPasswordexactlyasshownonthe
screen. Note that your password is case sensitive.
Searching for wireless networks
For Windows Click on the Internet Access
icon, usually found on the
very bottom right of your
screen. This will show your
available networks.
For Mac Go to the Wi-Fi menu and
select network.
If you’re using an older
Mac OS version, you can
also access Network
Preferences in the
Apple menu.
For tablets Usually found in ‘settings’.

11
4. Activate your Pre-Paid service
•ActivateviatheWi-Fihomepage,athttp://m.home
Click ‘Activate’ from the blue pop up box and follow
the prompts.
or
•Activateonlineviatelstra.com/activate
For more information on activating or managing your
service see your Telstra Pre-Paid Welcome Guide.
Your service number will be displayed on your
Wi-Fi home page at http://m.home
Make a note of this service number if
contacting Telstra so we can access your
account details.
Important: Once you activate or recharge your
service, restart your device to refresh.

12
5. Ending your session
•Switchyourdeviceoff,ordisconnectvia
your computer or other device.

13
On-device data usage meter
Your device includes an on-screen meter, which
displays amount of data used and remaining days
left till your data expires.

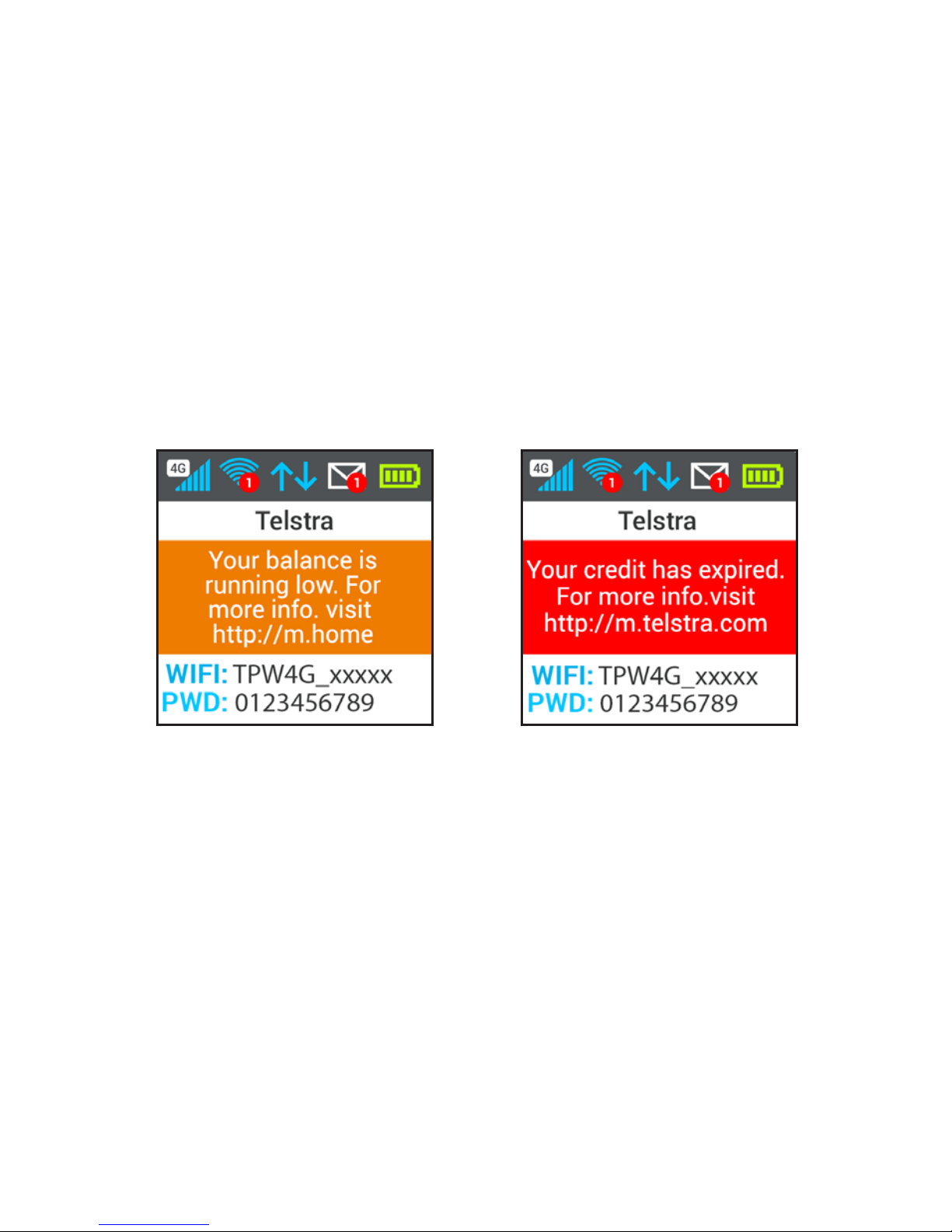

You will be notified when your balance is running
low or if your credit has expired. You can dismiss this
notification by pressing the Navigation key.
MONITORING
DATA USAGE

14
Device home page usage meter
The status bar at the top of your Wi-Fi home page
shows a data usage meter similar to the one
displayed on your device. The status bar shows
amount of data used and remaining days left till your
data expires.
This status bar will also notify you when your
balance is running low or if your credit has expired.

15
You can activate, manage your device settings
and monitor data usage via your Wi-Fi home page.
You can only access the Wi-Fi home page while
connected to the device’s Wi-Fi network.
Login to your Wi-Fi home page
•ConnecttotheWi-Finetwork.Seepage10.
•Openawebbrowserandtypehttp://m.home
in the address bar.
•Enterthelogindetailsshownbelowinthelogin
field and click OK.
Password: password
For full details on using your Wi-Fi home page
click Help.
WI-FI
HOME PAGE
Your service number will be displayed on your
Wi-Fi home page. Make a note of this service
number if contacting Telstra so we can access
your account details.

16
Getting the most from your Wi-Fi home page
The status bar at the top of the page shows icons
displaying network, messages, connected users
and battery life.
In addition you can also monitor data usage and
receive notifications including software updates
and data usage.
You can use the Quick Settings feature to quickly
update your Wi-Fi Name and Wi-Fi Password.
Select Settings then Quick settings.

17
How to change Wi-Fi Password (Security Key)
and/or Wi-Fi Name (SSID)
•SelectSettingstab,thenselectWi-FiSettings.
•SelectBasicSettings.
•InputanewWi-FiPasswordorWi-FiName,then
click Apply located at bottom of page.
If changing your password please ensure you keep
a record of it and store in a safe place.

18
How to change Wi-Fi home page password
•SelectSettingstab,thenselectDeviceSettings.
•SelectAccountManagementandinputcurrent
password and new password.
•ThenclickApply.
If you modify your Wi-Fi Name or Password,
you will need to disconnect and reconnect
your device.

19
Using an external antenna
Using an external antenna may be recommended
in areas of lower coverage to improve your device
performance. MIMO Dual TS9 antennas are available
from your retailer. Insert the connector carefully to
avoid damage to your device.
EXTRA
FEATURES
