Tema Telecomunicazioni AD696/B User manual

AD696/B
Paging Microphone Base for Announcements
Serie Audio Over IP Network
PRODUCT MANUAL
Version HW 1.0
Revision
Date
Revision reason
Prepared
Checked/Approved
0 20/03/2018 First release DP DP, FL
TEMA TELECOMUNICAZIONI
“IP COMMUNICATION AND SECURITY COMPANY”
WWW.TEMATLC.IT
Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and
Audio Applications. Zone Announcements, Night Ringer, Multicast general call,
Background music, Standard SIP call or Emergency call, SD memory with pre-recorded
messages, Relays for LAN drives.

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 2 of 8
We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO
declare under our sole responsibility that the product:
Product name Base microfonica per annunci
Trade name TEMA TELECOMUNICAZIONI Srl
Type or model AD696/B
and accessories --
to which this declaration relates is in conformity with the essential requirements and other
relevant requirements of the R&TTE Directive ( 1999/5/EC, 2006/95/EC, 2004/108/EC ).
The product is in conformity with the followings standards and/or other normative documents:
HEALT & SAFETY EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011
EMC EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006
EN 61000-3-3 :2008
MILANO, 27 February 2018 TEMA TELECOMUNICAZIONI SRL
D. Pontillo
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE
The crossed
-
out whee
led bin symbol below indicates that this electronic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 9001:20
15
TEMA TELECOMUNICAZIONI is a certified company

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 3 of 8
RECOMMENDATIONS
1. It is recommended to read this entire manual before proceeding to the installation of the device.
2. The installation and commissioning of the device can only be performed by specialized technicians.
3. The device is accurately manufactured and tested. In any case, the product is not recommended for use
where an error of operations can cause property damage and/or injury to persons.
4. It is expressly not recommended maintenance inside the device which must be carried out by Tema
Telecomunicazioni, the removal of the closures will invalidate the warranty and makes accessible internal
parts with risk of electric shock.
5. Tema Telecomunicazioni accepts no responsibility for damage to property and/or persons resulting from
incorrect use of the equipment or by procedures that do not comply with the instructions in this manual.
Tema Telecomunicazioni reserves the right to make modification to the technical and functional
specifications at any time and without any notice.
6. Products powered via PoE (Power over Ethernet) may only be connected with cables coming from the
internal network company (inside the building), are not allowed connections LAN cables coming from outside
the building.
7. Use for this device only and exclusively original spare parts and consumables supplied by Tema
Telecomunicazioni. The company is not responsible for damage caused by the use of materials not supplied
by the same.
8. Do not expose the unit to direct sunlight, protect from heat, dust, humidity and chemicals.
9. Tema Telecomunicazioni reserves the right to vary the product characteristics for improvement without prior
notice. Check the WWW.TEMATLC.IT website for any updates to the latest firmware, manuals, and
technical documentation.
10. This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even
partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
This symbol in the descriptions indicates a general warning or a damage danger
to equipment or people.
This symbol in the descriptions
indicates useful information or a suggestion for
the optimization of the device functionality.

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 4 of 8
1. PRESENTATION ........................................................................................................................................ 5
2. TECHNICAL SPECIFICATIONS ............................................................................................................... 7
3. PACKING LIST ........................................................................................................................................... 7
4. OPERATION................................................................................................................................................ 8
5. CONNECTION............................................................................................................................................. 8
INDE
X
PAGE

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 5 of 8
1. PRESENTATION
The AD696/B paging microphone base can be connected to an AD615 Tema Encoder to launch announcements
on the LAN network in Multicast channels to the network amplifiers or to the IP-SIP AD600 series loudspeakers of
the SipComStage line.
The desktop base is equipped with a "Talk" switch to enable the microphone.
The flexible arm allows the microphone to be oriented according to the best position for the user.
The microphone, of high quality, allows to transmit crystal-clear and intelligible voice announcements.
The cable, with a length of 1.5 meters, is terminated with a RJ45 connector with specific wiring for the Tema
AD615 Encoder.
LAN
NETWORK
Microphone B
a
se
AD696/B
AD696/B Paging Microphone Base with AD615/S Encoder
IP PBX
AD611
IP-SIP Amplifier terminal
unidirectional 2 x 6W with
passive loudspeakers
AD635
IP-SIP Speaker idirectional
terminal 2 x 6W
Mic
r
o
phone
Audio source
Radio, Compact Disk,
iPod, PC, etc…
O
ther
AD600 series
SipComStage
terminals
SIP Phone with Multicast function keys for
unidirectional or idirectional P2P Peer to
Peer calls (eg GXP2130/2140)
Multicast
Encoder
AD615/S

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 6 of 8

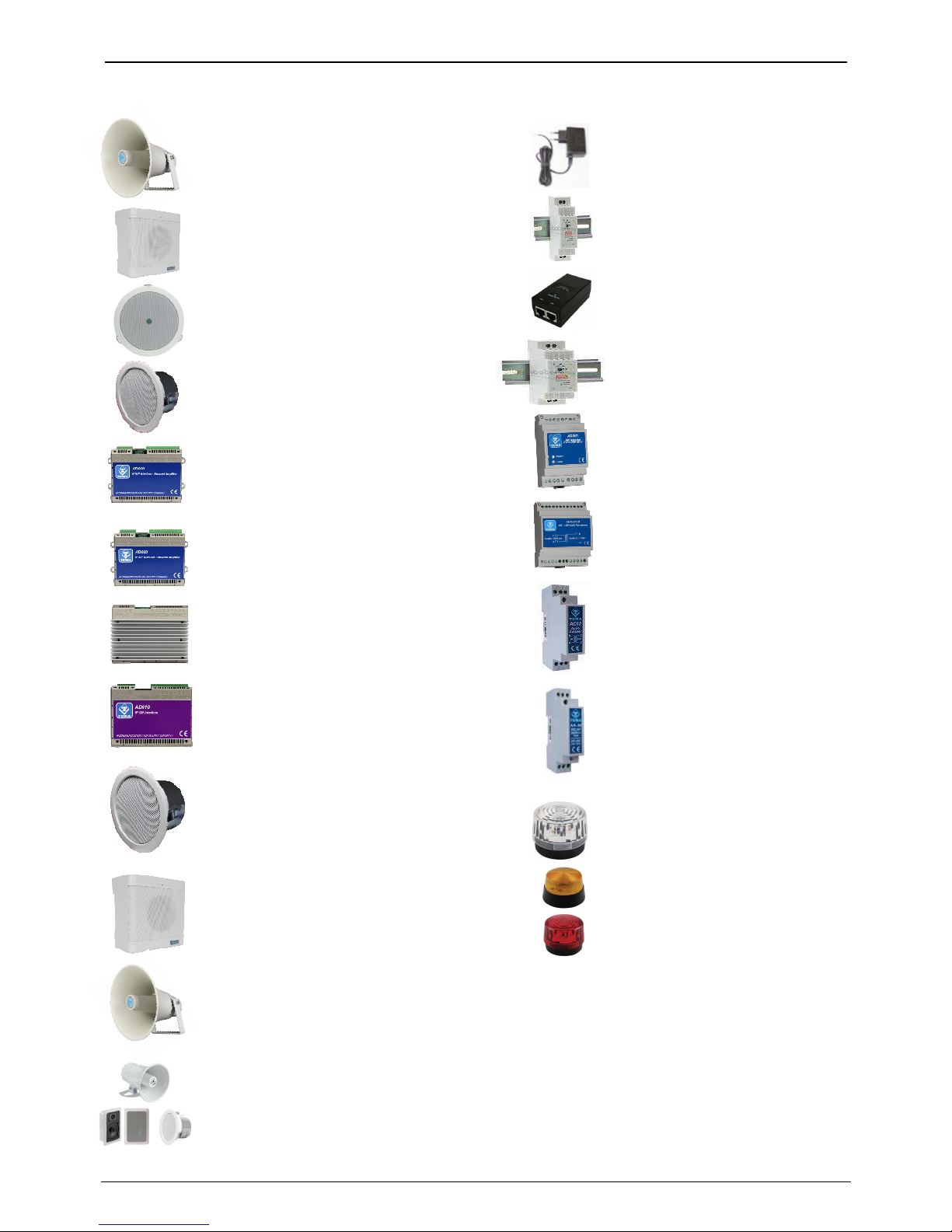

VoIP SIP Amplifiers-Speakers Products and Accessories of the AD600 “SipComStage” series
AD610
2X2W PoE IP-
SIP Amplifier Module,
External Amplifier Adapter with Sound Isolation
Transformer. Directly pilot external power
amplifiers or 8 Ohm external passive speakers.
AD611
IP-
SIP PoE 10W Amplifier Module
(2X5W). Di
rectly pilot 8 Ohm external passive
speakers.
AD633
IP-SIP speaker 12W PoE
open-to-ceiling version.
AD635
IP-
SIP PoE 12W speaker for wall
mounting with the possibility of integrating a PoE
injector adapter.
AD333/1 XTP
Passive 8 Ohm 12W
speaker with anti-
flame cover (AD333/12TP
without cover), internal transformer for 100V
audio line. Ideal for connecting to AD610-611-
612
or as 2nd speaker to the AD63x series IP-
SIP
speakers.
AD335/06
TP
Passive 8 Ohm 6W speaker
with 100V audio line transformer. Ideal for
connecting to AD610-611-
612 or as 2nd speaker
to the AD63x series IP-SIP speakers.
AD330/ 5T
Passive horn speaker 25
W 8
ohm with transformer for 100V audio line. Ideal
for connecting to the AD610-611-
612 modules or
as 2nd speaker for AD63x IP-
SIP speakers
series.
AD330/xx
Are available Speakers of
different pow
er, Horns and Loudspeakers for
flush and ceiling mount.
AA
-
39DL
Plug Power Supply 220Vac/12Vdc-1,0A.
AA
-
39D1A
DIN Power Supply 220Vac/15Vdc-1,0A.
A
A
-
39P4
PoE injector 230Vac/48Vdc 0,5A.
AA
-
39E3 /
-
E6V
DIN Power Supplies 220Vac/24Vdc-1,5A
220Vac/24Vdc-2,5A.
AA
-
36
Protected Power Relay
Actuator 250Vac/16A/4KVA, command in
AC/DC 12V/24V, 1 contact, Led, contacts
protected by electric arcs.
Ideal for
driving loads up to 4.000W.
AD61
IP-
SIP PoE 40W (2x20W) Amplifier
Module when powered with an external power
supply.
Directly pilot 8 Ohm external passive
speakers.
AA
-
697xxx
Flash li
ghts with Xeon
lamp or high brightness LEDs. Ideal to be
controlled by the relay of the IP-
SIP
speakers of the AD630 series or by the
IP-
SIP amplifier AD610, AD611, AD612
modules, with a call in progress add a
light signal to the acoustic signal.
AD3
0/30
PA 100V audio line
transformer 30W, constant voltage, high
efficiency toroidal type with low magnetic
flux leakage.
AD3
Isolation transformer, balanced,
mixer, attenuator, audio signal filter, low
impedance output. Ideal for decoupling
devices
of audio sources to other
amplifiers to eliminate noises.
AD615/S
Audio Encoder Module from
analog to digital on LAN Network in
Multicast/Broadcast Channels.
AD301R
30W analog amplifier,
2 channels, Volume-High-Low +/-
12dB
controls
AD630
IP-
SIP PoE 25W Horn Speaker
with 40W internal amplifier (2x20W) IP65
protection.
AD633C
SIP IP-
12W PoE Speaker ceiling
version with IP54 flameproof cover.

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 7 of 8
2. TECHNICAL SPECIFICATIONS
Microphone capsule
E
lectret condenser
Polar di
agram
C
ardioid
Frequency response
50 ÷
16.000
Hz
Output impedance
1000 Ohm
Sensi
tivity
-
40dB (0dB 1V/Pa @1Khz)
Controls
Direct
“Talk”
button
, “
Chime
”
feature not present
Signalings
“Talk”
LED
Power Supply
Directly powered by the
AD615/S
system
Ar
m
flexible, fixed at the base
Arm lenght
23
5mm
Arm body
shock resistant metal alloy
Windproof cap
black polyurethane foam
Connector
/
Ca
ble
RJ45 8
-
way
proprietary, C5 1,5mt
Operating temperature
-
10°
÷
-
55°C
Storage temperature
-
20°
÷
+65°C
Umidity
0
-
95%
non
-
condensing
Dimensions
80
x
H2
5 mm (base) +
240
mm (
arm
)
Weight
0.18
kg
cable included
3. PACKING LIST
The systems are supplied with the parts included in the following list:
• Una base AD969/B base with integral microphone arm and cable
• A paper manual, system documentation, installation, programming, use
• A CD-ROM with complete documentation

TEMA TELECOMUNICAZIONI AD696/B Paging Microphone Base for Announcements
MAS-AD696-B-REV00EN Page 8 of 8
4. OPERATION
The AD696/B base is designed to be used in conjunction with the AD615/S audio encoder system.
AD696/B allows an operator to transmit a message to a loudspeakers network for alerts or announcements.
The operator who has the AD696/A microphone base at his desk can launch an announcement on the network
speaker in a simple way:
•Press the Talk button to spread the announcements and keep it pressed
•Speak clearly and quietly a second after pressing the button to give his announcement
•At the end of the announcement release the button
The selection lever on the AD615/S system must be in the central position. In case AD615/S is used for diffusion of
background music in the environment, the lever must be placed upwards. For further information on the AD615/S
system and its operation, refer to its specific user manual. Any background music broadcasted by AD615/S will be
replaced by the microphone message during its emission.
The microphone volume adjustment trimmer in the AD615/S system must be set to ¼ turn from the minimum
setting (if you want to check this, turn it all anticlockwise and then turn it in ¼ turn clockwise). Adjust it if necessary
making some announcement tests if the announcement itself results in a non-optimal volume, each environment to
has its own characteristics, for example it is noisy/silent, reverberating/sound-absorbing, ...
5. CONNECTION
The AD696/A microphone base is powered by the AD615/S system to which it must be directly connected.
Insert the 8-pole plug connector of the integral cable connected to AD696/A into the black RJ45 socket on the
AD615/S module as clearly indicated in the photos below.
PTT
button
(Push To Talk)
LED
for active
microphone signaling
(On Air)
