Tema Telecomunicazioni AD696/A User manual

AD696/A
Paging Microphone Base for Announcements and Chime
For Analog Amplifiers AD300 series
PRODUCT MANUAL
Version HW 1.0
Revision Date Revision reason Prepared Checked/Approved
0 09/04/2018 First release DP DP, FL
TEMA TELECOMUNICAZIONI
“IP COMMUNICATION AND SECURITY COMPANY”
WWW.TEMATLC.IT

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 2 of 8
We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO
declare under our sole responsibility that the product:
Product name Base microfonica per annunci e din-don
Trade name TEMA TELECOMUNICAZIONI Srl
Type or model AD696/A
and accessories --
to which this declaration relates is in conformity with the essential requirements and other
relevant requirements of the R&TTE Directive ( 1999/5/EC, 2006/95/EC, 2004/108/EC ).
The product is in conformity with the followings standards and/or other normative documents:
HEALT & SAFETY EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011
EMC EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006
EN 61000-3-3 :2008
MILANO, 27 February 2018 TEMA TELECOMUNICAZIONI SRL
D. Pontillo
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE
The crossed-out wheeled bin symbol below indicates that this electronic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 9001:2015
TEMA TELECOMUNICAZIONI is a certified company

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 3 of 8
RECOMMENDATIONS
1. It is recommended to read this entire manual before proceeding to the installation of the device.
2. The installation and commissioning of the device can only be performed by specialized technicians.
3. The device is accurately manufactured and tested. In any case, the product is not recommended for use
where an error of operations can cause property damage and/or injury to persons.
4. It is expressly not recommended maintenance inside the device which must be carried out by Tema
Telecomunicazioni, the removal of the closures will invalidate the warranty and makes accessible internal
parts with risk of electric shock.
5. Tema Telecomunicazioni accepts no responsibility for damage to property and/or persons resulting from
incorrect use of the equipment or by procedures that do not comply with the instructions in this manual.
Tema Telecomunicazioni reserves the right to make modification to the technical and functional
specifications at any time and without any notice.
6. Products powered via PoE (Power over Ethernet) may only be connected with cables coming from the
internal network company (inside the building), are not allowed connections LAN cables coming from outside
the building.
7. Use for this device only and exclusively original spare parts and consumables supplied by Tema
Telecomunicazioni. The company is not responsible for damage caused by the use of materials not supplied
by the same.
8. Do not expose the unit to direct sunlight, protect from heat, dust, humidity and chemicals.
9. Tema Telecomunicazioni reserves the right to vary the product characteristics for improvement without prior
notice. Check the WWW.TEMATLC.IT website for any updates to the latest firmware, manuals, and
technical documentation.
10. This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even
partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
This symbol in the descriptions indicates a general warning or a damage danger
to equipment or people.
This symbol in the descriptions indicates useful information or a suggestion for
the optimization of the device functionality.

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 4 of 8
1. PRESENTATION ..............................................................................................................................5
2. TECHNICAL SPECIFICATIONS .......................................................................................................6
3. PARTI COSTITUENTI IL SISTEMA (PACKING LIST) ......................................................................6
4. OPERATION .....................................................................................................................................7
5. CONNECTION AND SUPPLY OF MICROPHONE BASE.................................................................8
INDE
X
PAG
E

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 5 of 8
1. PRESENTATION
The AD696/A Paging Microphone Base can be connected to an input of a Tema AD300 series analog power
amplifier to launch announcements on the speaker network.
The desktop base is equipped with a "Talk" switch to enable the microphone and a button to enable the emission of
a chime sound before the announcement. The chime sound is fixed and cannot be modified.
A light ring on the neck of the microphone indicates the activity state of microphone transmission.
The flexible arm at two points is removable and is fixed on the base with a standard XLR connector.
It has an "Always on" mechanical function realized by means of a switch on the body of the microphone base.
The microphone, of high quality, allows to transmit crystal-clear and intelligible voice announcements.
The microphone base is equipped with an audio cable for connection to the Tema AD300 amplification systems.

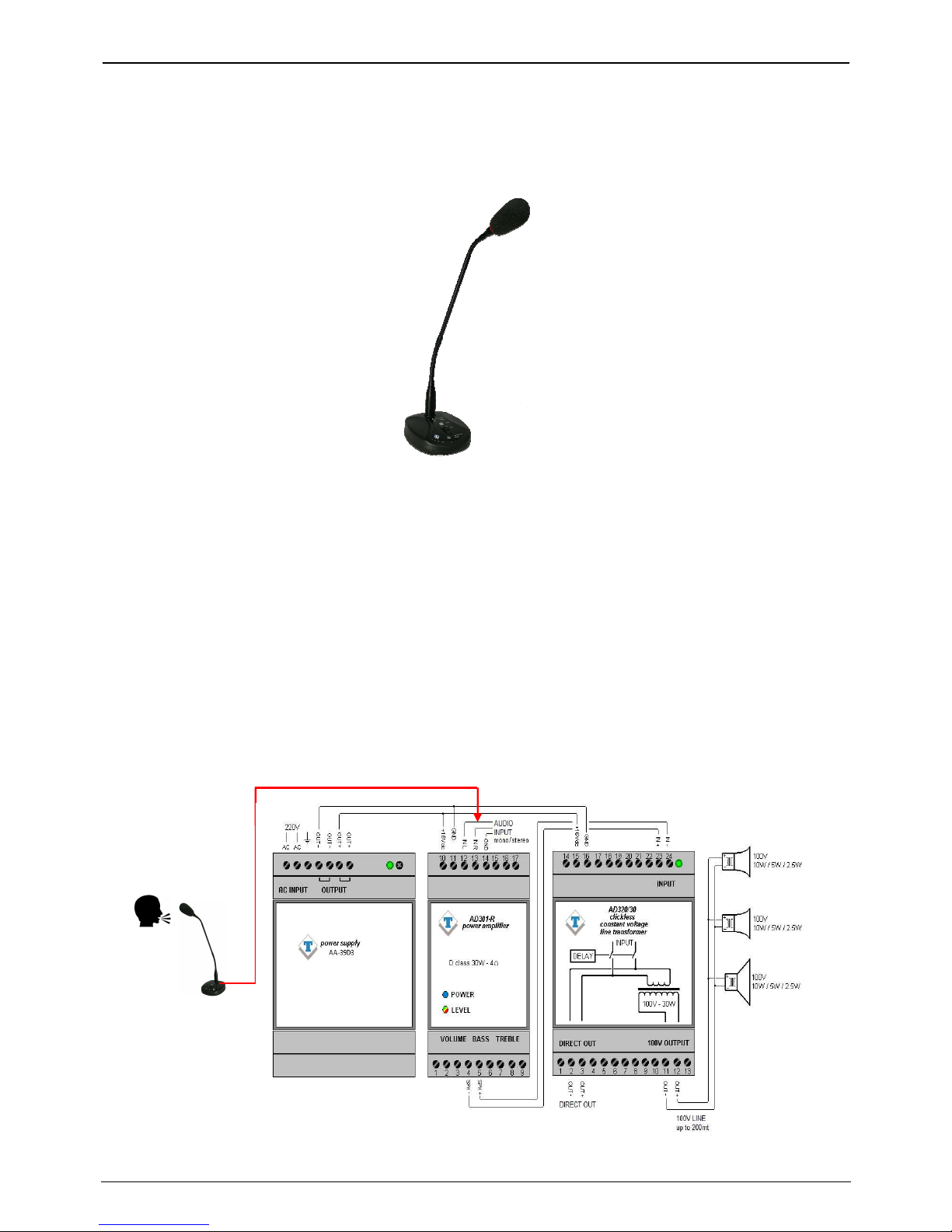

AD696/A Paging Microphone Base connected to an AD301R Amplification unit

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 6 of 8
2. TECHNICAL SPECIFICATIONS
Microphone capsule Electret condenser
Polar diagram Cardioid
Frequency response 50 ÷ 16.000 Hz
Output impedance 1000 Ohm
Sensitivity -40dB (0dB 1V/Pa @1Khz)
Controls 1 power on and “Talk” button, 1 “chime” button
Signalings On Air LED ring
Power supply 2 AA batteries, 3Vdc
Arm Flexible gooseneck with 2 points,
(removable from the base, with XLR connector)
Arm lenght 455mm
Arm body Metal alloy resistant to shock and handling
Windproof cap black polyurethane foam
Cable Shielded audio cable 5mt length (XLR / Jack 6.3mm)
Operating temperature -10°÷ -55°C
Storage temperature -20°÷ +65°C
Umidity 0-95% non-condensing
Dimensions 113 x 140 x H35 mm (base) + 455 mm (arm)
Weight 0.52 kg cable included
3. PACKING LIST
The systems are supplied with the parts included in the following list:
• One AD969/A base with connection, microphone arm, windproof cap, 2 AA batteries
• A paper manual, system documentation, installation, programming, use
• A CD-ROM with complete documentation

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 7 of 8
4. OPERATION
Used together with the TEMA amplifiers of the AD300 series, the AD696/A microphone base allows an operator to
transmit a message to a network of loudspeakers for alerts or announcements.
At the base of the sponge wind cap there is located a red plastic ring. This is illuminated to signal that the
microphone base is on, ready to output a message, the microphone is open, "On air".
Every operator who has the AD696/A microphone base can spread an announcement on the network speaker in a
simple way:
•Set the switch on the base in position "I" to turn on the base
•Speak immediately after switching on clearly and quietly to give the announcement
•At the end of the announcement, switch off the base by turning the switch to the "0" position
or
•Set the switch on the base in position "I" to turn on the base
•Press the button to issue the warning start tone (typical "chime")
•Speak immediately after switching on clearly and quietly to give the announcement
•At the end of the announcement, switch off the base by turning the switch to the "0" position
At the end of the message, make sure to turn off the base (switch in position "0") to "close" the microphone so that
it does not capture ambient noise or anything else that would involuntarily be played to the sound equipment.
Ring that lights up
when the base is
powered
Button for sending
the "chime"
signal
Power on switch
of the microphone
base and
activation of the
"always on"
mode

TEMA TELECOMUNICAZIONI AD696/A Paging Microphone Base for Announcements and chime
MAS-AD696-A-REV00EN Page 8 of 8
5. CONNECTION AND SUPPLY OF MICROPHONE BASE
Open the door located under the base and insert two 1.5V AA batteries in the appropriate compartment respecting
the correct insertion polarity, close the door.
Connect the cable with the supplied XLR connector on the back of the microphone stand.
The other end of the cable will be connected to the amplification system by direct wiring or by interposing any
adapter connectors.
In the case of Tema supply of the microphone base together with the amplification devices, the cable will be
supplied with the appropriate connections already made.

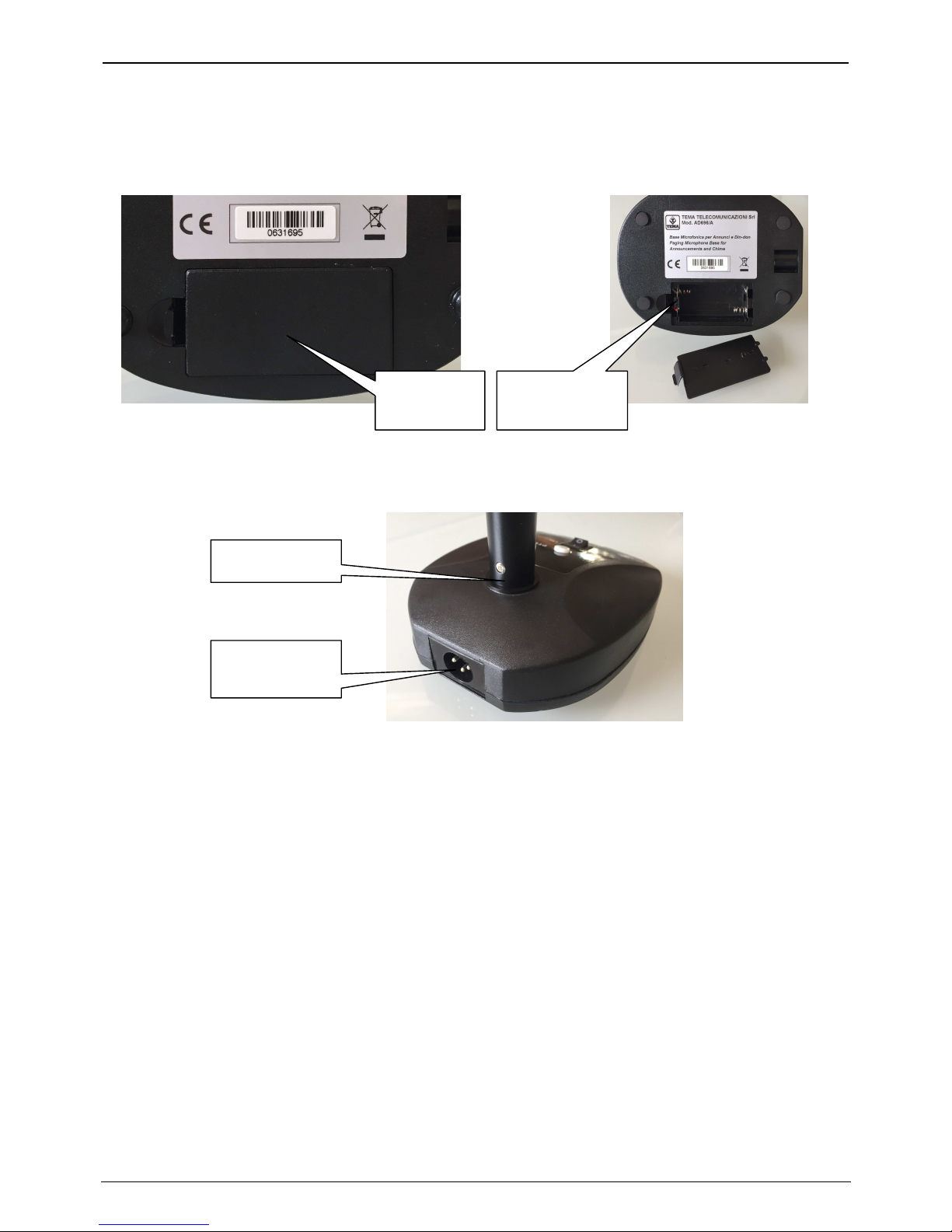

Plug for amplifier
connecting cable
Microphone arm
plug
Battery
compartment
door
Two AA batteries
housing
-
+
+
-
