Tema Telecomunicazioni AD696/BM User manual

AD696/BM
Paging Microphone Base for Announcements and Chime
Serie Audio Over IP Network
PRODUCT MANUAL
Version HW 1.0 - Version SW 1.09m
Revision
Date
Revision reason
Prepared
Checked/Approved
0 20/03/2018 First release DP DP, FL
TEMA TELECOMUNICAZIONI
“IP COMMUNICATION AND SECURITY COMPANY”
WWW.TEMATLC.IT
Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and
Audio Applications. Zone Announcements, Night Ringer, Multicast general call,
Background music, Standard SIP call or Emergency call, SD memory with pre-recorded
messages, Relays for LAN drives.

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 2 of 10
We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO
declare under our sole responsibility that the product:
Product name Base microfonica per annunci e din-don
Trade name TEMA TELECOMUNICAZIONI Srl
Type or model AD696/BM
and accessories --
to which this declaration relates is in conformity with the essential requirements and other
relevant requirements of the R&TTE Directive ( 1999/5/EC, 2006/95/EC, 2004/108/EC ).
The product is in conformity with the followings standards and/or other normative documents:
HEALT & SAFETY EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011
EMC EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006
EN 61000-3-3 :2008
MILANO, 27 February 2018 TEMA TELECOMUNICAZIONI SRL
D. Pontillo
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE
The crossed
-
out wheeled bin symbol below indicates that this e
lectronic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 9001:20
15
TEMA TELECOMUNICAZIONI is a certified company

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 3 of 10
RECOMMENDATIONS
1. It is recommended to read this entire manual before proceeding to the installation of the device.
2. The installation and commissioning of the device can only be performed by specialized technicians.
3. The device is accurately manufactured and tested. In any case, the product is not recommended for use
where an error of operations can cause property damage and/or injury to persons.
4. It is expressly not recommended maintenance inside the device which must be carried out by Tema
Telecomunicazioni, the removal of the closures will invalidate the warranty and makes accessible internal
parts with risk of electric shock.
5. Tema Telecomunicazioni accepts no responsibility for damage to property and/or persons resulting from
incorrect use of the equipment or by procedures that do not comply with the instructions in this manual.
Tema Telecomunicazioni reserves the right to make modification to the technical and functional
specifications at any time and without any notice.
6. Products powered via PoE (Power over Ethernet) may only be connected with cables coming from the
internal network company (inside the building), are not allowed connections LAN cables coming from outside
the building.
7. Use for this device only and exclusively original spare parts and consumables supplied by Tema
Telecomunicazioni. The company is not responsible for damage caused by the use of materials not supplied
by the same.
8. Do not expose the unit to direct sunlight, protect from heat, dust, humidity and chemicals.
9. Tema Telecomunicazioni reserves the right to vary the product characteristics for improvement without prior
notice. Check the WWW.TEMATLC.IT website for any updates to the latest firmware, manuals, and
technical documentation.
10. This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even
partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
This symbol in the descriptions indicates a general warning or a damage danger
to equipment or people.
This symbol in the descriptions indicates useful information or a suggestion for
the optimization of the device functionality.

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 4 of 10
1. PRESENTATION ........................................................................................................................................ 5
2. TECHNICAL SPECIFICATIONS ............................................................................................................... 7
3. PACKING LIST ........................................................................................................................................... 7
4. OPERATION................................................................................................................................................ 8
5. CONNECTION AND PREPARATION OF THE MICROPHONE BASE ................................................ 9
5.1. S ELECT MESSAGE START TONE .........................................................................................................................10
5.2. N OTES FOR ADJUSTING THE MICROPHONE VOLUME .............................................................................................10
5.3. N OTES FOR ADJUSTING THE MESSAGE START SIGNAL ..........................................................................................10
INDE
X
PAGE

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 5 of 10
1. PRESENTATION
The AD696/BM paging microphone base can be connected to an AD615 Tema Encoder to launch announcements
on the LAN network in Multicast channels to the network amplifiers or to the IP-SIP AD600 series loudspeakers of
the SipComStage line.
The desktop base is equipped with a "Talk" button to enable the microphone and a two-position switch to enable or
disable the possible background music source connected to the AD615 Encoder.
The base allows to send alert sounds (Chime) up to 7 different preconfigured types and can be selected by a Dip-
Switch located under the base.
On request, the sounds (or short messages) can be customized according to customer’s speci-fications, maximum
memory capacity 16sec.
Il braccio, flessibile in due punti, è estraibile ed è fissato sulla base con un connettore standard XLR.
Three bright LED on the base signal the status of the activity.
"Always on” function, activated by pressing the "Talk" button with a particular sequence.
The 1.5 meter cable is terminated with a RJ45 connector specifically wired for the TEMA AD615/S Encoder.
LAN
NETWORK
Microphone B
a
se
AD696/B
AD696/B Paging Microphone Base with AD615/S Encoder
IP PBX
AD611
IP-SIP Amplifier terminal
unidirectional 2 x 6W with
passive loudspeakers
AD635
IP-SIP Speaker idirectional
terminal 2 x 6W
Mic
r
o
phone
Audio source
Radio, Compact Disk,
iPod, PC, etc…
Other
AD600 series
SipComStage
terminals
Multi
cast
Encoder
AD615/S

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 6 of 10
VoIP SIP Amplifiers-Speakers Products and Accessories of the AD600 “SipComStage” series
AD610
2X2W PoE IP-
SIP Amplifier Module,
External Amplifier Adapter with Sound Isolation
Transformer. Directly pilot external power
amplifiers or 8 Ohm external passive speakers.
AD611
IP-
SIP PoE 10W Amplifier Module
(2X5W). Directly pilot 8 Ohm external passive
speakers.
AD633
IP-SIP speaker 12W PoE
open-to-ceiling version.
AD635
IP-
SIP PoE 12W speaker for wall
mounting with the possibility of integrating a PoE
injector adapter.
AD333/1 XTP
Passive 8 Ohm 12W
speaker with anti-
flame cover (AD333/12TP
without cover), internal transformer for 100V
audio line. Ideal for connecting to AD610-611-
612
or as 2nd speaker to the AD63x series IP-
SIP
speakers.
AD335/06TP
Passive 8 Ohm 6W speaker
with 100V audi
o line transformer. Ideal for
connecting to AD610-611-
612 or as 2nd speaker
to the AD63x series IP-SIP speakers.
AD330/ 5T
Passive horn speaker 25W 8
ohm with transformer for 100V audio li
ne. Ideal
for connecting to the AD610-611-
612 modules or
as 2nd speaker for AD63x IP-
SIP speakers
series.
AD330/xx
Are available Speakers of
different pow
er, Horns and Loudspeakers for
flush and ceiling mount.
AA
-
39DL
Plug Power Supply 220Vac/12Vdc-1,0A.
AA
-
39D1A
DIN Power Supply 220Vac/15Vdc-1,0A.
A
A
-
39P4
PoE injector 230Vac/48Vdc 0,5A.
AA
-
39E3 /
-
E6V
DIN Power Supplies 220Vac/24Vdc-1,5A
220Vac/24Vdc-2,5A.
AA
-
36
Protected Power Relay
Actuator 250Vac/16A/4KVA, command in
AC/DC 12V/24V, 1 contact, Led, contacts
protected by electric arcs.
Ideal for
driving loads up to 4.000W.
AD61
IP-SIP PoE 40W (
2x20W) Amplifier
Module when powered with an external power
supply.
Directly pilot 8 Ohm external passive
speakers.
AA
-
697xxx
Flash lights with Xeon
lamp or high brightness LEDs. Ideal to be
controlled by the relay of the IP-
SIP
speakers of the AD630 series or by the
IP-
SIP amplifier AD610, AD611, AD612
modules, with a call in progress add a
light signal to the acoustic signal.
AD3 0/30
PA 100V audio line
transformer 30W, constant voltage, high
efficiency toroidal type with
low magnetic
flux leakage.
AD3
Isolation transformer, balanced,
mixer, attenuator, audio signal filter, low
impedance output. Ideal for decoupling
devices of audio sources to other
amplifiers to eliminate noises.
AD301R
30W analog amplifier,
2 channels, Volume-High-Low +/-
12dB
controls
AD630
IP-
SIP PoE 25W Horn Speaker
with 40W internal amplifier (2x20W) IP65
protection.
AD633C
SIP IP-
12W PoE Speaker ceiling
version with IP54 flameproof cover.
AD615/S
Audio Encoder Module from
analog to digital on LAN Network in
Multicast/Broadcast Channels.

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 7 of 10
2. TECHNICAL SPECIFICATIONS
Microphone capsule
E
lectret condenser
Polar diagram
Cardioid
Frequency res
ponse
50 ÷
16.000
Hz
Output impedance
1
50
Ohm
Sensi
tivity
-
40dB (0dB 1V/Pa @1Khz)
Controls
“
Chime/PTT
”
button, “Background Music” switch
Signalings
3 LED (On Air, Musica, Din
-
don)
Regolazioni
M
icrophone volume
,
Chime
tone selection
Number of Chime s
ounds
7 selectable with dip
-
switch
Microprocessor
16 bit CPU
Souns memory
E2PROM 2Mbit, 16sec audio PCM
Messages Customizations
Optional.
Up to 7 tones or short messages that can be
customized and recorded by Tema in the non-volatile
memory of the microphone base, on request **
Arm
F
lexible gooseneck with 2 points,
removable, with XLR connector
Arm lenght
455mm
Arm body
shock resistant metal alloy
Windproof cap
black polyurethane foam
Power Supply
5Vdc,
directly powered by the
AD615/S
system
Conne
c
tor/Ca
ble
RJ45 8
-
way
proprietary, C5 1,5mt
Operating temperature
-
10°
÷
-
55°C
Storage temperature
-
20°
÷
+65°C
Umidity
0
-
95%
non
-
condensing
Dimensions
113 x 140 x H35 mm (base) + 455 mm (
arm
)
Weight
0.52
kg
cable included
** the customization must be carried out in the factory before the system is supplied
3. PACKING LIST
The systems are supplied with the parts included in the following list:
• One AD969/B base with integral cable, microphone arm and windproof cap
• A paper manual, system documentation, installation, programming, use
• A CD-ROM with complete documentation

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 8 of 10

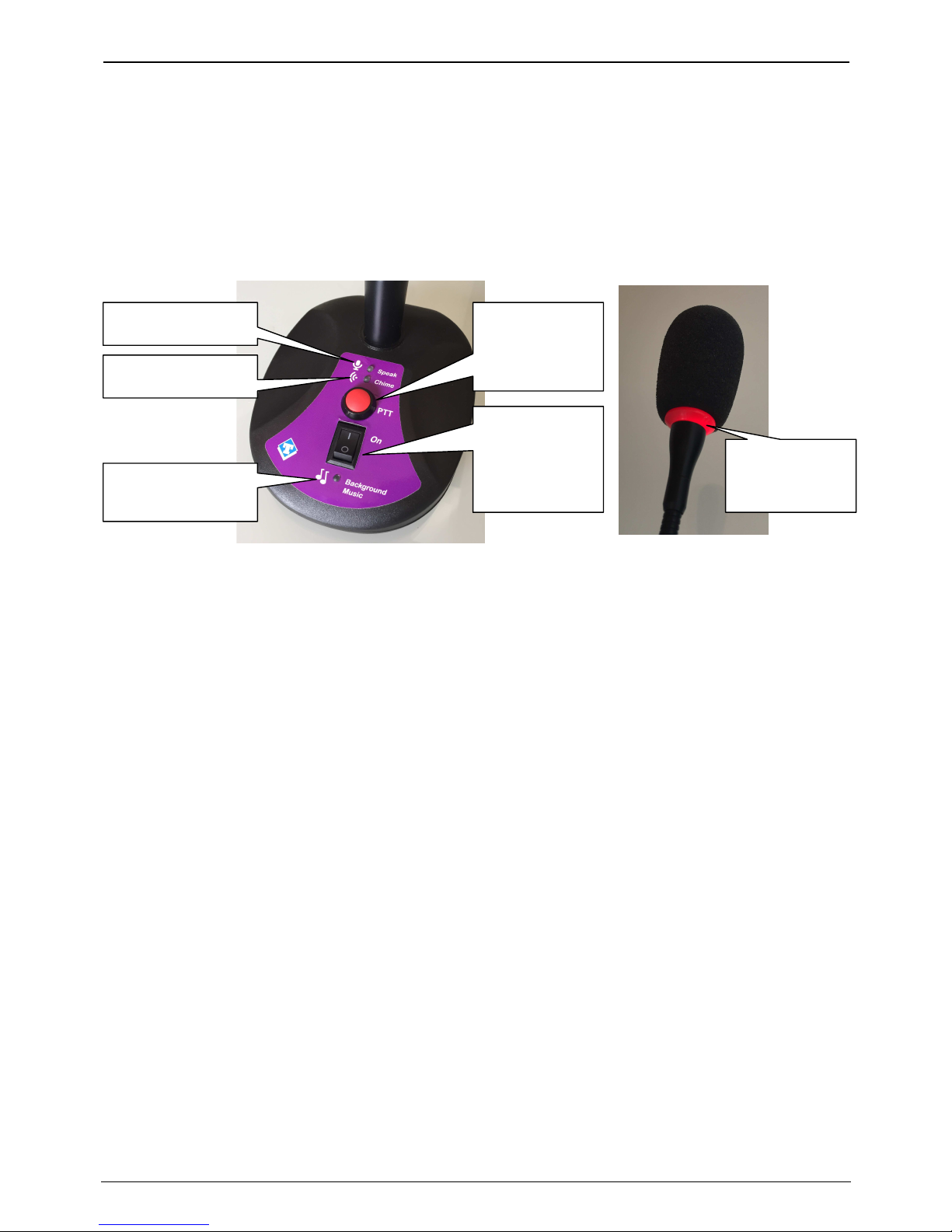

4. OPERATION
The AD696/BM microphone base is specifically designed to work with the AD615/S audio Encoder system, one of
the components of the Tema Telecomunicazioni paging sound system.
AD696/BM allows to one operator to transmit a message to a network of IP speakers for the purpose of alerts or
announcements, presents useful automatic functions for the announcement and different chime signals to choose,
of different length, useful for example to differentiate between announcement notices when within the same area
served by the systems of TEMA paging systems there are more announcements points (more operators and more
pairs of systems AD696/BM + AD615/S).
At the base of the windproof cap on the top of the microphone stand there is a red plastic ring. This is illuminated to
signal that the microphone base is correctly connected to the AD615/S system and the system is switched on and
in operation. It is the correct condition of system in stand-by.
Every operator who has the AD696/BM microphone base can spread an announcement on the network speaker in
a simple way:
•Press and hold the PTT button
•The system plays the chime message start and turns on the CHIME led
•When the chime is finished, the SPEAK led lights up and the CHIME led goes off, now it is possible to
speak into the microphone clearly and quietly to give the message
•At the end of the announcement release the PTT button, the SPEAK led goes off and the microphone will
be muted
or in automatic mode
•Press the PTT button twice in quick succession (releasing it)
•The system plays the chime message start and turns on the CHIME led in a flashing way
•When the chime is finished, the SPEAK LED lights up flashing and the CHIME led goes off, now it is
possible to speak into the microphone clearly and quietly to give the message
•At the end of the announcement, press the PTT button again to end, the SPEAK led switches off and the
microphone will be muted
this allows not have to hold the PTT button for the duration of the announcement.
The selection lever on the AD615/S system connected to AD696/BM must be in the central position. In case
AD615/S is used for broadcasting background music in the environment, its lever must be placed upwards
(AD615/S controls the broadcast).
Any background music broadcasted by AD615/S will still be replaced by the AD696/BM microphone message. If
the broadcasting music control lever on the AD615/S is left in the central position, it is also possible for the operator
to control the broadcast of the background music directly from the AD696/BM microphone base. To do this, turn the
ON switch to position I. The BACKGROUND MUSIC LED will signal when the music is being played.
For further information on the AD615/S system and its operation, refer to its specific user manual.
Ring that lights up
when the base is
connected to
AD615/S
Switch to activate
the background
music output on
the AD615/S
Button for
activating the
microphone
message
announcement
Microphone
announcement LED
Chime signal LED
LED signal for
the
background music

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 9 of 10
5. CONNECTION AND PREPARATION OF THE MICROPHONE BASE
The AD696/BM microphone base is powered by the AD615/S system to which it must be directly connected. Insert
the 8-pole plug connector of the integral cable connected to AD696/BM into the black RJ45 socket on the AD615/S
module as clearly indicated in the photos below.
Now turn the base by laying it on one side, open and remove the flap located under the base to access the
compartment enclosing the control circuit board.
The board features programming dip-switches and two volume adjustment trimmers: one for adjusting the volume
of messages announced via the microphone and the other for adjusting the start warning tones message (Chime).
At the end of the adjustments or settings, replace the door in its seat.
Bridge for the type of
mounted microphone
(leave inserted)
Adjust the microphone
volume for
announcements
(clockwise increases)
Adjustment of the
volume
of the chime signal at the
beginning of the message
(clockwise increases)
Four selectors to indicate
which chime signal must
be reproduced among
those present in the
system
(see appropriate table)
ON - OFF

TEMA TELECOMUNICAZIONI Paging Microphone Base for Announcements and Chime
MAS-AD696-BM-REV00EN Page 10 of 10
5.1. Select message start tone
Nella tabella qui sotto riportata si trovano le impostazioni del banco di selezione dei toni di avviso.
SW1
SW
2
SW
3
SW
4
DESCRI
PTION
**
DURATION
OFF
O
FF
OFF
--
No message start tone
0
sec
ON
OFF
OFF
--
Message start tone number 1
4
sec
OFF
ON
OFF
--
Message start tone number
2
4
sec
ON
ON
OFF
--
Message start tone number
3
2
sec
OFF
OFF
ON
--
Message start
tone number
4
2
sec
ON
OFF
ON
--
Message start tone number
5
2
sec
OFF
ON
ON
--
Message start tone number
6
1
sec
ON
ON
ON
--
Message start tone number
7
1
sec
If it is chosen to have no start tone, when the PTT button is pressed, the SPEAK LED will light up immediately and
then it is possible to start talking to spread the announcement message. The same applies to the automatic
announcement mode (double push of the PTT key).
** Optional. Up to 7 tones or short messages that can be customized and recorded by Tema in the non-volatile
memory of the microphone base, on request. The customization must be carried out in the factory before the
system is supplied.
5.2. Notes for adjusting the microphone volume
The base is supplied with a suitable microphone that requires the setting of the volume adjustment trimmer to 75%
of the maximum stroke, in practice to ¾ of turn in clockwise direction (towards maximum). This is the optimal
regulation established in the factory and, as far as possible, it is preferable not to make adjustments to the volume
trimmer, if not necessary for particular situations.
Remember that each emission point that is part of the paging sound systems (IP speakers, IP horns, ... of the
TEMA AD600 series) has its own volume control and therefore for the microphone base start from the default
setting, adjust each point/device of emission in the plant according to the area that has to be served.
The microphone volume adjustment trimmer present on the Multicast Encoder AD615/S system by default is set at
¼ of a turn from the minimum and, as far as possible, it is preferable not to make adjustments to the volume
trimmer, if not necessary for particular situations.
5.3. Notes for adjusting the message start signal
The message start signal (chime) must have the function to alert those present about the fact that some operator is
going to make an announcement and can in some way be prepared to pay attention to what follows the tone itself.
A correct volume must be identified according to the type of chosen tone according to the table and bearing in mind
the purpose of its emission. A too high message could be annoying, "distorted" (also because of the possible
reflections of the sounds in the environments) and can produce almost the opposite effect to that for which it was
thought.
