Tennant 750 User manual

613792
Rev. 00 (08Ć02)
Operator Manual EN
EN
Model No.:
613627
750
All urface Cleaner

EN ENGLI H
2750 (08–02)
This manual is furnished with each new 750 model. It
provides necessary operation, maintenance
instructions and an illustrated parts list.
Read this manual completely and understand the
machine before operating or servicing.
Use the illustrated Parts Lists to order parts. Before
ordering parts or supplies, be sure to have your
machine model number and serial number handy.
Parts and supplies may be ordered by phone or mail
from any authorized parts and service center,
distributor or from any of the manufacturer’s
subsidiaries.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
SThe machine is operated with reasonable care.
SThe machine is maintained regularly - per the
machine care instructions provided.
SThe machine is maintained with manufacturer
supplied or equivalent parts.
MACHINE DATA
Pleasefill out at time of installation for future reference.
Model No.-
Install. Date -
Serial No.-
E2002 Tennant Company
EC DECLARATION OF CONFORMITY FOR MACHINERY (Directive 89//392/EEC,Annex II, sub A)
TENNANT N.V.
Address: Industrielaan 6 5405 AB
P.O. Box 6 5400 AA Uden–The Netherlands
model: 750 nr.: 613627
– is in conformity with the provisions of the Machinery Directive ( Directive 89/392/EEC),
as amended, and with national implementing legislation;
– is in conformity with the provisions of the EMC Directive ( Directive 89/336/EEC);
– is in conformity with the provisions of the following other EEC directives:
EN 55014–1, EN 55014–2, EN 61000–3–2, EN 61000–3–3.
– and that the following ( parts/clauses of) harmonized standards have been applied:
EN 292–1, EN 292–2, EN 294, EN 349, EN 563, EN 60204–1, EN 60335–1 ...
– the following (parts/clauses of) national technical standards and specifications have been used: NA
EN
Uden/Netherlands, 08–14–02
Leo Suurmond – Technical Support Engineer

ENGLI H EN
750 (08–02) 3
TABLE OF CONTENTS
SAFETY PRECAUTIONS 4. . . . . . . . . . . . . . . . . . . .
GROUNDING INSTRUCTIONS 5. . . . . . . . . . .
SAFETY LABELS 5. . . . . . . . . . . . . . . . . . . . . . . . . . .
MACHINE COMPONENTS 6. . . . . . . . . . . . . . . . . . .
UNPACKING MACHINE 7. . . . . . . . . . . . . . . . . . . . .
PREPARING MACHINE FOR CLEANING
APPLICATION 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING THE LIQUID CLEANING AGENT
(FORMULA 710) CONTAINER 7. . . . . . . . . . . .
FILLING SOLUTION TANK 8. . . . . . . . . . . . . . .
CONNECTING POWER CORD TO WALL
OUTLET 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING APPLICATION 9. . . . . . . . . . . . . . . . . . .
A: PREPARING AREA 9. . . . . . . . . . . . . . . . . . .
B: APPLYING CLEANING AGENT
(FORMULA 710) 9. . . . . . . . . . . . . . . . . . . . . . . .
C: RINSING AREA 11. . . . . . . . . . . . . . . . . . . . . . .
D: BLOW DRYING AND SQUEEGEEING 12. . .
DRAINING TANKS 13. . . . . . . . . . . . . . . . . . . . . . . . . .
DRAINING RECOVERY TANK 13. . . . . . . . . . . .
ELEVATED DRAINING 14. . . . . . . . . . . . . . . . . . .
EMPTYING SOLUTION TANK 14. . . . . . . . . . . .
OTHER CLEANING USES WITH MACHINE 14. . .
BLOWER HOSE CLEANING 14. . . . . . . . . . . . . .
CARPET CLEANING (OPTION) 15. . . . . . . . . . .

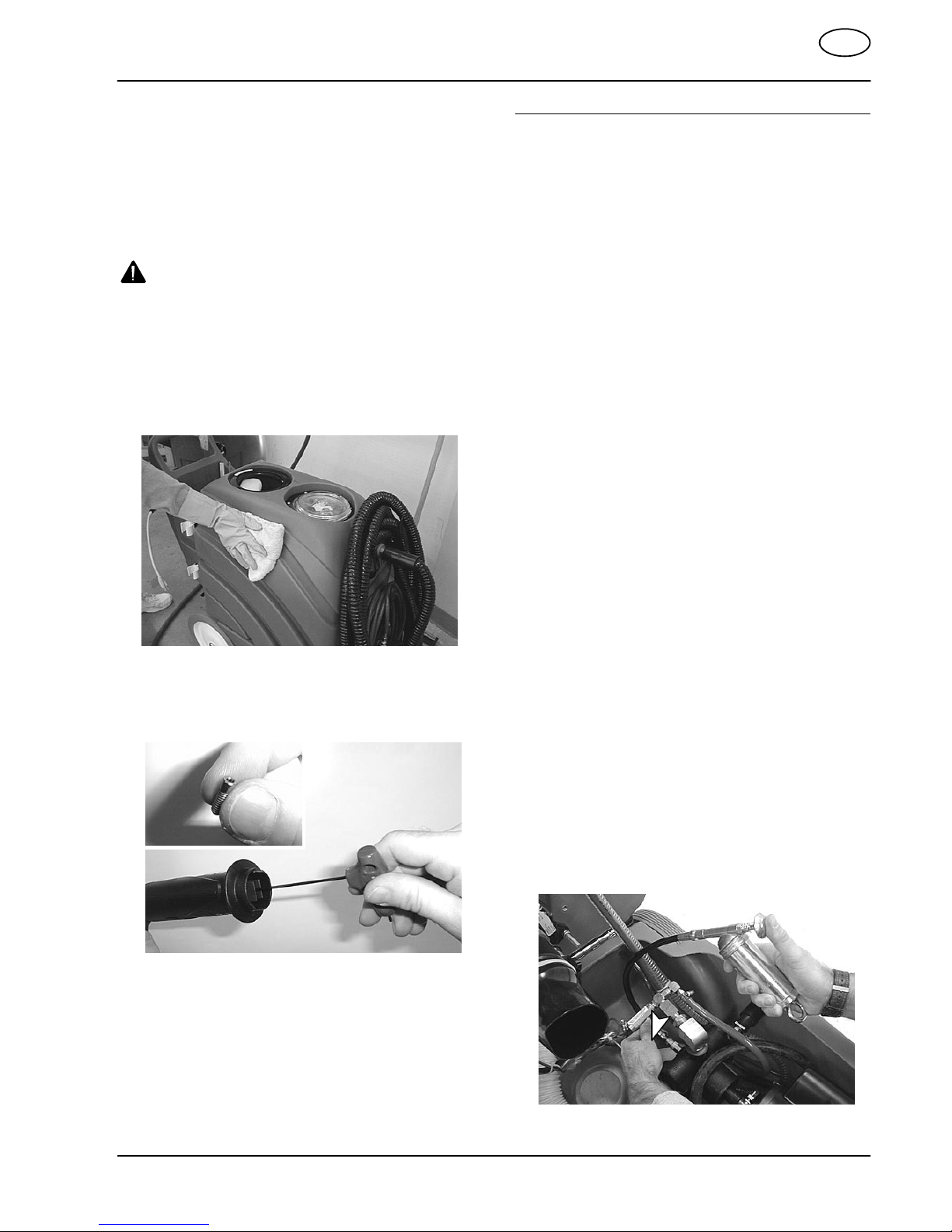

MACHINE MAINTENANCE 16. . . . . . . . . . . . . . . . . .
HOUR METER 16. . . . . . . . . . . . . . . . . . . . . . . . . .
DAILY MAINTENANCE 16. . . . . . . . . . . . . . . . . . .
MONTHLY MAINTENANCE 17. . . . . . . . . . . . . . .
QUARTERLY MAINTENANCE 18. . . . . . . . . . . .
ACCESSING INTERNAL COMPONENTS 18. .
STORING MACHINE 18. . . . . . . . . . . . . . . . . . . . . . . .
STORING MACHINE IN FREEZING
TEMPERATURES 18. . . . . . . . . . . . . . . . . . . . . . .
RECOMMENDED STOCK ITEMS 18. . . . . . . . . . . . .
TROUBLE SHOOTING 19. . . . . . . . . . . . . . . . . . . . . .

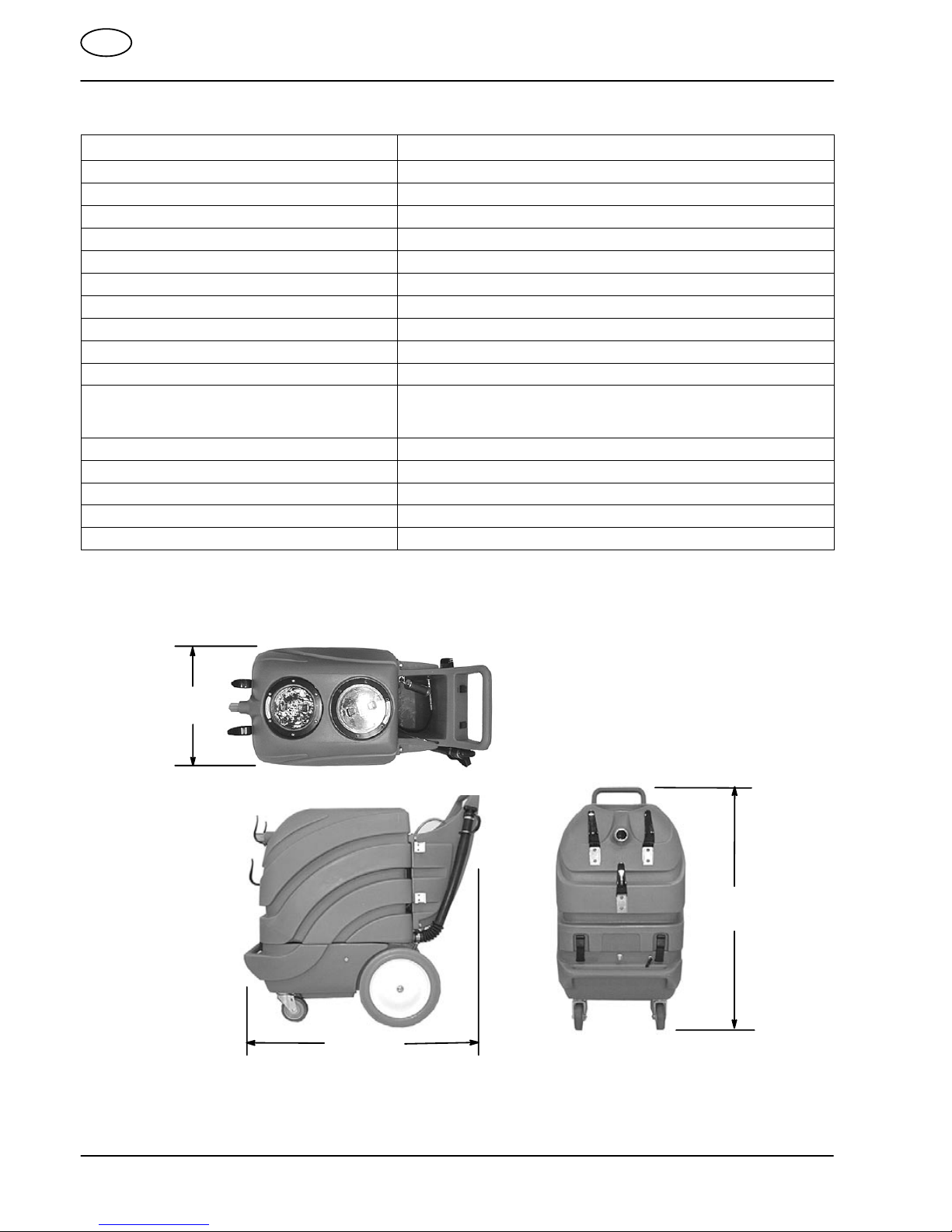

SPECIFICATIONS 20. . . . . . . . . . . . . . . . . . . . . . . . . .
MACHINE DIMENSIONS 20. . . . . . . . . . . . . . . . . . . .

EN ENGLI H
4750 (08–02)
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
designed to clean water-resistant surfaces in an
indoor environment and is not constructed for any
other use. Do not use machine for dry pick–up.
Use only recommended cleaning formulas and
accessory tools.
All operators must read, understand and practice
the following safety precautions.
The following warning alert symbol and the “FOR
SAFETY”heading are used throughout this manual as
indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
Failure to follow these warnings may result in:
personal injury, electric shock, electrocution, fire
or explosion:
WARNING: Do Not Use Flammable Liquids Or
Operate Machine In Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
WARNING: Do Not Pick Up Flammable
Materials Or Reactive Metals.
WARNING: Do Not Operate With Damaged
Power Cord. Do Not Modify Plug. Unplug Power
Cord Before Servicing Machine
If the supply cord is damaged or broken, it must
be replaced by the manufacturer or it’s service
agent or a similarly qualified person in order to
avoid a hazard.
WARNING: Do Not Use Outdoors. Do Not
Expose to Rain. Store Indoors.
The following information signals potentially
dangerous conditions to the operator or
equipment:
FOR SAFETY:
1. Do not operate machine:
–Unless trained and authorized.
–Unless operator manual is read and
understood.
–In flammable or explosive areas.
–Unless safety goggles are worn.
–Unless cord is properly grounded.
–With damaged cord or plug.
–If not in proper operating condition.
–In outdoor areas.
–In standing water.
–With the use of an extension cord.
2. Before operating machine:
–Make sure all safety devices are in place
and operate properly.
–Place “WET FLOOR”signs as needed.
3. When using machine:
–Do not run machine over cord.
–Do not pull machine by plug or cord.
–Do not pull cord around sharp edges or
corners.
–Do not unplug by pulling on cord.
–Do not stretch cord.
–Do not handle plug with wet hands.
–Follow mixing, handling, and disposal
instructions provided on chemical
container instructions and MSDS sheets.
–Never point spray gun at a person’s face.
–Do not spray solution into electrical
outlets, switches, fuse boxes or on
electrical appliances.
–Keep cord away from heated surfaces.
–Report machine damage or faulty
operation immediately.
–Wear rubber sole traction boots to prevent
slipping.
4. Before leaving or servicing machine:
–Turn off machine.
–Unplug cord from wall outlet.
5. When servicing machine:
–Unplug cord from wall outlet.
–Avoid moving parts. Do not wear loose
jackets, shirts, or sleeves.
–Use manufacturer supplied or approved
replacement parts.

ENGLI H EN
750 (08–02) 5

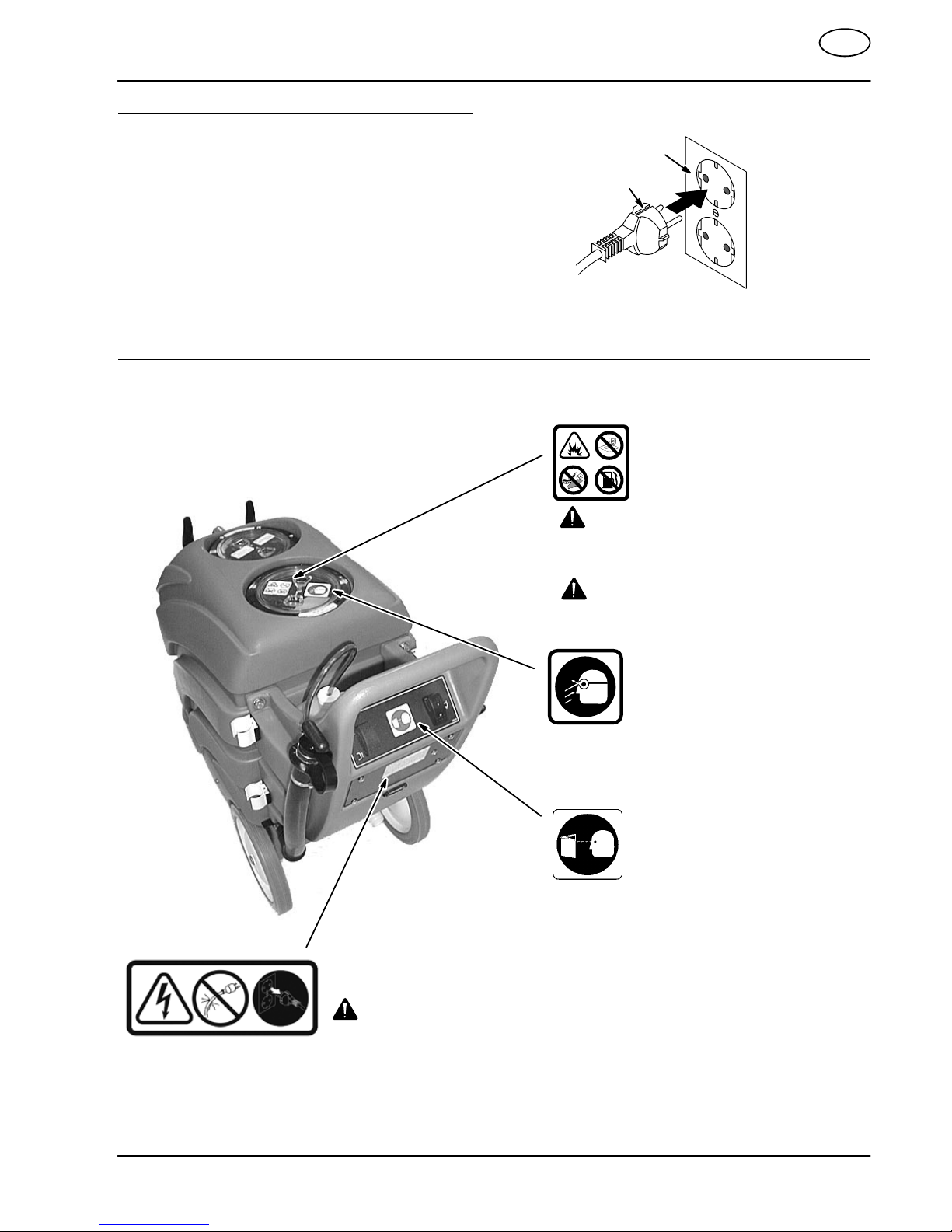

GROUNDING INSTRUCTIONS
Machine must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electrical current to
reduce the risk of electrical shock. This machine
is equipped with a cord having an
equipment–grounding conductor and grounding
plug. The plug must be plugged into an
appropriate outlet that is properly installed in
accordance with all local codes and ordinances.
Grounded Outlet
Grounding
Edge/hole
SAFETY LABELS
FOR SAFETY LABEL
–Located on dash panel.
FLAMMABLE MATERIALS/
SPILLS LABEL –Located on
the recovery tank lid.
609756
FOR SAFETY LABEL
–Located on recovery tank lid.
FOR SAFETY: Do not operate
machine unless safety goggles
are worn.
FOR SAFETY: Do not operate
machine unless operator manual
is read and understood.
If the supply cord is damaged or broken, it must be replaced by the manufacturer
or it’s service agent or a similarly qualified person in order to avoid a hazard.
HAZARDOUS VOLTAGE LABEL
–Located on handle housing.
WARNING: Do Not Operate With Damaged
Power Cord. Do Not Modify Plug. Unplug
Power Cord Before Servicing Machine
WARNING: Do Not Use Flammable
Liquids Or Operate Machine In Or
Near Flammable Liquids, Vapors
Or Combustible Dusts.
WARNING: Do Not Pick Up
Flammable Materials Or
Reactive Metals.
The safety labels appear on the machine in the
locations indicated. Replace labels if they be-
come damaged or illegible.
Failure to follow these warning labels may
result in: personal injury, electric shock,
electrocution, fire or explosion:

EN ENGLI H
6750 (08–02)
MACHINE COMPONENTS
3
4
13
11
7
5
12
10
12
6
8
9
15
14
16
17
18
19
21
24
30
22
20
29 28
23
27
25 26
1. Vacuum/Blower ON/OFF Switch
2. Pump ON/OFF Switch
3. Hour Meter
4. Blower Hose Connector
5. 15M Power Cord
6. Accessory Tools and Cleaning Agent Container
Compartment
7. Cleaning Agent Injector Hose
8. Two Piece Double Bend Wand
9. Floor Brush
10. Recovery Tank
11. Recovery Tank Drain Hose
12. Solution Tank
13. 12 in. (305mm) Stair Climbing Wheels
14. Vacuum Hose Storage Hooks
15. Vacuum Hose Connector
16. Spray Gun Storage Hook
17. Solution Hose Connection Coupler
18. Cleaning Agent ON/OFF Lever
19. Internal Component Access Latches
20. Solution Tank Fill Hose
21. 7.6 M Vacuum Hose (Black)
22. 7.6 M Blower Hose (Gray)
23. Blower Hose Nozzle
24. Spray Gun and Solution Hose
25. 14 in. (356mm) Squeegee Floor Tool Attachment
26. Glass Squeegee Hand Tool
27. Gulper Tool Vacuum Hose Attachment
28. “Formula 710 Cleaner”Agent (option)
29. “Formula 720 Rinse”Agent (option)
30. Grease Gun for Solution Pump

ENGLI H EN
750 (08–02) 7
UNPACKING MACHINE
Carefully check carton for signs of damage. Report
damages to carrier immediately.
Check Carton Contents to ensure carton is complete.
Contact distributor for missing items.
Carton Contents:
–Machine
–Black Vacuum Hose
–Gray Blower Hose
–Two Piece Double Bend Wand
–Squeegee Tool Attachment
–Glass Squeegee Hand Tool
–Gulper Tool
–Blower Nozzle
–Fill Hose
–Spray Gun, Spray Nozzle and Solution Hose
–Floor Brush Attachment
–Telescoping Wand for Floor Brush
–3 Metering Tips (bagged separately)
–Injector Tube Cap (Installed on blue tube)
–Grease Gun for Solution Pump Motor

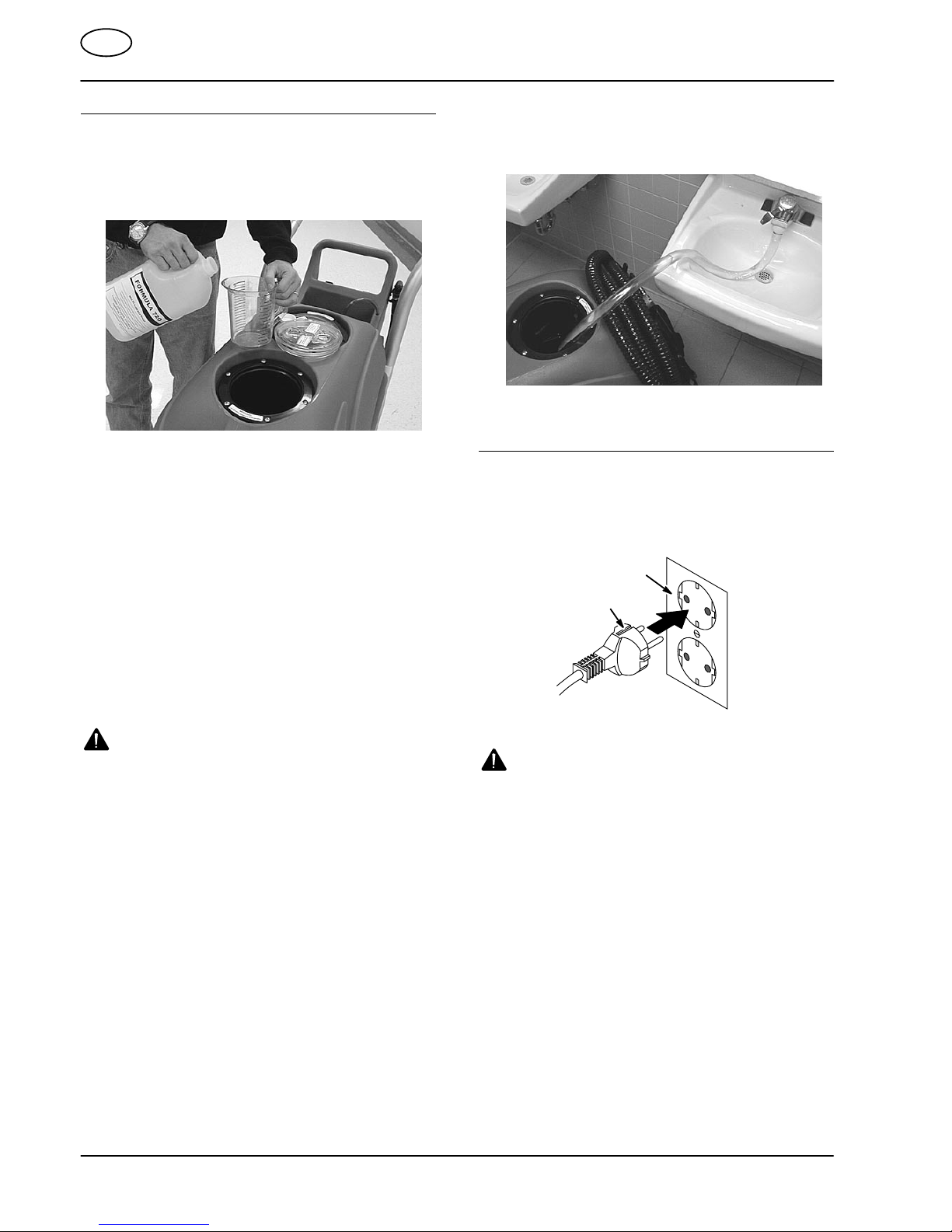

PREPARING MACHINE FOR CLEANING
APPLICATION
INSTALLING THE LIQUID CLEANING AGENT
(FORMULA 710) CONTAINER
“Formula 710 Multi-Surface Acid Cleaner”agent is
specifically designed and recommended for use in this
machine. It is formulated to clean soap scum, hard
water scale, and soils typically found in restrooms,
showers, swimming pool areas, etc. Use only on
water-resistant surfaces. To order the “Formula 710
Multi-Surface Acid Cleaner”or an approved substitute,
contact your Tennant supplier.
ATTENTION: Use of unapproved or inappropriate
chemicals may cause damage to machine and
surfaces and could void your warranty
FOR SAFETY: When using machine, follow
mixing, handling, and disposal instructions
provided on chemical container instructions and
Material Safety Data Sheets (MSDS).
1. Remove cap from the blue injector tube. Do not
misplace cap (Figure 1). Use cap to prevent injector
tube from clogging when machine is not in use.
FIG. 1
2. Select the desired metering tip (Tips supplied with
machine) and thread tip into the blue injection tube
on the machine (Figure 2). Dispensing rates
shown are for the “Formula Multi-Surface Acid
Cleaner”agent. Substitute agents may have
different dispensing rates. The orange tip is
factory installed on .
Orange Tip= 15ml./L (2 oz. per gallon)
for light cleaning.
Red Tip= 30ml./L (4 oz. per gallon)
for medium cleaning.
Blue Tip= 44ml./L (6 oz. per gallon)
for heavy cleaning.
FIG. 2
3. Place the cleaning agent container into the
accessory tools/cleaning agent compartment.
Remove cap from container and attach blue
injector tube cap. Push blue tube to bottom of
container (Figure 3).
FIG. 3
ATTENTION: Do not add acid cleaning agent
(Formula 710) to the solution tank.

EN ENGLI H
8750 (08–02)
FILLING SOLUTION TANK

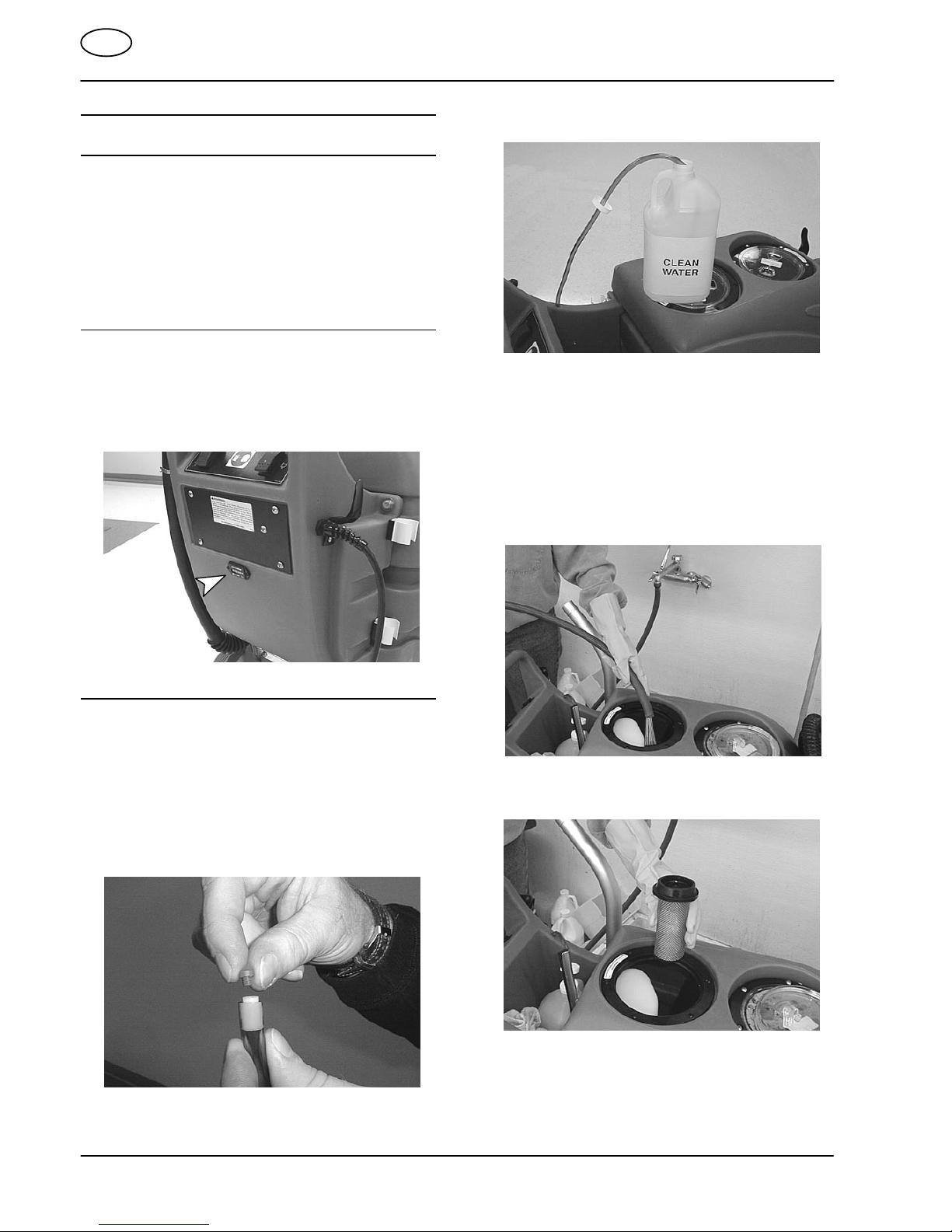

1. Remove the front solution tank lid from the machine
and pour “Formula 720 Rinse”agent or an approved
substitute into the solution tank. Follow the mixing
instructions on the bottle (Figure 4).
FIG. 4
“Formula 720 Rinse”agent is specifically designed and
recommended for use in this machine. It is intended to
be used for rinsing surfaces after cleaning. The
“Formula 720 Rinse”agent will reduce water spotting
and speed up drying time. To order the “Formula 720
Rinse”agent or an approved substitute, contact your
Tennant supplier.
ATTENTION: Use of unapproved or inappropriate
chemicals may cause damage to machine and
surfaces and could void your warranty
FOR SAFETY: When using machine, follow
mixing, handling, and disposal instructions
provided on chemical container instructions and
Material Safety Data Sheets (MSDS).
WARNING: Do Not Use Flammable Liquids Or
Operate Machine In Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
2. Connect the fill–hose (supplied with machine) to the
water faucet and fill the solution tank with 57 liters of
clean water (Figure 5). If using hot water, do not
exceed 60°C.
FIG. 5
3. Replace solution tank lid after filling.
CONNECTING POWER CORD TO WALL OUTLET
1. Connect the power cord into a grounded wall
outlet (Figure 6). Use a wall outlet outside the area
to be cleaned.
Grounded Outlet
Grounding
Edge/hole
FIG. 6
WARNING: Do Not Operate With Damaged
Power Cord. Do Not Modify Plug. Unplug Power
Cord Before Servicing Machine
If the supply cord is damaged or broken, it must
be replaced by the manufacturer or it’s service
agent or a similarly qualified person in order to
avoid a hazard.
FOR SAFETY: Do not operate machine with the
use of an extension cord.

ENGLI H EN
750 (08–02) 9
CLEANING APPLICATION
FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
ATTENTION: The machine is designed to clean
water–resistant surfaces only; such as concrete,
ceramic tile, quarry tile, glass, sinks, urinals,
toilets, restroom partitions, showers, pipes,
mirrors and other areas subject to soap, mineral
deposits and daily soils.
Cleaning Application is not recommended on
painted plaster board/dry wall and wall papered
surfaces.
Contact your local distributor for recommended
cleaning agents for cleaning kitchens, stair wells,
windows, etc.
ATTENTION: Floors should be sealed to prevent
water seepage. Inspect all grout lines, seams,
corners, etc. for cracks. Repair as needed. We are
not responsible for any water damage.

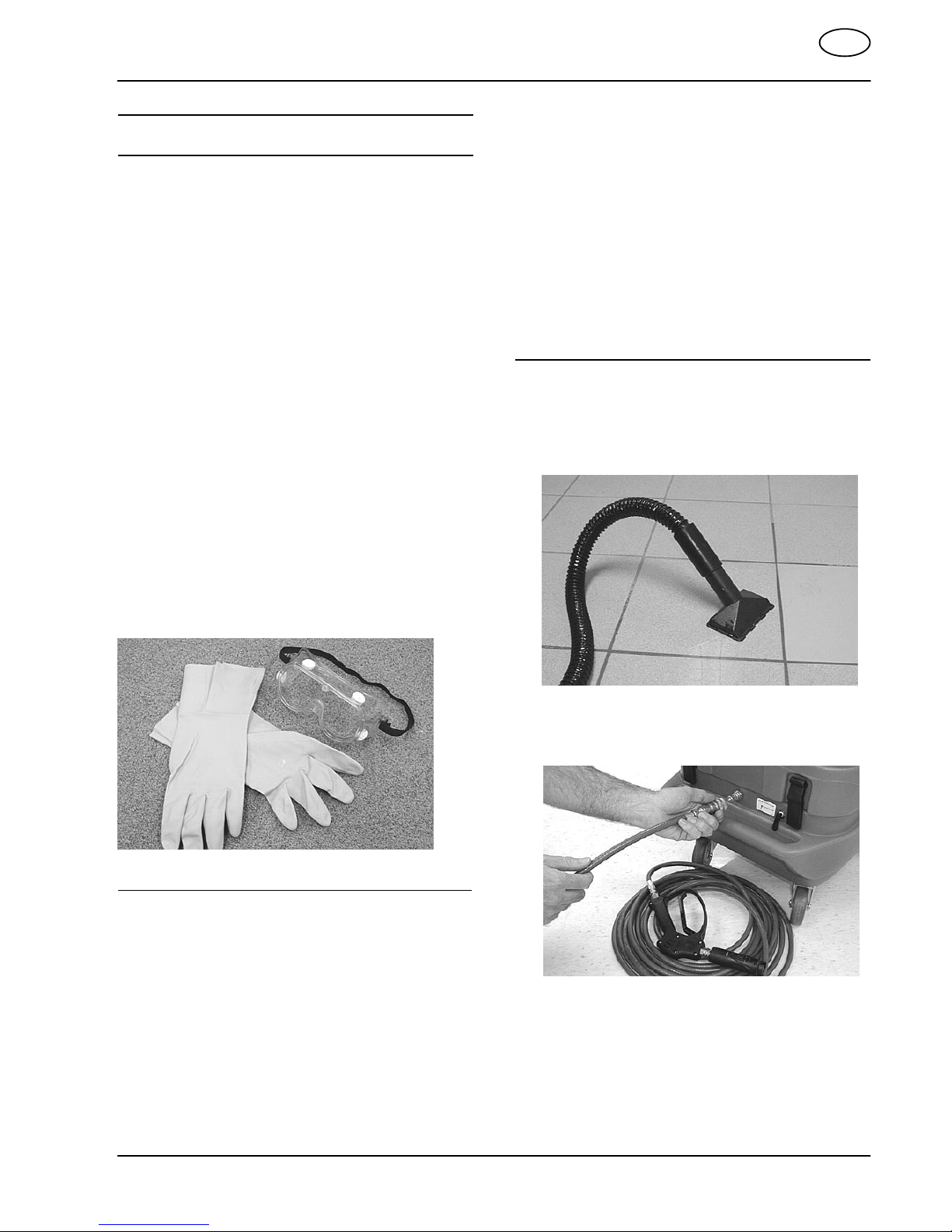

Safety goggles, protective gloves and protective
clothing (not supplied) are required while cleaning.
Safety goggles must be designed to protect eyes from
liquid splash (Figure 7).
FOR SAFETY: Do not operate machine, unless
safety goggles are worn.
FIG. 7
A: PREPARING AREA
1. Sweep area of debris.
2. Remove trash containers from room.
3. Remove exposed paper products from room.
4. Dust clean overhead fixtures and vents. The
machine is also designed for dust cleaning (See
OTHER CLEANING USES WITH MACHINE).
5. Flush all fixtures in restrooms and keep lids open
on toilets.
6. Protect all electrical outlets, switches, fuse boxes,
and connective devices with waterproof shields.
7. Cover any exposed item that you do not want to
get wet.
8. Position machine in doorway to block access to
area.
9. Use a door stop to prevent hose damage. Do not
close doors on hoses.
FOR SAFETY: Before operating machine, place
“WET FLOOR”signs as needed.
B: APPLYING CLEANING AGENT (FORMULA 710)
1. If area is not equipped with a floor drain, connect
the black recovery hose at the front of machine,
attach gulper tool and place the tool where water
may puddle when operating (Figure 8).
FIG. 8
2. Connect the spray gun to solution hose then
connect the hose to the coupler at front of the
machine (Figure 9).
FIG. 9

EN ENGLI H
10 750 (08–02)
3. Turn the cleaning agent on/off lever to the on
position ( I ), located at the front of machine
(Figure 10).
FIG. 10
NOTE: To operate spray gun at LOW PRESSURE
without the use of cleaning agent, turn the cleaning
agent on/off lever to the (O) position.
4. Adjust the gun to low pressure by pushing the
spray nozzle outward. Turn the spray nozzle
counter–clockwise for a fan spray pattern
(Figure 11).
FIG. 11
5. Activate the pump switch. Press the
vacuum/blower switch towards the vacuum
symbol if using the gulper tool (Figure 12).
FIG. 12
6. Starting at the furthest point in room, begin spraying
the entire area from bottom to top working towards
the machine. The cleaning agent (Formula 710) may
take up to 5 seconds before it starts to inject. After
spraying the entire area, turn the machine off and
allow the cleaning agent to work for 5–10 minutes
(Figure 13).
FIG. 13
NOTE: It may take the pump 5–10 seconds to prime.
Nozzle must be set at low pressure in order for pump
to prime.
FOR SAFETY: When using machine, do not spray
solution into electrical outlets, switches, fuse
boxes or on electrical appliances.
NOTE: After applying cleaning agent, turn the
cleaning agent on/off lever to the (O) position and
rinse the gun of cleaning agent.
7. While the cleaning solution is working, use the
brush tool to scrub corners, cove base and heavily
soiled areas (Figure 14).
FIG. 14

ENGLI H EN
750 (08–02) 11
C: RINSING AREA
FOR SAFETY: Do not operate machine unless
safety goggles are worn.
NOTE: Use the gulper tool if the area is not equipped
with a floor drain.
1. Adjust the spray gun to high pressure by pulling
the spray nozzle inward (Figure 15).
FIG. 15
2. Activate the pump switch. If using the gulper tool,
press the vacuum/blower switch towards the
vacuum symbol (Figure 16).
FIG. 16
3. Begin rinsing entire area from top to bottom. Turn
the spray nozzle clockwise to pin–point grout lines,
and to clean heavily soiled and hard to reach
areas (Figure 17).
NOTE: Operating the gun at high pressure will
automatically stop injecting cleaning agent.
FIG. 17
FOR SAFETY: When using machine, do not spray
solution into electrical outlets, switches, fuse
boxes or on electrical appliances.
FOR SAFETY: When using machine, never point
spray gun at a person’s face.
4. To operate the spray gun at low pressure without
dispensing cleaning agent, turn the cleaning agent
on/off lever to the (O) position (Figure 18).
FIG. 18
5. If solution tank runs dry while operating, you must
operate the spray gun at low pressure to reprime
the pump. DO NOT OPERATE PUMP DRY.
6. After thoroughly rinsing the entire area, shut the
machine off. Wipe off solution hose and return the
gun to the storage hook.
ATTENTION: Relieve water pressure from spray
gun before disconnecting hose.

EN ENGLI H
12 750 (08–02)
D: BLOW DRYING AND SQUEEGEEING
NOTE: The use of the “Formula 720 Rinse”agent will
help reduce the need and time required for blow drying
surfaces.
1. Using the glass squeegee tool (supplied with
machine), wipe clean the mirrors if applicable
(Figure 19).
FIG. 19
2. Unwrap the gray blower hose from the machine
handle and connect it to the rear of machine as
shown. Then attach the blower nozzle to the hose
(Figure 20).
ATTENTION: Do not use black recovery hose
when blow drying. Contaminates will be blown
into the air.
FIG. 20
3. Press the vacuum/blower switch towards the
blower symbol to activate the blower (Figure 21).
FIG. 21
4. Begin blow drying the surfaces from top to bottom,
directing the rinse solution to the floor. When
finished, shut off blower, wipe off hose and replace
it on machine (Figure 22).
FIG. 22
5. Assemble the double–bend wand, attach
squeegee tool and connect wand to black
recovery hose. Connect the black recovery hose
to front of machine as shown (Figure 23).
FIG. 23
6. Press the vacuum/blower switch towards the
vacuum symbol (Figure 24).
FIG. 24

ENGLI H EN
750 (08–02) 13
7. Start at the doorway and extract the entire area
with floor squeegee. Operator should always be
standing on a dry surface when operating the floor
wand (Figure 25).
FIG. 25
WARNING: Do Not Pick Up Flammable
Materials Or Reactive Metals.
8. While cleaning, periodically check for excessive
foam in the recovery tank. Pour a recommended
foam control solution into the recovery tank if
excessive foam appears. This will prevent vacuum
motor damage (Figure 26).
FIG. 26
ATTENTION: Excessive foam buildup will not
activate the float shut-off screen.
9. If the squeegee begins to trail water while
operating, the recovery tank must be drained (See
DRAINING TANKS).
10. When finished cleaning, turn the machine off and
wipe off the blower and vacuum hoses. Store the
hoses on the machine after cleaning.
11. Push the machine to the drain sit and empty the
recovery tank.
NOTE: After cleaning one area, it is best to empty the
recovery tank before proceeding to the next area to be
cleaned.
DRAINING TANKS
When finished cleaning, the recovery tank should be
drained and cleaned. If you have left–over rinse
solution, it can remain in solution tank for the next use.
Drain the solution tank when storing the machine for
extended periods or when transporting machine.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
DRAINING RECOVERY TANK
Recovery tank must be emptied prior to refilling the
solution tank.
1. Turn the machine off, unplug the power cord and
push the machine to the drain site.
2. Remove the drain hose from holder. Turn the drain
hose knob counter–clockwise approximately three
full turns and pull out the plug to drain. Keep the
hose above water level when removing plug
(Figure 27).
FIG. 27
3. Rinse out the recovery tank after each use to
prevent a foul odor. Be careful not to spray the
water into the float shut–off screen.
4. Replace the drain hose plug tightly after draining.

EN ENGLI H
14 750 (08–02)
ELEVATED DRAINING
Use the convenient pump–out procedure if the drain
site exceeds 33 cm. in height.
1. Attach the gray blower hose to the blower hose
connector and to the vacuum hose connector
(Figure 28).
FIG. 28
ATTENTION: Make sure recovery tank lid is secure
before activating blower.
2. Remove the drain hose knob, direct the hose into
the elevated drain site and activate the blower
switch (Figure 29).
FIG. 29
EMPTYING SOLUTION TANK
1. Connect the black recovery hose at the front of
the machine and remove the solution tank lid.
2. Press the vacuum/blower switch towards the
vacuum symbol.
3. Extract the remaining rinse solution from the
solution tank and flush out the tank with clean
water (Figure 30).
FIG. 30
4. Turn off machine, unplug the power cord and the
drain recovery tank.
OTHER CLEANING USES WITH MACHINE
BLOWER HOSE CLEANING
Use the gray blower hose to blow out the debris from
hard to reach areas and to remove dust and cobwebs
from overhead fixtures and vents (Figure 31).
ATTENTION: Do not use machine for dry pick–up.
FIG. 31

ENGLI H EN
750 (08–02) 15
CARPET CLEANING (OPTION)
The machine can be used to clean carpet with the use
of an optional carpet cleaning floor tool (See
OPTIONS).
1. Connect the fill–hose (supplied with machine) to the
water faucet and fill the tank with 57 liters of hot
water, 60°C maximum temperature.
DO NOT ADD CLEANING AGENTS TO
SOLUTION TANK, certain cleaning agents may
damage pump. Use a pump–up sprayer to apply the
cleaning agent mix to the carpet.
WARNING: Do Not Use Flammable Liquids Or
Operate Machine In Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
2. Use the equipped vacuum and solution hoses and
connect them to floor tool and then to front of
machine (Figure 32).
FIG. 32
3. Turn the cleaning agent on/off lever to the ( I )
position, located at the front of the machine
(Figure 33).
FIG. 33
4. Activate the pump switch and press the
vacuum/blower switch towards the vacuum
symbol (Figure 34).
FIG. 34
5. Operate the floor tool as normal (Figure 35).
WARNING: Do Not Pick Up Flammable
Materials Or Reactive Metals.
FIG. 35
6. After cleaning, relieve the water pressure from the
tool before disconnecting the hose. Squeeze the
trigger for five seconds after turning switches off.
7. Perform the recommended maintenance
procedures (See MACHINE MAINTENANCE).

EN ENGLI H
16 750 (08–02)
MACHINE MAINTENANCE
To keep the machine in good working condition, follow
the machine’s daily, monthly and quarterly
maintenance procedures.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
ATTENTION: Machine repairs must be performed
by authorized personnel only.
HOUR METER
Each machine is equipped with an hour meter to
record total hours of pump use. Use the hour meter to
determine when to perform recommended
maintenance procedures and to record service history
(Figure 36).
FIG. 36
DAILY MAINTENANCE
1. Clean the metering tip and flush out the blue
injector tube as described below:
a. Fill the solution tank with 11 liters of clean
water.
b. Remove the metering tip from the injector tube
and clean the tip. Do not use pointed objects
such as pins and paper clips to unplug the tips
(Figure 37).
FIG. 37
c. Submerge the end of injector tube into a 4.4
liter container of clean water (Figure 38).
FIG. 38
d. Adjust the spray gun to the low pressure by
pushing the spray nozzle outward.
e. Turn the cleaning agent on/off lever to the ( I )
position, located at the front of the machine.
f. Turn the pump switch on and operate the
spray gun for approximately one minute.
g. Place cap on the injector hose after flushing.
2. Drain and rinse the recovery tank thoroughly
(Figure 39).
FIG. 39
3. Remove the float shut–off screen from the
recovery tank and clean (Figure 40).
FIG. 40
4. Empty any leftover water from the solution tank if
storing machine for an extended period or if
transporting the machine (See DRAINING
TANKS).

ENGLI H EN
750 (08–02) 17
5. Wipe clean all the accessories and replace them
on the machine. Inspect the vacuum hoses for
holes and loose cuffs.
6. Inspect the condition of the squeegee blades,
replace if necessary.
7. Wipe clean the power cord and check for damage.
Replace if necessary. Coil the cord neatly after
use.
WARNING: Do Not Operate With Damaged
Power Cord. Do Not Modify Plug. Unplug Power
Cord Before Servicing Machine
If the supply cord is damaged or broken, it must
be replaced by the manufacturer or it’s service
agent or a similarly qualified person in order to
avoid a hazard.
8. Clean the machine with an all purpose cleaner and
damp cloth (Figure 41).
FIG. 41
9. Inspect the spray gun pattern. Clean or replace
the orifice if the spray pattern will not pin–point.
Use a 5/64”Allen wrench to remove orifice
(Figure 42).
FIG. 42
MONTHLY MAINTENANCE
1. Flush the solution system with an acetic acid
solution to dissolve normal alkaline chemical
buildup.
a. Premix .5 liters of an acetic acid solution with
7.5 liters of hot water, 60_C maximum, and
pour into the solution tank.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
b. Turn the pump switch to the on position.
c. Over a floor drain operate the spray gun for
one minute.
d. Shut off the machine and allow the remaining
solution to break down alkaline buildup
overnight.
e. Next day, spray out the remaining solution and
flush the system with 11 liters of clean water.
2. Lubricate the wheels and casters with a water
resistant oil.
3. Inspect the machine for water leaks and loose
hardware.
4. Every 40 hours of use, the pump must be
greased. Refer to hour meter. Each new machine
is equipped with a grease gun (#190022).
a. Open the machine to access the pump (See
ACCESSING INTERNAL COMPONENTS).
b. Remove the safety cover from the pump by
pinching the tabs and pulling outward.
c. Insert the grease gun nozzle onto pump’s
grease fitting (Figure 43).
d. Slowly push the plunger completely down one
to two times. Do not over grease pump, the
seals may damage.
ATTENTION: Do not use air powered or hand lever
grease guns, pump damage may result.
e. Apply a generous dab of grease to the outer
diameter of the cam bearing at the top and
bottom where the bearing contacts the
connecting rod.
f. Check the pump periodically and remove any
excess grease from the pump cavity.
FIG. 43

EN ENGLI H
18 750 (08–02)
QUARTERLY MAINTENANCE
Every 250 hours of use, check the vacuum motors for
carbon brush wear. Replace the brushes if worn to a
length of 10mm or less (Figure 44). Contact your
Authorized Service Center for carbon brush
inspection.
FIG. 44
ACCESSING INTERNAL COMPONENTS
The machine is designed to hinge open to access
internal components. Follow the steps below to open
machine.
ATTENTION: Machine repairs must be performed
by authorized personnel only.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
1. Empty the recovery and solution tanks before
opening the machine.
2. Unplug the power cord from wall outlet.
3. Unlatch the two latches at the front of the machine
and carefully hinge the machine open (Figure 45).
FIG. 45
4. When closing the machine, make sure the hoses
are not pinched or kinked.
STORING MACHINE
1. Before storing the machine, perform the
recommended maintenance procedures (See
MACHINE MAINTENANCE).
2. Store the machine in a dry area in the upright
position.
3. Open the recovery tank cover to promote air
circulation.
WARNING: Do Not Use Outdoors. Do Not
Expose to Rain. Store Indoors.
ATTENTION: DO NOT ALLOW MACHINE TO
FREEZE WITH WATER IN PUMP SYSTEM.
STORING MACHINE IN FREEZING
TEMPERATURES
1. Drain and rinse tanks thoroughly.
2. Pour 1 liter of undiluted standard antifreeze into
solution tank.
3. Spraying into a bucket, operate spray gun for 30
seconds at low pressure.
4. Allow antifreeze to remain in system.
RECOMMENDED STOCK ITEMS
Refer to the Parts List section for recommended stock
items. Stock Items are clearly identified with a bullet
preceding the parts description. See example below:

ENGLI H EN
750 (08–02) 19
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
Machine does not operate. Faulty power cord. Contact Service Center.
Building circuit breaker tripped. Reset breaker.
Spray gun does not operate. Air in pump system. Operate spray gun at low pressure to
prime pump.
Empty solution tank. Fill solution tank.
Pump switch not activated. Activate pump switch.
Kink in solution hose Unwind hose.
Plugged spray gun nozzle. Clean Nozzle.
PLugged solution tank filter Unplug filter.
Loose solution hose connection. Properly connect solution hose to
coupler.
Kinked or plugged internal pump hose. Unkink or unplug pump hose.
Faulty pump. Contact Service Center.
Faulty pump switch or wiring. Contact Service Center.
Faulty spray gun. Replace spray gun.
No vacuum suction. Vacuum/blower switch is pressed
towards blower symbol. Press switch towards vacuum symbol.
Faulty vacuum/blower switch or wiring. Contact Service Center.
Defective vacuum motor. Contact Service Center.
Worn carbon brushes. Contact Service Center.
Poor vacuum suction. Clogged float shut–off screen. Remove recovery tank lid and clean
lint off screen.
Full recovery tank. Empty recovery tank.
Loose recovery tank lid. Tighten recovery tank lid.
Loose vacuum hose connections. Secure connections.
Defective vacuum hose. Replace hose.
Loose vacuum hose cuffs. Secure cuffs to hose.
Defective squeegee tool. Replace squeegee blades.
Cleaning agent is not injecting. Spray gun set to high pressure. Set gun to low pressure.
Plugged metering tip. Remove metering tip and clean.
Plugged injection tube. Unplug injection tube.
Empty cleaning agent container. Replace with new container.
Cleaning agent on/off lever turned off. Turn the cleaning agent on/off lever to
( I ) position.
Injector tube not is submerged in
cleaning agent container. Submerge injector tube to bottom of cleaning container.
Plugged cleaning agent Injector. Remove and clean injector. When
replacing injector, point arrow towards
spray gun.
No air–flow from blower hose. Loose blower hose connection. Secure hose connection.
Defective blower motor. Contact Service Center.
Worn carbon brushes in blower motor. Contact Service Center.

EN ENGLI H
20 750 (08–02)
SPECIFICATIONS
Model TENNANT 750
LENGTH 927 mm
WIDTH 470 mm
HEIGHT 953 mm
WEIGHT 57 Kg / 64 Kg with accessories
SOLUTION TANK CAPACITY 157 L
RECOVERY TANK CAPACITY 72 L
SOLUTION PUMP 230V, rated 500 psi, 3.7 A
PUMP FLOW RATES (MAX) High Pressure: 1 gal (3.8 L) per min. Low Pressure: 1.5 gal (5.7 L) per min.
SPRAY GUN PRESSURE Low Pressure: 45 psi High Pressure: 300 psi/400 psi dead head
INJECTOR SYSTEM Vacuum Feed
METERING TIP RATES Orange Tip= 15ml./L (2 oz. per gallon)
Red Tip= 30ml./L (4 oz. per gallon)
Blue Tip= 44ml./L (6 oz. per gallon)
VACUUM MOTOR (BLOWER) 230V, 5.8 A, 1331 W, 2 stage
VACUUM MOTORS (RECOVERY) 230V, 7.0 A, 1566 W, 3 stage
SEALED WATER LIFT 298 c m
TOTAL POWER CONSUMPTION 230 V, 11.0 A
POWER CORD LENGTH 15 M
MACHINE DIMENSIONS
470 mm
927 mm
953 mm
