Terex Genie S-100HD Installation and operating manual

Service and Repair Manual
Part No. 1268495
Rev A1
September 2016
Serial Number Range
from S100HD14D - 200
to S-100HD16D-229
from S120HD14D - 201
to S-120HD16D-229
S-100HD
S-120HD
This manual includes:
Repair procedures
Fault Codes
Electrical and Hydraulic
Schematics
For detailed maintenance
procedures, Refer to the
appropriate Maintenance
Manual for your machine.
from S-100HDD-230
from S-120HDD-230

September 2016
S-100HD • S-120HD Part No. 1268495
ii
Introduction
Important
Read, understand and obey the safety rules and
operating instructions in the Genie S-100HD
Operator's Manual or the Genie S-120HD
Operator's Manual before attempting any
maintenance or repair procedure.
This manual provides troubleshooting and repair
procedures for qualied service professionals.
Basic mechanical, hydraulic and electrical skills are
required to perform most procedures. However,
several procedures require specialized skills,
tools, lifting equipment and a suitable workshop.
In these instances, we strongly recommend that
maintenance and repair be performed at an
authorized Genie dealer service center.
Compliance
Machine Classication
Group B/Type 3 sa dened by ISO 16368
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Copyright © 2015 by Terex Corporation
1268495 Rev A1 September 2016
First Edition, Third Printing
Genie is a registered trademark of Terex South
Dakota, Inc. in the U.S.A and many other countries.
"S" is a trademark of Terex South Dakota, Inc.
Printed on recycled paper
Printed in U.S.A.
Introduction
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
http://www.genielift.com
e-mail: [email protected]
Find a Manual for this Model
Go to http://www.genielift.com
Use the links to locate Operator's, Parts or Service
Manuals.

September 2016
Part No. 1268495 S-100HD • S-120HD iii
Revision History
INTRODUCTION
Revision Date Section Procedure / Page / Description
A 9/2015 Release
A1 9/2016 Introduction Serial Number Legend
Reference Examples:
Electronic Version
Click on any content or procedure in the Table of Contents to view
the update.
Section - Repair Procedure, 4-2
Section - Fault Codes, All charts
Section - Schematics, Legends and schematics

September 2016
S-100HD • S-120HD Part No. 1268495
iv

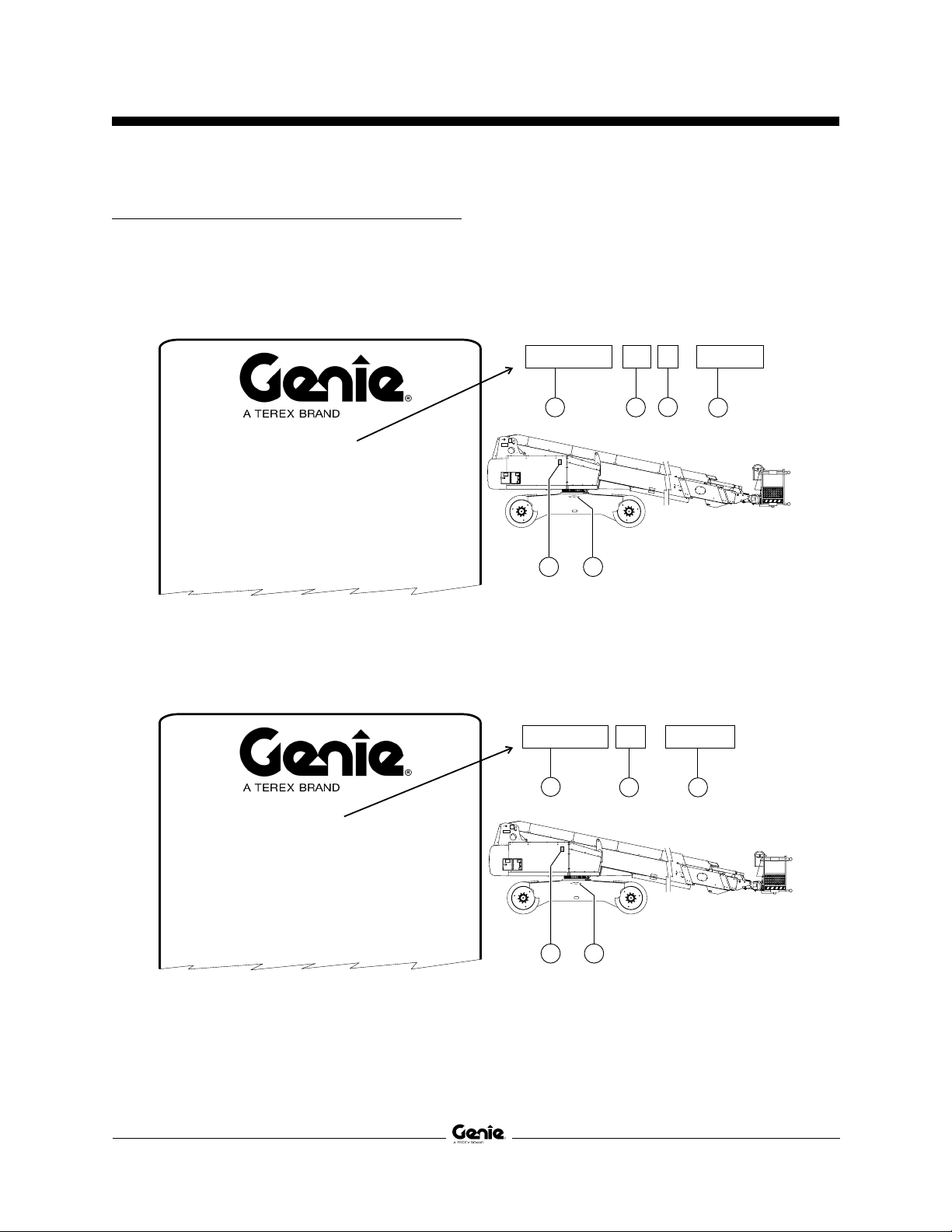

Serial Number Legend
INTRODUCTION
Model:
Serial number:
Electrical schematic number:
Year of manufacture:
Machine unladenweight:
Rated work load(including occupants):
Maximum numberofplatformoccupants:
Maximumallowable side force:
Maximumallowable inclination of thechassis:
S120HDD-12345
2016
S 0HD D-1234512
123
45
Model:
Serial number:
Model year:
Electrical schematic number:
Manufacturedate:
Machine unladenweight:
Rated work load(including occupants):
Maximum numberofplatformoccupants:
Maximumallowable side force:
Maximumallowable inclination of thechassis:
S120HD16D-12345
1/2/16 2016
S120HD 1 D-123456
1234
56
To August 31, 2016
1 Model
2 Model year
3 Facility code
4 Sequence number
5 Serial label (located under cover)
6 Serial number (stamped on chassis)
From September 1, 2016
1 Model
2 Facility code
3 Sequence number
4 Serial label (located under cover)
5 Serial number (stamped on chassis)

September 2016
Part No. 1268495 S-100HD • S-120HD
Danger
Failure to obey the instructions and safety rules in
this manual, and the Genie S-100DH Operator's
Manual or the Genie S-120HD Operator's Manual
will result in death or serious injury.
Many of the hazards identied in the operator's
manual are also safety hazards when maintenance
and repair procedures are performed.
Do Not Perform Maintenance
Unless:
You are trained and qualied to perform
maintenance on this machine.
You read, understand and obey:
- manufacturer’s instructions and safety rules
- employer’s safety rules and worksite
regulations
- applicable governmental regulations
You have the appropriate tools, lifting
equipment and a suitable workshop.
Safety Rules
Section 1 • Safety Rules
v

September 2016
S-100HD • S-120HD Part No. 1268495
vi
SAFETY RULES
Section 1 - Safety Rules
Be sure to wear protective eye wear and
other protective clothing if the situation
warrants it.
Be aware of potential crushing hazards
such as moving parts, free swinging or
unsecured components when lifting or
placing loads. Always wear approved steel-toed
shoes.
Workplace Safety
Be sure to keep sparks, ames and
lighted tobacco away from ammable
and combustible materials like battery
gases and engine fuels. Always have an approved
re extinguisher within easy reach.
Be sure that all tools and working areas
are properly maintained and ready for
use. Keep work surfaces clean and free
of debris that could get into machine components
and cause damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is fully
capable of supporting and stabilizing the
weight to be lifted. Use only chains or straps that
are in good condition and of ample capacity.
Be sure that fasteners intended for one
time use (i.e., cotter pins and self-locking
nuts) are not reused. These components
may fail if they are used a second time.
Be sure to properly dispose of old oil or
other uids. Use an approved container.
Please be environmentally safe.
Be sure that your workshop or work area
is properly ventilated and well lit.
Personal Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Read each procedure thoroughly. This manual and
the decals on the machine, use signal words to
identify the following:
Safety alert symbol—used to alert
personnel to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Used to indicate the presence of
an imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
Used to indicate the presence of
a potentially hazardous situation
which, if not avoided, could result
in death or serious injury.
With safety alert symbol—used
to indicate the presence of a
potentially hazardous situation
which, if not avoided, may cause
minor or moderate injury.
Used to indicate the presence of
a potentially hazardous situation
which, if not avoided, may result in
property damage.

September 2016
Part No. 1268495 S-100HD • S-120HD
Table of Contents
Introduction
Important Information................................................................................................... ii
Find a Manual for this Model........................................................................................ ii
Revision History............................................................................................................iii
Serial Number Legend ................................................................................................ iv
Section 1 Safety Rules
General Safety Rules................................................................................................... v
Section 2 Specications
Machine Specications, S-100HD and S-120HD Models .......................................2 - 1
Performance Specications, S-120HD Models.......................................................2 - 2
Performance Specications, S-100HD Models.......................................................2 - 3
Hydraulic Specications..........................................................................................2 - 5
Hydraulic Component Specications ......................................................................2 - 6
Deutz Engine TD2011L04i Specications...............................................................2 - 7
Cummins Engine B3.3T C80 Specications ...........................................................2 - 9
Machine Torque Specications.............................................................................2 - 10
Manifold Plug Torque Specications.....................................................................2 - 10
Hydraulic Hose and Fitting Torque Specications ................................................2 - 11
Torque Procedure..................................................................................................2 - 12
SAE and Metric Fasteners Torque Charts ............................................................2 - 14
vii

September 2016
S-100HD • S-120HD Part No. 1268495
Section 3 Repair Procedures
Introduction .............................................................................................................3 - 1
Display Module........................................................................................................3 - 2
Platform Controls
1-1 Circuit Boards................................................................................................3 - 8
1-2 Membrane Decal ...........................................................................................3 - 9
1-3 Joystick Controllers .....................................................................................3 - 10
Platform Components
2-1 Platform .......................................................................................................3 - 17
2-2 Platform Leveling Cylinder ..........................................................................3 - 17
2-3 Platform Rotator ..........................................................................................3 - 19
2-4 Platform Level Sensor .................................................................................3 - 20
2-5 Platform Overload System ..........................................................................3 - 21
2-6 Platform Overload Recovery Message (Software V3.14 and later).............3 - 24
Boom Components
4-1 Cable Track .................................................................................................3 - 26
4-2 Boom ...........................................................................................................3 - 29
4-3 Boom Lift Cylinder .......................................................................................3 - 40
4-4 Extension Cylinders.....................................................................................3 - 42
4-5 Boom Extend/Retract Cables ......................................................................3 - 46
viii
TABLE OF CONTENTS

September 2016
Part No. 1268495 S-100HD • S-120HD
Section 3 Repair Procedures, continued
Engines
6-1 RPM Adjustment .........................................................................................3 - 50
6-2 Flex Plate ....................................................................................................3 - 50
6-3 Oil Pressure and Coolant Temperature Sending Units,
Cummins and Perkins Models.....................................................................3 - 52
6-4 Oil Pressure and Temperature Sending Units, Deutz Models.....................3 - 52
Ground Controls
7-1 Circuit Boards..............................................................................................3 - 53
7-2 Membrane Decal .........................................................................................3 - 54
7-3 Control Relays.............................................................................................3 - 55
Limit Switches
8-1 Limit Switches .............................................................................................3 - 58
8-2 Limit Switch and Level Sensor Locations....................................................3 - 61
8-3 Limit Switch Functions.................................................................................3 - 62
Hydraulic Pumps
9-1 Function Pumps ..........................................................................................3 - 65
9-2 Drive Pump..................................................................................................3 - 66
9-3 Auxiliary Pump ............................................................................................3 - 69
ix
TABLE OF CONTENTS

September 2016
S-100HD • S-120HD Part No. 1268495
Section 3 Repair Procedures, continued
Manifolds
10-1 Function Manifold Components, S-100HD Models .....................................3 - 71
10-2 Valve Adjustments - Function Manifold, S-100HD Models..........................3 - 75
10-3 Proportional Valves - Function Manifold......................................................3 - 76
10-4 Function Manifold Components, S-120HD Models .....................................3 - 77
10-5 Valve Adjustments - Function Manifold, S-120HD Models..........................3 - 81
10-6 Proportional Valves - Function Manifold......................................................3 - 82
10-7 Platform Manifold Components, S-100 and S-120 Models .........................3 - 83
10-8 Proportional Valves - Platform Manifolds ....................................................3 - 85
10-9 Platform Rotate Counterbalance Valve Manifold Components ...................3 - 85
10-10 Turntable Rotation Manifold Components...................................................3 - 86
10-11 Steer and Axle Extend/Retract Manifold Components ...............................3 - 87
10-12 Valve Adjustments - Steer and Axle Extend/Retract Manifold ....................3 - 89
10-13 Traction Manifold Components, 2WD .........................................................3 - 90
10-14 Traction Manifold Components, 4WD ........................................................3 - 92
10-15 Valve Adjustments - Traction Manifold........................................................3 - 96
10-16 Valve Coils...................................................................................................3 - 96
x
TABLE OF CONTENTS

September 2016
Part No. 1268495 S-100HD • S-120HD
Section 3 Repair Procedures, continued
Fuel and Hydraulic Tanks
11-1 Fuel Tank ....................................................................................................3 - 99
11-2 Hydraulic Tank ..........................................................................................3 - 100
Turntable Rotation Components
12-1 Turntable Rotation Hydraulic Motor and Drive Hub...................................3 - 102
Axle Components
13-1 Steer Sensors............................................................................................3 - 105
13-2 Yoke and Hub............................................................................................3 - 106
13-3 Drive Motor................................................................................................3 - 108
13-4 Drive Hub ..................................................................................................3 - 109
13-5 Steering Cylinders .....................................................................................3 - 109
13-6 Hub and Bearings, 2WD Models ...............................................................3 - 110
13-7 Extendable Axles.......................................................................................3 - 112
Section 4 Diagnostic Codes
Introduction .............................................................................................................4 - 1
Diagnostic Code Chart............................................................................................4 - 3
Software................................................................................................................4 - 10
xi
TABLE OF CONTENTS

September 2016
S-100HD • S-120HD Part No. 1268495
Section 5 Schematics
Introduction .............................................................................................................5 - 1
Circuit Numbering ...................................................................................................5 - 2
Wire Color Legend ..................................................................................................5 - 4
Limit Switches .........................................................................................................5 - 8
Relay Layout .........................................................................................................5 - 10
Drive Chassis Controller Pin Legend ....................................................................5 - 11
Platform Controller Pin Legend.............................................................................5 - 12
Turntable Controller Pin Legend ...........................................................................5 - 13
Electrical Symbols Legend....................................................................................5 - 14
Hydraulic Symbols Legend ...................................................................................5 - 15
Electrical Schematic, S-100HD Models, View 1....................................................5 - 18
Electrical Schematic, S-100HD Models, View 2....................................................5 - 19
Electrical Schematic, S-100HD Models, View 3....................................................5 - 22
Electrical Schematic, S-100HD Models, View 4....................................................5 - 23
Electrical Schematic, S-100HD Deutz Engine Models, View 5.............................5 - 26
Electrical Schematic, S-100HD Cummins Engine Models, View 6 .......................5 - 27
Electrical Schematic, S-100HD Models, View 7....................................................5 - 30
Electrical Schematic, Safety Circuit Schematic, S-100HD Models .......................5 - 31
xii
TABLE OF CONTENTS

September 2016
Part No. 1268495 S-100HD • S-120HD xiii
TABLE OF CONTENTS
Section 5 Schematics, continued
Electrical Schematic, S-120HD Models, View 1....................................................5 - 34
Electrical Schematic, S-120HD Models, View 2....................................................5 - 35
Electrical Schematic, S-120HD Models, View 3....................................................5 - 38
Electrical Schematic, S-120HD Models, View 4....................................................5 - 39
Electrical Schematic, S-120HD Deutz Engine Models, View 5.............................5 - 42
Electrical Schematic, S-120HD Cummins Engine Models, View 6 .......................5 - 43
Electrical Schematic, S-120HD Models, View 7....................................................5 - 46
Electrical Schematic, Safety Circuit Schematic, S-120HD Models .......................5 - 47
Hydraulic Schematic, S-100HD Models................................................................5 - 50
Hydraulic Schematic, S-120HD Models................................................................5 - 53

September 2016
S-100HD • S-120HD Part No. 1268495
xiv
This page intentionally left blank.

Part No. 1268495 S-100HD • S-120HD 2 - 1
September 2016 Section 2 • Specications
Specications
Machine Specications,
S-100HD and S-120HD Models
Stowed dimensions S-100HD S-120HD
Length, transport position 40 ft 8 in 40 ft 8 in
12.4 m 12.4 m
Length, stowed 43 ft 0 in 43 ft 0 in
13.1 m 13.1 m
Width, axles retracted 8 ft 2 in 8 ft 2 in
2.49 m 2.49 m
Width, axles extended 11 ft 11 ft
3.35 m 3.35 m
Height, stowed maximum 10 ft 3 in 10 ft 6 in
3.13 m 3.2 m
Weight 39,760 lbs 45,300 lbs
18,035 kg 20,548 kg
Ground clearance, axle 14 in 14 in
35.6 cm 35.6 cm
Tires and wheels S-100HD S-120HD
Tire size, solid rubber 365/65D22.5 445/65D22.5
Overall tire diameter 43 in 46.5 in
1.09 m 1.18 m
Wheel diameter 30.4 in 33.8 in
77.3 cm 85.9 cm
Wheel width 14.5 in 17.8 in
36.8 cm 45 cm
Wheel lugs 10 @ 3/4 -16
Lug nut torque, dry 420 ft-lbs
570 Nm
Lug nut torque, lubricated 320 ft-lbs
434 Nm
Operational dimensions S-100HD S-120HD
Platform height, maximum 100 ft 120 ft
30.48 m 36.58 m
Working height, maximum 106 ft 126 ft
32.48 m 38.58 m
Horizontal reach maximum 73 ft 73 ft
22.25 m 22.25 m
Maximum load capacity 750 lb 750 lb
340 kg 340 kg
Turntable tailswing, 5 ft 6 in 5 ft 6 in
axles retracted 1.68 m 1.68 m
Turntable tailswing 4 ft 4 ft
axles extended 1.22 m 1.22 m
Wheelbase 12 ft 12 ft
3.66 m 3.66 m
Turning radius, outside, 46 ft 5 in 62 ft 3 in
axles retracted (2WD) 14.15 m 18.98 m
Turning radius, inside, 36 ft 6 in 42 ft 4 in
axles retracted (2WD) 11.13 m 12.90 m
Turning radius, outside, 30 ft 6 in 32 ft 1 in
axles extended (2WD) 9.30 m 9.78 m
Turning radius, inside, 16 ft 10 in 18 ft 6 in
axles extended (2WD) 5.13 m 5.62 m
urning radius, outside, 21 ft 7 in 22 ft 2 in
axles retracted (4WD) 6.58 m 6.75 m
Turning radius, inside, 13 ft 7 in 13 ft 2 in
axles retracted (4WD) 4.14 m 4.01 m
Turning radius, outside, 19 ft 10 in 18 ft 10 in
axles extended (4WD) 6.05 m 5.74 m
Turning radius, inside, 9 ft 8 ft 6 in
axles extended (4WD) 2.74 m 2.59 m
Turntable rotation (degrees) 360° continuous
Platform rotation 160°
Maximum allowable 150 lbs
side force (ANSI and CSA) 667 N
Maximum allowable 90 lbs
side force (CE) 400 N
Controls 12V DC proportional

2 - 2 S-100HD • S-120HD Part No. 1268495
September 2016Section 2 • Specications
Performance Specications,
S-120HD Models
Drive speeds
High drive speed, stowed 8.0 - 8.4 sec 36 ft / 11 m
Low drive speed, stowed 14.4 - 16.4 sec 18 ft / 5.5 m
High drive speed,
non-stowed < 80 ft 18 - 20 sec 18 ft / 5.5 m
High drive speed,
non-stowed > 80 ft 32.6 - 36.6 sec 18 ft / 5.5 m
Braking distance, maximum
High range on paved surface 4 to 6 ft
1.2 to 1.8 m
Gradeability (boom stowed) See Operators Manual
Boom up
Boom fully retracted 80 to 88 seconds
Boom extended to >4 ft / >1.2 m 100 to 110 seconds
(time between fully lowered and
a fully raised position)
Boom extended to >80 ft / >24.4 m 50 to 55 seconds
(time between 53° envelope
limit and a fully raised position)
Boom extended to >100 ft / >30.5 m 24 to 28 seconds
(time between 68° envelope
limit and a fully raised position)
Boom down
Boom fully retracted 80 to 88 seconds
Boom extended to >4 ft / >1.2 m 100 to 110 seconds
(time between fully raised and
a fully lowered position)
Boom extended to >80 ft / >24.4 m 50 to 55 seconds
(time between fully raised and
the 50° envelope limit)
Boom extended to >100 ft / >30.5 m 24 to 28 seconds
(time between fully raised and
the 65° envelope limit)
SPECIFICATIONS
Platform dimensions
Length 60 in
152 cm
Width 30 in
76 cm
Fluid capacities
Hydraulic tank 55 gallons
208 liters
Hydraulic system 80 gallons
(including tank) 303 liters
Fuel tank 63 gallons
240 liters
Coolant capacity 9.1 quarts
8.6 liters
Drive hubs 47 oz
1.4 liters
Turntable rotation 93 oz
drive hub 2.8 liters
Drive hub oil type:
SAE 90 multipurpose hypoid gear oil API service
classication GL5
For operational specications, refer to the
Operator's Manual.

Part No. 1268495 S-100HD • S-120HD 2 - 3
September 2016 Section 2 • Specications
SPECIFICATIONS
Boom extend
vertical, 0 to 120 ft / 0 to 36.6 m 170 to 190 seconds
Boom retract
vertical, 120 ft to 0 / 36.6 m to 0 170 to 190 seconds
Turntable rotate, 360°
boom horizontal and
fully retracted 170 to 190 seconds
Turntable rotate, 360°
boom horizontal and 63 to 70 seconds
extended >0 ft / >0 m drive enable to drive enable
Turntable rotate, 360°
boom fully raised and 109 to 120 seconds
extended >80 ft / >24.4 m drive enable to drive enable
Platform rotate, 160° 18 to 22 seconds
Performance Specications,
S-100HD Models
Drive speeds
High drive speed, stowed 8.0 - 8.4 sec 36 ft / 11 m
Low drive speed, stowed 14.4 - 16.4 sec 18 ft / 5.5 m
High drive speed,
non-stowed < 80 ft 18 - 20 sec 18 ft / 5.5 m
High drive speed,
non-stowed > 80 ft 32.6 - 36.6 sec 18 ft / 5.5 m
Braking distance, maximum
High range on paved surface 4 to 6 ft
1.2 to 1.8 m
Gradeability (boom stowed) See Operator's Manual
Boom up
Boom fully retracted 80 to 88 seconds
Boom extended to >4 ft / >1.2 m 100 to 110 seconds
(time between fully lowered and
a fully raised position)
Boom extended to >80 ft / >24.4 m 50 to 55 seconds
(time between 53° envelope
limit and a fully raised position)
Boom down
Boom fully retracted 80 to 88 seconds
Boom extended to >4 ft / >1.2 m 100 to 110 seconds
(time between fully raised and
a fully lowered position)
Boom extended to >80 ft / >24.4 m 50 to 55 seconds
(time between fully raised and
the 50° envelope limit)

2 - 4 S-100HD • S-120HD Part No. 1268495
September 2016Section 2 • Specications
Boom extend, boom fully raised
0 to 100 ft / 0 to 30.5 m 120 to 140 seconds
Boom retract, boom fully raised
100 ft to 0 / 30.5 m to 0 120 to 140 seconds
Turntable rotate, 360°
boom horizontal and
fully retracted 170 to 190 seconds
Turntable rotate, 360°
boom horizontal and 63 to 70 seconds
extended >0 ft / >0 m drive enable to drive enable
Turntable rotate, 360°
boom fully raised and 109 to 120 seconds
extended >80 ft / >24.4 m drive enable to drive enable
Platform rotate, 160° 18 to 22 seconds
SPECIFICATIONS

Part No. 1268495 S-100HD • S-120HD 2 - 5
September 2016 Section 2 • Specications
Hydraulic Specications
Hydraulic Fluid Specications
Genie specications require hydraulic oils which are
designed to give maximum protection to hydraulic
systems, have the ability to perform over a wide
temperature range, and the viscosity index should
exceed 140. They should provide excellent antiwear,
oxidation prevention, corrosion inhibition, seal
conditioning, and foam and aeration suppression
properties.
Cleanliness level, minimum ISO 15/13
Water content, maximum 250 ppm
Recommended Hydraulic Fluid
Hydraulic oil type Chevron Rando HD Premium
Viscosity grade 32
Viscosity index 200
Optional Hydraulic uids
Mineral based Shell Tellus S2 V 32
Shell Tellus S2 V 46
Chevron 5606A
Biodegradable Petro Canada Environ MV 46
Fire resistant UCON Hydrolube HP-5046
Note: Genie specications require additional
equipment and special installation instructions for the
approved optional uids. Consult the Genie Product
Support before use.
Optional uids may not have the
same hydraulic lifespan and may
result in component damage.
Note: Extended machine operation can cause the
hydraulic uid temperature to increase beyond it's
maximum allowable range. if the hydraulic uid
temperature consistently exceeds 200°F / 90°C an
optional oil cooler may be required.
SPECIFICATIONS
Do not top off with incompatible
hydraulic uids. Hydraulic
uids may be incompatible
due to the differences in base
additive chemistry. When
incompatible uids are mixed,
insoluble materials may form and
deposit in the hydraulic system,
plugging hydraulic lines, lters,
control valves and may result in
component damage.
Note: Do not operate the machine when the ambient
air temperature is consistently above 120°F / 49°C.
Hydraulic Fluid Temperature
Range
Ambient air temperature
1 Chevron hydraulic oil 5606A
2 Petro-Canada Environ MV 46
3 UCON Hydrolube HP-5046D
4 Chevron Rando HD premium oil MV
-40
-40
-22
-30
-4
-20
14
-10
32
-0
50
10
68
20
86
30
104
40
122
50
F
C
1
2
3
4

2 - 6 S-100HD • S-120HD Part No. 1268495
September 2016Section 2 • Specications
Hydraulic Component
Specications
Drive pump
Type: bi-directional variable displacement piston pump
Displacement 0 to 2.8 cu in
0 to 46 cc
Flow rate @ 2350 rpm, maximum 28.5 gpm
108 L/min
Drive pressure, maximum 3625 psi
250 bar
Charge pump
Type: gerotor
Displacement 0.85 cu in
13.9 cc
Flow rate @ 2350 rpm 9 gpm
34 L/min
Charge pressure @ 2350 rpm 313 psi
Neutral position 21.5 bar
Function pump
Type: variable displacement piston pump
Front Section
Displacement 0 to 1.77 cu in
0 to 29 cc
Flow rate @ 2350 rpm, maximum 17.4 gpm
65.9 L/min
Rear Section
Displacement 0 to 1.16 cu in
0 to 19 cc
Flow rate @ 2350 rpm, maximum 11.2 gpm
42.4 L/min
Pressure, maximum continuous 3350 psi
231 bar
Standby pressure 250 psi
17 bar
Auxiliary pumps
Type: xed displacement gear pump
Displacement 0.15 cu in
2.47 cc
Section 1
Flow rate @1600 rpm 1.7 gpm
6.4 L/min
Section 2
Flow rate @ 1600 rpm 0.3 gpm
1.14 L/min
Function manifold
Function relief pressure 2600 psi
(measured at test port) 179.3 bar
Platform relief pressure 3000 psi
(measured at test port 2) 207 bar
Platform manifolds
Platform rotate and platform level 0.3 gpm
ow regulator 1.14 L/min
SPECIFICATIONS
