Sixth Edition • Third Printing Operator's Manual
Introduction
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 1
Intr od ucti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
(located under cover)
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
Mobile Elevating Work Platform (MEWP).
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer.

Operator's Manual Sixth Edition • Third Printing
Introduction
2 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT

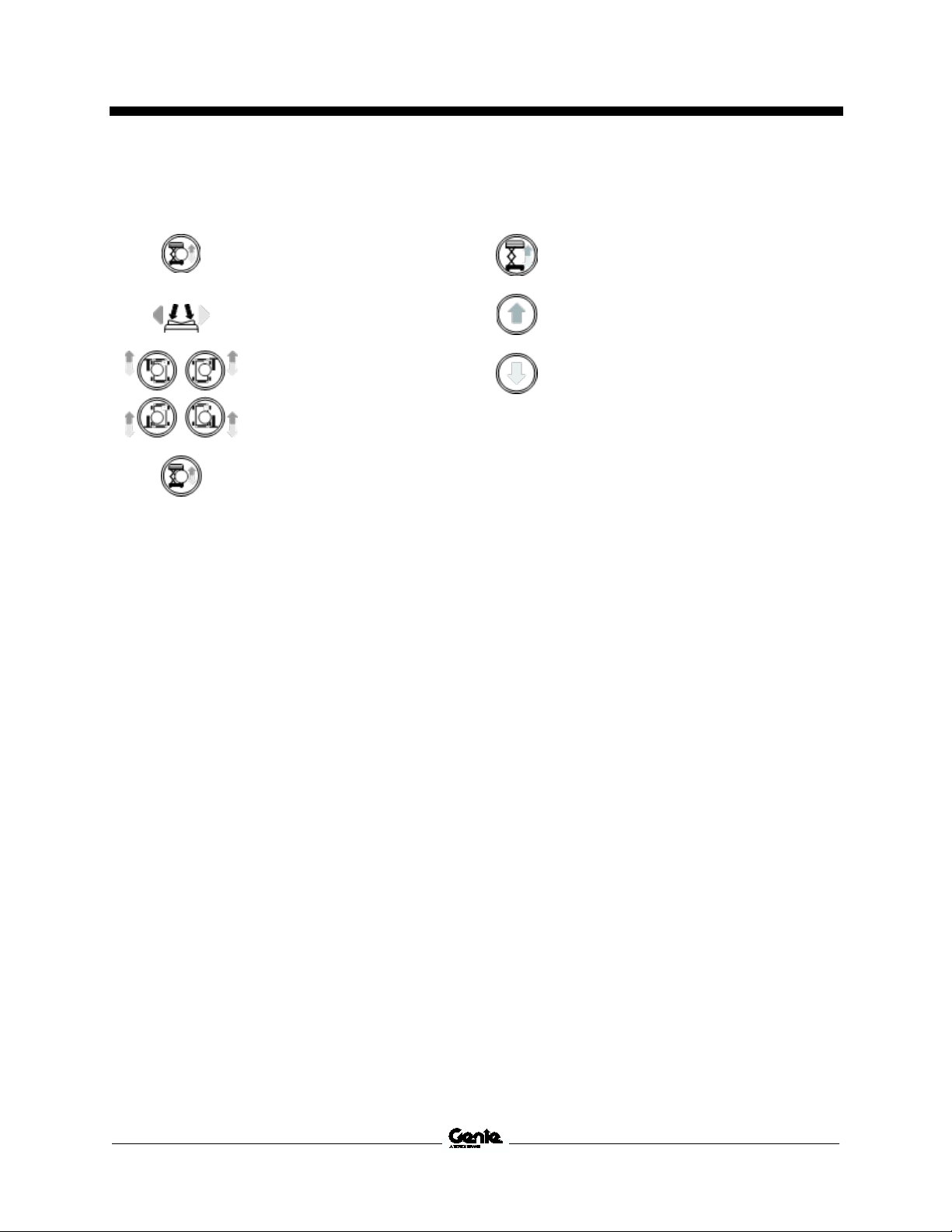

Platform controls symbology and related machine
movement:
Lift function enable
button
(when thumb rocker switch is
moved up or down)
Steer right/left
Outrigger function buttons
(when thumb rocker switch is
moved up or down)
Outrigger auto level button
(when thumb rocker switch
moved up or down)
Ground controls symbology and related machine
movement:
Lift function enable button
Platform up button
Platform down button
Sequential functions and movement:
•Drive and steer.
Interlocked functions:
•Lift and drive.
•Elevated drive speed.
•Elevated drive in an off-level condition.
•All platform and ground controls.
Limitations of use:
•The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
•Do not elevate the platform unless the machine
is on firm level ground.

Sixth Edition • Third Printing Operator's Manual
Introduction
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 3
Bulletin Distribution and Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register
your machine and keep your contact information
up to date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual Sixth Edition • Third Printing
Introduction
4 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety rules—
safety and operator’s manuals and machine
decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may
damage the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the f
ollowing:
Safety alert symbol
—used to
alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a
hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.

Sixth Edition • Third Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 5

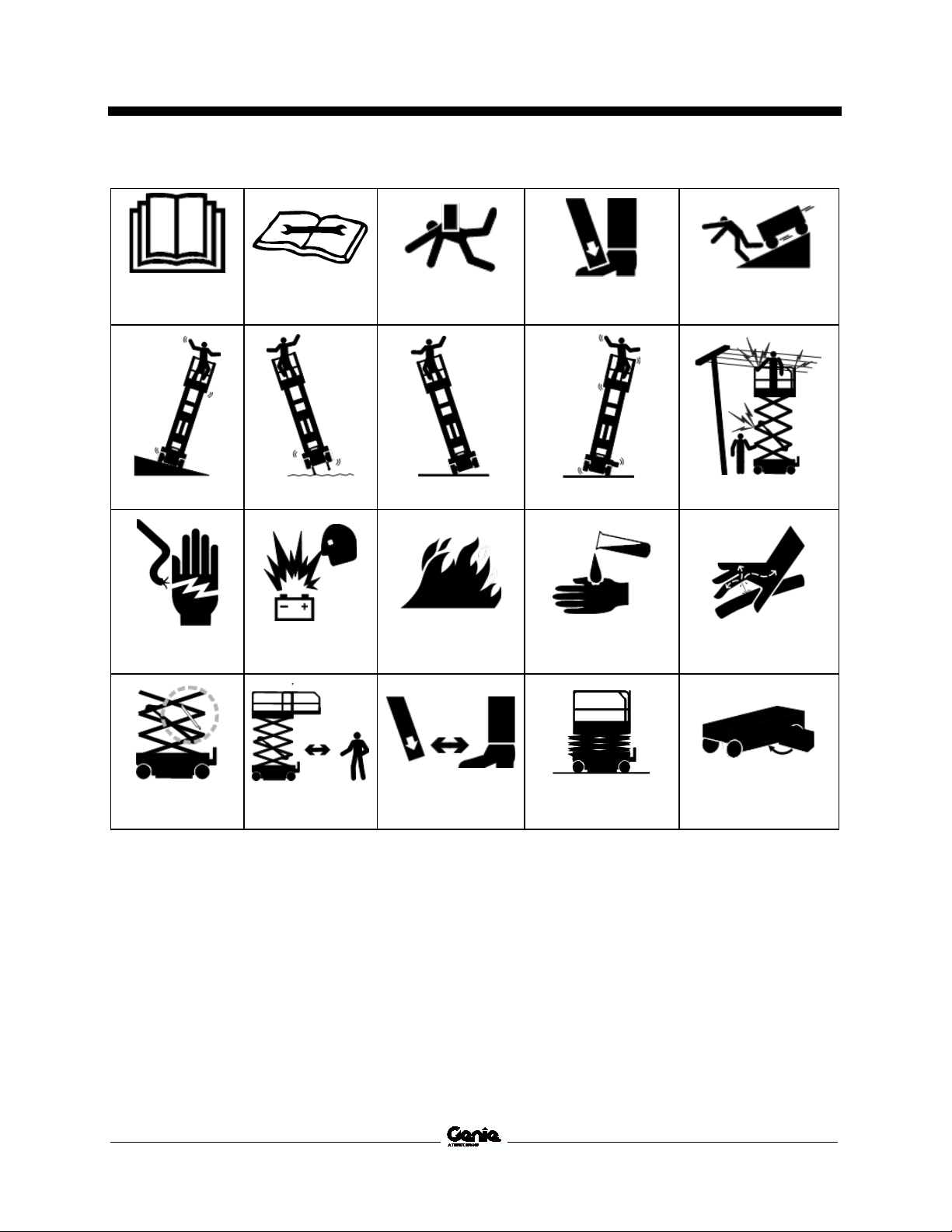

Symb ol andH az ar d Pi ct ori als Defini ti ons

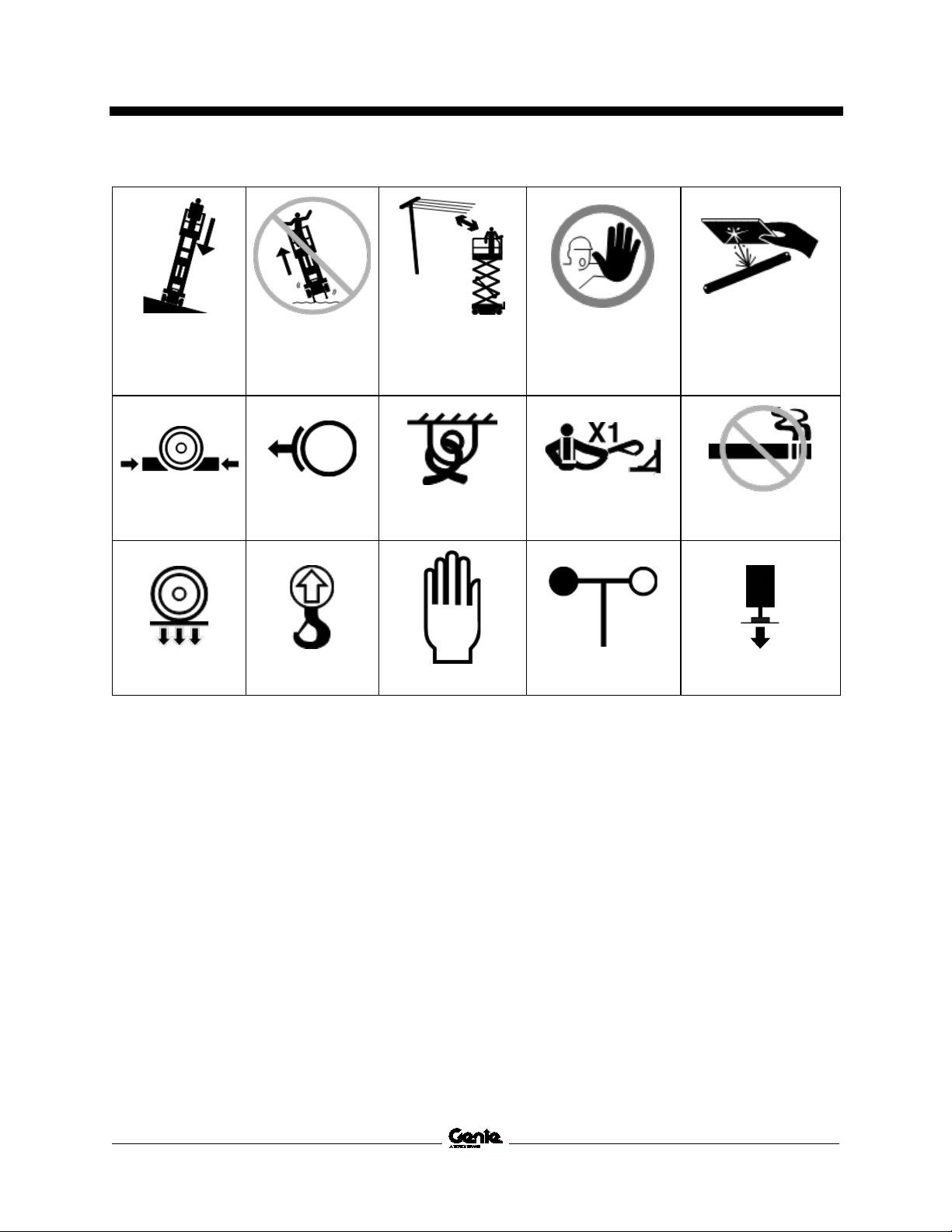

Read the operator’s
manual
Read the service
manual
Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution
hazard
Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to level
ground
Close chassis tray

Operator's Manual Sixth Edition • Third Printing
Symbol and Hazard Pictorials Definitions
6 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Lower the platform. Do not set up
where it cannot be
leveled with
outriggers
Maintain required
clearance
Only trained
maintenance
personnel should
access compartments
Use a piece of
cardboard or paper to
search for leaks
Chock the wheels Release brakes Tie-down point Lanyard anchorage
points
No smoking
Wheel load Lifting point Manual force Wind speed Outrigger load

Sixth Edition • Third Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 7
Voltage rating for
power to platform
Pressure rating for
air line to platform
Maximum capacity Crushing hazard Hold rail while lowering
Collision hazard Chock the wheels Platform overloaded Indoor Use Only Auxiliary lowering
Transport diagram

Operator's Manual Sixth Edition • Third Printing
General Safety
8 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Gener al Safety

Sixth Edition • Third Printing Operator's Manual
General Safety
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 9

Operator's Manual Sixth Edition • Third Printing
Personal Safety
10 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Pers on al Safety

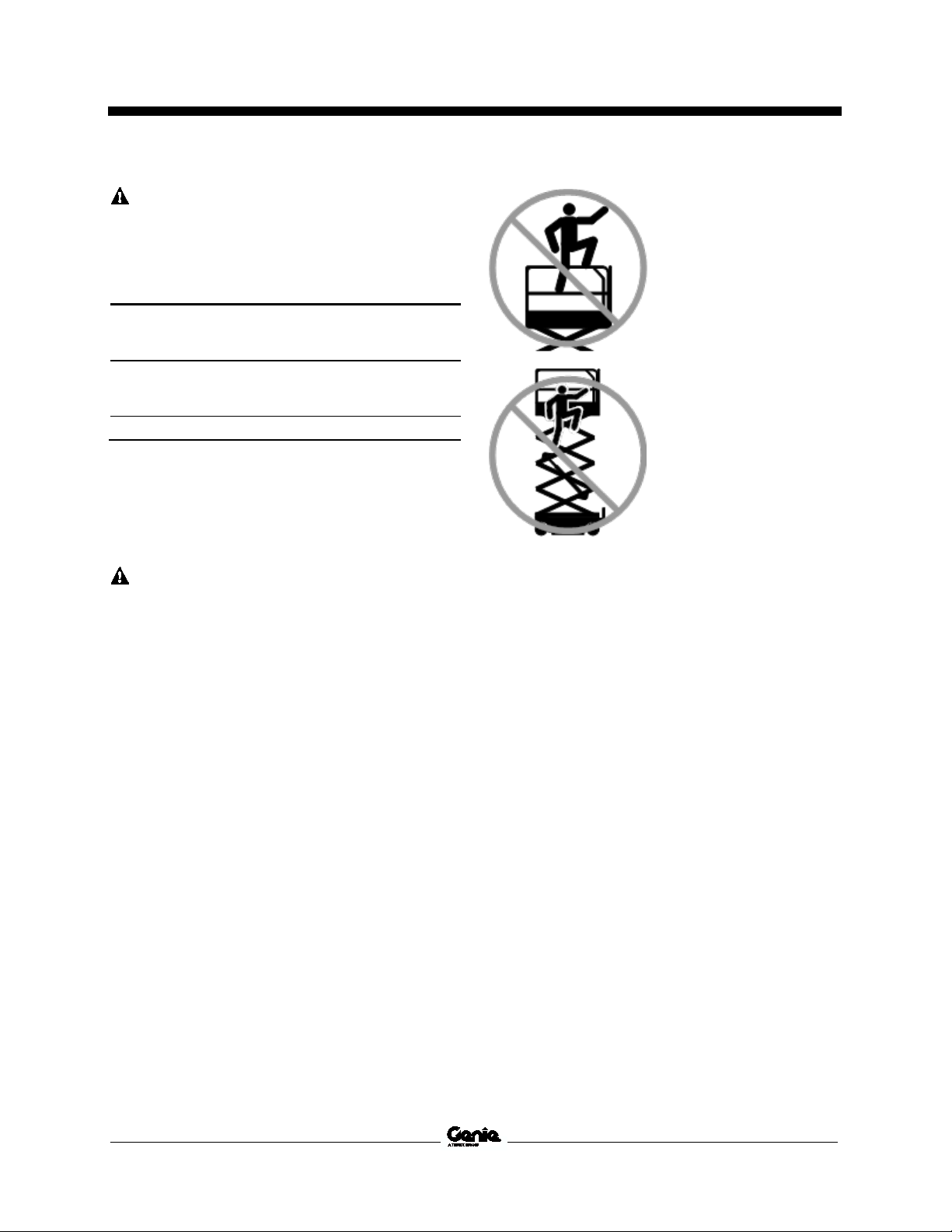

Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the
following shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Sixth Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 11
Work Ar ea S af ety
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all
local and
governmental
regulations regarding
required clearance from
electrical power lines. At
a minimum, the required
clearance contained in
the chart below must be
followed.
Line Voltage
Required Clearance
0
to 50KV 10 f
t
3.05
m
5
0 to 200KV 15 f
t
4.60
m
20
0 to 350KV 20 f
t
6.10
m
35
0 to 500KV 25 f
t
7.62
m
50
0 to 750KV 35 f
t
10.67
m
75
0 to 1000KV 45 f
t
13.72
m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it
contacts
energized power lines.
Personnel on the ground
or in the platform must
not touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum extension deck capacity
Maximum occupants
2 p
ersons
(each extension deck)
Extension deck only
500 lbs / 227 k
g
(each extension deck)
Maximum capacity
–GS-3384 and GS-3390
Maximum occupants
7
Models with one platform extension
Platform retracted
2500 l
bs
1134 k
g
Platform only
2000 l
bs
907 k
g
Extension only
500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
2000 lbs / 907 kg
Models with two platform extensions
Platform retracted
2500 l
bs
1134 k
g
Platform with one extension out
2000 l
bs
907 k
g
Platform with two extensions out
1500 l
bs
680 k
g
Each
extension only 500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
1500 lbs / 680 kg
Extension only
500 lbs / 227 kg

Operator's Manual Sixth Edition • Third Printing
Work Area Safety
12 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Maximum capacity
- GS-4390
Maximum occupants
7
Models with one platform extension
Platform retracted
1500 l
bs
680 k
g
Platform only
1000 l
bs
454 k
g
Extension only
500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
1000 lbs / 454 kg
Models with two platform extensions
Platform retracted
1500 l
bs
680 k
g
Platform with one extension out
1000 l
bs
454 k
g
Platform with two extensions out
500 l
bs
227 k
g
Extension only
500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
500 lbs / 227 kg
Extension only
500 lbs / 227 kg
Maximum capacity
– GS-5390
Maximum occupants
4
Models with one
platform extension
Platform retracted
1500 l
bs
680 k
g
Platform only
1000 l
bs
454 k
g
Extension only
500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
1000 lbs / 454 kg
Models with two platform extensions
Platform retracted
1500 l
bs
680 k
g
Platform with one extension out
1000 l
bs
454 k
g
Platform with two extensions out
500 l
bs
227 k
g
Each extension only
500 l
bs
227 k
g
Extension only
500 lbs / 227 kg
Platform only
500 lbs / 227 kg
Extension only
500 lbs / 227 kg

Sixth Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 13

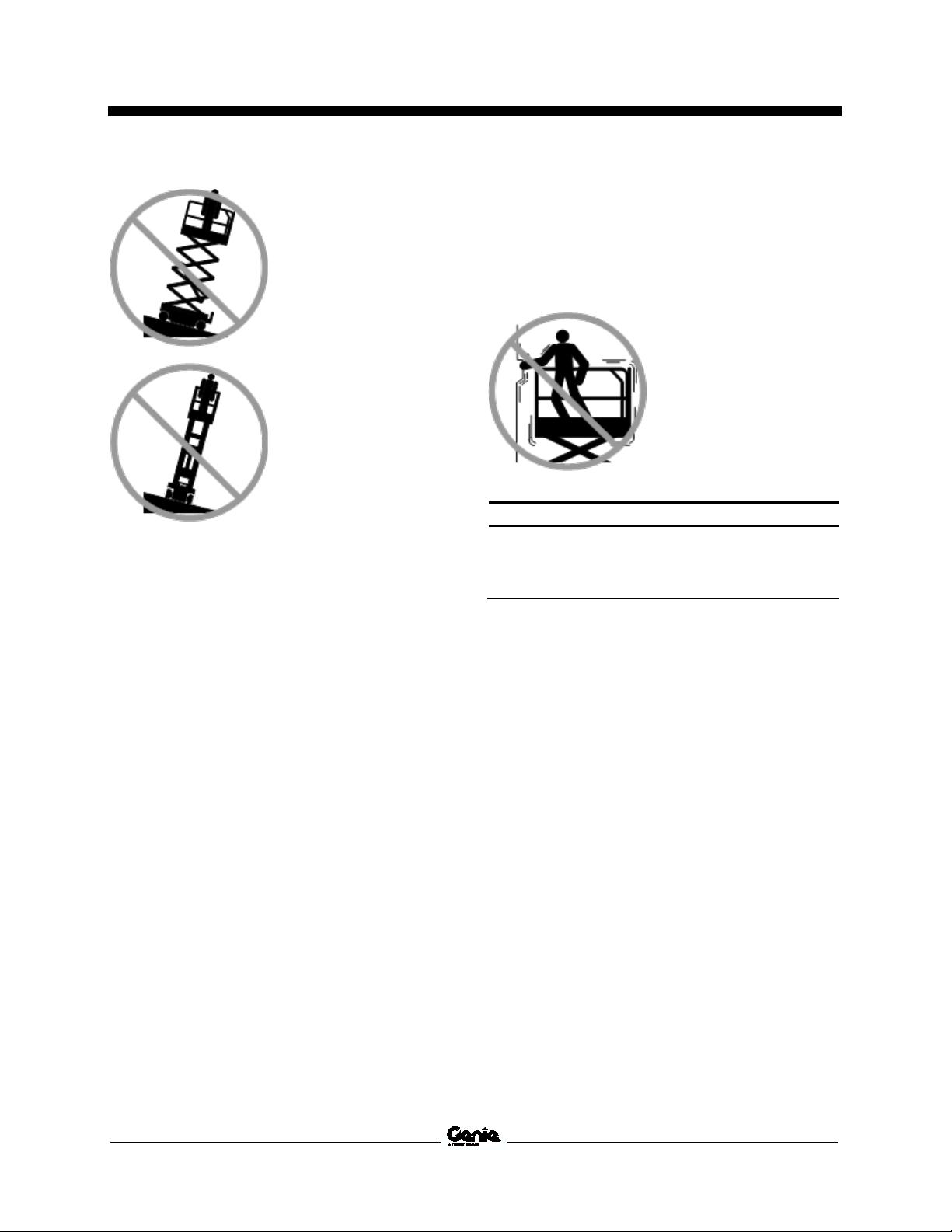

Do not
raise the platform
unless the machine is on a
firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower
the platform.
Do not alter or disable the limit switches or angle
sensor.
Do not drive over 0.7 mph / 1.1 km/h with the
platform raised.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable manual force
GS
-3384
GS
-3390
GS
-4390
GS
-5390
90 lbs / 400
N
90 lbs / 400
N
90 lbs / 400
N
90 lbs / 400
N
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.

Operator's Manual Sixth Edition • Third Printing
Work Area Safety
14 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Do not raise the platform when wind speeds may
exceed 28 mph / 12.5 m/s. If wind speeds exceed
28 mph / 12.5 m/s when the platform is raised,
lower the platform and do not continue to operate
the machine.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platf
orm or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Do not drive the machine
on or near uneven terrain,
unstable surfaces or
other hazardous
conditions with the
platform raised.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces and
near holes and drop-offs.
Do not alter or disable machine components that
in any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter a mobile elevating work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this
machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled
tires are properly inflated and lug nuts are properly
tightened.

Sixth Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 15
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Model
Maximum slope
rating, stowed
position
Maximum side slope
rating, stowed position
GS
-3384
GS
-3390
GS
-4390
50% (26°)
50% (26°)
GS
-5390
40% (22°)
40% (22°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Attach the lanyard to the anchor
provided in the platform.
Do not sit, stand, or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Do not enter or exit the platform unless the
machine is in the stowed position.
Hazards related with the specific product
application of exiting at height have been
considered in the design of the machine, for
further information contact Genie (see section
Contacting the Manufacturer).

Operator's Manual Sixth Edition • Third Printing
Work Area Safety
16 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Collision Hazards
Be aware of limited sight
distance and blind
spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site,
and governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the platform
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the ground surface,
congestion, slope,
location of personnel, and
any other factors which
may cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.

Sixth Edition • Third Printing Operator's Manual
Work Area Safety
Part No. 1305658GT GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 17
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain closed
and secured during operation.
Component Damage Hazards
Do not use any battery or charger greater than
12V to jump-start the engine.
Do not use the machine as a ground for welding.
Do not operate the machine in locations where
extremely high magnetic fields may be present.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine or charge the battery
in hazardous locations or locations where
potentially flammable or explosive gases or
particles may be present.
Do not spray ether into engines equipped with
glow plugs.

Operator's Manual Sixth Edition • Third Printing
Work Area Safety
18 GS™-3384 • GS™-3390 • GS™-4390 • GS™-5390 Part No. 1305658GT
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of
the machine and test all functions before each
work shift. Immediately tag and remove from
service a damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.

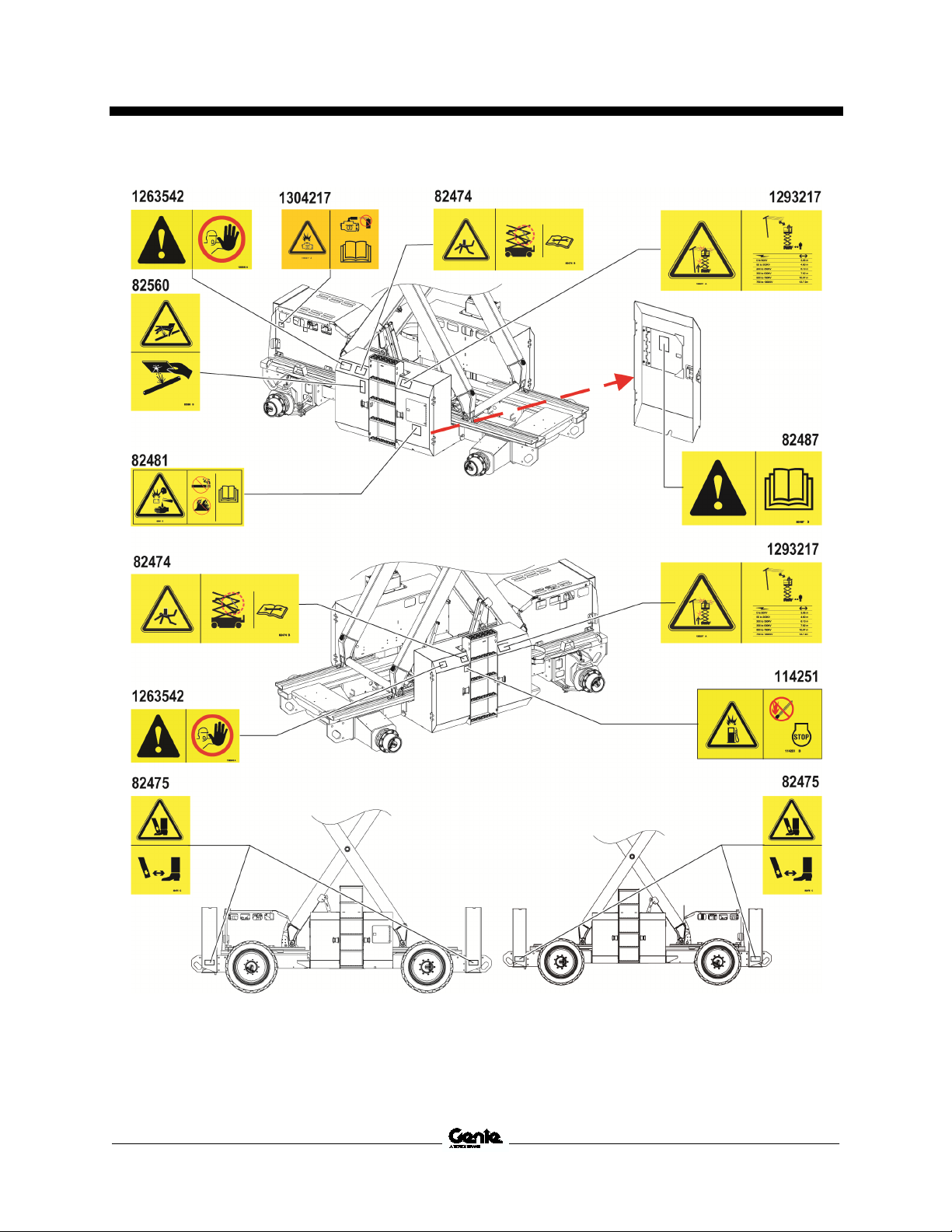

Be sure all decals are in place and legible.
Be sure the operator's manual is complete, legible,
and in the storage container located on the
machine.
Crushing Hazard
Keep hands and limbs out of scissors.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Maintain a firm grasp on the platform rail when
pulling the rail pins. Do not allow the platform
guard rails to fall.
Outrigger Safety
Tip-over Hazards
Do not lower the outriggers unless the machine is
on a firm surface. Avoid drop-offs, holes, unstable
or slippery surfaces and other possible hazardous
conditions.
When the auto level function is not being used and
the outriggers are being lowered individually, the
steer-end outriggers must be lowered first.
Do not raise the platform unless the machine is
level. Do not set the machine up on a surface
where it cannot be leveled using only the
outriggers.
Do not raise the platform unless all four outriggers
are properly lowered, the footpads are in firm
contact with the ground and the machine is level.
Do not adjust the outriggers while the platform is
raised.
Do not drive while the outriggers are lowered.
