TerraTec Aureon 5.1 PCI User manual

Manual (English)
Version: 6/5/2007

CE Declaration
We:
TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany
hereby declare that the product:
SoundSystem Aureon 5.1 PCI
to which this declaration refers is in compliance with the following standards or standardizing
documents:
1. EN 55022
2. EN 50082-1
The following are the stipulated operating and environmental conditions for said compliance:
residential, business and commercial environments and small-company environments.
This declaration is based on:
Test report(s) of the EMC testing laboratory
The information in this document is subject to change without notice and shall not be deemed as a warranty by the
seller. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this docu-
ment. The manufacturer reserves the right to change the contents of this document and/or the associated products
at any time without the provision of prior notice to specific persons or organizations. The manufacturer shall not be
held liable for damages of any kind arising from the use, or the inability to use this product or its documentation,
even if the possibility of such damage is known. The information in this document is subject to copyright. All rights
are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the
express written permission of the copyright holders. Product and brand names contained in this document are
used for identification purposes only. All registered trademarks, product designations or brand names used in this
document are the registered property of their respective owners.
©TerraTec®Electronic GmbH, 1994 - 2007. All rights reserved (6/5/2007).
2 SoundSystem Aureon 5.1 PCI (English)

Contents
Layout of the card ................................................................................................................... 4
Hardware installation...............................................................................................................5
Installing the card.................................................................................................................5
Connecting a speaker system to your Aureon 5.1 PCI sound card ..........................................7
Installing the drivers on current operating systems ................................................................. 8
Installing the drivers and Control Panel (XP / Vista) ............................................................. 8
The control panel for Windows Vista 32 and Vista 64 .............................................................. 9
THE CLASSIC: Aureon 5.1 PCI Control Panel for Windows XP 32 ...............................................19
FAQ ....................................................................................................................................25
Support ..............................................................................................................................25
SoundSystem Aureon 5.1 PCI (English) 3

Dear Customer,
In the following Quick Reference Guide, replace “<CD>” with the drive letter assigned to your
CD-ROM drive.
Layout of the card
Listed from top to bottom:
1. Microphone In
2. Line In
3. Line Out 1 (Front) / Headphone Out
3. Line Out 2 (Rear)
3. Line Out 3 (Center / Sub)
4. Digital In
5. Digital Out
4 SoundSystem Aureon 5.1 PCI (English)

Hardware installation
Installing the card
Before installing the sound card in your computer, please note the details of your computer's
configuration. Also refer to the manual of your computer and other expansion cards for their
settings.
Please observe the following instructions to ensure a trouble-free installation.
If you are still having problems, please call our service hotline. The telephone number and
operating hours of the hotline are on the included customer service card.
Start by making sure that nothing is missing:
•1 PCI sound card TerraTec SoundSystem Aureon 5.1 PCI
•1 installation and driver CD
•1 registration card with the product serial number
•1 customer service card.
Please fill out and return the registration card to us at your earliest convenience or register
online at http://www.terratec.net/register.htm. This is important for support and hotline
services.
Safety note.
Before opening the case, unplug the AC power cable from the wall socket as well as from the
PC.
SoundSystem Aureon 5.1 PCI (English) 5

And here’s what to do, step by step:
•Switch off your PC and all connected peripheral devices such as your printer and monitor.
Leave the AC power cable connected for the time being, so that your computer is still
grounded.
•Touch the metal chassis at the rear of the PC to ground and to discharge static. Now un-
plug the cord from the AC socket.
•Remove the cover from the case of your PC.
•Look for a free PCI expansion slot. (To ensure the optimal function of your Aureon 5.1 PCI,
look for an expansion slot that is not immediately next to an already-installed card. Some
cards, such as graphics cards, can send out signals that can interfere with the sound
card.) Unscrew the screw that fastens the slot blanking plate and remove the plate.
•Carefully remove the sound card from its packaging and pick it up by the edges with one
hand while your other hand is touching a metal part of the PC. This will ensure that your
body is completely discharged of static electricity via your computer without charging the
sound card. Do not touch the components of the card under any circumstances.
•Determine the function of port :
•Align the holder at the rear of the sound card in the expansion slot in such a way that the
card’s gold connectors are directly in line with the slot’s socket.
•Insert the card into the slot. You might have to press the card firmly into the slot to make
good contact. Take care to ensure that the contacts are exactly in line. If they are not, you
could do damage to the sound card or your computer's motherboard.
•Insert and tighten the screw from the slot blanking plate to secure the sound card in its
slot.
•Reinstall the cover of your PC case.
•Connect your speakers or stereo system to the sound card.
•Reconnect the AC power cable as well as all other cables. Make sure that your speakers or
HiFi system is set to low volume. Start your computer.
6 SoundSystem Aureon 5.1 PCI (English)

Connecting a speaker system to your Aureon 5.1 PCI sound card
You can connect any commercially available active speaker system to your Aureon 5.1 PCI
sound card.
Ensure that the front port is configured as “Line” using JP1.
Below is an illustration of the typical connection for a 6-channel (5.1) speaker system (the
required 2x cinch [RCA] to 3.5 mm jack connecting cables are normally included with your
speaker system, such as TerraTec HomeArena products).
To connect a 4-channel speaker system, use only the front and rear ports. For a 2 or 2.1-
channel speaker system, use only the front port of the sound card.
After installing the drivers and software, select the correct speaker configuration in the Aureon
5.1 PCI Control Panel (see the chapter on “The Aureon 5.1 PCI Control Panel”).
SoundSystem Aureon 5.1 PCI (English) 7

Installing the drivers on current operating systems
The current drivers are intended for the following operating systems:
-Windows XP 32
-Windows XP 64
-Windows Vista 32
-Windows Vista 64
Installing the drivers and Control Panel (XP / Vista)
After the computer has been restarted, you're logged in as administrator and Windows XP /
Vista detects the new hardware using the Add New Hardware Wizard, the following window
displays.
Windows XP Windows Vista
Insert the Aureon 5.1 PCI Software CD into your CD/DVD drive. If the installation wizard does
not start automatically, run <CD>:\Autorun.exe manually.
In the installation wizard, first select your desired menu language and then click “Software
Installation”. Start the setup by clicking “AUREON 5.1 PCI”.
Alternatively, you can also start “Setup.exe” manually from the folder
<CD>:\Software\TerraTec. Simply follow the instructions on the screen.
In the following dialog box, Windows Vista will inform you that the “Aureon 5.1 PCI” driver did
not pass the “Windows Logo test”. Click “Continue Anyway” and then “Finish” to complete the
installation.
8 SoundSystem Aureon 5.1 PCI (English)

The control panel for Windows Vista 32 and Vista 64
System input
This defines the number of channels that go directly to the sound card. Click the question
mark to view more information.
Speakers
Set the speaker configuration you want to use here. Whenever you make a change, the 3D
model of the speakers changes accordingly. This setting defines the number of analog out-
puts.
SoundSystem Aureon 5.1 PCI (English) 9

PCM, sampling frequency and S/PDIF in/out loopback
You can enable “PCM” from the drop-down-menu for the S/PDIF output. You can also select
the sampling frequency and S/PDIF in/out loopback.The S/PDIF loopback is a direct loopback
of the signal from the S/PDIF input and brings the signal to the S/PDIF output.
PCM and S/PDIF in/out loopback Sampling frequency
Environment
You can use this menu to simulate sound effects. Have fun experimenting with different set-
tings!
10 SoundSystem Aureon 5.1 PCI (English)

Environment Size
Select the size of the room in which you have set up the 5.1 speakers. This selection adjusts
the volume to the room.
Equalizer
Using the integrated equalizer, you can increase or attenuate audio signals in 10 frequency
bands to emphasize bass or treble.
SoundSystem Aureon 5.1 PCI (English) 11

Information
The last tab displays general information about the application. It also allows you to choose
whether or not to display the icon for starting the Control Panel in the taskbar.
12 SoundSystem Aureon 5.1 PCI (English)

The Control Panel for Windows XP 32 and XP 64
Speakers
Set the speaker configuration you want to use here. Each change is reflected in the 3D model
of the speakers and the jack configuration. This setting defines the number of analog outputs.
The jacks
The jacks have the same colors as those on your physical sound card, as described on page 4.
1. Microphone input Pink
2. Line input Blue
3. Line output 1 (front speakers) / headphone out-
put
Green
3. Line output 2 (side/rear speakers) Green
3. Line output 3 (center speakers/subwoofer) Green
4. Digital input S/PDIF (Toslink) Square /
Black
5. Digital output S/PDIF (Toslink) Square /
Black
SoundSystem Aureon 5.1 PCI (English) 13

PCM, sampling frequency and S/PDIF in/out loopback
From the drop-down menu for the S/PDIF output, you can select the sampling frequency or
S/PDIF in/out loopback.The S/PDIF loopback is a direct loopback of the signal from the
S/PDIF input and brings the signal to the S/PDIF output.
Individual volume
Using the volume controller in the 3D image, you can configure the volume of each individual
speaker separately.
14 SoundSystem Aureon 5.1 PCI (English)

Self-test
You can begin or end the speaker self-test using the play or stop button.
Master
You can adjust the volume of each individual input here. The master fader controls the sum of
all inputs and gives you the ability to mute using the MUTE button or adjust the volume of the
speakers using the faders.
Click the hammer next to the mute button to amplify (boost) the microphone signal. The boost
function is explained on page Fehler! Textmarke nicht definiert..
SoundSystem Aureon 5.1 PCI (English) 15

Record
In the “Record” window, you can set the signal source for a recording and its gain.
S/PDIF is a digital signal that does not allow gain control.
Click the hammer next to the mute button to amplify (boost) the microphone signal. The boost
function is explained on page Fehler! Textmarke nicht definiert..
Environment
You can use this menu to simulate sound effects. Have fun experimenting with different set-
tings!
16 SoundSystem Aureon 5.1 PCI (English)

Environment Size
Select the size of the room in which you have set up the 5.1 speakers. This selection adjusts
the volume to the room.
Equalizer
Using the integrated equalizer, you can increase or attenuate audio signals in 10 frequency
bands to emphasize bass or treble.
SoundSystem Aureon 5.1 PCI (English) 17

Information
The last tab displays general information about the application. It also allows you to choose
whether or not to display the icon for starting the Control Panel in the taskbar.
18 SoundSystem Aureon 5.1 PCI (English)

THE CLASSIC: Aureon 5.1 PCI Control Panel for Windows XP 32
The classic
For all customers who are still using the old driver for Windows XP, following is an explanation
of the Control Panel in Windows XP 32. The last version of the Control Panel is available from
www.TerraTec.net.
Master
Here you can set the levels of the individual speakers. The sliders marked “Front” are likely to
become worn by frequent use - you use them to control the volume of the two front speakers.
The master slider controls the total of all outputs and can also be silenced by pressing the
MUTE button.
SoundSystem Aureon 5.1 PCI (English) 19

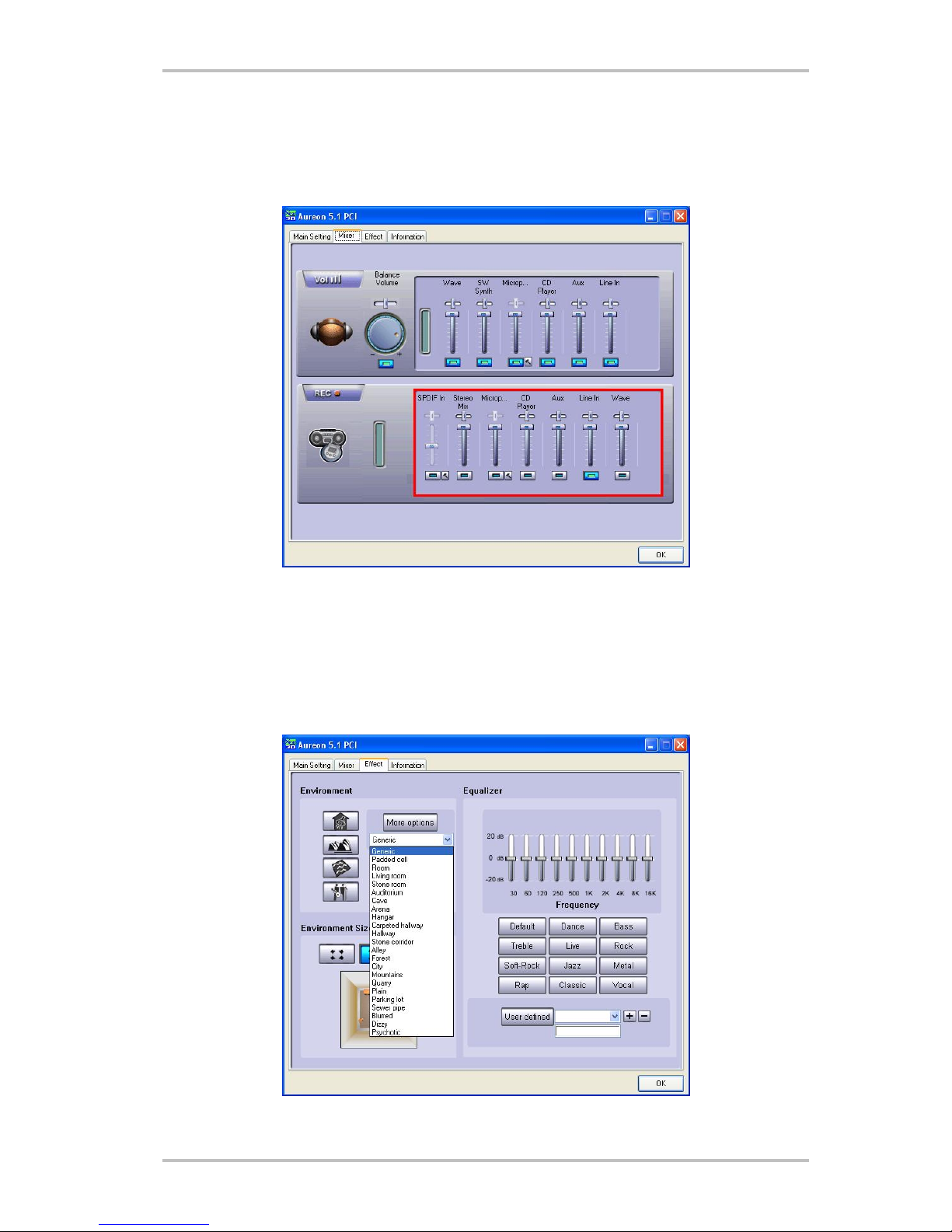

Sources
Here you can set the levels of the individual signal sources.
All signal sources can be muted by pressing the MUTE button. They will still be recorded if you
have explicitly selected the source.
Adjust the position of the stereo image with the balance faders below the level faders.
Boost! button
This button is connected to the microphone input and can amplify the input signal up to 20 dB
when it is activated.
