Tesco OUTDOOR KS17065A User manual

OUTDOOR
2 Burner Gas BBQ
Assembly Instructions
Product size: L925 x W480 x H920 mm
Produced in China for Tesco Stores Ltd.
©Tesco 2021.
tesco.com
1
3FG/P,4"

Before you start
• Read the instructions before using the applicance. Follow the
steps in the order specified and please observe the safety
warnings.
• Failure to observe these instructions can affect or damage the
device and other objects and lead to personal injury.
• These instructions are part of the product. They should always
be stored with the product and should be passed on to each
subsequent user.
• Great care has been taken during production to remove sharp
edges but you should handle all components with care to
avoid possible injury.
• To avoid injury and damage to property, be sure to follow all
warnings and instructions carefully, before every use.
• NEVER LEAVE A LIT BARBECUE UNATTENDED.
• If ever in doubt, consult a qualified gas engineer before use.
• As an extra precaution WHEN LIGHTING FOR THE FIRST TIME
ALWAYS TAKE EXTRA CARE. Keep your head and arms from
hanging over the BBQ cooking surface.
• ALWAYS make sure the barbecue appliance is completely cool
before applying covers.
• In construction of this BBQ use all and only the components
provided. Do not modify BBQ or parts. Any modification of
the appliance may be dangerous.
DO NOT USE INDOORS
ONLY TO BE USED OUTDOORS
CAUTION!
• KEEP OUT OF REACH OF CHILDREN and PETS DURING and
AFTER USE.
• Do not store or use petrol or other flammable vapor or liquid
in the vicinity.
• This appliance will become very hot during operation - always
wear suitably protective heat proof gloves during use.
• WARNING: Accessible parts may be very hot. Keep Young
children away.
• Turn off the gas supply at the gas container after use.
• ALWAYS close and disconnect from main gas supply cylinder
after use and for storage.
• DO NOT MOVE THE APPLIANCE DURING USE.
DANGER
If you smell gas:
1. Shut off gas supply to appliance.
2. Extinguish any open flame, avoid using any electrical
applicance
3. Open lid and ventilate the area.
4. Check gas connections with soap solution.
5. If odour still exists, immediately contact your gas supplier or
fire department.
• KEEP THIS APPLIANCE CLEAN (follow instruction) - To help
avoid fat flash fires/ flare ups and therefore possible injury or
damage to property, it is vital that this appliance is clean
when used.
• Stand your barbecue on a safe. level surface, well away from
flammable items such as wooden fences or over-hanging tree
branches.
• Protect from the elements and damp.
• Keep children and pets away.
• An adult should always be in charge of the BBQ. NEVER leave
a hot barbecue unattended.
• Always make sure the barbecue is fully extinguished and
completely cool before moving, applying covers (not included)
OR storing away.
Don'ts
• Do not use indoors - For outdoor use only.
• CAUTION! NEVER STORE a barbecue indoors unless it is fully
cooled and gas supply cylinder is disconnected.
• Do not use the BBQ on a surface that may be damaged by
excessive heat.
• This is a gas appliance. Do not use any other type of fuel /
accelerants or lava rock.
Do's
Warnings
2 Burner Gas BBQ
Assembly Instructions
tesco.com
2 Burner Gas BBQ
Assembly Instructions
tesco.com

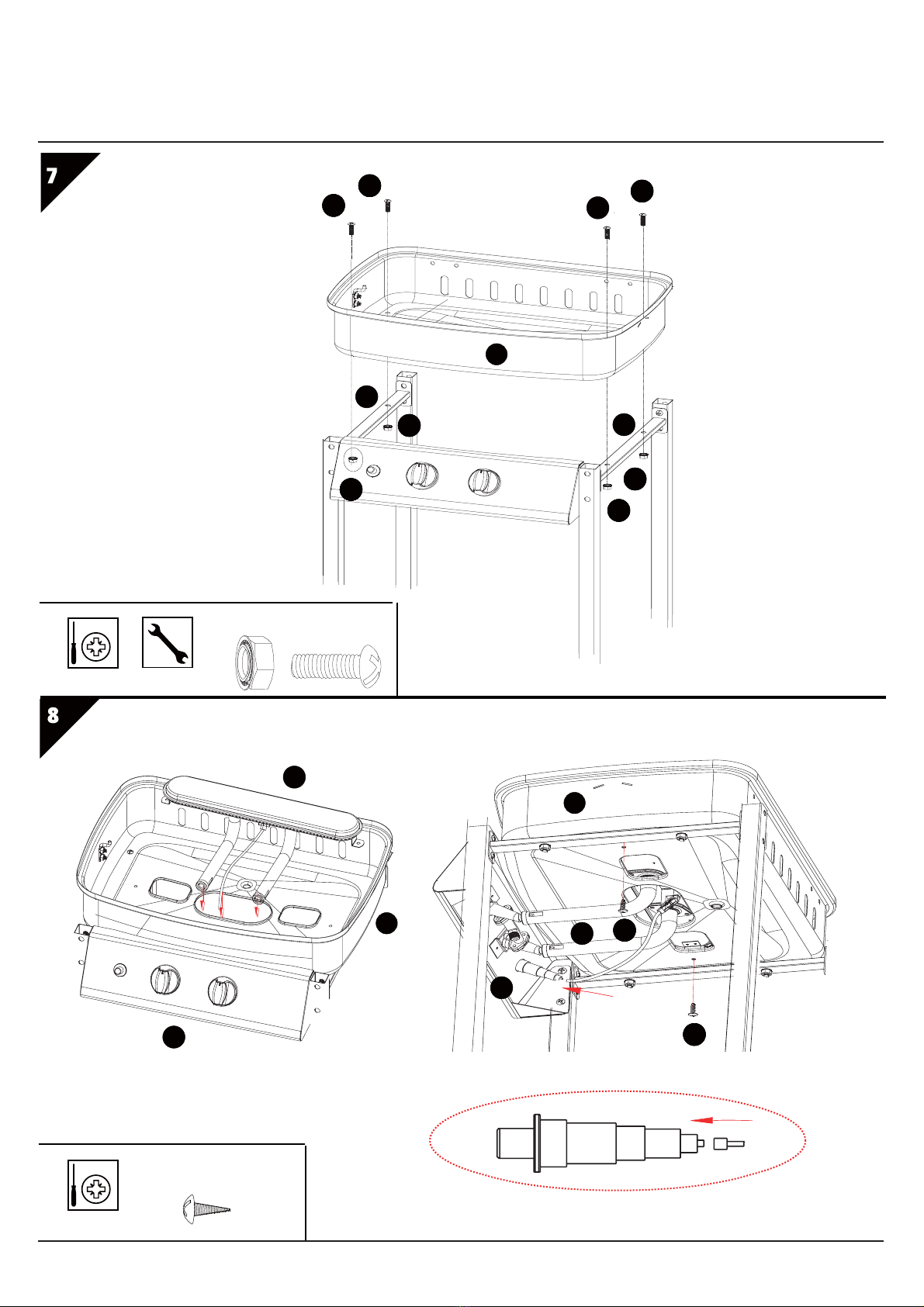

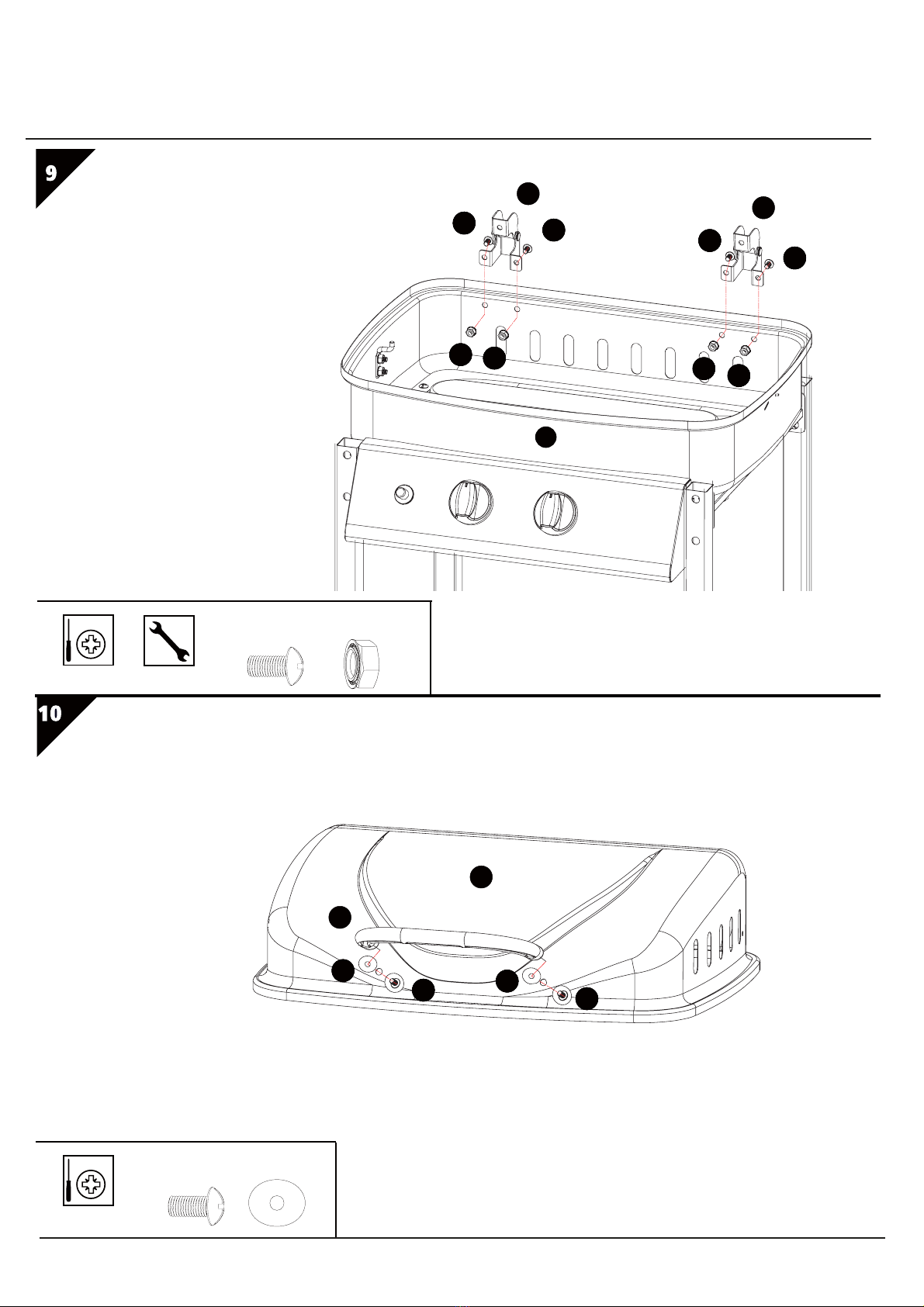

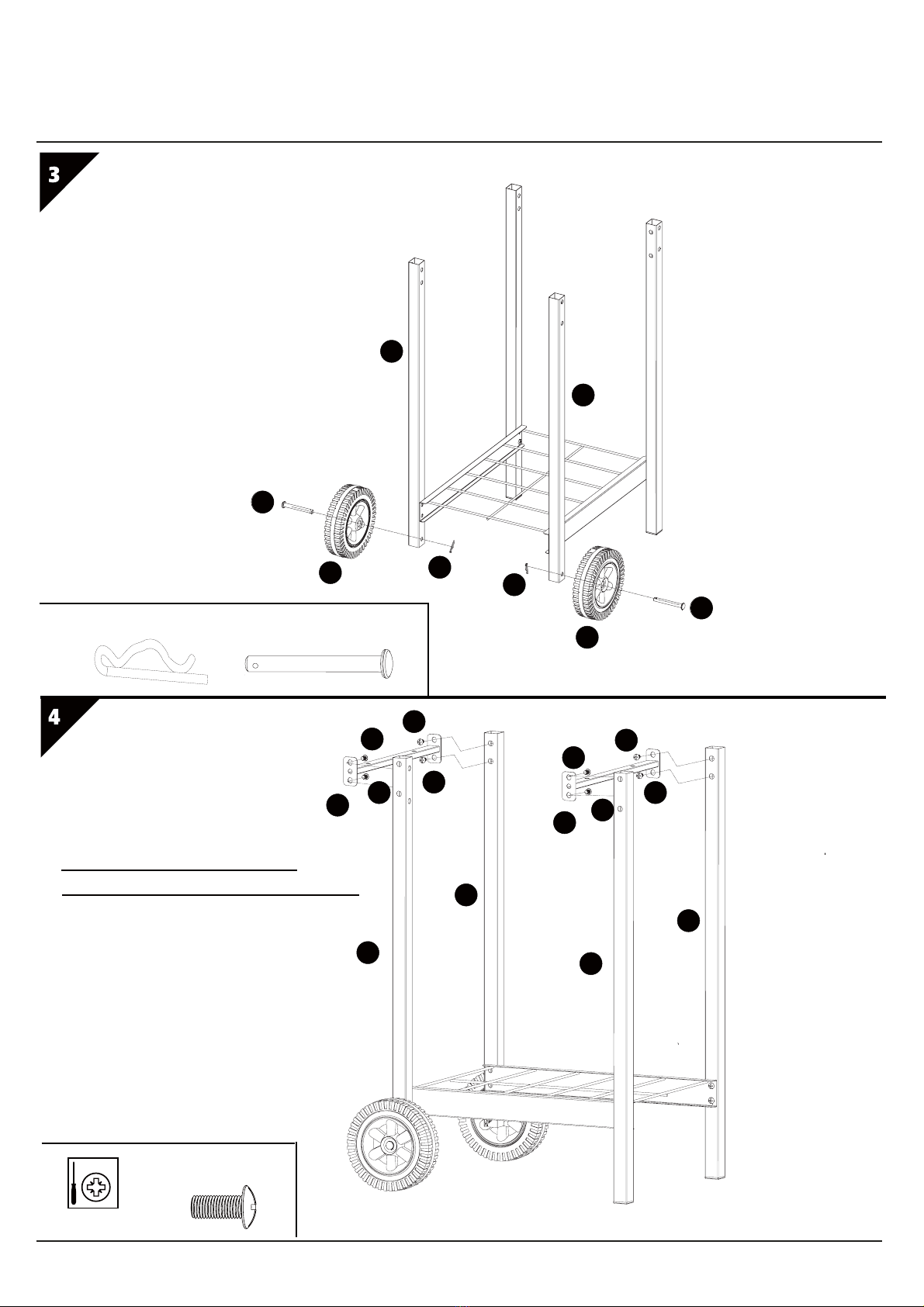

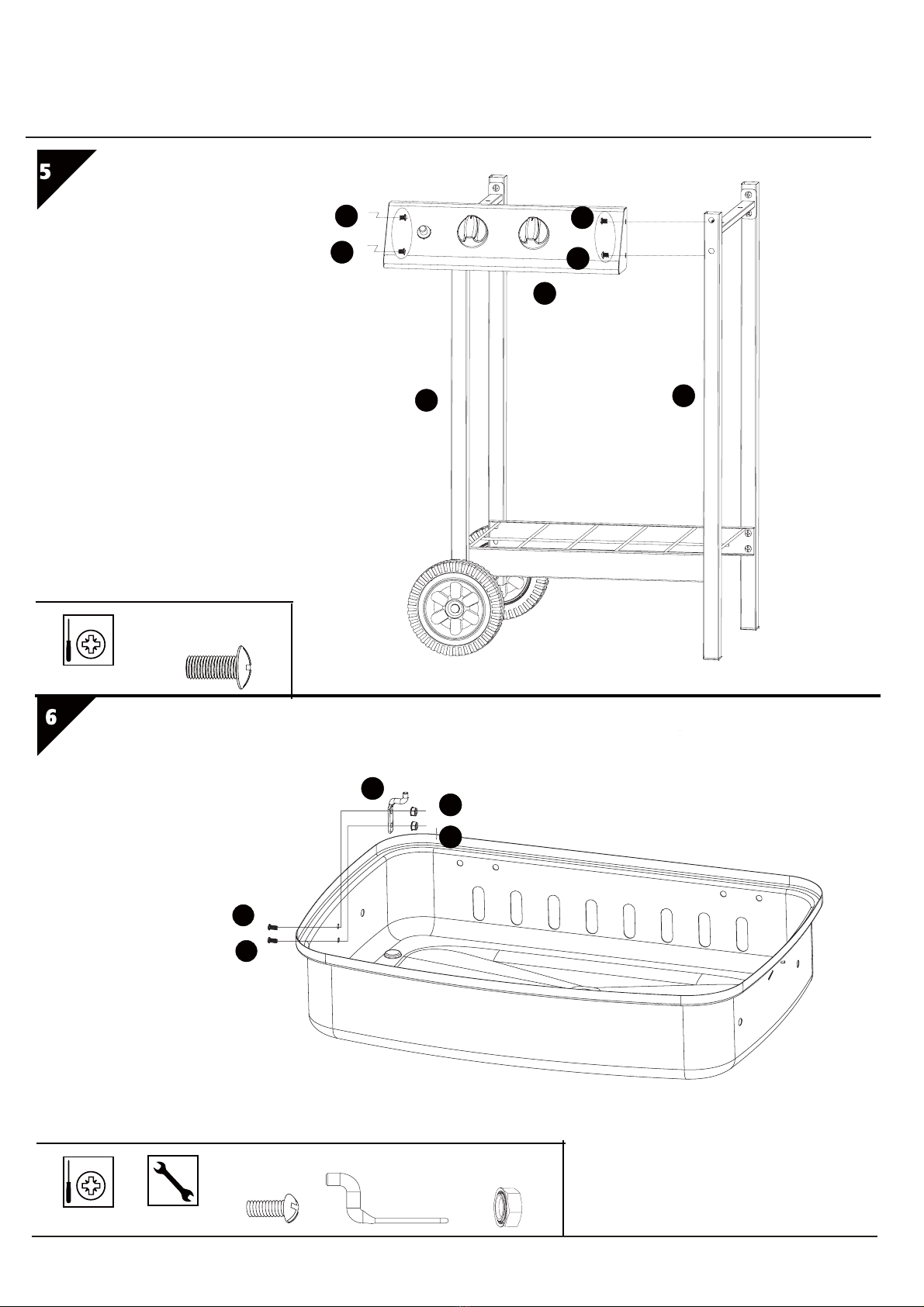

Assembly
Do not use this product if parts are missing, damaged or worn.
Never use scourers, abrasive or chemical cleaners.
When you are ready to start, make sure that you have the right
tools, plenty of space and a clean, dry area for assembly..
Check the pack and make sure you have all the parts listed.
During assembly children should be kept away from the product
due to possible risk of injury.
Ensure that this product is fully assembled as illustrated before use.
Check all screws and bolts are tightened regularly.
Tools not included.

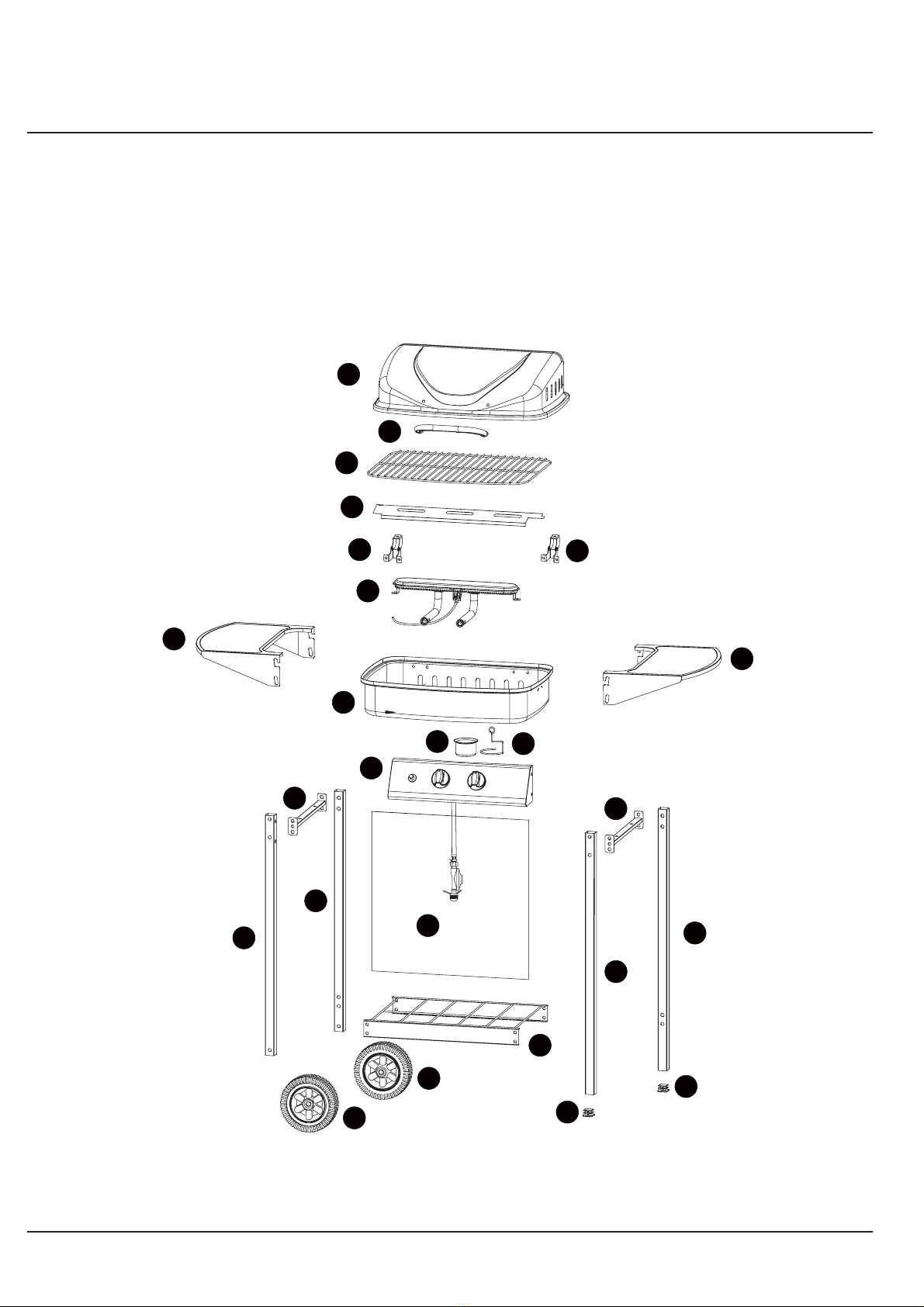

Please refer to the parts list and assembly diagram as neccessary.
Assembly of the barbecue involves many large components; it is
advisable to have two people assemble the unit.
Please use protective gloves when assembling this product.
To avoid losing any small component or hardware, assemble your
product on a hard level surface that does not have cracks or
openings.
To avoid damage to soft floor or carpet, do not assemble or move
the appliance on soft floor or carpet.
Follow all steps in order to properly assemble your product.
Make sure all the plastic protection is removed before assembling.
Do not force parts together as this can result personal injury or
damage to the product.
When applicable , tighten all hardware connections by hand first,
once the step is completed, go back and fully tighten all hardware.
Please read these instructions carefully before assembley and use.
Caution: Whilst every effort has made in manufacture of your
barbecue to remove sharp edge, you should handle all components
with care to avoid accidental injury.
2
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Proper use
The barbecue is a gas barbecue for outdoor use. It is designed
to be used exclusively in accordance with these instructions for
preparing foods that are suitable for barbecue cooking.
For private use only!
Leak test all connections after each tank refilled or first use after
a long period, by which the method is described in the “Operating
instructions” part.
This barbecue should be thoroughly cleaned and inspected on a
regular basis, clean and inspect the hose before each use of the
appliance. If there is evidence of abrasion, wear, cuts or leaks, the
hose must be replaced prior to the appliance being operated.
Use only factory authorized parts. The use of any part that is not
factory authorized is dangerous.
When cooking, fire extinguishing materials shall be readily
accessible. In the event of an oil grease fire, do not attempt to
extinguish with water. Use type B or type C dry chemical fire
extinguisher or smother with dirt, sand or baking soda.
Operate on solid ground only, do not install or use in/on boats or
recreational vehicles.
Always open barbecue lid carefully and slowly as heat and steam
trapped within barbecue can severely burn you.
Move gas hoses as far away as possible from hot surface and
dripping hot grease.
Keep all electrical cords away from a hot barbecue.
Turn off the gas supply at the gas container after use.
When handling particularly hot components, protective gloves
should be used.
Improper use
Any other application or applications extending beyond the stated
purpose are not authorised. This applies in particular to misuse
involving the following possible scenarios:
• Do not operate the barbecue with coal or any fuel other than
LPG.
• Do not operate the barbecue as a stove using pots and pans.
• Do not operate the barbecue as a heater.
• Any modification of the appliance may be dangerous.
• Parts sealed by the manufacturer must not be altered by the
user.
• Do not use the barbecue to heat materials and substances
other than foods that are suitable for barbecuing.
• Never use and LP gas tank with damaged body, valve collarsor
footing.
• Do not store a spare LP tank uner or near this appliance.
• The use of alcohol, prescription or non-prescription drugs may
impair the ability to properly assemble or safely operate the
appliance.
The barbecue left the factory in good order and condition in terms
of its function and safety.
•
Never use charcoal, lighter fluid, lava rocks, gasoline,
kerosene, or alcohol within this product.
•Do not store or use gasoline or other flammable liquids
or vapors within 25 feet (7.6m) from this appliance.
•Minimum clearance from sides and back of unit to
combustible construction: 3 feet from side and 3 feet
from back. Do not use this appliance under overhead
combustible surface.
During operation some parts of the barbecue can become very
hot, particularly those close to the fire bowl.
Possible consequences:
• Severe burns from touching parts near the fire bowl.
• Fire or smouldering fire if flammable materials or substances
are near the barbecue.
Safety measures prior to using the barbecue:
Select a place to set up the barbecue so that:
• There are not , and will not be, flammable or substances
nearby. Minimum disctance to material or substances: No
overhead obstruction above and 1 m to the side. Distance to
highly flammable material or substances, e.g. walls: min 1 m.
• The barbecue is positioned firmly on a sufficiently large
surface area. It must not be moved during operation.
Safety measures during barbecuing:
Liquid gas is highly flammable and explosive.
Possibe consequences:
• Serious personal injury or damage to property if escaping gas
ignites in an environment in which it is not controlled.
Safety measures:
• Only use the barbecue outdoors and ensure that the area is
well ventilated.
• Protect the gas bottle and gas hose from direct sunlight and
other heat sources (max. 50 degree C). Take special care to
ensure that the gas hose does not touch any part of the hot
barbecue.
• DO NOT place the gas bottle on the lower shelf, as it is too
near the burner.
CAUTION! HOT SURFACE AND PARTS
CAUTION! GAS IS HIGHLY FLAMMABLE
2 Burner Gas BBQ
Assembly Instructions
tesco.com
• Wear protective barbecue gloves.
• Never leave the hot barbecue unattended.
TAKE PARTICULAR CARE TO ENSURE THAT CHILDREN AND
PETS ARE KEPT AWAY FROM THE BARBECUE.
• Never fit the gas bottle right to next barbecue. Always place
the gas bottle at the left hand rear or of the appliance. The gas
bottle should be sited as far away from the appliance as
possible without straining the hose. No part of the hose should
touch any part of the appliance.
3
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Important!
Please read this instructions fully before using the appliance
• Retain these instructions for future reference.
• Use outdoors only.
• Do not use the barbecue or store gas bottles below ground
level. LP gas is heavier than air so if a leak occurs the gas will
collect at a low level and could ignite in the presence of a
flame or spark.
• For use with LPG bottled gas only. A suitable regulator must
be used for butane, propane or mixes.
• Remove plastic wrap from any part before lighting.
• Do not use within 1m of any flammable structure or surface.
Do not use under any combustible surface.
• LP gas cylinders should never be placed directly underneath
the barbecue.
• LP gas cylinders should never be stored or used laid on their
side, in the horizontal position. A leak would be very serious
and liquid could enter the gas line with serious result.
• Never store gas bottles indoors.
• Do not move the appliance during use.
• Open the barbecue hood before lighting.
• Do not move the barbecue until it has completely cooled after
use.
• This barbecue must not be left unattended when lit.
• The hood handle can become very hot. Grip only the centre of
the handle. Always use oven gloves when cooking or carrying
out any adjustments to the barbecue.
• Use purpose designed barbecue tools with long and heat
resistant handles.
• Use caution when opening the hood, as hot steam inside is
released upon opening.
• Warning: accessible parts may be very hot. Keep young
children away.
• Turn off the gas supply at the gas cylinder after use.
• Never cover a barbecue until it has completely cooled.
• Use this barbecue only on a stable and flat surface.
• Before use this barbecue , perform a leak test. This is the only
safe and sure way to detect any gas leaking from joints and
connections of the barbecue after assembly.
• Leak test annually, and whenever the gas bottle is removed or
replaced.
• Do not store flammable materials near this barbecue.
• Do not use aerosols near this barbecue.
• Failure to follow the manual’s instructions could result in
serious injury or damage.
• Do not modify the appliance. Modification of this barbecue
may be dangerous, is not permitted and will nullify any
warranty.
• This appliance must be kept away from flammable materials
during use.
• All the parts sealed by the manufactured or his agent shall not
be manipulated by the user.
• If you have any queries regarding these instructions, contact
your local dealer.
2 Burner Gas BBQ
Assembly Instructions
tesco.com
Gas and Regulator
This barbecue can use either propane or butane or propane/ butane
mixed LPG (liquid petroleum gas) bottled gas. Propane bottles, will
supply gas all year round, even on cold winter days. Butane bottles
will supply sufficient gas in summer, but it may affect the
performance of the barbecue and restrict the heat output available
from the burners, particularly once the gas temperature starts
to fall below +10°C. A spanner may be required to change gas
bottles.
• The hose should hang freely with no bends, twisting, tension,
folds, or kinks that could obstruct free flow of gas. Always
inspect the hose for cuts, cracks, or excessive wear before use.
• Apart from the connection point, no part of the hose should
touch any hot barbecue parts. If the hose shows any sign of
damage it must be replaced with a hose suitable for use with
LP gas which meets the national standards for the country of
use.
• A suitable hose must comply with EN16436-1, and the length
should not exceed 1.5 metres.
For optimal performance, we suggest to use a 5-15kg gas bottle.
The maximum dimension of the gas bottle is dia 31.5cm and height
58cm
2

Key
1= maximum diameter
2= maximum height
Never mount the gas bottle under the barbecue on the base shelf
as this could result in serious injury to the user, other people and/or
property. Always place the gas bottle at the side of the appliance.
The gas bottle should be sited as far away from the appliance as
possible without straining the hose. This appliance is only suitable
for use with low-pressure butane or propane gas and fitted with
the appropriate low-pressure regulator via a flexible hose. The hose
should be secured to the regulator and the appliance with hose
clips/nut. This barbecue is set to operate a 28-30 mbar regulator
with butane gas or a 37mbar regulator with propane gas. Use a
suitable regulator certified to EN16129. Please consult your LPG
dealer for information regarding a suitable regulator for the gas
cylinder.
4
P
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Installation
Selecting a Location
This barbecue is for outdoor use only and should be placed in a
well-ventilated area, and on a safe and even surface. Never place
your barbecue below ground level. Take care to ensure that the
barbecue must be used on an incombustible floor.
The sides of the barbecue should NEVER be closer than 1 metre
from any combustible surface, including trees and fences and make
sure that there are no heat sources near the barbecue (cigarettes,
open flames, spark etc.). Keep this barbecue away from any
flammable materials!
Precautions
Do not obstruct any ventilation openings in the barbecue body.
Position the gas bottle on level ground next to the barbecue and
safely away from any source of heat. Should you need to install or
change the gas bottle, confirm that the barbecue is switched off,
and that there are no sources of ignition (cigarettes, open flame,
sparks, etc.) near before proceeding.
Fixing a Regulator to the Gas Bottle
Confirm all barbecue control knobs are in the off position. Connect
the regulator to the gas bottle according to your regulator and
bottle dealer’s instructions.
Leak Testing
(Always perform a leak test in a well-ventilated area)
Confirm all control knobs are in the off position. Turn the gas on
/ open the gas control valve on the gas bottle or regulator. Check
for leaks by brushing a solution of ½ water and ½ liquid detergent
/ soap over all the gas system joints, including gas bottle valve
connections, hose connections, and regulator connections. NEVER
USE AN OPEN FLAME to test for leaks at any time. If bubbles form
over any of the joints there is a leak. Turn off the gas supply at the
gas bottle. Retighten all joints. Repeat test. If bubbles form again
do not use the barbecue and contact your local distributor for
assistance. Always wipe the mixed solution (½ water and ½ liquid
detergent / soap) from all joints and connections after leak testing.
2 Burner Gas BBQ
Assembly Instructions
tesco.com
Preparation before cooking
To prevent foods from sticking to the cooking surface, please use a
long handled brush to apply a light coat of cooking or vegetable
oil before each barbecuing session. (Note: When cooking for the
first time, paint colours may change slightly as a result. This is
normal and should be expected.) During use, the protective coating
may come off the cooking surface. This is normal an is not harmful.
Line the drip pan with aluminium foil. This will make cleanup easy.
Lighting the main burner
1. Open the barbecue hood.
2. Ensure all knobs are in the off position. Open the gas control
valve on the gas bottle or regulator.
3. Push in and turn the control knobs to the “Max” position. Press
the ignition button rapidly several times until left or right
portion of the the burner is lit. After succesful lighting of one
side, ignite the remaining portion of the burner. If the burner fails
to ignite after above procedures, turn all the knobs to the off
position. Close the gas valve on the gas bottle. Wait 5 minutes
and then repeat the above steps. If the barbecue still fails to light,
please refer to the manual ignition instruction in the section
below.
4. After ignition, the burner should be burned at the high
position for 3-5 minutes in order to preheat the barbecue.
This process should be done before every cooking session. The
hood (where applicable) should be open during preheating.
5. After completion of preheating, the burner should normally be
turned down to a lower position for best cooking results.
Manual Ignition Instruction for Main Burner
1. Insert lit match through the match-lighting hole at the side or
bottom of the barbecue body.
2. Push in and turn the control knob anti-clockwise to the max
position.
3. After the left or right portion of the burner is lit, light the
remaining portion of the burner.
4. If burner fails to ignite, contact your local dealer for assistance.
5. After ignition, the burner should be burned at the max position
for 3-5 minutes in order to preheat the barbecue. This process
should be done before every cooking session. The hood (where
applicable) should be open during preheating.
6. After completion of preheating, the burner should normally be
turned down to a lower position for best cooking results.
O
Operation
Warning:
• Before proceeding, make certain that you understand the
IMPORTANT INFORMATION section of this manual.
• Your barbecue is not designed to be used with more than 50%
of the cooking area as a solid plate —this includes baking
dishes. Full coverage will cause excessive build-up of heat and
damage the barbecue. This is not covered by warranty.
5
P
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Application
Grill Cooking
The burners heat up the flame tamer underneath the grill, which in
turn heats the food on the grill. The natural food juices produced
during cooking fall onto the hot flame tamer below and vaporise.
The subsequent rising smoke bastes the food, as it travels upwards,
imparting that unique barbecued flavor.
Roasting Hood Cooking
Barbecues equipped with a roasting hood give the option to form
an ‘oven’ for roasting or baking food, such as joints of meat or
whole chickens, etc. More even cooking of food will actually be
achieved by using the barbecue with the hood down. However, this
should only be done with the burners on low.
For best results, place the food you wish to bake or roast on a
metal baking tray and set it on one side of the cooking grill.
Turn the burner directly under the food to the OFF position and
turn all other burners to a LOW to MEDIUM position.
Close the hood to cook the food ‘indirectly’. Avoid lifting the hood
unnecessarily as heat is lost every time the hood is opened. If the
hood is opened during cooking please allow extra time for the
barbecue to regain its temperature and complete the cooking. Use
the temperature gauge (if applicable) to monitor the heat of the
barbecue.
If the internal heat becomes too high, turn the burners down to
the low position. It is not necessary or advisable to have all of the
burners on high when the hood is closed.
D
DO NOT ALLOW YOUR BARBECUE TO OVERHEAT.
Take care when
opening the hood as hot steam can be released on opening.
Flare-Up Control *Very Important Notice*
Flare-ups occur when meat is barbecued, and its fat and juices
fall upon the hot flame tamer. Smoke of course helps give food
its barbecued flavour, but it is best to avoid excessive flare-up to
prevent food being burned. To control flare-ups, it is A
ABSOLUTELY
ESSENTIAL
to trim away excess fat from meat and poultry before
grilling, use cooking sauces and marinades sparingly and try to
avoid very cheap cuts of meat or meat products as these tend to
have a high fat and water content. Also, the burners should always
be placed on the low setting during cooking.
When flare-ups do occur, they can usually be extinguished by
applying baking soda or salt directly onto the flame tamer. Always
protect your hands when handling anything near the cooking
surface of the barbecue and take care to protect yourself from the
flames.
If a fat fire occurs, please see the instructions given below.
Fat Fires
Empty and clean the drip tray, of food debris after each cooking
session. If the barbecue is to be used for large gatherings, it will
be necessary to turn off and cool the barbecue every two hours to
remove food debris from the drip tray, and clean it out. The time
between cleaning may need to be reduced if very fatty foods or
cheap meat products are being cooked. Failure to do this may
result in a fat fire, which may cause injury and could seriously
damage the barbecue.
• If safe to do so, turn all control knobs to the ‘off’ position.
• Turn off the gas supply at the gas bottle.
• Keep everyone at a safe distance from the barbecue and wait until the
fire has burnt out.
• Do not close the hood or lid of the barbecue.
•N
NEVER DOUSE A BARBECUE WITH WATER. IFAN EXTINGUISHER IS
USED, IT SHOULD BE A POWDERTYPE.
•D
DO NOT REMOVETHE DRIP TRAY.
• If the fire does not seem to be abating or appears to be worsening,
contact your local Fire Brigade for assistance.
End of Cooking Session
After each cooking session, turn the barbecue burners to the “high” position
and burn for 5 minutes. This procedure will burn off cooking residue, thus
making cleaning easier. Make sure the hood is open during this process.
Turning Off Your Barbecue
When you have finished using your barbecue, turn all the control valves fully
clockwise to the “Off” position, then switch off the gas supply at the bottle.
Wait until the barbecue is sufficiently cool before closing the hood or lid.
2 Burner Gas BBQ
Assembly Instructions
tesco.com
•D
DO NOT
lean over the barbecue when igniting the gas flame.
• Close the valve on the gas bottle after each use. (Refer to regulator
instruction). Also turn off the control knobs (Turn knob fully clockwise).
• Never leave the hot barbecue unattended. If the flame extinguishes,
relight immediately or cut off the supply from the gas bottle.
• When connecting the gas bottle, ensure that there are no ignition
sources within a 5m radius. Take special care not to light any naked
flames, do not smoke or switch on electric appliance (devices, lights,
door bells), etc (sparkover possible).
•
•
Before each use, check to ensure that all connections through which gas
is supplied are sealed and intact.
If necessary, ensure that you replace the hose to meet with national
requirements. (Always use hose-clips to secure the hose to the regulator
and BBQ).
If the connections for the gas supply are porous or faulty, the barbecue
must not be used. This also applies, for example, to hose or fittings that
may become blocked, as this can lead to a dangerous flashback.
•
CAUTION! GAS IS HIGHLY FLAMMABLE
Liquid gas is heavier than oxygen. Therefore it settles on the ground
and displaces the oxygen at that level.
Possible consequences:
• Suffocation resulting from the lack of oxygen if the gas concentration
is allowed to rise sufficiently.
Do not use the barbecue unless it's completely assembled and all parts
are securely fastened and tightened.
Do not leave a lit barbecue unattended, especially keep children and
pets away from barbecue at all time.
Do not move the appliance during use.
Never cover the entire cooking area.
Never obstruct the ventilation opening of the container compartment.
Do not use power tools to construct this product.
Do not over tighten screws or bolts.
Do not tighten screws until fully assembled.
Do not sit or stand on the product.
Do not use this product if parts are missing, damaged or worn. Never
use scourers, abrasive or chemical cleaners.
In the event of a fat fire:
6
P
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Care and Maintenance
Regularly clean your barbecue between uses and especially
after extended periods of storage. Ensure the barbecue and its
components are sufficiently cool before cleaning. Do not leave the
barbecue exposed to outside weather conditions or stored in
damp, moist areas.
• Never douse the barbecue with water when its surfaces are
hot.
• Never handle hot parts with unprotected hands.
In order to extend the life and maintain the condition of your
barbecue, we strongly recommend that the unit be covered when
left outside for any length of time, especially during the winter
months.
Even when your barbecue is covered for its protection, it must be
inspected on a regular basis as damp or condensation can form
which may result in damage to the barbecue. It may be necessary
to dry the barbecue and the inside of the cover. It is possible for
mould to grow on any fat remaining on parts of the barbecue. This
should be cleaned off smooth surfaces with hot soapy water.
Any rust that is found that does not come into contact with the
food should be treated with a rust inhibitor and painted with
barbecue paint or a heat resistant paint. A chrome cleaner may be
used on chrome parts if required. To prevent rusting, wipe chrome
plated parts with cooking oil after rinsing and drying.
Cooking Surfaces
When the barbecue has cooled, clean with hot soapy water. To
remove any food residue, use a mild cream cleaner on a non-
abrasive pad. Do not use scouring pads or powders as they can
permanently damage the finish. Rinse well and dry thoroughly.
Due to the weight of the cooking surfaces, we do not recommend
cleaning in a dishwasher.
It is quite normal for surface rust to be present on the cooking
surface. If rust appears between uses or in storage, clean with
a soft brass wire brush. Be careful not to damage the cooking
surface, re-oil and cure.
Burner
Provided that they are operating correctly, in normal usage, burning
off the residue after cooking will keep the burners clean.
The burners should be removed and cleaned annually, or
whenever heavy build-up is found, to ensure that there are no
signs of blockage (debris, insects) in either the burner portholes
or the primary air inlet of the burners. Use a pipe cleaner to clear
obstructions.
When refitting the burners, be careful to check that the neck of the
burner fits over the valve outlet.
It is quite normal for surface rust to be present on the burners. If
rust appears between uses or in storage, clean with a soft brass
wire brush.
Flame Tamer
Remove any food residue from the flame tamer surface with a
plastic or wooden scraper or brass wire brush.
Do not use a steel scraper or wire brush. Clean with hot soapy
water and rinse well.
Drip Tray
After every use, empty and clean the drip tray of any fat or food
particles, using a plastic or wooden scraper if necessary.
Failure to keep it clean, and excessive build up can result in a fat
fire. This can be hazardous and severely damage the barbecue. This
is not a fault in the barbecue and is therefore not covered by the
terms of the warranty. If required, the tray can be washed in hot
soapy water.
Barbecue Body
Regularly remove excess grease or fat from the barbecue body
using a cloth wrung out in hot soapy water and dry thoroughly.
Excess fat and food debris can be removed from inside the body
using a soft plastic or wooden scraper. It is not necessary to
remove all the grease from the body. If you need to clean fully, use
hot soapy water and a cloth, or nylon-bristled brush only. Do not
use abrasives. Remove cooking surfaces and burners before full
cleaning. Do not immerse the gas controls or manifold in water.
Check burner operation after carefully refitting into body.
A stainless steel cleaner may be used on stainless steel parts if
required.
Whenever a barbecue is being assembled for the first time or its
burners are being cleaned, make sure each gas valve tip goes into
the burner venturi tube completely during the assemble or re-
assemble process.
burner
venturi tube
gas
valve
2 Burner Gas BBQ
Assembly Instructions
tesco.com
7
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Care and Maintenance
Barbecue Hood or Lid
Use a non-abrasive cloth or pad and clean with hot, soapy water.
Do not use scouring pads or powders as they can permanently
damage the finish.
Trolley
Wipe with a cloth wrung out in hot soapy water and dry.
Fixings
All screws and bolts, etc. should be checked and tightened on a
regular basis.
Storage
Ensure the barbecue is properly cooled before covering or storing.
Store your barbecue in a cool dry place. It must be inspected on
a regular basis as damp or condensation can form which may
result in damage to the barbecue. It may be necessary to dry the
barbecue and the inside of the cover if used.
Mould can grow under these conditions and should be cleaned
and treated if required. Any rust that is found that does not come into
contact with the food should be treated with a rust inhibitor and
painted with barbecue paint or a heat resistant paint.
Cooking grills should be coated with cooking oil.
Cover the burners with aluminum foil in order to prevent insects or
other debris from obstructing the burner holes.
If the barbecue is to be stored indoors, the gas bottle must be
disconnected and left outside. The gas bottle should always be
stored outside, in a dry, well-ventilated area, away from any
sources of heat or ignition. Do not let children tamper with the
bottle.
When using the barbecue after extended periods of storage follow
the cleaning procedures.
Carbon Monoxide Hazard
Danger of carbon monoxide
CARBON MONOXIDE
poisoning-NEVER light this
HAZARD
down in conned spaces
product or let it smoulderor cool
WARNING
2 Burner Gas BBQ
Assembly Instructions
tesco.com
Technical Specification
This barbecue to the destination country GB and
IE is fitted with gas hose and 37 mb regulator and
for propane gas use only. The below gas bottles
are recommended.
5kg propane gas 13kg propane gas
Warning:The current regulator is not applicable for
BUTANE gas. Please contact with local dealer or gas
supplier for BUTANE gas connection.
Model Number
Pin Number
Gas Category I3 B/P (30)
Gas Pressure 28 -30mbar 37mbar 30mbar
Injector Size
(main burner) 0.75mm 0.75mm 0.75mm
Gas Type Butane Propane
Butane/
Propane/
LPG
2 Burner
Heat Input
Gas Consumption
Country of
Destination
KS17065A
2575DL0359BU1015
I3+(28-30/37)
4.7 kW
335 g/h
I3+(28-30/37) for GB and IE
I3B/P(30) for CZ, SK and HU
8
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Ref Dimmension(mm) Visual Qty
A M6X12mm bolt 20
B M4X8mm bolt 2
C
Heat tent support
4
D
M5X8mm bolt 8
E
M5 nut 6
F
Washer
G
M4 nut
H
M6X15mm
shoulder bolt
2
I
Axle
J
R pin
2
K ST 4X10mm screw 2
M6 nut
L2
1
M6X20mm bolt
8
M2
4
2 Burner Gas BBQ
Assembly Instructions
tesco.com
Please contact 0870 066 6938 if you have damaged or missing parts.
or email:[email protected]
Ref Dimmension(mm) Visual Qty
Number of people required to assemble
Two person to assemble and lift
Time to assemble

1-
2 hours

Tools required (not supplied)
not not

 supplied supplied
You can write to us at:
Tesco Stores Ltd
Welwyn Garden City, AL7 1GA.UK
Freephone 0800 50 55 55
& Tesco Ireland Ltd
Gresham House, Marine Road,
Dun Laoghair, Co.Dublin
Freephone 1800 248 123
9
Tesco
2020.SC526449
VPN:KS17065A
Spare parts are also available in the unlikely event that any are missing.
Please call: 0
0870 0666938
Email:[e-mail]
Please have the Ref. number available to assist with your query.
This is located on the front page of the instruction manual.
Produced in China for Tesco Stores Ltd.
©Tesco 2021.
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

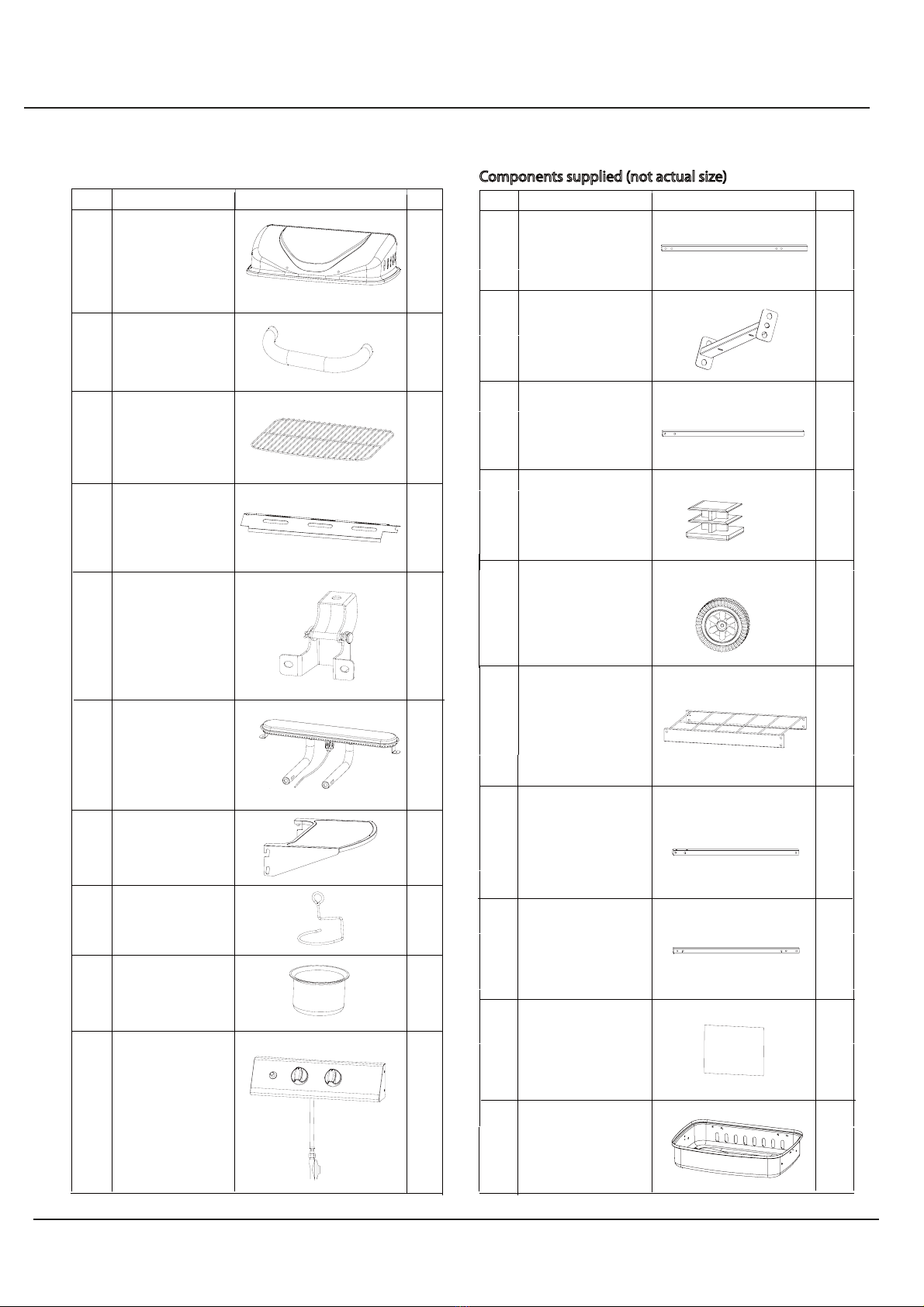

Ref Description Visual Qty
Lid 
Lid handle 
Cooking grill 
Heat tent 
Lid hinge 
Burner assembly 

Firebowl
Grease cup holder 
Grease cup 

Side shelf



Front canvas

3JHIUSFBSMFH

3JHIUGSPOUMFH

-FHDBQ
Ref Description Visual Qty









Control panel
assembly
Left rear leg
Left front leg
Bottom shelf
$PNQPOFOUTTVQQMJFEOPUBDUVBMTJ[F

Firebowl Ssupports
 8IFFM






2 Burner Gas BBQ
Assembly Instructions
tesco.com
Please contact 0870 066 6938 if you have damaged or missing parts.
or email:[email protected]
10
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

Getting to know your product
1
2
3
4
6
9
11
8
18
19
15
17
12
16
5
10
7
13
14
20
5
7
14
15
12
2 Burner Gas BBQ
Assembly Instructions
tesco.com
11
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

OPUTVQQMJFE
A x 4
OPUTVQQMJFE
A
A
17
18
16
A
A
A
13
11
A
A
A
16
A x 4
2 Burner Gas BBQ
Assembly Instructions
tesco.com
12
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

A x 8
OPUTVQQMJFE
15
15
17
18
L
L
M
M
MML x 2 M x 2
12
12
A
A
A
A
A
A
A
A
17
18
13
11
Note:
End of grill support with LABEL (FRONT)
shall be fastened to the right front or left front leg.
2 Burner Gas BBQ
Assembly Instructions
tesco.com
13
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

OPUTVQQMJFE
A x 4
OPUTVQQMJFE
10
17 13
A
A
A
A
B
B
J
J
D
#Y %Y
OPUTVQQMJFE
J x 2
2 Burner Gas BBQ
Assembly Instructions
tesco.com
14
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

'Y
OPUTVQQMJFE
OPUTVQQMJFE
,Y
20
12
FFF F
FFF
FFF
F
OPUTVQQMJFE
$Y
20
20
6
10
10
6FF
K
FF
K
FF
C
FF
C
FF
C
FF
C
12
The gas valve nozzle has to go into the burner tube completely
and the nozzle and the center of the burner tube openning must be in a perfect line.
2 Burner Gas BBQ
Assembly Instructions
tesco.com
2 Burner Gas BBQ
15
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

H x 2
OPUTVQQMJFE
OPUTVQQMJFE
20
5
5
FF
E
FF
E
FF
EFF
E
FF
G
FF
GFF
GFF
G
E x 4 G x 4
OPUTVQQMJFE
2
1
FF
EFF
E
FF
H
FF
H
E x 2
2 Burner Gas BBQ
Assembly Instructions
tesco.com
16
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

OPUTVQQMJFE
1
20
FF
E
FF
E
FF
G
FF
G
OPUTVQQMJFE
E x 2 G x 2
OPUTVQQMJFE
7
13
11
I x 4
FF
I
FF
I
FF
I
FF
I
5
5
2 Burner Gas BBQ
Assembly Instructions
tesco.com
17
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

FF
I
FF
I
FF
I
FF
I
7
18
17
OPUTVQQMJFE
I x 4
8
20
2 Burner Gas BBQ
Assembly Instructions
tesco.com
18
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

98
3
4
20
2 Burner Gas BBQ
Assembly Instructions
tesco.com
19
Produced in China for Tesco Stores Ltd.
©Tesco 2021.

19
2 Burner Gas BBQ
Assembly Instructions
tesco.com
Please contact 0870 066 6938 if you have damaged or missing parts.
or email:[email protected]
20
Produced in China for Tesco Stores Ltd.
©Tesco 2021.
