Tesco KS16013 User manual

www.tesco.com
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
Product size assembled:
L93 x W67 x H95.5cm
Ref No.: KS16013
Catalog No.:
󴖦

www.tesco.com
Produced in China for TESCO Stores Ltd.
Tesco 2017 2
Before you start
Warnings
REMEMBER-DO NOT USE INDOORS! FOR OUTDOORS ONLY.
Great care has been taken during production to remove sharp
edges but you should handle all components with care to
avoid possible injury.
• Keep a fire extinguisher handy.
• Hot fat may drip at the bottom of the fire bowl so keep your
feet clear.
• If fire flares up due to dripping fat, douse flames with fine
water spray.
• DO NOT touch metal parts of the BBQ until it has
completely cooled to avoid burns. BBQ handles will be hot
and unsafe to touch during use, unless you are wearing
protective gear (pot holders, gloves, BBQ mittens,
hot pad etc).
• Never handle charcoal after lighting.
• Ensure coals have completely burnt before removing
the ash.
• Not to be installed in or on recreational vehicles and/or
boats.
• Store away ONLY when barbecue is completely
extinguished and cool.
• In construction of this BBQ use all and only the
components provided.
• Caution! Do not use spirit or petrol for lighting or
relighting.Use only firelighters complying with EN1860-3.
• Caution! Keep well away from heat sensitive materials
and objects.
• After use, extinguish and allow cooling.
• Only store away when thoroughly cool and extinguished.
• Caution! To avoid damage to property, ALWAYS place this
appliance on a surface which is suitably heat resistant as
this appliance will get extremely hot during operation.
• Caution! To avoid injury, be aware that the resting
surface directly beneath this appliance will get very hot
during operation and will remain very hot sometime after
afterwards-keep feet, other limbs and all property/item
well away from this area.
• Attention! This barbecue will become very hot. Do not
move it during operation.
• Warning: Keep children and pets away.
• Important! Please retain this manual for future reference.
• Unwrap all packaging materials and place components on
top of carton box or on a clean floor to prevent it from
scratching.
• Keep small parts out of reach of children.
Do's
Stand your barbecue on a safe, level surface, well away from
flammable items such as wooden fences or over-hanging
tree branches.
Keep children and pets away.
An adult should always be in charge of the BBQ. Never leave a
hot barbecue unattended.
Be careful of sharp edges during assembly.
When you are ready to start, make sure you have the
right tools, plenty of space and a clean, dry area for
assembly.
Check the pack and make sure you have all the parts listed.
During assembly,children should be kept away from the product
due to possible risk of injury.
Ensure this product is fully assembled as illustrated before use.
To clean, wipe with a sponge and soapy water. Do not use
solvent based cleaners or detergents as they can bleach or
damage this product.
Tools not included.
Don'ts
CAUTION! Do not use spirit or petrol for lighting or re-lighting!
Use only firelighters complying to EN1860-3!
ATTENTION! Once lit, DO NOT move your BBQ or leave
it unattended!
Always make sure the barbecue is fully extinguished and
completely cool before applying any covers OR
storing away-remember coals can remain hot for sometime and
could re-ignite under certain conditions UNLESS fully damped
down and/ or extinguished.
CAUTION! NEVER STORE a barbecue indoors unless ALL coals
and ash have been thoroughly removed and thrown away
outdoors and all barbecue surfaces have been cleaned and are
cool, as otherwise this could lead to fire and/or emissions of
poisonous gases which could cause death.
DO NOT use power tools to construct this product.
DO NOT over tighten screws or bolts.
DO NOT tighten screws until fully assembled.
DO NOT sit or stand on the product.
DO NOT use the product if parts are missing, damaged or worn.
2
Barrel Charcoal BBQ
Assembly instructions

www.tesco.com
Number of people required to assemble
Two persons to assemble and lift
Time to assemble
45 - 60 minutes
Tools required (not supplied)
not not
supplied supplied
Our promise
We are happy to refund or replace any Tesco product which falls
below the high standard you expect. Just ask any member of staff.
This will not effect your statutory rights.
We are here to help:
Tesco Stores Ltd., Welwyn Garden City AL7 1GA,U.K.
Spare parts are also available in the unlikely event that any are missing.
Please call: 0870 066 6938
Please have the Ref. number available to assist with your query.
This is located on the front page of the instruction manual.
3
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions

Further help
Care Instructions
Follow these instructions to maintain the appearance and life of
this BBQ.
• It is not advisable to completely fill the fire bowl as the
barbecue may become far too hot to cook successfully.
• Line the fire bowl with aluminum cooking foil, shiny side up,
to make it easier to clean your barbecue after use.
Leave ventilation holes clear by piercing the foil where
necessary. This process will lengthen the life of your barbcue
and reflect the heat more efficiently on to the food.
• To clean your grill, soak the cooking grill and tools in hot
soapy water when the barbecue is completely cool as soon
as possible after use.
• When you have finished cooking, never pour cold water
directly on the coals to extinguish them as this may damage
your grill. Use old cinders, sand or a fine water spray.
• Store in a cool dry place. Ensure it is clean and dry
thoroughly.
It must be thoroughly cleaned of all ash and unused
fuel/coals before storage. (See Warnings)
CAUTION! To help avoid injury or damage to property, it is
vitally important that you clean and maintain your barbecue
after every use. Please note that you should inspect your
barbecue before every use - the barbecue should be clean and
in good working order.
Please note that this appliance will not last forever and will
begin to degrade with use over time. It is very important that
you replace your barbecue as and when it begins to show signs
of fatigue, corrosion or damage. Please note: Continuing to
use an appliance which is damaged could cause injury or
damage to property.
• Protect from severe weather conditions.
We recommend you use a BBQ cover to protect this item
when not in use. BBQ must be cooled before cover is added.
Covers must be removed periodically to minimize moisture
build up and damage to the BBQ, as most covers are not
breathable.
• Some components are held at BBQ service centre please
contact 0870 066 6938 if you are missing parts.
Email:[email protected].uk
4
Instructions for use
Barbecue should be heated up and the fuel kept red hot for at
least 30 min prior to the first cooking on the barbecue.
Method 1 - Charcoal & Lighting Fluid/Gel Follow Charcoal &
Lighting Fluid/Gel product instructions and warnings.
(not included)
• Set up your barbecue in a safe place with sufficient space and
make sure the barbecue is installed on a secure level base.
Place enough charcoal in the bowl to a depth of 3-5 cm.
• CAUTION: Carefully apply lighting fluid/gel in small amounts
over the charcoal. Over application can be dangerous.
• DO NOT spill any lighting fluid/gel onto your hands or clothes.
• Wait for 30 seconds to allow the liquid to soak into
the charcoal before lighting.
• DO NOT light the charcoal if you have spilt fluid or gel onto
your clothes. Light the charcoal using a long taper or safety
lighter.
• DO NOT squirt liquid onto burning charcoal.
Method 2 - Lighting Blocks Follow lighting block product
instructions and warnings.
(not included)
• Place three or four Lighting Blocks in the centre of the
barbecue fire bowl and light with a match.
• Place pieces of charcoal around each burning block.
Add more charcoal as required, in a pyramid formation.
• When burning is established, spread the fuel out evenly. The
fire should be ready for cooking when even white ash or an
even red glow is visible.
• DO NOT cook before the fuel has a coating of ash.
• Ensure that the cooking grill is fully located into the grill
supports.
When the charcoal is alight, the smoke and flames have died
down and the charcoal has an even layer of grey ash, rake
the charcoal into a level layer in the hearth.
Small quantities of charcoal may be added on top of the
charcoal layer prior to cooking to extend cooking time.
To help prevent food sticking, apply a thin coating of cooking
oil on the grill prior to cooking.
To adjust the airflow using the air vent we recommend to
use of a heat resistant glove.
ALWAYS WEAR OVEN GLOVES WHEN HANDLING THE
CHARCOAL BBQ.
Produced in China for TESCO Stores Ltd.
Tesco 2017
www.tesco.com
Barrel Charcoal BBQ
Assembly instructions

Care and Maintenance
Charcoal is available in lump wood form (large irregular pieces)
and as briquettes (uniformly sized pieces). This Charcoal BBQ works
best with briquettes.
It is not advisable to completely fill the firebowl as the BBQ may
become far too hot to cook successfully. As a guide a 3kg bag
of charcoal briquettes should last for at least 2 full BBQ fires.
Recommend charcoal max 1.5 kg to be used for each firebowl,
evenly distributed on the charcoal grate.
If the fires flares up due to dripping fat then douse the flames
lightly with a fine water spray.
When you have finished using the Charcoal BBQ, never pour cold
water directly on the coals to extinguish them as this may damage
your Charcoal BBQ. Use old cinder, sand or a fine water spray.
Empty the bottom bowl of ashes when they are completely cold.
To clean your Charcoal BBQ, soak the cooking grill and tools in hot
soapy water as soon as possible after use. Dry thoroughly and store
in a dry place.
Do not leave your Charcoal BBQ outside unprotected.
Food safety
• Thoroughly defrost frozen meat and poultry in the
refrigerator before cooking. Keep raw meat and poultry
separate from cooked food.
• Ensure that the grill is thoroughly cleaned before cooking
and lighting the barbecue.
• Always wash hands after handling raw meat and poultry
before handling any ready to eat food.
• Wipe and disinfect surfaces that have been in contact with
raw meat and poultry.
• When barbecuing meat and poultry, make sure the
barbecue is really hot. Place the larger, thicker portions
furthest away from the most intense heat to ensure
thorough cooking without burning and turn regularly.
• Use separate utensils for handling raw meat or poultry and
cooked food on the barbecue, or wash them thoroughly
between use.
• To check whether meat, particularly poultry, is cooked,
pierce the flesh with a skewer or fork: the juices should run
clear. Ensure the product is piping hot throughout.
Attention!
This BBQ will become very hot. Do not move it
during operation. Do NOT use indoors.
“Warning! Keep children and pets away!”
“Caution! Do not use spirit or petrol for lighting
or re-lighting! Use only firelighters complying
to EN 1860-3”
Carbon Monoxide Hazard
5
Danger of carbon monoxide
CARBON MONOXIDE
poisoning-NEVER light this
HAZARD
down in conned spaces
product or let it smoulderor cool
WARNING
www.tesco.com
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
D//o not use this barbecue in a confined and///?/ /// or/ a
habitable space, e.g. houses, tent, caravans , motor
homes, boats. Danger of carbon monoxide poisoning
fatality.
Warning!

www.tesco.com
6
Fixtures and fittings supplied (not actual size)
Ref Dimmension(mm) Visual Qty
A 40mm bolt 12
B Axle 2
CM6 nut 12
DM5 nut 2
E Washer 2
F15mm bolt 2
G15mm shoulder
bolt 2
H10mm bolt 4
I Lid support 2
J R pin 2
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions

Components supplied (not actual size)
Ref Description Visual Qty
1 Lid assembly 1
2 Firebowl 1
3Cooking grill 3
4Right leg 2
5Warming rack 1
6Lid handle 1
7Left leg support 1
8 Damper 2
9Charcoal tray 1
10 Brace 2
11 Cooking grill handle 2
Ref Description Visual Qty
12 Left leg 2
13 Right leg support 1
14 Wheel 2
15 Wheel cap 2
16 Temperature gauge 1
Components supplied (not actual size)
7
www.tesco.com
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions

8
2
1
44
6
8
8
10
10
11
11
12
12
13
14
14
15
15
16

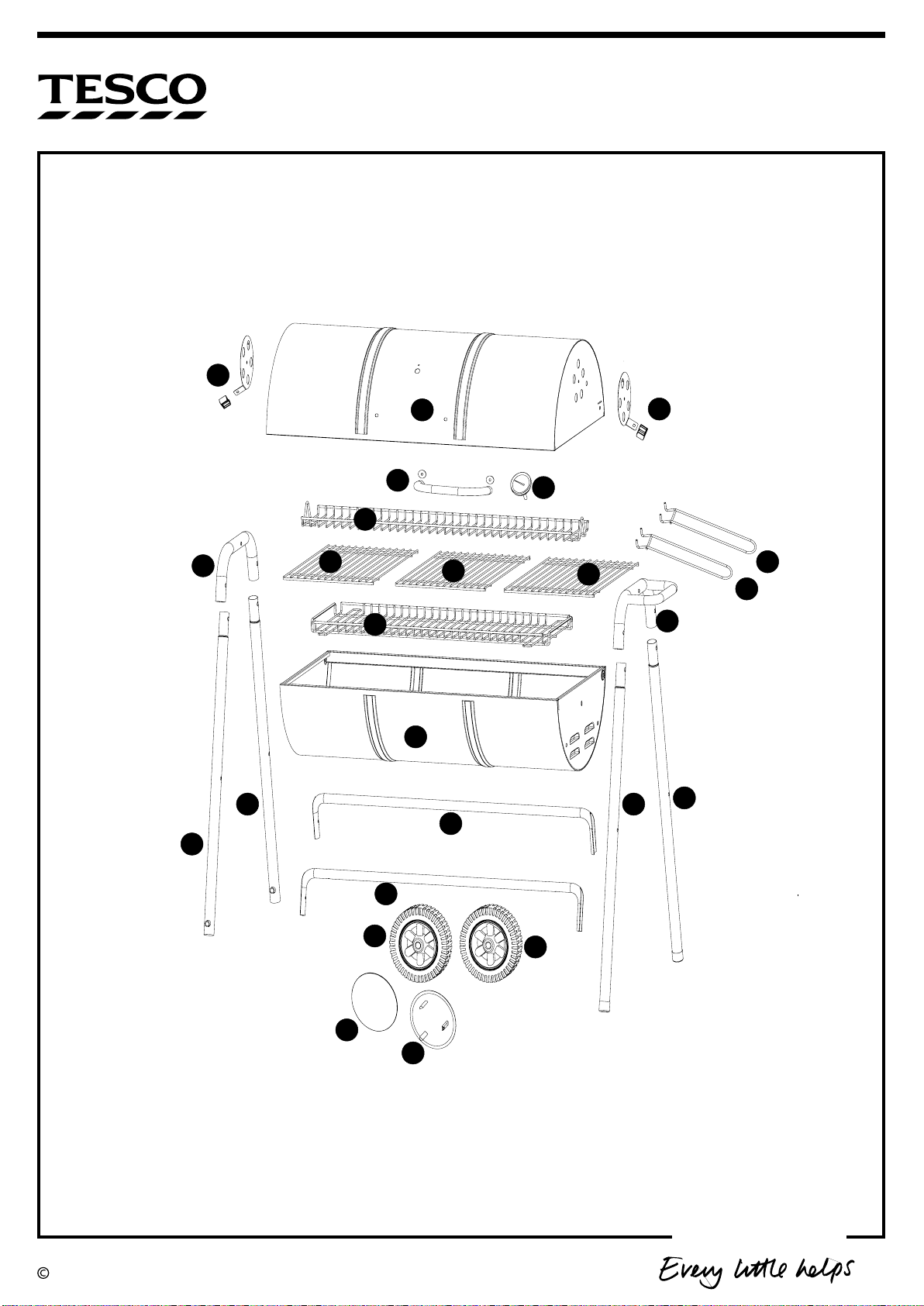

Getting to know your product
www.tesco.com
33
3
7
9
Produced in China for TESCO Stores Ltd.
Tesco 2017
5
Barrel Charcoal BBQ
Assembly instructions

not supplied
A x 2
9
C x 2
A
4
4
7
12
12
www.tesco.com
13
C
C
7
2
A
13
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
not supplied

10
A
A
A
A
not supplied
A x 4 C x 4
14
14
15
15 B
B
J
J
12
12
B x 2 J x 2
www.tesco.com
C
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
CC
C
not supplied

11
4
4
12
A
A
A
not supplied
F
F
C
1
not supplied
C x 2 F x 2
www.tesco.com
C
C
A x 4 C x 4
10
C
10
C
A
12
C
I
I
Produced in China for TESCO Stores Ltd.
Tesco 2017
I x 2
Barrel Charcoal BBQ
Assembly instructions
not supplied
not supplied

1
12
not supplied
E x 2 H x 2
H
H
D
8
8
1
D x 2 H x 2
not supplied www.tesco.com
H
D
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
E
E
H
6
not supplied

13
1
1
2
not supplied
G x 2
www.tesco.com
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
16
I
I
G
G
I

14
not supplied
A x 2
www.tesco.com
5
3
33
9
2
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions

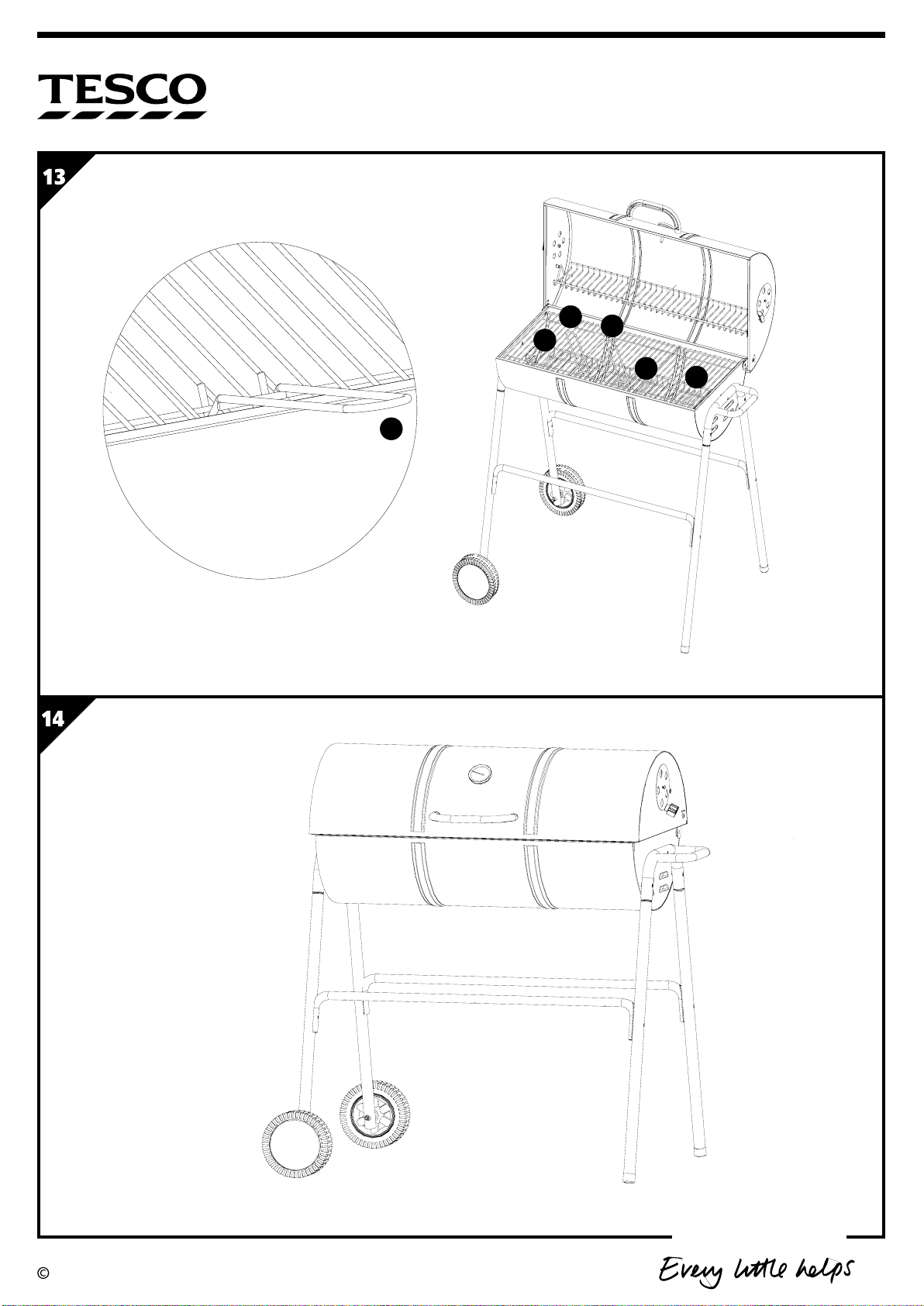

AA
A

www.tesco.com
15
3
11
3
311
Produced in China for TESCO Stores Ltd.
Tesco 2017
Barrel Charcoal BBQ
Assembly instructions
11
