Tevion 40699 User manual

Model - 40699
Slimline DVD Player
User’s Guide
Now you have purchased a Tevion product you can rest
assured in the knowledge that as well as your 3 year parts
and labour warranty you have the added peace of mind of
dedicated help lines and web support
AFTER SALES SUPPORT
UK/N.IRELAND HELPINE NO 0161 975 0458
REP.IRELAND HELPLINE NO 1800 882912
WEB SUPPORT www.fascin8.co.uk
MODEL NUMBER: 40699

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 2
Contents
03 Introduction
04 General Information and Safety Instructions
05 Accessories
08 Remote Control Operation
09 Connecting Your DVD Player
11 DVD Operation
12 DVD Operation
13 USB Operation
14 Setup Menu
17 Troubleshooting
18 Technical Specifications
19 Warranty Card

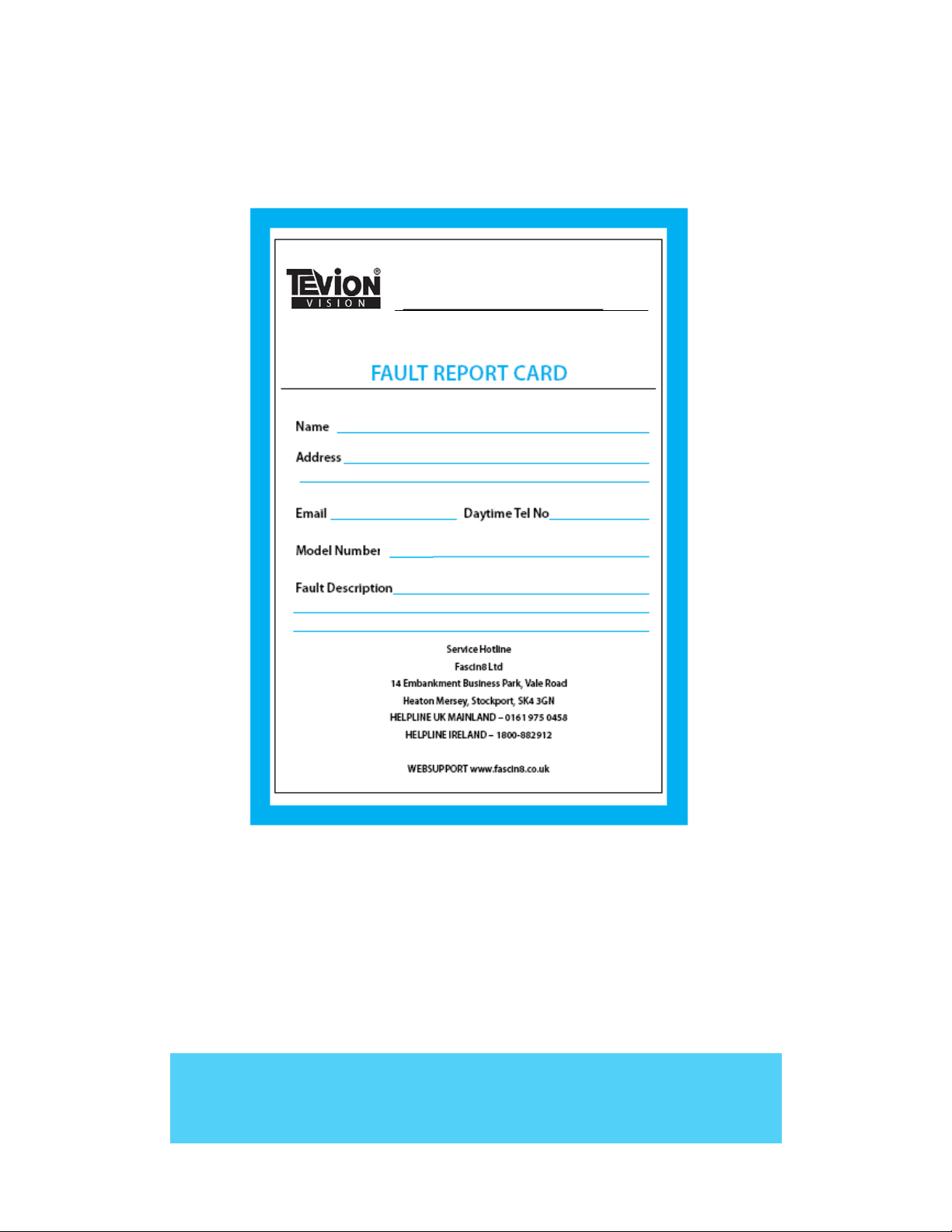

20 Fault Report Card

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 3

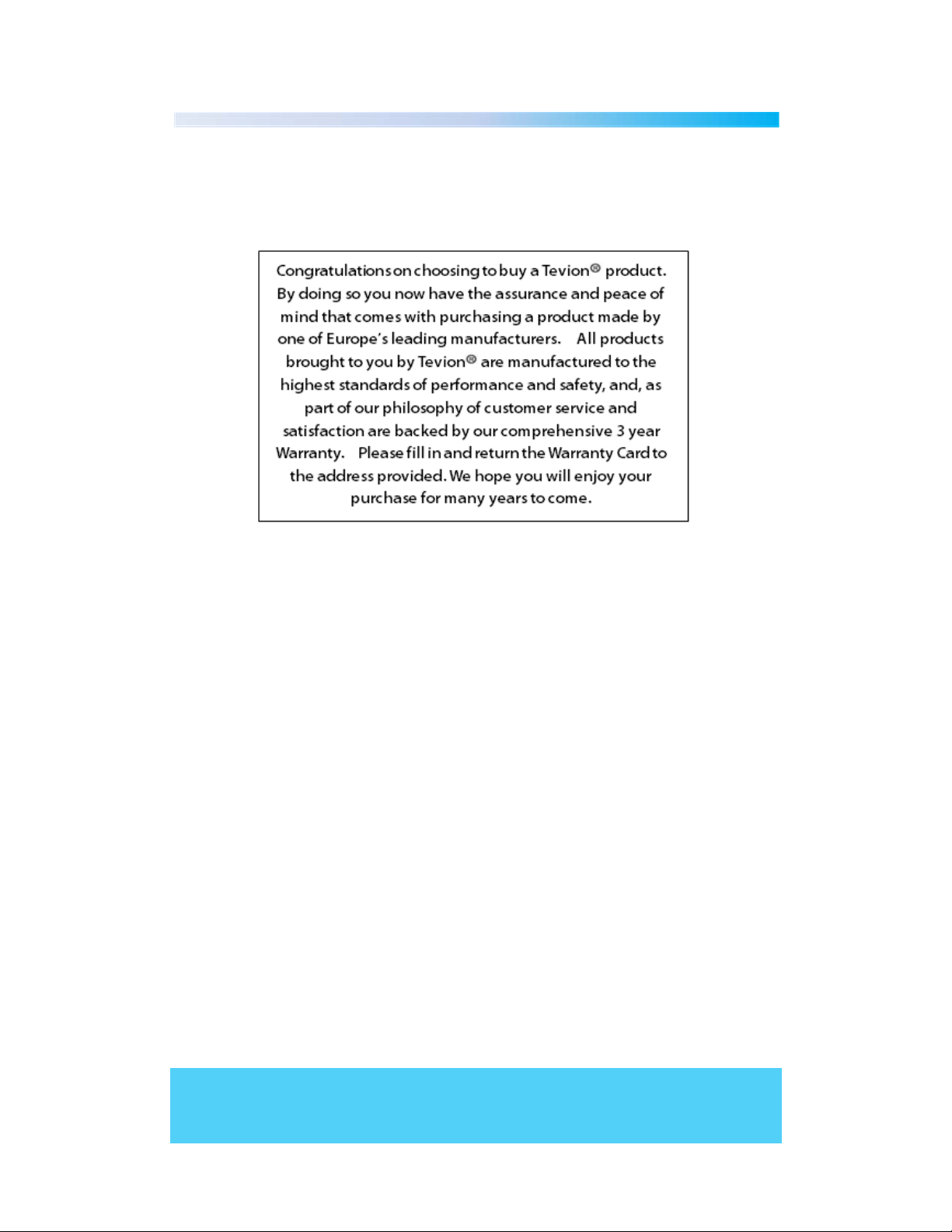

Welcome!

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 4
General Information and Safety Instructions
•The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operation and servicing instructions in the literature
accompanying the appliance.
•Please read through the following safety guidelines before use.
•Ventilation- Slots and openings in the case are provided for ventilation to ensure reliable operation of
the video product and to protect it from overheating. These openings must not the blocked or covered.
•Water and Moisture- do not use this video product near water for example, near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet basement, or near a swimming pool etc.
•Cleaning- Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
•Lightning-For added protection for this video product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the video product due to lightning and power line
surges.
•Servicing-Do not attempt to service this video product yourself, as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
•Battery Handling and Usage This remote control uses 2 x AAA alkaline batteries (included)
•Never throw batteries into a fire or expose to heat sources.
•If battery is swallowed, please seek immediate medical attention
Do not dispose of this product in your household waste. Contact your local authority for details of local
recycling schemes
•
Batteries should not be disposed of in household waste. Batteries should be taken to appropriate
disposal points or alternatively contact your local authority for details on disposal schemes
•
Do not dispose of this product in your household waste. Contact your local authority
for details of local recycling schemes
•The player is classified as CLASS 1 LASER PRODUCT do not look directly at the laser this may harm your
eyes

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 5
Accessories
Remote Control x 1
Scart Cable x 1
AV Cable x 1

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 6
Features
•USB Functionality
•DVD Freeze frame function
•Random track playback
•Audio Out Connection
•RGB Connection

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 7

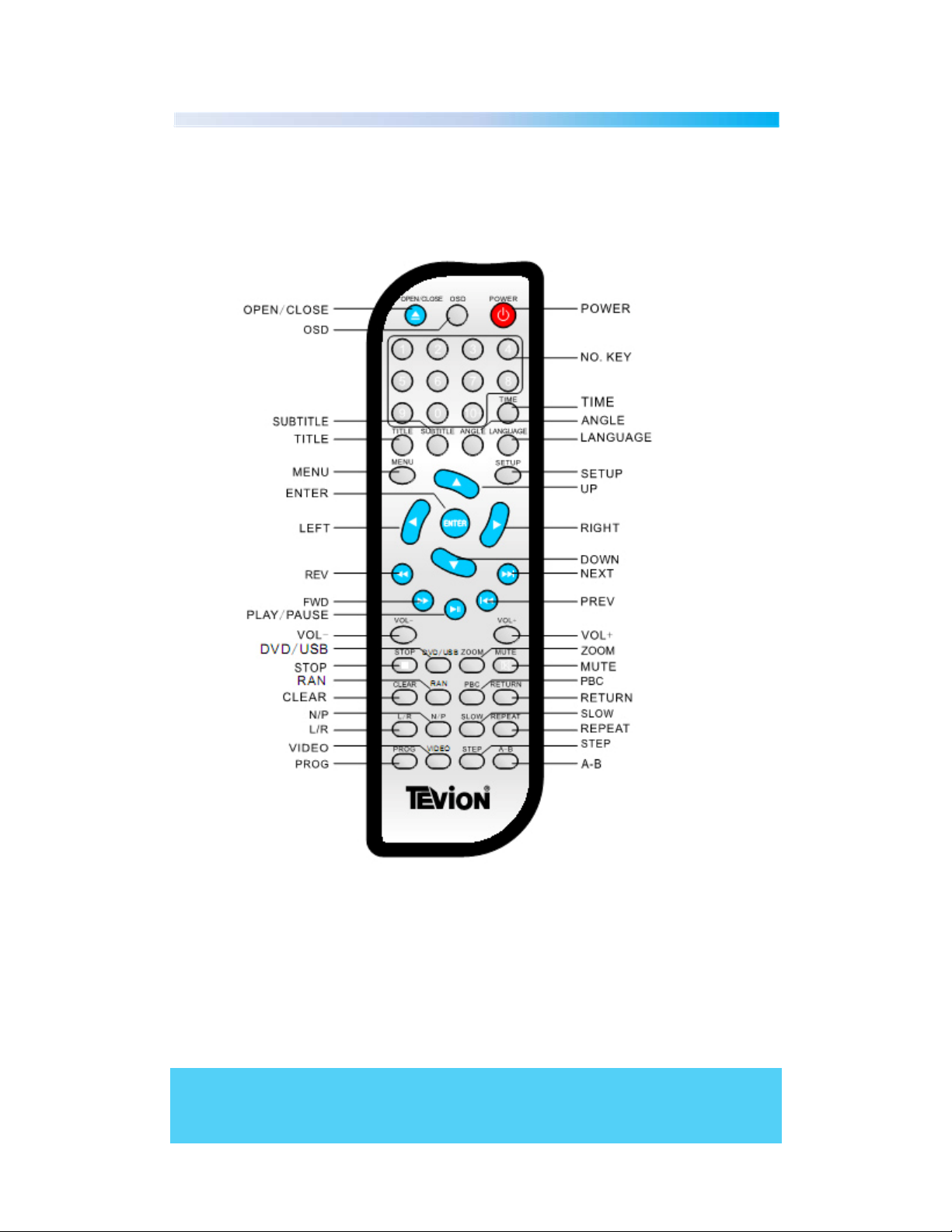

Remote Control

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 8
REMOTE CONTROL OPERATION
1. remove battery cover
2. insert batteries
3. close the battery cover
CARE FOR REMOTE CONTROL
Aim remote control at remote sensor of DVD.
Do not drop the unit form a high position or cause high impacts
Do not place the remote control in hot or moist environments
Do not splash water or any other liquid on remote control
Distance:
The remote control works best within 7metres from the DVD player
Do not expose the remote control sensor directly to a heat source or it will
malfunction
Remote Control Operation

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699 9
Connecting your DVD Player
Front Panel
1.DVDDOOR 5.REMOTERECEIVERWINDOW
2.OPEN/CLOSEBUTTON 6.DISPLAYWINDOW
3.STOPBUTTON 7.USBJACK
4.PLAY/PAUSEBUTTON 8.POWERBUTTON
Rear Panel
1. Y Pb/Cb Pr/Cr component output jack 4.2CH Right output jack
2.Videooutputjack 5.DigitalSignalCoaxialoutjack
3.2CHLeftoutputjack 6.S-Videooutputjack
7. Digital Signal Optical output jack

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
10
Connecting Your DVD Player
This product has a choice of three connections but these cannot be connected at the same time.
The choice of connection will depend on the video jack on your TV,
•In order to connect your DVD to your TV simply use the scart lead provided to connect
from the scart socket on the DVD to the scart socket on your TV itself. Then connect the
power supply to a mains socket.
•Also via the AV Output socket from the DVD player using the AV cable provided (red,
yellow and white) to the AV Input on your TV
•Also via the RGB socket (red, green and blue) from the DVD player to the RGB socket on
your TV
Connecting to a HIFI System
If you also want to have your HIFI System connected to the DVD player you can connect via the
audio output socket on the DVD using a RCA cable (red on the right, white on the left) but you
must have Audio In on the HIFI System. You can also connect via an amplifier if you do not have
Audio In on your HIFI System.

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
11
DVD Operation
After completing the connection of your appliance you can now switch the power to on and press the
power button on the front of the unit. When you switch on your DVD your TV may automatically
divert to the DVD mode and will display the Tevion logo on your TV screen (this is not the case for all
appliances.) If this does not display then you may need to change your TV into the input mode you
chose example scart, AV or RGB (refer to your TV user manual on how to do this.)
You will also need to press the ’Video’ button on your remote to select the input mode of the DVD
•S-Video, choose S-video mode
•(Y.Cb,Cr) choose YUV mode
•Scart choose RGB mode
If you have an audio system connected you will need to choose the correct audio output on the
amplifier (refer to your amplifier manual on how to do this.)
Disc Loading
Do not play any cracked broken or deformed disc. The disc is rotated at high speed, so it is very
dangerous to play any broken or deformed disc and this may cause damage to the player.
Step 1: Press the ‘open/close’ button, the disc tray will slide out automatically
Step 2: Load a disc into the tray and press ‘open/close’ the screen will indicate loading and the player
will identify the format of the disc, and then indicate it on the upper left of the TV screen
•After reading the disc it will it will go to the menu of the DVD or title menu
•When playing CD discs it will play in the sequence chapter number
Operation
During disc playback to pause the DVD press the ‘play/pause’ button and press this again to resume
normal play
Press the ‘stop’ button once to stop your DVD and press ‘play/pause’ to resume. Press the stop button
for the second time to stop the DVD completely.
Press ‘previous’ button, the previous chapter will be played
Press ‘next’ button, the next chapter will be played
By pressing the ‘forward’ or ‘rewind’ button continuously you can change the speed of skipping x2, x4,
x8, x16, x32

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
12
DVD Operation
You can select a desired subtitle from the available ones encoded on the disc, this operation is only
available with supported DVDs press the‘subtitle’button continuously to change between languages.
Some DVDs also have the angle feature so you can view the film from another angle, if your DVD
supports this option press the‘angle’button to change viewing angle.
During DVD playback press the ‘title’ button to return to the DVD root menu use the direction buttons to
navigate through the menu, in the chapter selection menu you can use the numeric buttons to select
the desired chapter
With CD playback press the numeric buttons to select the track or use the direction buttons to navigate
to the chosen track.
When using VCD discs press the PBC button to return to root menu.
Press the ‘N/P’ button to select either format NTSC or PAL, this will depend on the colour format of your
TV.
Press the ‘slow’button during DVD playback to view your disc in slow motion press this continuously to
change speed ½, ¼, 1/8, 1/16
Press the ‘step’ button to freeze the frame and continuously press this to move from frame to frame.
Press the ‘play/pause’ button to resume normal play
You can zoom in on your DVD by pressing the ‘zoom’ button the zoom size will display on screen until
you resume normal size playback press this continuously to increase the zoom x2, x3, x4

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
13
USB Operation
The USB reader only performs MP3 and JPEG picture playback. The maximum capacity the USB
will accept is 4GB.
Power on your DVD player ensuring no disc is inserted in the tray, now insert the USB device and
press the ‘DVD/USB’ button. Use the direction keys to navigate to the USB option, press ‘enter’ to
select this and a waiting message will appear on your TV screen then press ‘enter’ again to confirm
USB. Your files will then display on the screen, you can select your desired file using the direction
keys to navigate to this and ‘enter’ button to confirm this
Please note if using a MP3 CD you can access your files as shown above.
With USB and MP3 music selection you have the option for repeat press the ‘repeat’ button to
select from single song play, single song repeat, folder repeat or folder play. Press‘repeat’
continuously and your choice will display on the bottom of your screen.
JPEG Picture Operation
When viewing JPEG pictures your screen will display as below use the direction keys to navigate to
the picture you wish to view and press the ‘enter’ button to view the image on screen. This will
automatically go from picture to picture within the folder you can use the direction keys to rotate
your picture on screen. At any time press the ‘title’button to return to the root menu

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
14
Setup Menu
To enter your Setup Menu select ‘setup’ button to navigate through the menu use the direction
keys and ‘enter’ to confirm your selection
General Setup
In general setup you will have the following options
TV Display Pan & Scan 16:9
Letterbox 4:3
Normal
Angle Mark On
Off
OSD Lang English
German
Spanish
Captions On
Off
Screensaver On
Off
HDCD Off
1X
2X
Audio
The audio menu gives you the following options
Downmix L/T R/T
Stereo
Spdif Output Off
Raw
PCM

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
15
Setup Menu
Dolby
In Dolby menu you will have the following options
Dual Mono Stereo
L-Mono
R-Mono
Mix Mono
Dynamic Off
Full
Video
In video menu you will have the following options
Component S-Video
YUV
RGB
TV Mode
Sharpness High
Medium
Low
Brightness Setting
Contrast Setting
Preference
In preference you will see the following options
TV Type PAL
Auto
NTSC
Audio Audio Language (8
Available)
Subtitle Subtitle Language (8
Available)

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
16
Disc Menu Menu Language (8
Available)
Parental Settings
Password Settings
Default Reset

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
17
Trouble Shooting
If you are having any problems with your player, check below for a possible cause and solution.
Some simple checks or adjustment on your part may eliminate the problem and restore
proper operation.
Symptom Remedy
No Power Insert the AC adaptor securely into the power
outlet
No picture •Ensure the equipment is connected
properly.
•Ensure you are in the correct mode on
both the player and your TV
•Ensure the TV video socket is working
properly
No sound •Check the audio settings are correct
•Check the input setting for the TV and
stereo system are correct
•Ensure the equipment is connected
properly
The disc does not load •Ensure the disc has been inserted into
the tray correctly (with label facing up)
•Make sure your disc is clean with no
scratches
•Ensure the disc format is compatible
The remote does not respond •Check the batteries are in the correct
polarity
•You are pointing the remote control at
the sensor on the player not your TV
My USB is not loading •Ensure you are in USB mode
•Check the USB is connected securely
•Check files are compatible with the
player

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
18
Technical Specifications
DVD Player
Power supply AC 90-240V-50/60HZ
Power Consumption 11W
Weight Around 1.5 kg
Video System NTSC/PAL/AUTO
Optical read-out system Semicondctor ALGaAs Weam,wave
Audio Frequency Response DVD audio : Fs 48KHz PCM4 Hz～22KHz Fs
48KHz PCM4 Hz～22KHz
S/NRation ≥90dB
Dynamic Range ≥90dB
Rotating Ration Within measurable range
Operation Condition Temperature 0°C～40°C;Operation
Output
Video output 1.0V(p-p),75Ω
S-video output (Y)1.0v(p-p), 75Ω (C)0.286V(p-p), 75Ω
Audio output(Analog Audio) 2.0V(rms)

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
19
Congratulations! You have and excellent choice with this purchase of this quality product. Our commitment
to quality also includes our service. Should you contrary to expectations, experience defects due to
manufacturing faults during private use within 36 months of the date of purchase we shall be liable for warranty
in accordance with statutory warranty regulations provided that:
-the device was not put to any use other than the intended
-was not overloaded
-was not used with the wrong accessories
-repairs were not carried out by any other than the authorised workshop
The warranty certificate is only valid in connection with the receipt. Please keep both in a safe place.
This warranty does not affect your statutory rights.
This purchase is guaranteed for a period of three years beginning on the day of purchase. Keep your purchase
receipt safe as proof of date of purchase. The guarantee can only be extended for the duration of any repair
required. Should your item become defective during the warranty period, In the first instance please call our
service centre on the number below, they will inform you of what to do next. We will at our discretion, either
repair or exchange the device in accordance with warranty legislation .
Please enclose the following when sending your product in for repair:
1. Receipt (Proof of purchase)
2. This warranty certificate with the fault report form overleaf complete with your name
contactdetailsandfaultdescription.
If the original receipt is not enclosed the repair will be charged in all cases. After the warranty has expired
you can still send defective devices for repairs freight prepaid to the address stated below. Quotes as well
as repairs after the warranty period are to be paid in all cases.
Ensure that the product is sent well packed as no responsibility can be accepted for items lost or damaged
in transit. This warranty does not affect your statutory rights.
SLIMLINE DVD PLAYER

Helpline No. UK/Northern lreland 0161 975 0458 Rep.lreland 1800-882912
Web Support www.fascin8.co.uk
Model Number: 40699
20
40699
SLIMLINE DVD PLAYER
