Tevion TV5015 User manual

11

Contents
03 Introduction
04 General Information
Main Features
05 Safety Instructions
10 Assembly and Parts List
Parts List
Remote Control Unit
Installing the batteries
Front panel and rear panel illustration
Connecting to equipment
12 Getting Started
First time installation
Basic operations
Main Menu
Installation
20 FAQ
21 Troubleshooting
22 Specifications
23 Warranty Information
2
Australia 02

Introduction 1
Congratulations on choosing to buy a TEVION product.
All products brought to you by TEVION are manufactured to the highest standards of
performance and safety, and as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will enjoy
using your purchase for many years to come.
3
GeneralInformation 2
Australia 03

This DVB-T Television Receiver, allows you to access free-to-air digital terrestrial TV
channels and radio broadcasts on your TV set. Its digital reception covers VHF & UHF
band. Compared with the analog TV programs, digital TV programs eliminate the noise
and interference but offer high quality video and audio. An initial on-screen installation
guide is provided so that you can easily start to enjoy watching the programs. In addition,
a fully featured remote control is included that offers you access to every feature with a
simple press of a button.
Main Features
. Fully compliant with Australia DVB-T standard
. MPEG2 compliant ISO/IEC 13818 transport stream compliant audio/video decoding
. Bandwidth of 7MHz supported
. COFDM demodulator
. Automatic/manual channel search
. Channel edit, moving and delete
.Parental lock control
. EPG (Electronic Program Guide) and teletext function (where available)
. RS-232 serial port for software upgrade
. Tuner RF in/loop out
. Component/S-Video/Digital Audio via optical output
. HDMI output
. Functional remote control
4
Australia 04

Safety Instructions 3
. Always read the safety instructions carefully.
. Keep this User Manual for future reference.
. Keep this equipment away from humidity.
. Lay this equipment on a reliable flat surface before setting it up.
. Do not stand it on soft furnishings.
If any of the following situations arises, get the equipment checked by a service
technician:
. The equipment has been exposed to moisture.
. The equipment has been dropped and damaged.
. The equipment has obvious sign of breakage.
. The equipment has not been working well or you cannot get it to work according to
User’s Manual.
Warning
. To prevent the risk of electric shock, do not open the cover or the back of the receiver.
. Do not block the ventilation holes of the device. Leave appropriate gap above and
around it to allow for adequate ventilation.
. Do not place the device in an unventilated cabinet or on top of a unit which emits heat.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain.
5
Australia 05

Assembly and Parts List 4
Parts List
Before installation, please check the items of the package.
The package should contain the following items:
1. DVB-T TV receiver x 1
2. Remote control x 1
3. AAA size battery for the remote control x 2
4. Instruction manual x 1
5. Component Cable x 1
6.Composite cable x 1
6
Australia 06

Assembly and Parts List 4
Remote Control Unit
Key Function
STANDBY：Switch between Operation and Standby mode
NUMBERIC BUTTONS ：Changes channels or selects the menu
options.
FORMAT：To switch to different resolution.
EPG ：Electronic Program Guide button displays the TV/Radio
program guide broadcasting by the TV provider
MENU：Turn to the main menu or return to previous menu
VOL (◄/►)：Turn up/down volume; Change the page of channel
list.
OK：Enter into the menu you choose or select the current option
TXT View the Teletext information
SUBTL ：To display the Subtitle text
PAUSE ：Pause to freeze the screen while watching TV
AUDIO ：Change audio mode to left, right and stereo
MUTE ：Turn off/On volume
TV/RADIO ：Switch between TV and Radio mode
FAV ：Enter into favorite list
INFO ：Display information of programs and current settings
EXIT ：Return to previous menu
CH (▲/▼) ：Change channels or items from top to bottom on the
menu
PAGE UP ：Press to jump one page up or ZOOM up when
enabled
PAGE DOWN ：Press to jump next page or ZOOM down while zoom is enabled
A.RATIO：16:9/4:3
RECALL ：Press to return to previous channel
7
Australia 07

Assembly and Parts List 4
Installing the batteries in the remote control
1. Press down on the retaining catch on the lid of the battery recess on the remote
control and remove the lid.
2. Insert two AAA batteries into the recess.
3. Replace the lid over the recess and gently push down on the lid until it snaps firmly
into place.
Caution
1. Keep batteries out of children’s reach.
2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the batteries into
the fire.
3. Always replace both batteries at the same time. Never mix new and old batteries or
batteries of a different type.
4. If you don’t intend to use the remote controller for an extended period, remove the
batteries to prevent possible leakage and corrosion.
5. Do not drop, apply shock or step on the remote control.
6. Do not spill water on the remote control.
Note: If the receiver does not operate when operating the remote control from a close
range, you will need to replace the batteries.
Using the Remote Control
1. To use the remote control, point it towards the front of the digital set top box.
2. The remote control has a range of up to 7 metres from the set top box at an angle of
up to 60 degrees.
3. The remote control will not operate if its path is blocked.
Note: Sunlight or very bright light will decrease the sensitivity of the remote
control.
8
Australia 08

Assembly and Parts List 4
Front Panel and Rear Panel Illustration
9
Front Panel
1. STANDBY: To switch the STB between operation and standby modes.
2. CH (-/+): Change channel or items from top to bottom on the menu.
Rear Panel
1. AERIAL IN: Input for antenna.
2. LOOP OUT: Loop signal output to VCR, etc.
3. HDMI connection
4. S/PDIF: S/PDIF audio.
5. S-VIDEO: S-VHS Video output
6. Y/Pb/Pr RCA A/V: Component connection (Y/Pb/Pr)
7. Video RCA A/V: Composite connection
8. Audio (white: left audio, red: right audio): Right & left audio for Component
connection
9. RS-232: To connect to your PC for software upgrade (only used by qualified
technician)
10. POWER: Power ON/OFF switch
Australia 09

Assembly and Parts List 4
Connecting to equipment
Step 1: Connect to the antenna
Connect the antenna lead coming from the wall plate to the AERIAL IN socket.
Step 2: Choose your Connection
There are a number of methods for connecting your STB to the television, depending on
your preference and the connection types on your TV. These methods are labeled A, B
and C below.
A: Y / Pb / Pr (Component) using the supplied RCA blue–red–green lead
For Component video, connect with the supplied Y / Pb / Pr Component cable (green,
blue and red leads). Connect the leads to the Y, Pb and Pr sockets on the back of the unit,
and then to the corresponding Component sockets on your TV. Please pay attention to
the color-coding. You will also need to establish a connection for left and right audio via
the audio sockets. This can be done using the supplied RCA cable.
For right audio, connect the red RCA lead and for left audio, connect the white RCA lead.
B. HDMI connection
If your TV has a HDMI input, you can use a HDMI cable from the back of STB to the rear
of the television. A HDMI lead supplies both audio and visual through the single cable so
no audio leads are necessary.
Please ensure that your television is set to the HDMI input mode for detection of STB
device to be made.
C: CVBS (Composite) using the supplied RCA red–white–yellow lead
Using the appropriate color-coding, you can connect to your TV with the supplied RCA
cable.
For video, connect the yellow RCA lead to the yellow video socket on the back of the
STB and the corresponding socket on your TV.
For right audio, connect the red RCA lead to the red audio socket on the back of the STB
and the corresponding socket on your TV. For left audio, connect the white RCA lead on
the back of the STB and the corresponding socket on your TV.
NOTE: If picture is still not visible on screen, please press the FORMAT button on
the RCU. Keep pressing until 576 is visible on the Set Top Box display screen.
10

Assembly and Parts List 4
Australia 10
How do I connect to an external audio device?
Connect the AUDIO R/L socket of the STB to the Audio System e.g. HI-FI, Amplifier, etc.
Alternatively an optical cable can be used from the rear S/PDIF to a surround sound
system. This offers the user the best possible audio quality, only if program being viewed
is broadcast in a recognisable audio format.
11
Australia 11

Getting Started 5
First time installation
Note: Be sure to turn on the main power at the rear of your receiver before using the
receiver.
After all the connections have been established, switch on your TV. Make sure the
receiver is connected to the mains and press Power to switch the receiver on. If you are
using the receiver for the first time or restored to factory default, a First Time Installation
menu will be displayed to guide you through the initial setup to set the time zone, the
daylight saving, the TV screen type and scan channels.
Use the remote controller to finish the setup.
When finished the scanning, all active channels found will be stored automatically. The
last found channel would be viewed. (In case you want to stop the scanning, press the
EXIT key to exit. The channels already found will be stored).
Now you are ready to watch digital TV channels and radio broadcasts.
In case you skip the First Time Installation screen, you can press MENU key to bring up
the main menu
Switchingprograms
1. Press the NUMERIC keys (0~9) on the remote control to select the channel number
you want.
2. Alternatively Press the ▲/▼key on the remote control or the front panel to change the
available channels upward/downward.
3. Press the RECALL key to view the previous channel selected.
12
Australia 12

Getting Started 5
Volume control
1. Press the ◄/►key on the remote control or front panel to adjust the volume.
Mute
1. Press the MUTE key to temporarily stop the sound.
2. To cancel mute, press the MUTE key again.
Freezing picture
1. Press PAUSE key to pause current program and the pause icon will appear on screen.
2. To cancel pause and continue to play, press again the PAUSE key and the pause icon
will disappear.
Change audio language and audio mode
Press the AUDIO key on the remote control to select the audio control menu, press the
◄/►，▲/▼and OK keys to select an audio language you want. Press EXIT key to exit
the menu.
NOTE: the Languages depend on the program providers.
Change screen aspect
Press A.Ratio key to switch screen aspect mode (16:9 full screen, 16:9
Letter box, 4:3 full screen, 4:3 letter box, 4:3 panscan).
Change TV/Radio mode
Press TV/Radio key to change the program list mode between TV and Radio.
View program info
1. Press INFO key to view the detailed information of current program.
2. Press INFO/ EXIT to exit view.
13
Australia 13

Getting Started 5
Subtitle
Press SUB key to switch subtitle on/off.
NOTE: the subtitle depends on the program providers.
Teletext service
1. Press TXT key to open a teletext page (if teletext is transmitted)
2. Press TXT key again or press EXIT key to close the teletext.
EPG (Electric Program Guide)
1. Press EPG key to view the EPG information that are provided by the content
providers.
2. Press ◄/►key to view the event information such as event name, event time.
3. Press OK key to view the detailed information of the current event.
4. Press EPG key again or press EXIT key to exit the menu.
This section guides you to walk through all options on the Menu screen
Navigation in the main menu
1. Press MENU key to bring up the main menu or return to previous.
2. Press▲▼ key to move upward/down to the desired sub menu.
3. Press OK key to enter into the sub menu you select.
4. Press EXIT key to exit the main menu.
The main menu is divided into 4 sections please refer to the menu tree below.
14
Australia 14

MAINMENU 6
Menu Tree
Install
Auto Search
Manual Search
TVChannel
RadioChannel
Edit Program
Edit TV
Edit Radio
SystemSetting
System Info
1. Install
“Installation” Menu allows you to select the modes like Auto search and Manual search

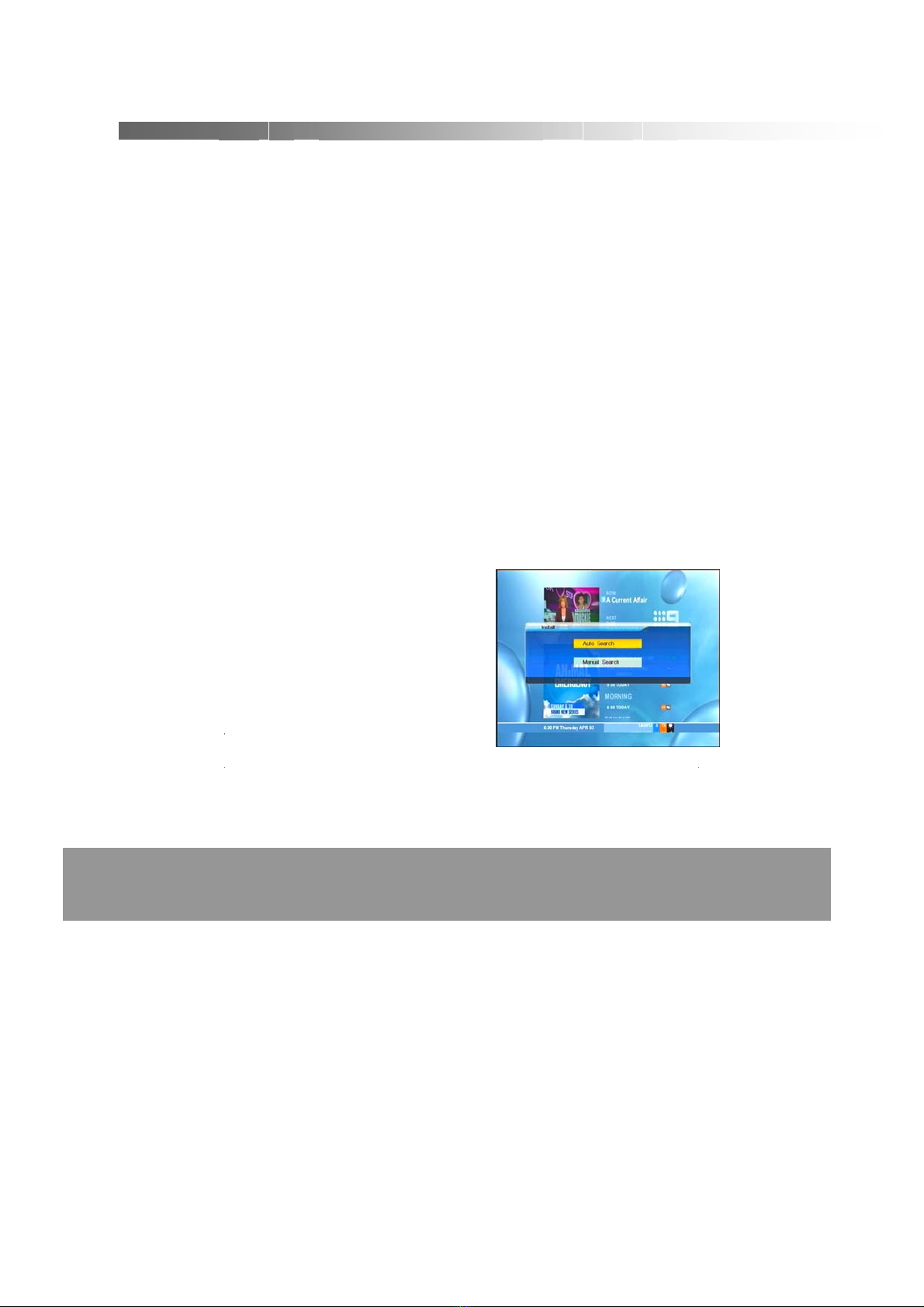

1.1 Auto Search
Move the cursor to “auto search” by pressing
“UP/DOWN” Highlight the Auto search option
and press “OK” to select.
1.2 Manual Search
If you are familiar with DTV channels and know the frequency of the program that you
would like to scan in, you can select the manual scanning option
15
Australia 15
a

MAINMENU 6
.
1) You can move the cursor to “manual search” by pressing “UP/DOWN” arrow keys
then press “enter” when highlighted.
2) Prior to manual scanning, you need relevant
parameters including:
1. Channel No.
2. Frequency (KHz)
3) If any program is detected when scanning
process is finished, system will exit the
scanning page and save the program.
1. TV Channel
System offers an efficient TV channel listing display.
.Press MENU on the remote control. Press CH▼
or CH▲, and highlight the sub-menu—TV
Channel—. Press enter to select. You can choose
any TV program you would like to watch. Press
OK button and the full screen will be displayed.
2. Radio Channel
Press MENU on the remote control and press
CH▼or CH▲, to the sub-menu—Radio Channel—. When highlighted press OK.
You can then choose any Radio program you like.
3. Edit Program
This function enables you to perform such operations as Add, Delete and Rename
TV and Radio channels. To access, highlight the sub menu — Edit Program — and press
OK. Default Pin code is 0000. Please enter this number when requested.
16
Australia 16

MAINMENU 6
1) Deleting Channels: Press the RED button to tag channels you would like to delete.
When exiting, changes will be saved when requested.
2) Setting Favorite Channels: Press the GREEN button to save channels as favorites.
A love heart will appear when channel is tagged as a favorite. Favorite channels are
accessible by pressing on the FAV button when exiting from the menu.
3) Press the YELLOW button to enter LCN Sort
menu. All channels are sorted by logical
channel numbering.
4) Press the BLUE button to enter FAV Sort
menu to add a channel or station to your
favorites list (or remove it if it is already on that
list). A heart icon appears beside the channel
or station name to indicate that it is on your
favorites list. (If you are removing a channel or station from your favorites list, the
heart icon disappears.)
The same steps are taken on the “Edit Radio” menu under the Edit Program
5. System Setting
To access system setting sub menu’s, highlight the menu option — System Setting
— and press OK. Default Pin code is 0000. Please enter this number when requested.
5.1 AV Setting
Using the AV Setting menu, you can set the user interface display mode to your own
satisfaction.
17
Australia 17

MAINMENU 6

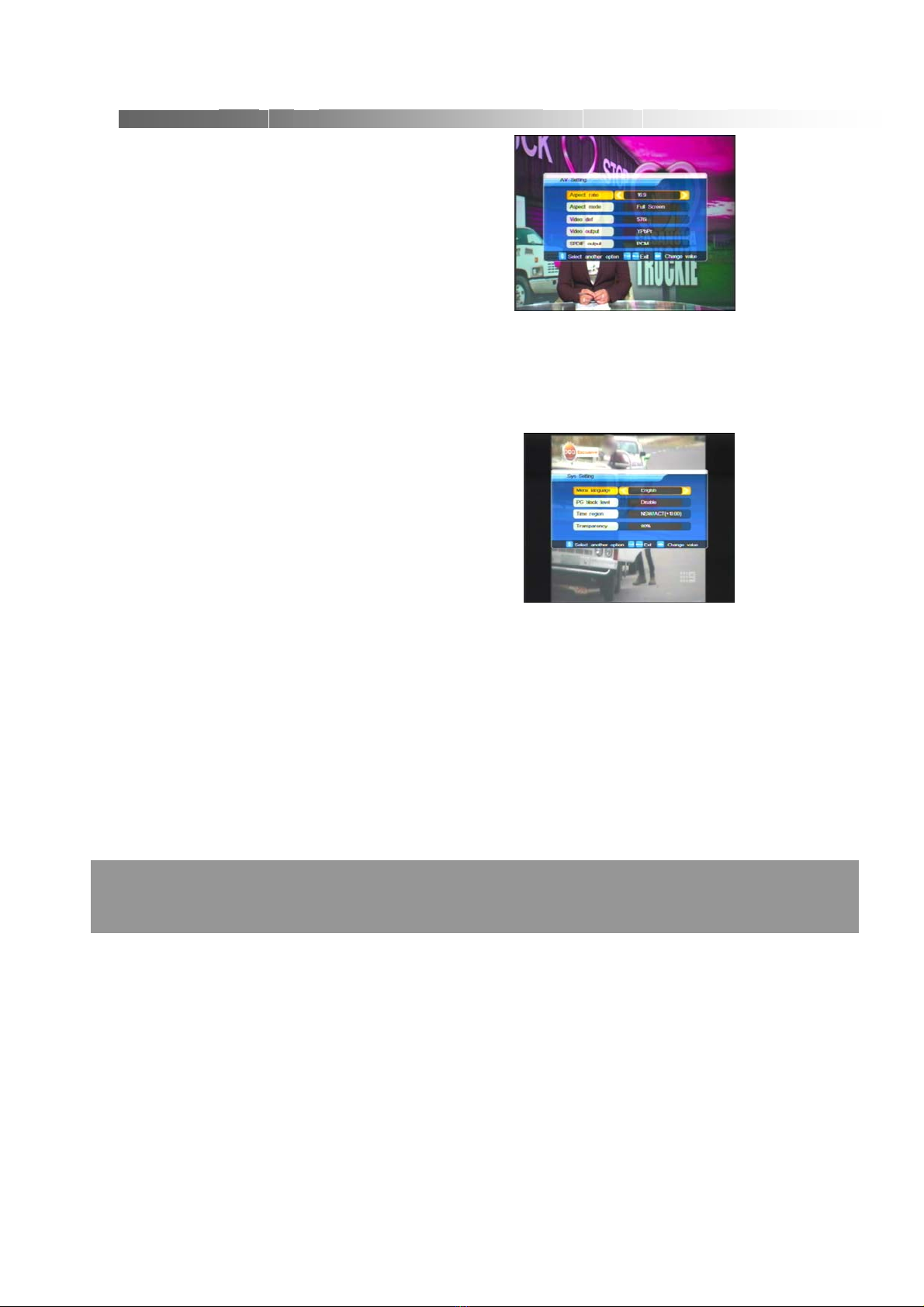

1) All options are listed on the left of the menu.
1. Aspect radio: 16:9/ 4:3
2. Aspect mode: Full Screen/Letter box/
PanScan
3. Video def: 576i/ 576p/720p/1080i.
4. Video output: YCbCr /YC
5. S/PDIF output: PCM/AC3
5.2 System Setting
System setting menu provides the Menu Language, PG block level, time region and
transparency.
1) PG block level (Parental Guidance):
Under this menu, you can choose a Rating of your choice to block: All/
Disable/R-Above/AV-Above/MA -Above/PG- and Above/G.
2) Timer region
Set the Time mode and GMT time etc.
Time Mode: To Select AUTO or MANUAL
setting of time.
GMT Offset: To set the GMT time zone.
Summer Time: To select ON or OFF for
summer time.
3) Transparency
Set the transparency of the user surface display.
18
Australia 18

MAINMENU 6
5.3 Pin Setting
To prevent the unauthorized access of your STB, you can set the pin control
password to you receiver. (Default password: 0000)
19
e
1. Press VOL◄or VOL►to set the Pin
Status you want. If you want to change th
password, set to Enable.
2. Press the number key 0-9 on the RCU to
input Old password.
3. If the password is correct, the cursor can
move onto Input New password option.
Press number key 0-9 to input new 4-digit
password;
4. To Confirm New Password, press number
key 0-9 again.
5.4 Factory default
The factory default enables you to reset your STB back to factory settings.
WARNING: You will loose all settings and
channels already saved.
6. System Info.
System Info provides you current hardware and
software information for your STB.
Australiai 19

FAQ 7
What is a HD Receiver?
A HDTV receiver is a device that receives and decodes high definition TV signals.
A HD receiver is generally connected to televisions that are HD ready.
Can I connect my HD receiver to a CRT television?
Yes this HD receiver can be connected to a CRT television, as long as it supports
the appropriate connections. Picture quality will vary compared to HD ready
TV’s, however accessing the additional HD stations is still applicable.
What are the added benefits of a HD Receiver?
The added benefits of a HD Receiver include:
. Sharper Pictures
. Clearer Sound
. Widescreen viewing
. Extra Channels
Do I require an antenna in association with this receiver?
Yes a professionally installed antenna is recommended.
What aspect ratio does high definition come in?
A high definition signal is transmitted in a 16:9 aspect ratio. 16:9 is also known
as widescreen.
20
Australiai 20
