TEVVA TEV75B User manual

Operator's Manual
7.5T
Model: TEV75B

Introduction
Information
4
Please take the time to study the content contained in the vehicle
literature. This provides the necessary information for you to get
the optimum benefit and driver experience from the vehicle.
The information contained in the vehicle literature covers all
vehicle derivatives and optional equipment, some of which may
not be fitted to all vehicle models.
The images shown in this publication may not exactly reflect your
unique vehicle.
Information About This Document
In the interest of development, the right is reserved to change
specifications, design, or equipment, at any time, without notice
and without incurring any obligations.
This publication must not be reproduced, translated or reprinted,
in whole or in part, without the approval of Tevva.
Symbols
You will find the following symbols in this Operator's Manual.
These symbols are intended to give you an instant visual message
on the type of information that is being displayed.
Warnings
A warning draws your attention to activities that could
cause injury or death.
Cautions
A caution draws your attention to activities that could
cause moderate injury or damage to the vehicle.
Environmental Notes
Environmental notes give you tips on minimising the
impact that you and the vehicle have on the environment.
Notes
Notes draw your attention to activities that contain possible
risks to the vehicle, provide advice that you may find useful,
or give additional information regarding a particular
subject.
Operating Safety
Vehicle Use
Observe the following when using the vehicle:
–The safety notes throughout this information
–Road traffic laws and regulations
Electric Vehicle
This vehicle is a pure electric vehicle with 365V. Some parts are
equipped with high voltage and marked "be careful of electric
shock", avoid contact with these parts.
This sign is a high voltage warning sign. Do not touch any
vehicle components that are equipped with this mark.

Introduction
Information
5
WARNING: All maintenance and servicing of the high
voltage system must only be carried out by qualified
personnel. Any repairs or maintenance carried out by
unqualified personnel will invalidate any warranty on
the equipment and may lead to serious injury or
death.
WARNING: Do not touch any of the high voltage
components or orange electrical cables on the
vehicle. Doing so may cause an electric shock, which
may lead to serious injuries or death.

6
Driving Compartment
2.1 Overview ............................................................................ 7
2.1.1 Controls Overview ................................................... 7
2.1.2 Instrument Panel Overview ................................... 8
2.1.3 Dashboard Controls ................................................ 8
2.2 Entering and Exiting the Vehicle .................................. 10
2.2.1 Remote Key ............................................................... 10
2.2.2 Locking and Unlocking........................................... 11
2.2.3 Access to the Cab .................................................... 12
2.3 Doors .................................................................................. 14
2.3.1 Doors .......................................................................... 14

Driving Compartment
Overview
7
Controls Overview
Dashboard
1. Side air vent. See "Air Vents", page77.
2. Steering wheel. See "Adjusting the Steering Wheel", page
26.
3. Instrument panel. See "Instrument Panel Overview", page
8.
4. Cruise control. See "Operating the Cruise Control", page67.
5. Storage compartment. See "Storage Compartment", page
90.
6. Side dashboard controls. See "Dashboard Controls", page
8.
7. Central dashboard controls. See "Dashboard Controls", page
8.
8. Lane Departure Warning System (LDWS) camera. See
"Operating the Lane Departure Warning System", page63.
9. Heating and ventilation controls. See "Heating and
Ventilation", page75.
10. Storage compartment.
See "Storage Compartment", page90.
11. Central air vents. See "Air Vents", page77.
12. Gear selector. See "Selecting a Gear", page41.
13. Steering wheel controls. See "Steering Wheel Controls", page
25.
14. External lighting, direction indicators, horn, wipers and
washers. See "High and Low Beam Headlights", page28,
"Direction Indicators", page29, "Operating the Horn", page
37 and "Wiper Controls", page27.
15. Ignition switch. See "Ignition Modes", page39.
16. Parking Brake. See "Parking Brake", page43.
17. Differential lock. See "Rear Differential Lock", page71.

Driving Compartment
Overview
8

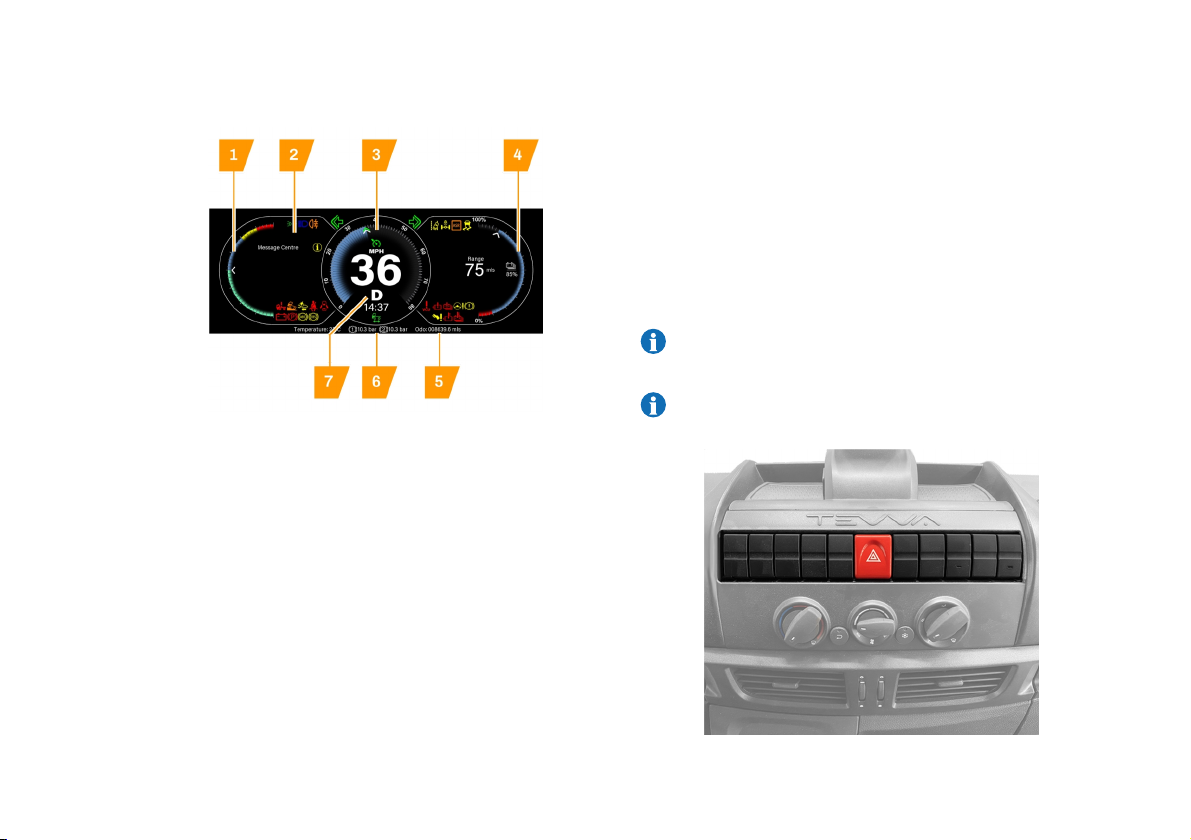

Instrument Panel Overview
The instrument panel consists of the following components:
1. Power demand or regeneration of the HV battery. Red area
shows high discharge, green area shows battery regeneration
under braking.
2. Message centre.
3. Speedometer.
4. Battery state of charge percentage and battery range
estimate in miles/km.
5. Odometer information.
6. Air tank pressure information.
7. Current selected gear.
For more detail on the warning and notification lights, refer to the
relevant section. See "Warning and Notification Lights", page22.
Dashboard Controls
There are two sets of dashboard control switchpacks, central and
side.
The position of the central dashboard switchpack is universal.
The position of the side dashboard switchpack is dependent on
the hand of drive.
Central Dashboard Controls
NOTE: The position of the switches may vary depending
on model version.
NOTE: Some of the switches have an LED indicator that
illuminates to confirm selection.

Driving Compartment
Overview
9
The following switches are permanently fitted:
Hazard warning light
Main current contactor
Reverse alarm sounder
Cabin heater
Side Dashboard Controls
NOTE: The position of the switches may vary depending
on model version.
NOTE: Some of the switches have an LED indicator that
illuminates to confirm selection.
NOTE: The illustration shown is a left hand drive (LHD)
side dashboard. Right hand drive (RHD) side dashboard
is similar.
The following switch options may be fitted:
Speed limiter
Rear fog lights
Cab lighting
Lane Departure Warning System

Driving Compartment
Entering and Exiting the Vehicle
10
Remote Key
Unlocking
To unlock the doors with the remote key, briefly press the unlock
button (2) while facing the vehicle.
The indicators will flash to signal the doors have been unlocked.
Locking
To lock the doors with the remote control function, briefly press
the lock button (1) while facing the vehicle.
The indicators will flash to signal the doors have been locked.
Replacing the Remote Key Battery
WARNING: Do not swallow or put the battery in your
mouth. If the remote key battery is swallowed it can
cause serious internal burns in just 2 hours and can be
fatal. If you think the battery may have been
swallowed or placed inside any part of the body, seek
medical attention immediately.
WARNING: Keep new and used batteries away from
children. If the battery compartment does not close
firmly, stop using the product and keep it away from
children.
NOTE: A reduction in the operating range of the remote
key is a sign the battery requires replacement.
NOTE: Make sure the battery is installed with the correct
polarity.
The remote key contains a CR 2032 3V lithium coin battery.

Driving Compartment
Entering and Exiting the Vehicle
11
To change the battery carry out the following:
1. Remove the four screws that secure the two halves of the key
fob casing.
2. Separate the two halves of the key fob to expose the battery.
3. Slide the battery out of the battery holder.
4. Install the new battery with the positive terminal of the
battery upwards.
5. Close the two halves of the key fob making sure they couple
together correctly.
6. Install and tighten the four key fob casing screws.
Locking and Unlocking
NOTE: To help maintain low voltage battery health; if the
vehicle is not in use, make sure both cab doors are
properly closed. Failure to do so will prevent the battery
isolator from engaging and may result in accelerated
lead acid battery depletion.
The vehicle cab is equipped with two access doors, these have
symmetrical exterior and interior mechanisms for locking and
unlocking.

Driving Compartment
Entering and Exiting the Vehicle
12

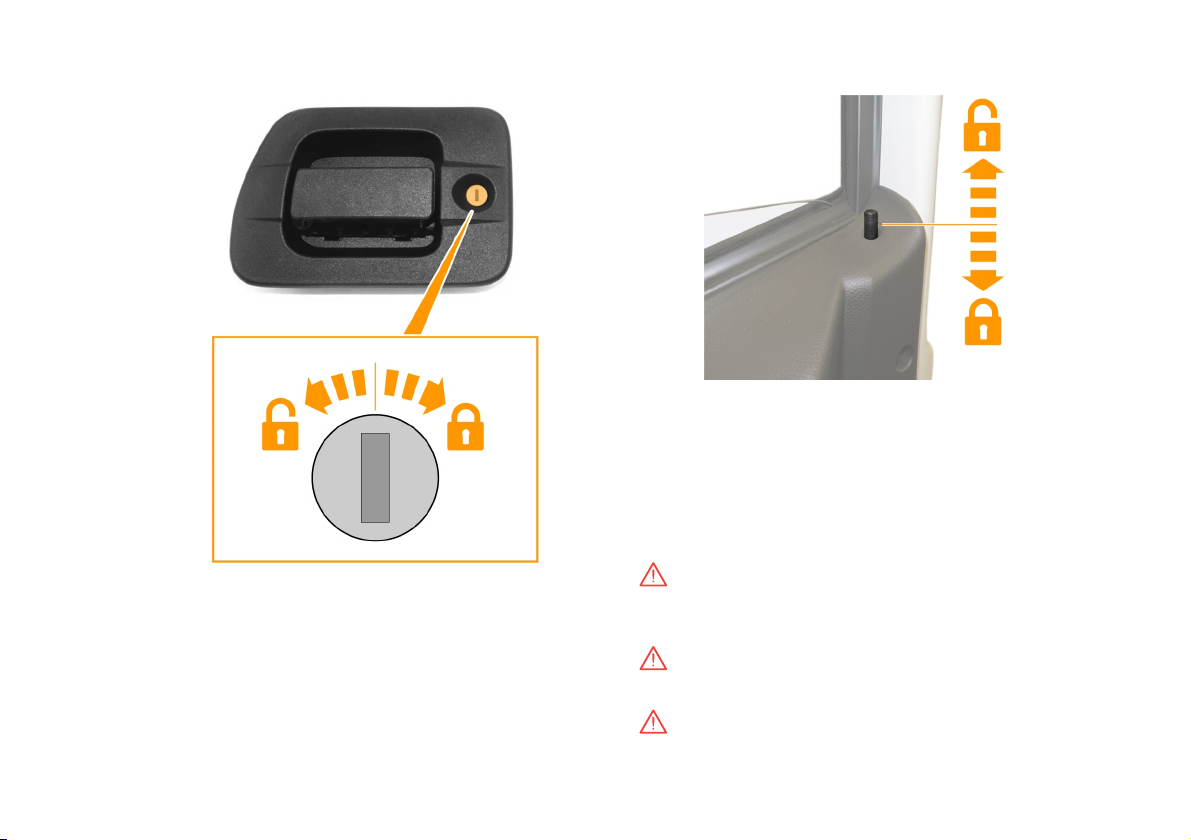

The external handle has a lock and key for locking and unlocking it
from outside the vehicle:
–To unlock the door, turn the key in an anticlockwise direction.
–To lock the door, turn the key in a clockwise direction.
The doors can be locked and unlocked from inside the vehicle as
follows:
–To lock the door, push the button in a downward direction.
–To unlock the door, pull the the button in a upward direction.
Access to the Cab
WARNING: Keep the access step and grab handles
clean, free from obstruction and in an appropriate
condition, to prevent slips.
WARNING: Always face towards the cab when you
enter or exit the vehicle.
WARNING: Never jump out of the cab.

Driving Compartment
Doors
14
Doors
When the doors are open the two external light fixtures on the
upper cross member and the white internal light switch ON.
The external light fixtures switch OFF when the doors are closed
(they are timer controlled).
Exterior Handle Operation
Locking and unlocking the cab door. See "Locking and Unlocking",
page11.
To open the door, pull the handle downwards.
NOTE: When the door is opened, the cab interior lights
and the step lights activate immediately. The lights and
the ceiling light switch off when the doors are closed
(they are timer controlled).
To close the door, position flat of hand on the exterior handle and
push to close.
WARNING: Risk of injury. When you close the door do
not hold the lower edge of the plastic guard. Failure to
obey the precaution can cause severe injury to the
hands and damage to the vehicle.

Driving Compartment
Doors
15
Interior Door
1. Door opening lever. Depending on the door trim, there maybe
one of two types of door opening lever provided.
2. Handle for closing the door.
3. Button for locking/unlocking the door from the inside.

16
Safety
3.1 Seat Belts........................................................................... 17
3.1.1 Seat Belt Warnings .................................................. 17
3.1.2 Using the Seat Belts................................................ 18
3.1.3 Seat Belt Reminder.................................................. 20

Safety
Seat Belts
17
Seat Belt Warnings
Seat belts are the most effective means of restraining vehicle
occupants from impact forces, which minimises the danger of
injury from interior impacts and the effects of whiplash.
WARNING: Always fasten the seat belts. Travelling
without a seat belt increases the risk of injury or
death to the vehicle occupants in the event of a
collision.
WARNING: Pregnant women should wear a seat belt
to ensure maximum safety of mother and unborn
child. Position the lap belt across the hips, below the
abdomen and position the shoulder belt between the
breasts and to the side of the abdomen. Ensure the
belt is not slack or twisted.
WARNING: The seat belt only provides its intended
degree of protection if the seat backrest is positioned
close to vertical, and the occupant is sitting upright.
WARNING: The seat belt cannot perform its function
correctly if the seat belt or buckle becomes
excessively dirty or damaged. Ensure the belt latch
engages the buckle fully. Check the seat belts
regularly to ensure that they are not damaged, or
routed over sharp edges and are not trapped. The belt
could tear in an accident, causing injury to occupants.
WARNING: Do not secure any objects with a seat belt
if the seat belt is being used by a vehicle occupant.
WARNING: Avoid wearing bulky clothing which can
make the seat belt less effective in an accident.
WARNING: Only one person should use each seat belt
at any one time.
WARNING: Do not route the belt across sharp edged
or fragile objects especially if these are on or in your
clothing. The seat belt could be damaged and you
could be injured.

Safety
Seat Belts
18
WARNING: A seat belt which is not worn, worn
incorrectly, or has not been engaged fully in the seat
belt buckle, cannot perform its intended function. To
avoid injuries, ensure that all vehicle occupants wear
their seat belt correctly at all times:
– Do not move the seat into a position that could
interfere with the correct positioning of the
seatbelt.
– The belt must lie flat and be routed between the
neck and shoulder.
– The belt is routed as low as possible across your
pelvic area, i.e. across your hip joints and not
across your abdomen.
– Periodically check the seat belt for damage,
check for cuts and that it is not frayed. Check the
seatbelt is secure.
– If the vehicle is involved in an accident, replace
the seat belt used even if it appears undamaged.
– Do not modify the seat belt in a way that could
reduce its functionality.
Not following the necessary precautions can cause
the seatbelt to function incorrectly which can cause
severe injury to vehicle occupants.
Using the Seat Belts
Fastening the Seat Belt

Safety
Seat Belts
19
To fasten the seat belt:
1. Make sure you are seated comfortably and the seat is set in
the correct position.
2. Grasp the seat belt latch and pull the seat belt across the
body, ensuring that the belt lies flat across the mid point of
the collar bone between the neck and shoulder, then across
the chest and pelvis.
3. With the belt correctly positioned insert the latch into the
buckle and press until a click is heard to confirm engagement.
4. Check engagement by attempting to pull the latch from the
buckle.
The seat belt does not require manual adjustment, the seatbelt self
adjusts to the person and movement as long as no sudden
movements are made.
NOTE: The seats installed in the vehicle are not suitable
for transporting children. The seat belt is designed for
use by adult occupants only.
The mechanism is sensitive to changes in the vehicle position and
may lock in the following circumstances:
–Sudden acceleration.
–When travelling on a slope.
–When travelling on a bend.

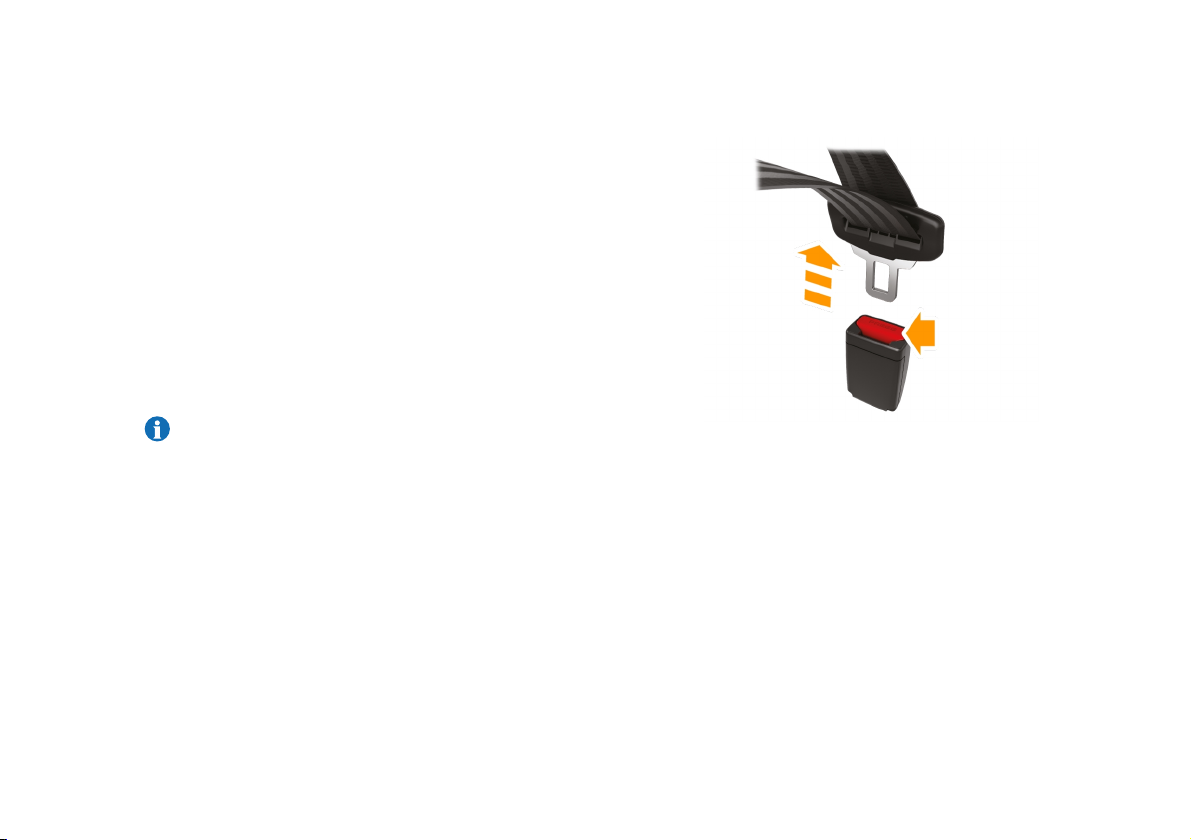

Releasing the Seat Belt
To release the seat belt press the button at the top of the buckle.
The seat belt will retract automatically.

Safety
Seat Belts
20
Seat Belt Reminder
The seat belt warning light illuminates on the instrument
panel if the seat belt is not fastened and the ignition is on.
See "Ignition Modes", page39.
When the vehicle exceeds 10 km/h (6 mph) an audio warning
activates for approximately 30 seconds. During this phase the
warning light flashes.
After 30 seconds the audio warning switches off for 10 seconds
and switches on again when the vehicle exceeds 10 km/h (6 mph).
The audio warning activates each time the vehicle exceeds 10
km/h (6 mph).
Other manuals for TEV75B
2
Table of contents
Other TEVVA Truck manuals
Popular Truck manuals by other brands

freightliner
freightliner EconicSD operating instructions

GT
GT DFH Operating instructions & safety manual

U-Line
U-Line H-3405 operating instructions

HSC
HSC ELITE E2500PTS product manual

Hard Head
Hard Head 015229 operating instructions

Blue Ox
Blue Ox Torrent BX7540P Operator's manual & installation instructions
