DP159RGZ Evaluation Module
I2C is a trademark of NXP.
All other trademarks are the property of their respective owners.
User's Guide
SLLU225A–August 2015–Revised March 2018
DP159RGZ Evaluation Module
This document describes how to use and configure the DP159RGZEVM along with recommendations for
system hardware implementation. These recommendations are only guidelines and it is the designer’s
responsibility to consider all system characteristics and requirements. Engineers should refer to the
datasheet for technical details such as device operation, terminal description, and so forth.
Contents
1 Overview...................................................................................................................... 2
1.1 What is the DP159? ................................................................................................ 2
1.2 What is the DP159RGZEVM?..................................................................................... 2
1.3 What is Included in the DP159RGZEVM?....................................................................... 2
1.4 DP159RGZEVM Board ............................................................................................ 3
2 Hardware Description ....................................................................................................... 3
2.1 Video Connectors for DP159 Ports............................................................................... 4
2.2 Enable/Reset........................................................................................................ 4
2.3 Power................................................................................................................. 4
2.4 Jumper Configuration .............................................................................................. 5
2.5 Component Population Configuration............................................................................ 6
2.6 Local I2C Access Through J5 ..................................................................................... 7
2.7 Local I2C Access Through USB Interface via TUSB3410 .................................................... 7
2.8 Rsadj Potentiometer .............................................................................................. 11
3 Quick Start Guide .......................................................................................................... 11
4 References.................................................................................................................. 11
5 EVM Bill of Materials....................................................................................................... 12
6 EVM Schematics .......................................................................................................... 14
7 EVM Layout................................................................................................................. 21
List of Figures
1 DP159RGZEVM Board ..................................................................................................... 3
2 DP159RGZEVM Block Diagram........................................................................................... 3

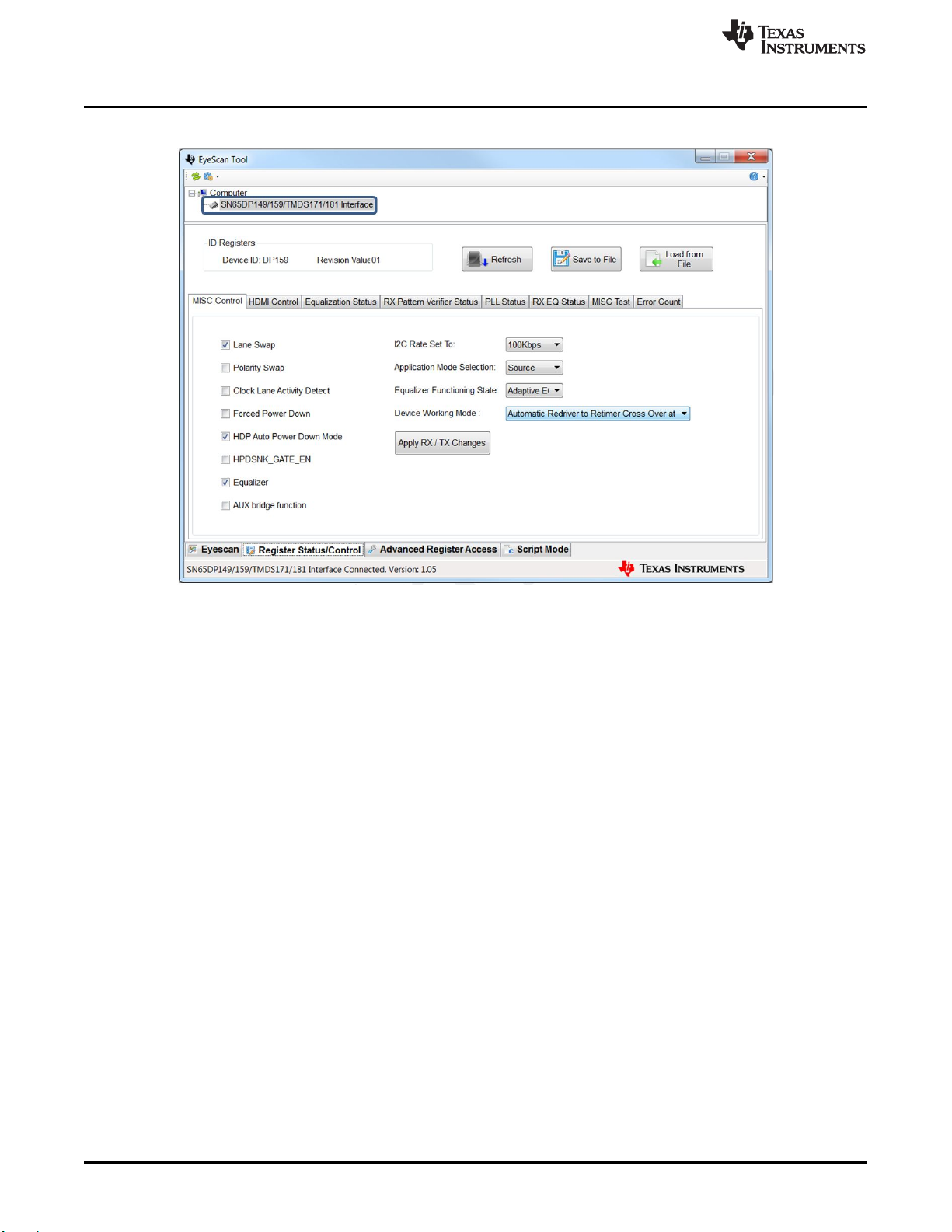

3 Register Status / Control Tab .............................................................................................. 8

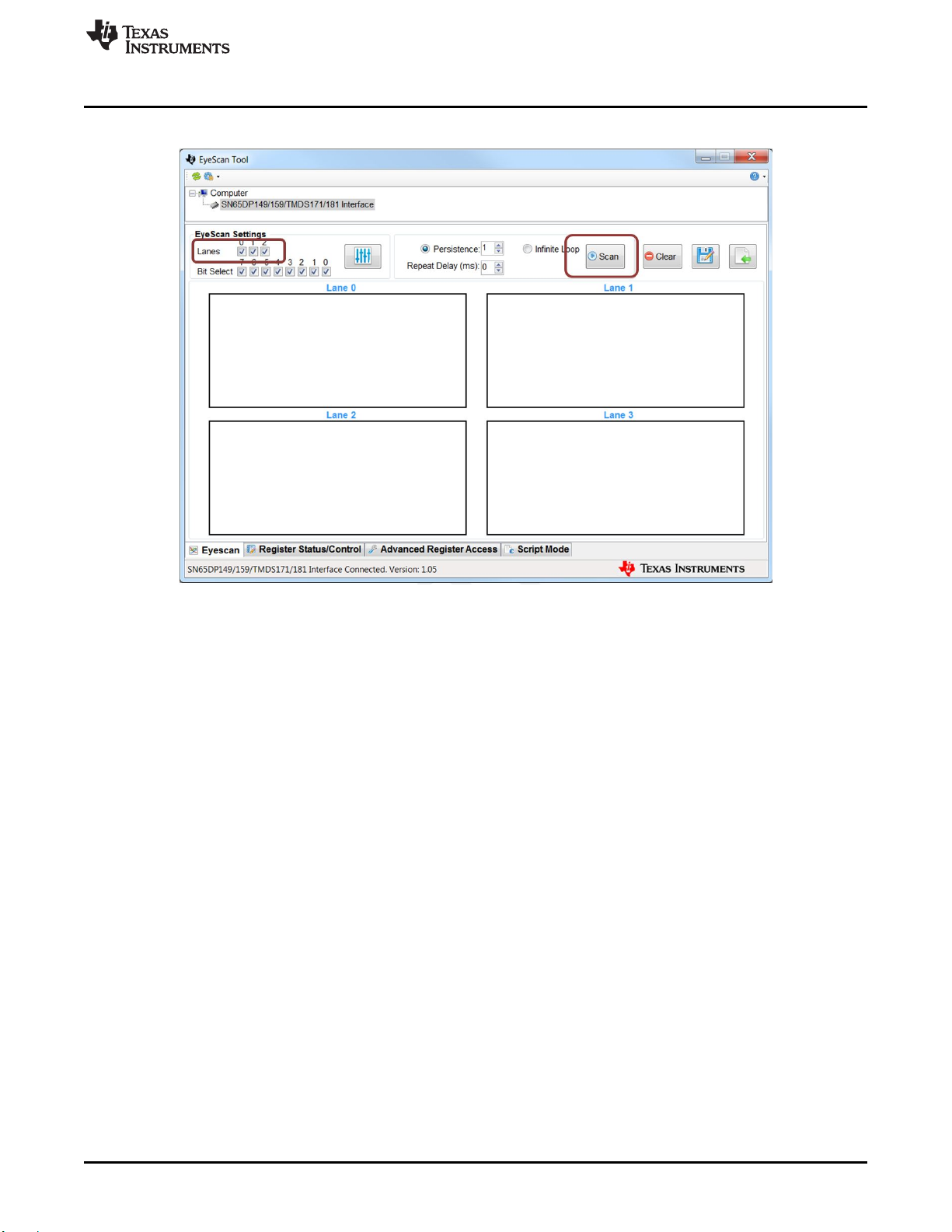

4 Eye Scan Tab ................................................................................................................ 9
5 Sample Eyescan at HDMI2.0 Raw....................................................................................... 10
6 Sample Eyescan at HDMI2.0 Interpreted............................................................................... 10
7 HDMI Input Connectors ................................................................................................... 14

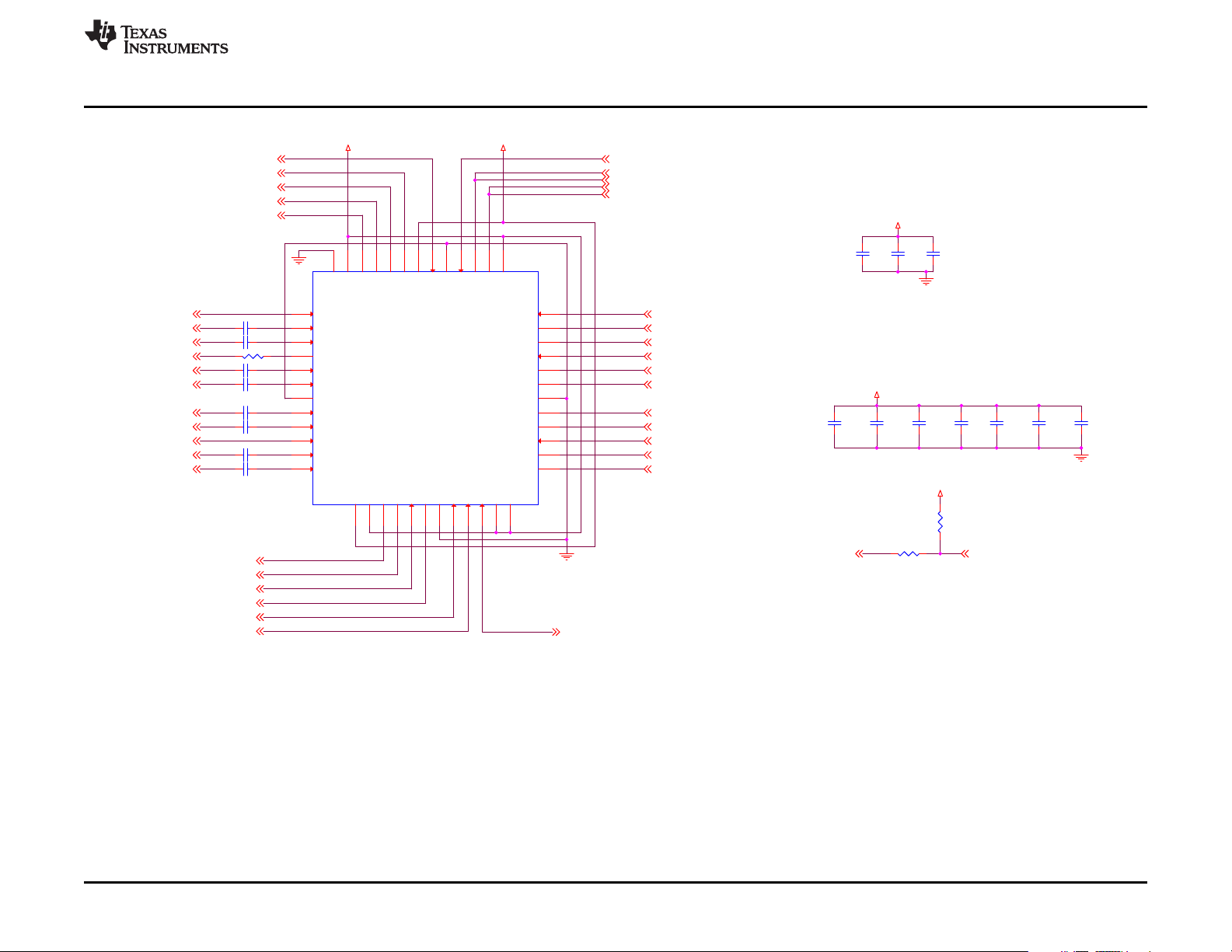

8 DP159RGZ.................................................................................................................. 15
9 HDMI TX Connector ....................................................................................................... 16
10 DP159RGZEVM Select Options ......................................................................................... 17

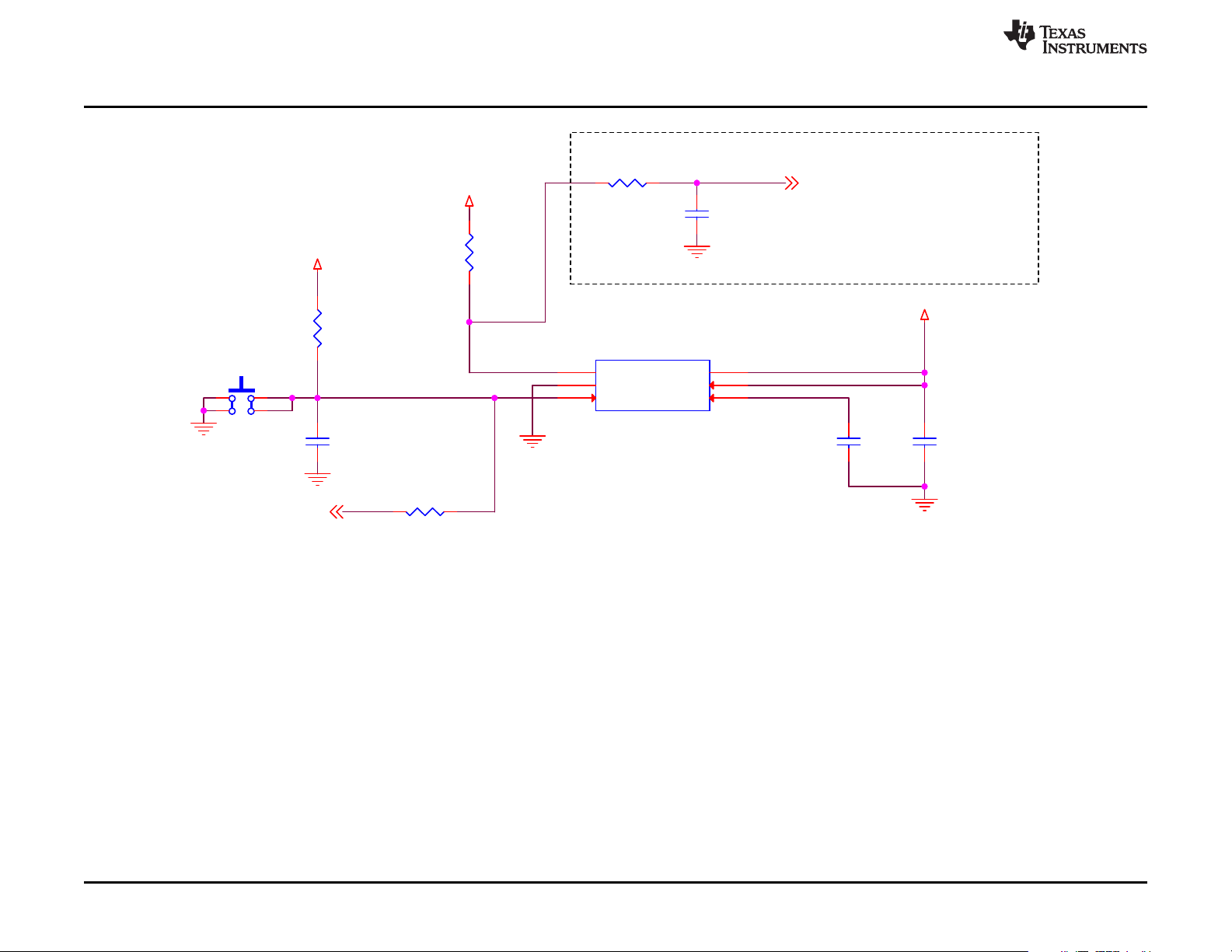

11 Reset ........................................................................................................................ 18

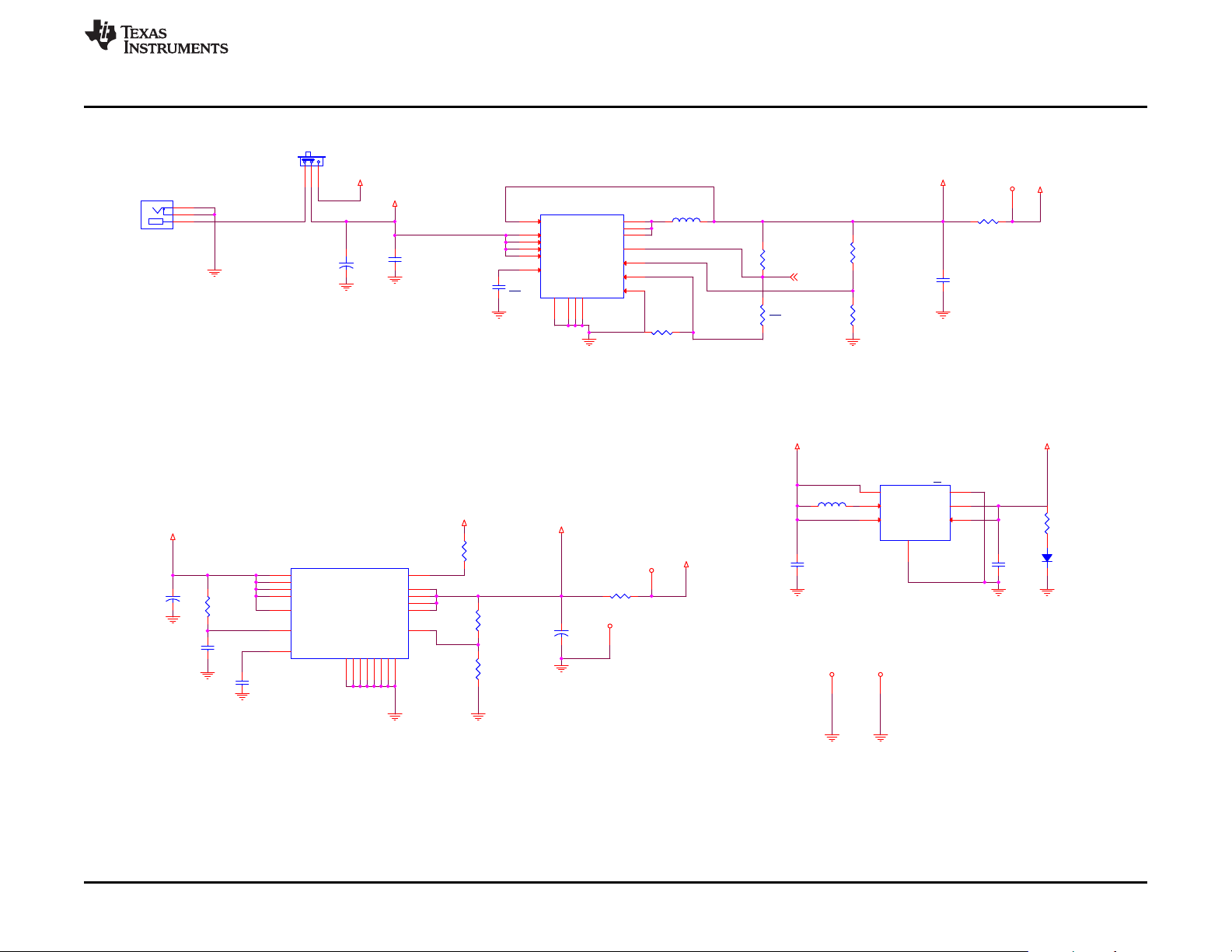

12 1.1- and 3.3-V Regulators ................................................................................................ 19
13 TUSB3410................................................................................................................... 20
14 Layer 1 (Top) ............................................................................................................... 21
15 Layer 2 (GND).............................................................................................................. 21
16 Layer 3 (Power) ............................................................................................................ 22

Overview www.ti.com
2SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
17 Layer 4 (Power) ............................................................................................................ 22
18 Layer 5 (GND).............................................................................................................. 23
19 Layer 6 (Bottom)............................................................................................................ 23
List of Tables
1 Jumper Settings.............................................................................................................. 5
2 Aardvark I2C (J5) Pin-Out................................................................................................... 7
3 DP159 Target I2C Address ................................................................................................. 7
4 DP159RGZEVM Bill of Materials......................................................................................... 12
1 Overview
1.1 What is the DP159?
The DP159 is a Dual-Mode DisplayPort to Transition Minimized Differential Signal (TMDS) retimer
supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b and 2.0
output signals. The DP159 supports the Dual-Mode Standard version 1.1 type 1 and type 2 through the
DDC link. The DP159 supports data rates up to 6 Gbps per data lane to support UltraHD (4K x 2K / 60
Hz) 8 bits per color high resolution video and HDTV with 16-bit color depth at 1080p (1920 x 1080 / 60
Hz). The DP159 can automatically configure itself as a redriver at data rates < 1.0 Gbps or as a retimer
above this data rate.
1.2 What is the DP159RGZEVM?
The DP159RGZEVM is a PCB created to help customers evaluate the DP159 device for video
applications. This EVM can also be used as a hardware reference design for implementation of the DP159
in the RSB package. PCB design/layout files can be provided upon request to provide PCB design
illustrations of the routing/placement rules.
Note that the EVM design supports both the standard DP159 application and a DP159-thru-HDMI
application, so it contains many components that would not be needed by a typical DP159 application. A
separate reference design specific to the DP159 is available for customers.
1.3 What is Included in the DP159RGZEVM?
The major components of the EVM are as follows:
• DP159RGZ
• Standard DP sink connector (connects to source)
• Standard HDMI source connector (connects to sink)
• DC power regulators
• I2C™ programming interface for external I2C host connection
• USB interface (I2C utility available)

DP159
(48-pin QFN)
DP C Toponnector
HDMI Connector
IN0P/N
IN1P/N
IN2P/N
IN3P/N
TMDS_D2P/N
TMDS_D1P/N
TMDS_D0P/N
TMDS_CLKP/N
AUXP/N DDC_SCL/SDA
AARDVARK
Connector
SCL_CTL
SDA_CTL
5-V
DONGLE
5-V to 3.3-V
LDO
3.3-V to 1.1-V
LDO
USB2
Connector
TUSB3410
DDC - Snoop Only
www.ti.com Overview
3
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
1.4 DP159RGZEVM Board

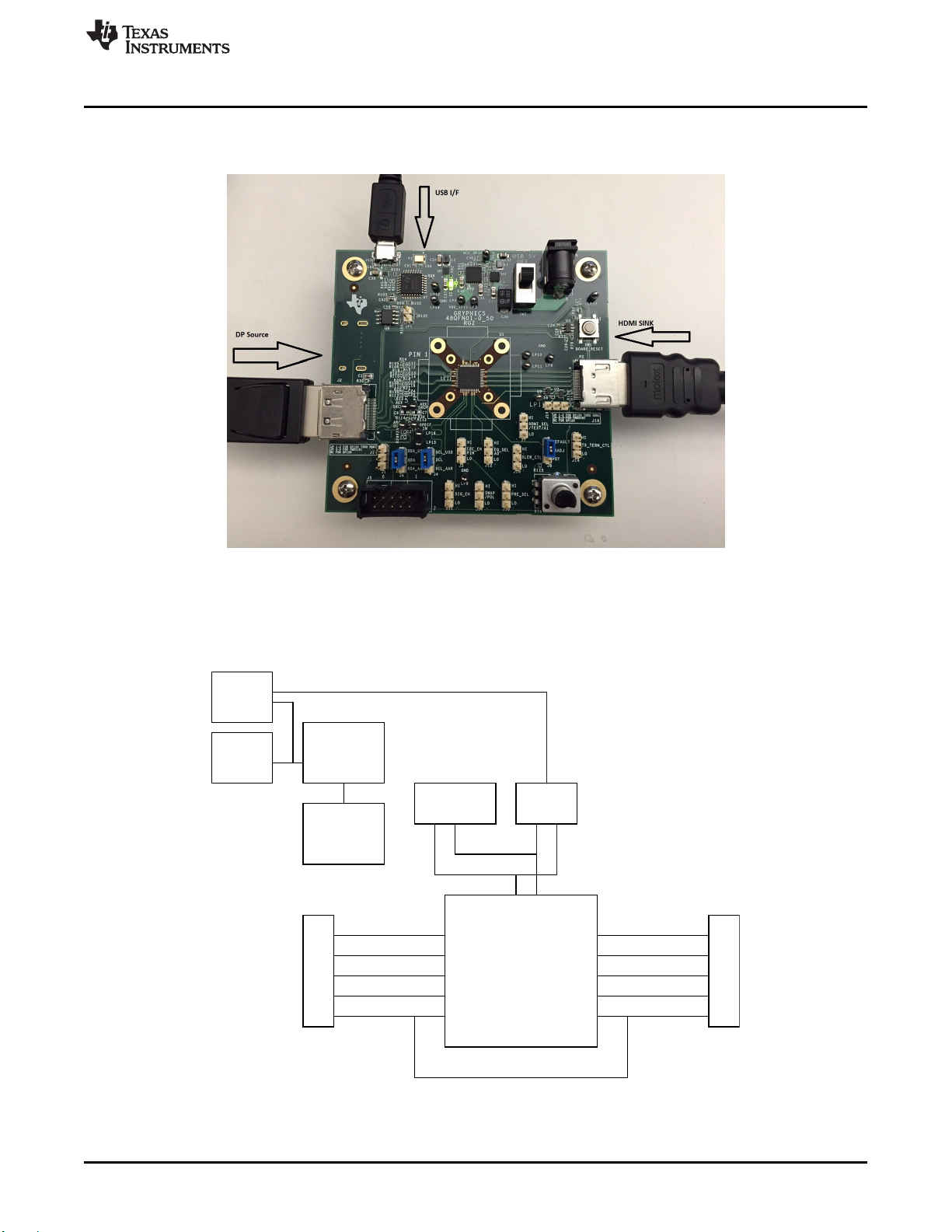

Figure 1 illustrates the DP159RGZEVM board.
Figure 1. DP159RGZEVM Board
2 Hardware Description
Figure 2 shows the DP159RGZEVM block diagram.
100-Ωdifferential impedance for HDMI differential pairs.
Figure 2. DP159RGZEVM Block Diagram

Hardware Description www.ti.com
4SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
2.1 Video Connectors for DP159 Ports
The EVM has a DP connection for the source and a HDMI connection for the sink. J2 is a standard DP
connector (Molex 47272-0001). P2 is a standard HDMI connector (Molex 4715-10001). There is a third
video connection on the board for a HDMI source (P1), this function is not installed on the
DP159RGZEVM.
2.2 Enable/Reset
There are three device enable/reset options to use with the EVM:
A. Supervisor circuitry option
This is the default configuration on the DP159RGZEVM. The enable (EN) signal is held low until the
power good (PG) from the 3.3-V voltage regulator reaches a stable high-voltage level then released
high.
B. RC timing option
C26 external capacitor and internal resistor are used to control the EN ramp time after the device is
powered on. C26 is a Do Not Install (DNI option) by default. C26 needs to be installed and R77 needs
to be uninstalled to enable this option.
C. External control option
A push button (SW1) is provided for manual control of the DP159’s EN/OE input.
2.3 Power
A DC power jack (J9) to accept a 5-V wall power adapter is provided on the EVM. The DC power jack
(CUI Inc. PJ-202AH) has an inner diameter of 2.1 mm and an outer diameter of 5.5 mm. The tip of the +5-
V power supply must be positive. A +5-V power supply of at least 1.5 A that meets the given requirements
can be used to power the DP159RGZEVM. Power is provided to the EVM from the 5-V wall power
adapter when SW2 is set to position 1.
CAUTION
Care should be taken to not plug in any power source higher than the
configured voltage (5 V).
Alternately, it is possible to power the EVM by connecting a USB Micro cable from J13 to a USB host and
setting SW2 to position 3.

www.ti.com Hardware Description
5
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
2.4 Jumper Configuration
Jumpers are provided to operate the device/EVM in different configurations. Table 1 lists the jumper
settings.
Table 1. Jumper Settings
Jumper Signal Name Description Default Config
J1 HPD_SRC JP 1-2 for DP159 thru HDMI NC
JP 2-3 for NOT USED
NC for DP159
J3 I2_EN_PIN JP 1-2 for I2C ENABLE NC: Enables device configuration from I2C
or pin straps.
JP 2-3 for PIN STRAP
NC – PIN STRAP (internal pulldown)
J4 SCL JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface
JP 2-3 for EXT IF TO I2C
NC – N/A
J6 SDA JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface
JP 2-3 for EXT IF TO I2C
NC – N/A
J7 HDMI_SEL_TEST_A1 JP 1-2 for: NC
• I2C Addr bit A1 = 1, when I2C_EN = H
• DVI mode, when I2C_EN = L
JP 2-3 for:
• I2C Addr bit A1 = 0, when I2C_EN = H
• Normal mode, when I2C_EN = L
NC for weak internal pulldown (HDMI
mode)
J8 VSADJ JP 1-2 for 7.0 kΩJP 1-2: Default of 7.0 kΩ
JP 2-3 for adjustable resistance
NC – N/A
J10 SLEW_CTL JP 1-2 for fastest data rate NC
JP 2-3 for 20 ps slow
NC for 40 ps slow
J11 SIG_EN JP 1-2 for Signal Detect Enabled NC
JP 2-3 for Signal Detect Disabled
NC for weak internal pullup (Detect
Disabled)
J12 EQ_SEL_A0 JP 1-2 for: NC
• I2C Addr bit A0 = 1, when I2C_EN = H
• Fixed EQ at 14 dB, when I2C_EN = L
JP 2-3 for:
• I2C Addr bit A0 = 0, when I2C_EN = H
• Fixed EQ at 7.5 dB, when I2C_EN = L
NC for adaptive EQ
J14 TX_TERM_CTL JP 1-2 for No TX termination NC
JP 2-3 for TX termination 75–100 Ω
NC for auto termination set
J15 PRE_SEL JP 1-2 for –5 dB NC
JP 2-3 for –2.5 dB
NC for 0 dB

Hardware Description www.ti.com
6SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Table 1. Jumper Settings (continued)
Jumper Signal Name Description Default Config
J16 CEC_EN JP 1-2 for DP159 thru HDMI NC
JP 2-3 for NOT USED
NC for DP159
J17 SWAP/POL JP 1-2 for Polarity Swap NC
JP 2-3 for Lane Swap
NC for No Swap
2.5 Component Population Configuration
To allow the DP159RGZEVM to support both the default DP input as well as a HDMI test input, there are
many components that need to be removed, placed, or modified depending on the board configuration.
Here’s a summary of the default component configuration for the DP159RGZEVM. In addition, the unused
HDMI receptacle is depopulated.
Function Reference Designator DP159RGZEVM
Differential Pair - IN C11, C12, C13, C14, C15, C16, C24,
C25 populated with 0.1 µF
Differential Pair - HDMI IN R14, R15, R18, R19, R20, R21, R22,
R23 not populated
SDA / SCL - HDMI R16, R17, R24, R25, R123, R124 not populated
Differential Pair - DP IN R112, R109, R111, R108, R110, R107,
R106, R105 populated with 0 Ω
SDA / SCL / HPD - DP R33, R31, R32 (R126, R135, R132,
R133 - snoop) populated with 0 Ω
Pullup Differential Pair HDMI IN R1, R2, R3, R4, R6, R7, R8, R9 populated, but not
connected
2.5.1 HPD Snoop Option
To accommodate systems that do not properly resend DDC commands after HPD goes low, we have
implemented a HPD snoop mode on the DP159RGZEVM. This mode allows the HPD line to be routed
around the DP159, but remain connected to the DP159 on the sink side to allow the DP159 to snoop its
state. This snoop mode is disabled by default on the DP159RGZEVMs.
• Pop R131, no pop R129, R130, R139 for HPD on
• No pop R131, pop R129, R130, R139 for HPD snoop only
2.5.2 DDC Snoop Option – not Available for DP159RGZ REV B
To accommodate systems that do not properly support clock stretching on the DDC lines, we have
implemented a snoop mode on the DP159RGZEVM. This mode allows the DDC lines to be routed around
the DP159RGZ, but remain connected to the DP159RGZ on the sink side to allow the DP159RGZ to
snoop the DDC traffic. This snoop mode is enabled by default on the DP159RGZ REV B1 EVMs.
• Pop R126, R125, R132, R133. No pop R31, R32 – DP159RGZ, DDC snoop only
• Pop R31, R32. No pop R126, R125, R132, R133 – DP159RGZ, DDC on

www.ti.com Hardware Description
7
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
2.6 Local I2C Access Through J5
Access to DP159’s local I2C signals is provided via the J5 input connector. Note that I2C signal levels
should be at 3.3 V when I2C interface is accessed through the connector.
A standalone external I2C host can be connected via J5 for debug and control purposes. An example of an
external I2C Host controller is the Total Phase Aardvark I2C/SPI Host Adapter (Total Phase Part#:
TP240141). Sample scripts for this I2C Host controller are provided by request.
Table 2. Aardvark I2C (J5) Pin-Out
J5 pin # Description J5 pin
#Description
1 SCL_CTL 2 GND
3 SDA_CTL 4 NC
5 NC 6 NC
7 NC 8 NC
9 NC 10 GND
(1) The target I2C address for DP159 can be modified by the EVM jumper settings.
Table 3. DP159 Target I2C Address(1)
DP159 I2C Target Address
Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (W/R)
A6 A5 A4 A3 A2 A1 A0
1 0 1 1 1 1 0 0/1
2.7 Local I2C Access Through USB Interface via TUSB3410
Access to DP159’s local I2C signals is also provided through the TUSB3410 on the DP159RGZEVM using
a USB TI Utility called Eye Scan. To use the utility:
• Install the Eye Scan software from Texas Instruments
• J6 must be set to SDA – SDA_USB
• J4 must be set to SCL – SCL_USB
• Attach USB micro cable to J13 and to the host computer
NOTE: The USB connection should be made prior to installing any DP or HDMI cables.
• Start the Eye Scan software

Hardware Description www.ti.com
8SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 3 shows the Register Status / Control tab.
Figure 3. Register Status / Control Tab
Confirm that the SN65DP149/159/TMDS171/181 Interface is present and selected at the top. If it is not,
check the USB connection and confirm that the driver is loaded in Device Manager. It may take a moment
for the USB driver to load, if the DP159RGZ does not appear, hit the Refresh button. This tab can be used
to read and write the status and control registers of the device.

www.ti.com Hardware Description
9
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 4 shows the Eye Scan tab.
Figure 4. Eye Scan Tab
To run an Eye Scan, select the Eye Scan tab, select the relevant lanes, and press scan. Note that Eye
Scan cannot be performed when the device is in retimer mode, it does not function in redriver mode.

Hardware Description www.ti.com
10 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Note that at HDMI 2.0 speeds there is a bug that causes invalid eyescan results. Results that look like
this:
Figure 5. Sample Eyescan at HDMI2.0 Raw
Should be interpreted as this:
Figure 6. Sample Eyescan at HDMI2.0 Interpreted

www.ti.com Hardware Description
11
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
2.8 Rsadj Potentiometer
The default Rsadj value on the DP159RGZEVM is 7.0 kΩ. The optimal value for an application may vary
from 4.7 kΩto 7 kΩ. To allow customers to test the effects of various Rsadj values, there is a
potentiometer on the EVM at R76. The Rsadj value can be varied by turning the knob and setting J8 to
[2,3].
3 Quick Start Guide
The following steps provide quick start instructions:
1. Connect USB cable from J13 to a USB host, set SW2 to 3. LED D2 should light up.
Option: Apply 5-V power to J9, set SW2 to 1. LED D2 should light up.
2. If using external I2C adapter instead of pin straps, configure the DP159 at this step using J5 or through
the USB interface.
3. Plug in a DP source using a standard DP cable into J2 (Standard DP connector).
4. Plug in an HDMI video sink device into P2 (standard HDMI connector) using a standard HDMI cable.
5. Video output on HDMI sink should be observed.
4 References
1. DP159 Data Sheet
2. Aardvark Adapter User Manual
3. High-Definition Multimedia Interface Specification Version 1.4b.
4. High-Definition Multimedia Interface Specification Version 2.0.

EVM Bill of Materials www.ti.com
12 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
5 EVM Bill of Materials
Table 4 lists the DP159RGZEVM BOM.
Table 4. DP159RGZEVM Bill of Materials
Item Qty Reference Part PCB Footprint Manufacturer Part Number
1 2 C1,C52 1 uF 603 Taiyo Yuden LMK107B7105KA-T
2 12 C9,C10,C17,C18,C19,C21,C
23,C29,C40,C46,C59,C60 0.1uF 402 Yageo CC0402KRX5R6BB104
3 5 C8,C20,C35,C36,C57 10uF 805 TDK C2012X5R1A106K125AB
68 1 C31 10uF 805 TDK C2012X5R1C106K085AC
4 8 C11,C12,C13,C14,C15,C16,
C24,C25 0.1uF 201 TDK C0603X5R0J104M
5 5 C22,C37,C41,C42,C47 0.01uF 402
6 1 C26 - DNI DNI_200nF 402
7 1 C27 18pF 402 AVX 04025A180JAT2A
8 1 C28 220pF 402
9 1 C30 220uF 7343 Kemet T491D227K016AT
10 1 C34 3.3 nF 402
11 1 C32 22uF 805
12 2 C39,C58 2.2uF 805
13 35 C2,C3,C4,C5,C6,C7,C38,R14
,R15,R16,R17,R18,R19,R20,
R21,R22,R23,R24,R25,R35,
R87,R92,R93,R104,R113,R1
14,
R120,R123,R124,R125,R126,
R129,R130,R132, R133
DNI 402 / 201
14 2 C45,C49 22pF 402
15 2 C50,C51 33pF 402
16 1 D1 Zener 6V SOT23 Diodes Inc. MMBZ5233B-FDICT-ND
17 1 D2 LED Green 0805 805 Lite On LTST-C171GKT
18 1 JP1 JUMPER HDR_THVT_1x2_100
19 13 J1,J3,J4,J6,J7,J8,J10,J11,J1
2,J14,J15,J16,J17 HDR3X1 M .1 HDR_THVT_1x3_100 3M 961103-6404-AR
20 1 J2 Display_Port_Conne
ctor_Sink_0 DISPLAYPORT Molex 47272-0001
21 1 J5 Header 5x2 0.1"
thru-hole con_thvt_shrd_2x5_100_m 3M N2510-6002-RB
22 1 J9 2.1mm x 5.5mm PJ-202AH CUI Inc. PJ-202AH (PJ-002AH)
23 1 J13 USB Micro B USB Micro B FCI 10103592-0001LF
24 17 LP1,LP2,LP3,LP4,LP5,LP6,L
P7,LP8,LP9,LP10,LP11,LP12
,LP13,LP14,LP15,LP16,LP17
LP TESTLOOP KOBIKONN 151-103-RC
25 1 L1 2.2 uH 1008 TDK VLS252010ET-2R2M
26 1 L2 1 uH 1008 TDK NLCV25T-1R0M-EFR
27 4 L3, L4, L5, L6 CHOKE 805 Murata DLW21SN900HQ2L
28 1 P1 - DNI HDMI_IN CON_HDMI_RT_19_0p50mm Molex 471510001
29 1 P2 HDMI_OUT CON_HDMI_RT_19_0p50mm Molex 471510001
30 2 Q1,Q2 FDV301N_NFET_8
VSOT23 Fairchild Semiconductor FD301N
31 8 R1,R2,R3,R4,R6,R7,R8,R9 50 201
32 1 R5 100 402
33 6 R10,R11,R99,R100,R101,R1
21 1K 402
34 3 R12,R27,R81 100K 402
35 1 R13 10 402
36 12 R31,R32,R33,R34,R105,R10
6,R107,R108,R109,R110,R11
1,R112
0 201

www.ti.com EVM Bill of Materials
13
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Table 4. DP159RGZEVM Bill of Materials (continued)
Item Qty Reference Part PCB Footprint Manufacturer Part Number
37 6 R28,R29,R58,R59,R45,R46 2K 402
38 7 R77,R80,R83,R84,R89,R122,
R131 0 402
39 1 R30 1M 402
40 1 R127 500K 402
41 1 R36 75 402
42 1 R56 27K 402
43 16 R57,R60,R61,R62,R63,R64,
R65,R66,R67,R68,R69,R70,
R71,R72,R73,R74
65K 402
44 1 R75 7.06K (6.98K OK) 402
45 1 R76 PTV09 10K POT THRUHOLE BOURNS PTV09A-4015F-B103
46 3 R78,R98,R102 10K 402
47 2 R79,R88 4.7K 402
48 1 R82 500 402
49 1 R85 750K 402
50 1 R86 240K 402
51 1 R90 1.87K 402
52 1 R91 4.99K 402
53 1 R94 1.5K 402
54 2 R95,R96 33 201
55 1 R103 15K 402
56 1 R115 47K 402
57 1 SW1 PB_SWITCH SW_MOM_2NO OMRON B3SN-3012P
58 1 SW2 3POS_SPDT THRUHOLE_3POS NKK Switches MS13ANW03
59 1 U1 DP159RGZ 48_RGZ TI
60 1 U9 SN74AUP1G04 DCK TI SN74AUP1G04DCKR
61 1 U2 SN74CBT1G125 DCK TI SN74CBT1G125DCKR
62 1 U3 TPS3808G30DBVT 6DBV TI TPS3808G30DBVT
63 1 U4 TPS62150A RGT16 TI TPS62150ARGTT
64 1 U6 TPS61240 6DRV TI TPS61240DRVT
65 1 U5 TPS74201RGWT RGW20 TI TPS74201RGWT
66 1 U7 TUSB3410 LQFP32 TI TUSB3410VF
67 1 U8 24LC256 8SOIC ON
Semiconductor CAT24C256W
69 1 Y1 12 MHz Crystal ECX-32 ECS Inc. ECS-120-20-33-TR
70 1 U16 TPD2E001 drl_5pin TI TPD2E001

DisplayPort++
HDMI RX JP 1-2 for DP159 thru HDMI
JP 2-3 NOT USED
NC for DP159
JP 1-2 for DP159 thru HDMI
JP 2-3 NOT USED
NC for DP159
Pop 0 ohm series on IN_Dxx lines for DP159 thru HDMI
No pop 0 ohm series on IN_Dxx lines for DP159
No pop R104 if U6 is pop - DP159 thru HDMI
POP FOR AUX
NO POP
Pop 0 ohm series on IN_Dxx lines for DP159
No pop 0 ohm series on IN_Dxx lines for DP159 thru HDMI
No pop R16, R17, R24, R25, R123, R124, R125, R126 for DP159, DDC on
Pop R126, R125. No pop R16, R17, R24, R25, R123, R124 for DP159, DDC snoop only
Pop R16, R17, R24, R25, no pop R123, R124, R125, R126 for DP159 thru HDMI, DDC on
No pop R16, R17, R24, R25. Pop R123, R124, R125, R126 for DP159 thru HDMI, DDC snoop only
Pop R31, R32. No pop R132, R133 - DP159, DDC on
Pop R132, R133. No pop R31, R32. - DP159, DDC snoop only
No pop R31, R32, R132, R133 for DP159 thru HDMI
DP_SCL_SRC
DP_SDA_SRC
DPRX_GND
C_DPRX_LN1N
C_DPRX_LN1P
C_DPRX_LN3N
C_DPRX_LN3P
C_DPRX_LN2N
C_DPRX_LN2P
C_DPRX_LN0N
C_DPRX_LN0P
CEC_SRC
DP_CAD
HDMI_CEC_SRC
HDMI_SCL_SRC_IN
HDMI_SDA_SRC_IN
HPD_SRC_HDMI_RX_CONN
HPD_SRC_HDMI_RX_CONN
HPD_SRC
HPD_SRC_CONN
ARC_OUT
HDMI_CEC_SNK
HDMI_CEC_SRC
CEC_SRC
HPD_SRC
ARC_OUT
HDMI_IN_5V
BOARD_3P3V
BOARD_5V
BOARD_5V
BOARD_3P3V
CEC_SRC PAGE4
IN_D2P PAGE2,3
IN_D2N PAGE2,3
IN_D1P PAGE2,3
IN_D1N PAGE2,3
IN_D0P PAGE2,3
IN_D0N PAGE2,3
IN_CLKP PAGE2,3
IN_CLKN PAGE2,3
HPD_SRC PAGE3
AUX_SRCN/ARC_OUTPAGE3 AUX_SRCP/SPDIF_IN PAGE3
SPDIF_IN PAGE4
SCL_SRC PAGE2,3
SDA_SRC PAGE2,3
HDMI_CEC_SNK PAGE4
IN_CLKN PAGE2,3
IN_CLKP PAGE2,3
IN_D0N PAGE2,3
IN_D0P PAGE2,3
IN_D1N PAGE2,3
IN_D1P PAGE2,3
IN_D2N PAGE2,3
IN_D2P PAGE2,3
SCL_SRC PAGE2,3
SDA_SRC PAGE2,3
HDMI_SDA_SRC PAGE2,3
HDMI_SCL_SRC PAGE2,3
HPD_SRC_CONNPAGE4
P1
HDMI_IN
HDMI_IN
11
22
33
44
55
66
77
88
99
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
Case1
20
Case2
21 Case3 22
Case4 23
R4
50
0201
5%
Q1
FDV301N_NFET_8V
1
2
3
R9
50
0201
5%
R21 0
R108 0
R11
1K
0402
R113
DNI
0402
LP3
ARC_OUT
R8
50
0201
5%
R123
0
LP15
LP1
AUX_SRCN
R22 0
R34 0
LP16
R109 0
R124
0
R35
DNI
0402
5%
R7
50
0201
5%
LP17
C6
1 uF
R114
DNI
0402
R23 0
R3
50
0201
5%
R125
0
R6
50
0201
5%
R110 0
LP4
SPDIF_IN
R36
75
0402
5%
R132
0
J2
Display_Port_Connector_Sink_0
DISPLAYPORT IN
GND7
21
GND8
22
GND9
23
GND10
24
ML_3n 1
GND1 2
ML_3p 3
ML_2n 4
GND2 5
ML_2p 6
ML_1n 7
GND3 8
ML_1p 9
ML_0n 10
GND4 11
ML_0p 12
CAD (GND) 13
DP_CEC (GND) 14
AUX_p (SCL) 15
GND6 16
AUX_n (SDA) 17
HPD 18
DP_PWR_RTN 19
DP_PWR 20
R126
0
R14 0
R16
2K
0402
5%
R5
100
0402
R27
100K
0402
5%
C2
0.1uF
R104 0
R2
50
0201
5%
R12
100K
0402
R111 0
R133
0
R15 0
C3
0.1uF
Q2
FDV301N_NFET_8V
1
2
3
C4
1 uF
R105 0
R127
500K
0402
R112 0
R33 0
R28
2K
0402
5%
R1
50
0201
5%
R17
2K
0402
5%
J1
HDR3X1 M .1
HPD_SRC
1
2
3
R18 0
R25 0
D1
Zener 6V
1
2 3
R32 0
C5
1 uF
R30
1M
0402
5%
R106 0
R29
2K
0402
5%
R13
10
0402
R19 0
R31 0
R24 0
R10
1K
0402
C7
1 uF
R107 0
LP2
AUX_SRCP
R20 0
C1
1 uF
J16
HDR3X1 M .1
CEC CTL
1
2
3
EVM Schematics www.ti.com
14 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
6 EVM Schematics
Figure 7 through Figure 13 show the DP159RGZEVM schematics.
Figure 7. HDMI Input Connectors

Pop R131, no pop R129, R130 for HPD on
No pop R131, pop R129, R130 for HPD snoop only
VDD_1P1V
VCC_3P3V
VCC_3P3VVDD_1P1V
BOARD_5V
OUT_CLKP PAGE4
OUT_CLKN PAGE4
OUT_D2P PAGE4
OUT_D2N PAGE4
OUT_D1P PAGE4
OUT_D1N PAGE4
OUT_D0P PAGE4
OUT_D0N PAGE4
HPD_SNK PAGE4
SDA_SNK PAGE4
SCL_SNK PAGE4
SLEW_CTL PAGE5
OEPAGE6
AUX_SRCN/ARC_OUTPAGE2
AUX_SRCP/SPDIF_INPAGE2
SCL_SRCPAGE2
SDA_SRCPAGE2
IN_D2PPAGE2
IN_D2NPAGE2
IN_D1PPAGE2
IN_D1NPAGE2
IN_D0PPAGE2
IN_D0NPAGE2
IN_CLKPPAGE2
IN_CLKNPAGE2
HPD_SRCPAGE2
I2C_EN_PINPAGE5
SCL_CTLPAGE5
SDA_CTLPAGE5
PRE_SELPAGE5
EQ_SEL_A0PAGE5
HDMI_SEL#_TEST_A1 PAGE5
TX_TERM_CTL PAGE5
SIG_ENPAGE5
SWAP/POLPAGE5
CEC_ENPAGE4
VSADJ PAGE5
HDMI_SCL_SRC PAGE2,3
HDMI_SDA_SRC PAGE2,3
HPD_SNK PAGE4
HPD_SRC_CONNPAGE2
C12
0.1uF
C23
0.1uF
C8
10uF
C18
0.1uF
R129 0
C13
0.1uF
C20
10uF
C9
0.1uF
DP159RGZ
U1
48 PIN RGZ, HSIO
SWAP/POL
1
IN_D2P
2
IN_D2N
3
HPD_SRC
4
IN_D1P
5
IN_D1N
6
GND1
7
IN_D0P
8
IN_D0N
9
I2C_EN/PIN
10
IN_CLKP
11
IN_CLKN
12 OUT_CLKN 25
OUT_CLKP 26
HDMI_SEL#/A1 27
OUT_D0N 28
OUT_D0P 29
GND3 30
OUT_D1N 31
OUT_D1P 32
HPD_SNK 33
OUT_D2N 34
OUT_D2P 35
TX_TERM_CTL 36
VDD4 37
SCL_SNK 38
SDA_SNK 39
SLEW_CTL 40
GND4 41
OE 42
VCC2 43
AUX_SRCN/ARC_OUT 44
AUX_SRCP/SPDIF_IN 45
SCL_SRC 46
SDA_SRC 47
VDD5 48
VCC1
13
VDD1
14
SCL_CTL
15
SDA_CTL
16
SIG_EN
17
CEC_EN/NC
18
GND2
19
PRE_SEL
20
EQ_SEL/A0
21
VSADJ
22
VDD2
23
VDD3
24
PAD 49
C19
0.1uF
C14
0.1uF
C11
0.1uF
C10
0.1uF
C15
0.1uF
C16
0.1uF
R130
1K
0402
5%
C24
0.1uF
C21
0.1uF
R131 0
C25
0.1uF
C22
0.01uF
C17
0.1uF
www.ti.com EVM Schematics
15
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 8. DP159RGZ

HDMI TX
Pop 2K resistors on R45, R46 for DP159 thru HDM, DDC on
Pop 2K resistors on R45, R46 for DP159 thru HDMI, DDC snoop only
Pop 2K resistors on R45, R46 for DP159
HDMI_CEC_SNK
BOARD_5V BOARD_5V
BOARD_3P3V
BOARD_5V
OUT_D2P PAGE3
OUT_D2N PAGE3
OUT_D1P PAGE3
OUT_D1N PAGE3
OUT_D0P PAGE3
OUT_D0N PAGE3
OUT_CLKP PAGE3
OUT_CLKN PAGE3
SDA_SNK PAGE3
SCL_SNK PAGE3
HPD_SNK PAGE3
SPDIF_IN PAGE2
HDMI_CEC_SNK PAGE2
CEC_SRCPAGE2
CEC_ENPAGE3
L4
DLW21SN900HQ2L
1
4
2
3
LP10
R56
27K
0402
5%
LP11 LP12
L5
DLW21SN900HQ2L 1
4
2
3
R45
2K
0402
5%
L6
DLW21SN900HQ2L
1
4
2
3
LP13
R46
2K
0402
5%
LP14
U2
SN74CBT1G125
OE
1
A
2
GND
3B4
VCC 5
L3
DLW21SN900HQ2L
1
4
2
3
U9
SN74AUP1G04
NC
1
A
2
GND
3Y4
VCC 5
P2
HDMI_OUT
HDMI OUT
11
22
33
44
55
66
77
88
99
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
Case1
20
Case2
21 Case3 22
Case4 23
EVM Schematics www.ti.com
16 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 9. HDMI TX Connector

AARDVARK
CONNECTOR
Three place switches - hi, lo, no connect
Sampled at POR
I2C_EN_HI
I2C_EN_LO
PRE_SEL_HI
PRE_SEL_LO
EQ_SEL_HI
EQ_SEL_LO
SLEW_CTL_HI
SLEW_CTL_LO
SWAP_POL_HI
SWAP_POL_LO
SIG_EN_HI
SIG_EN_LO
TX_TERM_CTL_HI
TX_TERM_CTL_LO
VCC_3P3V
VCC_3P3V
VCC_3P3V
VCC_3P3V
VCC_3P3V
VCC_3P3V
VCC_3P3V
VCC_3P3V VCC_3P3V
I2C_EN_PIN PAGE3
PRE_SEL PAGE3
EQ_SEL_A0 PAGE3
SLEW_CTL PAGE3
SCL_CTLPAGE3
SDA_CTLPAGE3
SWAP/POL PAGE3
HDMI_SEL#_TEST_A1 PAGE3
SIG_EN PAGE3 TX_TERM_CTL PAGE3
SDA_CTL_USB PAGE8
SCL_CTL_USB PAGE8
VSADJ PAGE3
R76
PTV09 10K POT
R61
65K
0402
5%
R57
65K
0402
5%
R69
65K
0402
5%
J14
HDR3X1 M .1
TX_TERM_CTL
LO
HI
1
2
3
J12
HDR3X1 M .1
EQ_SEL_A0
LO
HI
1
2
3
R68
65K
0402
5%
R65
65K
0402
5%
R62
65K
0402
5%
R70
65K
0402
5%
J7
HDR3X1 M .1
HDMI_SEL#/TEST/A1
LO
HI
1
2
3
R115
47K
0402
5%
R71
65K
0402
5%
R72
65K
0402
5%
R60
65K
0402
5%
R59
2K
0402
5%
R67
65K
0402
5%
J17
HDR3X1 M .1
SWAP/POL
LO
HI
1
2
3
J8
HDR3X1 M .1
DEFAULT
VSADJ
POT
1
2
3
R66
65K
0402
5%
J10
HDR3X1 M .1
SLEW_CTL
LO
HI
1
2
3
J4
HDR3X1 M .1
SCL
SCL_USB
SCL_AAR
1
2
3
R58
2K
0402
5%
R75
7K
0402
1%
R63
65K
0402
5%
R64
65K
0402
5%
R73
65K
0402
5%
J15
HDR3X1 M .1
PRE_SEL
LO
HI
1
2
3
R74
65K
0402
5%
J5
Header 5x2 0.1" thru-hole
AARDVARK I2C
2
4
6
8
10
1
3
5
7
9
J6
HDR3X1 M .1
SDA
SDA_USB
SDA_AAR
1
2
3
J11
HDR3X1 M .1
SIG_EN
LO
HI
1
2
3
J3
HDR3X1 M .1
I2C_EN_PIN
LO
HI
1
2
3
www.ti.com EVM Schematics
17
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 10. DP159RGZEVM Select Options

Pop C26 and depop
R77 if not using the
Reset SW.
TPS3808_CTPB_MANUAL_RESET
VCC_3P3V
BOARD_3P3V
VCC_3P3V OE PAGE3
REG_PGPAGE7
R77 0
U3
TPS3808
RESET#
1
GND
2
MR#
3CT 4
SENSE 5
VDD 6
C27
18pF
C28
220pF
N.O.
SW1
PB_SWITCH
BOARD RESET
1
2
4
3
C29
0.1uF
R79
4.7K
0402
5%
C26
DNI_200nF
R78
10K
0402
5%
R80 0
EVM Schematics www.ti.com
18 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 11. Reset

1.1V LDO REGULATOR
5.0V BOOST
3.3V BUCK REGULATOR - 4V to 17V input
REG_PG
EN1P2
SS1P2
FB_1PT2V
PWRIN_SW
FB_3PT3V
BOARD_3P3V
BOARD_1P1V
BOARD_3P3V
VDD_1P1V
VCC_3P3V
BOARD_3P3V
USB_5V
BOARD_5V
BOARD_3P3V
BOARD_IN
REG_PG PAGE6
LP9
GND
R86
240K
0402
1%
R84 0
LP7
L1
2.2 uH
SW2
3POS - SPDT
WALL - OFF - USB 5V
1 2 3
+
C30
220uF
C57
10uF
D2
LED Green 0805
5V PWR
R91
4.99K
0402
1%
R82
500
0402
5%
C31
10uF
C32
22uF
R83
0
0402
T
S
J9
2.1mm x 5.5mm
1
2
3
L2
1 uH
C35
10uF
U4
TPS62150A
SW1 1
SW2 2
SW3 3
PG 4
FB 5
AGND
6
FSW 7
DEF 8
SS/TR
9
AVIN
10 PVIN1
11 PVIN2
12 EN
13
VOS
14
PGND1
15 PGND2 16
PAD
17
U5
TPS74201RGWT
OUT1 1
NC1
2
NC2
3
NC3
4
IN1
5
IN2
6
IN3
7
IN4
8
PG 9
BIAS
10
EN
11
GND
12
NC4
13
NC5
14
SS
15
FB 16
NC6
17
OUT4 18
OUT3 19
OUT2 20
PAD
21
R87
DNI
0402
5%
R88
4.7K
0402
5% C36
10uF
C58
2.2uF
R81
100K
0402
C37
0.01uF
R120
DNI 0402
LP5
3.3V
R89 0
R85
750K
0402
1%
C38
DNI
LP8
GND
R90
1.87K
0402
1%
U6
TPS61240
GND 1
VOUT 2
FB 3 EN
4
L
5
VIN
6
PAD
7
C34
3.3 nF
LP6
1.1V
www.ti.com EVM Schematics
19
SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 12. 1.1- and 3.3-V Regulators

RSTIn
X1
X2
BOARD_3P3V
BOARD_3P3V
BOARD_3P3V
BOARD_3P3V
BOARD_3P3V
+1V8
USB_5V +1V8
BOARD_3P3V
SCL_CTL_USBPAGE5
SDA_CTL_USBPAGE5
C40
0.1uF
R96 33
R99
1K
0402
5%
R92 DNI
C41
0.01uF
R93 DNI
R94 1.5K
C42
0.01uF
U7
TUSB3410
RESET
9
DP0
6DM0
7
VCC1 3
PUR
5
SUSP
2
X2
26
X1/CLKI
27
GND3
28
TEST0 23
TEST1 24
VREGEN
1
VDD1V8 4
DTR 21
RTS 20
SOUT/IR_SOUT 19
SIN/IR_SIN 17
RI/CP 16
DCD 15
DSR 14
CTS 13
VCC2 25
P3_0
32
P3_1
31
P3_3
30
SDA
10 SCL
11
GND2
18 GND1
8
P3_4
29
CLKOUT 22
WAKEUP 12
JP1
12
R121
1K
0402
5%
C49
22pF
C59
0.1uF
R101 1K
C5033pF
C5133pF
R102
10K
0402
5%
C46
0.1uF
U16
TPD2E001
VCC
1
NC
2
IO1
3
IO2
5
GND 4
R122 0
C60
0.1uF
U8
24LC256
Vcc 8
SDA 5
A0
1
A1
2
A2
3
Vss
4SCL 6
WP 7
C47
0.01uF
R103
15K
0402
5%
Y1
12 MHz
1
3
2
4
C39
2.2uF
R98
10K
0402
5%
R95 33
R100
1K
0402
5%
J13
USB Micro B
VBUS 1
DM 2
DP 3
GND 5
S1 6
S2 7
ID 4
S3
8
S4
9
S5
10
S6
11
C52
1 uF
C45
22pF
EVM Schematics www.ti.com
20 SLLU225A–August 2015–Revised March 2018
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
DP159RGZ Evaluation Module
Figure 13. TUSB3410
