texet TPB-2116 User manual
USER GUIDE
iPort
TPB-2116
POWER BANK
FOR SMARTPHONES
Manufactured for teXet Global SE, U Vodarny 3032/2a, 61600, Brno,
Czech Republic
Manufacturer: “Lincom Limited”, 4210, Ofce Tower,
Convention Plaza, 1 Harbour Road, Wanchai, Hong Kong
Made in China
« », 4210, ,
, 1, ,
« «»
:
: « », , 194406,
-, . , . 10, . , . 3
CN.88.29968
28.01.2013 27.01.2014
«»,
RU.0001.1188
Warranty for teXet® PowerPack TPB-2111: 24 months
Warranty for cable and connectors: 3 months
teXet® PowerPack TPB-2111: 24
( ): 3
www.texet.eu
USER GUIDE
iPort
TPB-2116
POWER BANK
FOR SMARTPHONES
Manufactured for teXet Global SE, U Vodarny 3032/2a, 61600, Brno,
Czech Republic
Manufacturer: “Lincom Limited”, 4210, Ofce Tower,
Convention Plaza, 1 Harbour Road, Wanchai, Hong Kong
Made in China
« », 4210, ,
, 1, ,
« «»
:
: « », , 194406,
-, . , . 10, . , . 3
CN.88.29968
28.01.2013 27.01.2014
«»,
RU.0001.1188
Warranty for teXet® iPort TPB-2116: 24 months
Warranty for cable and connectors: 3 months
teXet® iPort TPB-2116: 24
( ): 3
www.texet.eu
Device and controls
1 — USB interface (Out) for plugging in a mobile devices
charging cable
USB (Out)
2 — micro USB interface for charging the iPort with the help
of a micro USB cable supplied with a smartphone
micro USB iPort
micro USB
3 — S 30 Pin interface for charging the iPort with the help
of a cable supplied with an iPhone
S 30 Pin iPort
iPhone
4 — Multifunctional Button (MFB)
()
5 — 4-section iPort battery charge LED indicator
4-
iPort
5 4
1
3
2

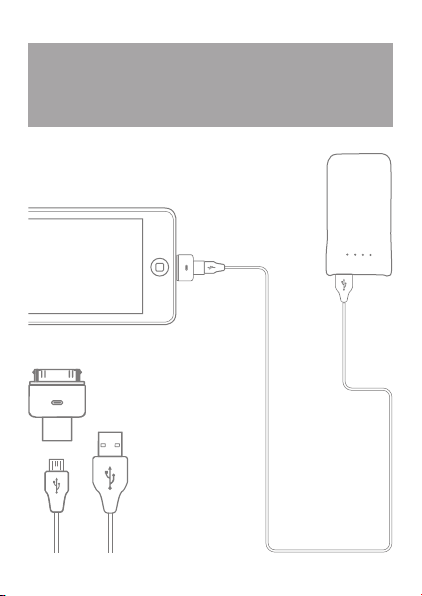

Connecting a mobile device
micro USB to iPhone
adapter
You have purchased a teXet ®brand iPort
series power bankfor charging mobile phones,
smartphones and multimedia players. This
form of backup power allows you to charge
your mobile devices at any time and in any
place. You do not need a power socket, or a
car. The iPort is indispensable and very useful
when travelling on trains, as well as useful to
those who actively speak, Google, play games,
listen to audio, and watch videos on a mobile
phone or smartphone.
When leaving the house, dont forget to take
your iPort with you!
ENG
1
iPort technical specifications
Model: iPort TPB-2116
Capacity: 5000 mAh
Battery type: Li-Pol 5000 mAh, 3,7 V,
50*75*11 mm
Input: DC 5 V, 1 A
Output: DC 5 V, 2 A
Overall dimensions: 60*116*18 mm
Weight: 125 g
Ideally suited for charging mobile phones,
smartphones, multimedia players and other
mobile devices capable of charging via a USB
interface, with the use of an included cable
and a maximum consumption current of 2 A.
2
Checking the battery level
of your iPort
Press the MFB. The number of illuminated
sections indicates the battery level of the
iPort
1 section: 25%
2 sections: 50%
3 sections: 75%
4 sections: 100%
Charging the iPort
In order to charge the iPort power bank , use
any household or automobile USB teXet®
charging device* with a maximum output
current of 1 A, 2,1 A or 3,1 A.
iPort power bank is optimized for using with
iPhone or Android smartphone. iPort has got 2
*The charging device is not included and must be purchased
separately. It is recommended to use the teXet® series
PowerUno (output current 1A), PowerLot (output current
2,1A), or PowerMaster (output current 3,1A).
3
interfaces for charging: S30pin and micro USB.
You may use the same cable that is supplied
with your iPhone or Android Smartphone to
charge iPort and your Smartphone.
Connect a provided 2-in-1 cable or a cable
that is supplied with your mobile device to
the corresponding port on the case of the
iPort, and then connect the cable to the
USB charger. The iPort will begin charging
automatically. A flashing LED indicates
the charging process, and the number of
constantly illuminated sections indicates the
battery level.
Charging a mobile device with
the help of the iPort
Plug the 2-in-1 cable or cable that is supplied
with your iPhone or Android Smartphone
into the mobile device, and then connect
the cable to the USB interface on the iPort.
For charging you can also use the USB cable
included with your mobile device.
4
Press and hold the MFB, the charging LED
indicator will light up for several seconds,
and the mobile device will begin charging
automatically.
When the mobile device is disconnected,
iPort will automatically turn off after several
seconds.
A fully charged 5000 mAh iPort charges:
A mobile phone with a 1000 mAh battery: 4 times
A smartphone with a 1350-1500 mAh battery: 3 times
An iPhone with a 1830 mAh battery: 2 times
A Samsung Galaxy Tab* with a 4000 mAh battery: 0,6 times
iPad* with a 6500 mAh battery: 0,3 times
*In order to efficiently charge tablet PCs, it is recommended
to use a PowerPack with a capacity of 8000, 10000 mAh, or
iPort 10400 mAh.
5
6
Package contents
1. Power bank iPort TPB-2116
2. User Guide
3. Cable 2-in-1 micro USB to iPhone
teXet® iPort
, -
. -
-
.
, -
. iPort
, , ,
-
, , ,
, .
iPort
7
RUS
iPort
: iPort TPB-2116
: 5000
: Li-Pol 5000 , 3,7 ,
50*75*11
: DC 5 , 1 A
: DC 5 B, 2 A
: 60*116*18
: 125
-
, ,
,
USB ,
-
2 A.
8
iPort
.
iPort
1 : 25%
2 : 50%
3 : 75%
4 : 100%
iPort
iPort
-
USB teXet® *
. 1 A, 2,1 A 3,1 A.
iPort -
iPhone -
Android. iPort 2 -
: S30pin micro USB.
*
.
teXet® PowerUno (. 1A), PowerLot (.
2,1A), PowerMaster (. 3,1A).
9
iPhone
iPort, -
.
2--1
-
iPort,
USB -
. iPort .
,
.
iPort
2--1 -
, USB -
iPort.
USB
.
10
,
, -
-
.
iPort -
.
iPort 5000 mAh
:
1000 mAh: 4
1350-1500 mAh: 3
iPhone 1830 mAh: 2
Samsung Galaxy Tab* 4000 mAh: 0,6
iPad* 6500 mAh: 0,3
* -
PowerPack 8000, 10000
iPort 10400 .
11
1. iPort TPB-2116
2.
3. 2--1 micro USB/iPhone
12
