ThermaCell LIV User manual

INSTALLATION GUIDE

CAUTION
• If connecting cables are exposed, there is a chance that it will
Before using this device, ensure that all cables are tucked out of
the way, or buried under grass or mulch.
NOTICE
• This product is intended for outdoor use only. Do not use this
device indoors. Do not allow your repellers to initialize indoors
• Do not place anything on top of your repellers.
• The failure to maintain cleanliness of repellers and smart hub
could result in diminished ability to perform as designed.
WARNING
• Your mosquito repellent system is not a toy. Small children and pets
should be supervised when your system is operating.
• Do not sit or stand on repellers or smart hub.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safey.
Your smart hub comes with a region approved power supply cord.
and is designed to be plugged into an outdoor GFCI
power outlet only. Do not use any other power supply cord. If the
supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
•
Do not open your smart hub or repellers, except to change cartridges.
There are no user serviceable parts inside. Refer servicing to qualified
service personnel.
•
Risk of electric shock, do not use with extension cords or power strips.
•
Store your repellent cartridges away from children and pets
in dry, room temperature environments only.
WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE:
Indicates a hazardous situation that, if not avoided, could result in property damage.
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING: When using an electrical appliance, basic precautions should always be followed,
including the following:
WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when
setting up, using and maintaining your mosquito repellent system.
Important Safety Information
READ ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when
setting up, using and maintaining your mosquito repellent system.
Risk of electric shock Class II equipment Read operator’s
manual
Risk of fire For outdoor use only Keep out of reach
of children
Rated power
input, d.c.
Rated power
output, d.c.
Separate Supply Unit Rated power input, a.c.
be a trip hazard, or exposed to sharp object such as lawnmowers.
•
•

SYSTEM COMPONENTS
Connecting Cables
Smart Hub
SOLD SEPARATELY
Repellers
Hub
Mounting
Template
Standard
Deck Screws
(If installing
repellers onto deck)
Ground Stakes
Hardscape Bases
Wi-fi (and password)
WHAT YOU NEED
Tape
Measure
Drill with 1/8” bit
FPO
Outdoor GFCI Outlet
(with wi-fi near by)
Phillips Head
Screwdriver
Hub
Mounting
Screws
Smartphone with iOS 11.0
or later, Android 8.0 or later
Standard Mount
Repellent Cartridges
If using the LIV+ app:
Repeller Key

HUB
OUTDOOR
OUTLET
REPELLER REPELLER
HOW IT WORKS
LIV uses a Smart Hub to power a series of on-demand repellers installed throughout your outdoor
space. When turned on, each repeller continually releases repellent to provide complete area protection
from mosquitoes and other flying insects, when and where you need it.
With the LIV+ app, you can control your system from anywhere, set schedules and timers, and more.
Let’s get started!
Just follow the step-by-step instructions and remember —
we’re always here to answer any questions.
PLAN INSTALL CONNECT
Identify areas you use the most and want to feel protection from mosquitoes. e.g., perimeter around an
entire patio, or important areas like the grill, seating area, playground, etc.
The repellers should be placed near those areas, within 10 feet of the zones you want to protect, and for
continuous protection, up to 20 feet apart from each other.

LAY IT ALL OUT
Lay each repeller according to your plan outlined in Step 1. Lay the cables between repellers to
ensure you have enough cable length to route around any obstacles.

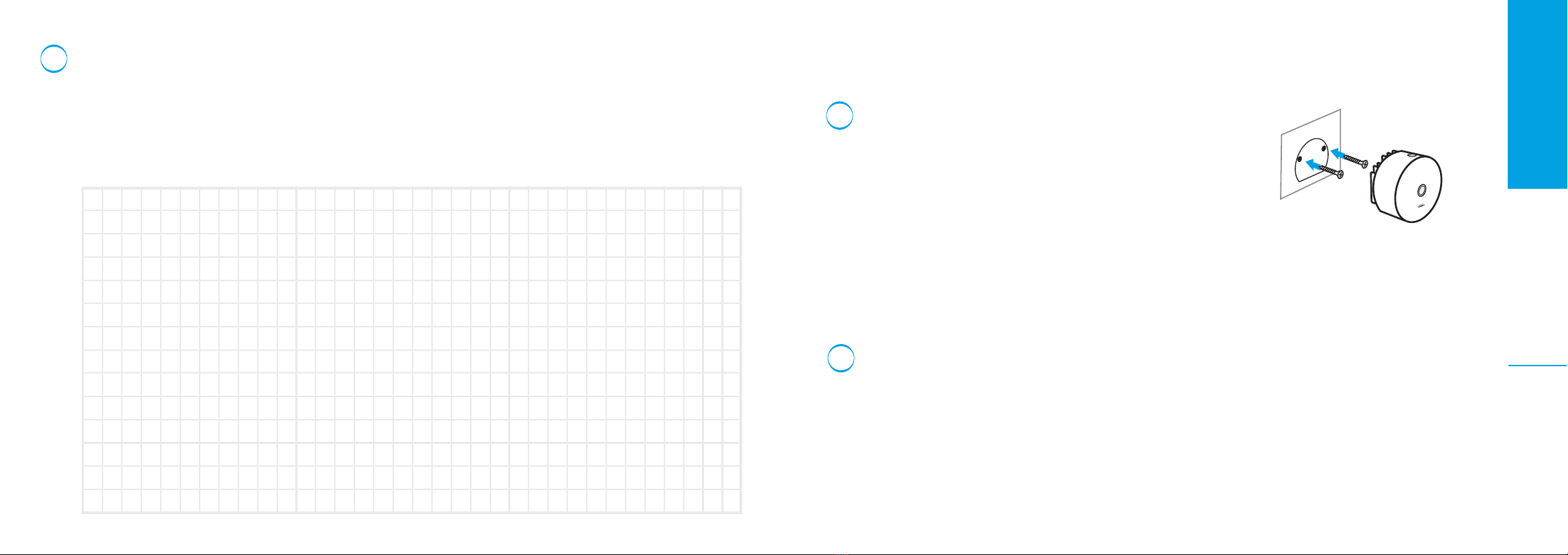

MOUNT THE HUB
The Smart Hub should be located near an outdoor outlet in an
area with strong Wi-Fi signal. Check Wi-Fi signal on your phone
before installing any components. Once adequate signal is
confirmed, prepare to mount the hub to a wall, post, or stake no
more than 6 feet from the power outlet and at least 30 inches off
the ground to avoid exposure to water and snow. Use the
template provided to drill the 2 mounting screws and hang the
hub in place.
Note: If mounting onto brick or other masonry, concrete anchors
and an appropriate drill bit will be required.
1
Feeling inspired? Use the grid below to map your install. Consider outlet location, repeller placement and mounting
preference, and cable pathways.
MAP IT OUT
3
2
PLAN INSTALL CONNECT
Note: Repellers provide 360 degrees of protection; for best results, place a repeller within 10 feet of the areas most
commonly used, like patio chairs, grills, tables, walkways, etc. For continuous area protection, space repellers 20 feet
apart.

1
2
3
1
2
3
Depending on your installation and selected hardware, follow the appropriate step below to attach
repeller.

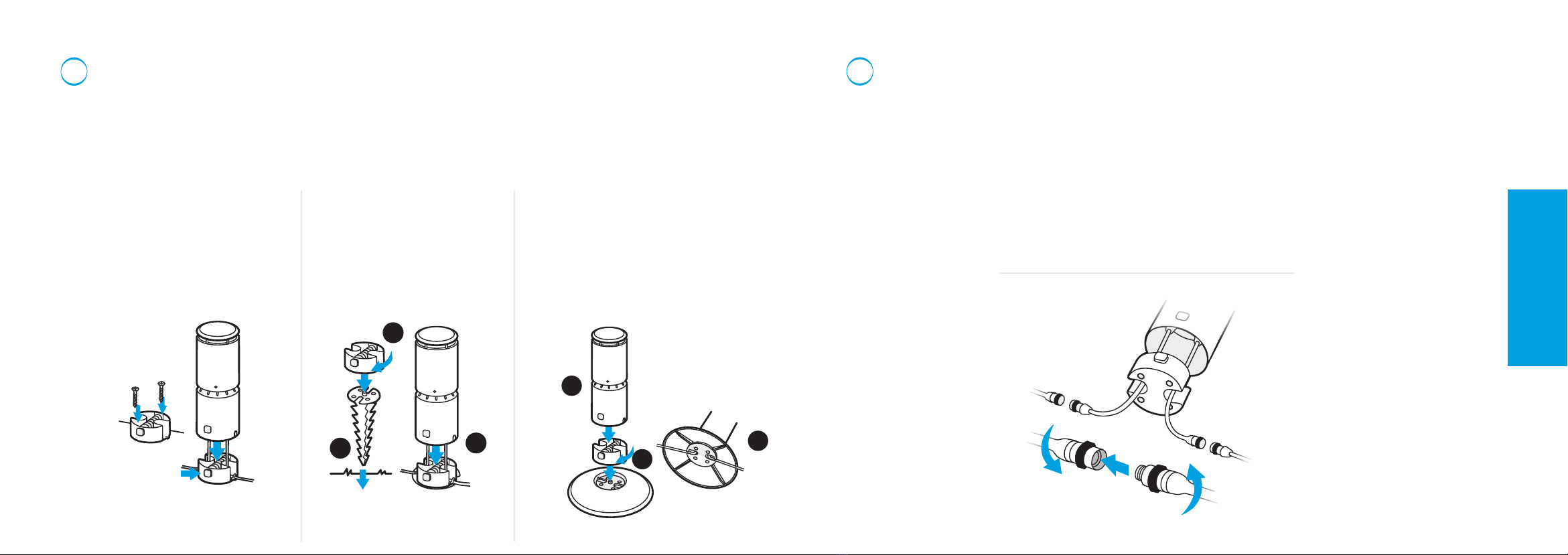

MOUNT THE REPELLERS
Use a Hardscape Base on stone,
paver, decking, or other hard
surfaces where drilling is not
desired.
To install, thread the standard mount to
the base until secure. Pass the leads
from the repeller through the center of
the base and install the repeller by
squeezing the quick-connect tabs.
Route the pigtail connectors on the
underside of the base so they sit in the
cutouts.
Use the Standard Mount to
install directly to a firm
surface.
Hold the mount in place and mark
the hole locations. Pre-drill at
least two holes and attach the
mount with standard deck
screws*. Pass the cable through
the cutouts and install the repeller
onto the mount by squeezing the
quick-connect tabs.
Use a Ground Stake on soft
ground like grass or mulch.
To install, press the stake into the
ground until it is flush or just
above ground level. Twist on the
standard mount. Pass the cable
through the cutouts, and attach
the repeller by squeezing the
quick-connect tabs.
4
PLAN INSTALL CONNECT
CONNECT THE CABLES
5
First, connect a cable to the smart hub. Remove the cap from the ends of cable leads on the first
repeller. Connect the corresponding end of the first cable to the repeller. Connect each subse-
quent repeller in the same fashion. Leave the cap plug on the remaining cable pigtail of the final
repeller in the chain.
Note: The connectors should be threaded finger tight — do not over-tighten.
Do not bend or attempt to stuff excess cable into the repeller base.
*Not included

1-2” Deep
TEST YOUR SYSTEM SECURE THE CABLES
Finish your installation by routing and securing your cables to
prevent damage, avoid tripping hazards, and provide a profes-
sional installed appearance.
Run Above Ground
Tuck the cable along edges
of decking or pathways; or
secure it with landscape
staples or cable hooks.
Cover with Mulch
Cover the cable with
at least 2 inches of mulch.
Burial
Use a shovel/edging tool to
create a 1-2 inch deep
trench, lay the cable and
cover with dirt.
67
PLAN INSTALL CONNECT
ON
FPO
OFF
Plug in the hub and check the underside: the Status LED should be blinking blue if connect-
ed to power. Press the center power button and make sure the ring around the button
illuminates. Check each repeller to confirm the lights begin to flash in a chasing pattern.
Within 5 minutes, the lights should change to solid blue.
Turn off the system by pressing the power button. Continue with final installation of cables.
Plug in and turn on Check lights on units Power off
*Be sure to locate any pipes, cables, irrigation, or gas lines prior to digging in your yard.
Call Dig Safe before you dig.
Common installation methods include:

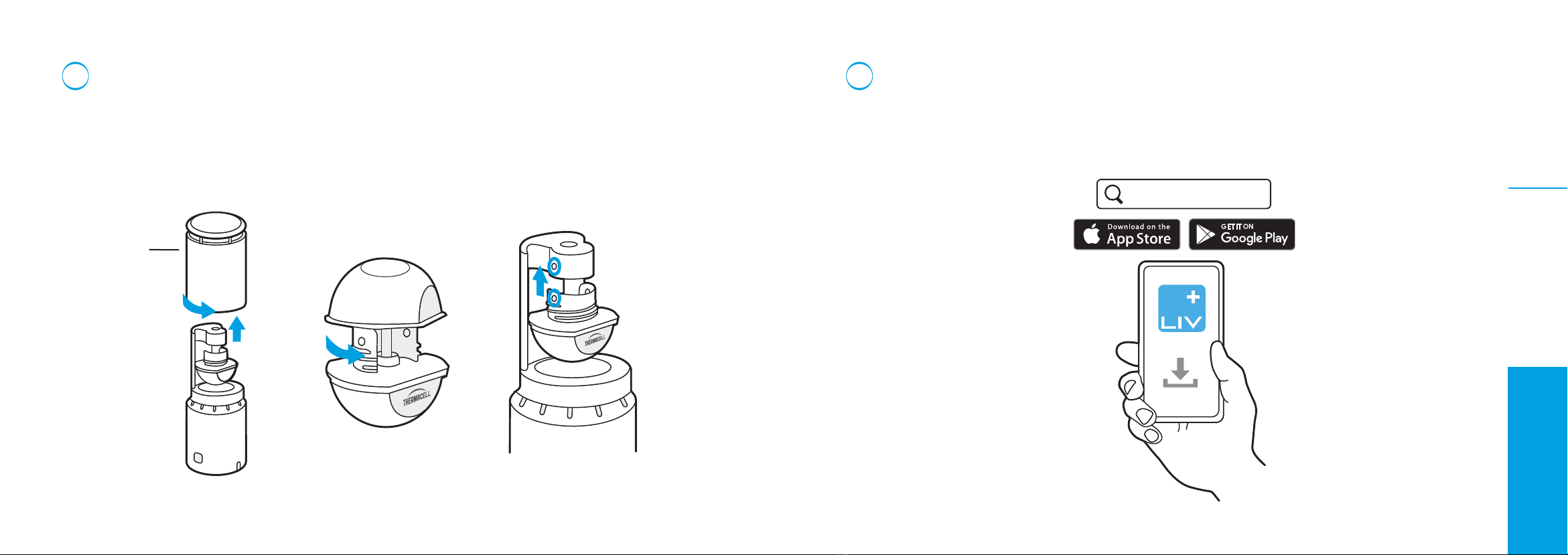

Align the tabs on the cartridge with
the tabs on the repeller. Slide the
cartridge up into place until you
feel it click. Replace the repeller
hood.
Remove the hood from the
repeller by twisting it 1/4 turn
counter-clockwise.
Open a repellent cartridge
by twisting the blue top
counter-clockwise. Do not
touch the wick.
INSERT THE REPELLENT CARTRIDGES DOWNLOAD THE APP
Get the most out of your system by downloading the LIV+ app. The app lets you connect your
system to your home’s Wi-Fi network and then control your system from almost anywhere,
schedule automatic on and off times, customize the repeller lights and more. Connect with
your smart home system to use voice commands.
9
PLAN INSTALL CONNECT
LIV+ App
8
Repeller Hood
*Note: The repeller has a set screw at the bottom of the repeller hood which can be used to lock the hood to the repeller and
prevent unintended access to a cartridge. Use a 1.5mm allen wrench to back out the screw just enough to lock in place.
