Thermador PG304 User manual

F o r T h e r m a d o r® P r o f e s s i o n a l A l l G a s R a n g e s
INSTALLATION
INSTRUCTIONS
Models
PG304
PG36
PG48

For Massachusetts Installations:
1. Installation must be performed by a quali-
fied or licensed contractor, plumber or gas
fitterqualifiedorlicensedbythestate,prov-
inceorregionwherethisapplianceisbeing
installed.
2. Shut-off valve must be a “T” handle gas
cock.
3. Flexible gas connector must not be longer
than 36 inches.
IMPORTANT: Save these instructions for the Local Gas Inspector’s use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
PLEASE READ ENTIRE INSTRUCTIONS
BEFORE PROCEEDING.
IMPORTANT
Local codes vary. Installation, gas
connections and grounding must
comply with all applicable codes.
WARNING
Disconnect power before installing. Before
turningpowerON,besurethatallcontrolsare
in the OFF position.
WARNING:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
— Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
■Do not try to light any appliance.
■Do not touch any electrical switch.
■Do not use any phone in your building.
■Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
■Ifyoucannotreachyourgassupplier,callthe
fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas suppler.
TO REDUCE THE RISK OF TIPPING OF THE
APPLIANCE, IT MUST BE SECURED BY A
PROPERLY INSTALLED ANTI-TIP DEVICE.
VERIFYTHATTHEANTI-TIPDEVICEISENGAGED
PER INSTALLATION IN–STRUCTIONS. (NOTE:
ANTI-TIP DEVICE IS REQUIRED ON ALL 30"
AND 36" RANGES)
!
WARNING
■ ALL RANGES CAN TIP
■ INJURY TO PERSONS
COULD RESULT
■ INSTALL ANTI-TIP
DEVICE
■ SEE INSTALLATION
INSTRUCTIONS
Note: This Range is NOT designed for installa-
tion in manufactured (mobile) homes or for in-
stallation in Recreational Park Trailers.

Page 1
Contents
Introduction ............................................... 1
Important Installation Information ............. 2
Step 1: Ventilation Requirements.............. 3
Step 2: Cabinet Preparation................ 4 – 8
Step 3: Unpacking, Moving
and Placing the Range....................... 9 – 10
Step 4: Installing Anti-Tip Device .... 11 – 12
Step 5: Gas Requirements and Hookup..13
Step 6: Electrical Requirements,
Connection and Grounding.....................14
Step 7: Backguard Installation................. 15

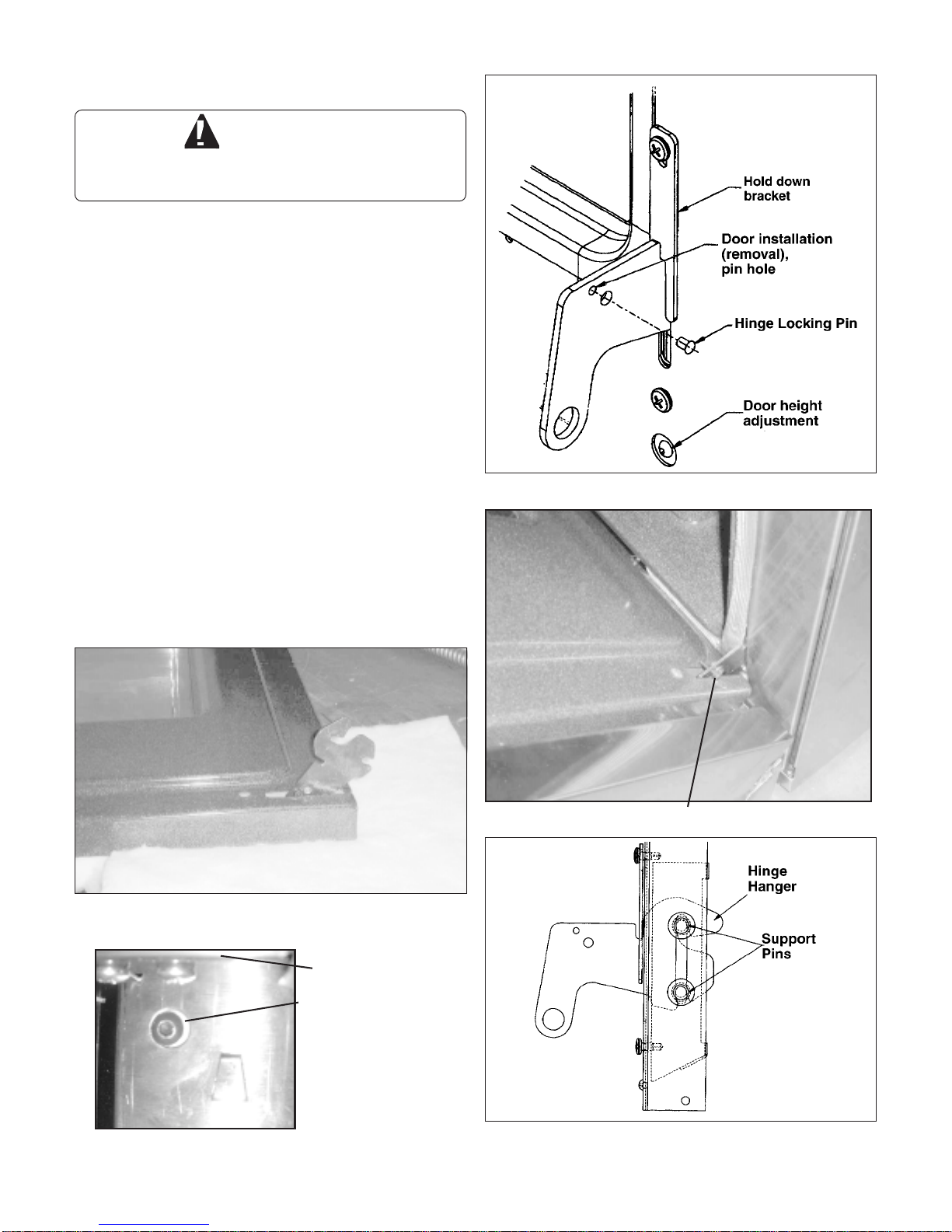

Step 8: Door Installation.......................... 16
Step 9: Test and Adjustment................... 17
Installer Checklist..................................... 18
Model PG304 Model PG364GL
Low Back Model LB36R Model PG484GG Low Back Model LB48R

Page 2
This appliance has been tested in accordance with
ANSI Z21.1 current issue, Standard for Household
Cooking Appliances (USA).
It is strongly recommended that this appliance be
installedinconjunctionwithasuitableoverheadvent
hood.(SeeStep1forVentilationRequirements.)Due
to the high heat capability of this unit, particular
attention should be paid to the hood and duct work
installation to assure it meets local building codes.
CAUTION
To eliminate risk of burns or fire caused by
reaching over heated surface units, cabinet
storagelocatedabovethesurfaceunitsshould
be avoided.
Checklocalbuildingcodesforthepropermethod
of appliance installation. Local codes vary.
Installation,electricalconnectionsandgrounding
must comply with all applicable codes. In the
absence of local codes the appliance should be
installed in accordance with the National Fuel
Gas Code ANSI Z223.1/NFPA54-current issue
and National Electrical Code ANSI/NFPA70-
current issue.
This appliance is equipped with an intermittent/
interruptedignitiondevicethatcyclesthetwofar left
surface burners on and off when in the ExtraLow®
setting.
CAUTION
This unit is designed as a cooking appliance.
Based on safety considerations never use it for
warming or heating a room
.
Important Installation Information
INTRODUCTION
The Thermador Professional®Ranges are free stand-
ing units available in a number of configurations.
Model PG304 is equipped with four sealed gas sur-
faceburnersanda30-inchgasconvection self-clean-
ing oven with broil capability. Models PG364GD,
PG364GL, and PG366 feature a gas cooking surface
with four sealed gas surface burners with either a
griddle or grill or six sealed gas surface burners plus
a 36-inch gas convection, self-cleaning oven with
broil capability. Models PG484GG, PG486GD, and
PG486GL feature a gas cooking surface with four
sealed burners, griddle and grill, six sealed burners
and a griddle, or six sealed burners and a grill. PG48
Ranges provide a large gas, self-cleaning oven (the
sameasusedinthePG36Ranges)andasmallgasoven
with broil capability.
CAUTION
When connecting the unit to propane gas,
makecertainthepropane gas tank is equipped
withitsownhigh-pressureregulatorinaddition
to the pressure regulator supplied with the
range. The maximum gas pressure to this
appliancemustnotexceed14.0incheswater
column(34.9millibars)fromthepropanegas
tank to the pressure regulator.
GAS TYPE VERIFICATION
Verify the type of gas supplied to the location.
Ensure that the appliance is connected to the type
ofgasforwhichitiscertified.Allrangesarecertified
for use with natural gas or propane (LP) gas. Make
certain the range matches the gas type available.
IMPORTANT
• A backguard must be utilized when there is less
than a 12” horizontal clearance between com-
bustible materials and the back edge of the
range.TheThermadorLowBackbackguardmust
beorderedseparatelyandinstalledattherearof
the range. For island installations and other in-
stallations with more than 12” clearance, an op-
tional stainless steel Island Trim is available to
cover the backguard mounting flanges.
• Verifythattheapplianceiscorrectforthetypeof
gas being provided. Refer to Step 5 on Page 13
before proceeding with the installation.
Gas Supply:
Natural Gas – 6 inch water column. (14.9mb) min., 8
inch (20mb) nominal
Propane Gas – 11 inch water column. (27.4 mb), 14
inch (37mb) maximum
Electric Power Supply:
PG304 Model - 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.
PG36 Models – 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.
PG48 Models – 120 VAC, 60 Hz., 1Ph., 10 Amp circuit.

Page 3
Step 1: Ventilation Requirements
Itisstronglyrecommendedthata
suitableexhausthoodbeinstalled
above the range. Downdraft
ventilation should not be used.
The table below indicates the
Thermador hoods, by model
number, that are recommended
for use with all ranges.
1. Select Hood and
Blower Models:
• Forwallinstallations,thehood
width must, at a minimum,
equal the width of the range
cookingsurface.Wherespace
permits,ahoodlargerinwidth
than the cooking surface may
bedesirableforimprovedven-
tilation performance.
• For island installations, the
hood width should, at a mini-
mum, overhang the range
cookingsurfaceby6"onboth
sides.
Notes: * For wall installations where adequate space is available, the installer or user may elect to
use a hood that is wider than the range cooking surface. This may be particularly
beneficial for those cases, such as a long duct run or heavy usage of the grill, in which
improved capturing of the cooking exhaust is desired.
** Thermador offers a choice of remote (VTR1000Q or VTR1400Q) or in-hood (VTN1000Q)
blowers for use in wall installations.
VTR1000Q, VTR1400Q
or VTN 1000Q
VTR1000Q, VTR1400Q
VTR1000Q, VTR1400Q
36" RANGE HTNI42YS
HNI42YS
PHI48ZS
VTR1000Q
VTR1400Q
VTR1000Q
VTR1400Q
PH36ZS, 42ZS
PHE36,42
HNW36YS
HNW42 YS
WALL INSTALLATION ISLAND INSTALLATION
RANGE WIDTH HOOD* BLOWER** HOOD BLOWER
30" RANGE PH30ZS
PHE30,36 VTR1000Q, VTR1400Q
OR VTN 1000Q
HTNI42YS
HNI42YS
PHI48ZS
VTR1000Q,
VTR1400Q
48" RANGE PH48ZS
PH48HQS
PHE48,60
VTR1000Q
VTR1400Q
or VTN 1000Q
HTNI48YS
HNI48YS
HTNI54YS
HNI54YS
PHI60ZS
VTR1400Q
2. Hood Placement:
• For best smoke elimination,
the lower edge of the hood
should be installed a mini-
mum of 30" to a maximum of
36" above the range cooking
surface. (See Fig. 1).
• Ifthehoodcontainsanycom-
bustiblematerials(i.e.awood
covering), it must be a mini-
mum of 36" above the cook-
ing surface.
3. ConsiderMake-UpAir:
• Due to the high volume of
ventilationair,asourceofout-
side replacement air is rec-
ommended. This is particu-
larly important for tightly
sealed and insulated homes.
• Aqualifiedheatingandventi-
lating contractor should be
consulted.
CAUTION:
Ventilationhoodsandblowersare
designed for use with single wall
ducting. However, some local
buildingcodesorinspectorsmay
requiredoublewallducting.Con-
sult local building codes and/or
localagencies,beforestarting,to
assure that hood and duct instal-
lation will meet local require-
ments.
• Hood blower speeds should
be variable to reduce noise
and loss of heated or air con-
ditioned household air when
maximum ventilation is not
required.Normally, themaxi-
mum blower speed is only
required when using the grill.

Page 4
Step 2: Cabinet Preparation
1. The range is a free standing unit. If the unit is to
be placed adjacent to cabinets, the clearances
shown in Fig. 1 are required. The same clear-
ancesapply toislandinstallations,except forthe
overhead cabinets, which must have a space
wideenoughtoaccepttheflaredislandhood,as
indicated in Fig. 1.

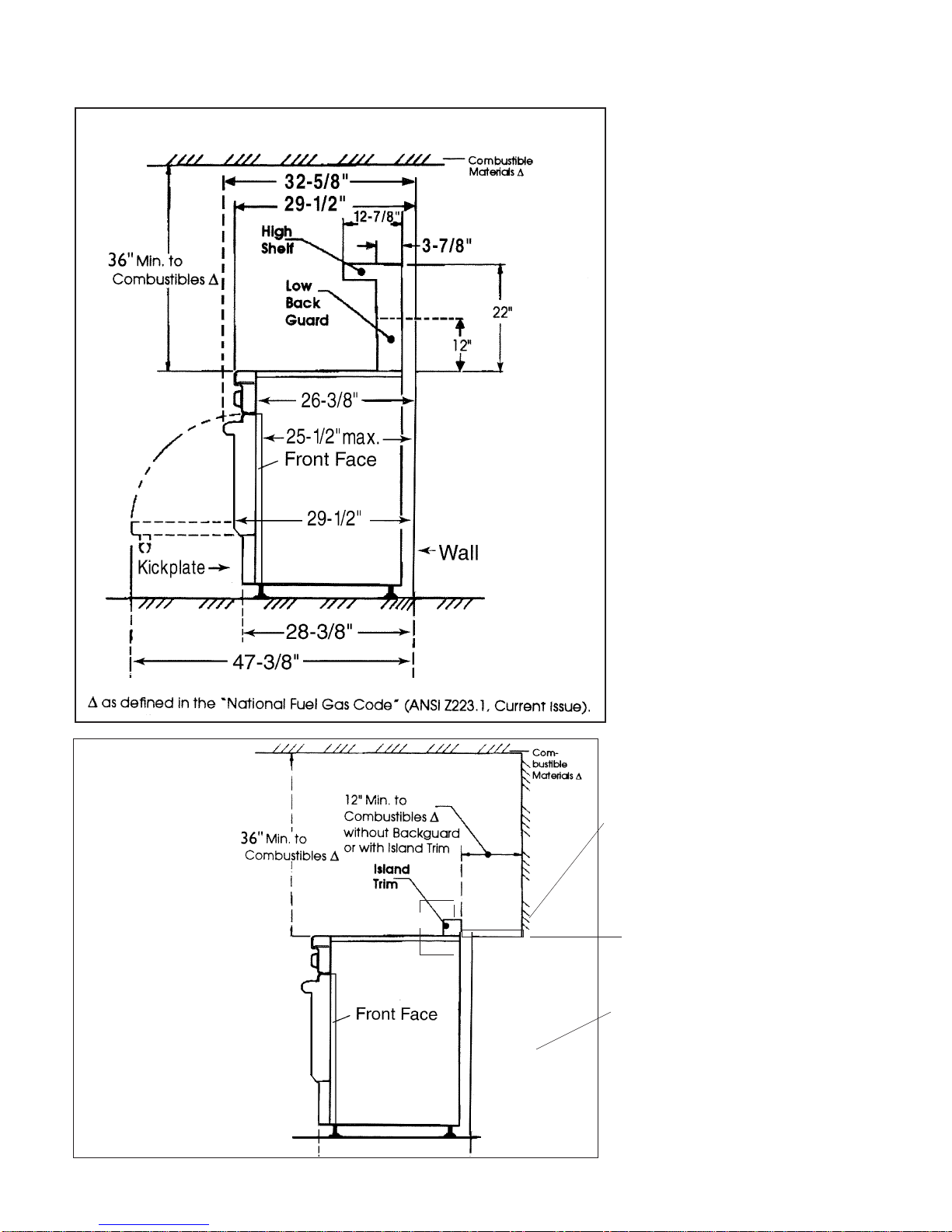

2. The 36" ranges may be recessed into the cabi-
nets beyond the edge of the front face of the
oven (See Figures 2A and 2B). The 30" and 48"
ranges are not approved to be installed flush
with the cabinets.

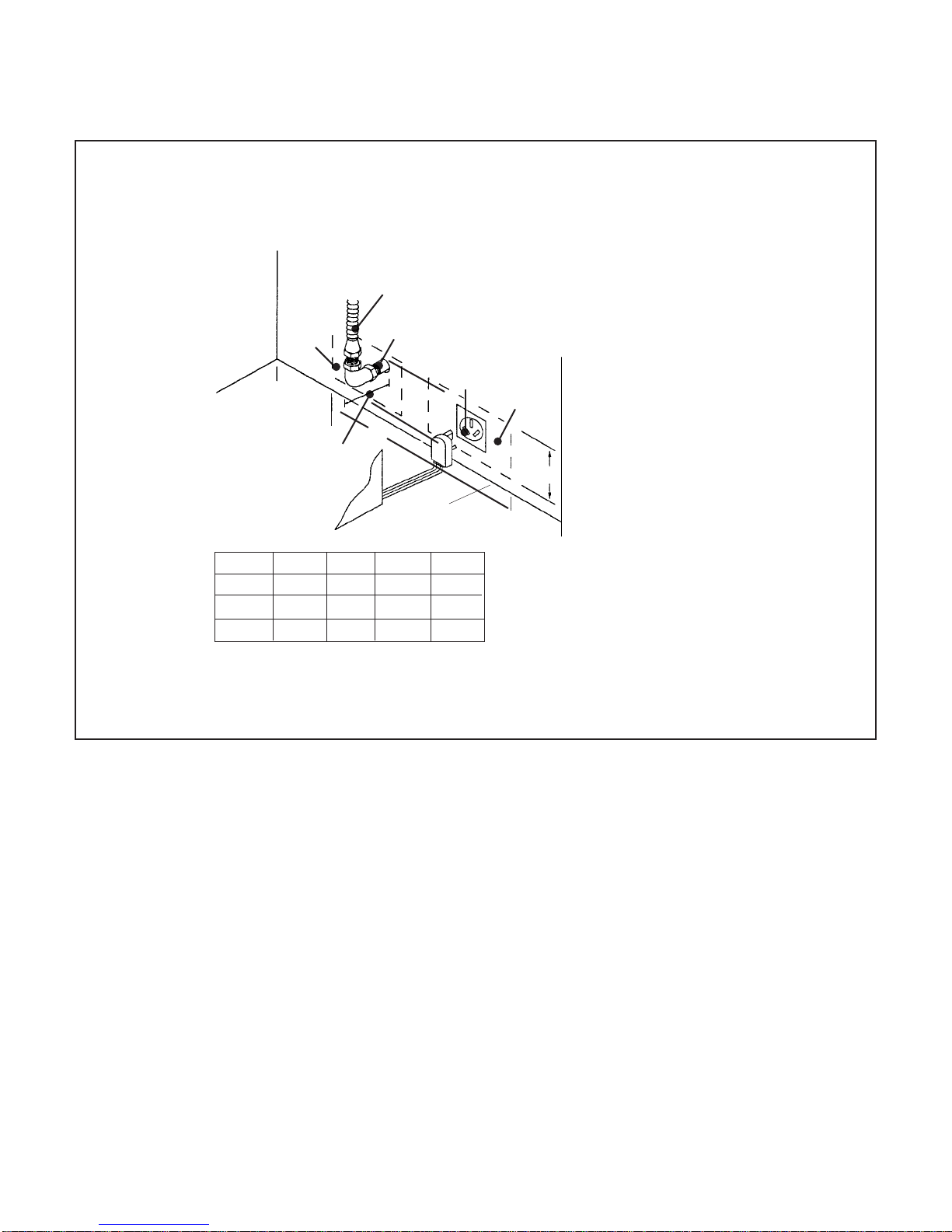

3. The gas and electrical supply should be within
the zones shown in Fig. 3A.
4. The maximum depth of over head cabinets in-
stalled on either side of the hood is 13".
5. Any openings in the wall behind the range and
in the floor under the range must be sealed.
6. When there is less than a 12" horizontal clear-
ance between combustible material ∆and the
back edge of the range above the cooking
surface, a Thermador Low Back or High Shelf
backguardmustbeinstalled.(SeeFig.2A).When
clearancetocombustible material ∆is over12",
aThermador Island Trim may beused. (See Fig.
2B). Figures 2A and 2B indicate the space
required for each type of backguard.
7. Always keep appliance area clear and free from
combustiblematerials,gasolineandotherflam-
mable vapors and liquids.
8. Do not obstruct the flow of combustion and
ventilation air to the unit.
CAUTION
In these installations, the door and cabinet
can cause a pinching hazard.
NOTE: The maximum depth of over head cabinets
installed on either side of the hood is 13".
A 36-inch minimum clearance is required between
the top of the range and the bottom of an unpro-
tected cabinet. A 30-inch minimum distance is nec-
essary when the bottom of the wood or metal
cabinet is protected by not less than 1/4 inch of a
flame retardant material covered with not less than
No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick
stainless steel, 0.024 inch (0.6 mm) aluminum, or
0.020 inch (0.5 mm) thick copper. Flame retardant
materials bear the mark:
UNDERWRITERS LABORATORIES INC.
CLASSIFIED MINERAL AND FIBER BOARDS
SURFACE BURNING CHARACTERISTICS
Followed by the flame spread and smoke ratings.
These designations are shown as “FHC (FIame
Spread/Smoke Developed).” Materials with “O”
flamespreadratingsareflameretardant.Localcodes
may allow other flame spread ratings.

Page 5
For Electrical and Gas Supply Zone,
see Figure 3A. Zone size and position
differ according to the model.
Cooking
Surface
CAUTION: See Figs.
2A, and 2B. 36"
Min. to combus-
tible material ∆,
from cooking
surface
∆as defined in the “National Fuel Gas Code” (ANSI Z223.1, Latest
Edition). *The range height is adjustable. The level of the range top
must be at the same level or above the countertop level.
∆As defined in the “National
Fuel Gas Code” (ANSI
Z223.1, Latest Edition).
Range width
30", 36" or 48"
30" or 36" Wide Hood
42" or 48" for Island
36" or 42" Wide Hood
42" or 48" for Island
48" or 60" Wide Hood
48", 54" or 60" for Island
}
}
}
For 30" Ranges
For 36" Ranges
For 48" Ranges
➛
Min. Distance Between Overhead
Cabinets of Combustible Material ∆
30" Range – 30"
36" Range – 36"
48" Range – 48"
➛
13" Max.
Cabinet
Depth
}
➛
➛
➛
12" Min. to
combustible
side wall
material ∆,
(both sides)
18"
Min.
➛
➛
FIG. 1 Cabinet Clearances
CAUTION:
Do not install the Models PG304 and PG48 ranges such that the
oven door is flush with the cabinet face.
A flush installation could
result in damage to the cabinets due to exposure to high heat.
*35-7/8" Min. Range Height
with Leveling Legs fully
retracted
*36-3/4" Max. Range Height
with Leveling Legs fully
extended.
30" Min. to 36" Max.
bottom of overhead Hood
to cooking surface (36" if
hood contains combustible
materials ∆)
➛
➛
➛
•
➛
➛
Step 2: Cabinet Preparation

Page 6
Step 2: Cabinet Preparation
FIG. 2A - Side View
3/8"
➝
➝
FIG. 2B - Side View
4"
➛
➛
1/8"
NOTE:
For Island trim installations,
counter surface should have a
cantileveredgemeetingtheback
section of the island trim
accessory.
NOTE:
If an inner wall is used under the
cantilever counter top, there
should be a 1/8" gap from the
rearoftherangetotheinnerwall.
➝
➝
Cantilever Countertop

Page 7
GAS AND GAS SUPPLY ZONES:
Step 2: Cabinet Preparation
NOTE:
A Manual Gas
Shut-Off Valve
(not shown)
must be easily
accessible
through an
adjacent cabinet
without moving
the range.
Typical placement shown.
Other placement of Gas
Supply and Gas Recep-
tacle within the Gas and
Gas Supply Zone is
acceptable.
FIG. 3A Gas & Gas Supply Zone for All Gas Ranges The All Gas ranges may be con-
nected to the power supply with
a range supply cord (supplied
with range) or by hard-wiring to
thepowersupply.Itistherespon-
sibility of the installer to provide
the proper wiring components
(cord or conduit and wires) and
complete the gas connection as
dictated by local codes and ordi-
nances,and/ortheNationalElec-
tricCode.Theunitsmustbeprop-
erlygrounded.RefertoStep6for
details.
The range must be connected
onlytothetype of gas for which
it is certified. If the range is to be
connectedtopropanegas,ensure
thatthepropanegassupplytankis
equipped with its own high pres-
sure regulator in addition to the
pressureregulatorsuppliedwiththe
range. (See STEP 5.)
3/4" Flex Line to
Appliance
B
A
Gas
Supply Zone
Gas
Supply
Zone
1/2"
N.P.T. 120 VAC Receptacle
(Shown) or Junction
Box
2" Maximum
Protrusion from Wall
for Gas Supply
➛
➛
➛
➛
➛
➛
C
➛
➛
D
Model A B C D
PG30 8" 14" 10" 6-1/2"
PG36 10-1/2" 15" 10-1/2" 6-1/2"
PG48 16-1/2" 16" 15-1/2" 6-1/2"
Floor
NOTE: Any opening in the wall behind the appliance
andany openinginthefloorunder theappliance must
be sealed.

Step 2: Cabinet Preparation
ELECTRICAL SUPPLY, ALL GAS RANGES
InstallationofAllGasrangesmustbeplannedsothattherough-inofthe
junction box for the receptacle or conduit connection will allow maxi-
mum clearance to the rear of the unit.
This is especially critical if the junction box in the wall will be directly
behind the junction box on the unit when the unit is installed. To
minimize binding when the unit is connected to the receptacle or
junctionbox,orientthereceptacleorconduitconnector,andslideback
into position.

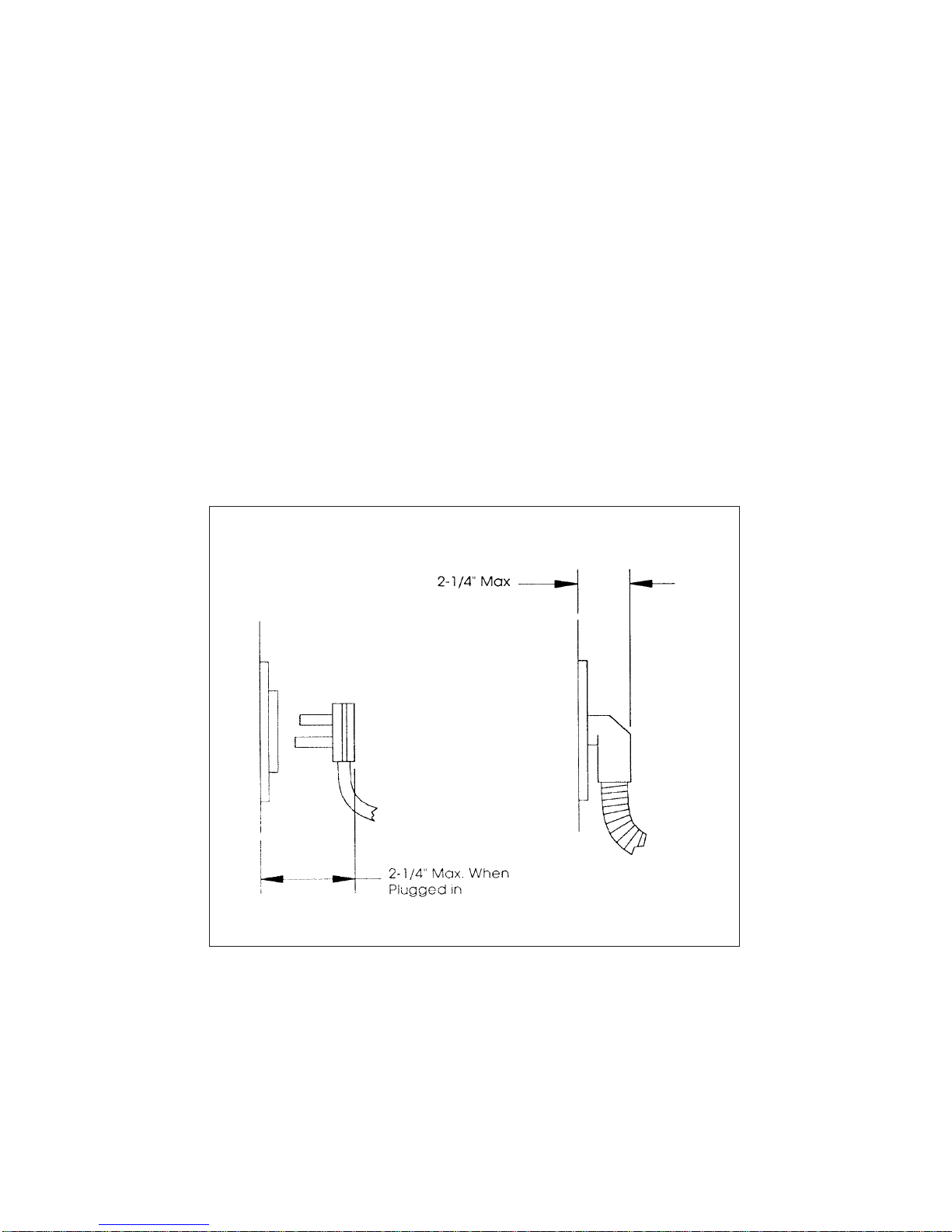

FIG. 3B WALL CONNECTION
Power Cord & Receptacle Junction Box & Conduit
Page 8

Chart A 30" Range 36" Range 48" Range
Shipping Weight 335 lbs. 444 lbs. 584 lbs.
Weight without 285 lbs. 390 lbs. 524 lbs.
packing materials
Without door(s), 215 lbs. 295 lbs. 395 lbs.
burner caps, front kick
panel and oven racks
Page 9
Step 3: Unpacking,Moving and Placing The Range
CAUTION
Proper equipment and ad-
equate manpower must be
used in moving the range to
avoid damage to the unit or
the floor. The unit is heavy
and rests on adjustable steel
legs.
• Therangehas an approximate
shipping weight as shown in
Chart A. It is recommended
thatthegrates,griddle,burner
caps,frontkickpanelandoven
racks be removed to facilitate
handling. This will reduce the
weightasshowninChartAand
allowtherangetopassthrough
30" doorways. See Figs. 2A
and 2B on Page 6. Do not
remove the grill or griddle
assemblies.
• Remove the outer carton and
packingmaterialfromtheship-
ping base. The all gas ranges
are held to the skid by four (4)
bolts (see Fig. 4 and 5). After
removing the bolts the range
must be lifted and removed
from the skid.
• Remove angle-mounting
brackets from range. This re-
quires the installer to remove
two screws holding each
bracket then remove bracket
and reinstall screws.
To Install door, see Page 16.
FIG. 4 – Removal of Two Front
Shipping Bolts FIG. 5 – Removal of Two Rear
Shipping Bolts
➛
Left Rear
Shipping
Bolt

Page 10
• Due to the weight, a dolly with soft wheels
shouldbe usedto movethis unit.The weight
must be supported uniformly across the bot-
tom (See Fig. 6).
• After transporting the professional range by
dolly close to its final location, the range can
be tipped back and supported on the rear
legs while the dolly is carefully removed.
THE FLOOR UNDER THE LEGS
SHOULD BE PROTECTED (WOOD
STRIPS,CARPET,PANELING,ETC.)
BEFOREPUSHINGTHE UNITINTO
POSITION. The anti-tip device must be
installed (STEP 4), gas and electrical connec-
tions should be made (STEPS 5 and 6), and
the backguard installed (STEP 7) before the
range is placed in its final position.
• For proper performance the professional
range must be level. (It is very important for
all products that have the griddle feature).
The range is leveled by adjusting the legs
with a wrench. Replace the kick panel and
install oven door. It is important that the
two (2) screws retaining the kick panel are
secure to prevent accidental access to hot
surfaces.
• Ensure that the burner caps are correctly
seated on the burner bases of the range's
cooktop.
Step 3: Unpacking,Moving and Placing The Range
Fig. 6- Dolly Positioning

Page 11
Step 4: Installing Anti-Tip Device
Tools Needed for Installation of Anti-Tip Device:
- Screwdriver, Phillips - Hammer
- Drill, electric or hand - Pencil or other marker
- Measuring tape or ruler
- 1/8" drill bit (wood or metal wall or floor)
- 3/16" carbide-tipped masonry drill bit (concrete or concrete block wall or floor)
- 3/16" anchors, drywall or concrete, 2 each (not required if mounting bracket is being attached to solid wood or
metal)
For all 30" and 36" ranges, an anti-tip device must be installed as per these
instructions.
WARNING
RANGE TIPPING HAZARD
• Allrangescantipandinjurycanresult.To
prevent accidental tipping of the range,
attach it to the floor, wall or cabinet by
installing the Anti-Tip Device supplied.
• A risk of tip-over may exist if the appli-
ance is not installed in accordance with
these instructions.
• If the range is pulled away from the wall
for cleaning, service or any other reason,
ensure that the Anti-Tip Device is prop-
erlyreengagedwhentherangeispushed
back against the wall. In the event of
abnormal usage (such as a person stand-
ing, sitting, or leaning on an open door),
failure to take this precaution can result
in tipping of the range. Personal injury
might result from spilled hot liquids or
from the range itself.
CAUTION
PROPERTY DAMAGE
• Contactaqualifiedinstallerorcontractor
todeterminethepropermethodfordrill-
ing holes through the wall or floor mate-
rial (such as ceramic tile, hardwood, etc.)
• Do not slide the range across an unpro-
tected floor.
• Failure to follow these instructions may
result in damage to wall or floor cover-
ings.
WARNING
ELECTRICAL SHOCK HAZARD
• Use extreme caution when drilling holes
into the wall or floor. There may be con-
cealedelectricalwireslocatedbehindthe
wall or under the floor.
• Identify the electrical circuits that could
beaffectedbytheinstallationoftheAnti-
Tip Device, then turn off power to these
circuits.
• Failure to follow these instructions may
result in electrical shock or other per-
sonal injury.
WARNING
• ALL RANGES CAN
TIP
• INJURY TO PER-
SONS COULD RE-
SULT
• INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE
• SEE INSTALLATION
INSTRUCTIONS

Page 12
Step 4: Installing Anti-Tip Device
PG30 and PG36 All Gas Ranges (Figures 8A and 8B)
Thermador Service Part No. Qty Description
415078 4 Screw, Phillips, #10 x 1-1/2"
487310 1 Anti-Tip Bracket, Floor-Mounted
IMPORTANT INSTALLATION
INFORMATION:
• The anti-tip bracket may be attached to a solid wood
cabinet having a minimum wall thickness of 3/4".
• The thickness of the wall or floor may require use of
longer screws, available at your local hardware store.
• In all cases, at least two (2) of the bracket mounting
screws must be fastened to solid wood or metal.
• Use appropriate anchors when fastening the mount-
ing bracket to any material other than hardwood or
metal.
• Prepare holes at fastener locations as identified be-
low:
-For walls, wall studs, or floors composed
of solid wood or metal, drill 1/8" pilot holes.
-For walls or floors composed of drywall, sheet-
rock or other soft materials, drill 3/16" holes to
a minimum depth of 1-3/4", then tap plastic
anchors into each of the holes using a hammer.
-For walls or floors composed of concrete or
concrete block, drill 3/16" holes to a minimum
depth of 1-3/4", then tap concrete anchors into
each of the holes using a hammer.
-For walls or floors having ceramic tile covering,
drill 3/16" holes through the tile only, then drill
into the material behind the tile as indicated
immediately above.
• If the range is moved to a new location, the Anti-Tip
Device must be removed and reinstalled.
Figure 8A - Mounting Anti-tip Bracket
MOUNTING ANTI-TIP BRACKET
The alternative floor mounted bracket shall be
installed as follows:
a) PlacebracketonfloorinpositionshowninFigure
8B.
b) Secure to floor or wall stud.
c) Later, when the unit is installed,the adjustable
leg will slide under the bracket.
Figure 8B
2-1/2"
➛
➛
from edge of
range
2-1/2"
➛
➛
(typical -
either side)

Page 13
Step 5: Gas Requirements and Hookup
CAUTION
When connecting unit to propane gas, make
certain the propane gas tank is equipped with
its own high pressure regulator in addition to
the pressure regulator supplied with the appli-
ance. The pressure of the gas supplied to the
applianceregulatormustnotexceed14"(37mb)
water column.
Verify the type of gas being used at the installation
site. As shipped from the factory, units are config-
ured for use with natural gas or propane (LP) gas.
Make certain the range matches the type of gas
available at this location.
For installation of the appliance at high altitude,
please consult your local gas company for their
recommendation of the correct orifice sizes and any
othernecessaryadjustmentsthatwillprovideproper
gas combustion at specified altitudes.
HOOK UP
• A manual gas shut-off valve must be installed
external to the appliance, in an accessible loca-
tionfromthefront,forthepurposeofshuttingoff
thegassupply.Thesupplylinemustnotinterfere
with the back of the unit. Make sure the gas
supply is turned off at the manual shut-off valve
before connecting the appliance.
• The range is supplied with its own pressure
regulator that has been permanently mounted
within the range body.
• Use 3/4" flex line to connect between the gas
supply and the appliance manifold pipe, which
exits the upper left rear of the appliance. The
appliancemanifoldpipeconnectionis3/4"NPT.
(SeePhoto A.) Usecaution to avoidcrimping the
3/4" flex line when making bends.
• The gas supply connections should be made by
a competent technician and in accordance with
local codes or ordinances. In the absence of a
local code, the installation must conform to the
National Fuel Gas Code ANSI Z223.1/NFPA54-
Current Issue.
• Always use pipe dope or Teflon® tape on the
pipe threads, and be careful not to apply exces-
sive pressure when tightening the fittings.
• Leak testing of the appliance shall be in accor-
dance with the manufacturer's instructions.
• Turn on gas and check supply line connections
forleaksusingasoapsolution.Donotuseaflame
of any sort to check for leaks.
Natural Gas Requirements:
Inlet Connection: 3/4" N.P.T. external;
1/2" internal N.P.T.
(Minimum 3/4" dia. flex line.)
Supply Pressure: 6" to 14" water column.
(14.9 to 37 mb)
Manifold Pressure: 5" water column (12.5 mb)
Propane Gas Requirements:
Inlet Connection: 3/4" N.P.T. external;
1/2" internal N.P.T.
(Minimum 3/4" dia. flex line.)
Supply Pressure: 11" to 14" water column.
(27.4 mb to 37 mb)
Manifold Pressure: 10" water column (24.9 mb)
Use 3/4" flex line to connect between
the gas supply and the appliance
manifold pipe, which exits the upper
left rear of the appliance.
Photo A
Channel
for gas
line
➛
➛
WARNING
Gasline cannot be runinsideback
cover of range. Run gas line in
channel in back of range.

Page 14
Step 6: Electrical Requirements,Connection & Grounding
Chart B: Electrical Supply Circuit Requirements
MODEL NUMBER VOLTAGE CIRCUIT RATING FREQUENCY PHASE
PG304 120 VAC 10 Amps 60 Hz. Single
PG36 120 VAC 10 Amps 60 Hz. Single
PG48 120 VAC 10 Amps 60 Hz. Single
• Prior to servicing appliance, always disconnect
applianceelectricalsupplycordfromwallrecep-
tacle.
CAUTION
Theappliancemustbeisolatedfromthegassupplypipingsystembyclosingitsindividualmanualshut-
off valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than 1/2 psig (3.5kPa.).
Theapplianceanditsindividualshutoffvalvemustbedisconnectedfromthegassupplypipingsystem
during any pressure testing of the system at test pressures in excess of 1/2 psig (3.5kPa.).
When checking the manifold gas pressure, the inlet pressure to the regulator should be at leas 6.0"
(14.9 mb) W.C. for natural gas or 11.0" (27.4 mb) for propane.
Do not attempt any adjustment of the pressure regulator.
• ForthePGAllGasRanges,aneutralsupplywire
must be provided from the power source
(breaker/fusepanel)becausecriticalrangecom-
ponents, including the surface burner spark
reignition module, require 120 VAC to operate
safelyandproperly.Animproper120VACpower
supply will cause malfunction, damage this ap-
pliance,andpossiblycreateaconditionofshock
hazard. If the correct power supply circuit is not
provided, it is the responsibility and obligation
of the installer or user to have proper power
supplyconnected.Thismustbeaccomplishedin
accordance with all applicable local codes and
ordinances by a qualified electrician. In the ab-
sence of local codes and ordinances, the power
supply connection shall be in accordance with
the National Electrical Code.
• Observe all governing codes and ordinances
when grounding. In the absence of these codes
or ordinances observe National Electrical Code
ANSI/NFPA No. 70 Current Issue.
• Electric wiring diagrams and schematics have
been placed in the toe kick area of the range for
access by a qualified service technician.

Page 15
The backguard must be attached before sliding the
range into the final installed position. A Low Back or
High Shelf backguard must be installed when there
is less than a 12" clearance between combustibles
andthebackoftherangeabovethecookingsurface.
(See Fig. 2A and 2B on Page 6).
AnIslandTrimisavailableforcoveringthebackguard
mountingflangesforislandinstallations,wherethere
isaminimumof12"ofhorizontal clearancebetween
combustiblesandthebackoftherange.(SeeFig.2B
on Page 6).
The backguard is inserted, as shown in Fig. 14, into
the guide channels on the back of the range. Secure
the backguard with the (4) sheet metal screws pro-
vided.
Step 7: Backguard Installation
Chart C: BACKGUARD KIT MODEL NUMBERS
RANGE MODEL NO. 9" STD. LOW BACK 12" LOW BACK 22" HIGH SHELF 3-3/4" ISLAND TRIM
PG304 Included with Range N/A HS30R IT30R
PG36 N/A LB36R HS36R IT36R
PG48 N/A LB48R HS48R IT48R
FIG. 14
➛
➛
Backguard
Installed
Front of Unit

Page 16
Step 8: Door Installation
CAUTION
The door is heavy and requires two people
to handle it properly.
Hinge Locking Pin
Height adjusting screw
Bottom of Door
Photo B. Insert the door hinge into the hinge
pocket in the front frame.
Fig. 15
Fig. 16
Photo D
Photo C
(Retain for future
door removal)
1. Insertthedoorhingeintothehingepocketinthe
front frame. When the door is properly installed,
the bottom edge will be parallel to the front of
the range and the hinge will click into position
and support the weight of the door.
2. Tipthedoorparalleltothefloortofreethehinge
locking pin.
3. Carefully remove the pins. The door is now free
to close. Install the hold down bracket. Do not
tightenscrew.
Retainpinsforfuturedoorremoval.
4. Adjustthedoorheightsothelatchlockleverand
spacer gauge enters the slot in the door liner as
thedoorisclosingandthetopofthedoorshould
be parallel to the bottom of the control panel.
Tighten down screw on hold down bracket.
5. Ovendoorhingesseatedandholddownbracket
is located in proper locked position. Now the
door opens and closes properly.
5. The toe kick panel should be mounted last to
prevent damage by the door.

Page 17
Step 9: Test and Adjustment
The stainless steel surfaces may be cleaned by wip-
ing with a damp soapy cloth, rinsing with clear water
anddryingwithasoftclothtoavoidwatermarks.Any
mildglasscleanerwillremovefingerprintsandsmears.
For discolorations or deposits that persist, refer to
the Care and Use Manual.
To polish and protect the stainless steel, use a
cleaner/polish such as Stainless Steel Magic®.
DONOTallowdepositstoremainforlongperiodsof
time.
DO NOT use ordinary steel wool or steel brushes.
Smallbits of steel mayadhereto the surfacecausing
rust.
DONOTallowsaltsolutions,disinfectants,bleaches
or cleaning compounds to remain in contact with
stainless steel for extended periods. Many of these
compounds contain chemicals which could prove
harmful. Rinse with water after exposure and wipe
dry with a clean cloth.
To Clean and protect Exterior Surfaces
Installanyloosecomponents,such
as burner caps and grates, that
may have been removed earlier.
Be certain that burner caps seat
properly into the alignment slots
intheburnerbases.Beforetesting
operation of the appliance, verify
that the unit and the gas supply
have been carefully checked for
leaks and that the unit has been
connected to the electrical power
supply. Turn the manual gas shut-
off valve to the open position.
Checkoperationofthesealedgas
burners and grill by pushing and
turning each knob counterclock-
wise to “HI”. The burner igniters
will click until the flame ignites.
The two far left sealed burners
feature XLO®, causing the flame
tocycleonandoffwhentheknob
is set to the XLO range. This is
normal operation.
Burnerflamesshouldbeblueand
stable with no yellow tips, exces-
sive noise, or lifting of the flame
from the burner. If any of these
conditions exist, check that the air
shutter (grill and griddle only) or
burner ports are not blocked or
clogged. Remove any blockages
thatexist.Iftheflameistooyellow,
indicatinginsufficientair,adjustthe
shutter counterclockwise to in-
crease air inlet (grill and griddle
only).
The sealed top burner flames
should be approximately 1" to 1-
1/4" high. The griddle and grill
flames should be as shown in Fig.
17).
NOTE: No air shutter or low flame
adjustment is necessary or pos-
sible with the sealed top burners.

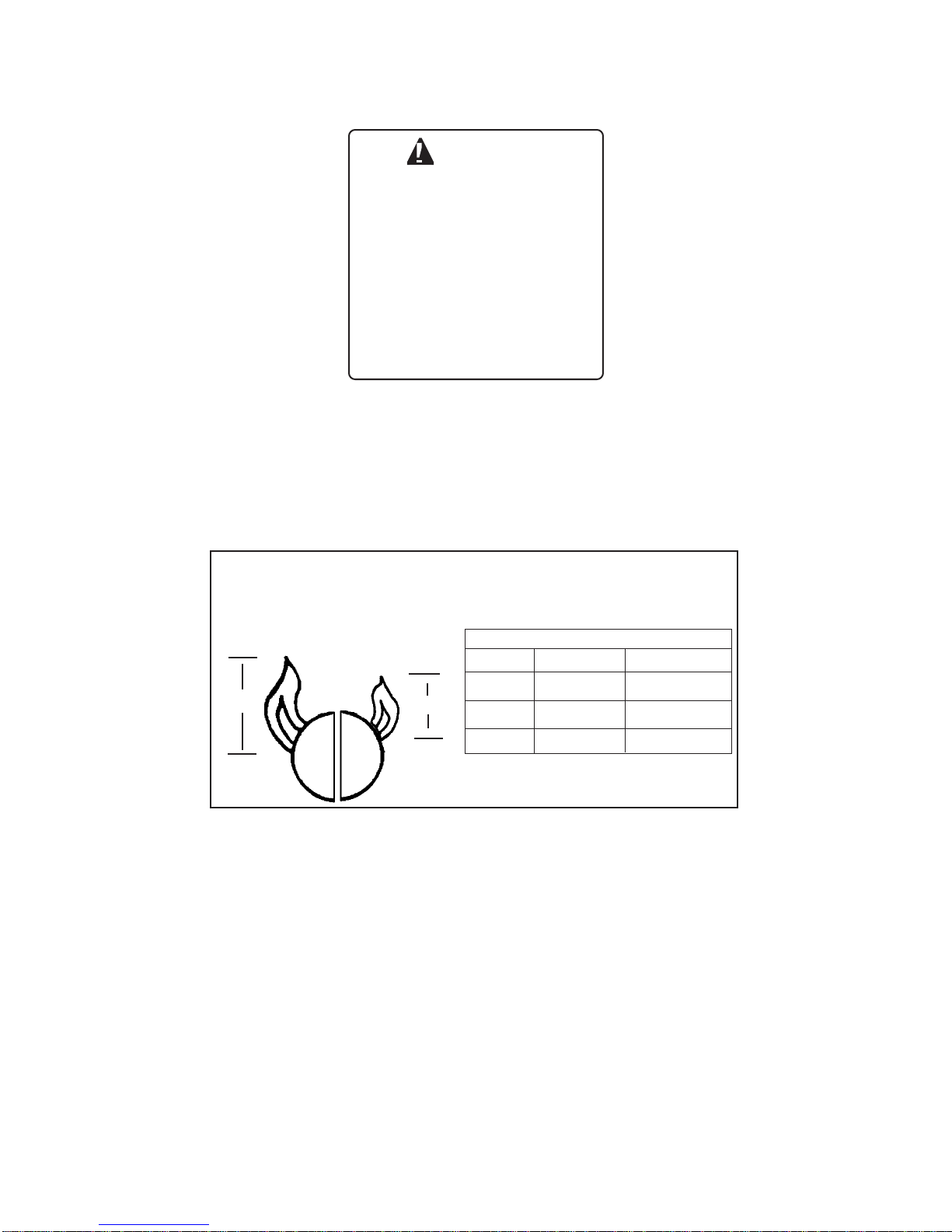

Griddle and Grill
Flame Height
Burner Natural Gas Propane Gas
Burners 3/4" 1/2" to 1"
Griddle 3/4" 1/2" to 1"
Grill 1/4" 1/2" to 1"
Fig. 17 – Proper Flame (Approx.)
Sealed
Burners
1-1/2"
➛
➛
1
/ 2 to 1"
➛
➛
Grill
and
Griddle
CAUTION
Burner adjustments must be
made by a qualified
technician at the time of
installation. Extreme care
should be used when
adjustments are made after
installation. Improper or lack
of adjustments may cause
harmful by-products or void
your warranty.

INSTALLER CHECKLIST
ELECTRICAL
❑Receptacle with correct over-
currentprotectionisprovided
for service cord connection.
❑Proper ground connection.
❑Proper polarity at receptacle.
❑Kickpanelinplaceandtwo(2)
screws secure.
OPERATION
❑All internal packing materials
removed.Checkbelowgrates
and grill pans and within
oven(s).
❑If used on propane gas, verify
thatthepropanegassupplyis
equipped with its own high
pressure regulator in addition
to the pressure regulator sup-
plied with the appliance.
❑Burner caps properly seated
into burner bases.
FINAL CHECK LIST
❑Placement of unit.
❑Specified clearances main-
tained to cabinet surfaces.
❑Unit Level – front to back –
side to side.
❑Burner caps positioned prop-
erly on sealed burner bases.
❑All packaging material re-
moved.
❑Island trim or backguard at-
tached (if horizontal clearance
to combustible materials be-
hindcookingsurfaceislessthan
12").
❑Check door adjustment and
hold down brackets.
GAS SUPPLY
❑Connection: 3/4" N.P.T. with
a minimum 3/4" diameter
flex line.
❑The appliance is connected
onlytothetypeofgasforwhich
it is certified for use.
❑Manual gas shut off valve in-
stalled in an accessible loca-
tion(withoutrequiringremoval
of range).
❑Unit tested and free of gas
leaks.
❑Gas supply pressure does not
exceed 14" (37mb) W.C.
❑Grill components properly
seated (not all models). Refer
to Use & Care Manual for Grill
details.
❑Bezels centered on burner
knobs, and knobs turn freely.
❑Each burner lights satisfacto-
rily, both individually and with
other burners operating.
❑Air Shutter adjustment for
proper flame made for Grill
and Griddle See Step 9 and
Fig.17.
❑Griddleislevelortiltedslightly
forwardanddoesnotrock(not
all models).
❑Oven door hinges seated and
hingelocksinproperposition.
Door opens and closes prop-
erly.
❑Burner grates correctly posi-
tioned,level, and do not rock.
Page 18
