Thermador Masterpiece HMIB36WS User manual
Installation
INSTRUCTIONS
Thermador Masterpiece®Island Hood
THERMADOR.COM
THERMADOR.COM
Installation
INSTRUCTIONS
Thermador Masterpiece®Island Hood
Table of Contents (English) ...................................................................3
Table de Matières (Français) ................................................................. 23
Índice de Capítulos (Español)................................................................ 43
Models |
Modèles |
Modelos:
HMIB36WS
HMIB42WS
Installation Instructions English | 3 |
Table of
Contents
Safety ..................................................................................4
Important Safety Instructions ..................................... 4
Advance Planning .............................................................. 7
Before You Begin ........................................................7
General Information ................................................... 8
Installation Preparation.......................................................9
Installation Considerations ......................................... 9
Electrical Requirements...............................................10
Ductwork Preparation ................................................ 10
Installation Instructions ............................................... 13
Electrical Connection ..................................................17
Remote Control Installation (optional) .......................18
Duct Cover Extension (optional)................................. 19
Recirculating Kit (optional).......................................... 20
Charcoal Filter Replacement (optional)...................... 21
Installer Checklist ............................................................... 22
Before Calling Service ........................................................22
Product Data Rating Plate ..........................................22
Service, Parts & Accessories ................................ back page
Safety
Definitions
WARNING
This indicates that death or serious injuries may occur as a
result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur
as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or
property may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or tips.
ThisTHERMADOR® appliance is made by
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
Questions?
1-800-735-4328
www.thermador.com
We look forward to hearing from you!
Installation InstructionsEnglish | 4 |
Safety
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: Save these instructions for the local electrical
inspector’s use. Please leave these instructions with this
unit for the owner. Show the owner the location of the
circuit breaker or fuse. Mark it for easy reference.
OWNER: Please retain these instructions for future
reference.
WARNING
If the information in this manual is not followed exactly,
personal injury.
WARNING
If the information in this manual is not followed
-
ty damage, personal injury or death.
-
vapors and liquids in the vicinity of this or any other
apppliance.
- WHAT TO DO IF YOU SMELL GAS
DO NOT try to light any appliance.
DO NOT touch any electrical switch.
DO NOT use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
department.
- Installation and service must be performed by an
authorized servicer, service agency or the gas supplier.
WARNING
Turn off power circuit at service panel and lock out panel
before wiring this appliance. Requirement: 120 VAC, 60
Hz 15 A. Allow the appliance to cool after the power has
been turned off before servicing the appliance.
WARNING
Automatically Operated Device
To reduce the risk of injury disconnect from power supply
before servicing.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed on the back page.
Before servicing or cleaning unit, switch power off at
service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
WARNING
DO NOT repair or replace any part of the appliance
Improper installation, service or maintenance can cause
injury or property damage. Refer to this manual for
guidance. All other servicing should be done by an
authorized servicer.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT remove connections.
DO NOT use an extension cord.
Failure to follow these instructions can
Installation Instructions English | 5 |
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Grounding Instructions
WARNING
Improper grounding can result in a risk of electric shock.
This appliance must be grounded. In the event of an electri-
cal short circuit, grounding reduces the risk of electric shock
by providing an escape wire for the electric current.
Be sure your appliance is properly installed and grounded
and grounding must comply with all applicable codes.
If required by the National Electrical Code (or Canadian
Electrical Code), this appliance must be installed on a sepa-
rate branch circuit.
WARNING
DO NOT use
this appliance with any solid state speed device.
Safety Codes and Standards
This appliance complies with one or more of the following
Standards:
UL 507, The Standard for the Safety of Electric Fans
CSA C22.2 No. 113, Fans and Ventilators
It is the responsibility of the owner and the installer to de-
termine if additional requirements and/or standards apply
CAUTION
Unit is heavy and requires at least two people
or proper equipment to move and install.
Hidden surfaces may have sharp edges. Use
caution when handling the appliance. Failure
to do so may result in property damage or
personal injury.
WARNING
State of California Proposition 65 Warnings:
This product can expose you to chemicals including vinyl
chloride, which is known to the State of California to
cause cancer and birth defects or other reproductive
harm. For more information go to
www.P65Warnings.ca.gov.
Never modify or alter the construction of the appliance.
For example, do not remove panels, wire covers or
brackets/screws.
CAUTION
For general ventilating use only. DO NOT use to exhaust
hazardous or explosive materials and vapors.
WARNING
Remove all tape and packaging before using the
appliance. Destroy the packaging after install. Never allow
children to play with packaging material.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
Installation work and electrical wiring must be done
construction.
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Installation InstructionsEnglish | 6 |
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
Never leave surface units unattended at high
settings.
Boilovers cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium
settings.
Always turn hood ON when cooking at high heat
Cherries Jubilee, Peppercorn Beef Flambe).
Clean ventilating fans frequently. Grease should
Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:a
sheet, or metal tray, then turn off the burner. BE
go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may get
burned.
DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
Use an extinguisher ONLY if:
a) You know you have a class ABC extinguisher,
and you already know how to operate it.
b)
it started.
c)
d)
aBased on “Kitchen Fire Safety Tips” published by NFPA.
Installation Instructions English | 7 |
Advance Planning
Before You Begin
CAUTION
Before installing, turn power OFF at the service panel.
Lock service panel to prevent power from being turned
ON accidentally.
Parts Included
Hood assembly (LED lamps already
installed)
Blower housing
Top and lower duct covers
Structure horizontal supports
Structure upper/lower
vertical supports
Fastener assortment*
* Hardware provided is for mounting through standard
thickness drywall or plaster into wood studs. Installers
are responsible to provide hardware for other types of
mounting situations.
NOTE:
cover and hood assembly prior to the start of the installa-
tion. Use one hand to maintain the assembly/duct cover
Tools and Parts Needed
Ducting as needed (refer to Equivalent Duct Lengths
for Commonly Used Transitions Table)
Aluminum tape (DO NOT use duct tape)
1/2’’ (13 mm) Conduit if required (follow local codes)
1’’ (25.4 mm) Strain relief
Ducting as needed
Blower
Flat head and Phillips screwdrivers
Drill with 316’’ (4.76 mm) drill bit
Circular saw or jigsaw
3/8’’ (9.52 mm) nut driver or socket and ratchet
Wire stripper
Protective work gloves
IMPORTANT: DO NOT throw away any packaging until
appliance is fully installed.
Optional accessories available for separate
purchase.
Refer to www.thermador.com for more details.
CHXTHMIB – Telescopic Duct Cover Extension Kit
RECHMIB – Recirculating Kit
CHFHMCD – Charcoal Filter Replacement Kit
REMCPW – Built-In Remote Control Accessory
Installation InstructionsEnglish | 8 |
General Information
Overall Dimensions
HMIB36WS and HMIB42WS
This model series is 23316’’ (588 mm) in depth and feature
brushed stainless-steel canopy with LED lights.
inches (mm)
Ø8"
(200)
36" (914)
42" (1067) 27"
(686)
183/8"
(467)
23/4"
(70)
DUCTED
MIN: 30” (762)
MAX: 451/16"(1144)
RECIRCULATING
MIN: 30” (762)
MAX: 501/16"(1271)
134/16"
(336)
147/8"
(378)
Installation Instructions English | 9 |
Installation Preparation
Installation Considerations
Clearances and requirements
Hood installation height above a cooktop, rangetop or
range can vary. To obtain the necessary installation
height above a cooktop, rangetop or range, consult the
appliance’s installation manual.
183/
8" (467)
81/4"
(209)
30" (762) min over
a electric cooktop
30" (762) min over
a gas cooktop
Hood Width
The hood width should be no less than the width of the
cooking surface. For proper performance, the housing
must cover the entire cooking surface. Where space is
not restricted, a wider hood can be used to increase
capture area.
For proper performance, the hood must be centered
horizontally above the cooking surface.
Distance From Cooking Surface
For gas cooktop & range installations: Mount the hood
so the bottom is at least 30” (76.2 cm) above the cooking
surface.
For electric/induction cooktop & range installations:
Mount the hood so the bottom is at least 30” (76.2 cm)
above the cooking surface.
NOTICE: The hood could incur some damage from heat
if a THERMADOR MASTERPIECE®series cooktop is opera-
ted with multiple burners at high settings under a hood that
is installed at minimum clearances.
Unit Weight
This vent hood is heavy. Adequate structure and support
must be provided in all types of installations.
When calculating the load for the housing support
system, be sure to consider the weight of the
ventilation unit.
Unit Weight
36’’ (91.4 cm) 91 lb (41.3 kg)
42’’ (106.7 cm) 96.5 lb (43.8 kg)
IMPORTANT:
The supplied weights address only the ventilation unit and
blower. Installer must account for weight of any materials
of construction when calculating the total dead weight
load of installation, including but not limited to: wall, tile,
incorporated architectural and structural items. It is the
responsibility of the owner and the installer to determine if
installations.
Installation InstructionsEnglish | 10 |
Electrical Requirements
The unit requires a 120V AC, 60Hz. 15A branch circuit.
The hood should only be connected to a dedicated circuit
(with ground) that has been installed according to relevant
regulations.
Check your local building codes for proper method of ins-
tallation. In the U.S., if there are no applicable local codes,
this unit should be installed in accordance with the National
Electric Code ANSI/NFPA No. 70, Current Issue. In Canada,
installation must be in accordance with the CAN 1- B149.1
and .2 - Installation Codes for Gas Burning Appliances and/
or local codes.
The appliance must be grounded. In the event of an elec-
trical short circuit, grounding reduces the risk of electric
shock by providing a wire that allows the electric current to
escape.
WARNING
The appliance must be grounded.
Electrical Data on the Data Rating Label
Data, including the model and serial number, is located
on the product data rating label inside the appliance,
Ductwork Preparation
Discharge Direction
The exhaust air is discharged upwards through a duct.
The hood can be mounted only with a vertical discharge.
Ducting Recommendations
Proper performance is dependent upon proper ducting.
Local building codes may require the use of make-up air
systems when using ducted ventilation systems greater than
responsibility of the owner and the installer to determine if
installations.
DO NOT USE FLEXIBLE DUCT; it creates back pressure/
air turbulence and reduces performance. Always use metal
ductwork.
Always install a metal vent cover where the ductwork exits
the house. Hood must be vented to the outside of building
only.
COLD WEATHER installations should have an additional
backdraft damper installed to minimize backward cold air
-
tion of outside temperatures as part of the ductwork. The
damper should be on the cold air side of the thermal break.
The break should be as close as possible to where the duc-
ting enters the heated portion of the house.
MAKE-UP AIR: Local building codes may require the use of
make-up air systems when using ducted ventilation systems
responsibility of the owner and the installer to determine if
installations.
For safety reasons, ducting should vent directly outdoors
(not into an attic, underneath the house, into the garage or
into any enclosed space).
THERMADOR®recommends not exceeding 50 equivalent
length (ft) (15.24 m) of duct.
Keep duct runs as short and straight as possible.
Back to back elbows and “S” turns give very poor delivery
and are not recommended.
A short straight length of duct at the inlet of a remote
blower gives the best delivery.
Hoods are supplied with a 8” (203 mm) round transition. A
locally supplied transition is required for other sizes.
Use “Equivalent Duct Lengths for Commonly Used Transi-
tions” on page 11 to compute permissible lengths for duct
runs to outdoors.
Installation Instructions English | 11 |
Equivalent Duct Lengths for Commonly
Used Transitions
Size (in) Eq uivalent
Length (ft)Size (in) Eq uivalent
Length (ft)
61.2
61
0
80.7
10 0.6
3¼" x 10", straight N/A1
3¼" x 10", Center
reverse elbow,rightN/
A2
5
3¼" x 14", straight N/A0.7
3¼" x 10", Left
reverse elbowN/
A1
5
3¼" x 10", Right
reverse elbowN/
A2
5
612
62
86
82
10
10 2
65
62
2
5
83
82
2
2
10
10
3¼" x 10",
90° elbow,roundN/A5
2’ long, 3¼" x 10" exN/A 20
3¼" x 10",
45° elbow,round
N/A15
3¼" x 10", Flat elbowN/A 20
61
810
82
3¼" x 10", Roof jack
and shutterN/A
65
61
0
NOTE: These commonly used installation parts can be purchased at a
local hardware store. Thermador does not manufacture all these parts.
Round wall cap
Round roof cap
3¼" x 10" to round
90° elbow,
Duct Piece
3¼" x 10" Center
reverse elbow,left 15N/A
Round to 3¼" x 10"
3¼" x 10" to round
Round to 3¼" x 10"
90° elbow,
Duct Piece
Smooth, straight
90° elbow,round
45° elbow,round
Installation InstructionsEnglish | 12 |
RECIRCULATING MODE VENTING THROUGH THE CEILING
A. 8” round transition
B. 8” round duct system
C. Recirculating kit
A
B
C
AB
NOTE:
Venting Methods
This hood is factory set for venting through the roof (vertical
discharge). A 8” (203 mm) round duct system is needed for
installation (not included).
NOTE: Flexible duct is not recommended. Flexible
ductwork creates back pressure and air turbulence that
greatly reduce performance.
Vent system can terminate either through the roof.
Always install a metal vent cover where the ductwork exits
the house.
For Non-Vented (recirculating) Installations
If it is not possible to vent cooking fumes and vapors to
the outside, the hood can be used in the non-vented
(recirculating) version, using the recirculating kit . Fumes
and vapors are recycled through the round grid.
See optional accessories section.
Installation Instructions English | 13 |
Installation Instructions
Installation
Determine installation height
183/8" (467)
81/4"
(209)
30" (762) min over
a electric cooktop
30" (762) min over
a gas cooktop
An optional chimney extension kit to reach 9’-12’ (274 to
366 mm) may be purchased. Add or subtract chimney ex-
tensions as appropriate to accommodate ceiling height and
recommended hood height.
For gas cooktop & range installations: Mount the hood
so the bottom is at least 30” (76.2 cm) above the cooking
surface.
For electric/induction cooktop & range installations:
Mount the hood so the bottom is at least 30” (76.2 cm)
above the cooking surface.
NOTICE: The hood could incur some damage from heat
if a THERMADOR MASTERPIECE®series cooktop is opera-
ted with multiple burners at high settings under a hood that
is installed at minimum clearances.
Ceiling support structures
This vent hood is heavy. Adequate structure and
support must be provided in all types of installations.
At the hood location, install 2”x 4” cross framing
between ceiling joists as shown (2”x 4” are required to
support the weight of the hood).
Arrange cross framing in the ceiling to suit the existing
structure.
Your ceiling joists will be like one of the following:
Example A
NOTE: To p view ceiling joists
parallel to front of hood
101⁄
16
” (25.5 cm)
install cross-
framing
symmetrically
over duct/cooktop
Centerline
16”
(40.6 cm)
joist spacing
71⁄16”
(17.9cm)
Ø 8 1
⁄4” (21
cm) duct
2 x 4 cross
framing
Align duct to
center of cooktop
Hood front
Cooktop
outline
Example B
2 x 4 cross
framing
Align duct to
center of cooktop
Hood front
Cooktop
outline
NOTE: Top view ceiling joists
par
allel to front of hood 101⁄16” (25.5 cm)
install cross-
framing
symmetrically
over duct/cooktop
Centerline
Ø 8 1
⁄4” (21
cm) duct
71
⁄16”
(17.9cm)
16”
(40.6 cm)
joist spacing
Example C
NOTE: Top view ceiling joists
par
allel to front of hood
Align duct to
center of cooktop
Hood front Cooktop
outline
2 x 4 cross
framing
Ø 8 1⁄4” (21
cm) duct
71⁄16”
(17.9cm)
16”
(40.6 cm)
joist spacing
101⁄16” (25.5 cm)
install cross-framing
symmetrically over
duct/cooktop
Centerline
Installation InstructionsEnglish | 14 |
Mounting the hood structure
1. Place the template in the ceiling considering the
instructions for ceiling support structures.
NOTE: Always consider the front of hood legend when
playing the template on the ceiling.
2. Mark with a pencil the hole locations for screws and
duct in the ceiling.
3. Install the upper duct cover brackets on one of the
horizontal supports.
4. Fix the the upper horizontal support (the one with the
upper duct cover brackets) with 4 - 5 x 45 mm screws.
5. Install the lower vertical supports to the lower horizontal
support with 8 - 4.2 x 8 mm screws.
B
A
A. Lower horizontal support
B. 8 - 4.2 x 8 mm screws
6. Install the 4 upper vertical supports with 16 - 4.2 x 8 mm
screws.
B
A
A. 4- Upper vertical supports
B. 16 - 4.2 x 8 mm screws
Installation Instructions English | 15 |
7. Install the structure to the horizontal support (previously
attached to the ceiling) with 16 - 4.2 x 8 mm screws.
A
B
B.
A. Upper horizontal support
B. 16 - 4.2x8 mm screws

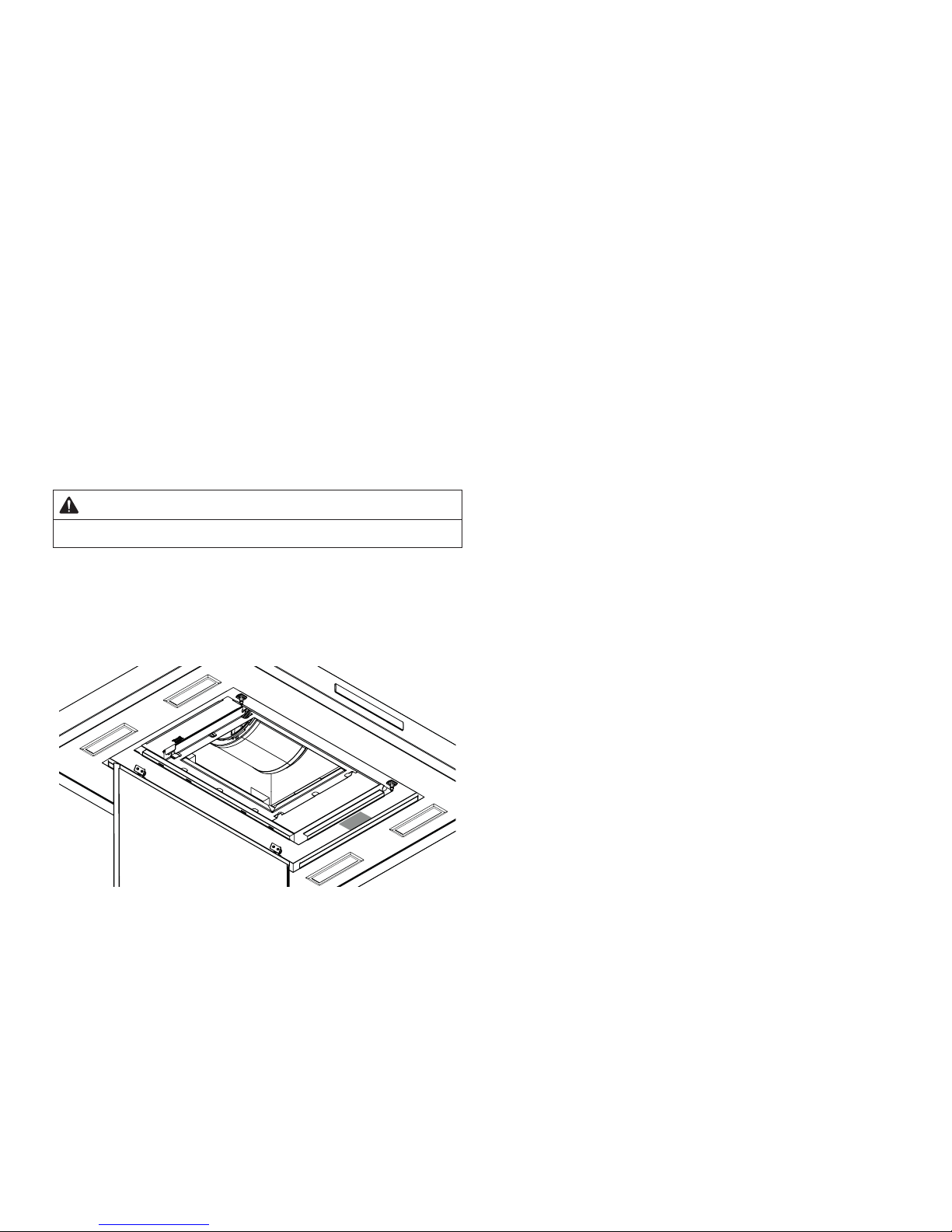

Mounting the blower housing on the
structure
1. Slide the blower housing under the structure.
2. Attach the blower housing to the lower vertical supports
with 2 leveling screws.
3. Secure it with 16 installation screws. See the image
below.
Mounting the upper duct covers
1. Get together the upper duct covers and assembly them.
Slide the edge of the duct cover under the clip
located in the opposite duct cover.
Push them until you hear a click. The bulges on the
edge of the duct covers has to enter in the clip
slots.
Installation InstructionsEnglish | 16 |
2. Slide the upper duct cover assembly at the top of the
structure. Secure the duct cover assembly to the upper
horizontal support with two mounting screws.
Mounting the hood assembly
1. Using 2 or more people, lift the range hood assembly
under the blower housing, and align the installation
holes. Hold the hood assembly using 2 leveling screws.
(See the image).
2. Secure the hood assembly to the structure with 8
installation screws. Remove the 2 leveling screws from
the structure.
3. Untie the drawer connector and extend it to the upper
side of the blower housing.
4. Install the two cable holders into the blower housing.
5. Pass the cable connector under the holders and secure
them.
6. Plug the wire connector assembly supplied with the
blower housing to the mating cable connector from the
hood assembly.
A.
A
BC
Hood assembly connector
B.
Plastic cable holders
C. Cable holder screws
Mounting the lower duct covers
1. Place the lower duct covers over the hood assembly.
2. Assembly the two pieces over the upper duct cover
assembly.
Slide the edge of the duct cover under the clip
located in the opposite duct cover.
Push them until you hear a click. The bulges on the
edge of the duct covers has to enter in the clip
slots.
3. Slide the lower duct cover assembly down to the base of
the hood.
Installation Instructions English | 17 |
Electrical Connection
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Disconnect power.
Remove terminal box cover.
Remove the knockout in the terminal box cover and
install a UL listed or CSA approved 12” strain relief.
Run home power supply cable through strain relief,
into terminal box.
A. Home power supply cable
B. UL listed or CSA approved
strain relief
C. Black wires
D. UL listed wire connectors
E. White wires
F. Green (or bare) and yellow-green
ground wires
A
B
C
D
E
F
Use UL listed wire connectors and connect black wires
(C) together.
Use UL listed wire connectors and connect white wires
(E) together.
WARNING
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal box. Failure to do so can result in death or
electrical shock.
Connect green (or bare) ground wire from home power
supply to yellow-green ground wire (F) in terminal box
using UL listed wire connectors.
Tighten strain relief screw.
Install terminal box cover.
Reconnect power.
Installation InstructionsEnglish | 18 |
Remote Control Installation
(optional)
Before you begin, read these instructions carefully. It is
recommended that the Remote Control be wired to the
hood after the hood is installed.
REMCPW Parts Included
1 – Remote control
1 – 30 ft. extension harness
IMPORTANT: Cutting off a connector to the appliance or
to the extension cable kit will void the warranty.
Remote Control Installation
4. Prepare the wall (or similar surface) cutout for
installation as shown below (view is shown facing wall)
13 58
/"
(346)
258
/"
(65)
inches (mm)
5. Access the hood’s wiring. Route the 30 ft. extension
harness through the strain relief to the square mounting
clip until it clicks.
6. Route the 30 ft extension harness through the cutout
and connect the harness to the back of the remote
control bracket.
7. Press the bracket inside the cutout. Drill a ¼’’ (6 mm)
tap hole through the bracket holes into the wall.
Mount the bracket to the wall using the four (4) screws
provided.
8. Hook up the wire harness connector inside the bracket
to the terminal on the back side of the remote control.
Use either terminal.
9. Snap the Remote Control into the bracket.
Installation Instructions English | 19 |
Duct Cover Extension (optional)
On some models, optional duct covers and telescoping
and ceiling in wall mount installations. Chimney duct cover
hood and ceiling of 8’ (2.4 m) ceilings. Telescoping exten-
sions accommodate 12’ (3.6 m) ceilings.
Model Telescopic
Extension
HMIB36WS CHXTHMIB
HMIB42WS
Telescopic Duct Cover Installation
1. Get together the upper duct covers and assembly them.
Slide the edge of the duct cover under the clip
located in the opposite duct cover.
Push them until you hear a click. The bulges on the
edge of the duct covers has to enter in the clip
slots.
2. Slide the upper duct cover assembly at the top of the
structure. Secure the duct cover assembly to the upper
horizontal support with two mounting screws.
Mounting the hood assembly
1. Using 2 or more people, lift the range hood assembly
under the blower housing, and align the installation
holes. Hold the hood assembly using 2 leveling screws.
(See the image).
2. Secure the hood assembly to the structure with 8
installation screws. Remove the 2 leveling screws from
the structure.
Installation InstructionsEnglish | 20 |
3. Plug the wire connector assembly supplied with the
blower housing to the mating cable connector from the
range hood.
A.
A
BC
Hood assembly connector
B. Plastic cable holders
C. Cable holder screws
Mounting the lower duct covers
1. Place the lower duct covers over the hood assembly.
2. Assembly the two pieces over the upper duct cover
assembly.
Slide the edge of the duct cover under the clip
located in the opposite duct cover.
Push them until you hear a click. The bulges on the
edge of the duct covers has to enter in the clip
slots.
3. Slide the lower duct cover assembly down to the base of
the hood.
Recirculating Kit (optional)
When used in recirculation mode, To Reduce the Risk of
Fire and Shock use only conversion kit Model RECHMIB.
If it is not possible to vent cooking fumes and vapors to
the outside, the hood can be used in the non-vented
(recirculating) version, using the recirculating kit .
Fumes and vapors are recycled through the grid.
See optional accessories section.
1.
support with 2 assembly screws pèr side.
2. Measure length of 8” (20.3 cm) vent needed to connect
NOTE: Flexible Vent may needed.
minimum.
3.
NOTE: To make vent installation easier, temporarily
and replace after vent section is in place.
4. Seal all connections with vent clamps.
This manual suits for next models
1
Table of contents
Other Thermador Ventilation Hood manuals
Thermador
Thermador UNIVERSAL COOK'N'VENT CVS30R User manual
Thermador
Thermador HPIB42HS User manual
Thermador
Thermador An American Icon PH30ZS Guide
Thermador
Thermador VTR630D User manual
Thermador
Thermador HMCN36FS User manual
Thermador
Thermador HPWB30 User manual
Thermador
Thermador HMWN30 User manual
Thermador
Thermador HMWB30 User manual
Thermador
Thermador VTN420B User manual
Thermador
Thermador HS Series User manual
Thermador
Thermador PROFESSIONAL PH30HS User manual
Thermador
Thermador UCVM Series User manual
Thermador
Thermador HMCB36FS User manual
Thermador
Thermador CHMHP366W User manual
Thermador
Thermador Ventilation User manual
Thermador
Thermador Professional PH Series User manual
Thermador
Thermador VTI1010D User manual
Thermador
Thermador UNIVERSAL COOK'N'VENT CVS30R Guide
Thermador
Thermador HMWN30 User manual
Thermador
Thermador Ventilation User manual
Popular Ventilation Hood manuals by other brands
KitchenAid
KitchenAid KVIB606DSS0 Installation Instructions and Use & Care Guide
Gorenje
Gorenje OK-002/II /BHP623E10X manual
Multikomplex
Multikomplex S-DD11-L Installation, Use and Maintenance Instruction
Trade-wind
Trade-wind VSL430-BF Installation instructions & use & care guide
Viali
Viali V3FC60SS instruction manual
Kuppersbusch
Kuppersbusch EDD 9660.0 Service manual
Siemens
Siemens LC47650 Operating and installation instructions
Amana
Amana UXT5530AAS installation manual
Electrolux
Electrolux EFI 60011 user manual
Drija
Drija PRISMA 76 Professionale user manual
Electrolux
Electrolux REHR6 Series Operation guide & installation manual
Gorenje
Gorenje DC 9645 X Installation, maintenance and usage
