Thermal Technology TYROOL V Instruction Manual

ELECTRIC RADIATORS
User and maintenance instructions
TYROOL V
CLAYSTEEL L
CLAYSTEEL S
FLEXY
SLIMMY

Congratulations!
You are now the owner of the electric radiator made by Thermal
Technology®.
Thermal Technology® electric radiators, distinguished by leading technology
for a low power need, have a modern design combining particular electric
properties of the carbon fiber and natural ceramics.
The following user and maintenance instructions have the aim to help You
with correct radiator installation and maintenance, so we ask You to read it
carefully and contact the assistance centre,if necessary.
ATTENTION
Do not lose product identification code, in case you will need assistance, it
will be requested by our assistance centre.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

CONTENT
1. Premises ............................................................................... 4
2. Product identification ............................................................... 4
3. Package content...................................................................... 7
4. Safety cautions ....................................................................... 7
4.1 Installation cautions................................................................ 7
4.2 User cautions .......................................................................14
5. User instructions ....................................................................15
6. Maintenance and cleaning .........................................................21
7. Product recycling ...................................................................21
8. Warning...............................................................................19
9. Conformity ...........................................................................22
10. Warranty ............................................................................23
11. Technical service ......................................................................... 24
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

4
1. Premises
2. The present user and maintenance instructions for Thermal Technology®
radiator is a basic instrument for its correct utilization. Keep it in a dry
and protected place for future reference.
2. Product identification
MODEL
Electric radiator by
Thermal Technology®
TYROOL V
FLEXY8
FLEXY5
FLEXY3
SLIMMY
CLAYSTEEL L
CLAYSTEEL S
Height (cm/in)
171/67.32
160/62.99
100/39.37
60/23.62
160/62.99
170,3/67.05
121,2/47.72
Lenght (cm/in)
58/22.83
50/19.68
50/19.68
50/19.68
50/19,68
61,2/24.09
61,2/24.09
Thickness (cm/in)
12/4.72
7/2.76
7/2.76
7/2.76
6/2.36
10,2/4.02
10,2/4.02
Weight (kg/lb)
76/167.55
56/123.46
35/77.16
21/46.30
43/94.80
61/134.48
40/88.18
Power supply
230V 50 Hz
Maximal power W
1200
490
350
150
490
700
450
Minimal power W
600
-
-
-
-
350
225
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

5
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

6
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

7
3. Package content
The package contains:
•Radiator by Thermal Technology®, including power cable of 1,8 m/70.87
in, 1 pc.
•Wall fixing bracket for radiator, 1 pc.
•Electric power cord of 0,5 m/19.68 in (optional), 1 pc.
•User manual (this document), 1 pc.
4. Safety cautions
In this paragraph,you will find rules to be respected for a safety use of your
Thermal Technology® radiator.
4.1 Installation cautions
Before starting the installation of your radiator, perform the following
verifications, respecting the sequence:
1. Package content must correspond with component list mentioned in
paragraph 3 of this instruction manual;
2. Verify that the package content, which should not to be damaged
during transportation.
3. The voltage of your installation must be the same indicated on the
plate with radiator’s technical features.
4. Your electric installation must be adapted to the electric power
indicated on the plate.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

8
5. If you intend to use several radiators, make sure your electric
installation is adapted to the total power of the devices (device’s
nominal power sum).

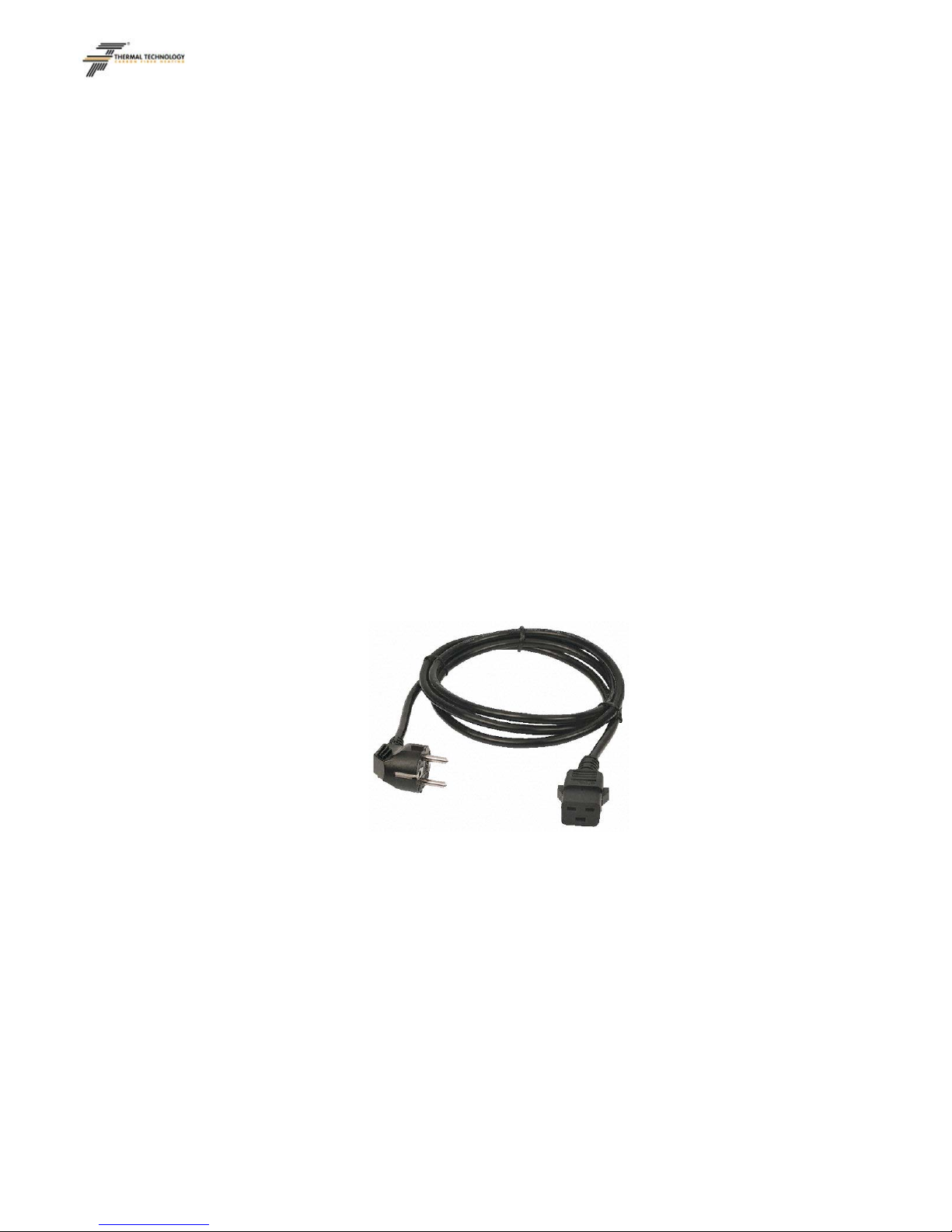

6. POWER CABLE CONNECTION. If the radiator is the model with cable
separately, take the power supply cable from the electric kit and
connect it to the radiator, first, and then, when the installation of
the radiator is completed, insert it into an electric outlet (you have
two cables on your disposition: one of 1,8 m/70.87 in, and another of
0,5 m/19.68 in);
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

9

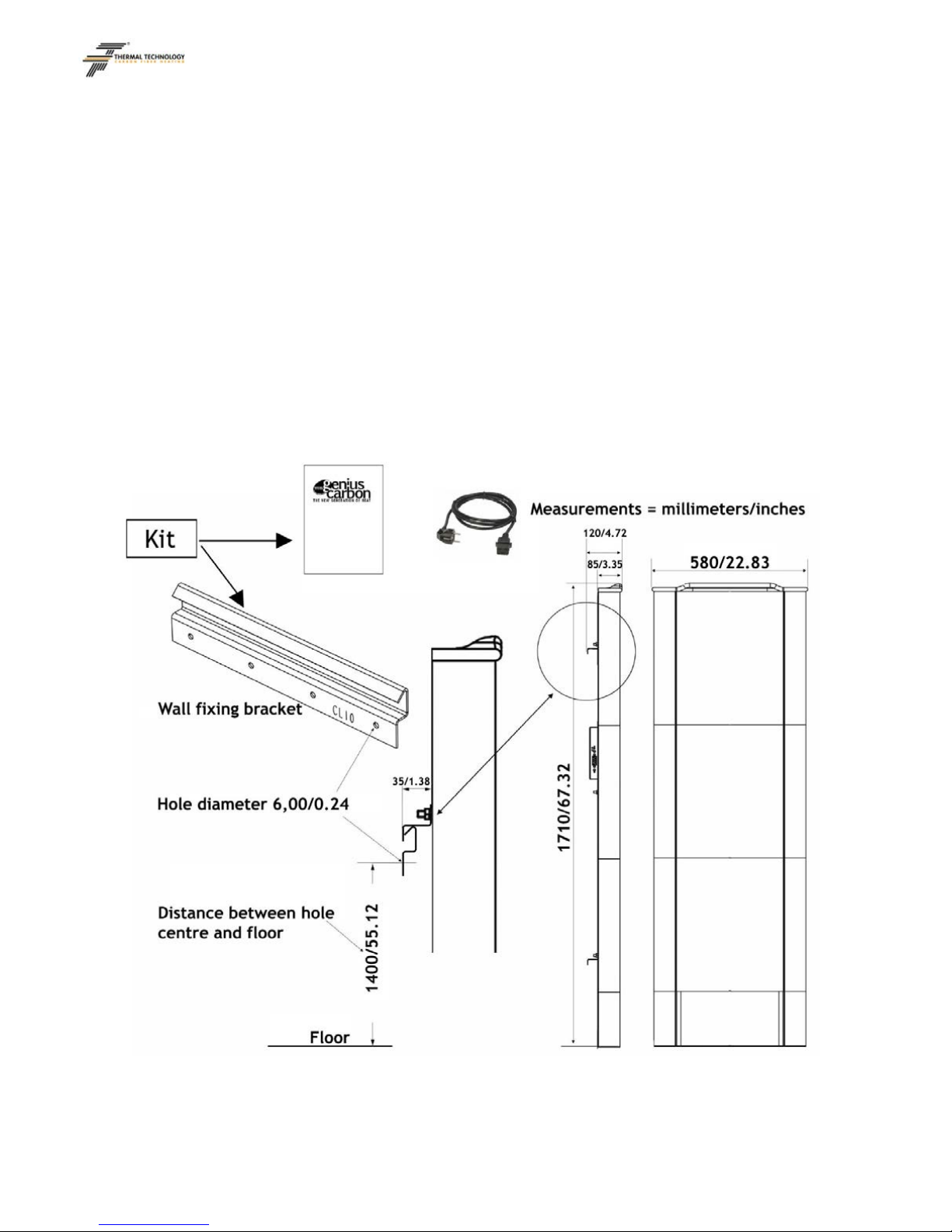

TYROOL V RADIATOR INSTALLATION EXAMPLE
Open the package and make sure there are electric connection kit, wall
fixing bracket, 1 pc, instruction and maintenance manual, and the radiator;
choose the place for installation, verify the supporting wall, attention, the
radiator must not be installed directly under electric outlet; also, make sure
that after installation of the radiator, the plug and the outlet are easy to
access.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

10
CLAYSTEEL L RADIATOR INSTALLATION EXAMPLE
Open the package and make sure there are electric connection kit, wall
fixing bracket, 1 pc, instruction and maintenance manual, and the radiator.
Choose the place for installation, verify the supporting wall, attention, the
radiator must not be installed directly under electric outlet; also, make sure
that after installation of the radiator, the plug and the outlet are easy to
access.
Kit
elettrico
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

11
Fix the bracket on the wall:
1. Lift up the radiator;
2. Fit the radiator to the superior bracket;
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

12
3. Check if the radiator holder has been inserted
correctly inside the wall fixed bracket;
4. Check the correct alignment;
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

13
5. Turn on the radiator using the switch on the back, and,
for the model with controller, the display on the side;
6. Make the necessary setting on the display, as you wish.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

14
ATTENTION
Thermal Technology® radiators produce heat, so take into consideration also
this feature when choosing its installation point, in particular, make sure that
flammable materials are far from radiator. Do not use it in immediate
proximity of the bathtub, shower or pull. Do not use this radiator if ceramic
tiles are damaged.
4.2 User cautions
Thermal Technology® radiators are electric devices, therefore, they must not
have contact with water. In order to avoid device overheating, do not cover
it with material, cloths, etc.: do not use it for laundry dry! For this purpose it
has been applied a warning sign, such as this, which should not be ever
removed from the radiator:
Do not lean the power cable on radiator f it is steel hot. If you find any
damages of the power cable, contact immediately the specialized assistance
center, for its substitution, and do not use the radiator until the cable is
replaced. The device must not be used by persons (included children) with
physical, sensorial and mental reduced capacities, or with no knowledge or
experience, unless they have been given supervision or instruction concerning
use of the device from a person responsible for their safety.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

15
5. User instructions
Model with Electronic controller
Insert the plug into the electric outlet and activate the device.

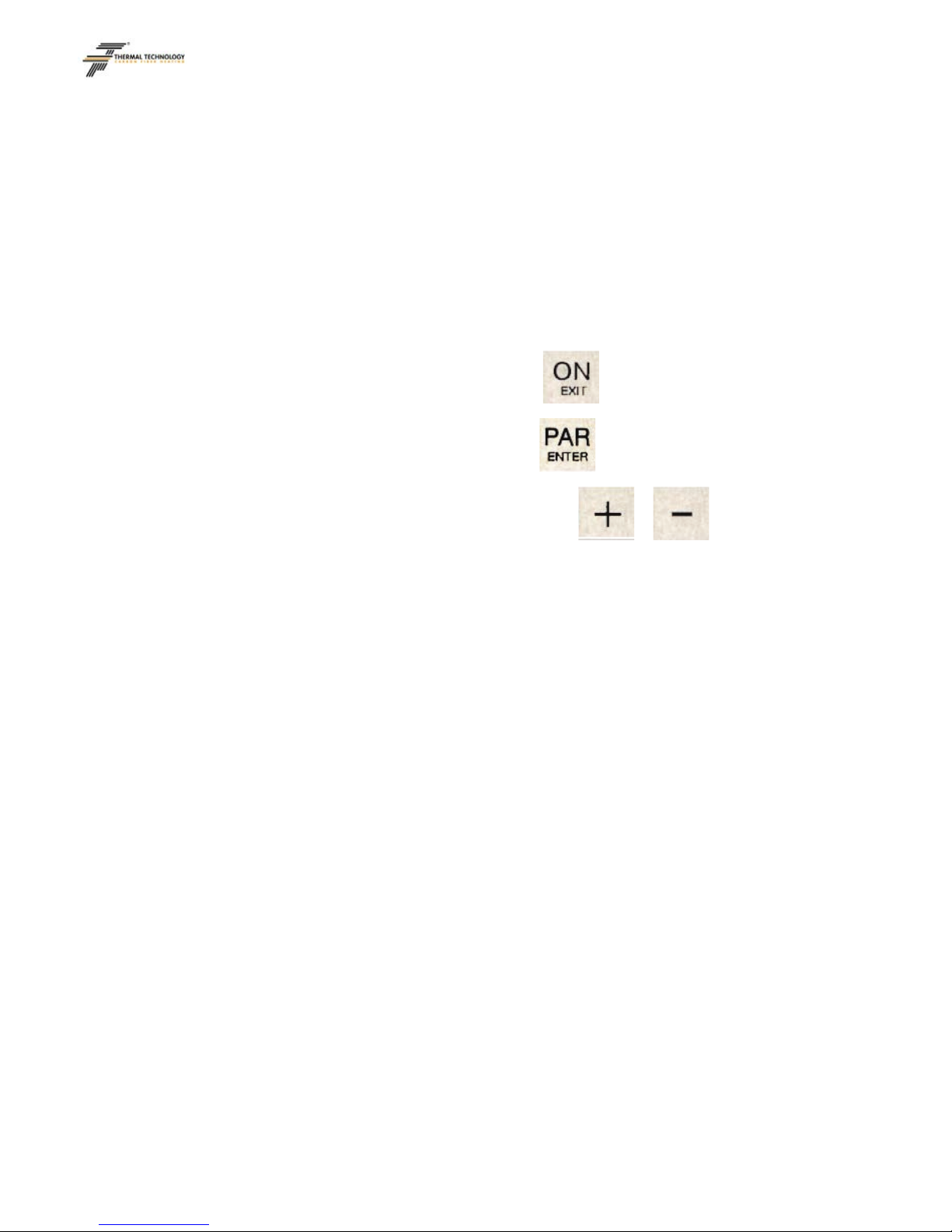

Control unit is equipped with:
!4 buttons:
ON turns ON/OFF the radiator, manually
PAR access to the different parameters
+/- menu navigation and changing the values
!Four digit display
!Signalisation Led
oLighting permanently reports heating in full regime
oFlashing (1 sec on 1 sec off) reports heating attenuation
oFlashing (1 sec on 2 sec off) means heat deactivated or radiant plate is
hot
oLed is off means heating is not active because the radiator is turned off,
or it reached the desired temperature.
During normal operation, the display shows, cyclically:
12:06 current time
17°C ambiance temperature
ON / OFF current status ( Activated/Deactivated )
S. 19°C setpoint temperature (visible if the radiator is turned On)
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

16

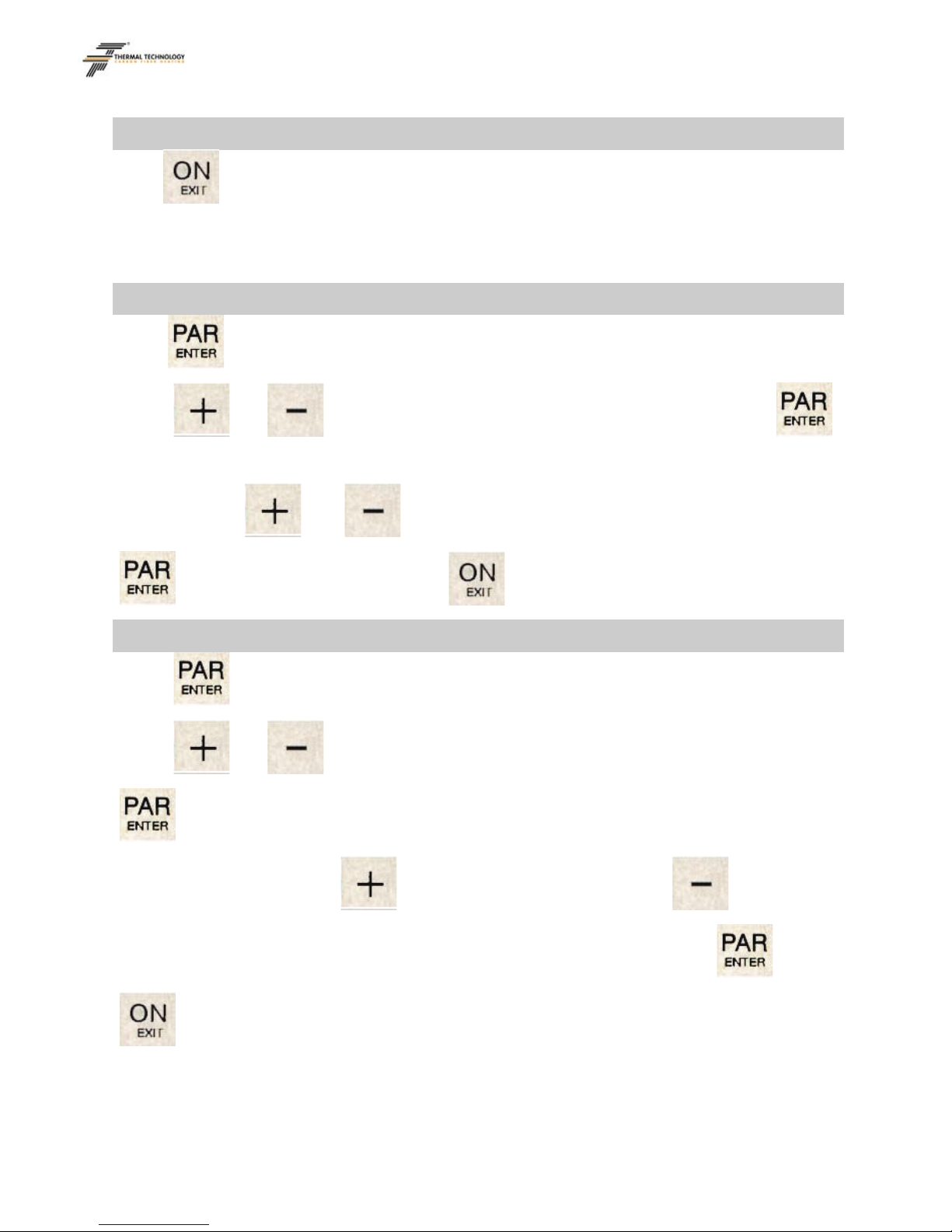

RADIATOR ON/OFF:
Hold key pressed for a few seconds, if the radiator is off, it will turn on and
the control panel will indicate ON, if the radiator is on, it will turn off, and the
display will indicate OFF.
TEMPERATURE SETTING:
Press key, the display will indicate PAR, then
press or buttons, until the warding TEMP is displayed, press
to enter temperature parameters settings, then the display will indicate S. 19°C
flashing, press or keys to set the desired temperature and the
key for confirmation, and the key for exit.
TIME SETTING:
Press key, the display will indicate the warding PAR,
Press or keys, until the display will indicate the warding OROL, press
key to temperature parameters settings, the display will indicate an hour, for
ex.: 14:55 flashing, press key for hour modification, and key for
minutes setting. Once finished the setting, press the confirmation key or
key for exist, without confirmation the modification.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

17
CLOCK TIMER SETTING:
The controller allows setting of maximum 2 operating intervals, for each of them it is
possible to choose the desired temperature.
Press key, the display will show PAR,
press or key, until the display will show the wording CRONO, press
key to enter.
By pressing and keys, the display will indicate:
ON 1 setting switch on time for interval 1
TMP 1 setting the desired temperature for interval 1
OFF 1 setting switch off time for interval 1
ON 2 setting switch on time for interval 2
TMP 2 1setting the desired temperature for interval 2
OFF 2 setting switch off time for interval 2
Press key for parameter access and its setting.
To remove an operation interval, modify the hour until the display will indicate -- :--
flashing.
key
or
and
key for
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

18
EXAPLE:
Setting interval 1, starting at 06:00 and finishing at 08:15 with a set point
temperature of 20°C.
Press key, and then the buttons or until the display will
indicate the wording CRONO.
Press again key. The display will indicate the wording ON 1, press key.
The display will indicate -- :-- flashing or the activation time set before. By pressing
and keys, set the activation time until you see 06:00, then press
key, the display will indicate TMP 1, press the button , the display will
indicate S. 19°C flashing.
Using and key, set the temperature S. 20°C, then press key.
The display will indicate the wording OFF 1, press key.
The display shows -- :-- flashing or activation hour set before.
Using and keys, set the activation hour 08:15, and press
key. The display will show the warding ON 2 press the button for exit.
key
and
and
button for exit.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

19
INTERVAL DEACTIVATION
Press key. Using the buttons or until the display shows
wording CRONO, then press key. The display will show the warding ON 1,
press key. The display will indicate the activation hour set before, press
key, for hour modification until the display indicates -- :-- , press key
for confirmation, then key, for exit.
Model with wireless thermostat
Insert the plug into an electric outlet and power on the radiator.
For wireless thermostat operation, follow the instructions of the attached manual:
key
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]

20

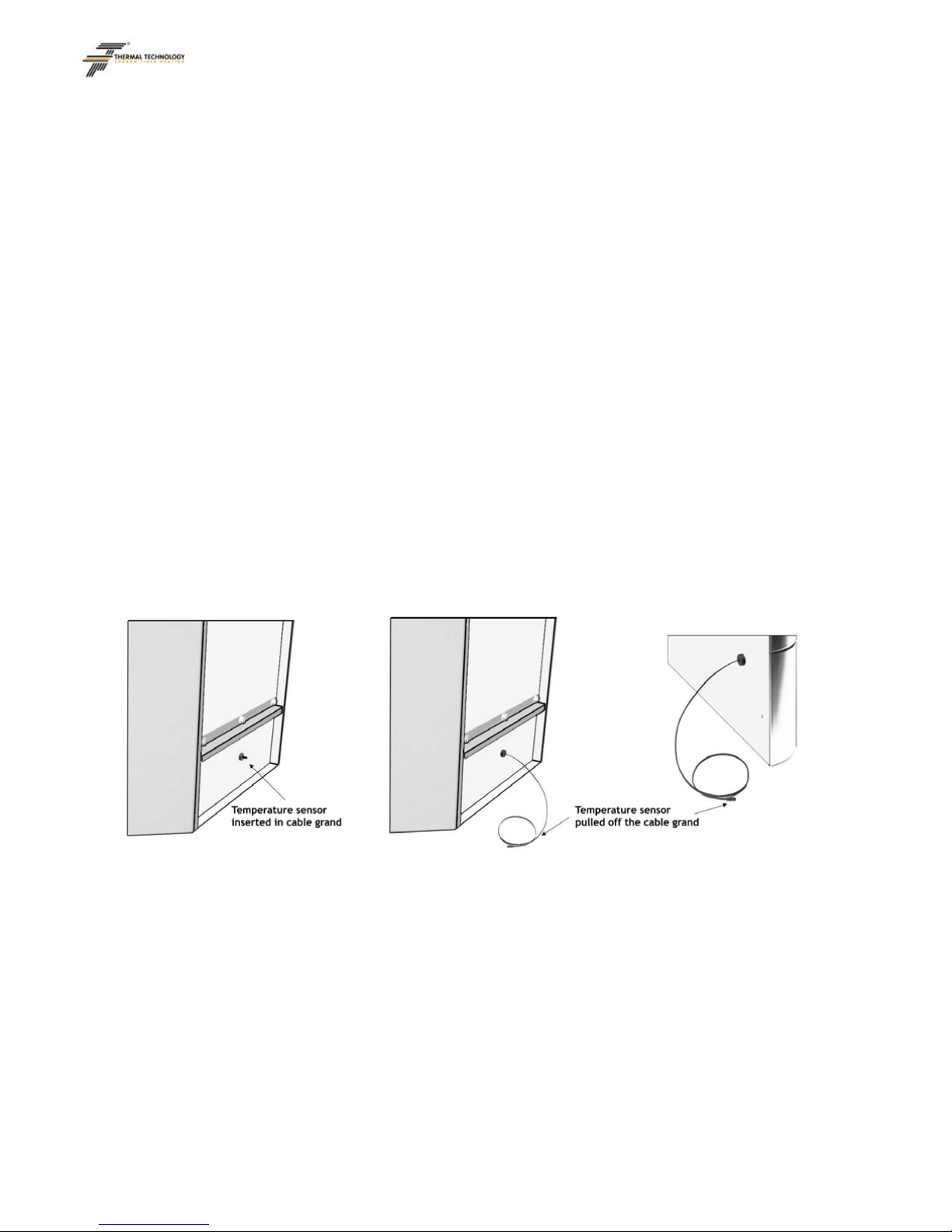

Sensor for ambiance temperature
Several models are equipped with temperature sensor located on the rear
side, downwards. In order to have a more precisely temperature
measurement, it is possible to remove the sensor from cable grand and bring
it at a distance of 2,00 m/78.74 in far from the radiator heat source. It is
also possible to repeat the operation inversely, by pushing the cable back
inside the cable grand until reaching the original position.
Thermal Technology powered by Carbon Fiber Heating SRL - 417075, Borș, Parc Industrial Borș, Nr. 1C, jud. Bihor, Romania
Phone: + 39 0423 858589 - www.thermaltt.com - [email protected]
